- Adjustable CFM blower
- Four-speed fan control
- LED backlit glass touch control
- Perimeter venting
- WiFi powered by SmartHQ™
- 10-ft. ceiling height
- Triple LED dimmable lighting (bulbs included)
- Convertible venting options
- Remote control included
- Timer and clock
- Chef Connect
Adjustable CFM blower
High powered 610 CFM blower is downward adjustable to either 380 or 290 maximum CFM to accommodate different installation needs

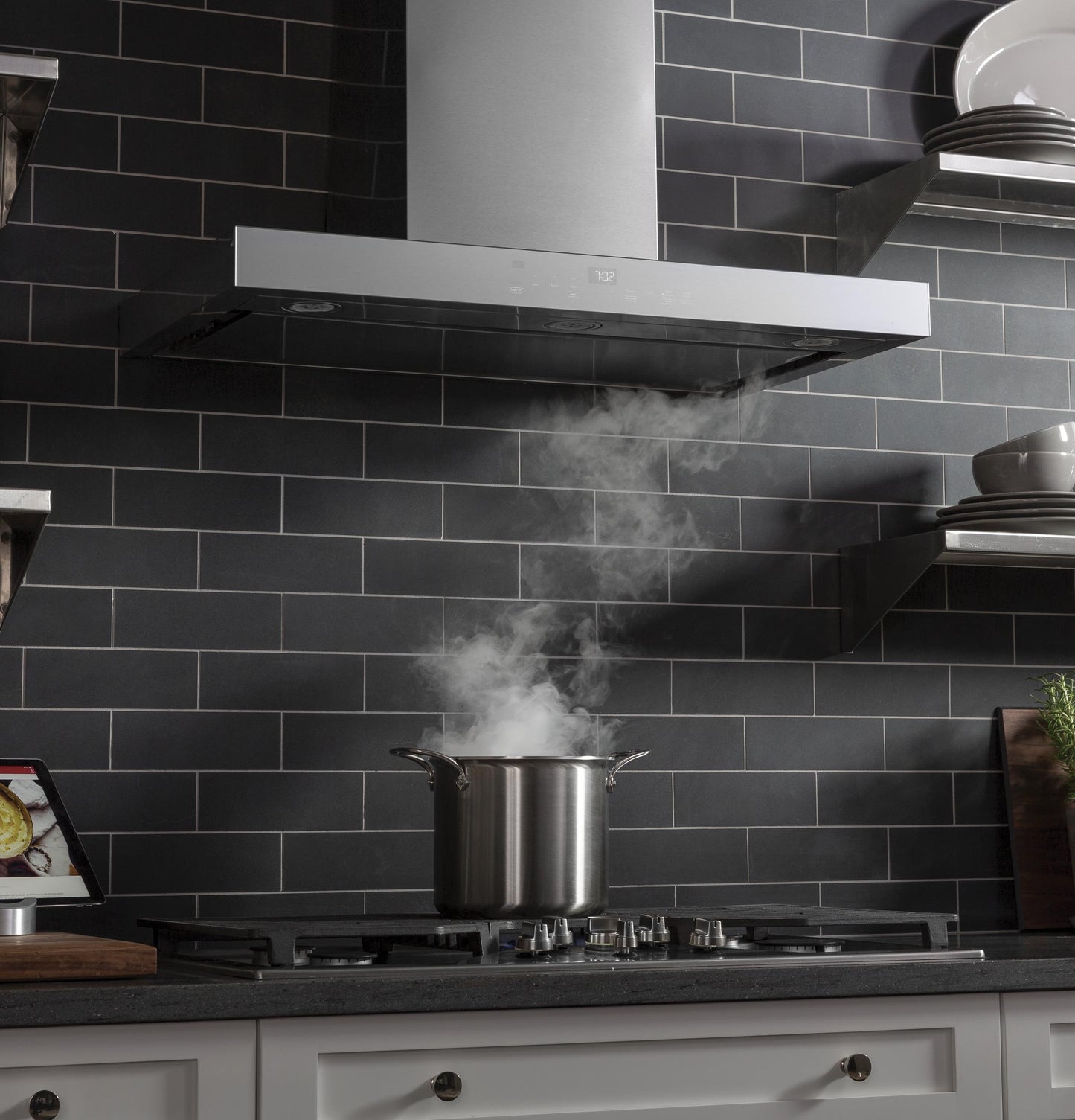

Four-speed fan control
Helps draw smoke, grease, odors and moisture out of the kitchen air

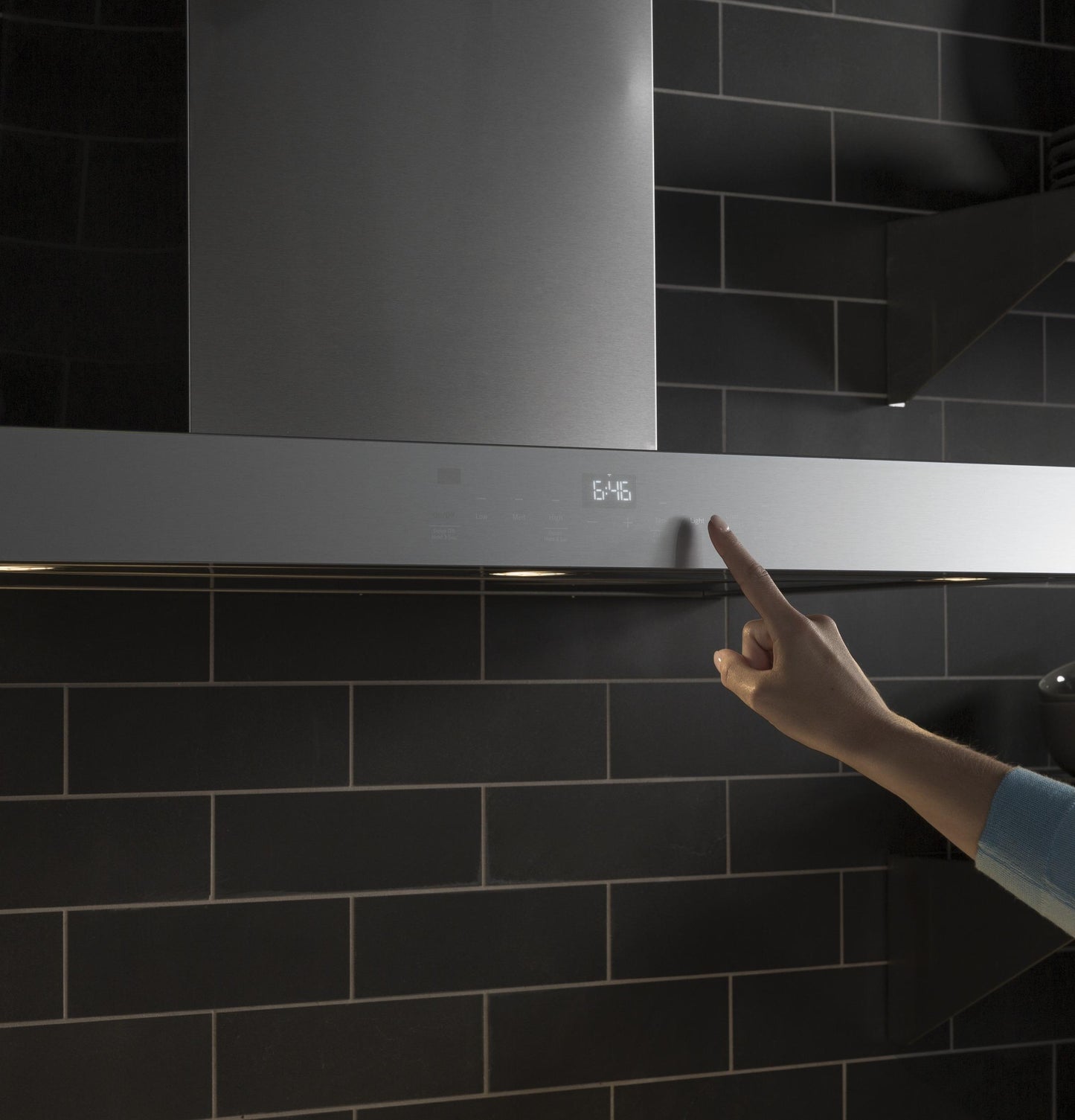

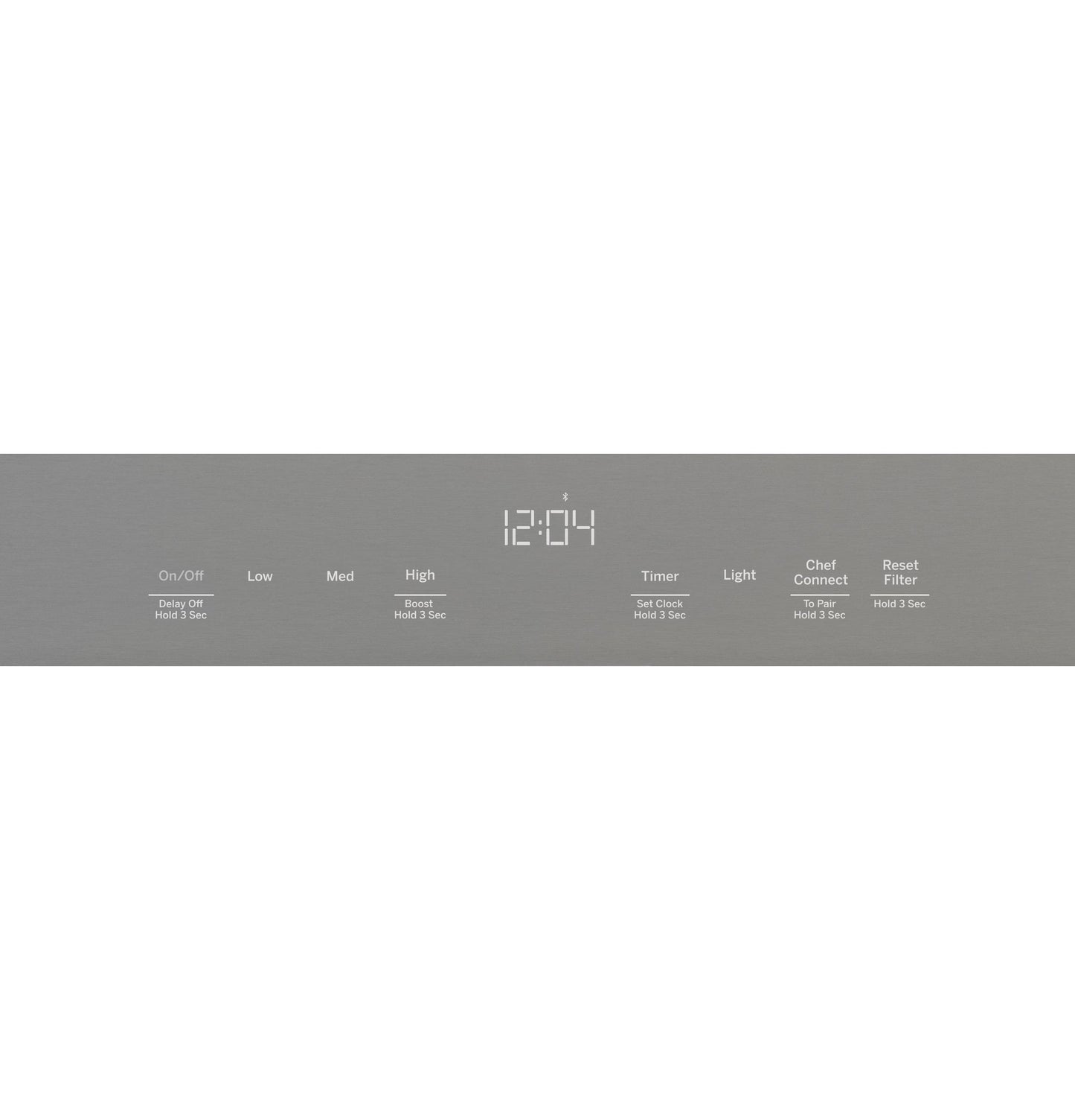

LED backlit glass touch control
Attractive controls are easy to read and instantly wipe clean

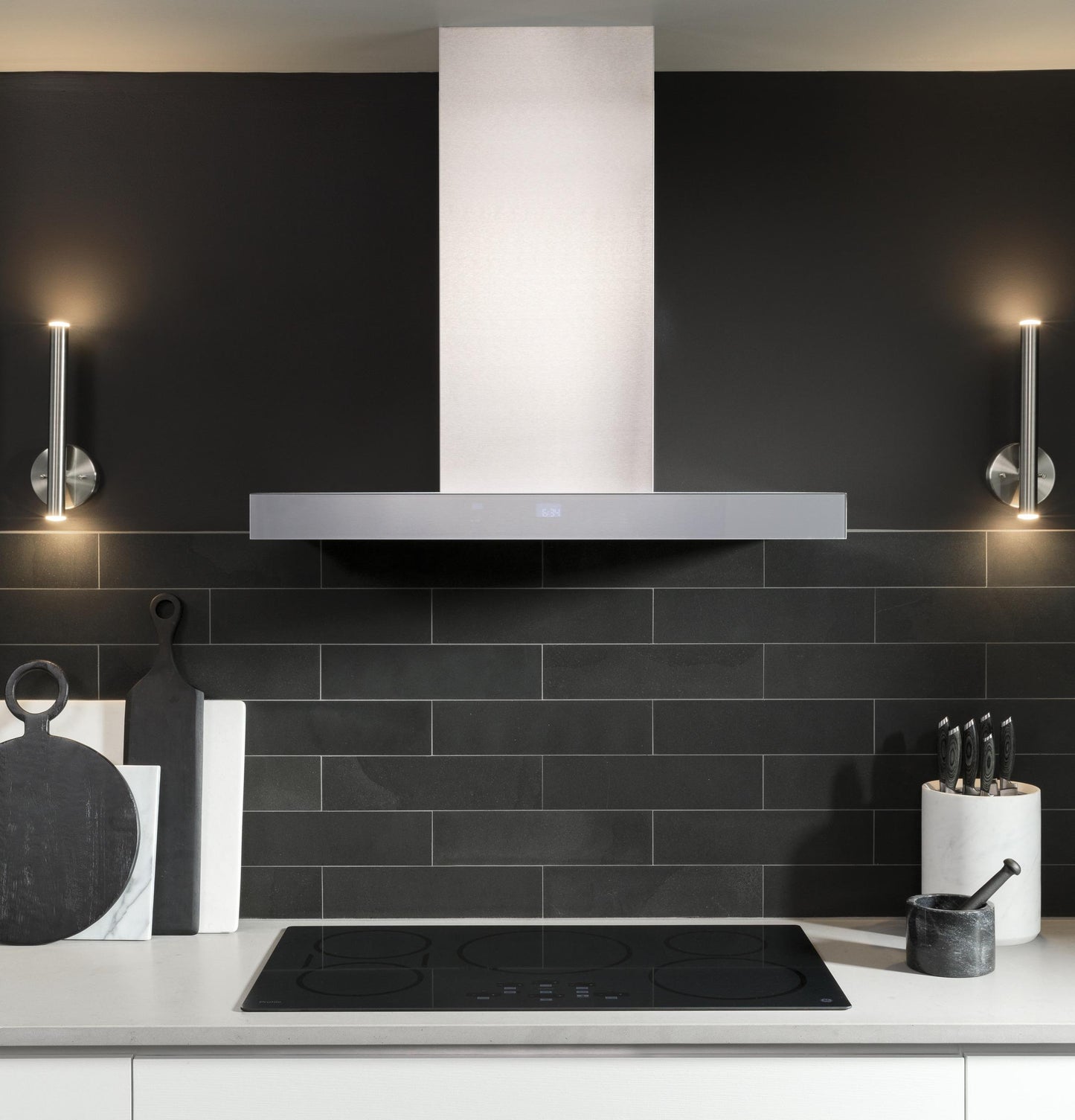

Perimeter venting
Provides a clean, modern design that makes a statement of style in any kitchen.
WiFi powered by SmartHQ™
Control appliances with a smart device or just the sound of your voice
10-ft. ceiling height
Included duct cover extensions reach up to 10' ceilings and work with optional accessories to reach up to 14' ceilings

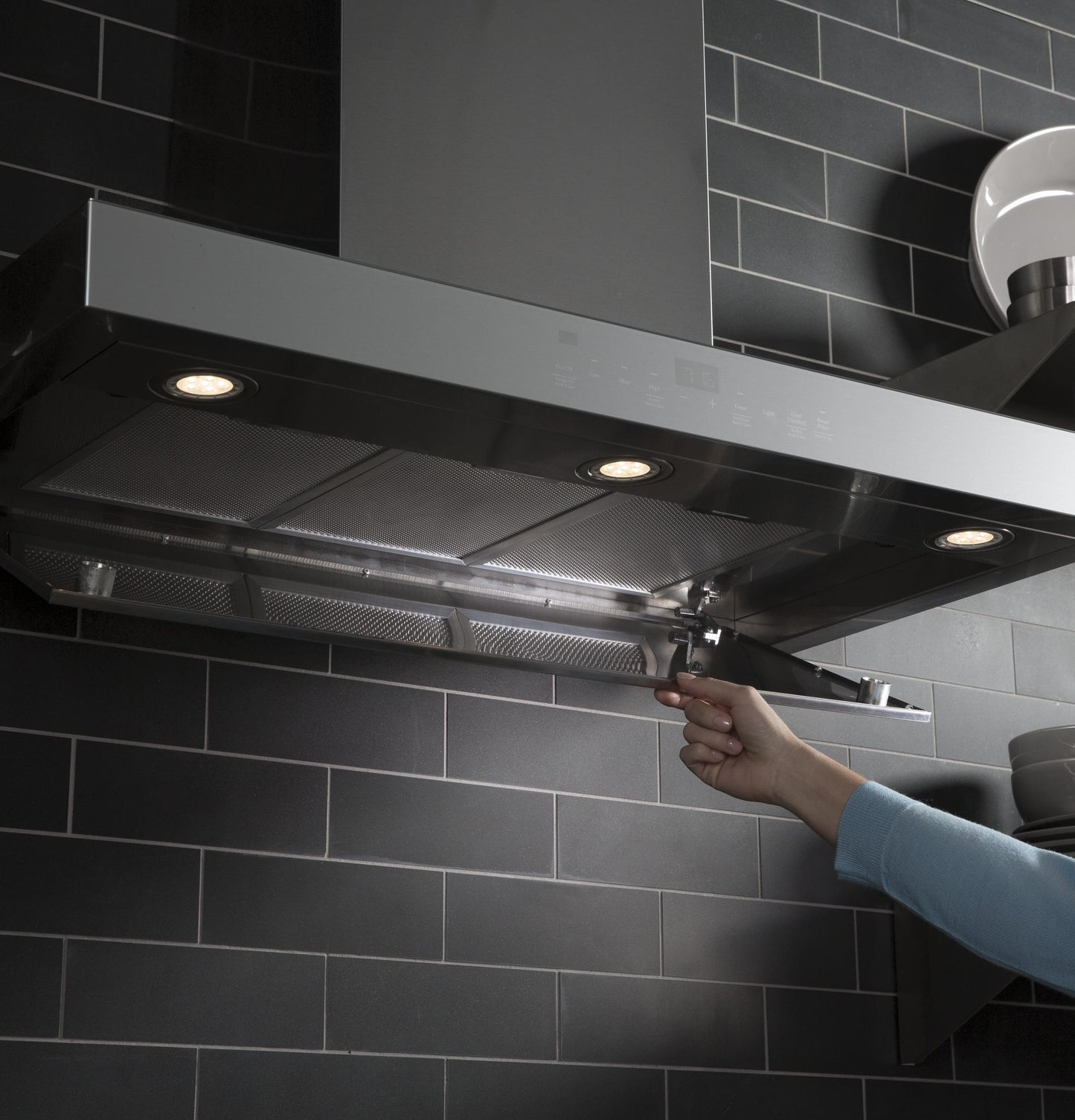

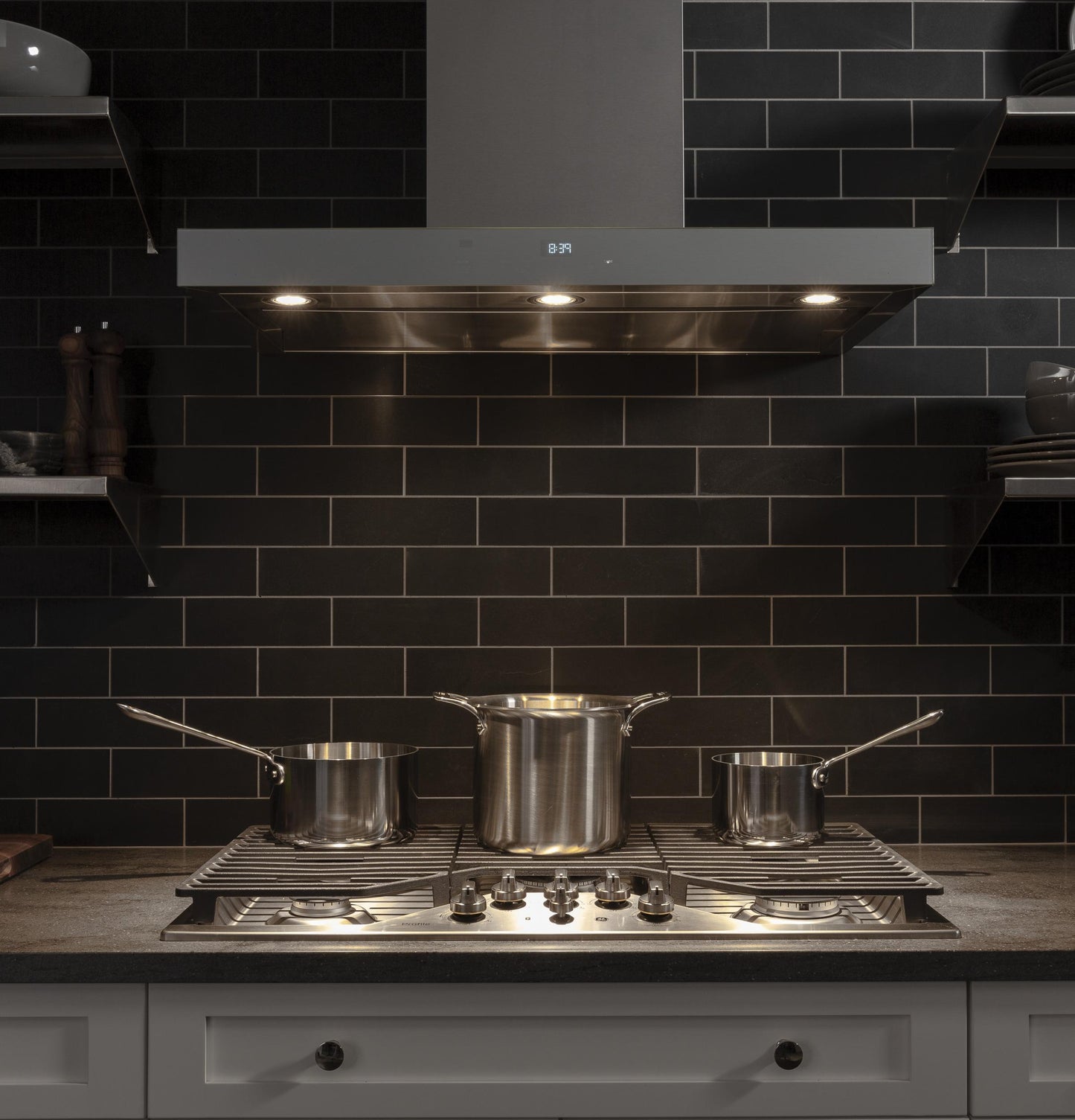

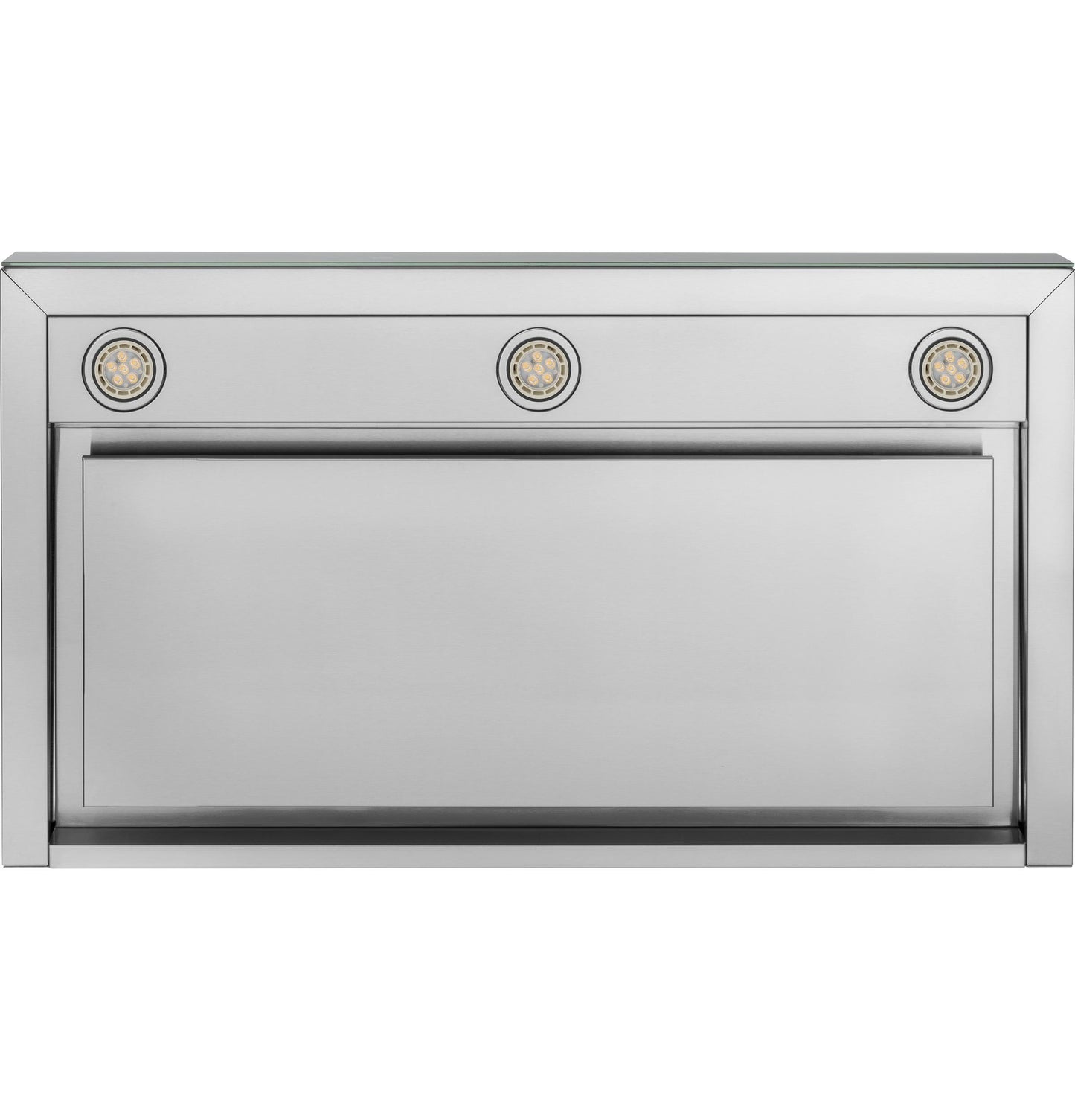

Triple LED dimmable lighting (bulbs included)
LED modules ensure bright lighting for the entire cooking environment
Convertible venting options
Select recirculating or external venting
Remote control included
Activate and adjust your hood functions from anywhere in the kitchen

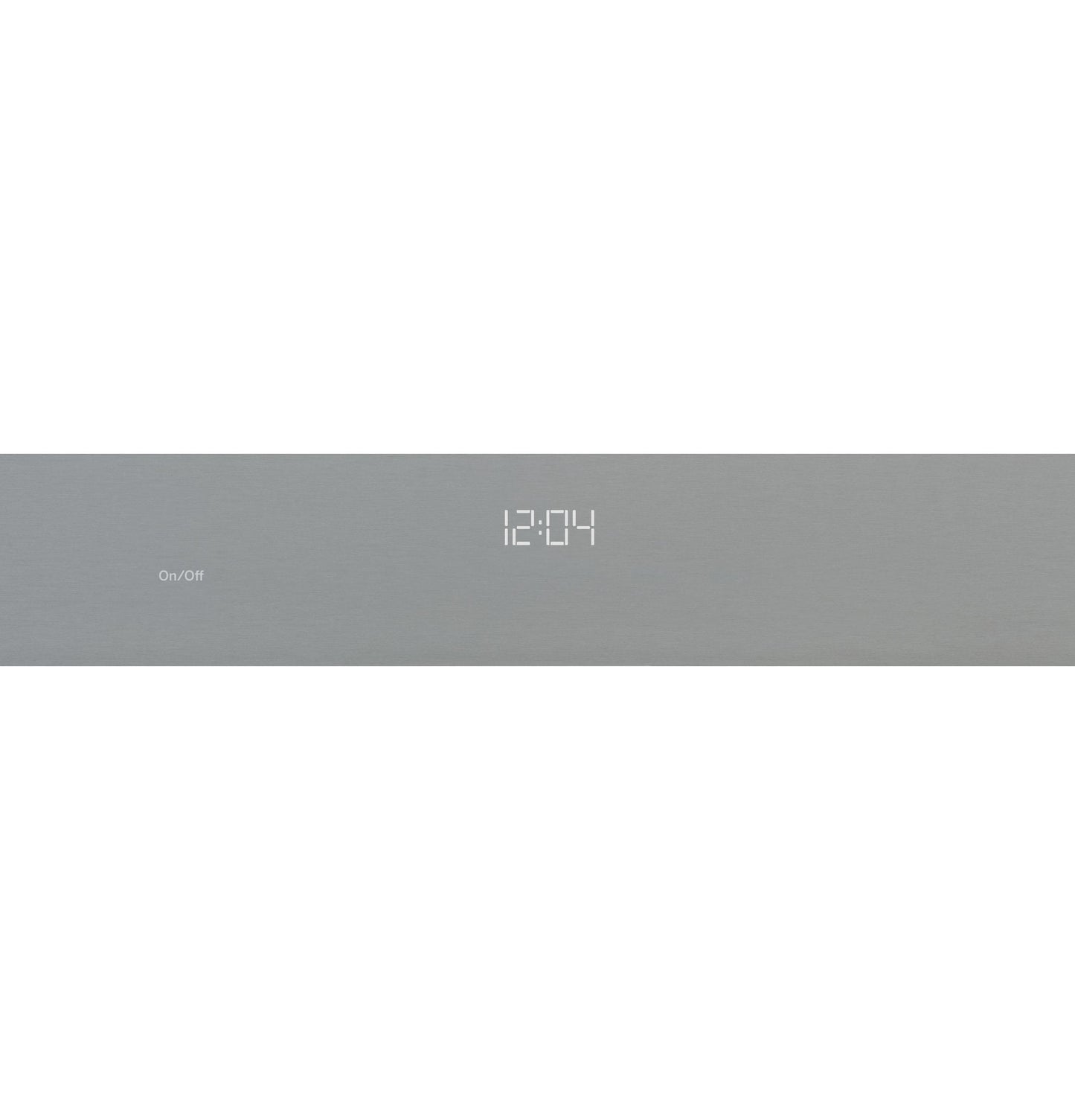

Timer and clock
Enjoy the convenience of a bright display at the ideal height
Chef Connect
Automatically control the hood's lights and fan by syncing with the range
High powered 610 CFM blower is downward adjustable to either 380 or 290 maximum CFM to accommodate different installation needs
Four-speed fan control
Helps draw smoke, grease, odors and moisture out of the kitchen air
LED backlit glass touch control
Attractive controls are easy to read and instantly wipe clean
Perimeter venting
Provides a clean, modern design that makes a statement of style in any kitchen.
WiFi powered by SmartHQ™
Control appliances with a smart device or just the sound of your voice
10-ft. ceiling height
Included duct cover extensions reach up to 10' ceilings and work with optional accessories to reach up to 14' ceilings
Triple LED dimmable lighting (bulbs included)
LED modules ensure bright lighting for the entire cooking environment
Convertible venting options
Select recirculating or external venting
Remote control included
Activate and adjust your hood functions from anywhere in the kitchen
Timer and clock
Enjoy the convenience of a bright display at the ideal height
Chef Connect
Automatically control the hood's lights and fan by syncing with the range
FILTER | |
App Filter-Multi Brand | Cafe GE Monogram |
App Filter - Hood Type | Designer (includes "canopy" and "chimney") |
App Filter - Venting Type | Convertible |
App Filter - Cabinet Width | Vent 36 in. |
APPEARANCE | |
Blower / Light Switch Color | Backlit |
Material | Steel |
Color Appearance | Stainless Steel |
POWER / RATINGS | |
Watts | 335 |
Hertz | 60 |
Electrical Requirements | 120V ; 60Hz ; 5.3A |
Amp Rating at 120V | 5.3 |
WARRANTY | |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
ECONOMICAL / QUIET | |
Venting Type | Convertible |
ACCESSORIES | |
Optional Accessories | JXHC1 - Power Cord Kit UX12DC9SLSS - 12' High Ceiling Duct Cover Kit UX14DC9SLSS - 14' High Ceiling Duct Cover Kit |
WEIGHTS & DIMENSIONS | |
Cabinet Width | 36 in |
Net Weight | 75 lb |
Overall Depth | 20 in |
Approximate Shipping Weight | 85 lb |
Overall Height | 24 in |
Overall Width | 36 in |
FEATURES | |
WiFi Connect | Built-In |
Cooktop Lighting | 3 LED |
Fan Speed Control | 4-Speed |
Max CFM | 450 |
Required Duct Size | 8" Round |
Ducting | Vertical Exhaust Port Only |
Light Controls | On/Off/Night |

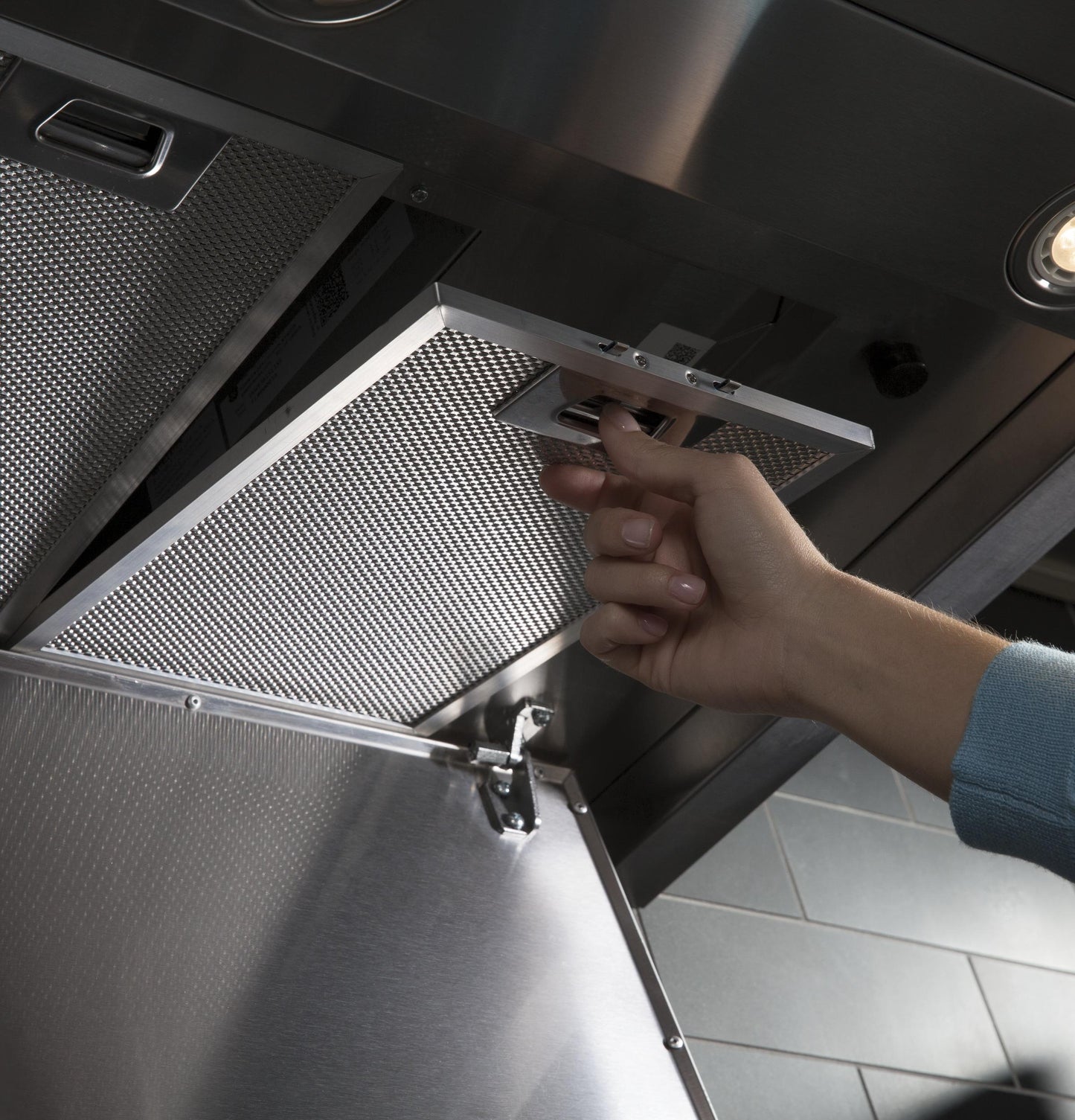

Filter Cleaning | Dishwasher Safe |
CFM/ Sones Rating | 450/8.0 (Boost Speed) - Vertical venting |
Time Delay Shut-Off | Yes |
Exhaust Options | Recirculating Vented to Outside |
8" Round Duct | Yes |

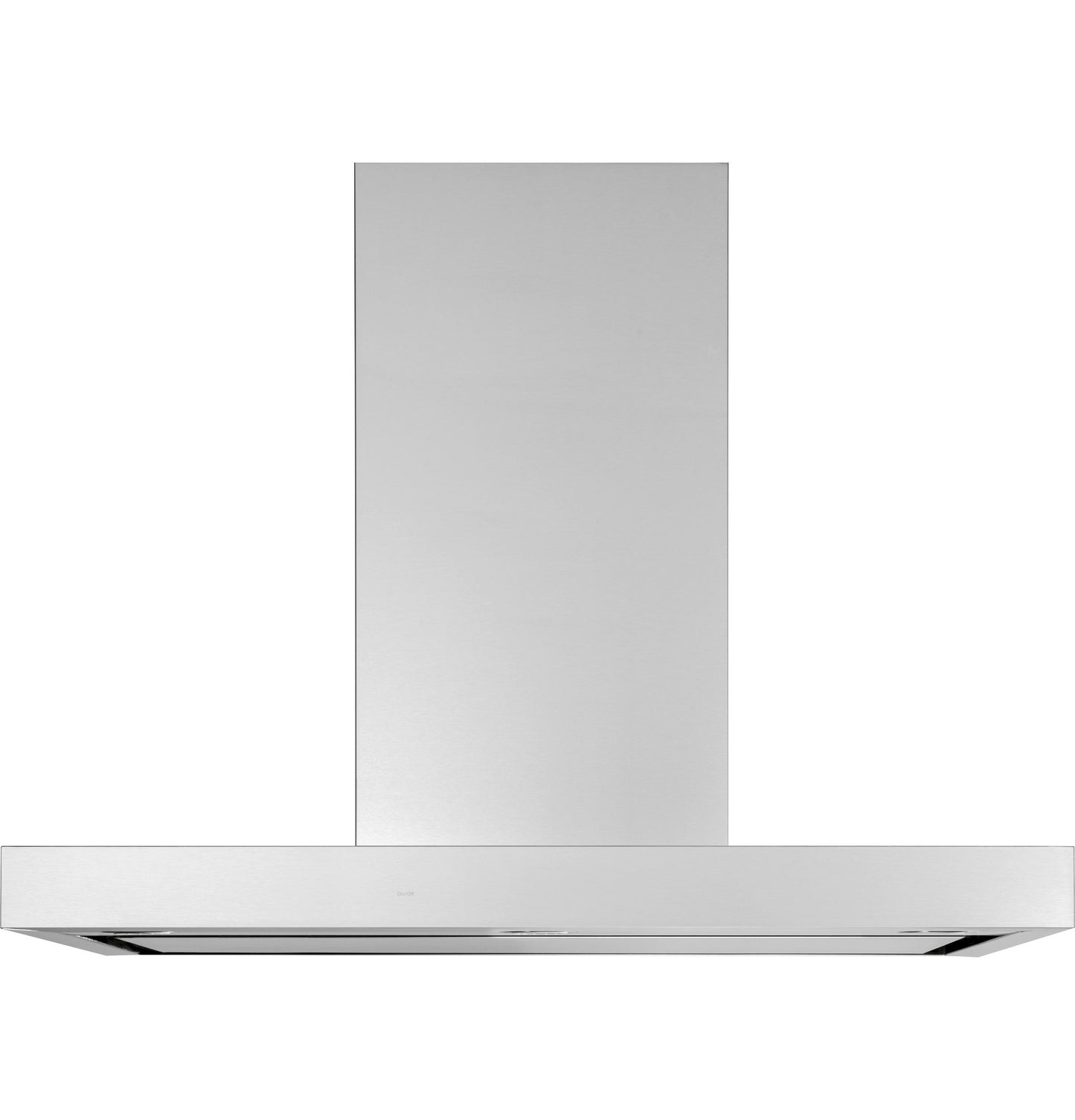

Product Type | Designer Hood |
Remote Control | Included |
Control Type | Electronic Touch |
Connected Capabilities | Amazon Alexa Google Home |
Removable Filter | Grease & Charcoal included |
Control Location | Front |
Charcoal Filter | UXCF91 |
Recirculating Capable | Yes |
