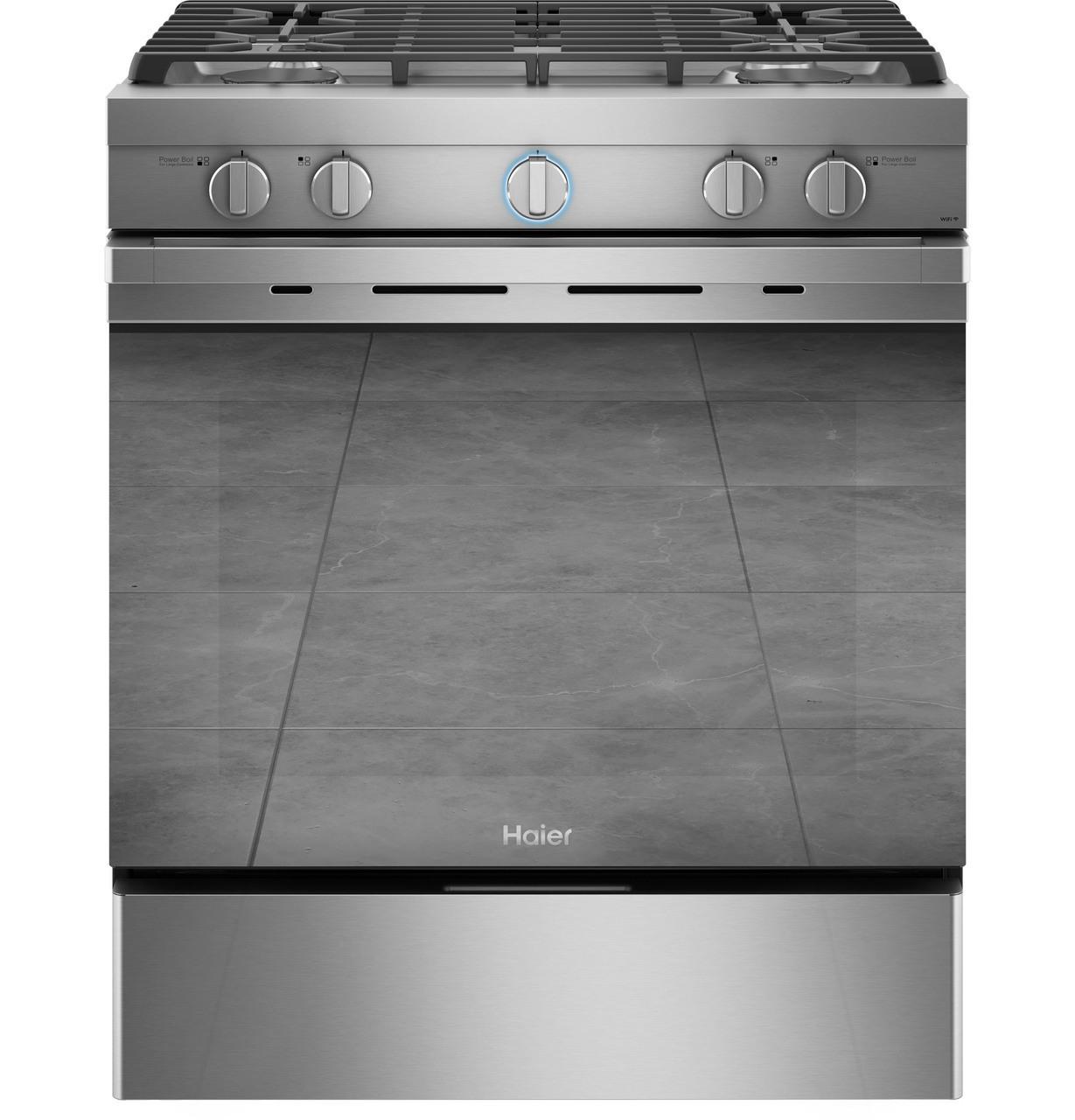

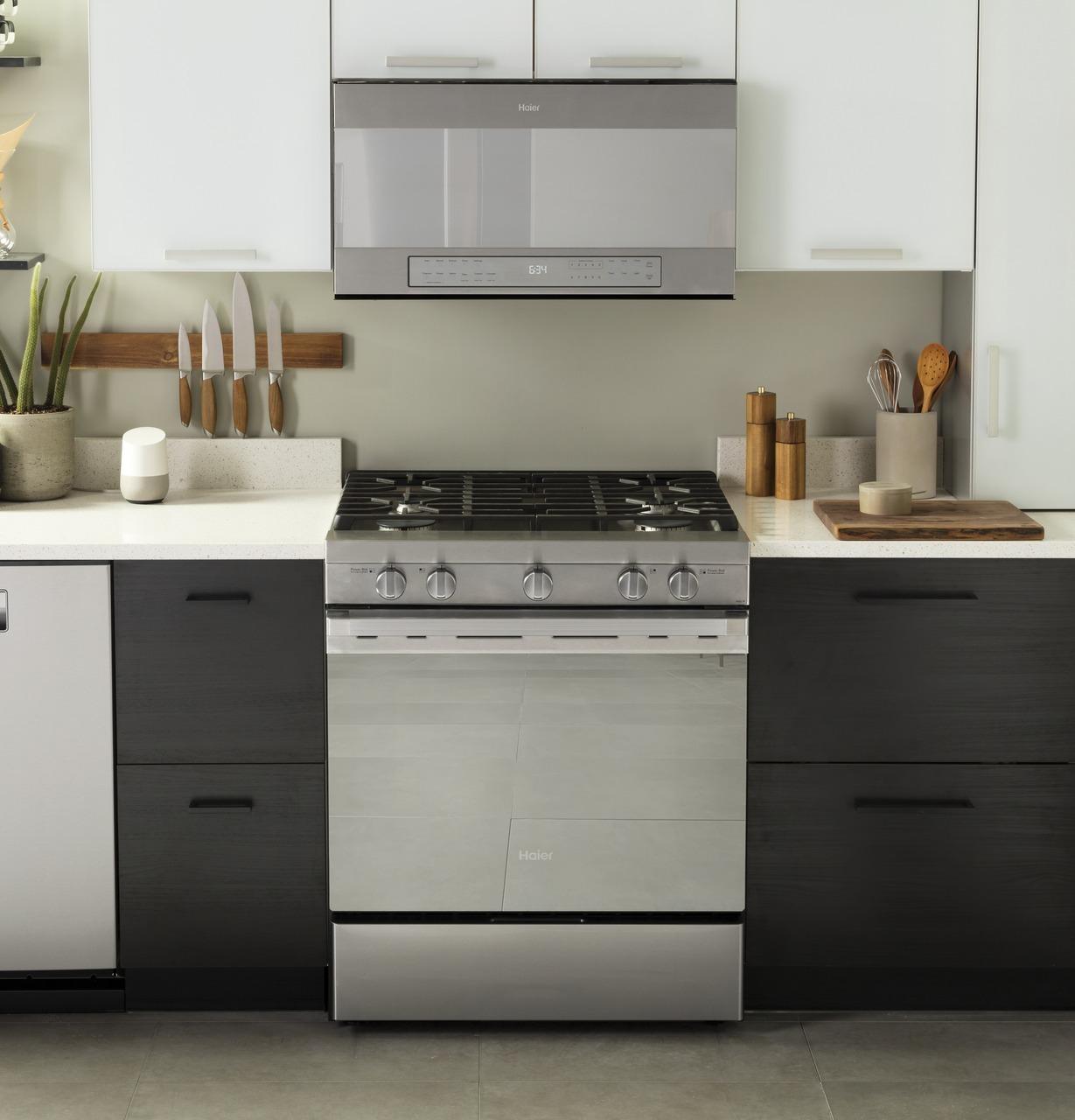

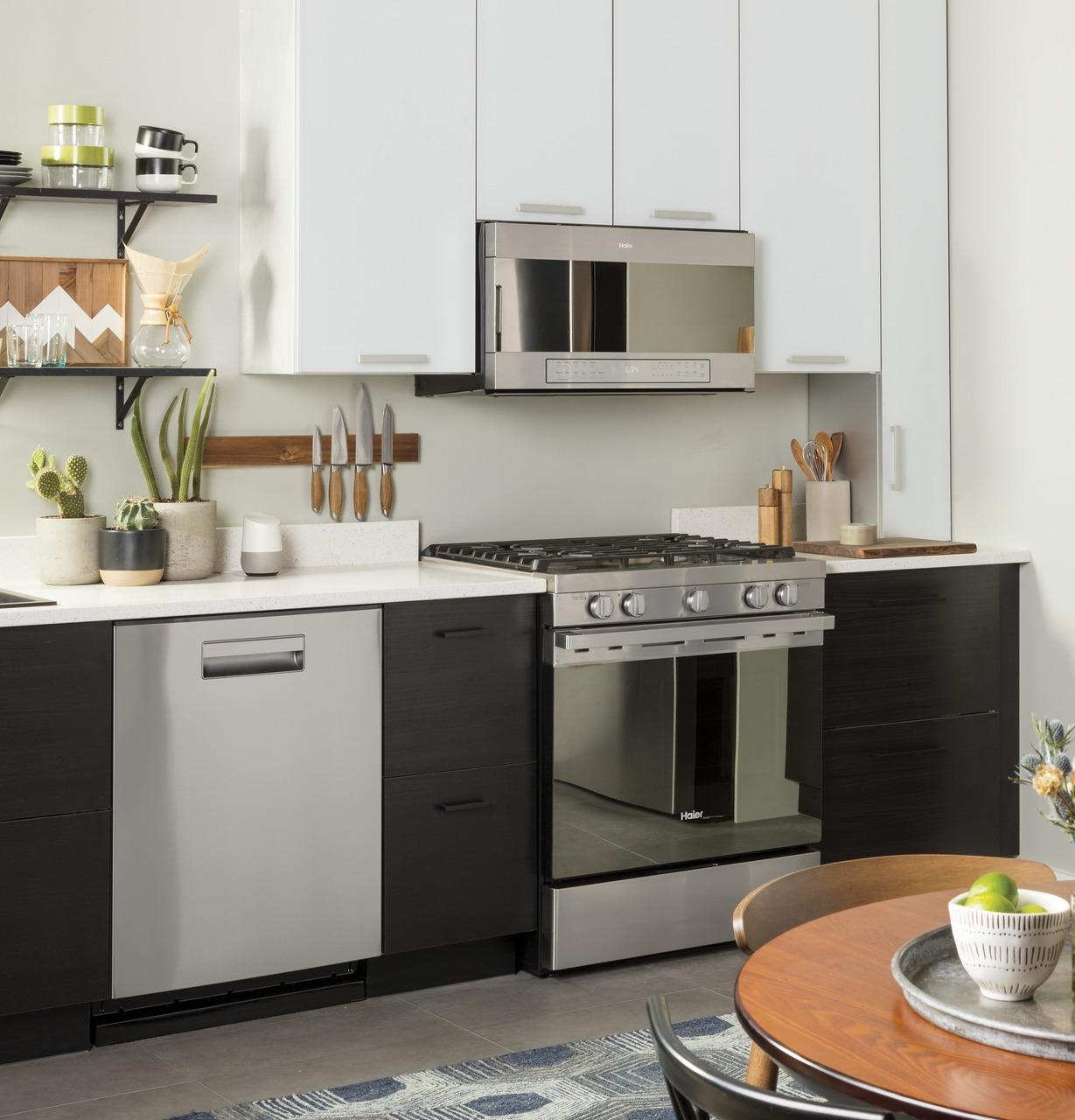

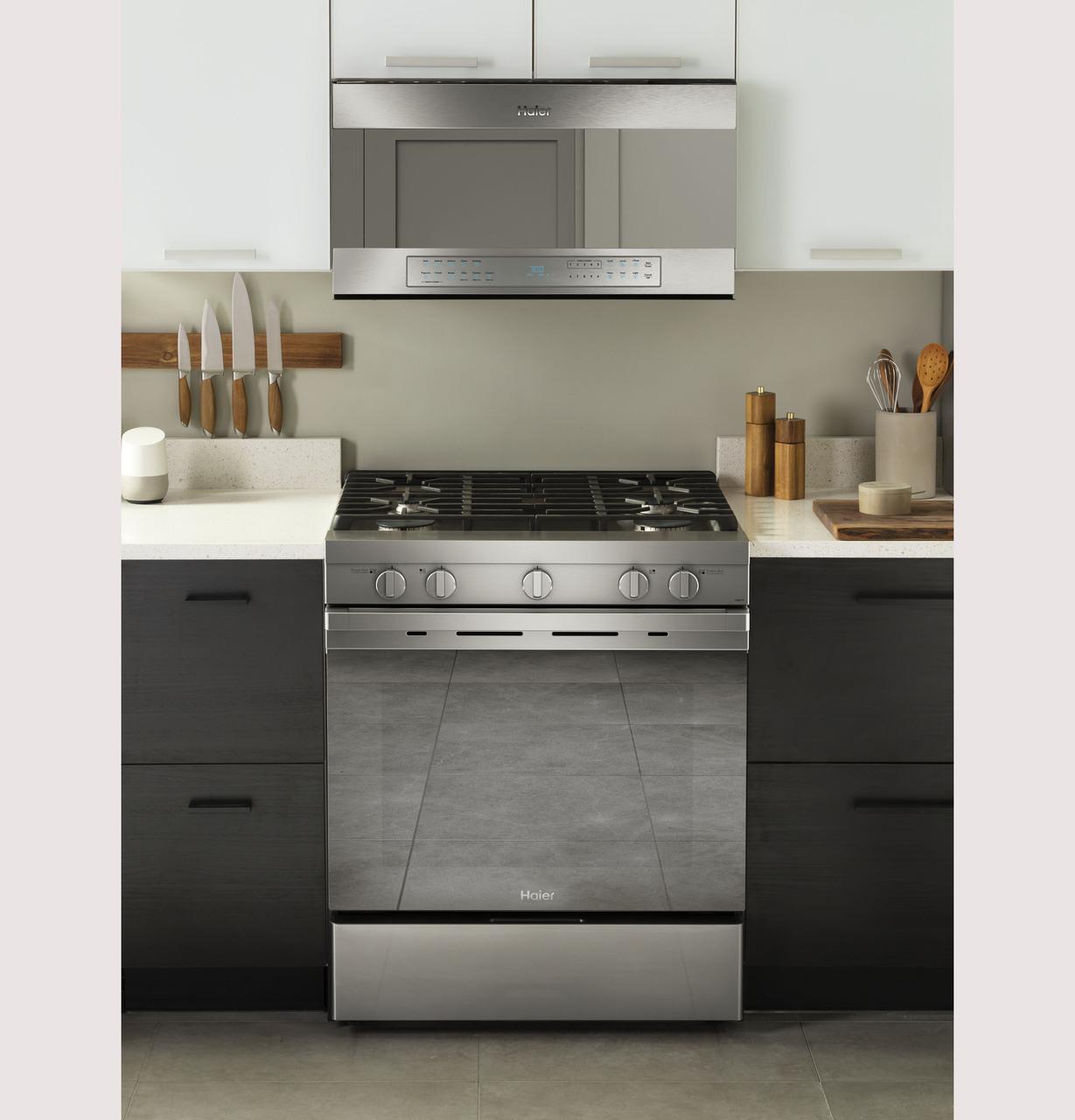

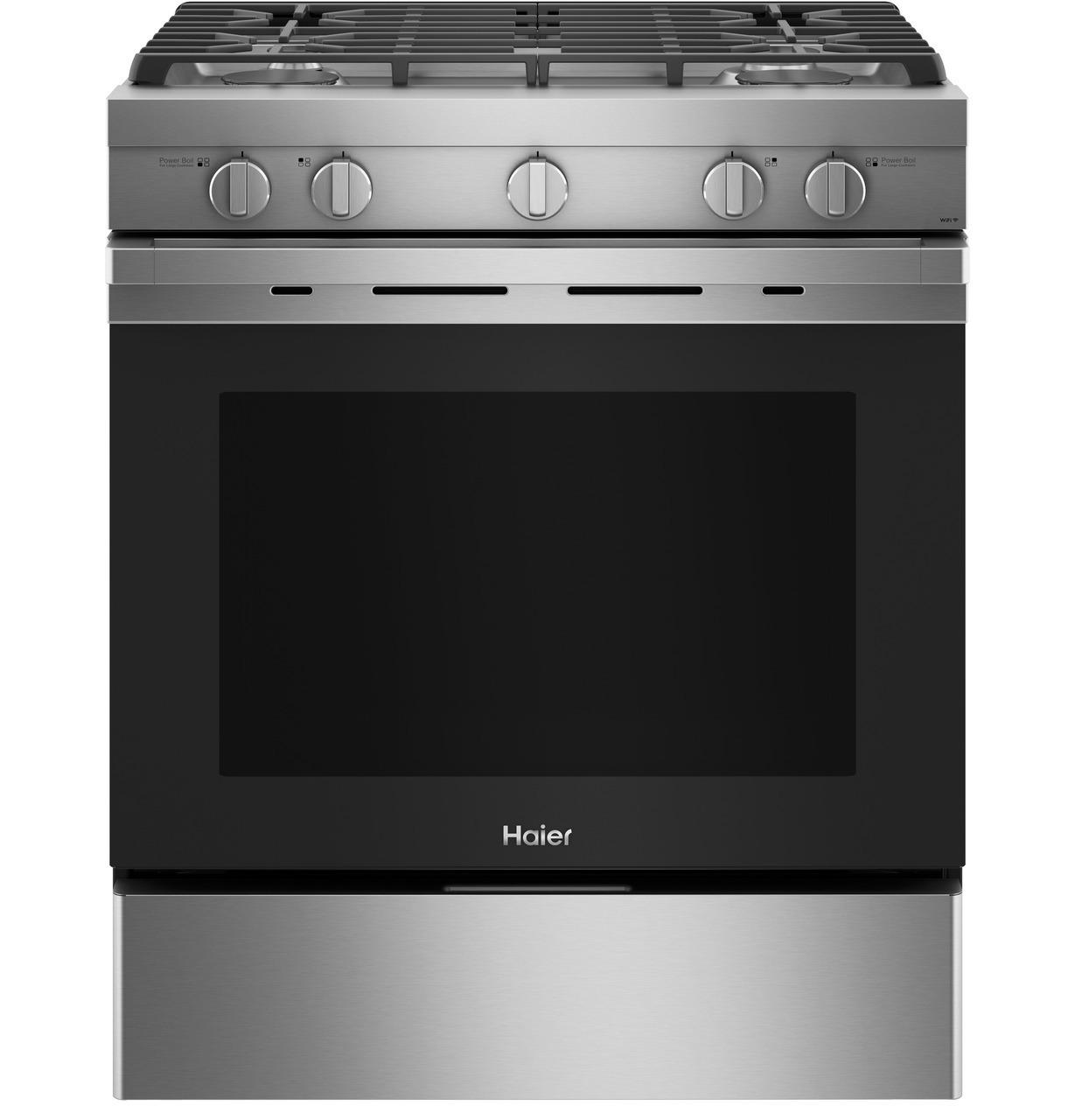

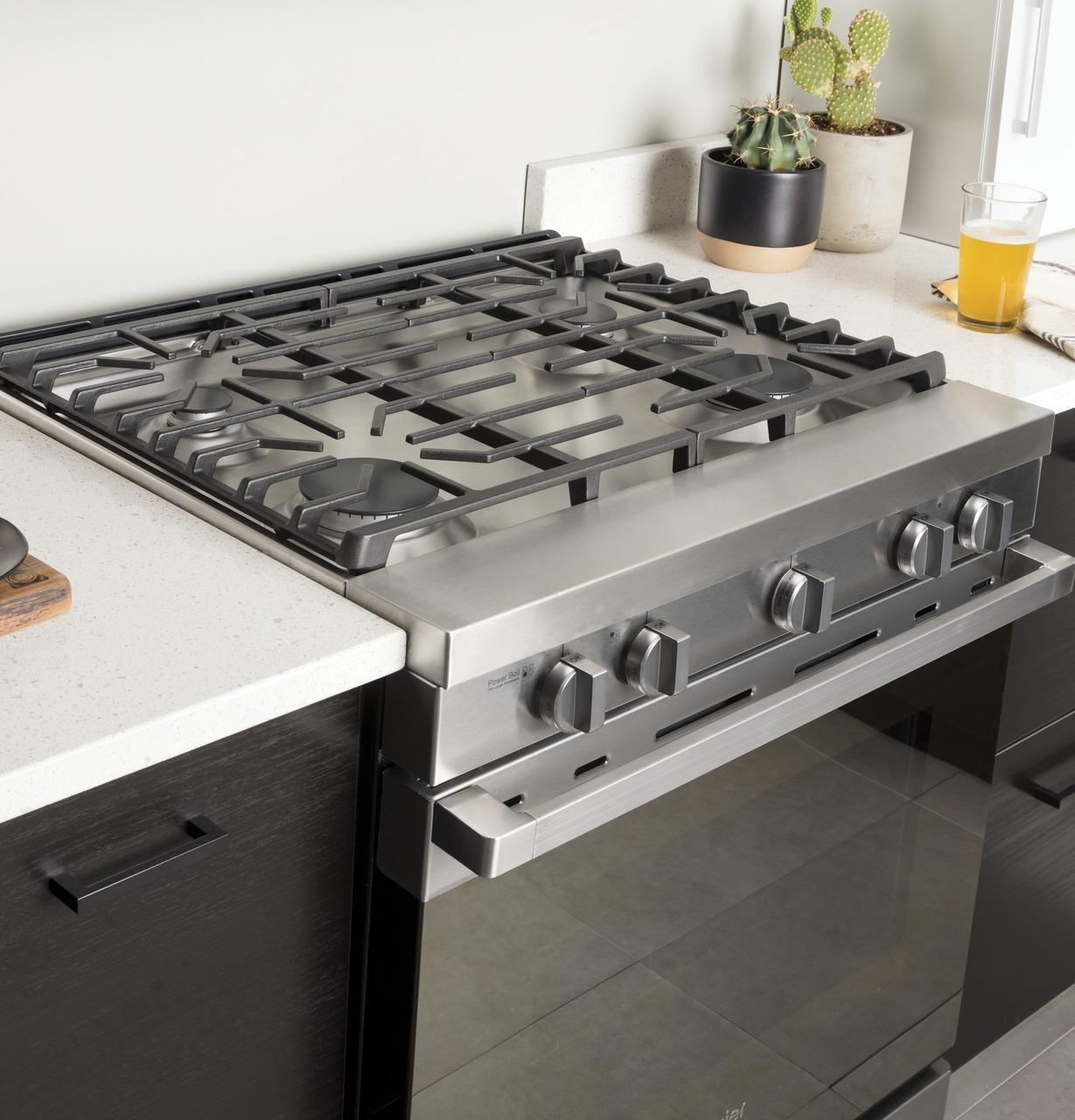

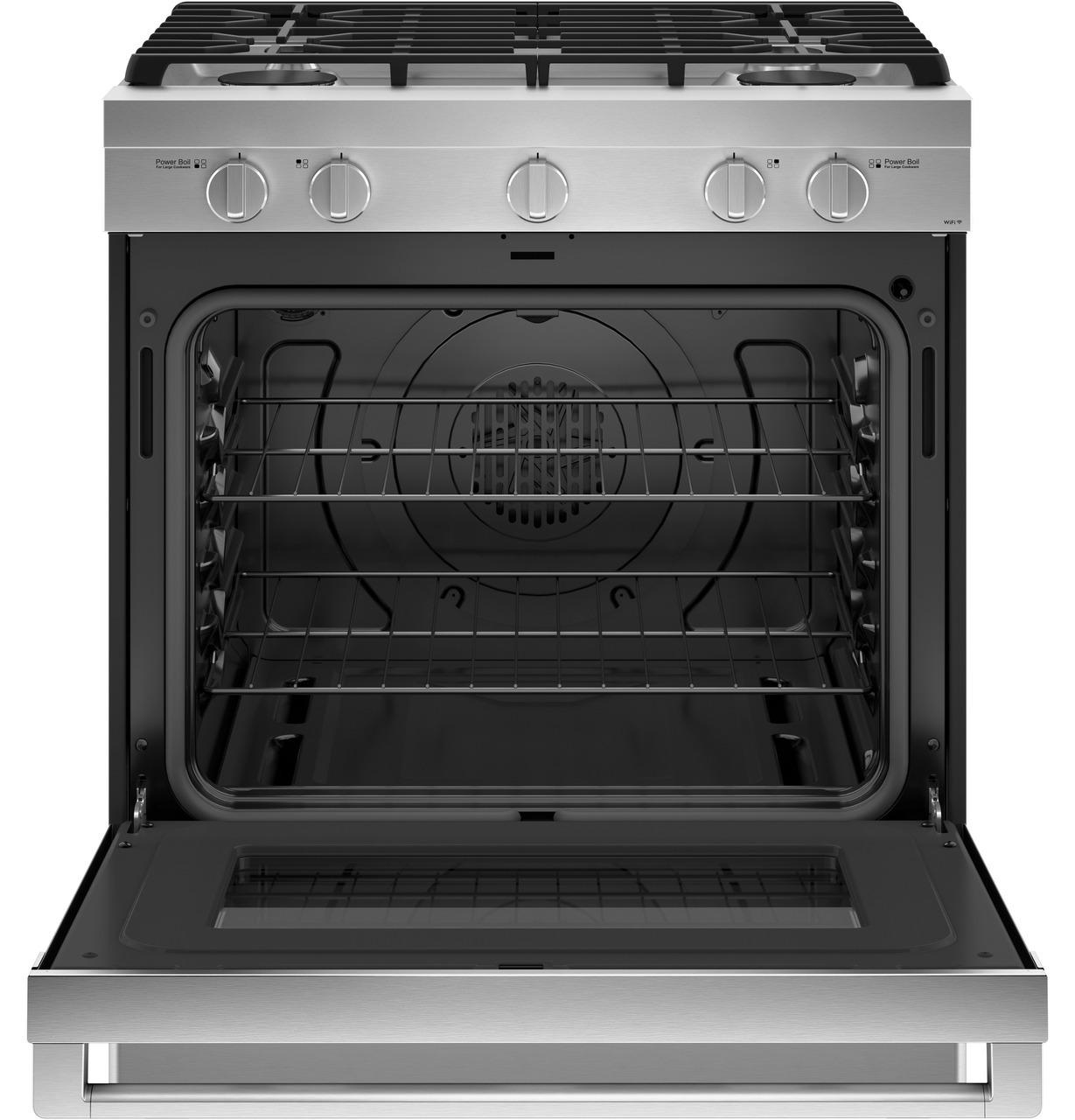

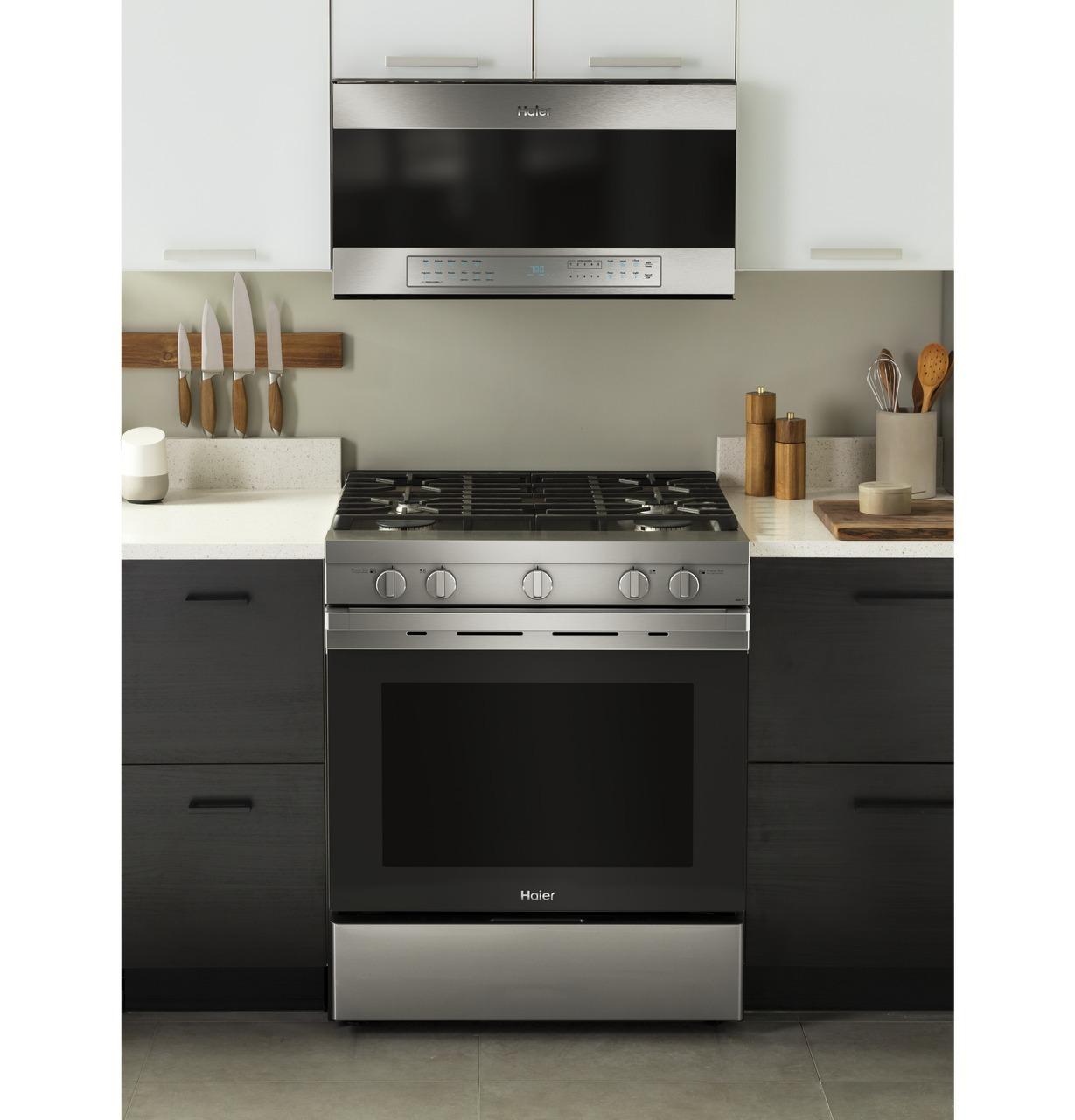

30" Smart Slide-In Gas Range with Convection
Specs & Details | |
accessories | |
LP Conversion Kit | Included |
capacity | |
Total Capacity (cubic feet) | 5.60 cu ft |
power / ratings | |
Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 13.5 Broiler |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 16.5 Broiler |
Electrical Requirements | 120V; 60Hz; 5A |
Top Burner BTU Rating - LP (000's BTU's) | (2) 15.0; (1) 9.5; (1) 5.0 |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 15.0; (1) 9.5; (1) 5.0 |
weights & dimensions | |
Approximate Shipping Weight | 214 lb |
Cabinet Width | 30 in |
Depth with Door Open | 47 3/4 in |
Depth Without Handle | 27 in |
Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
Net Weight | 194 lb |
Oven Interior Dimensions (W x H x D) (in.) | 19 x 15-3/8 x 17-1/8 |
Overall Depth | 29 1/4 in |
Overall Height | 36 1/4 in |
Overall Width | 29 7/8 in |
appearance | |
Color Appearance | Stainless Steel |
Control Knobs | Stainless |
Cooktop Burner Grate Color | Matte Black |
Door Swing | Pull-Down |
Handle | Stainless |
Oven Door Features | Oven Window |
Textured Steel Side Panels | Black |
features | |

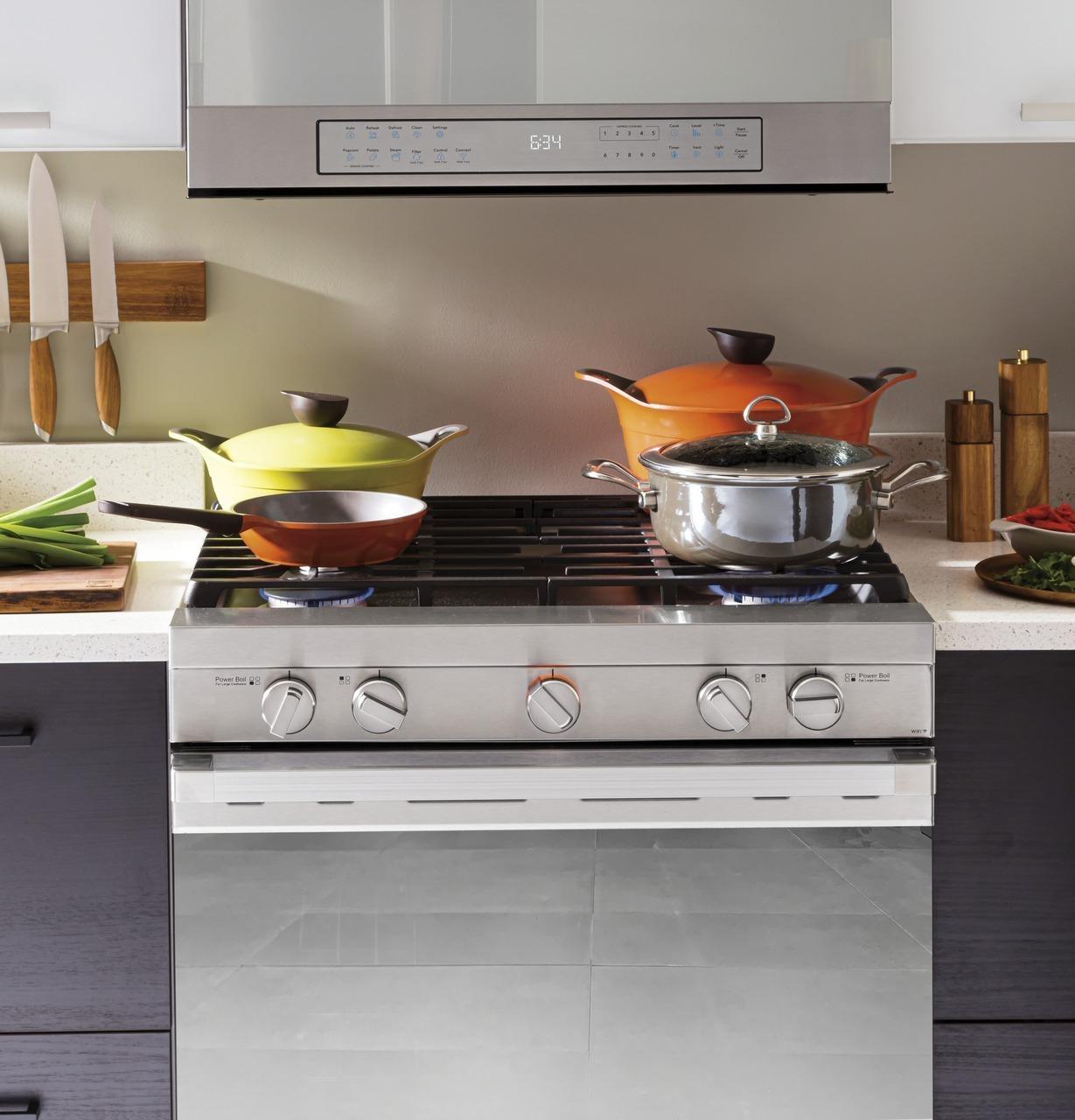

Burner - Left Front | 15,000 BTU |
Burner - Left Rear | 5,000 BTU Precise Simmer |
Burner - Right Front | 15,000 BTU |
Burner - Right Rear | 9,500 BTU |
Configuration | Range with Storage Drawer |
Control Location | Front |

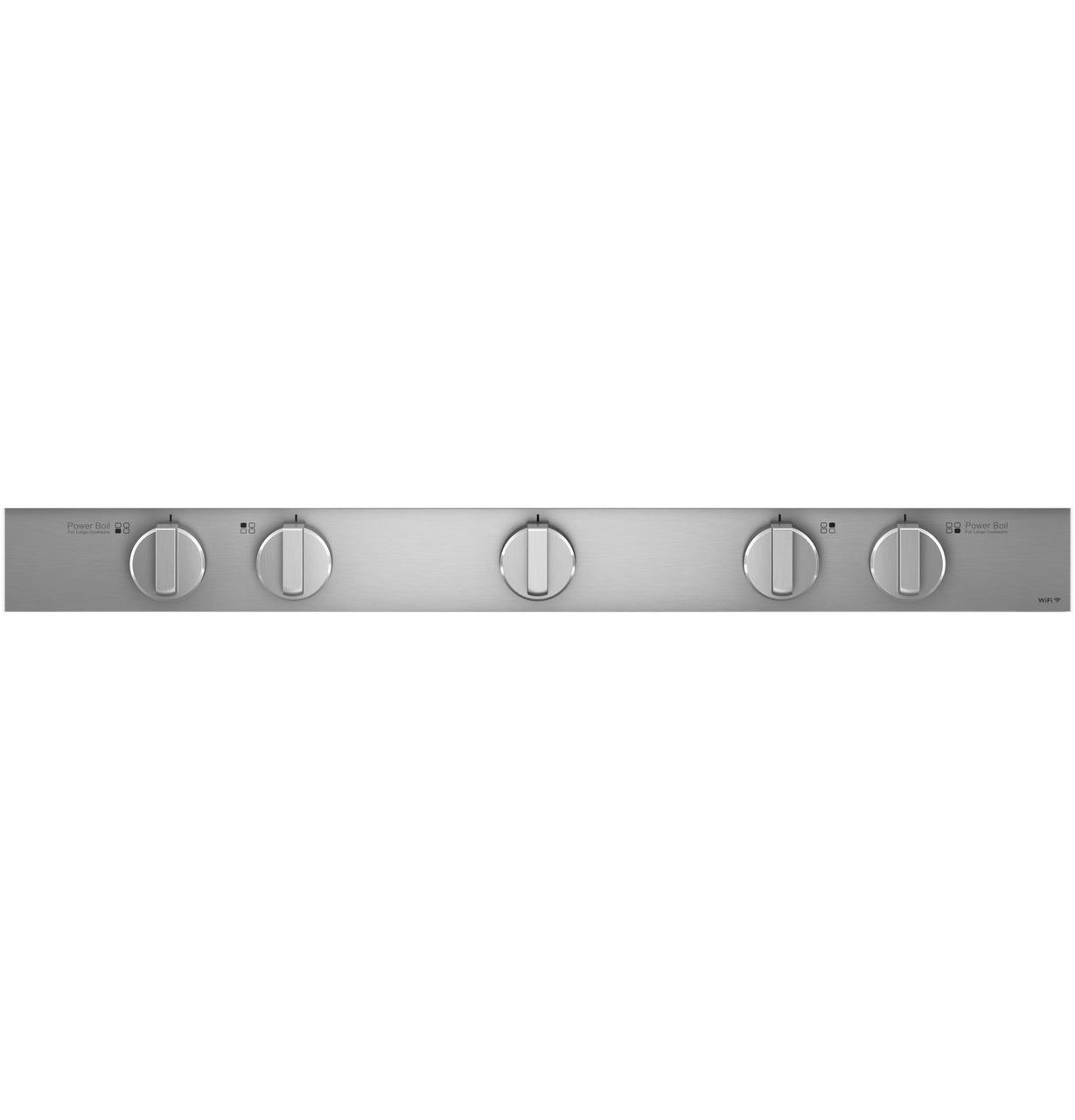

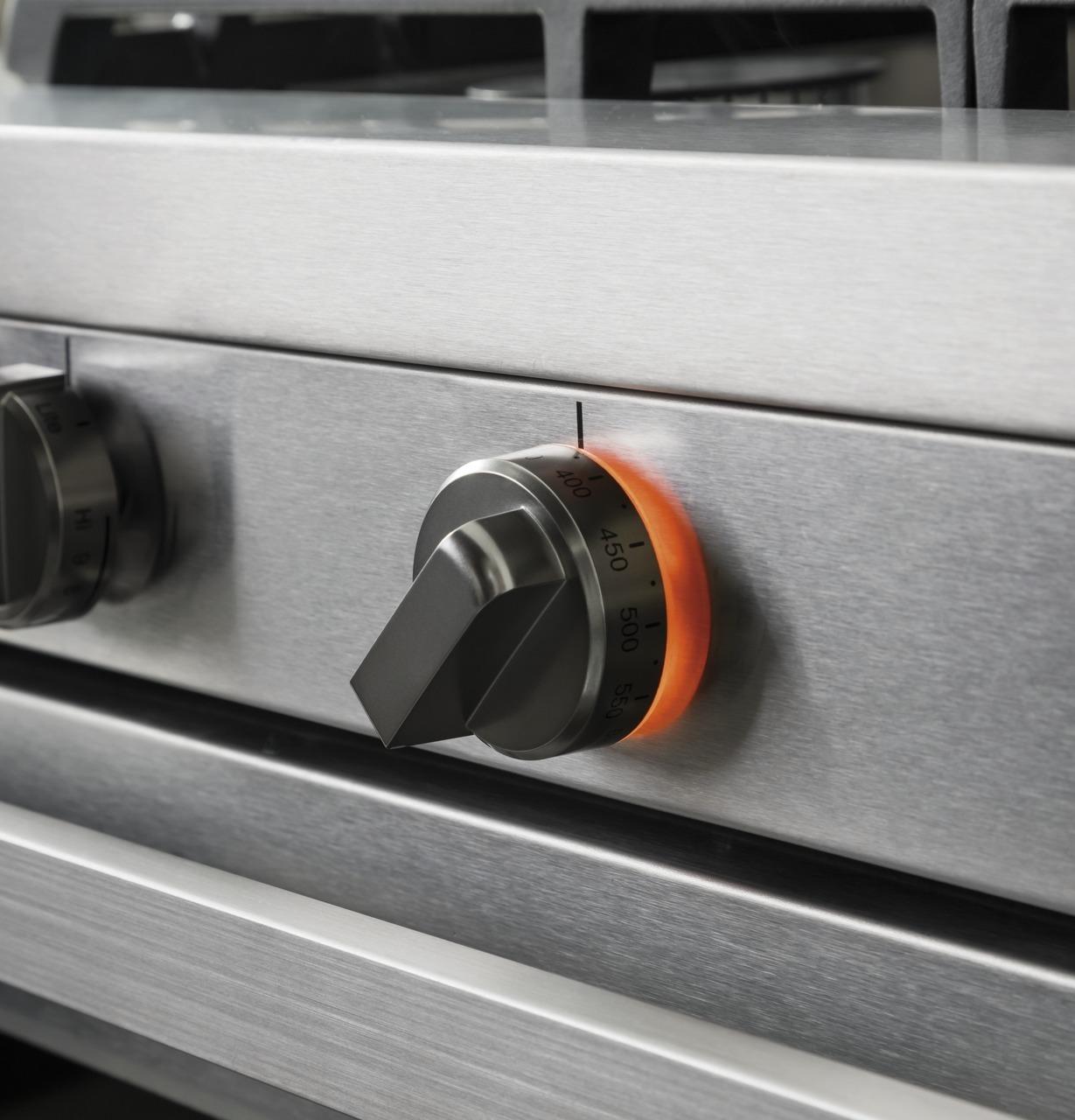

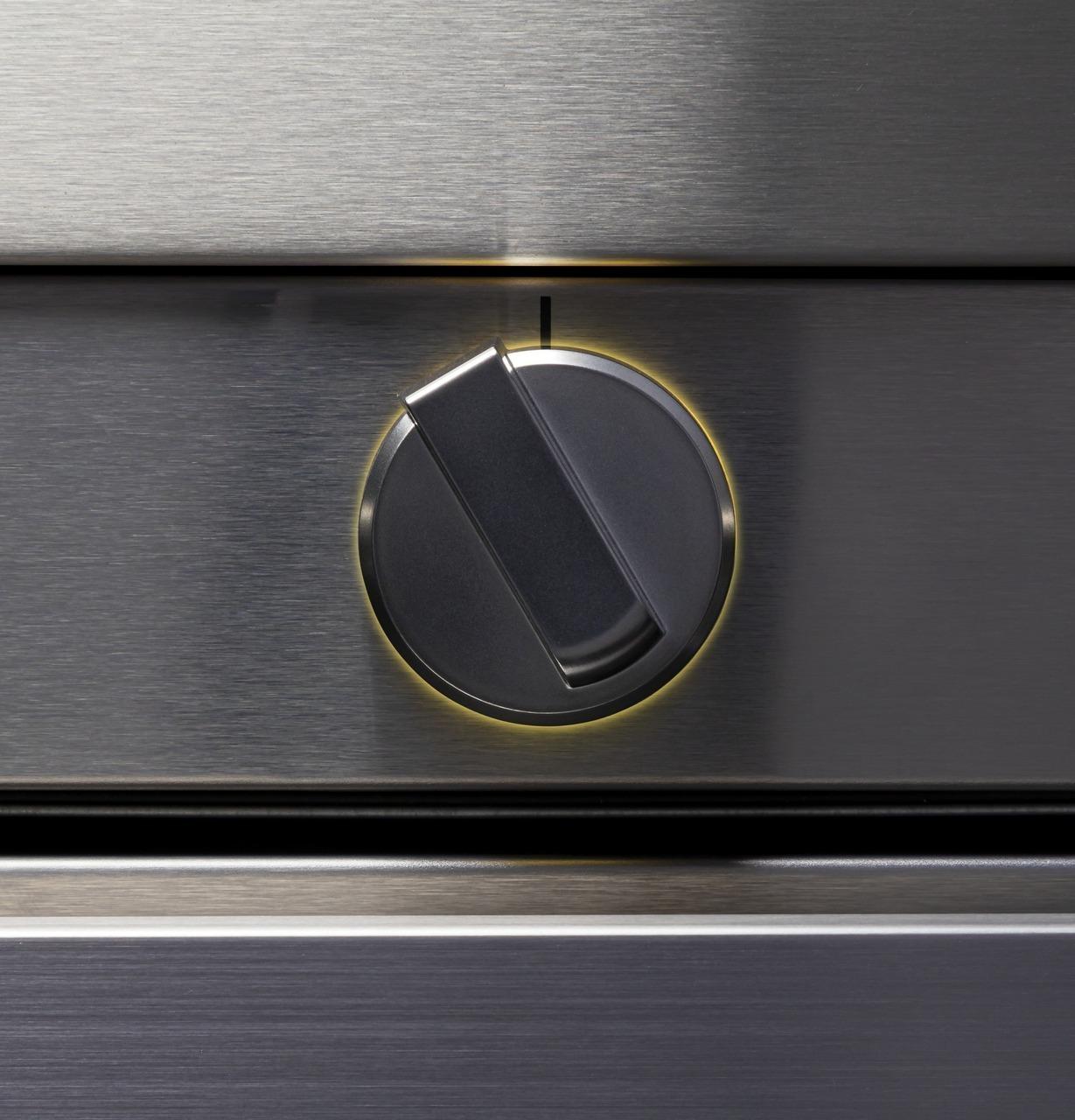

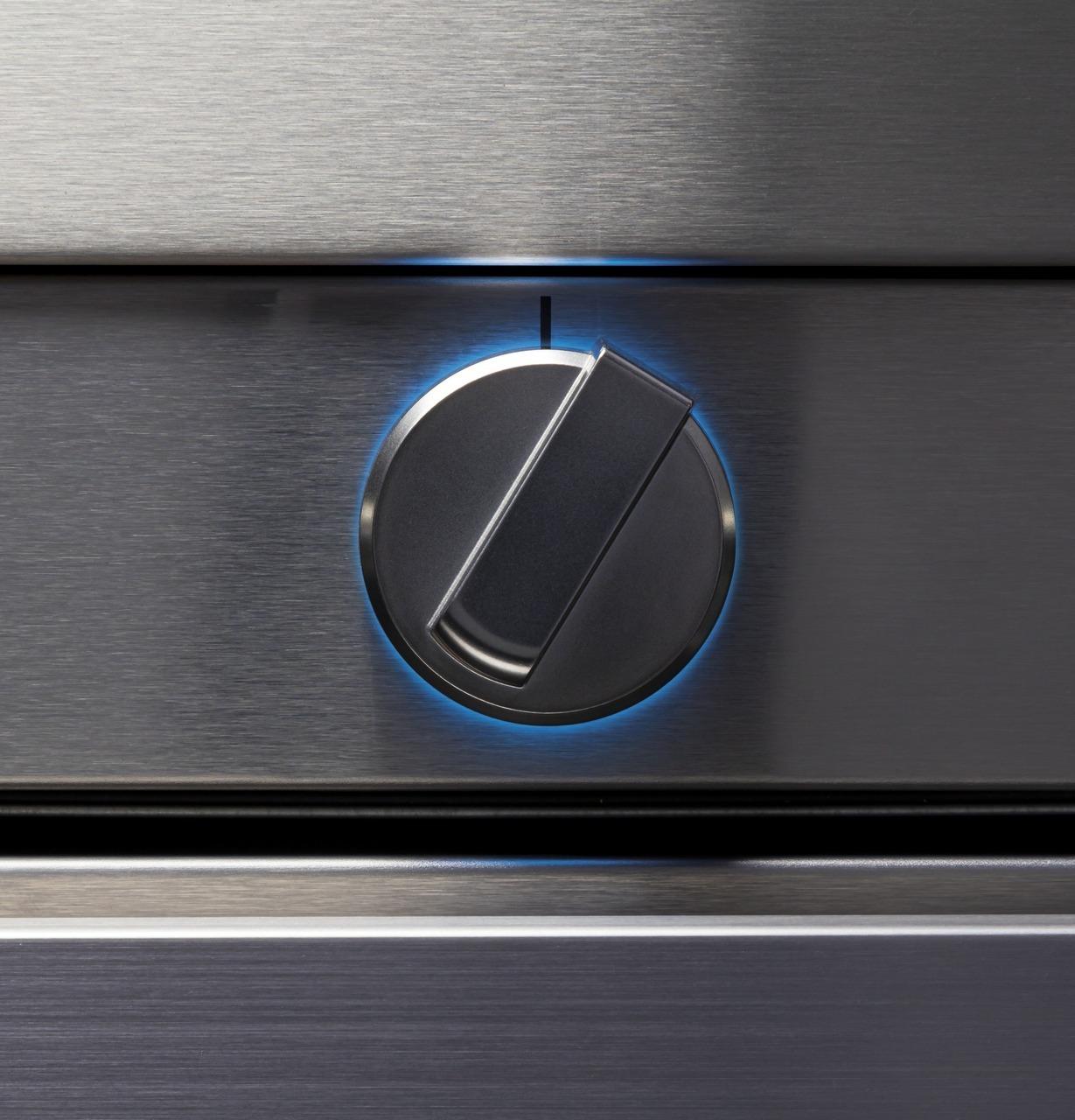

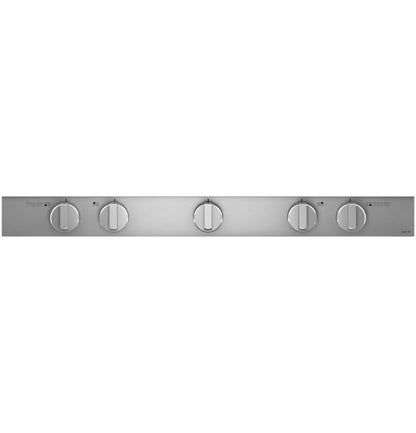

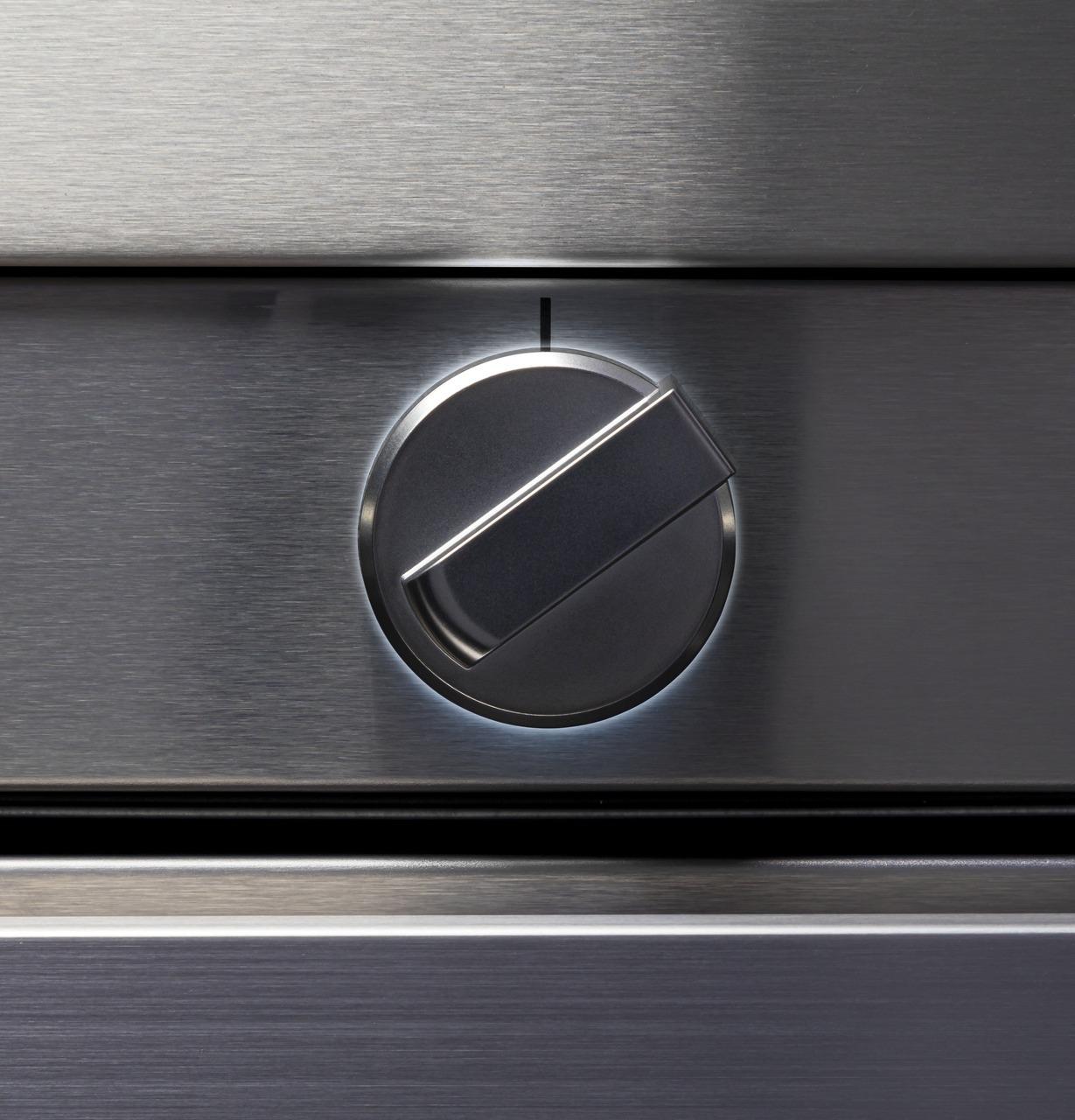

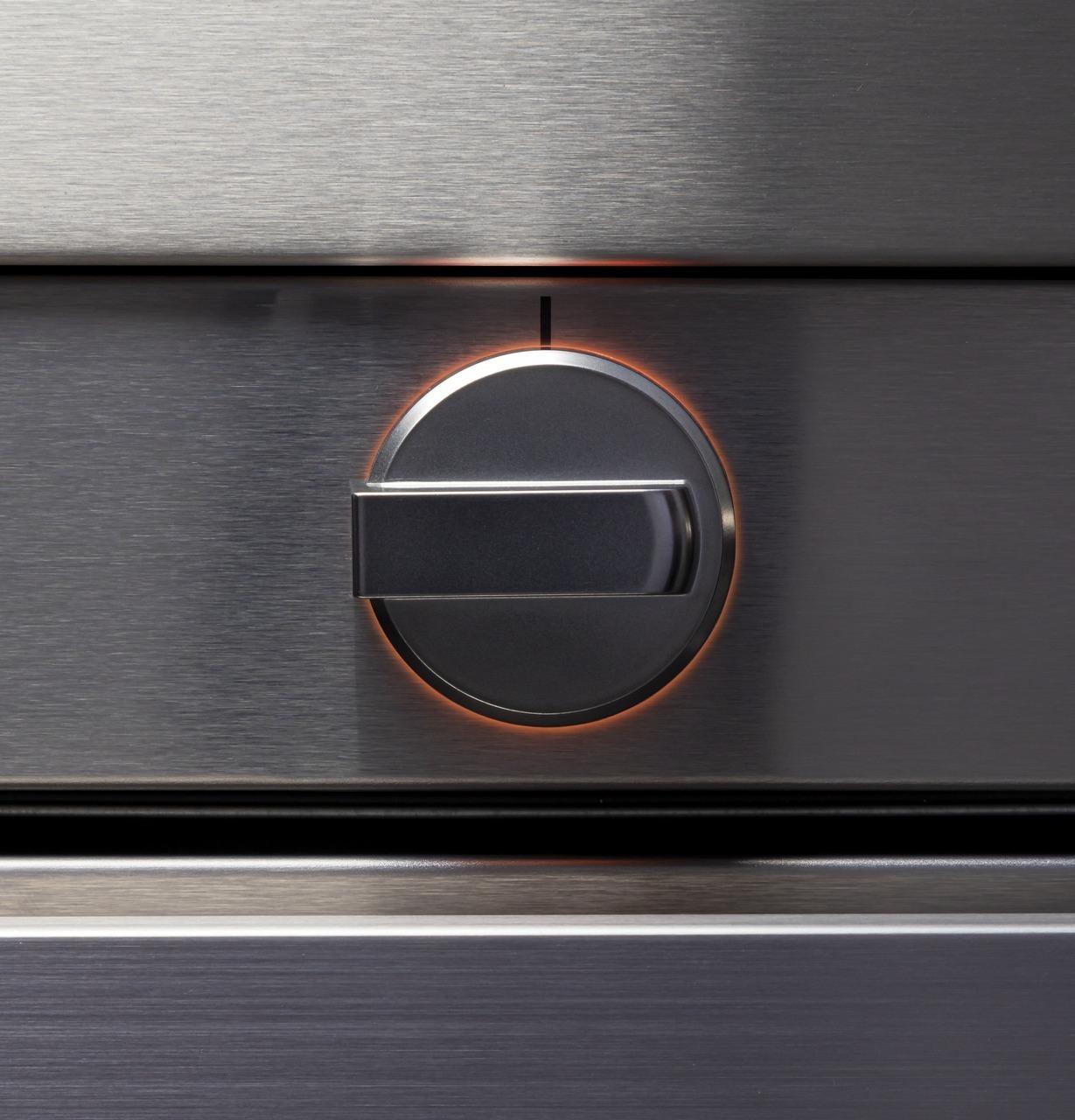

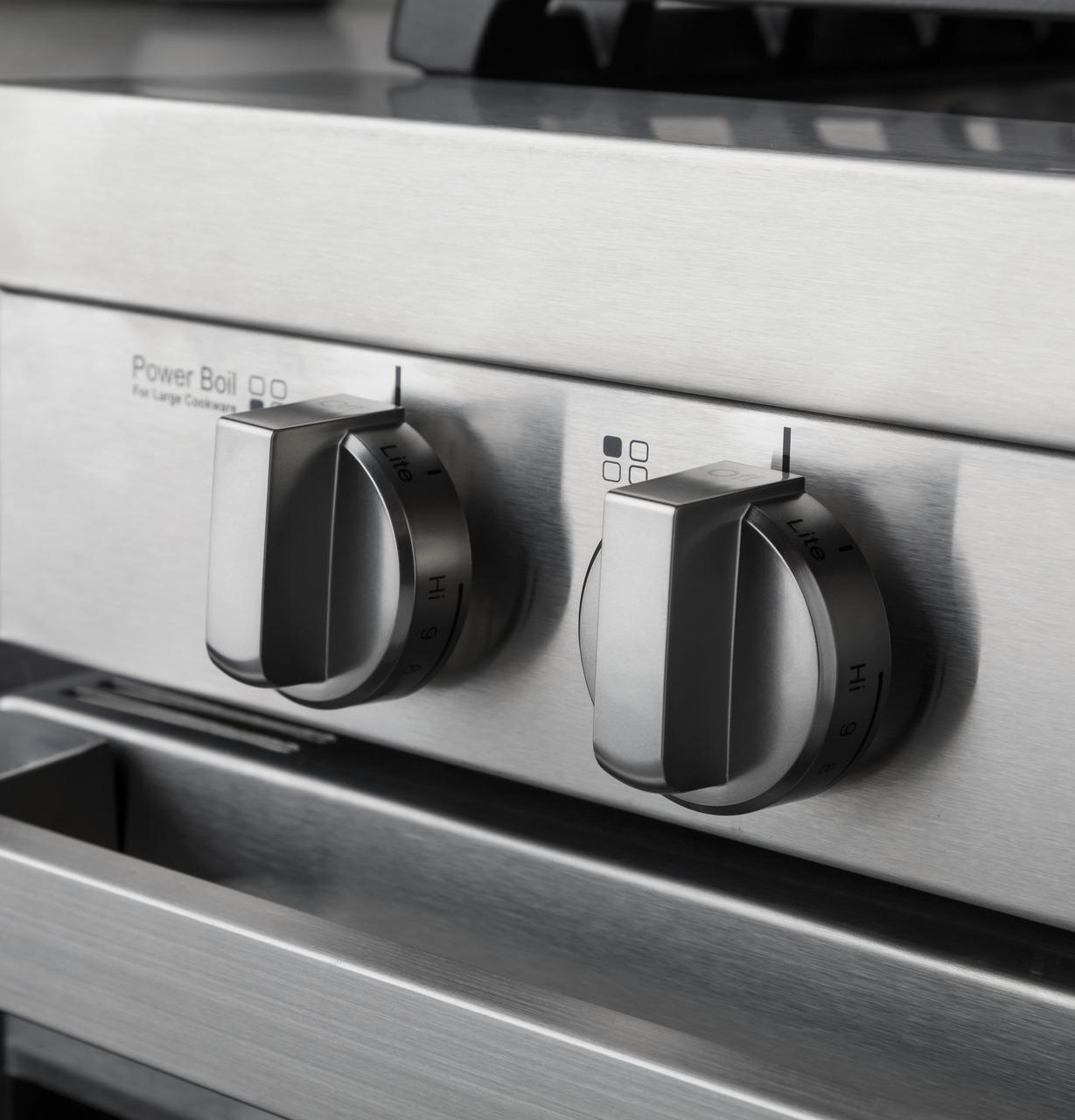

Control Type | Backlit Heavy Duty Knob |
Cooking Technology | Fan Convection |

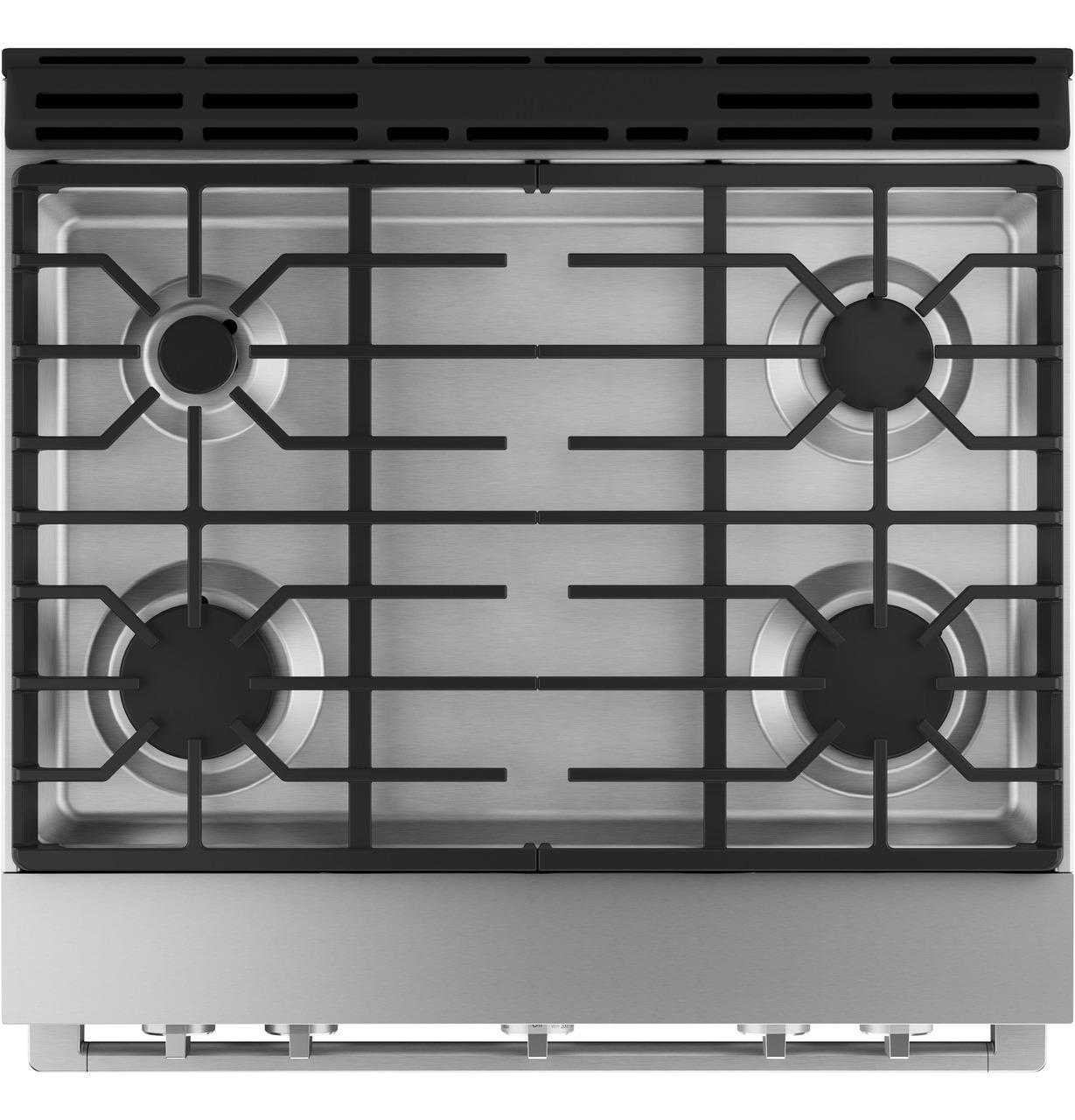

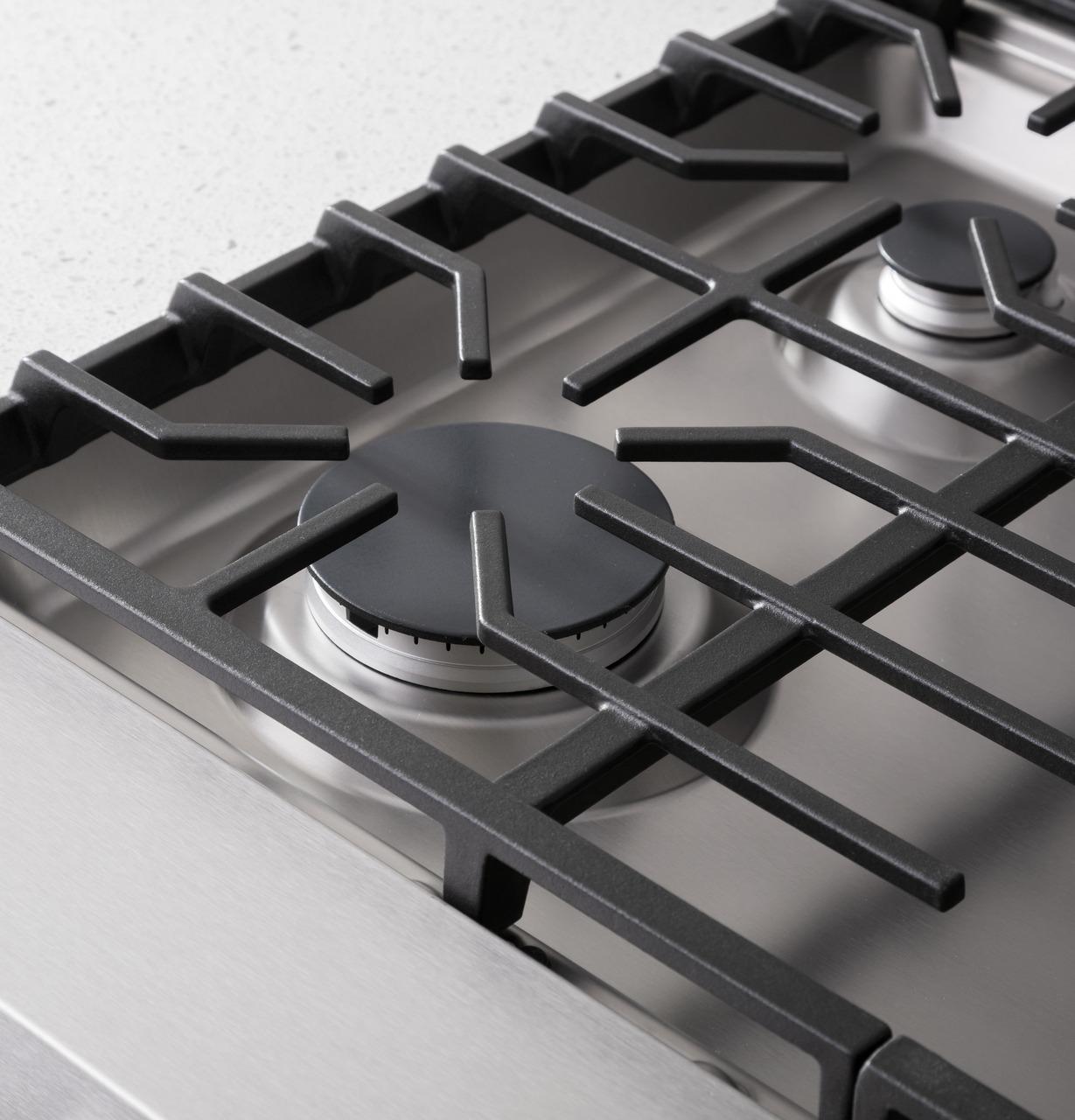

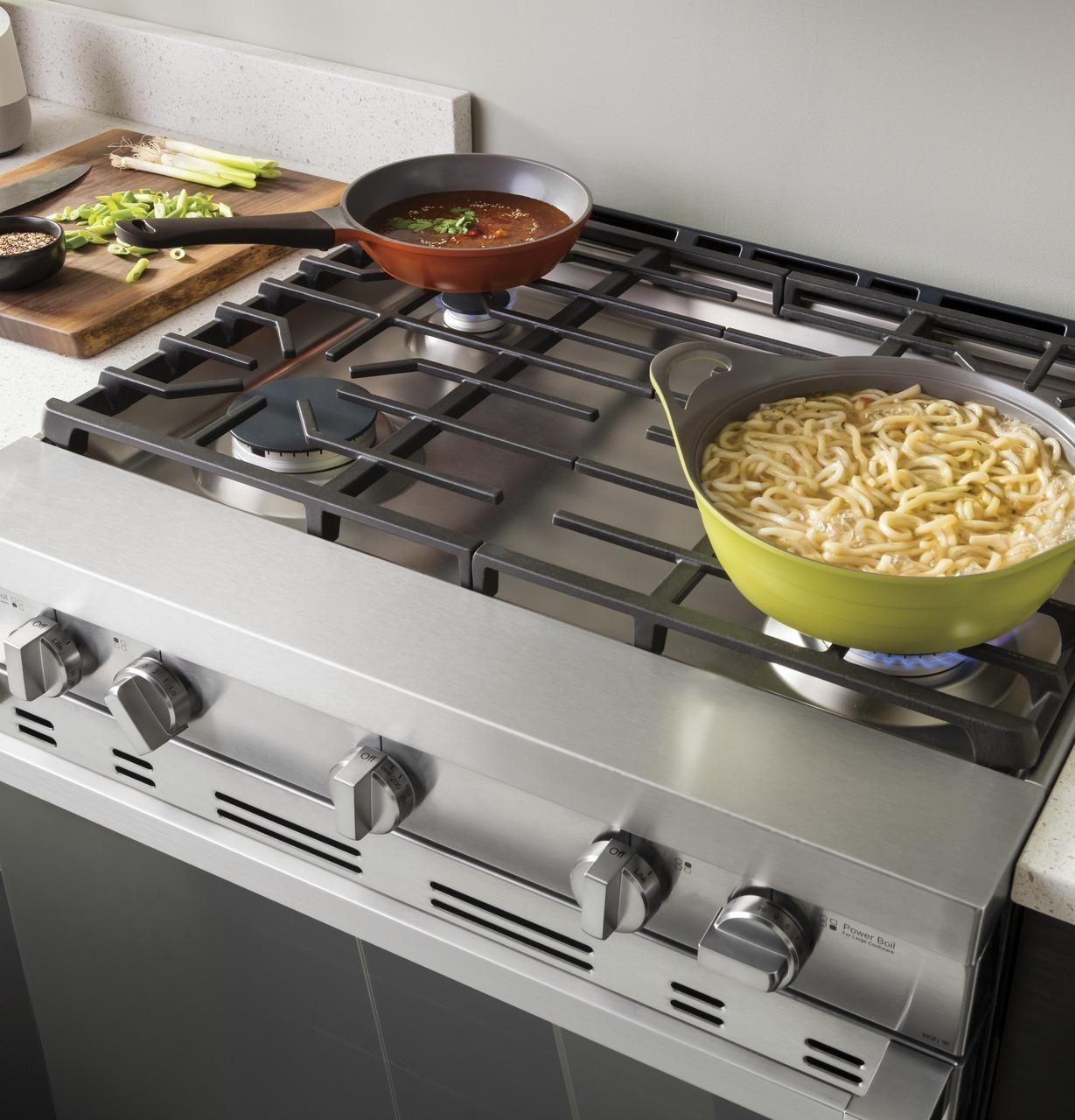

Cooktop Burner Grate Features | Continuous Grates Edge-to-Edge Grates Matte Black |
Cooktop Burner Grate Material | Heavy Duty Cast Iron |
Cooktop Burner Type | Sealed |
Cooktop Surface | Deep Recessed |
Cooktop Type | Continuous Grates |

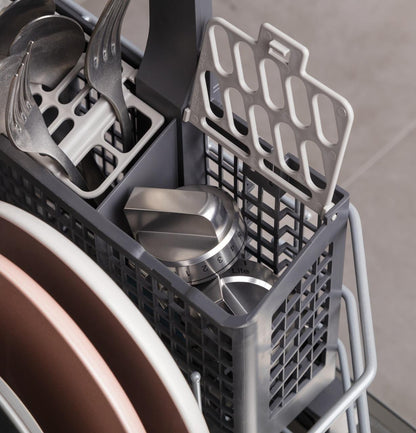

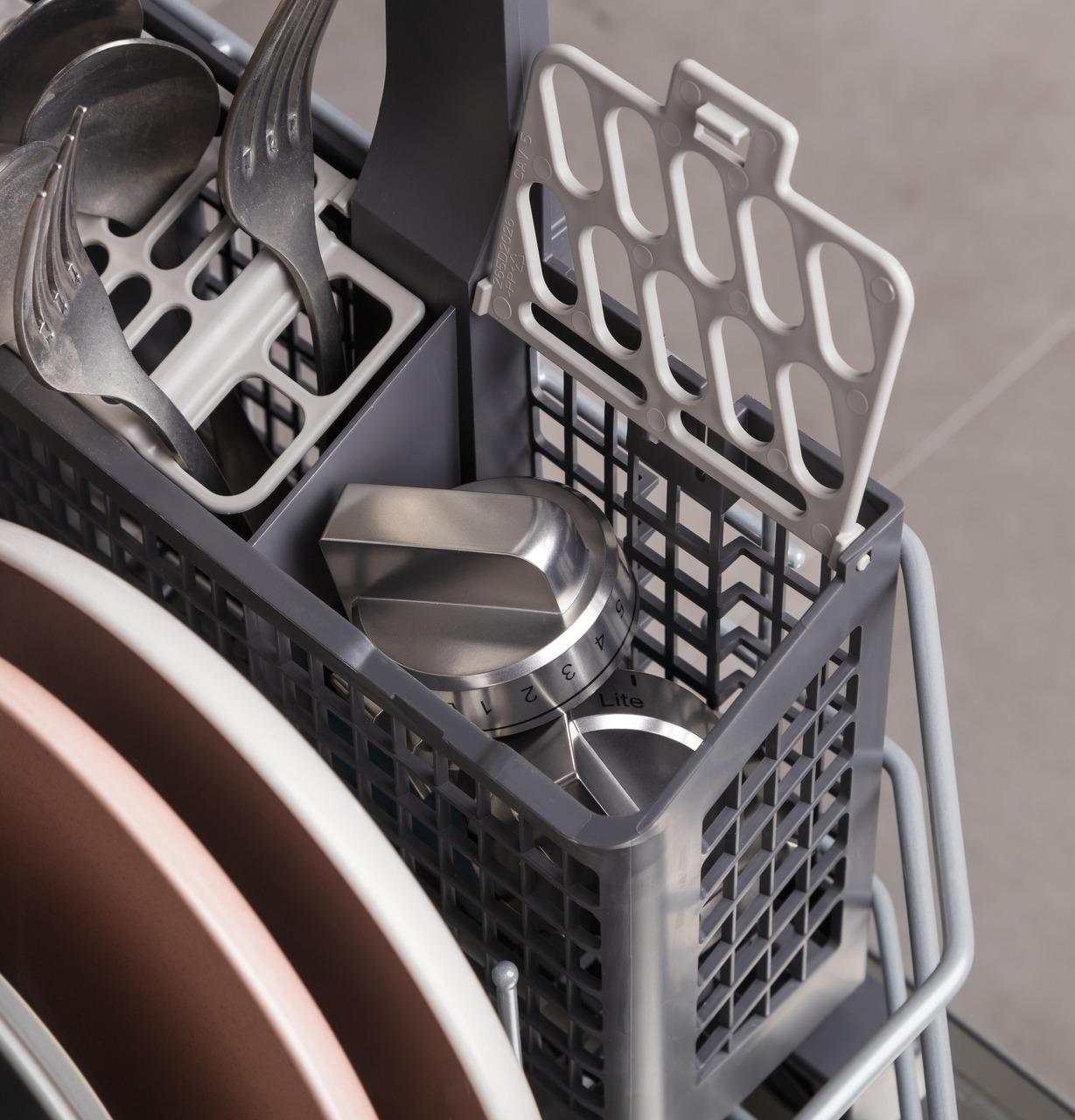

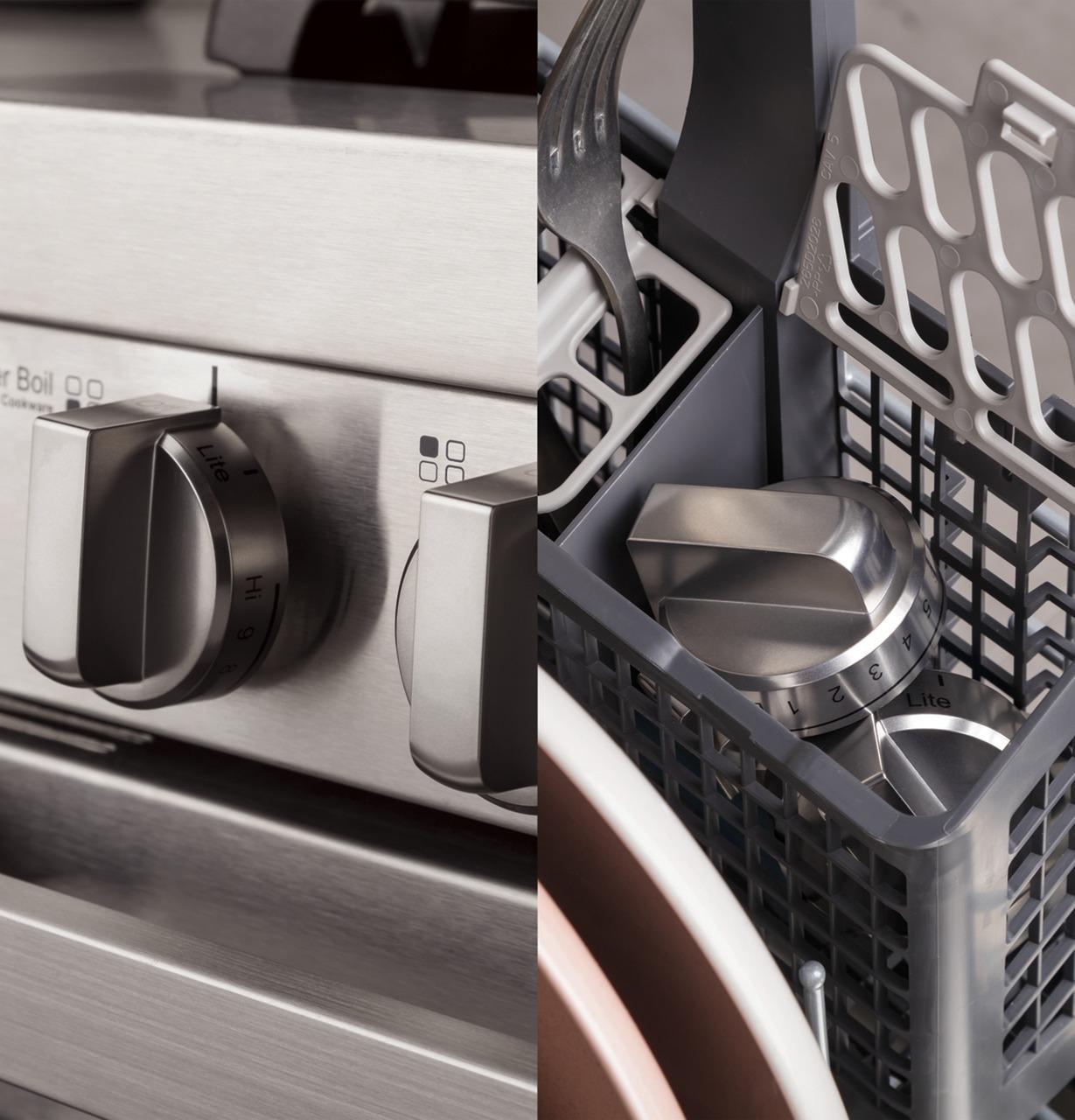

Dishwasher Safe Knobs | Yes |
Drawer Type | Storage |
Fuel Type | Natural Gas (factory set) |
Ignition System | Electronic |
Leveling System | 4 Leveling Legs |
Number of Convection Oven Fans | 1 |
OU Certified | No |

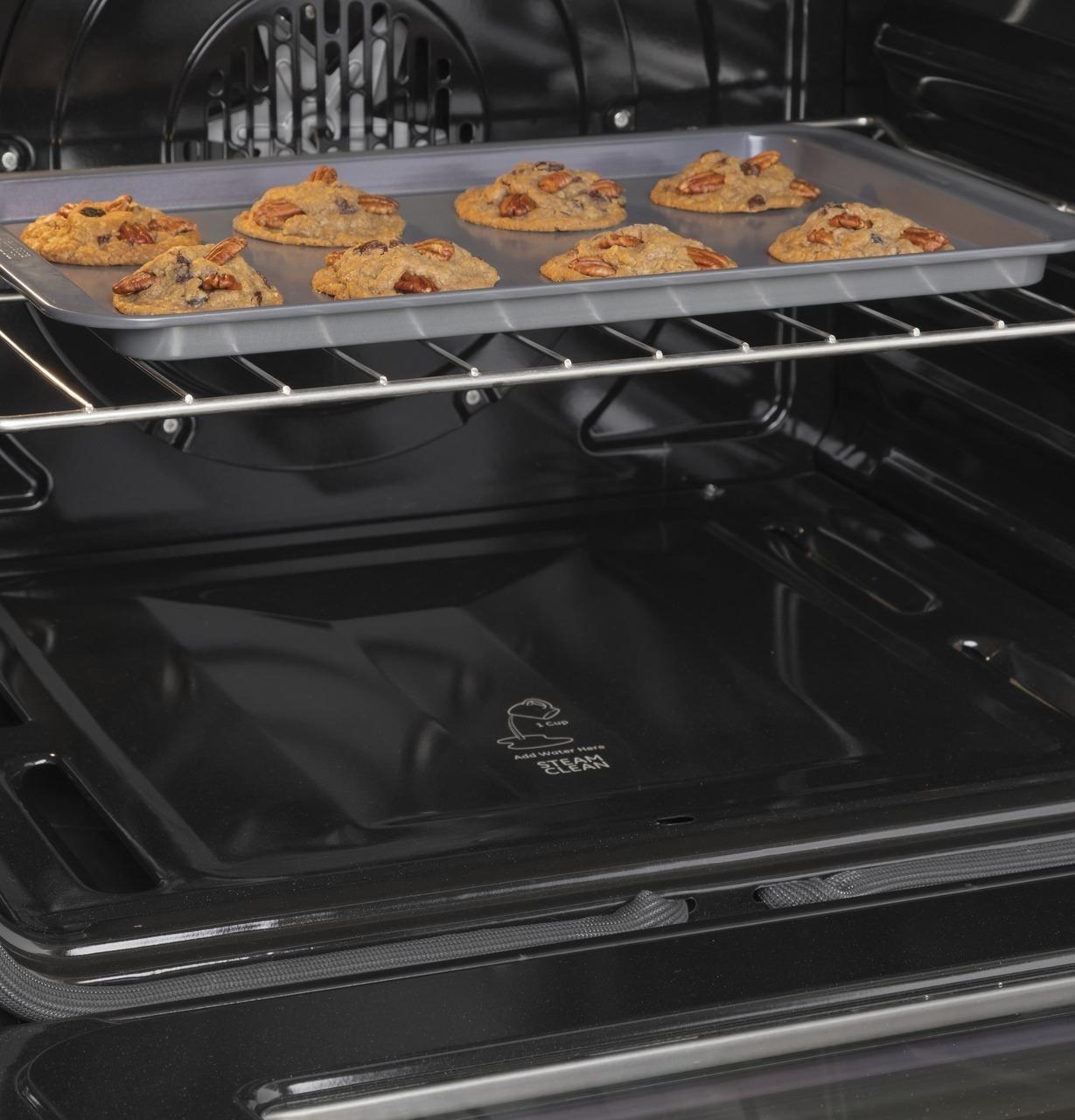

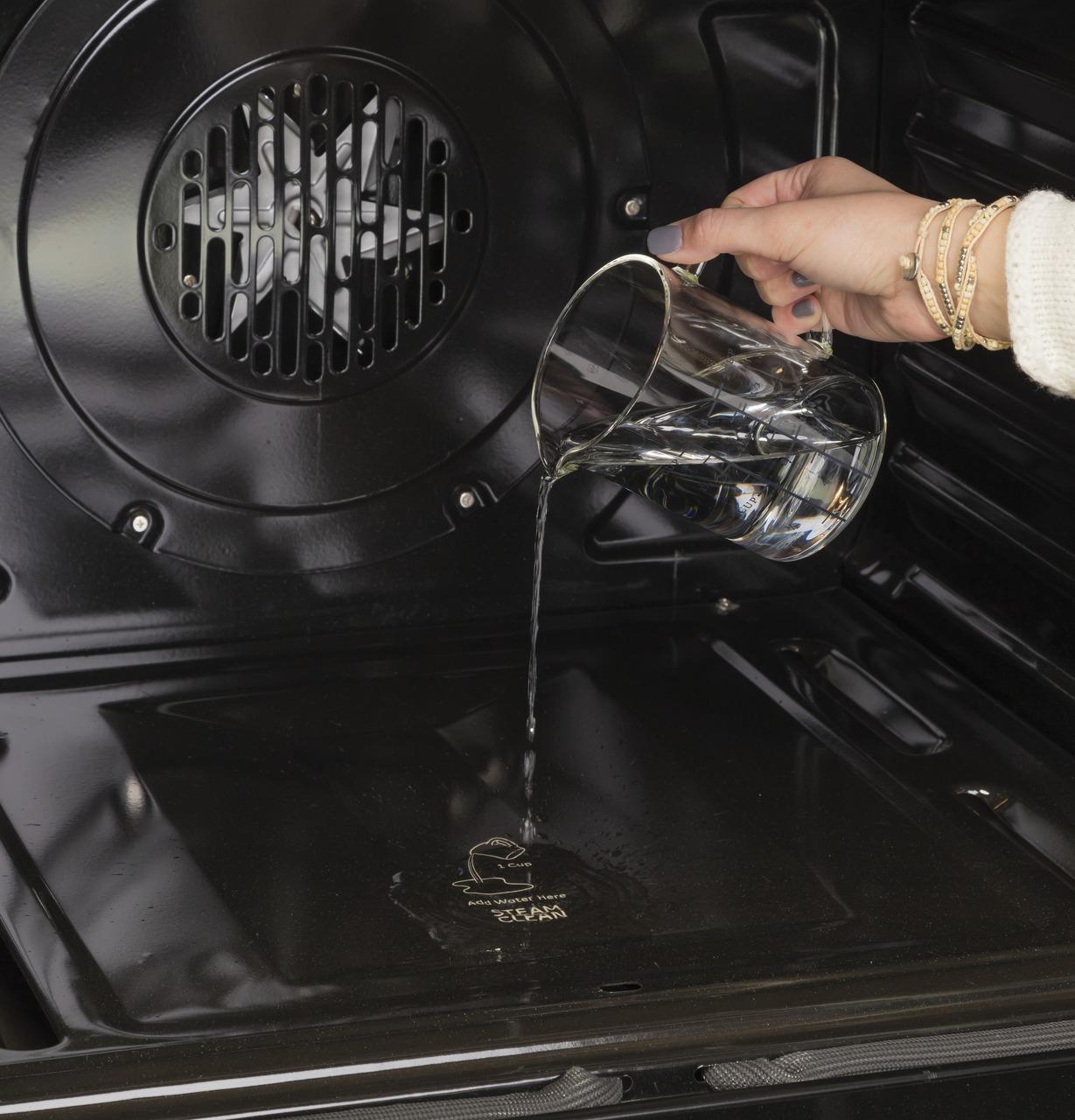

Oven Cleaning Type | Steam Clean |

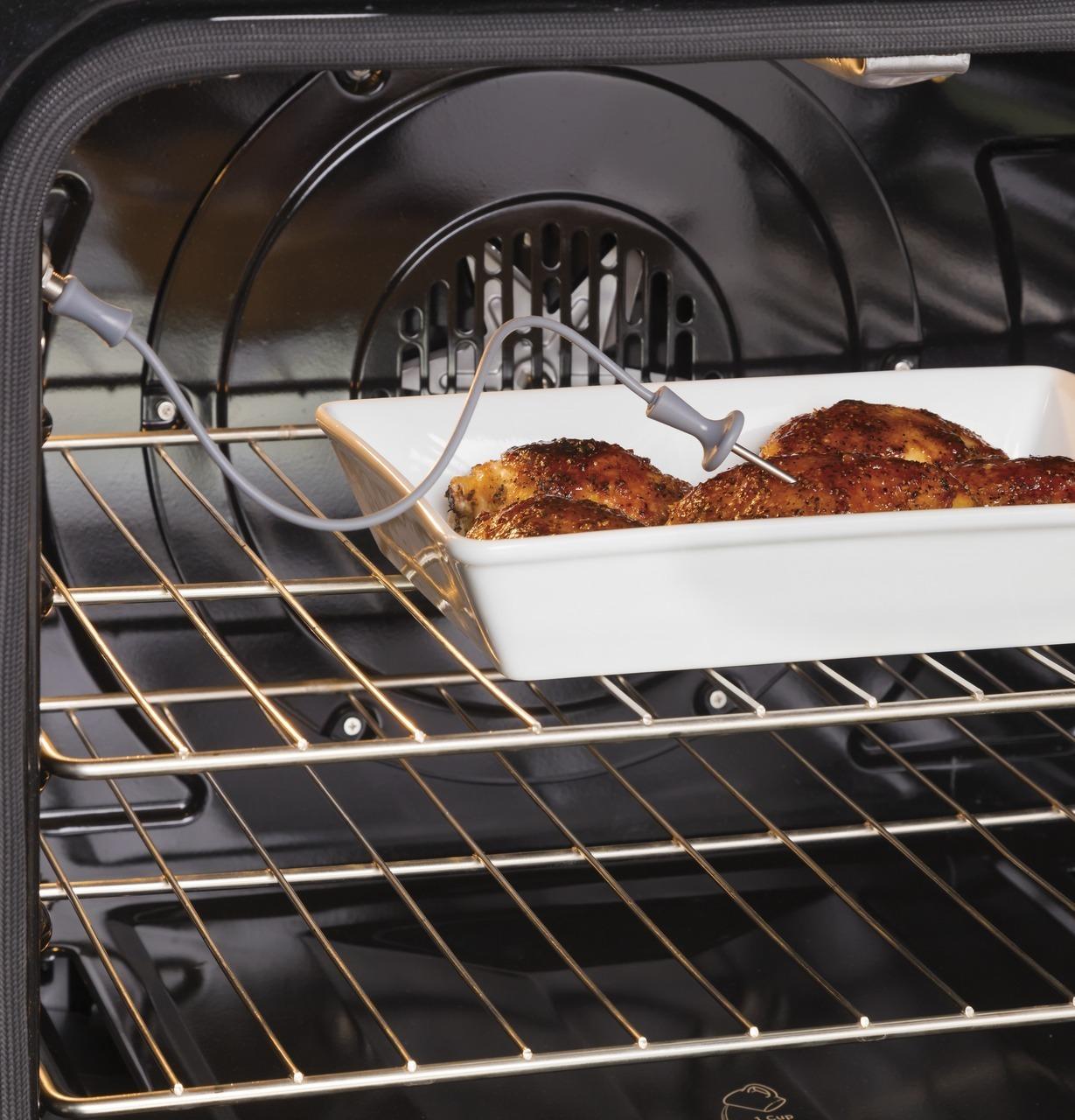

Oven Control Features | In-Oven Broiling Probe Mode |

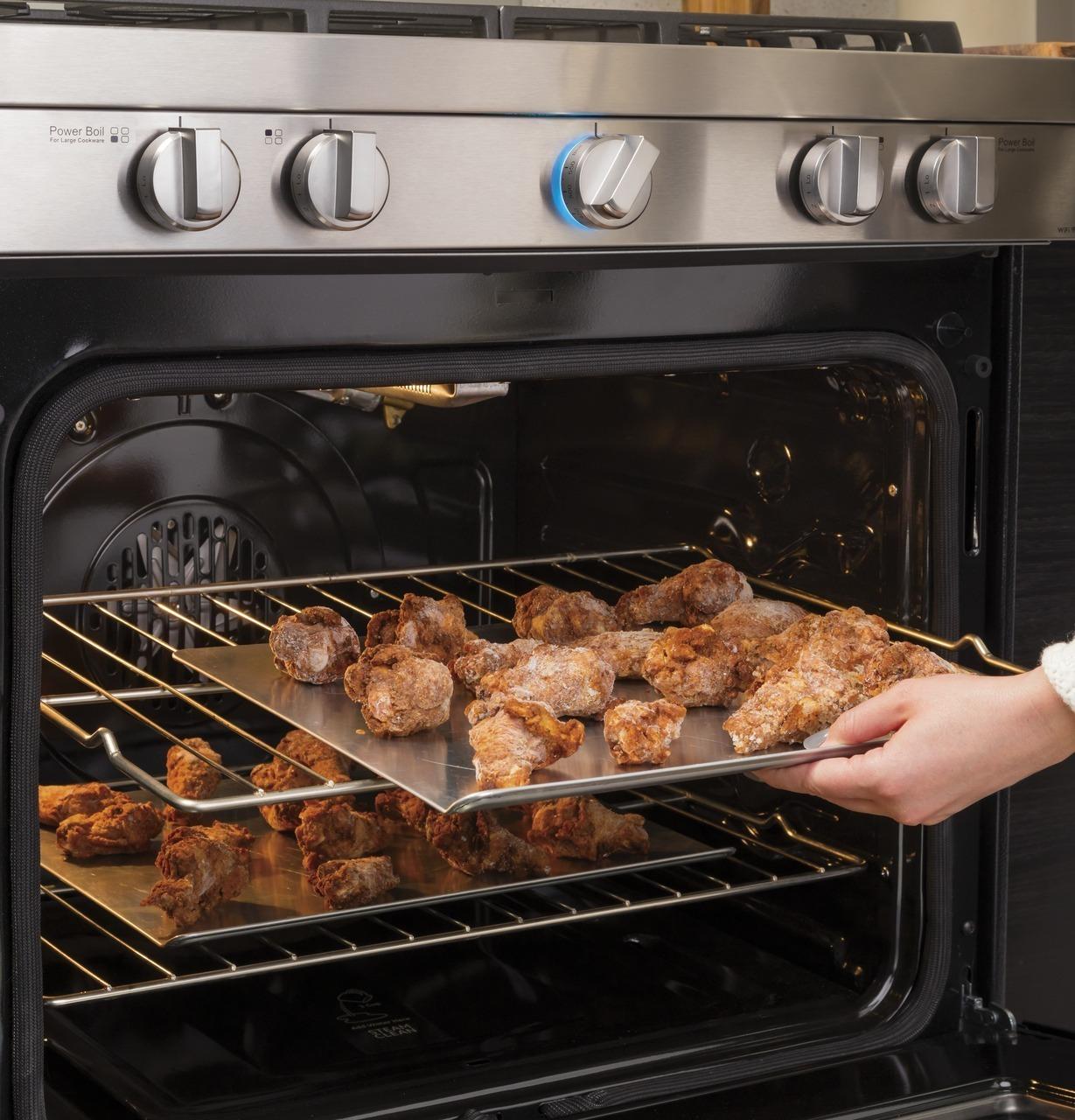

Oven Cooking Modes | Bake Broil Convection Bake Warming No Preheat Air Fry |
Oven Interior | 1 Incandescent Light Auto Oven Interior Light Black |

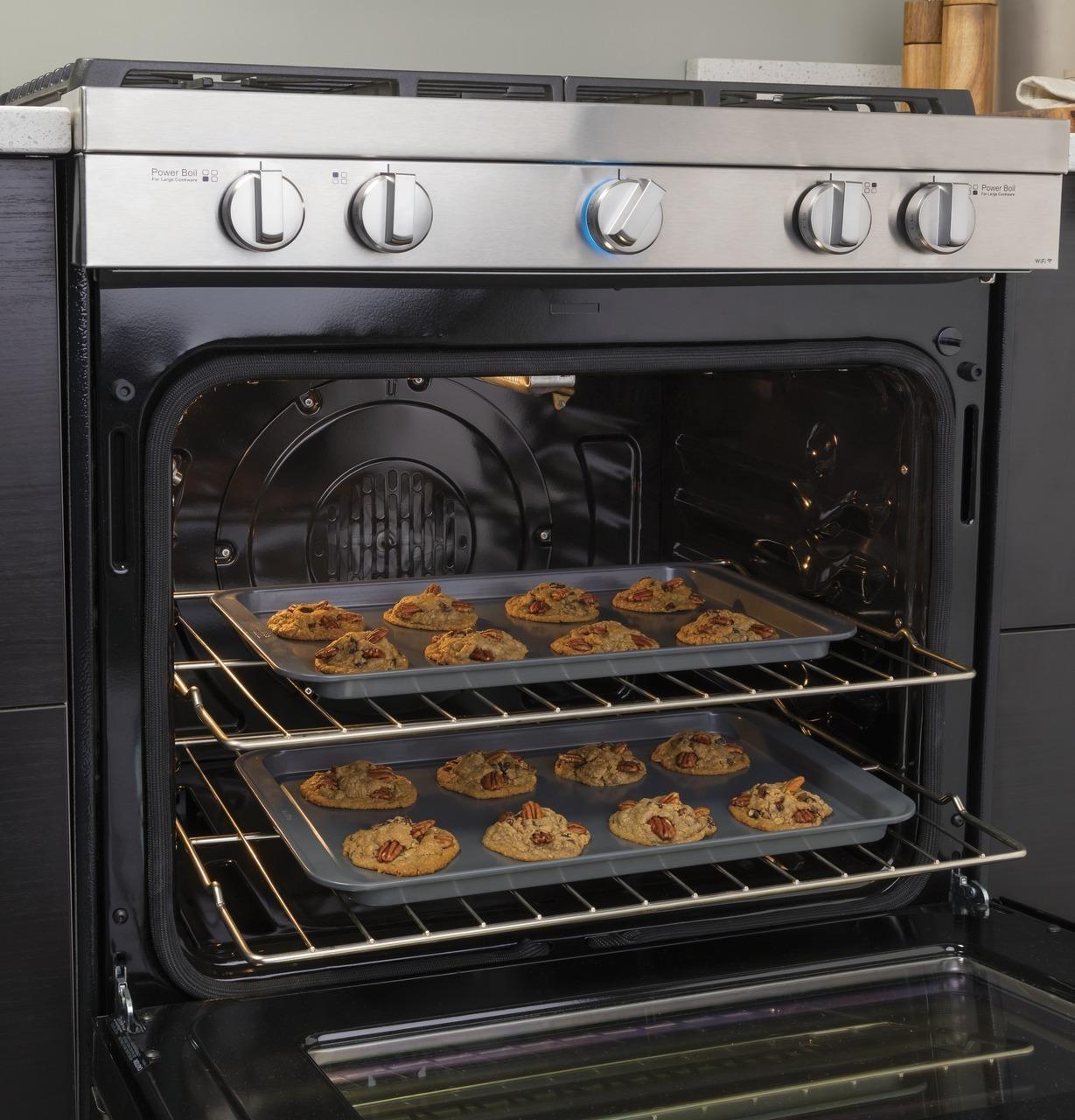

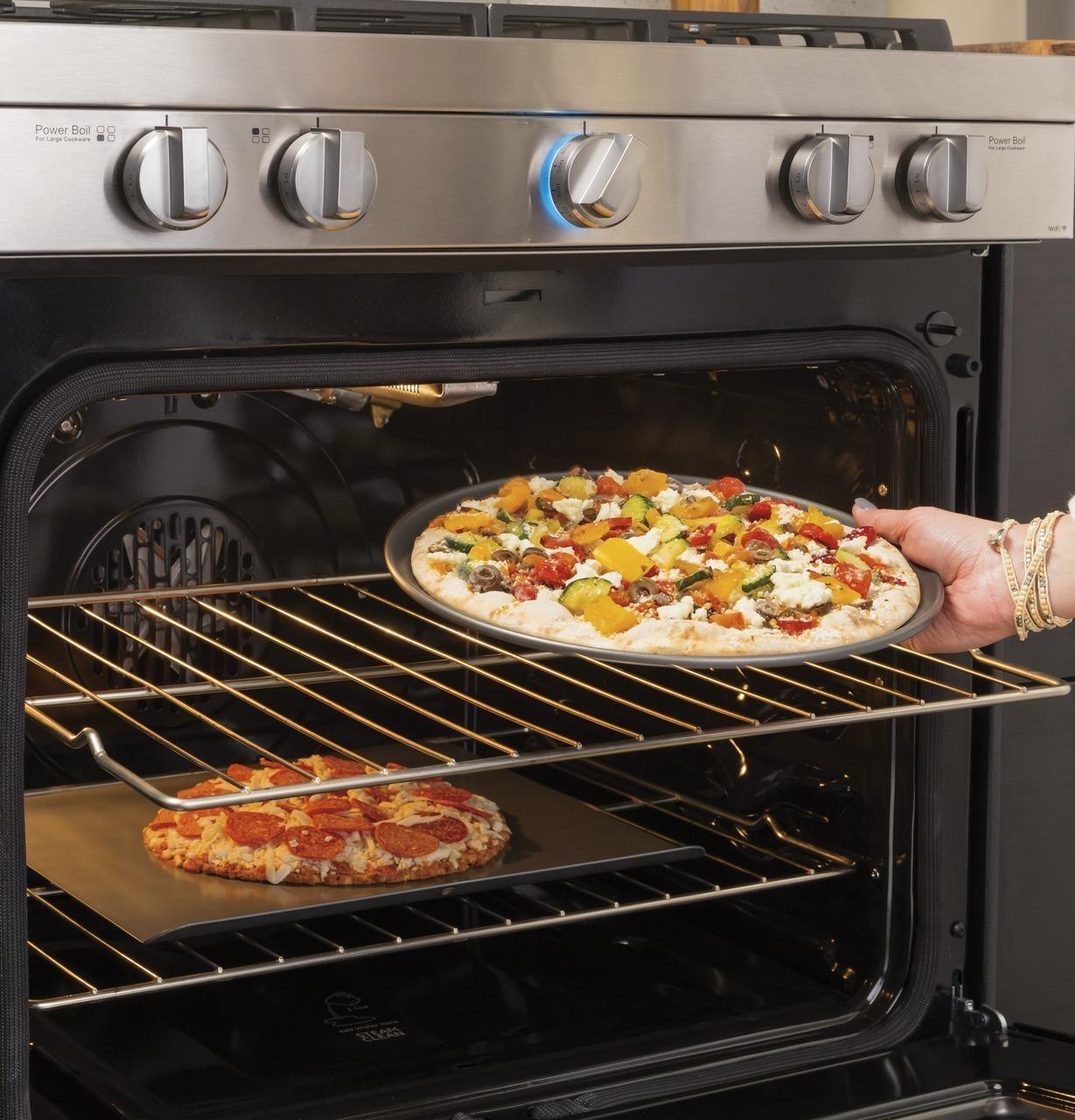

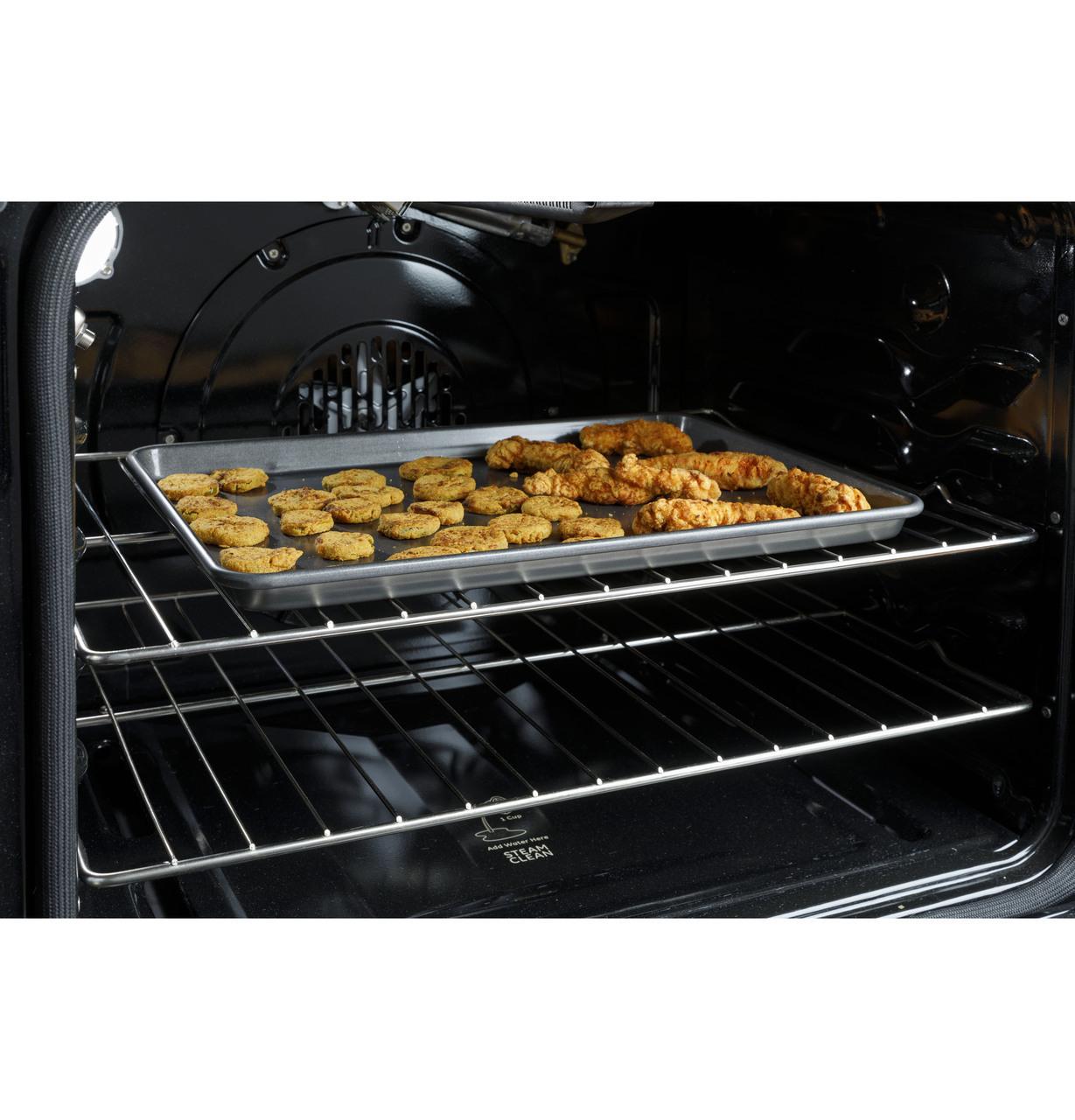

Oven Rack Features | 2 Flat Racks 6 Rack Positions |
Product Type | Free-Standing Single Oven |
Sabbath Mode | Yes |

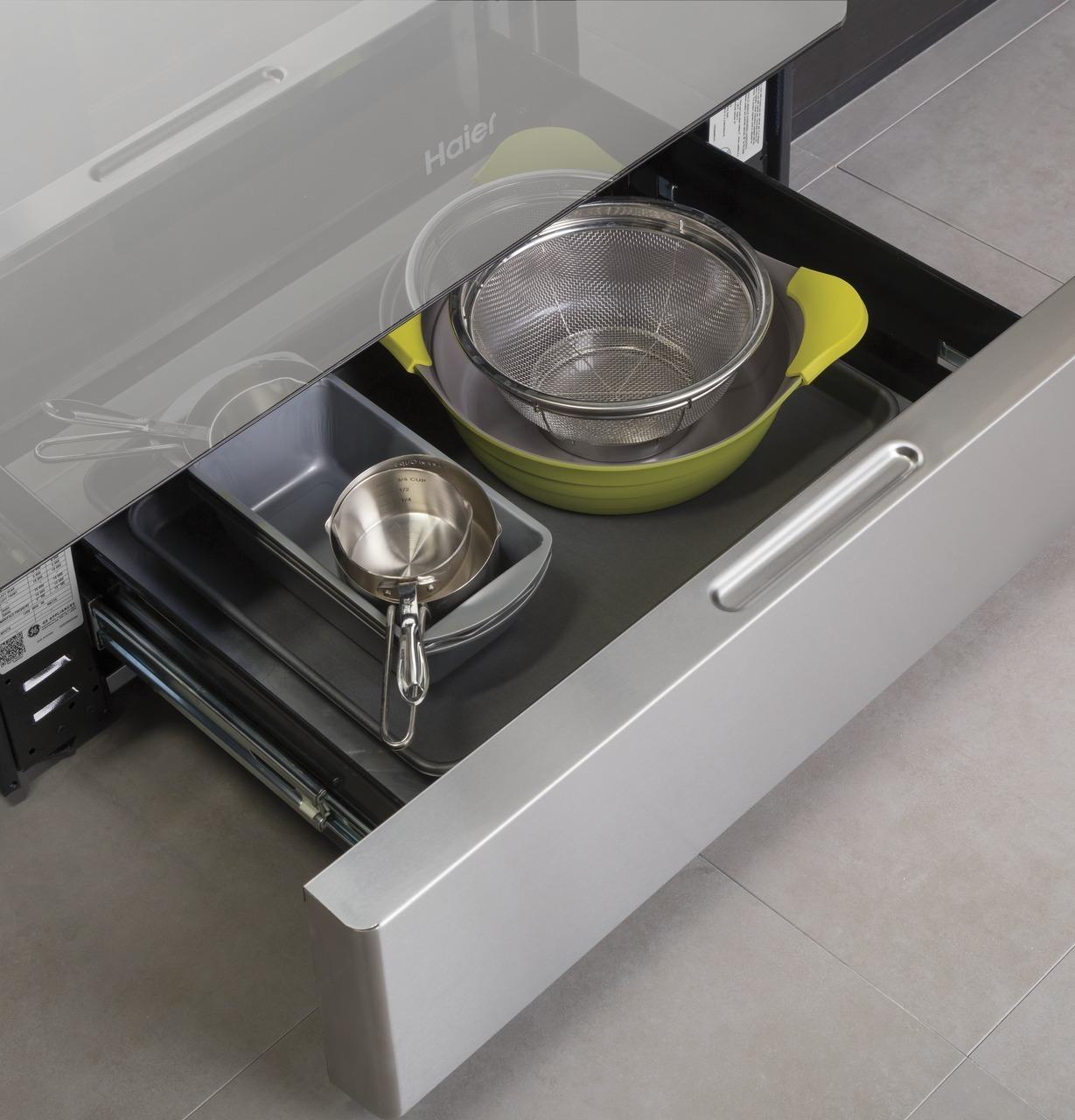

Storage Drawer Features | Removable Full-Width |
Valves (Degree of Turn) | 270 |

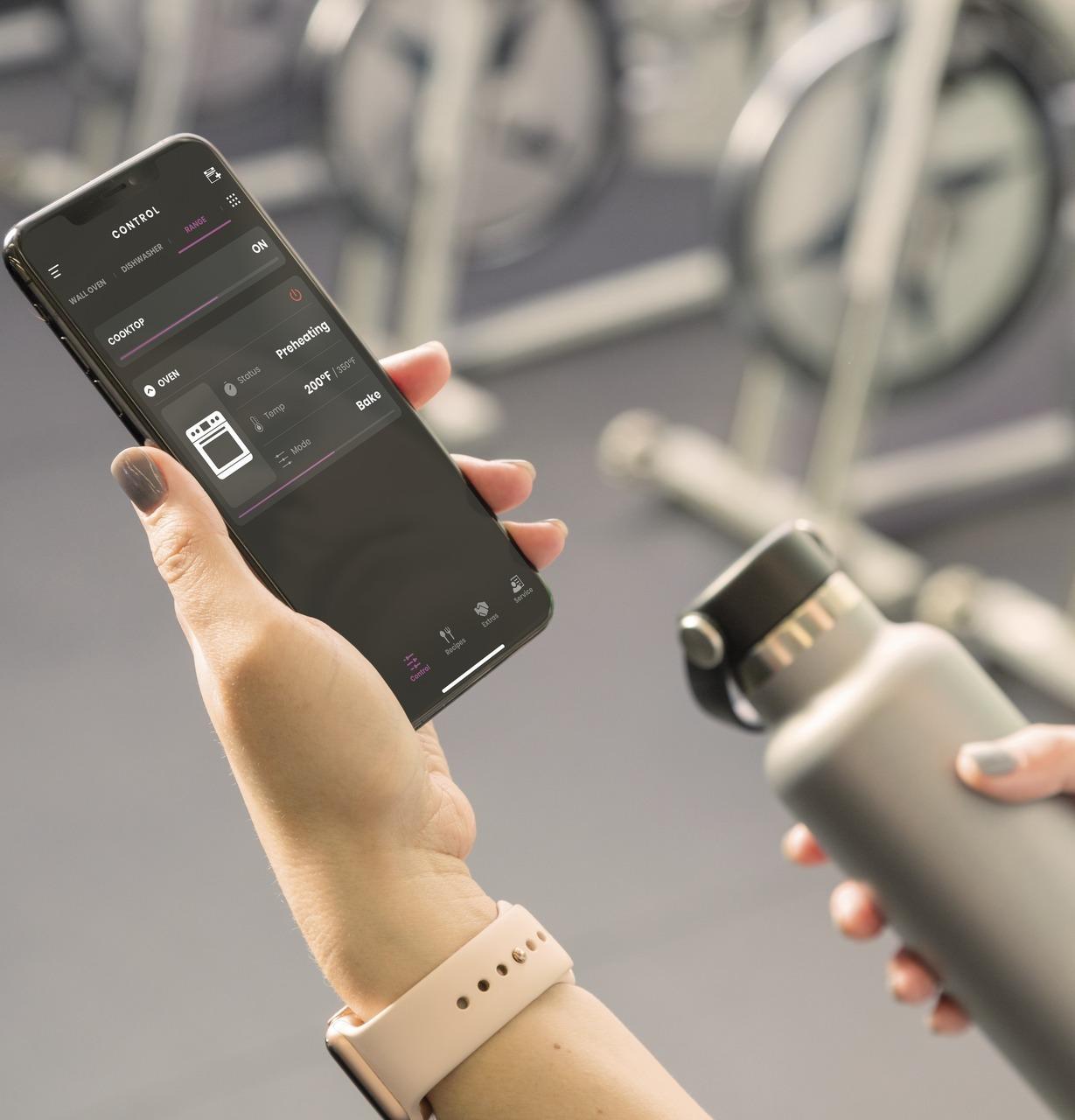

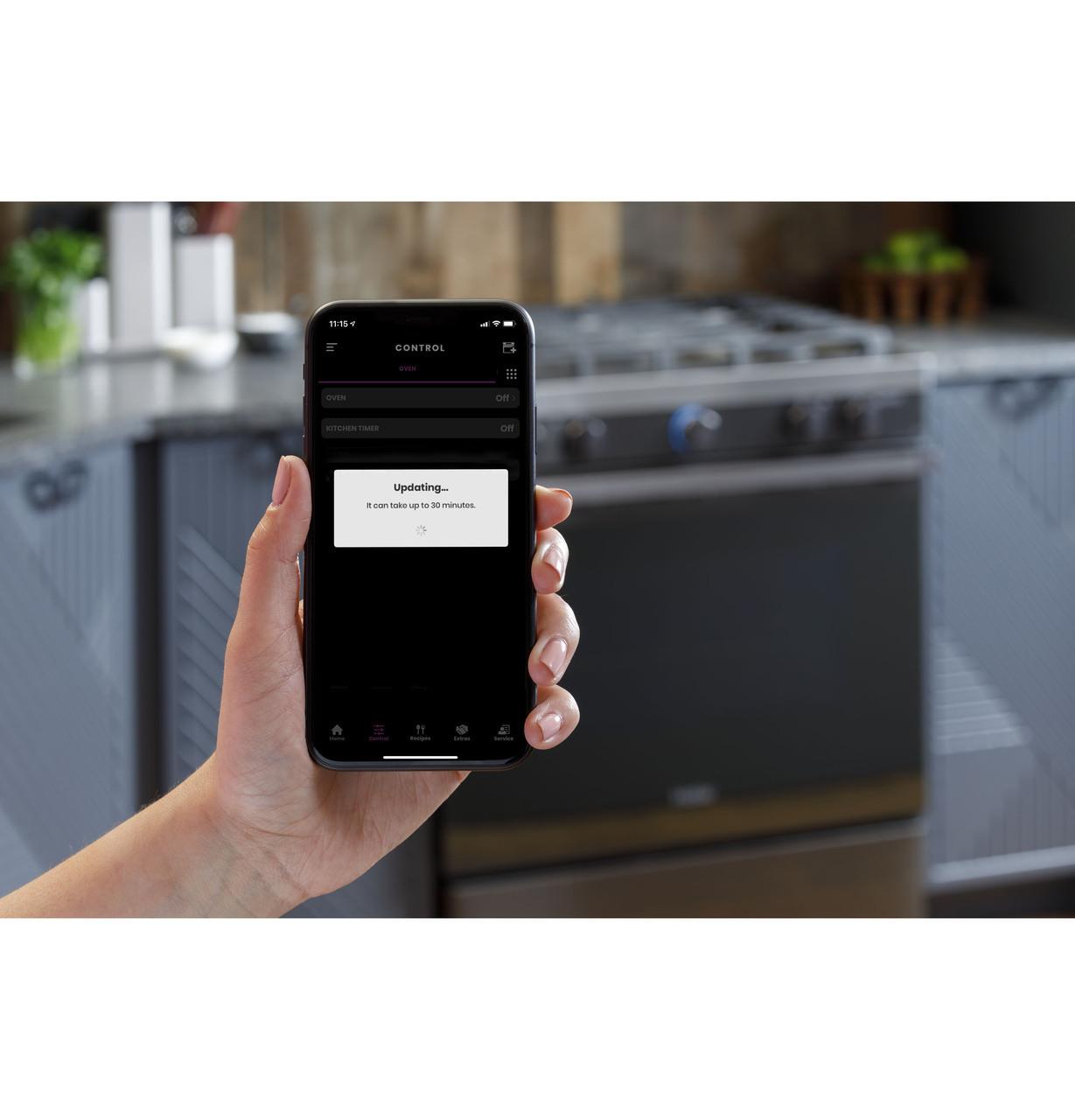

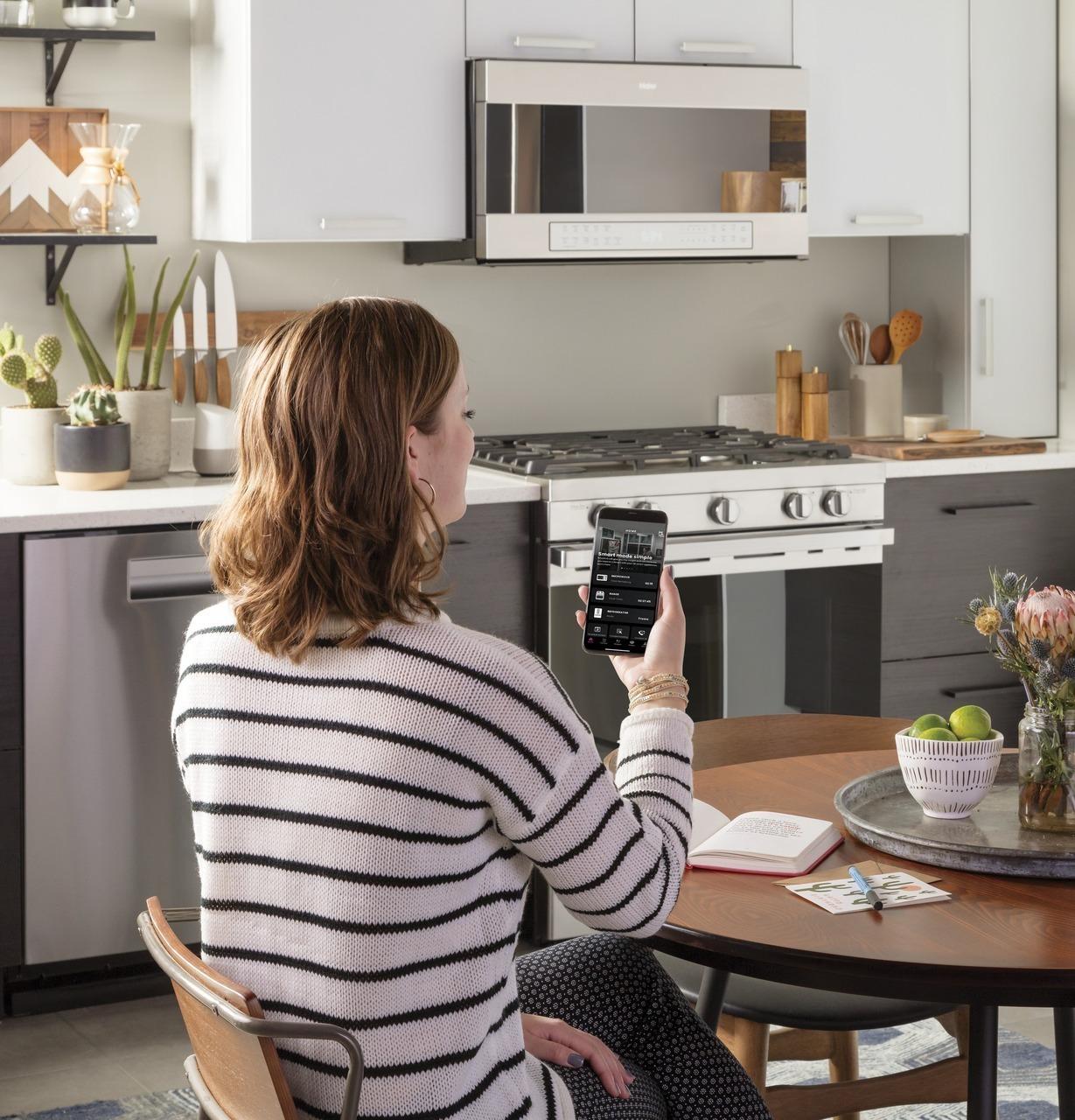

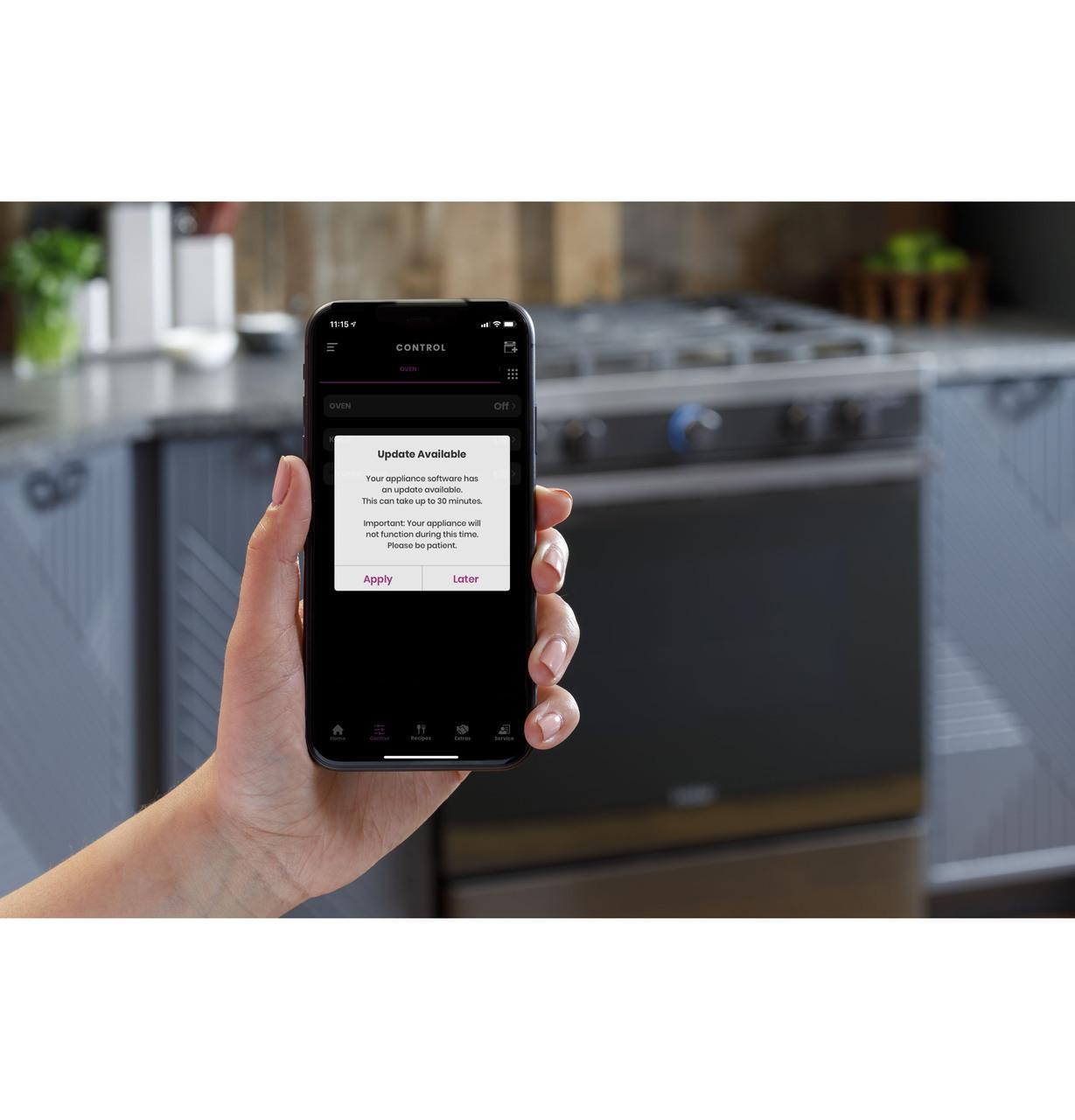

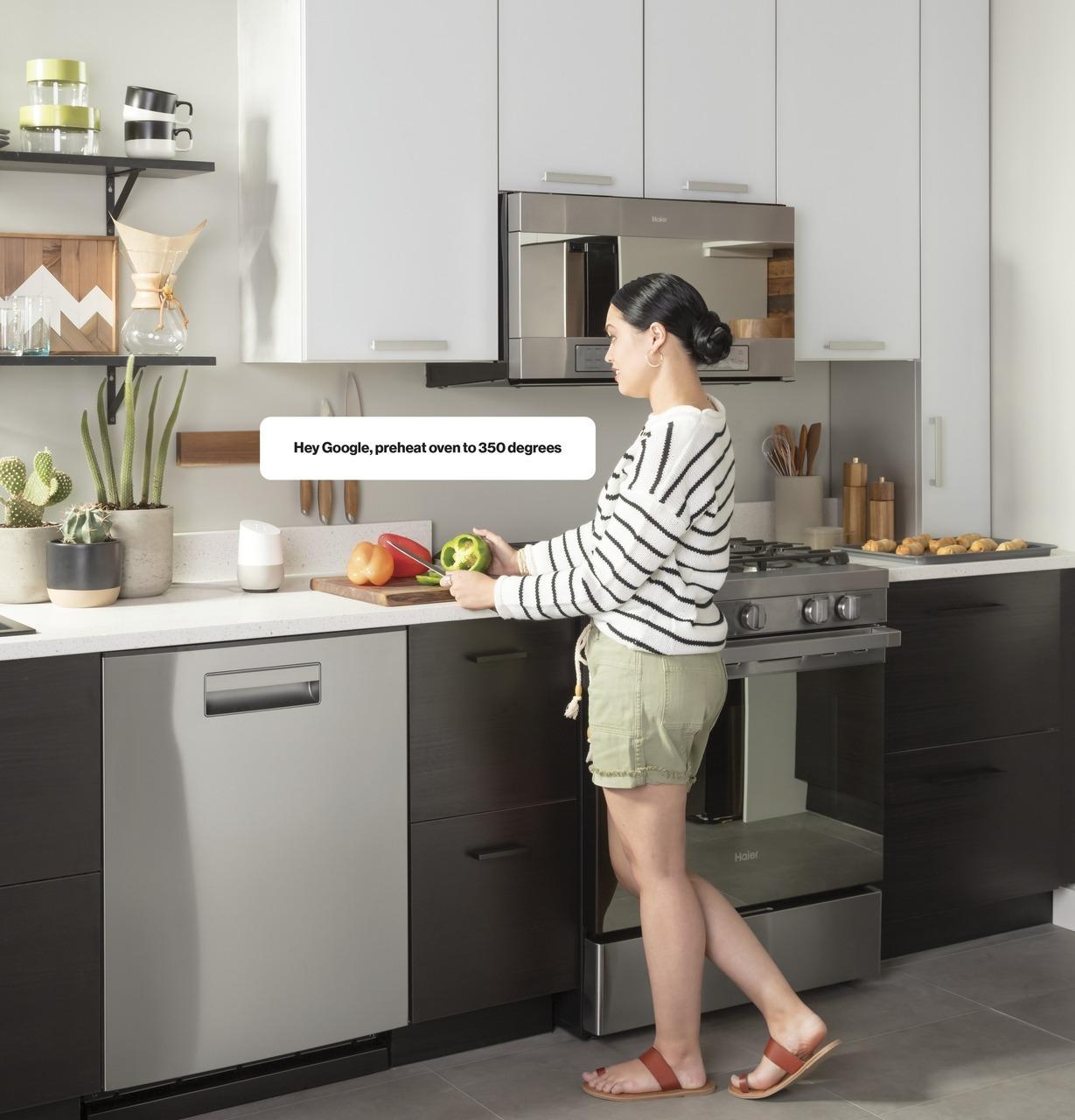

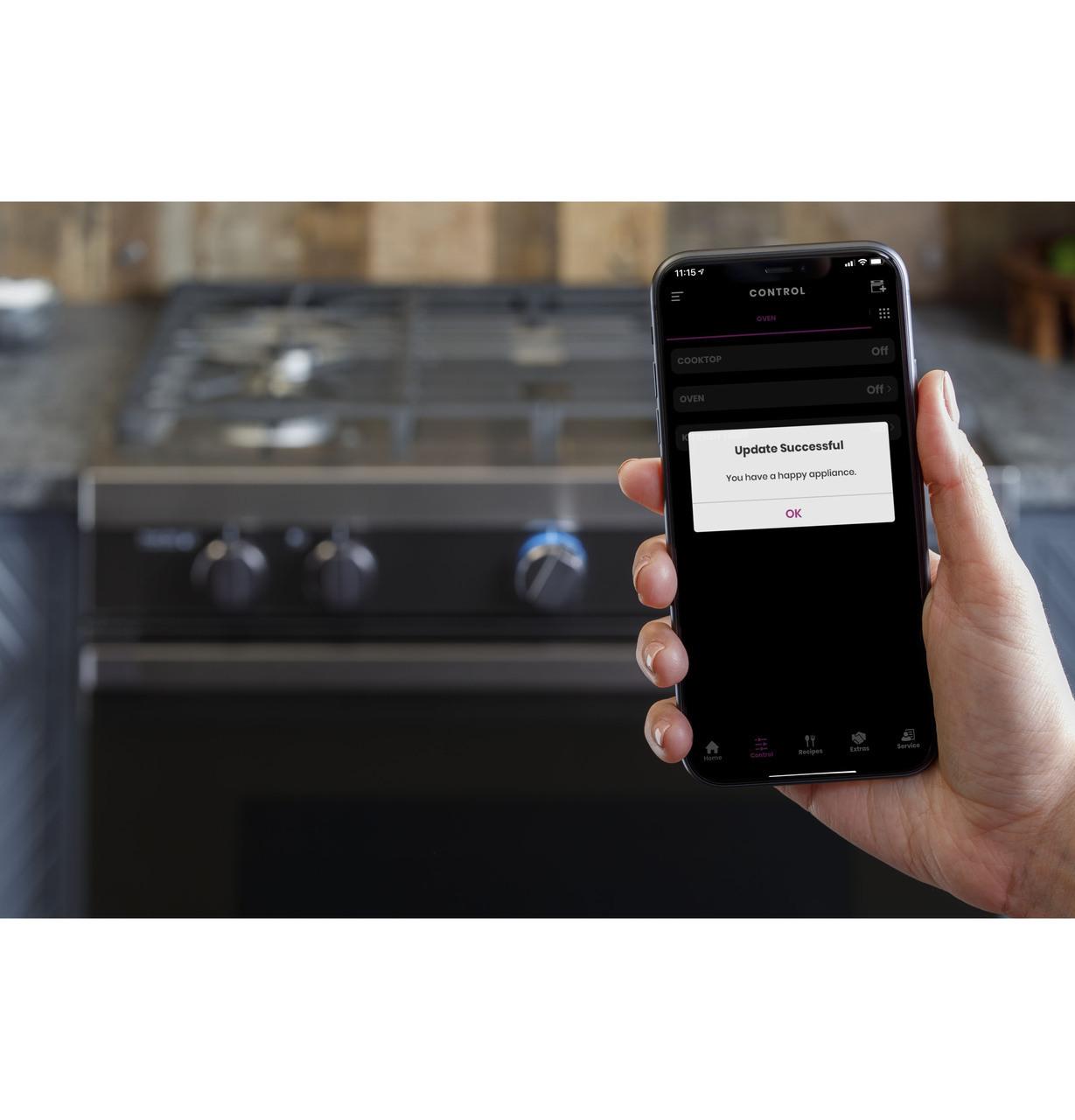

WiFi Connect | Built-In |
warranty | |
Labor Warranty | 1 Year |
Parts Warranty | 1 year |
Warranty Notes | See written warranty for full details |
