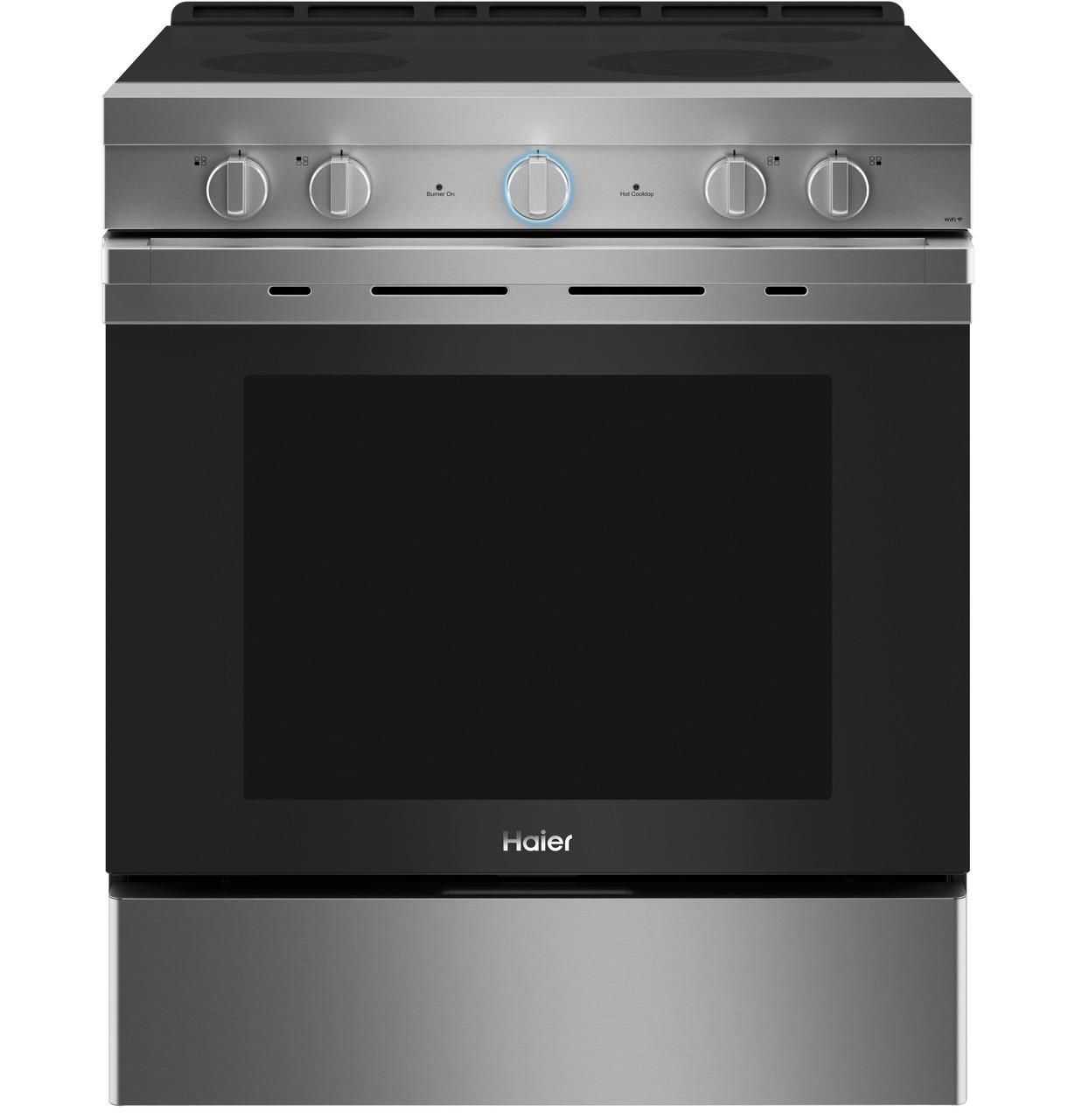

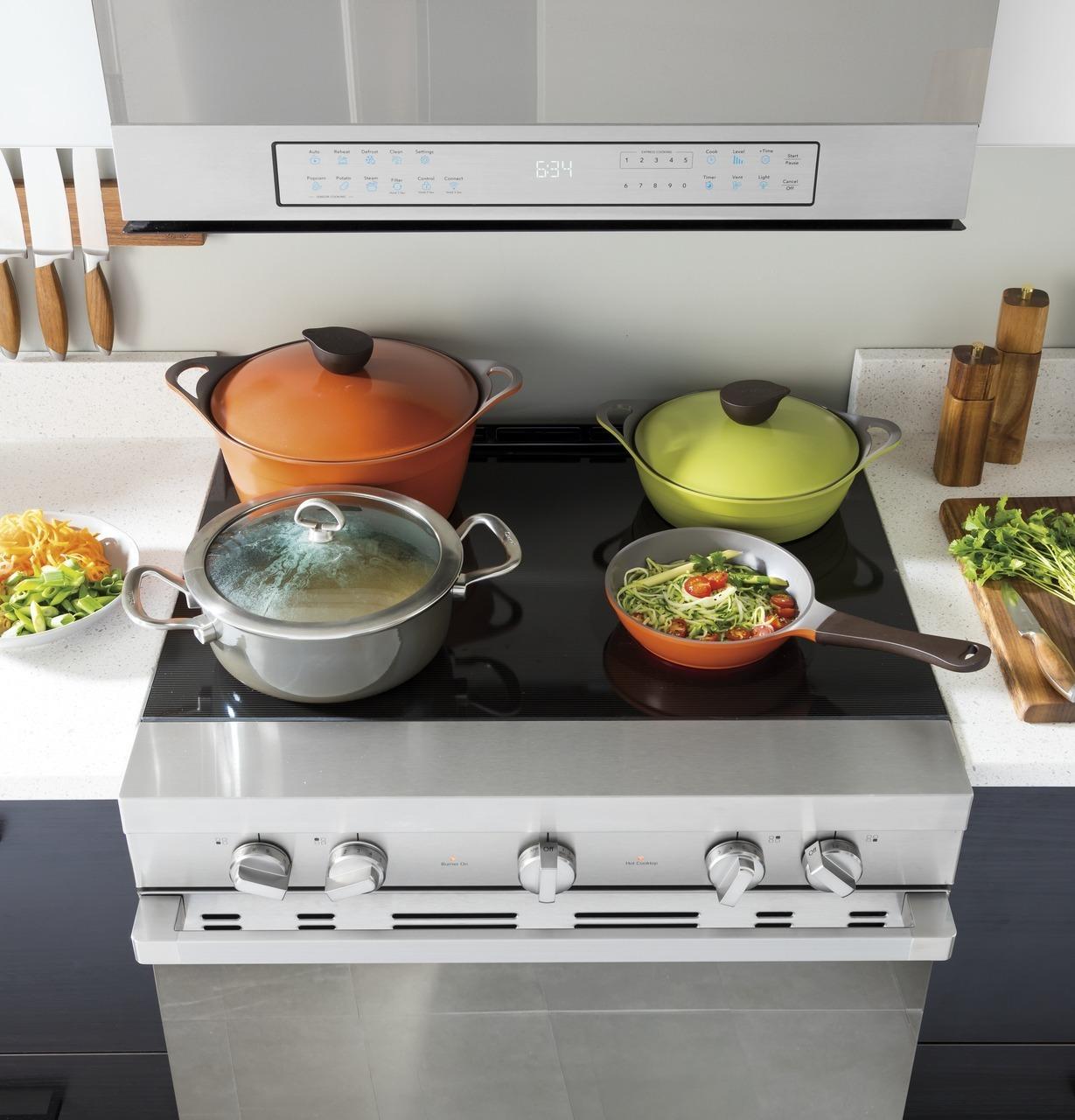

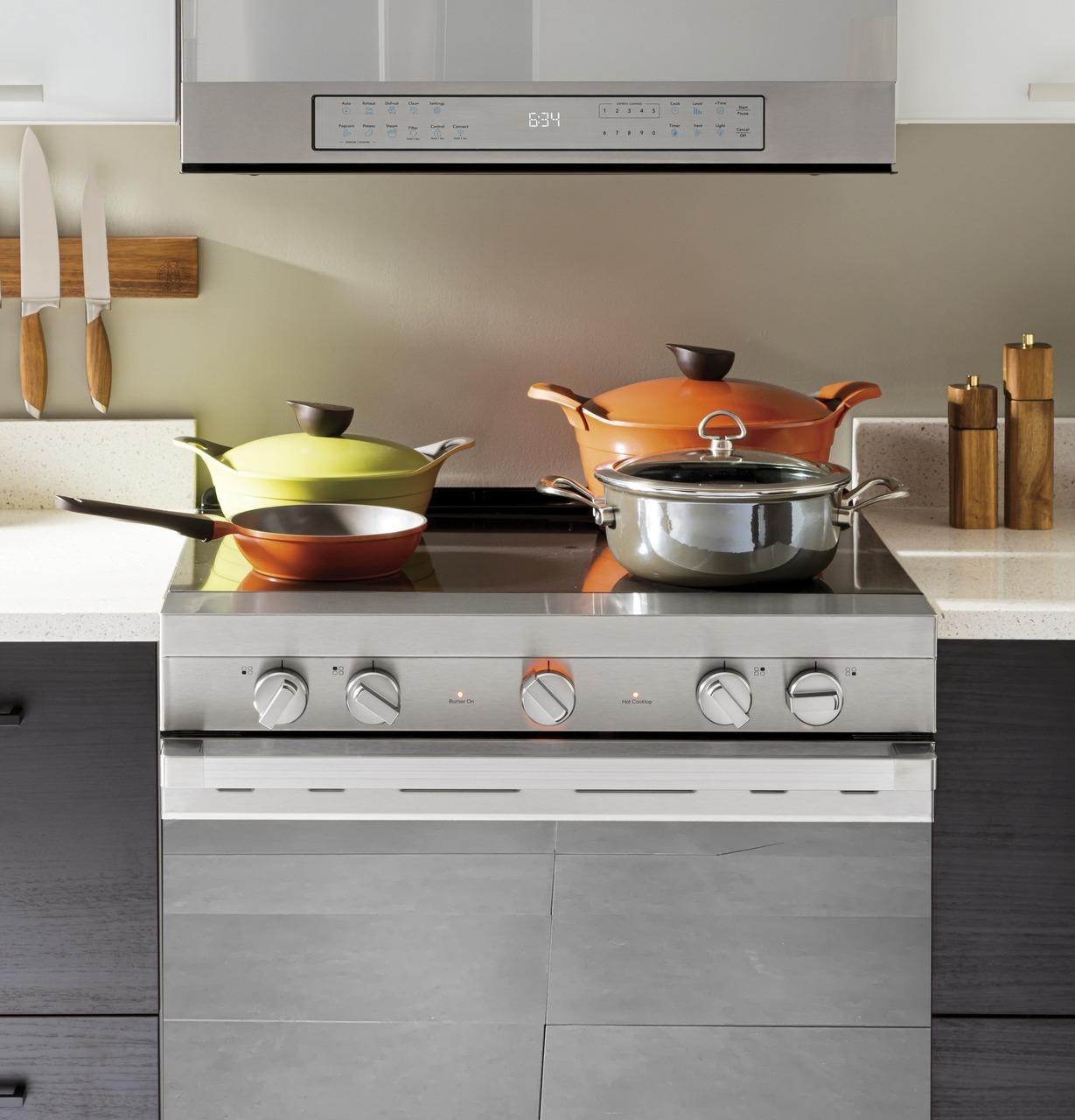

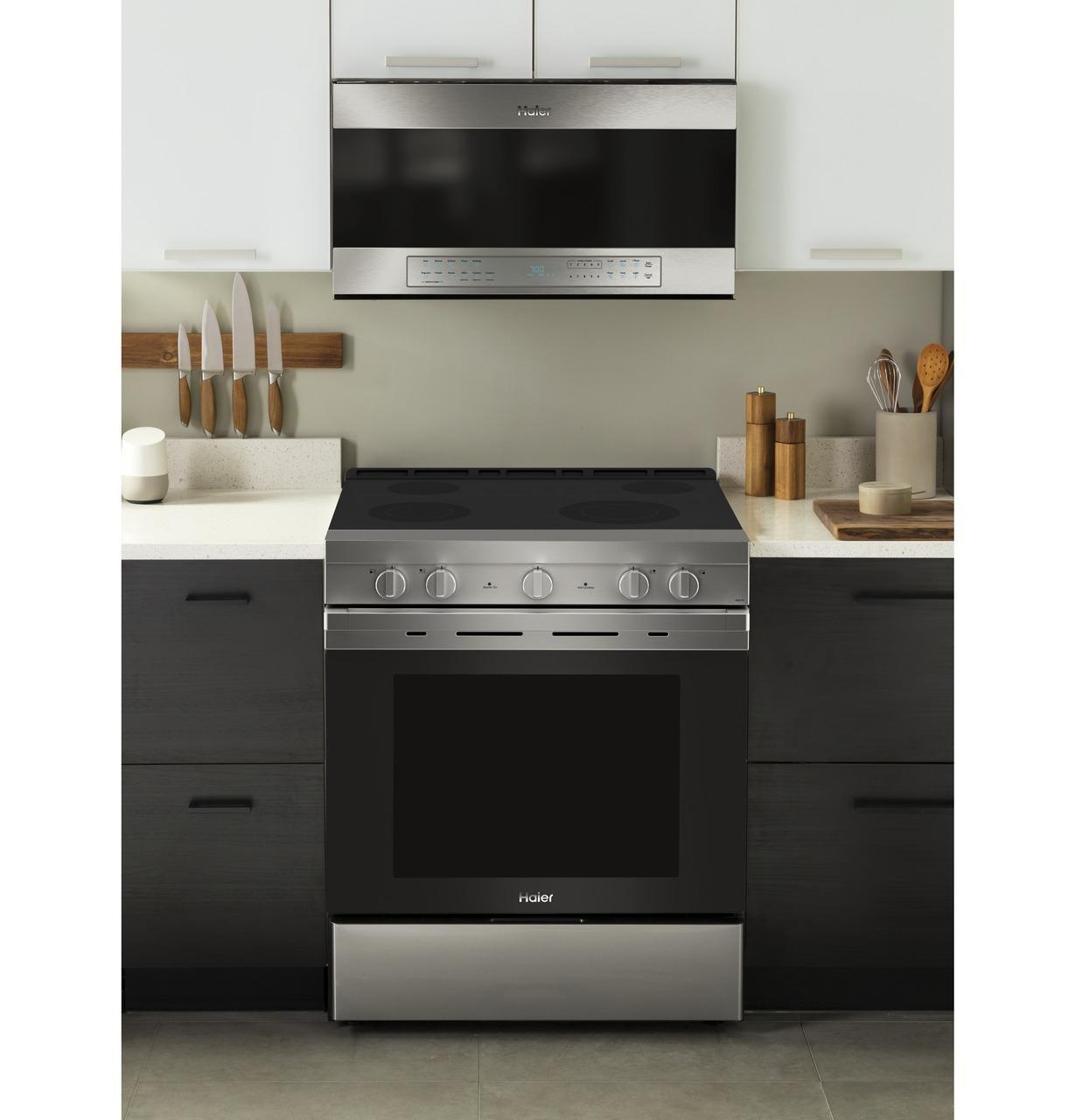

30" Smart Slide-In Electric Range with Convection
Specs & Details | |
appearance | |
Color Appearance | Stainless Steel |
Control Knobs | Stainless |
Door Swing | Pull Down |
Handle | Stainless |
Oven Door Features | Oven Window |
Textured Steel Side Panels | Black |
features | |
Configuration | Range with Storage Drawer |

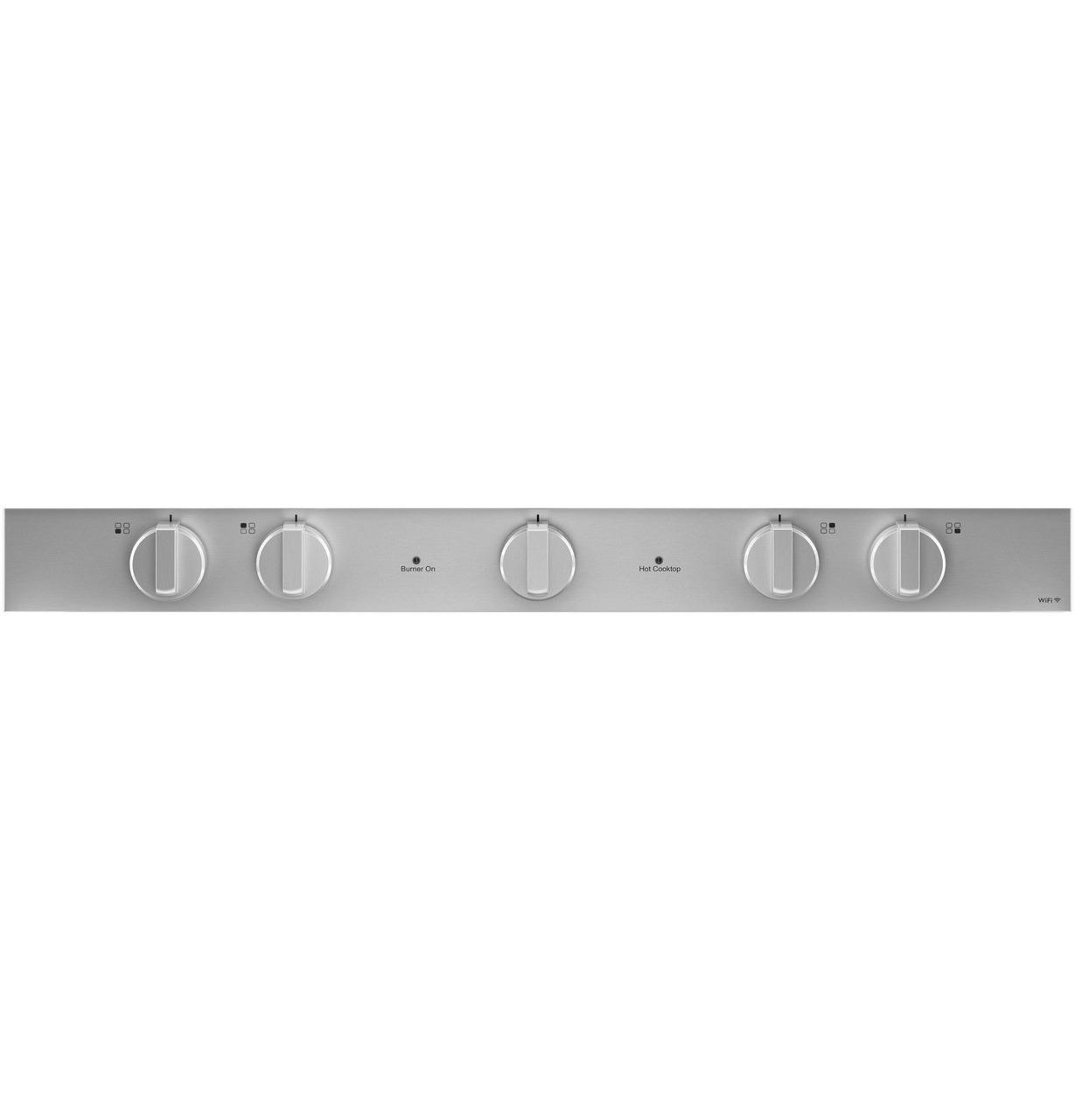

Control Location | Front |

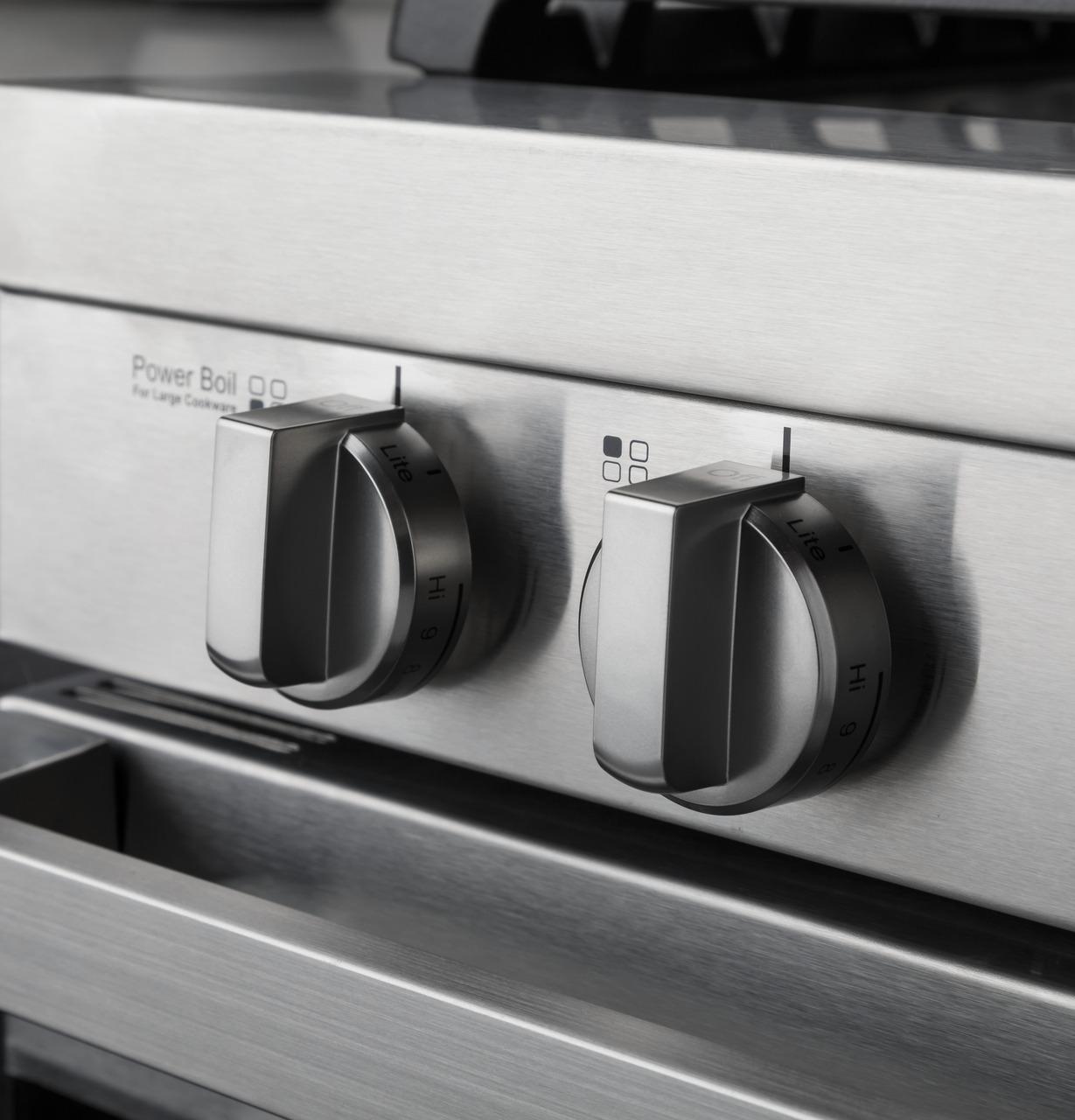

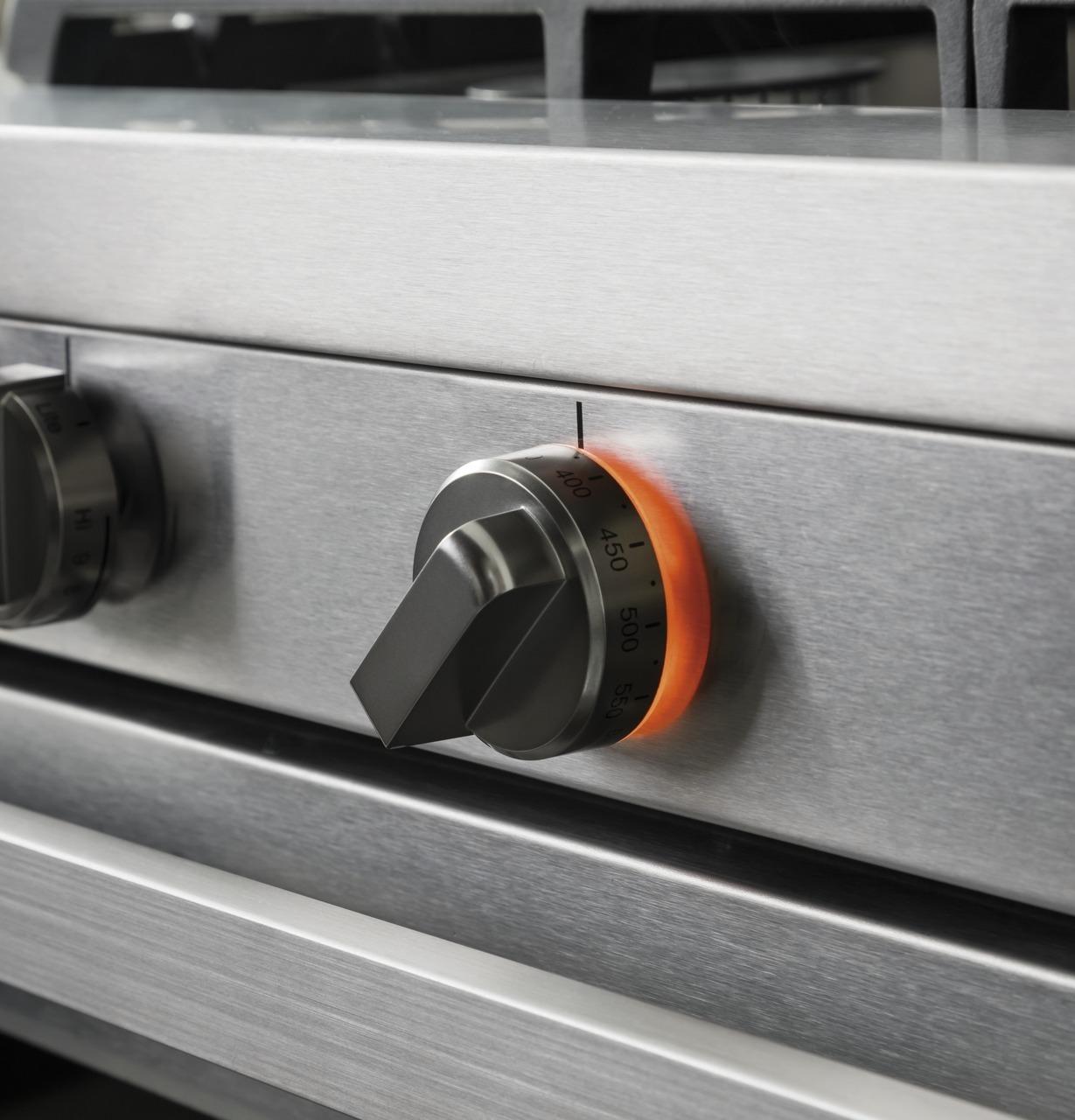

Control Type | Heavy Duty Knob |

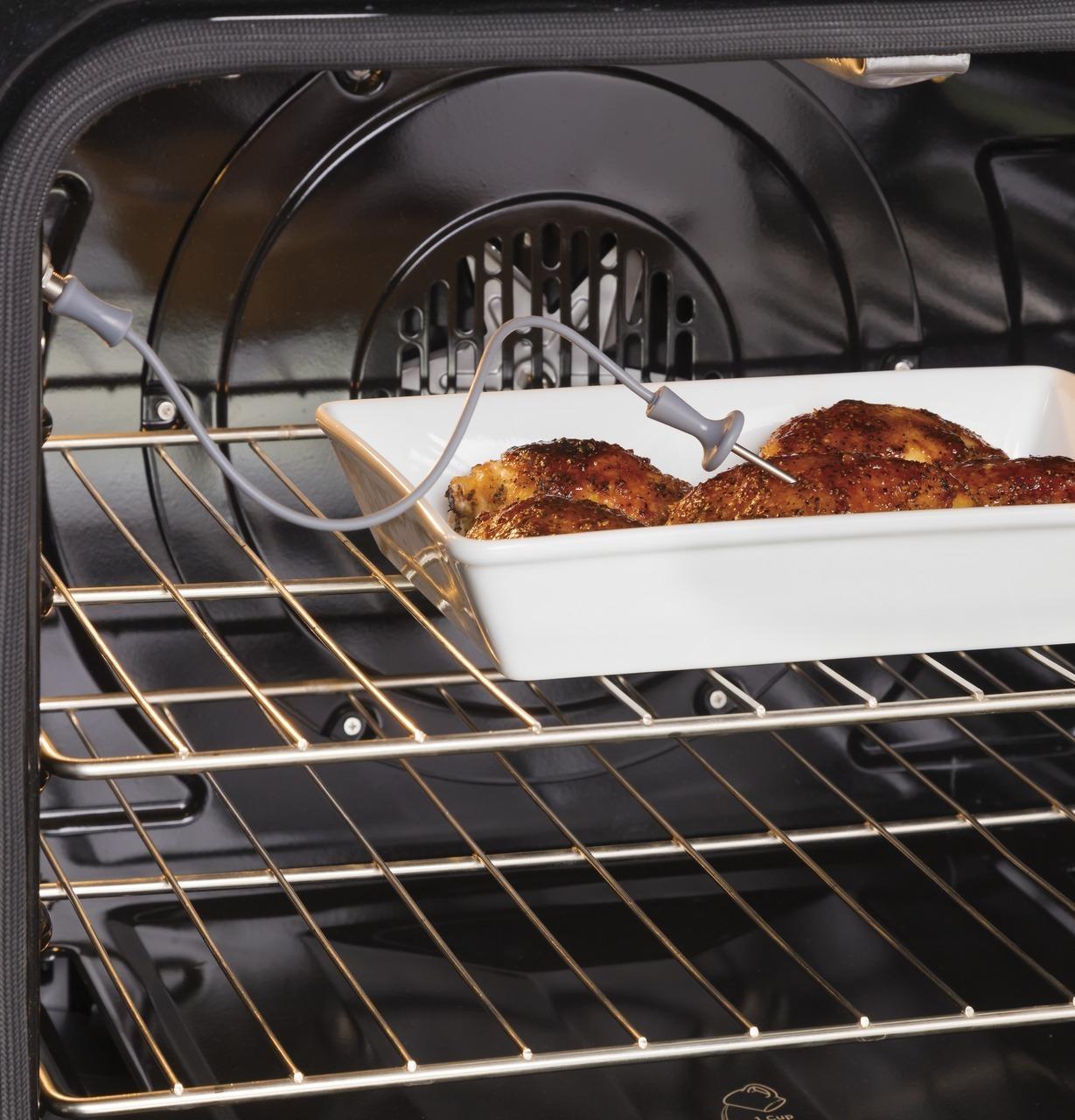

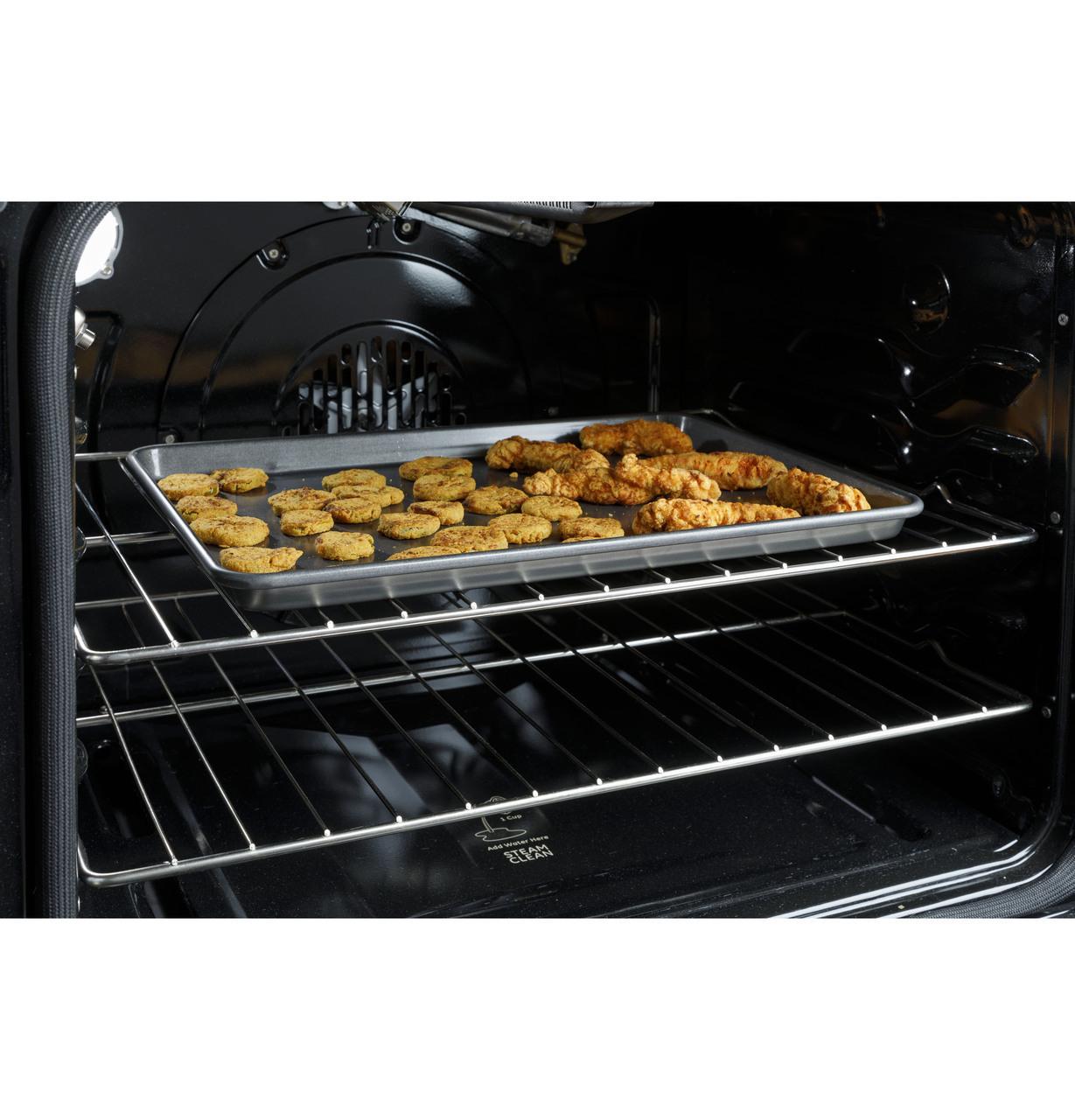

Cooking Technology | Fan Convection |

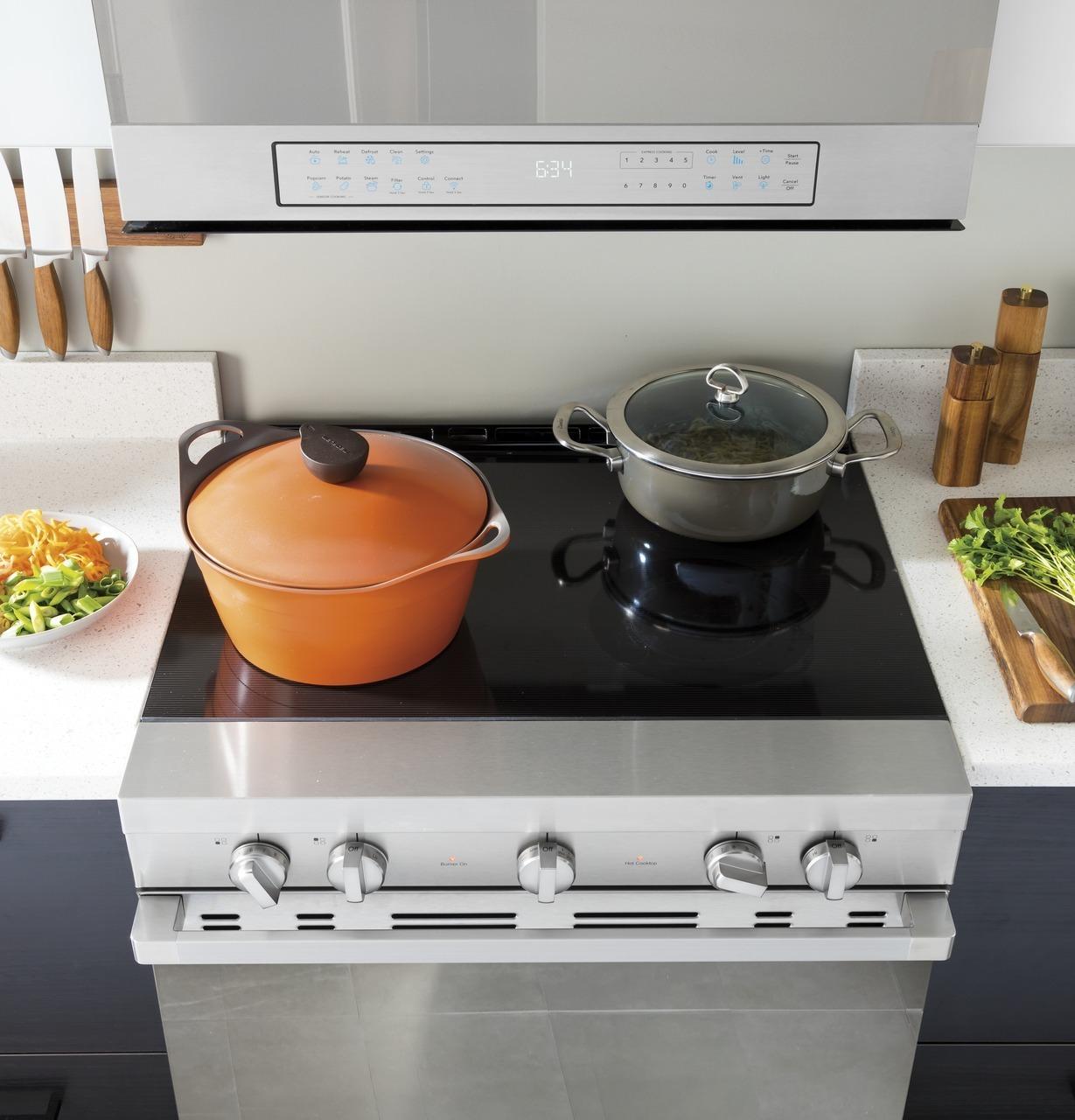

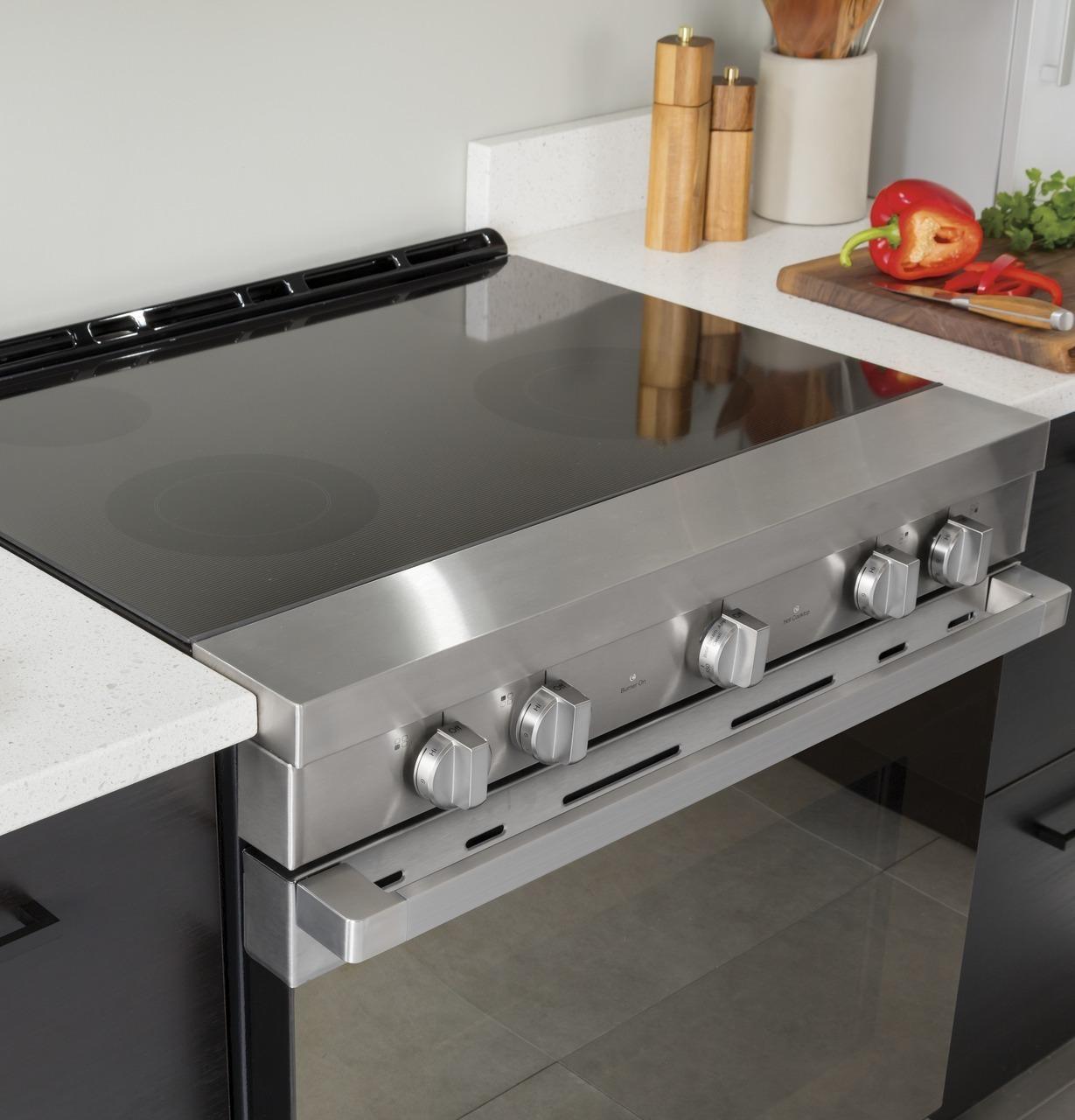

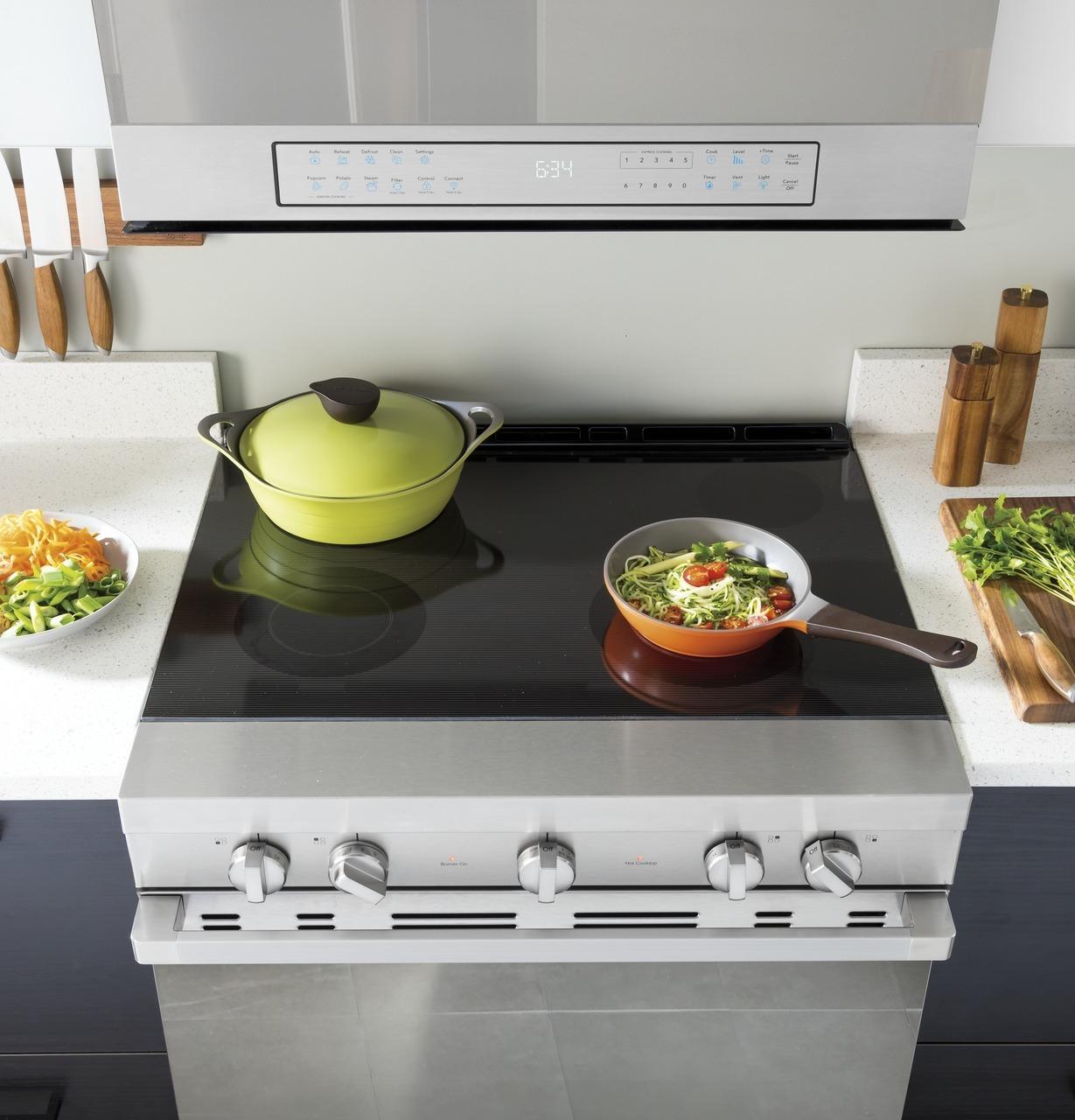

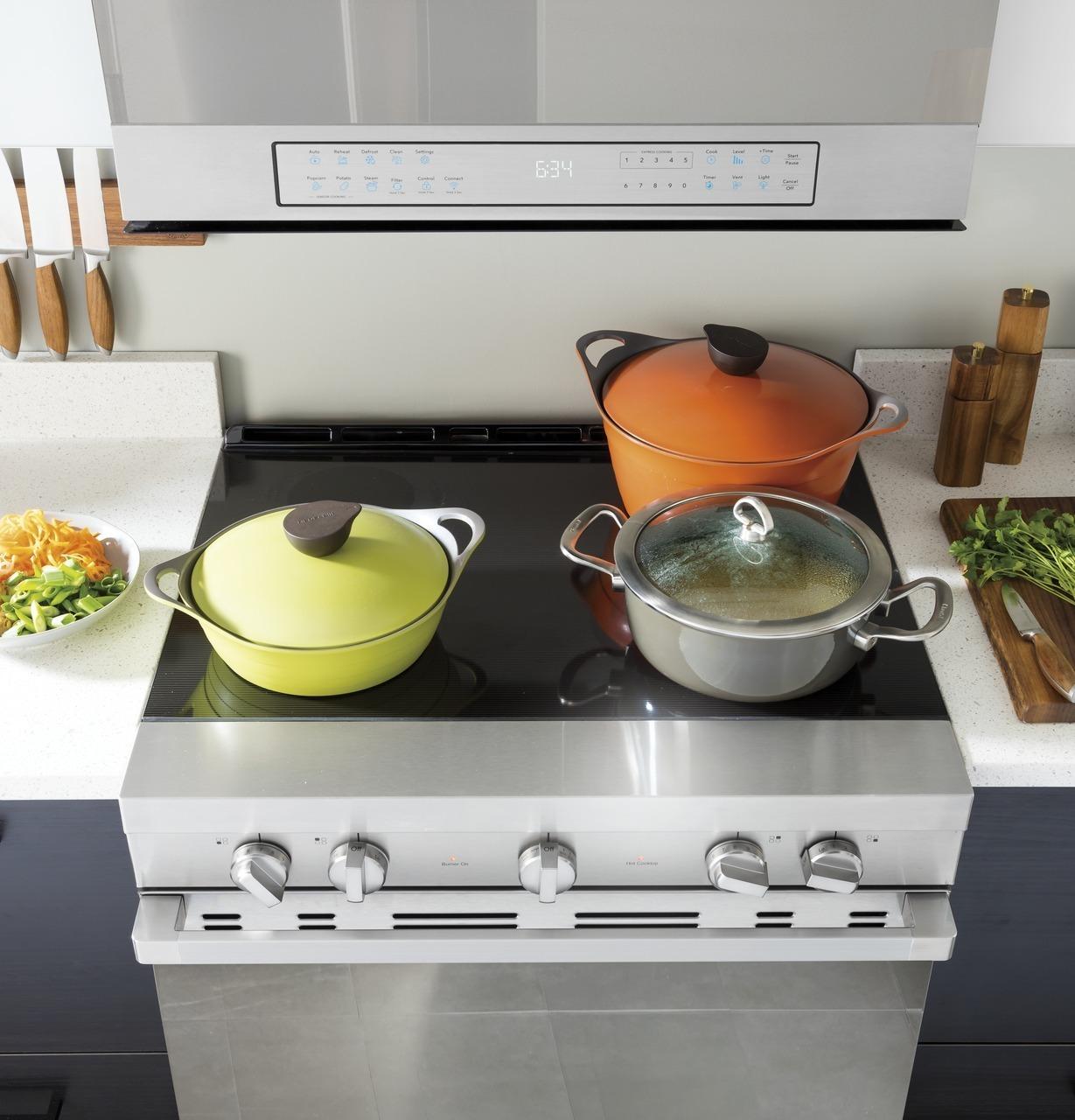

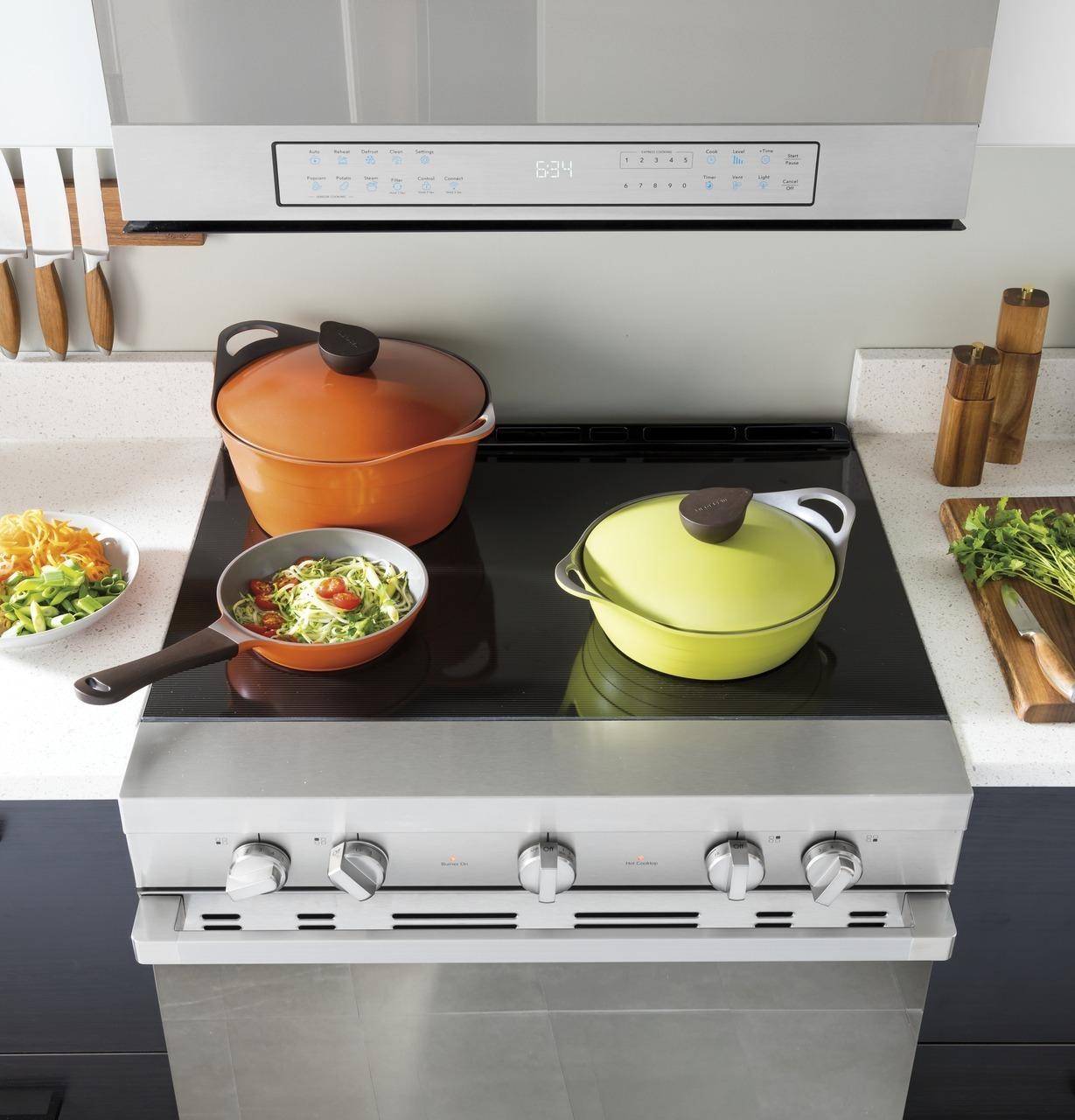

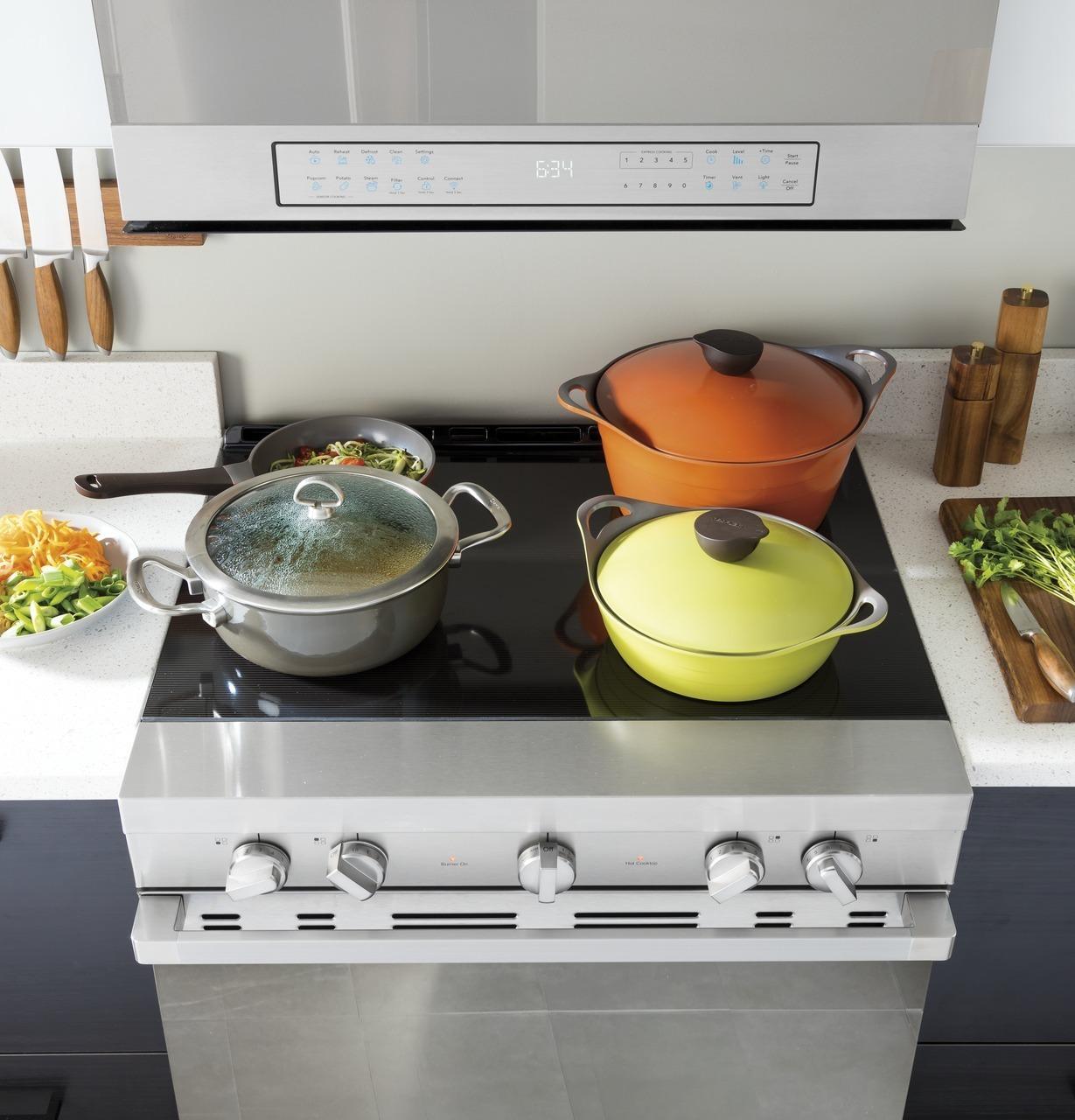

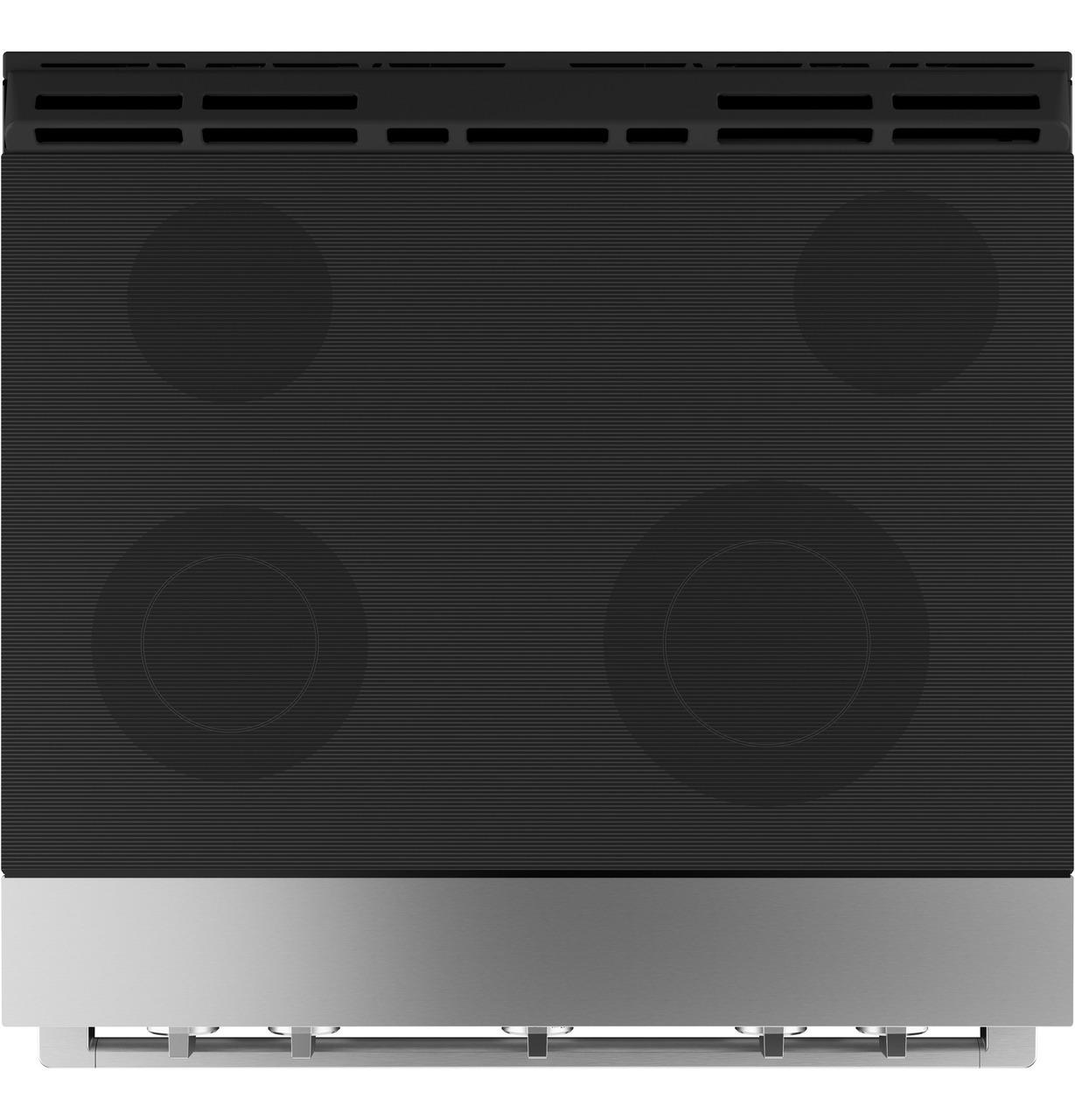

Cooktop Burner Type | Smoothtop |
Cooktop Surface | Black Glass Ceramic |
Cooktop Type | Radiant Smoothtop |

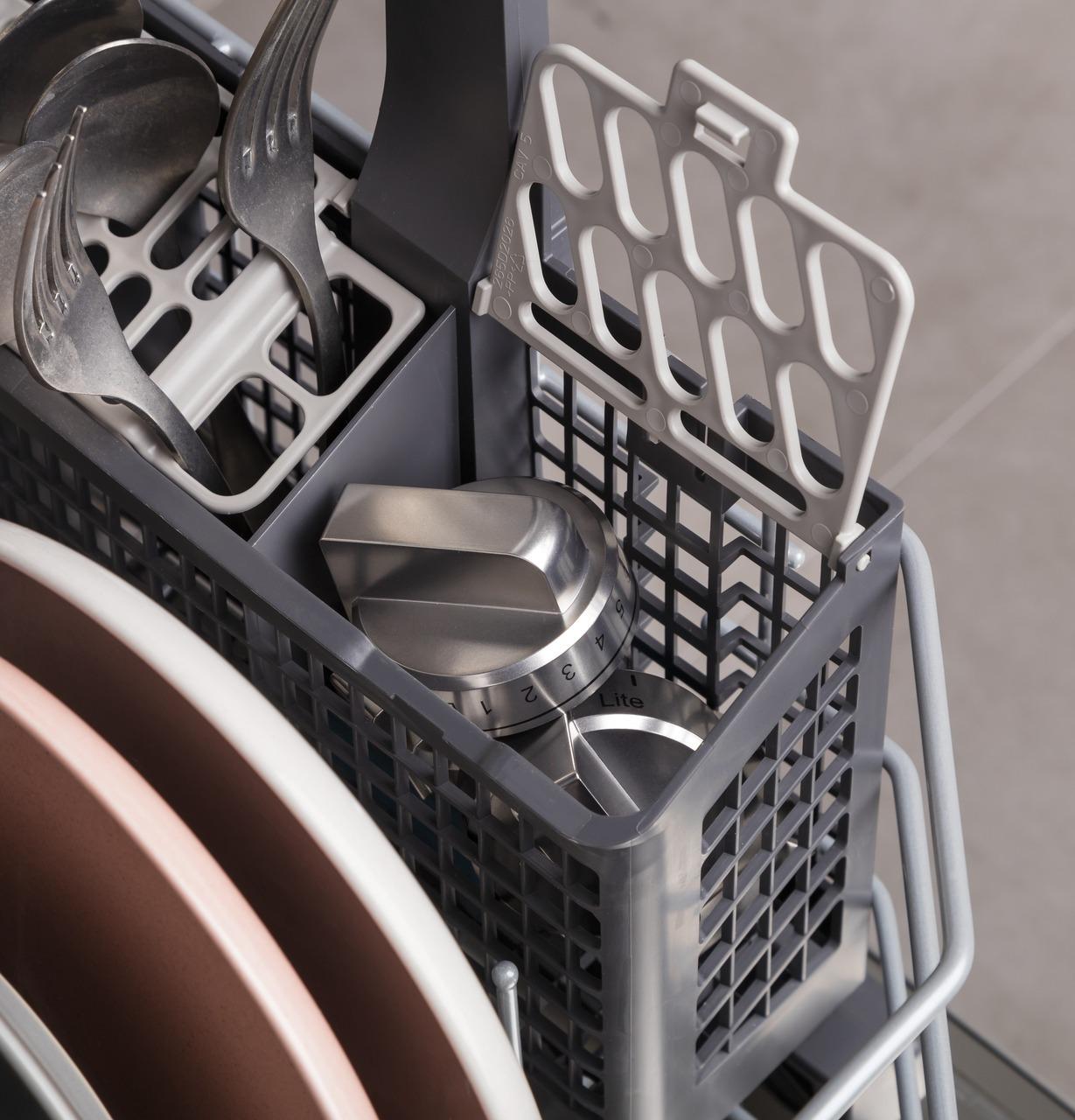

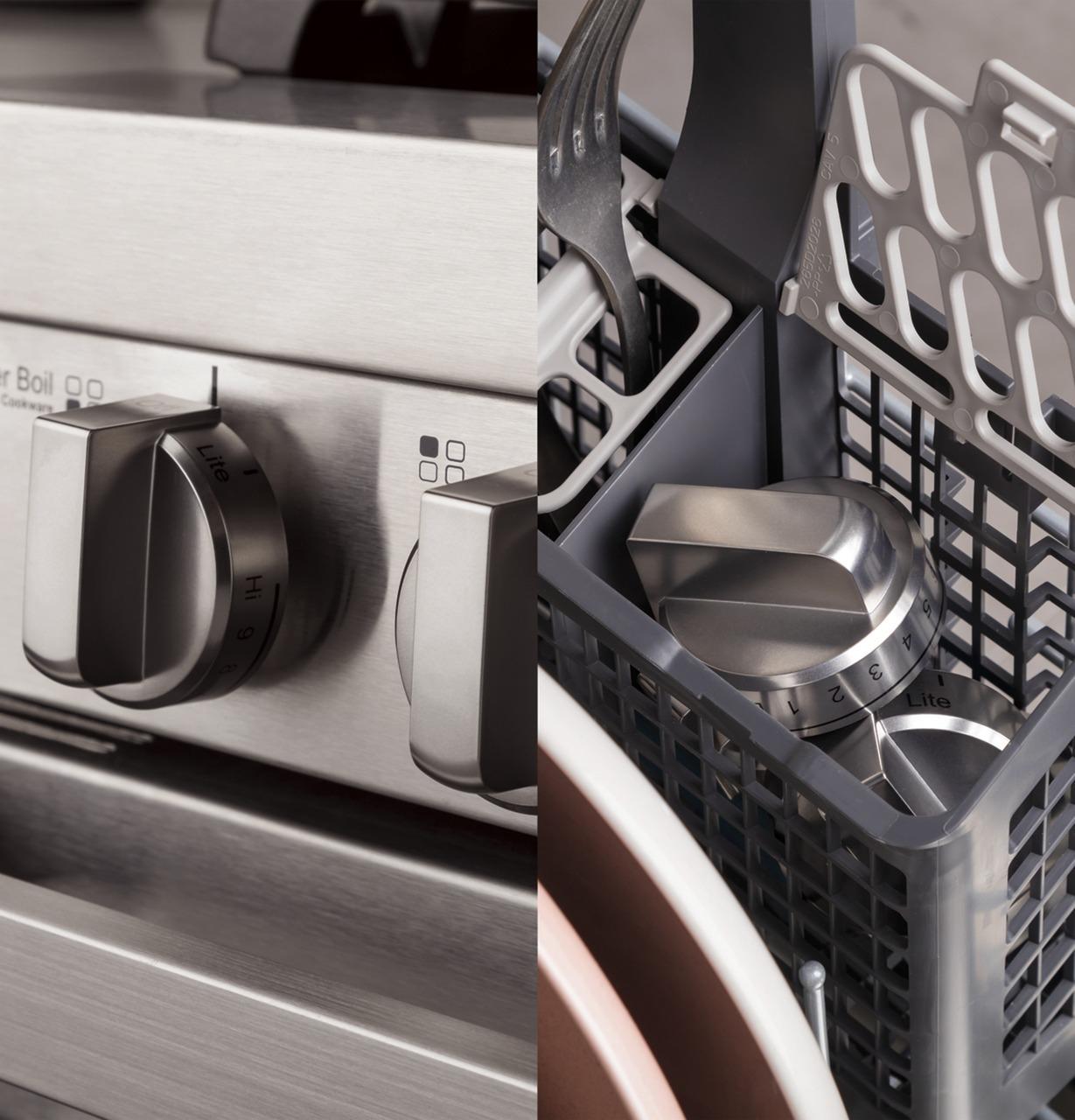

Dishwasher Safe Knobs | Yes |
Drawer Type | Storage |
Dual Ring Burners | Yes |
Element - Left Front | 8"/5" 1900W |
Element - Left Rear | 6" 1200W |
Element - Right Front | 9"/6" 3000W |
Element - Right Rear | 6" 1200W |
Fuel Type | Electric |
Hot Surface Indicator Lights | Yes, plus Oven Indicator Light |
Leveling System | 4 Leveling Legs |
Number of Convection Oven Fans | 1 |
OU Certified | No |

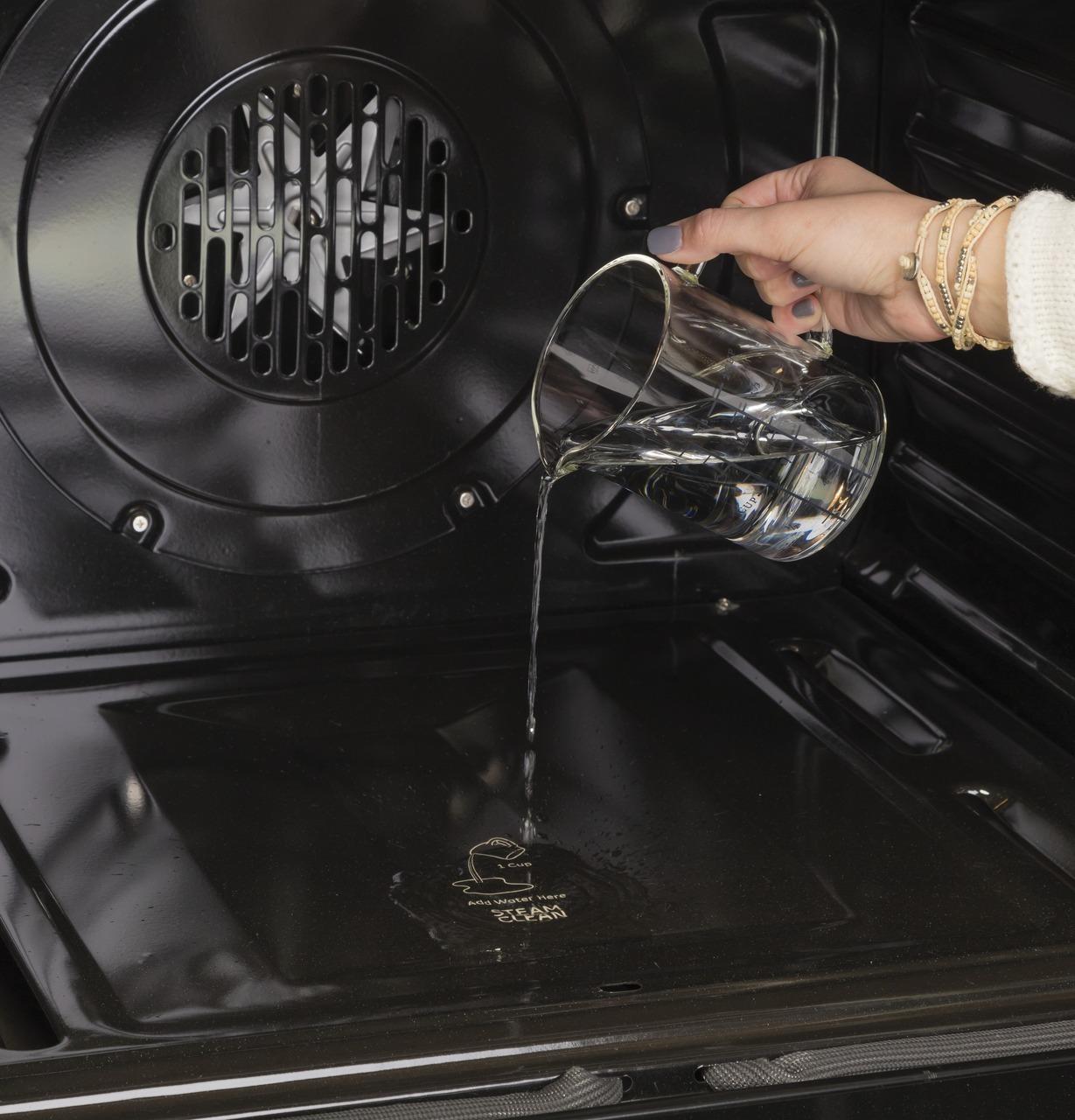

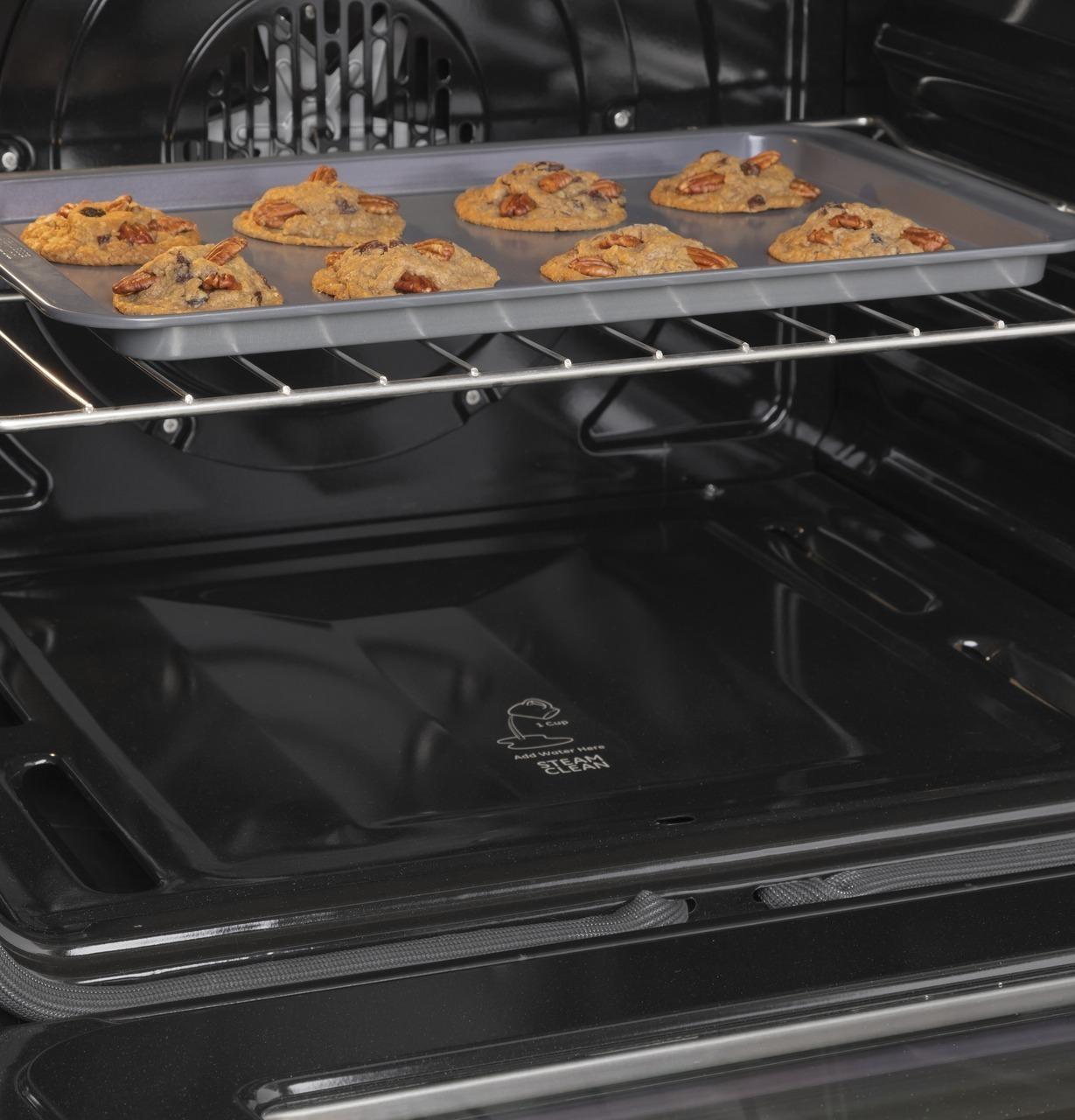

Oven Cleaning Type | Steam Clean |
Oven Control Features | Oven "ON" Light |

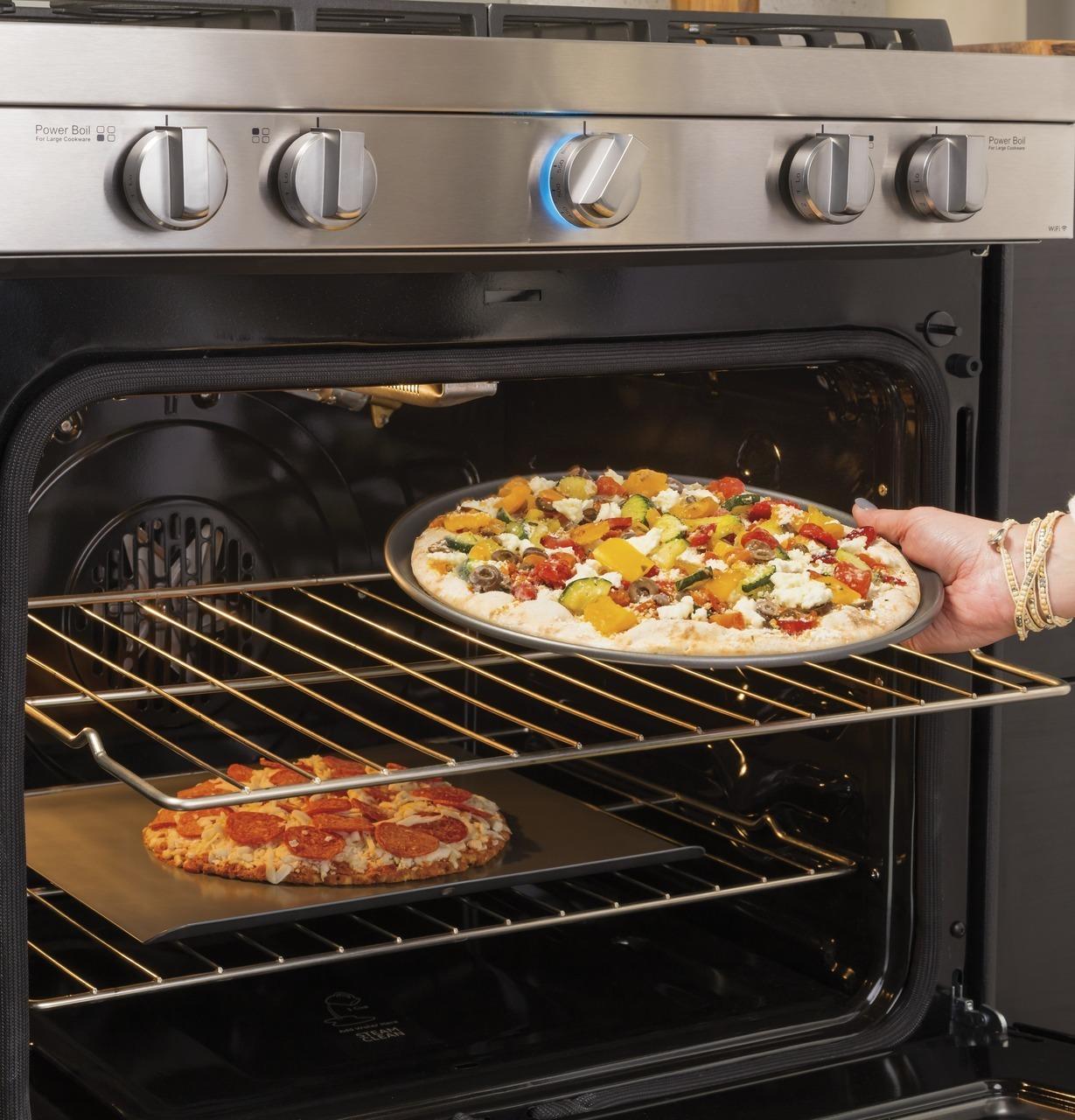

Oven Cooking Modes | Bake Baked Goods Broil Convection Bake Frozen Pizza Single Rack (No Preheat) Frozen Snacks Single Rack (No Preheat) Warming No Preheat Air Fry |
Oven Features | 8-Pass Broil Element Clock/Timer Hidden Bake |
Oven Interior | 1 Incandescent Light Auto Oven Interior Light Black Hidden Bake |

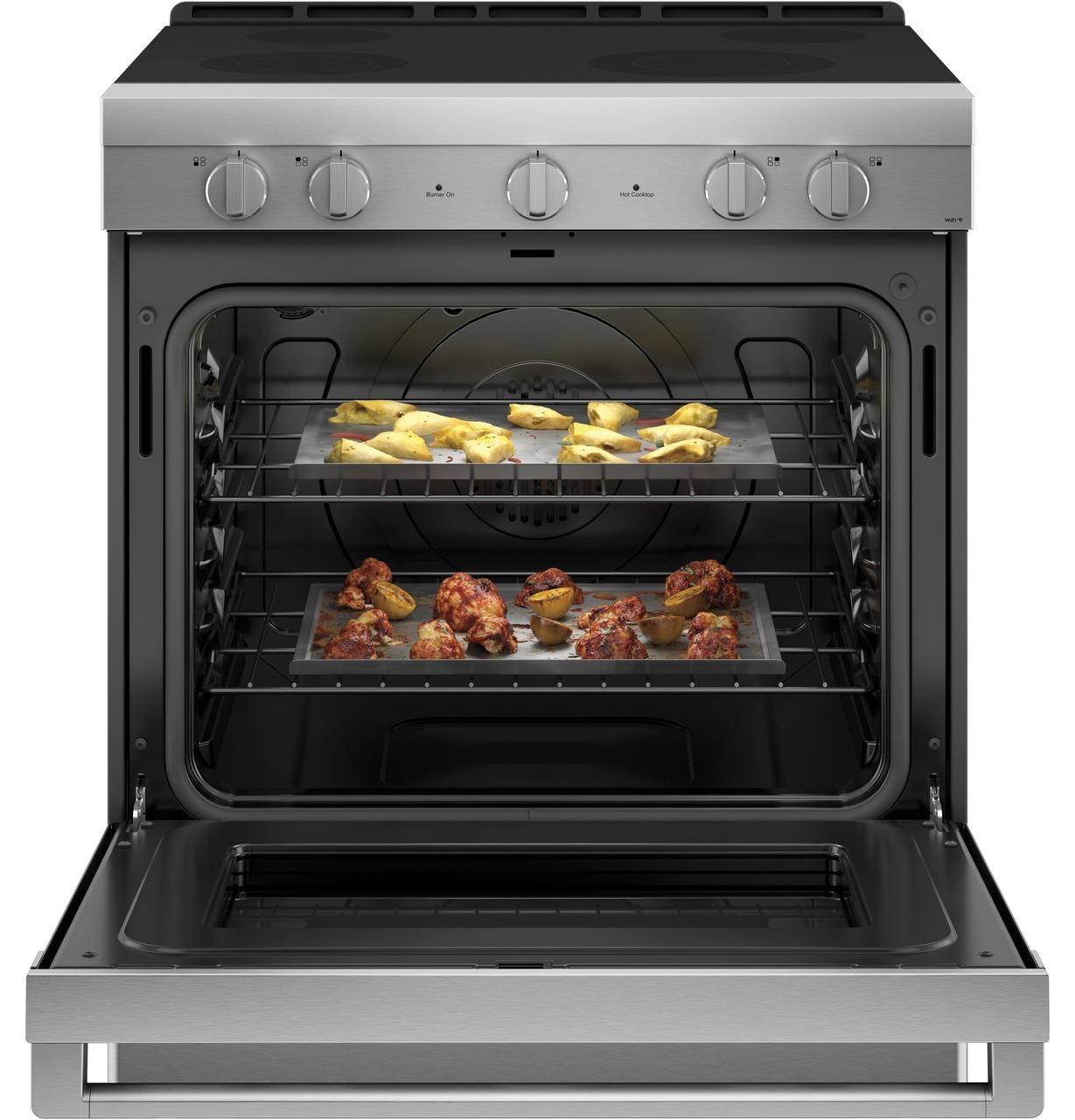

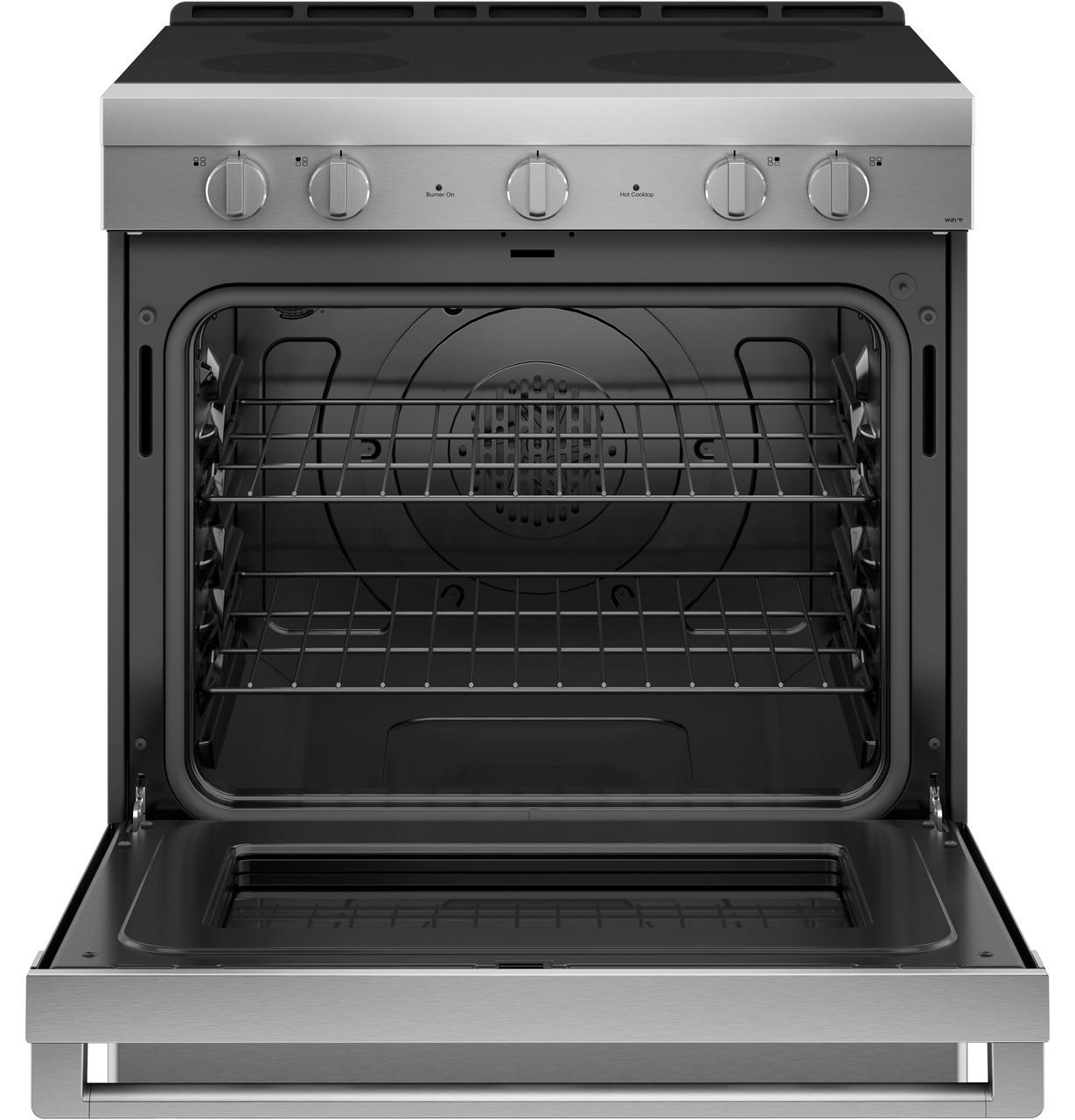

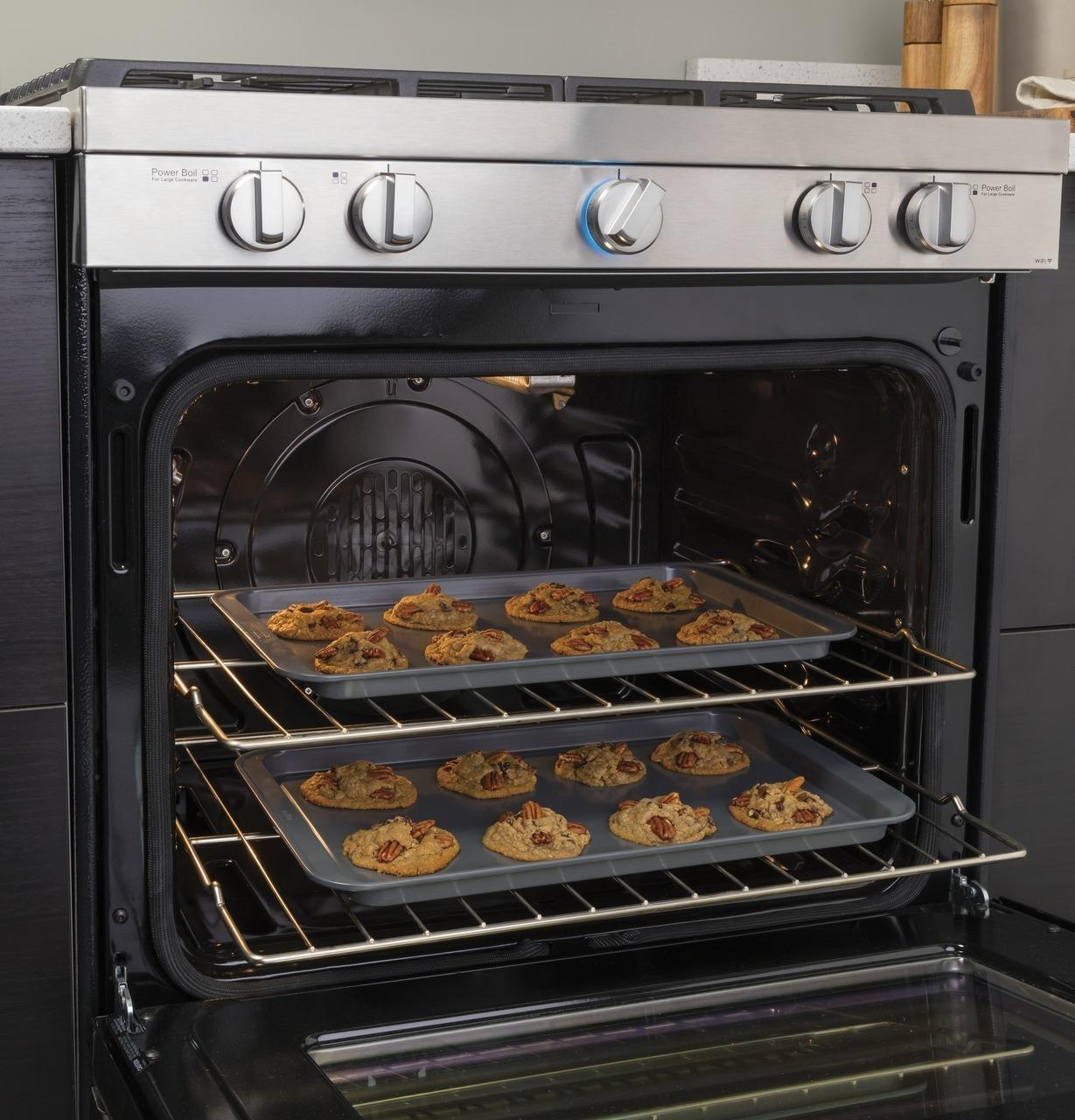

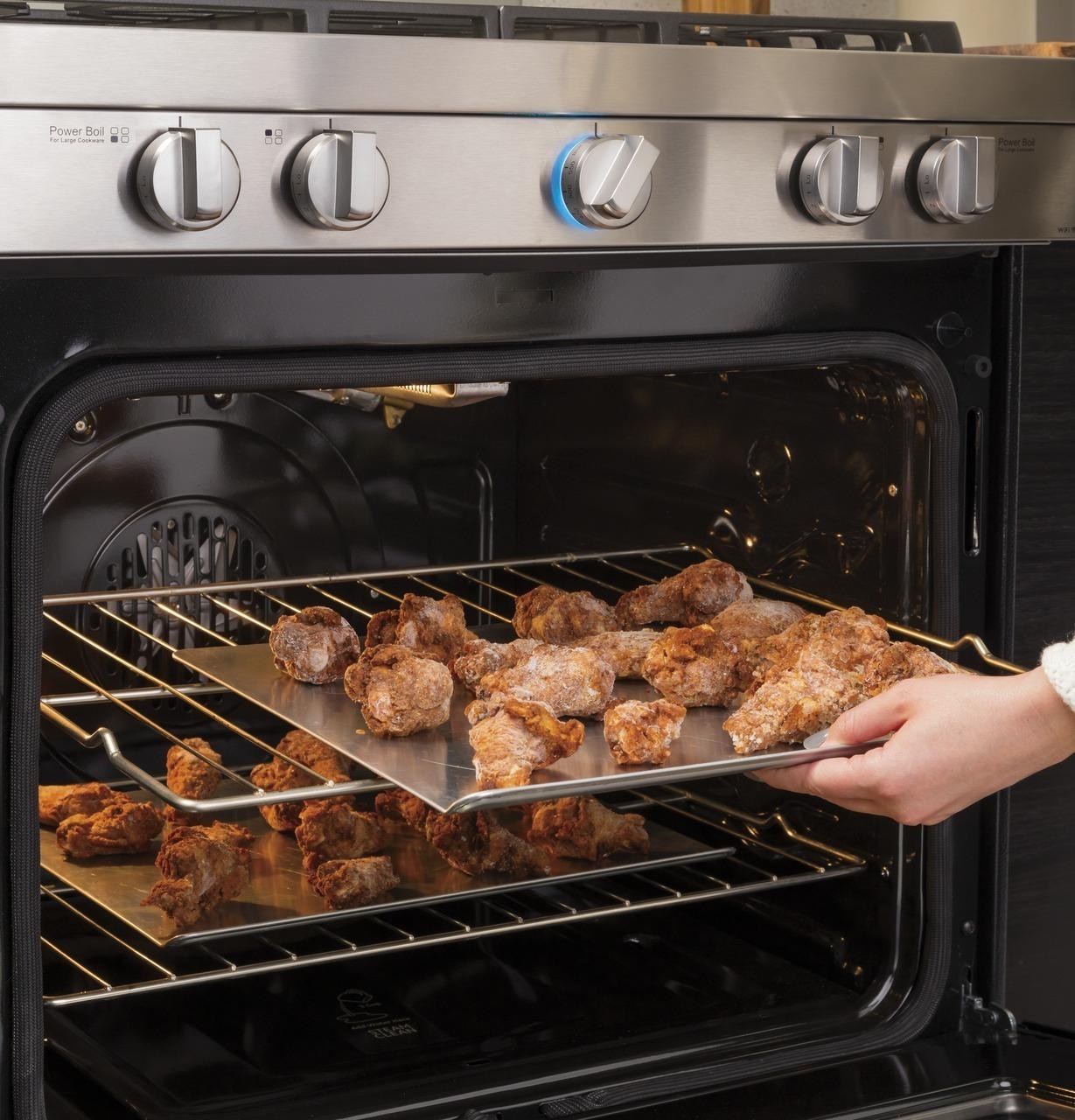

Oven Rack Features | 2 Flat Racks 6 Rack Positions |
Product Type | Free-Standing Single Oven |
Sabbath Mode | Yes |
Storage Drawer Features | Removable Full-Width |

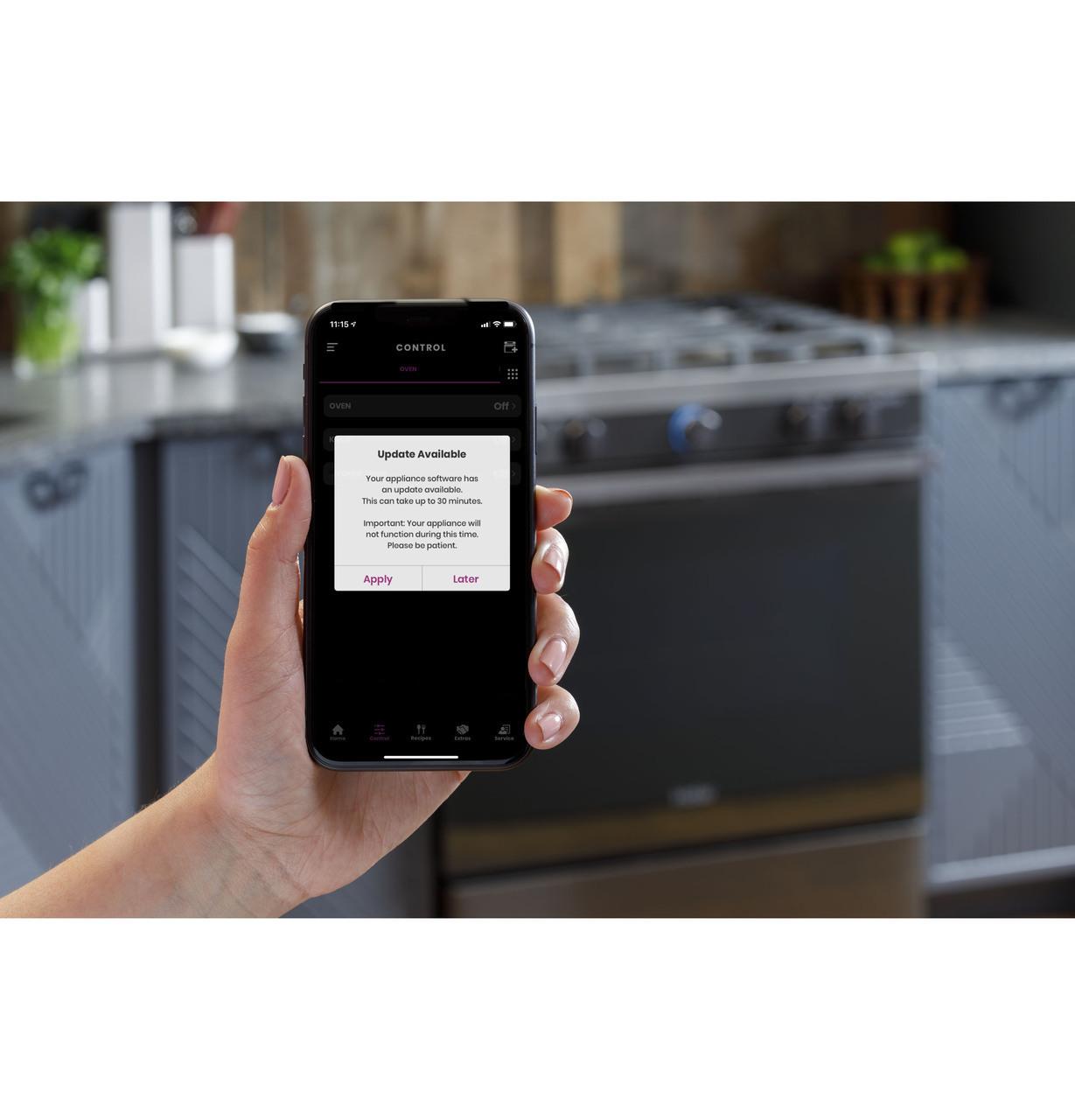

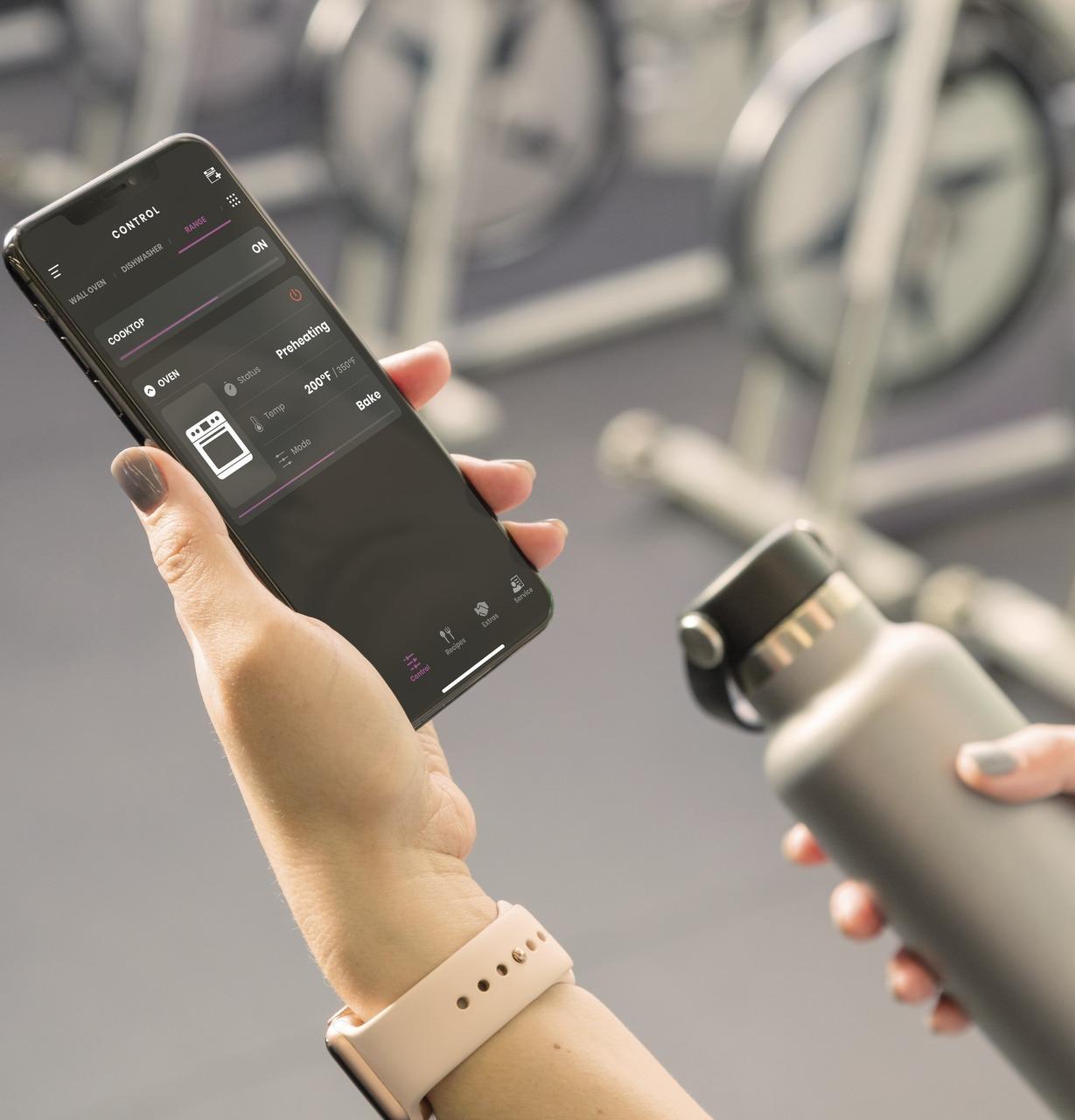

WiFi Connect | Built-In |
warranty | |
Labor Warranty | 1 Year |
Parts Warranty | 1 year |
Warranty Notes | See written warranty for full details |
capacity | |
Total Capacity (cubic feet) | 5.70 cu ft |
power / ratings | |
Amp Rating at 208V | 35.6 |
Amp Rating at 240V | 40 |
Bake Wattage | 2850W |
Broiler Wattage | 4000W |
Electrical Requirements | 208/240V;60Hz |
KW Rating at 208V | 9.2 |
KW Rating at 240V | 12.3 |
weights & dimensions | |
Approximate Shipping Weight | 256 lb |
Cabinet Width | 30 in |
Depth with Door Open | 47 3/4 in |
Depth Without Handle | 27 1/8 in |
Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
Net Weight | 236 lb |
Oven Interior Dimensions (W x H x D) (in.) | 19 x 15-3/8 x 17-1/8 |
Overall Depth | 29 1/4 in |
Overall Height | 37 3/8 in |
Overall Width | 29 7/8 in |
