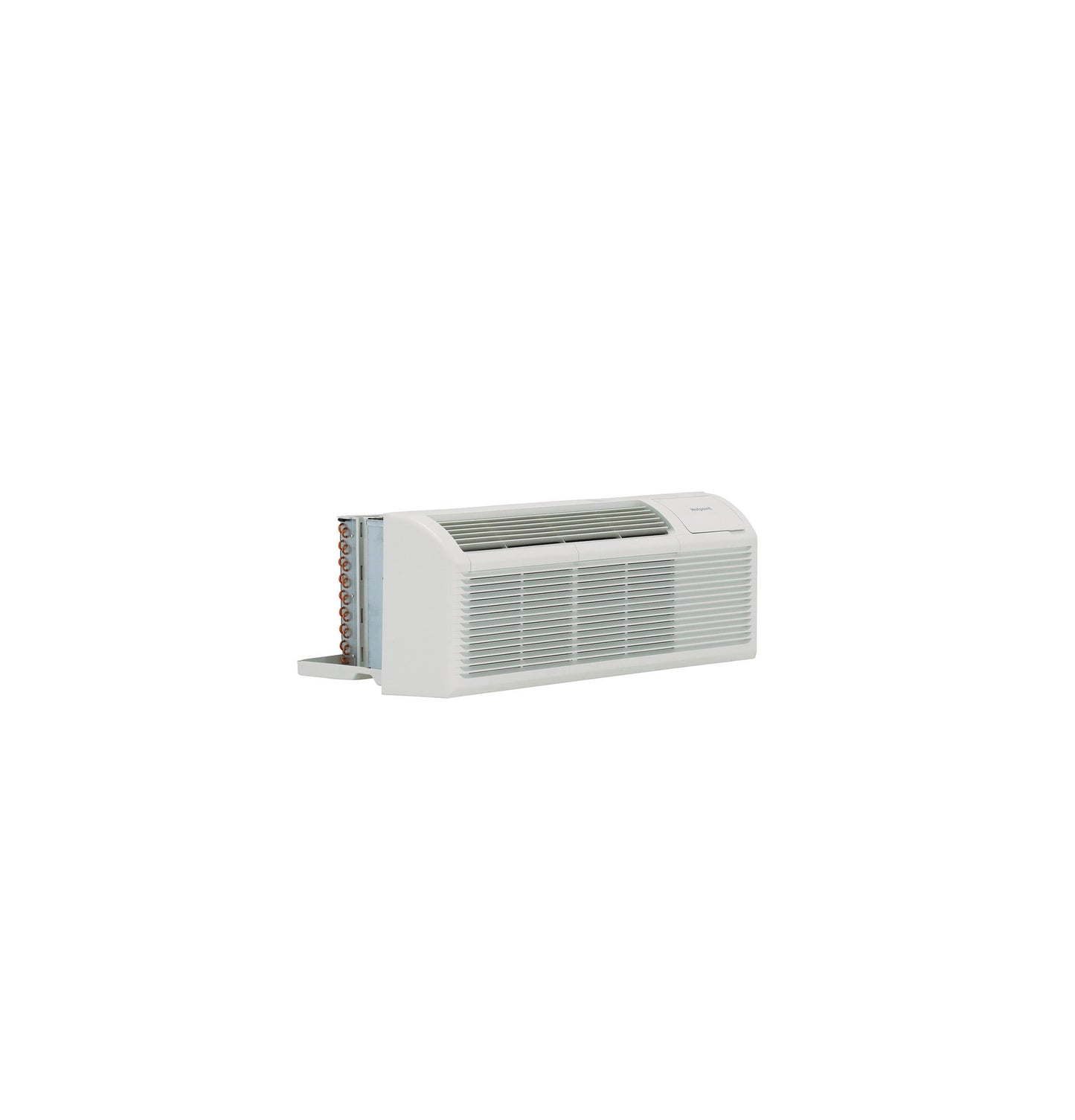

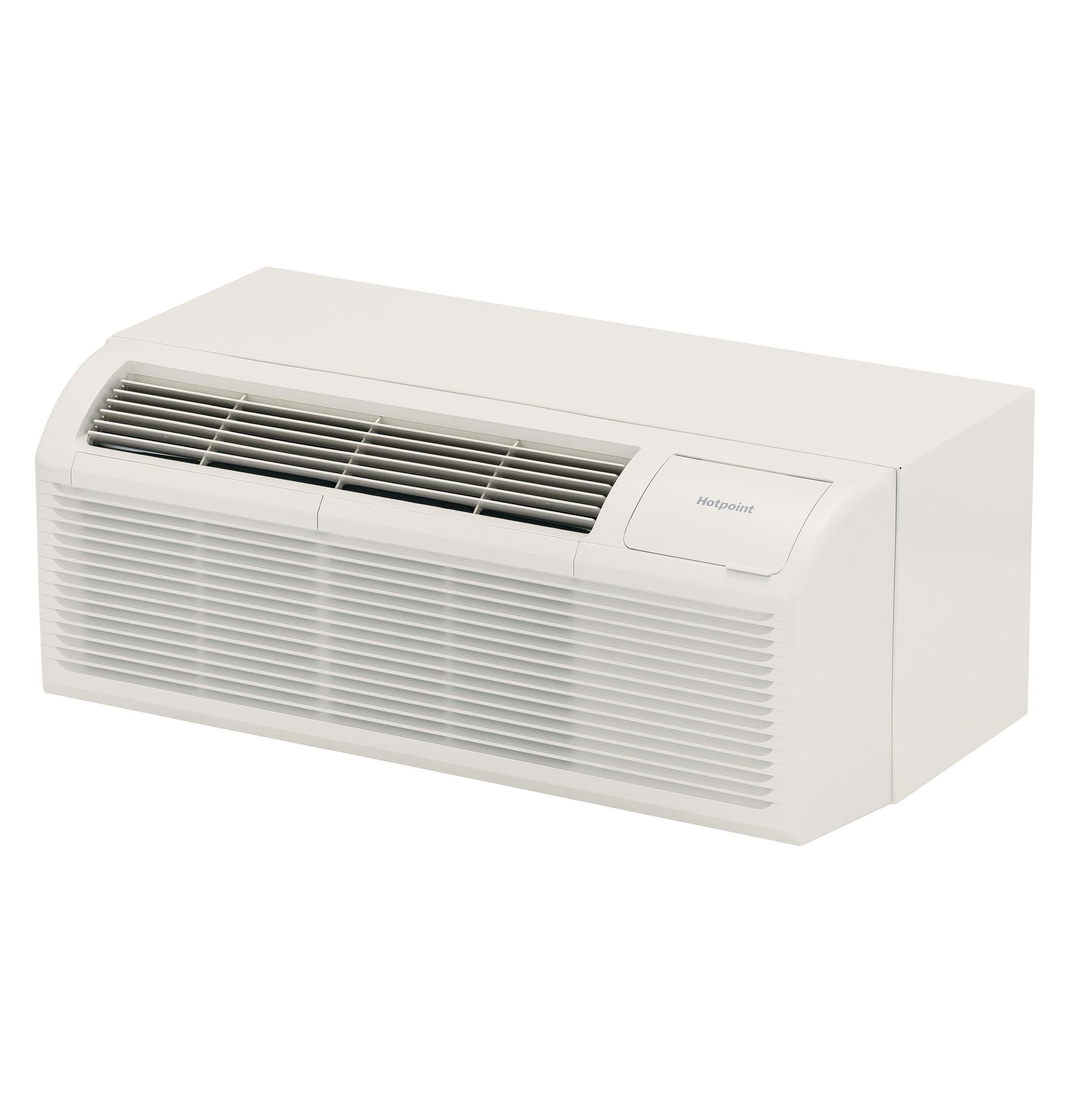

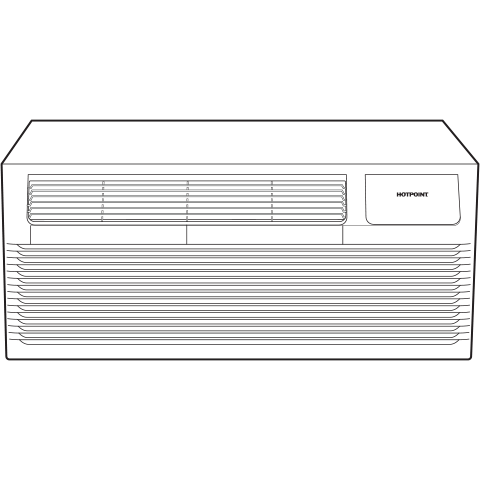

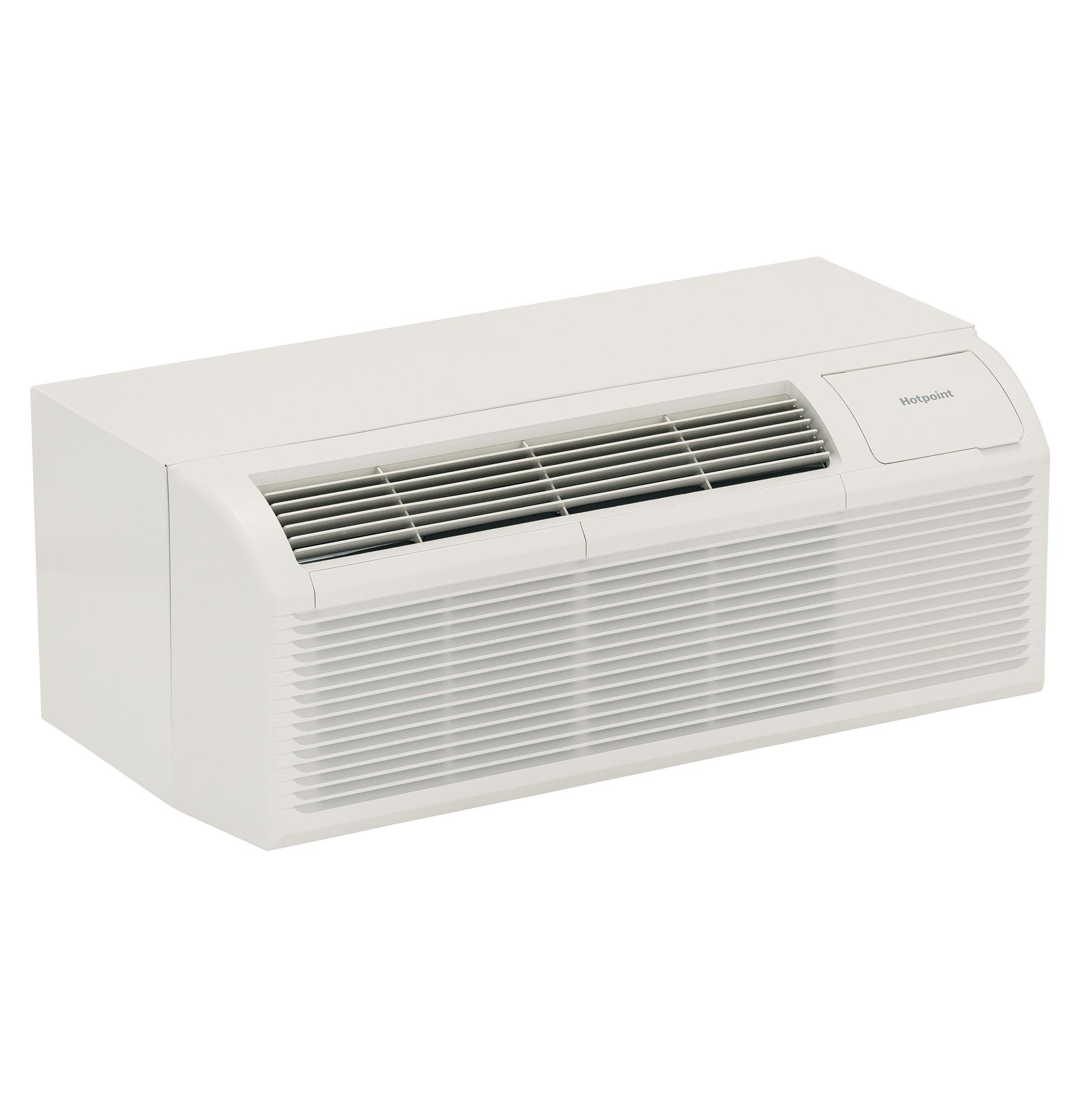

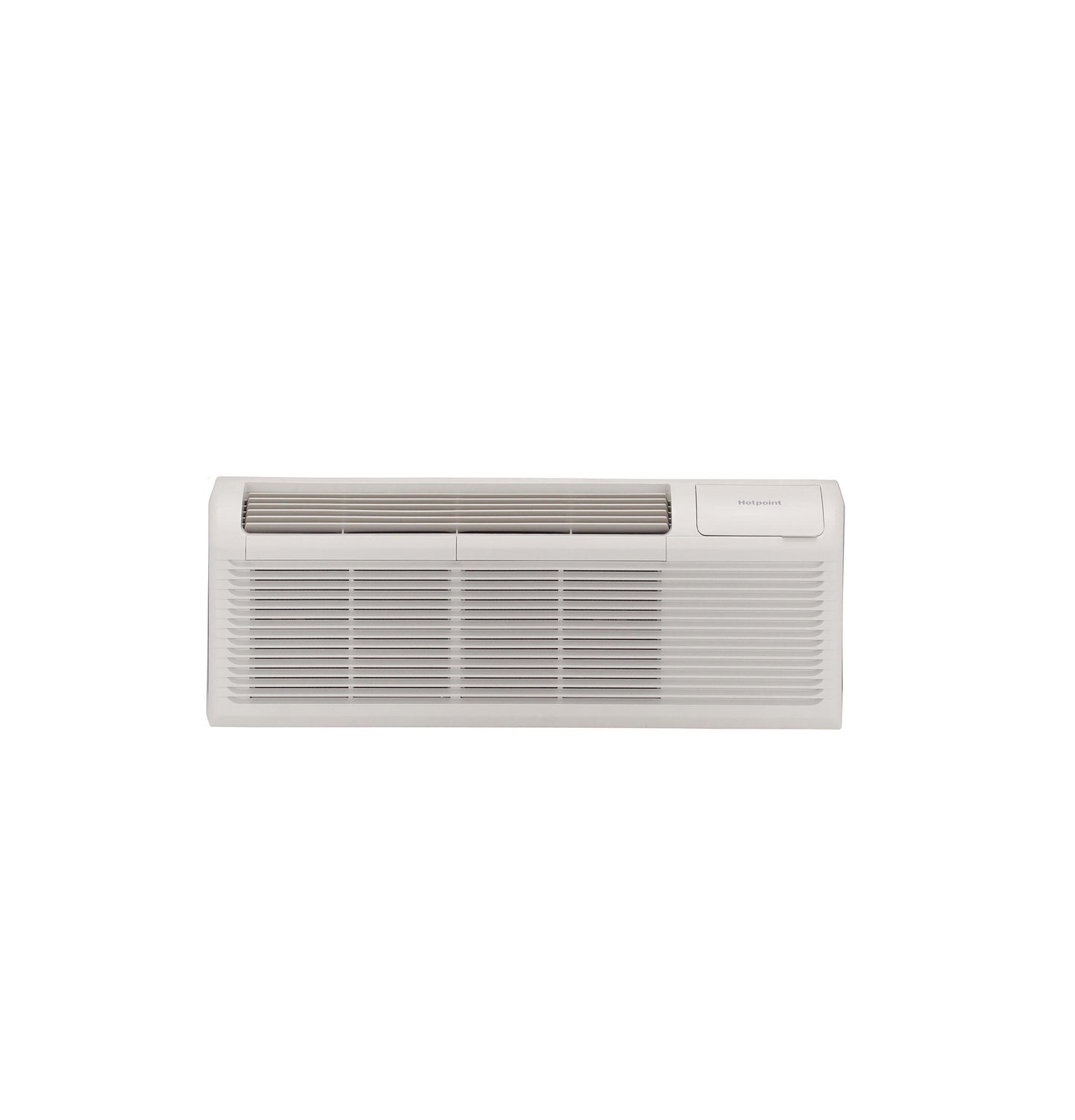

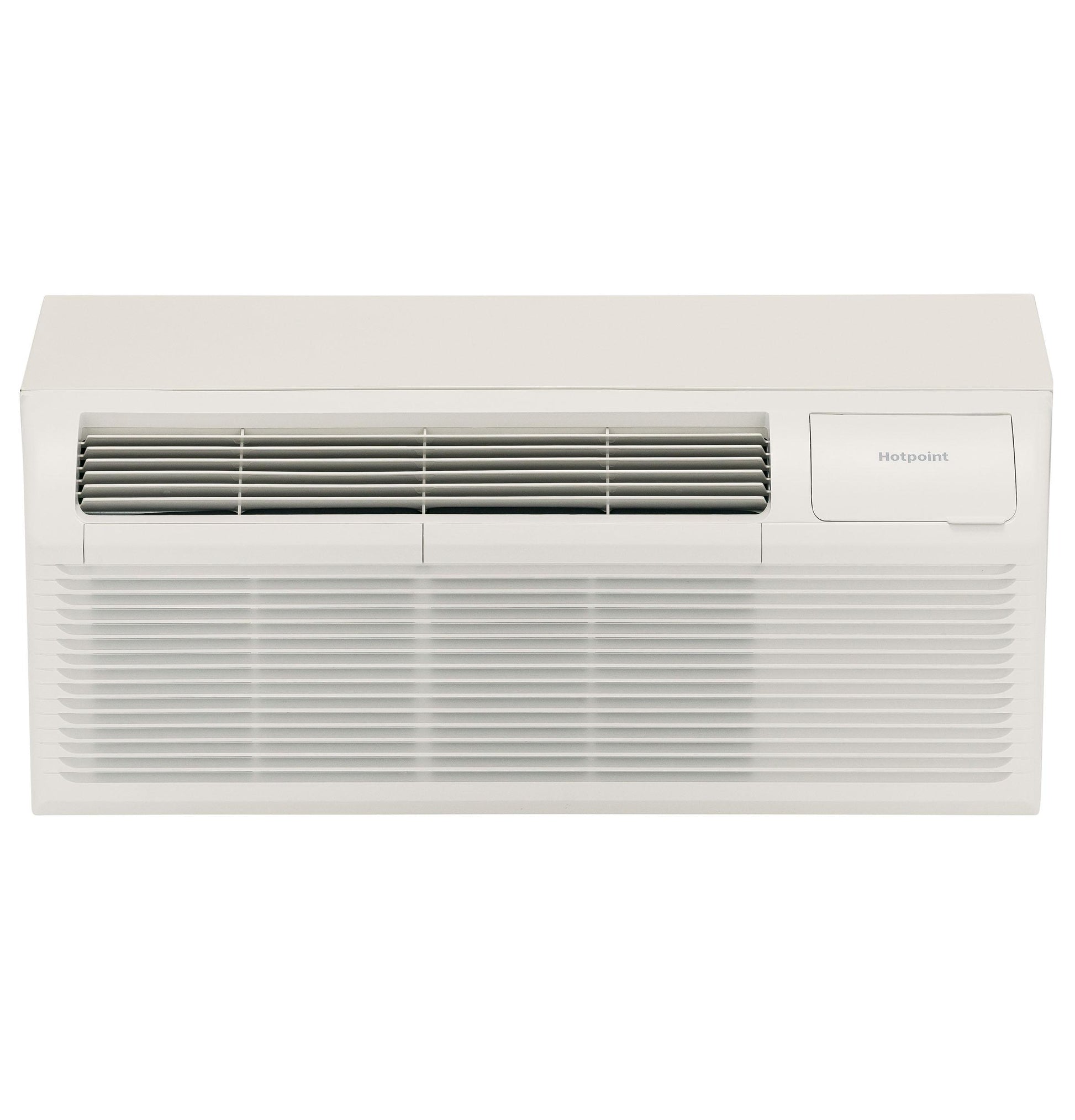

AH11E15D5B Hotpoint® PTAC with Electric Heat 15,000 BTU, 30 amps, 230/208 Volt AH11E15D5B

3-speed fan
Give guests control over their comfort with three fan speeds to choose from

4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort

Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition

Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls

Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system

Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode

Backed by an industry leader
With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand

Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

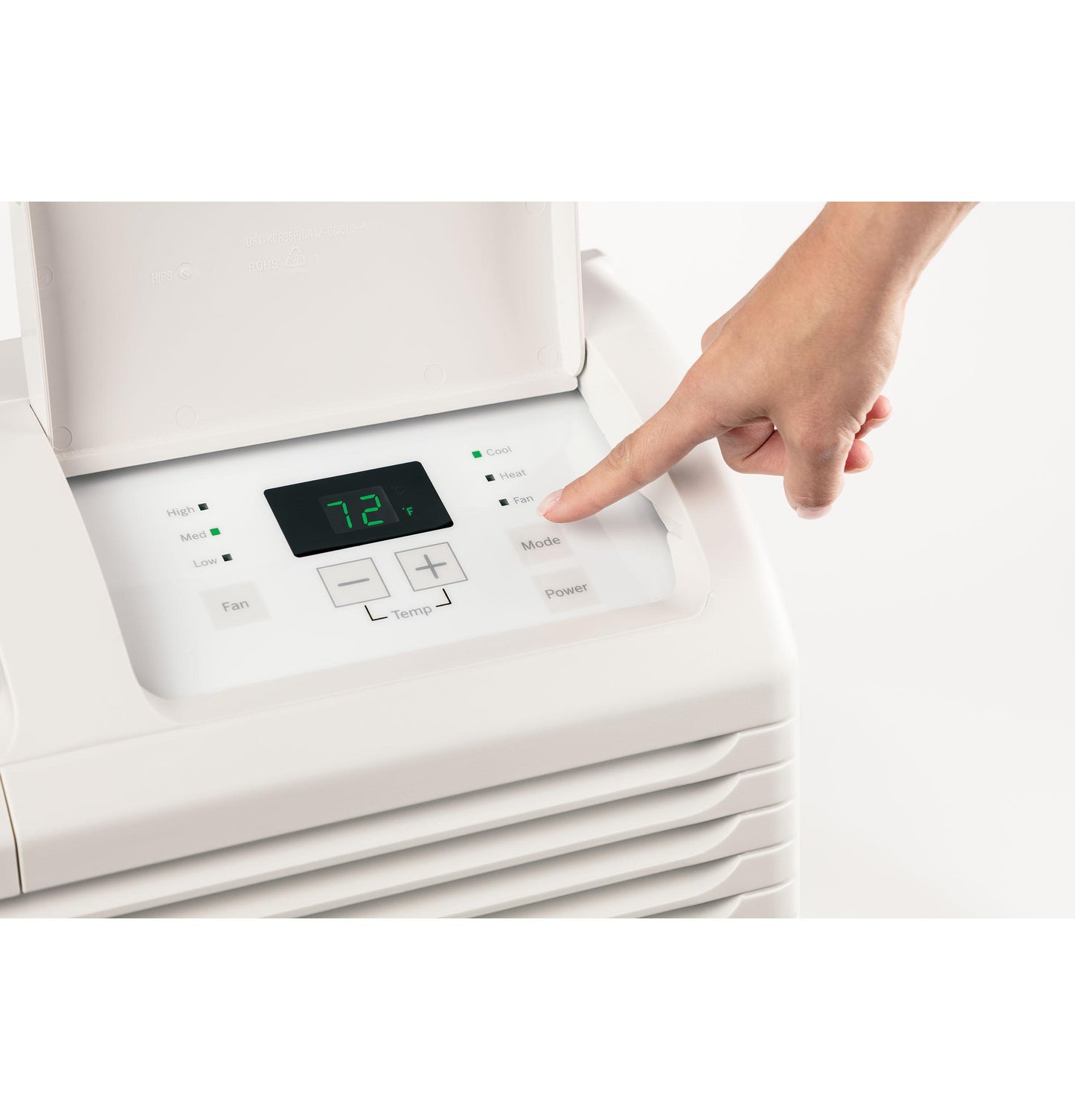

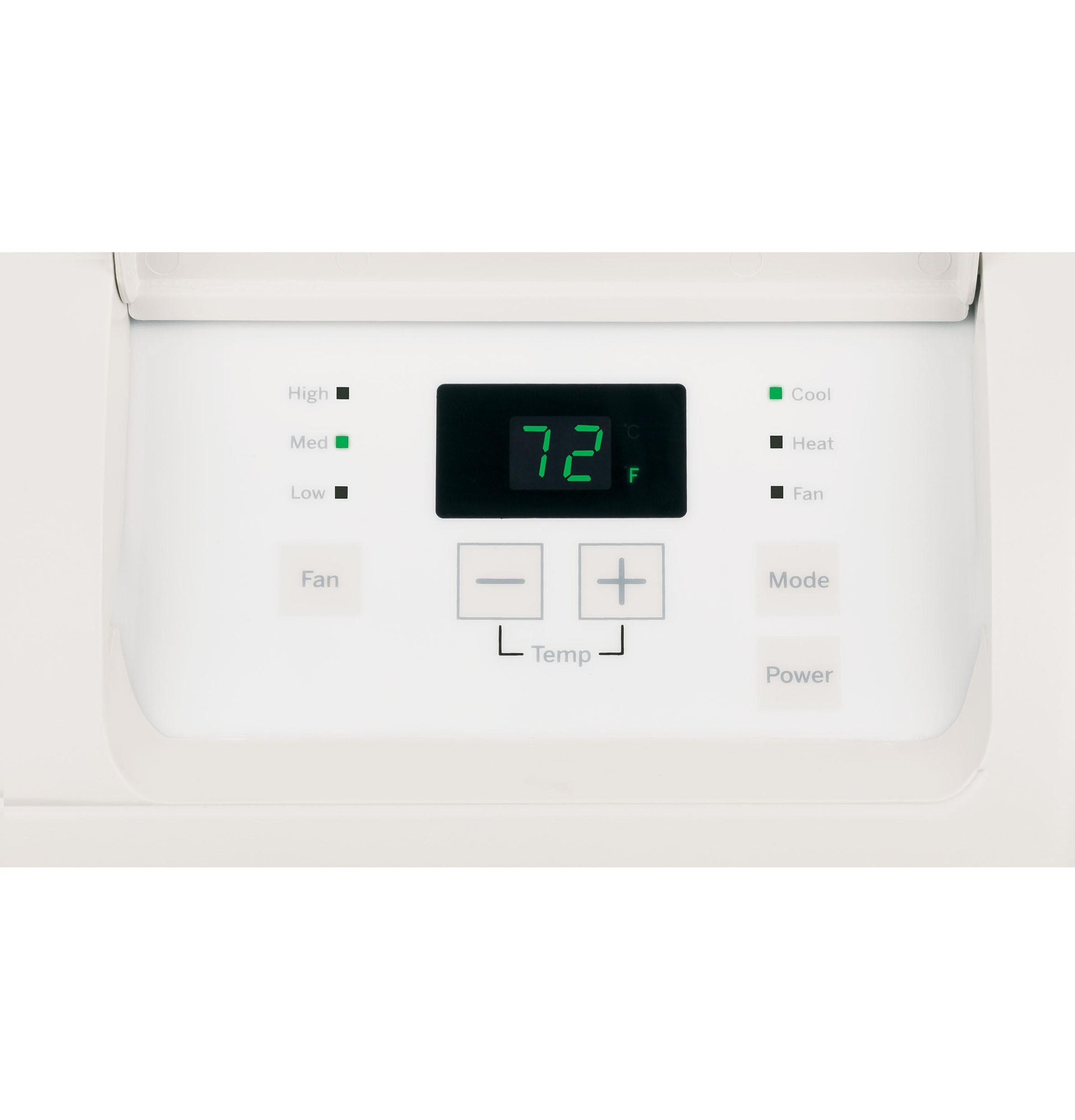

Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

Power cord (LCDI) included
Hotpoint PTACs come with everything needed for a quick and easy installation

Remote thermostat compatibility

Works with central desk control systems

Tangential fan for air flow and smooth sound

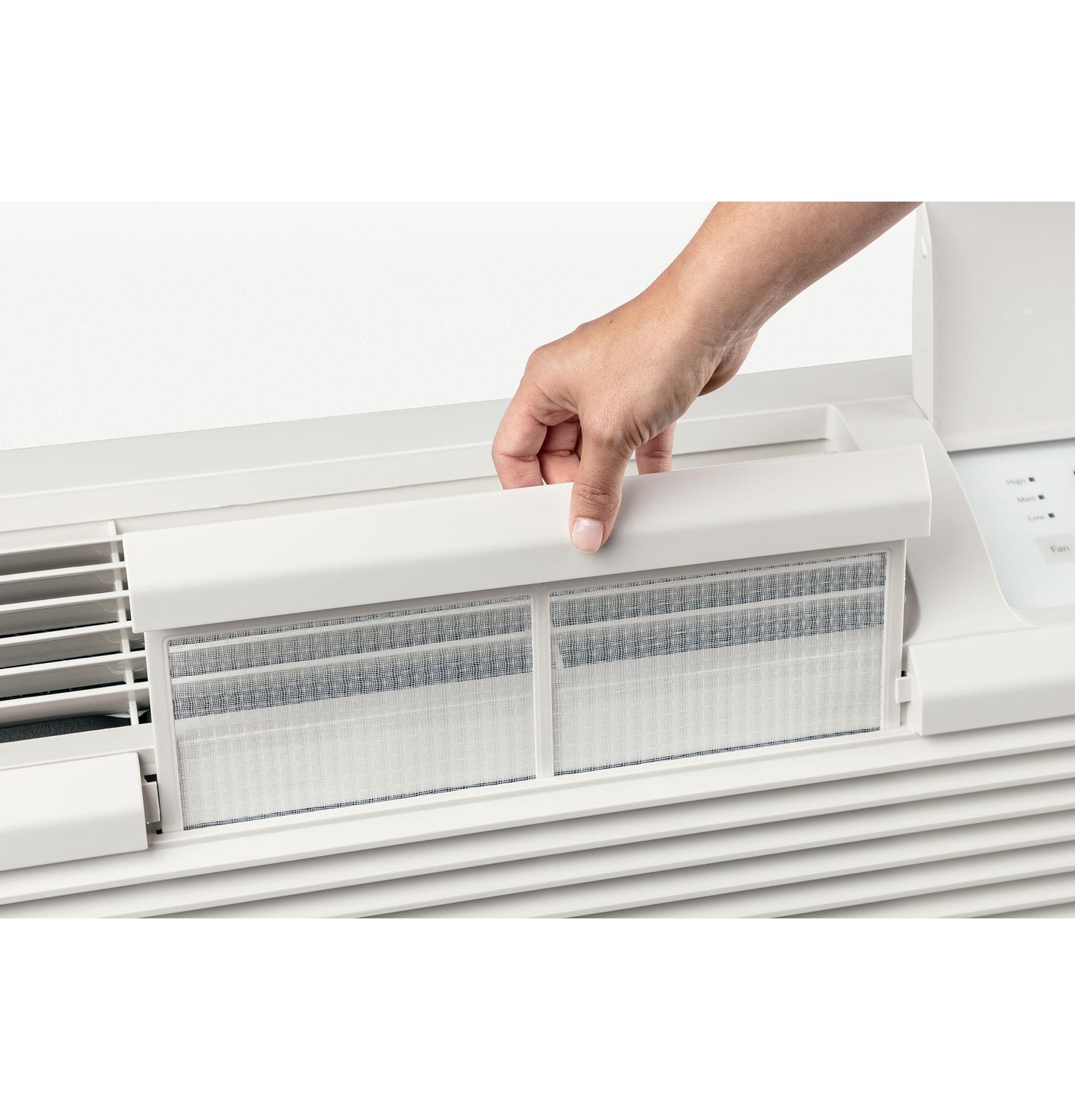

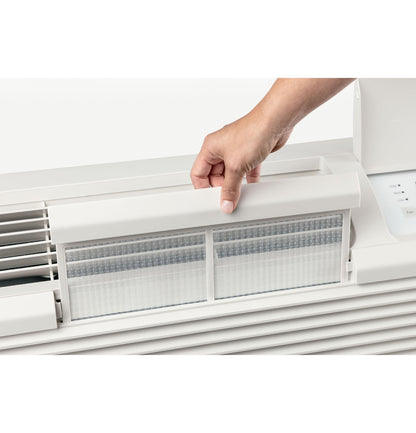

Removable filters for easy maintenance

CAPACITY
Cooling BTUH (MAX)	14500 Btu
CFM Indoor Fan Low	315
CFM Indoor Fan Medium	348
CFM Indoor Fan High	376
Cooling EER (BTUH / Watt)	9.7
Cooling BTUH (MIN)	14400 Btu
APPEARANCE

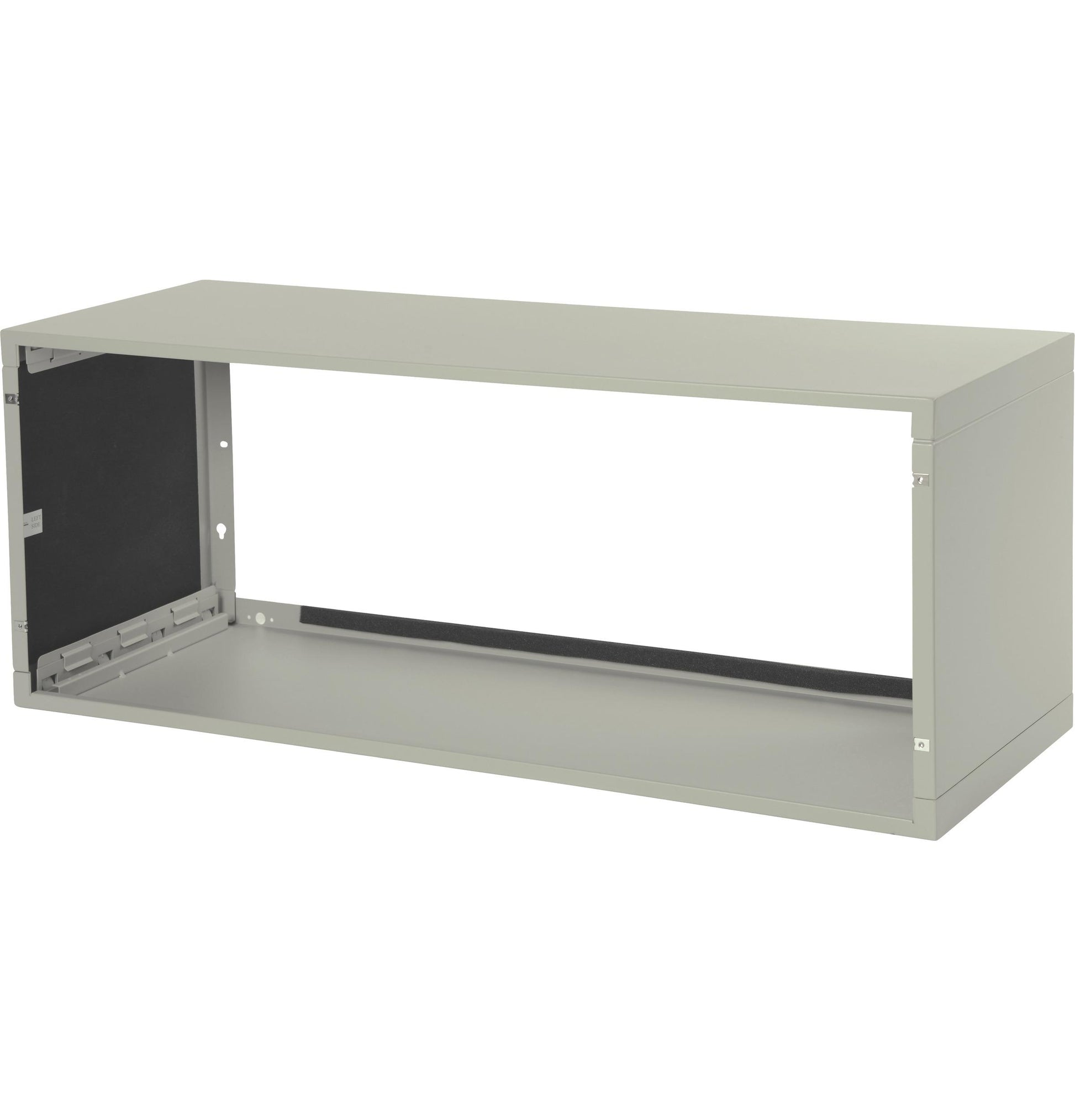

Installation	Through-the-Wall
Color Appearance	White
WARRANTY
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Parts Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
POWER / RATINGS
Cooling - Amperes	6.0/6.58
Cooling - Watts	1490/1480
Voltage (MIN)	208 V
Heating - Electric - Heater Watts	5035/4125
Voltage (MAX)	230 V
Heating - Electric - Heater Amps	22.0/19.7

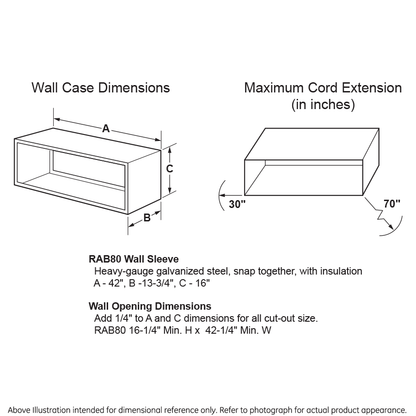

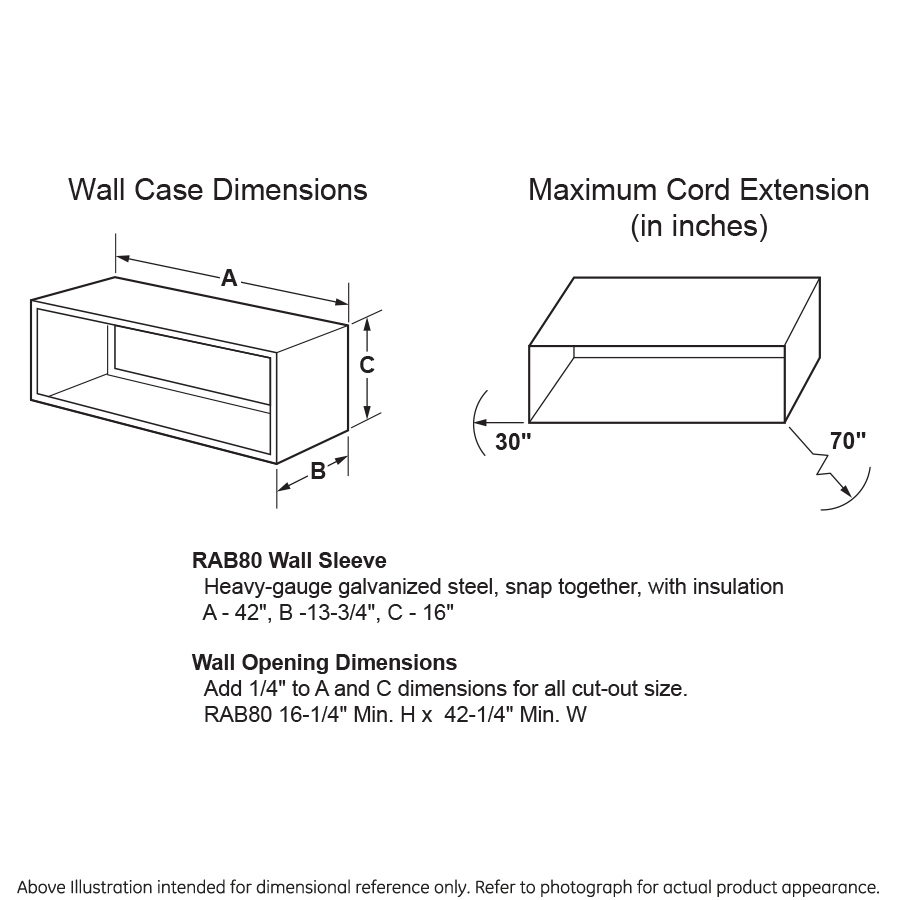

WEIGHTS & DIMENSIONS
Overall Width	42 in
Approximate Shipping Weight	123.6 lb
Overall Height	16 in
Overall Depth	21 in
Net Weight	113.9 lb
FEATURES
Control Type	Electronic
Fan Speed Selections	3 Cooling 3 Fan Only 3 Heating
Discharge Grille	2-position
Product Type	Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type	R410A
Manual Vent Control	Hidden
"SmartFan" Fan Cycle	Yes

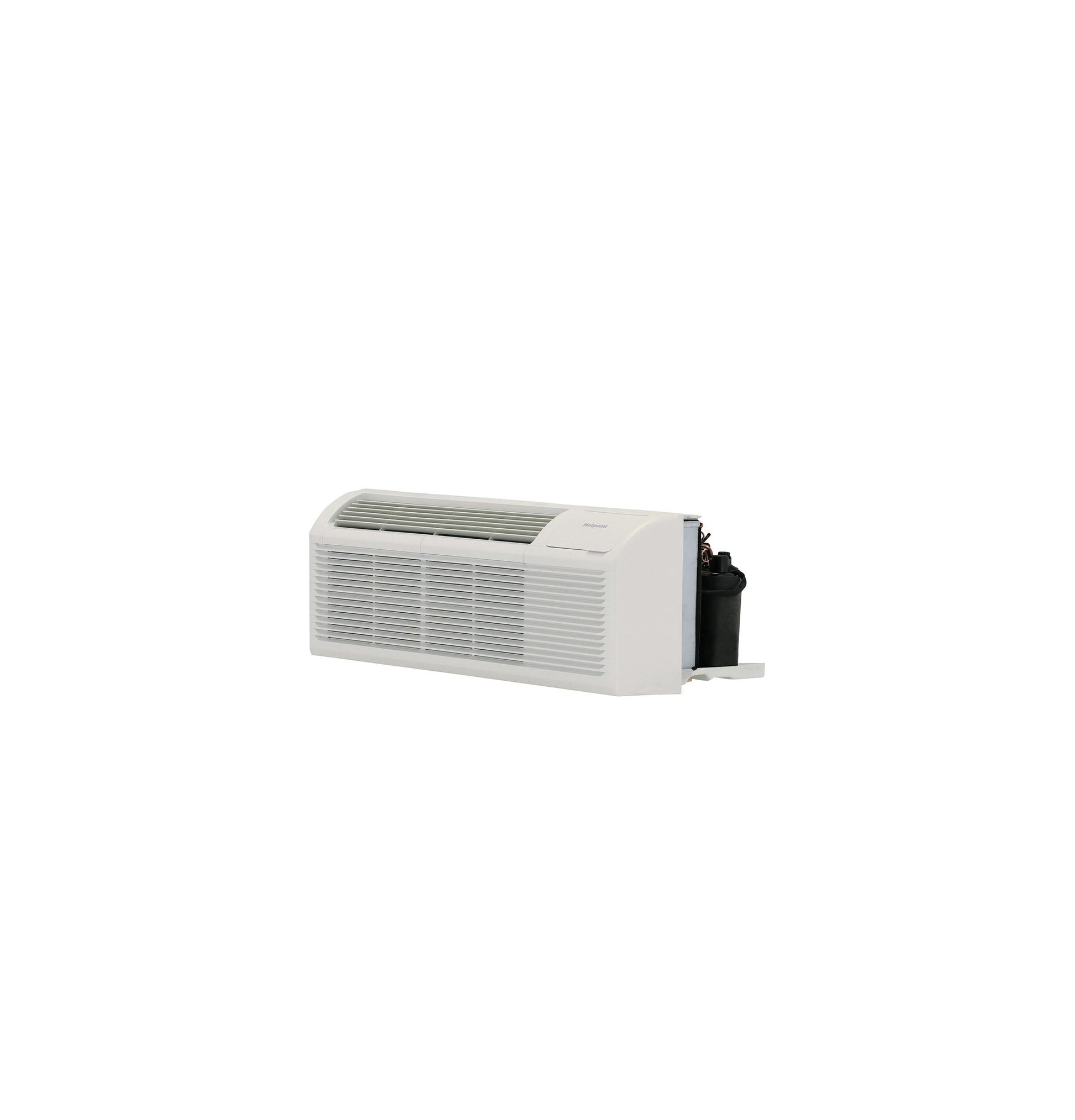

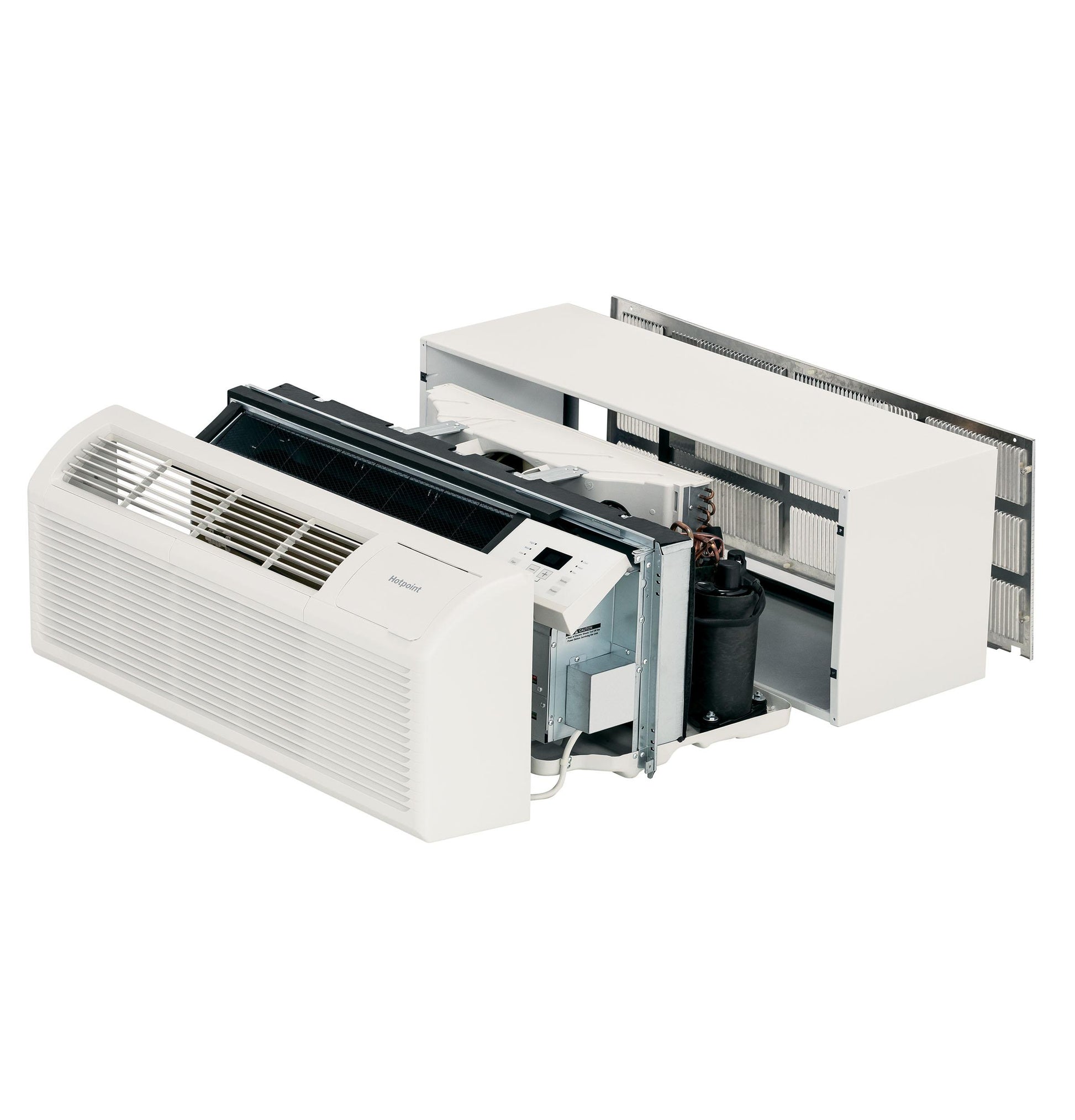

Chassis Type	Slide-In
Fan Motor	2
Unit Features	Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Power Cord (LCDI) included Remote Thermostat Compatibility
Temperature Range	62 - 86 F
Heat - Cool	Yes
Auto Power Recovery	Yes
Rotary Compressor	Yes

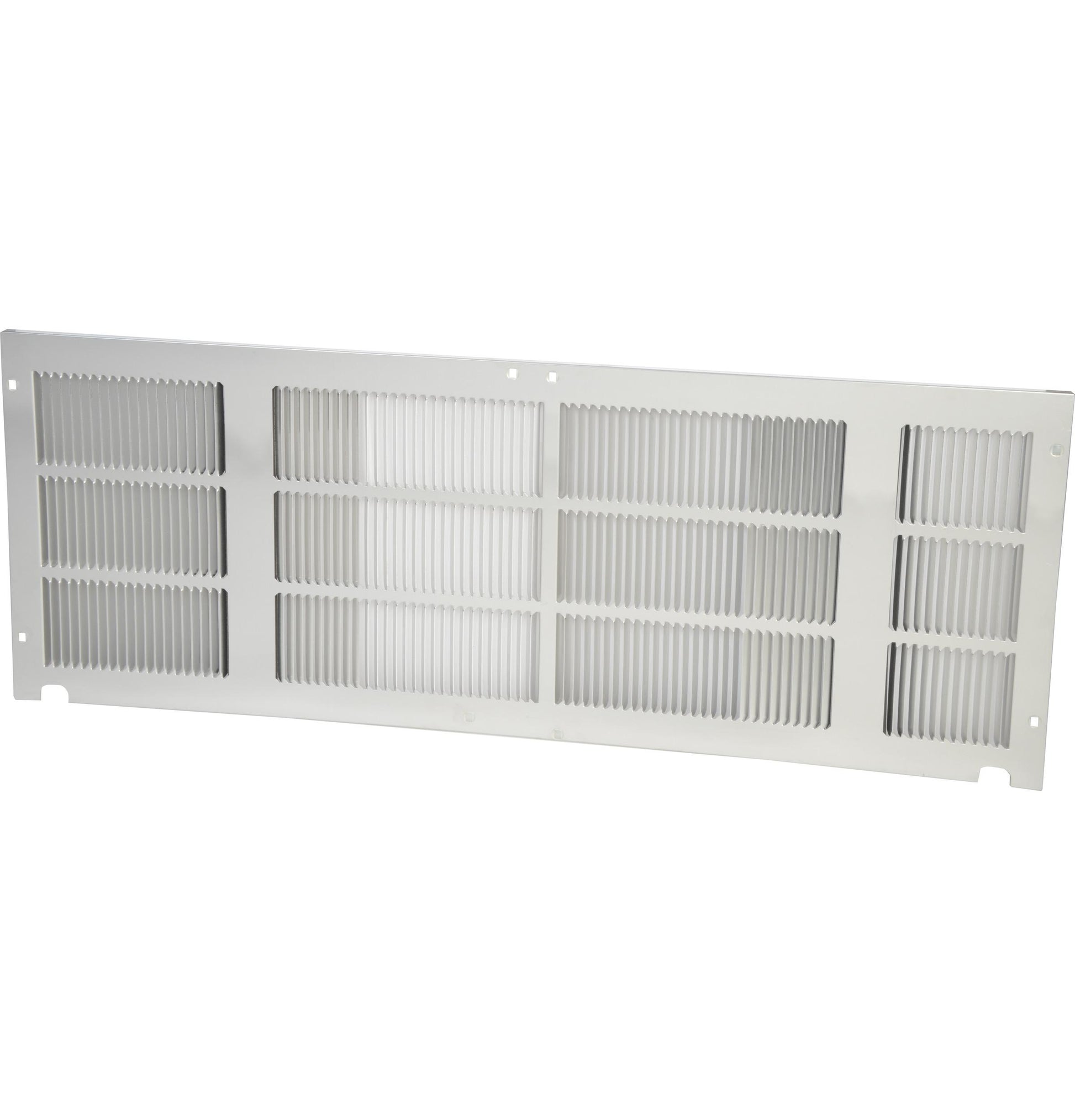

Outdoor Vent / Exhaust	Yes
Venting Features	Concealed Manual Vent Control Vent Air Filter
Heating System	Electric Resistance
