Authorized Reseller

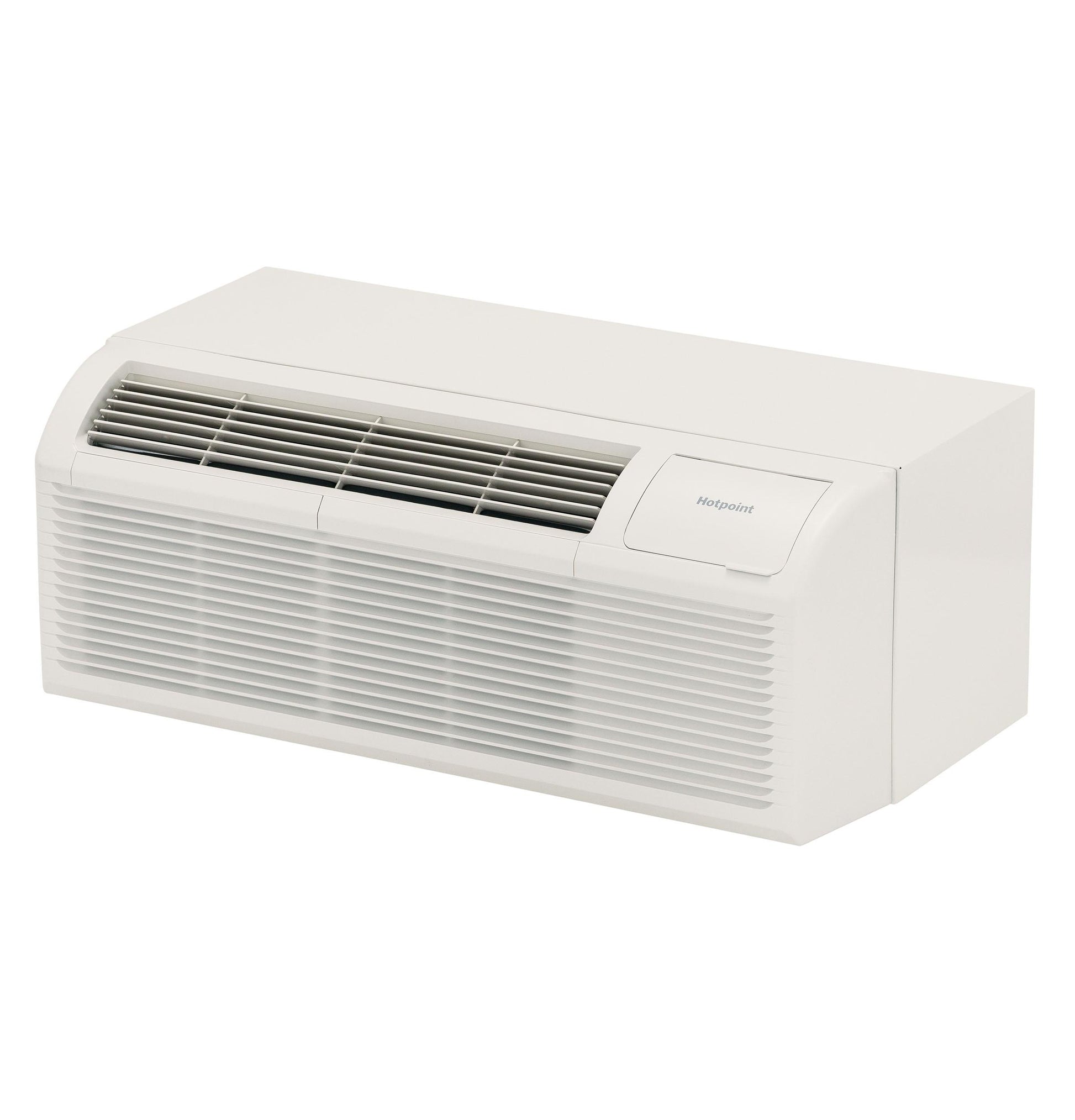

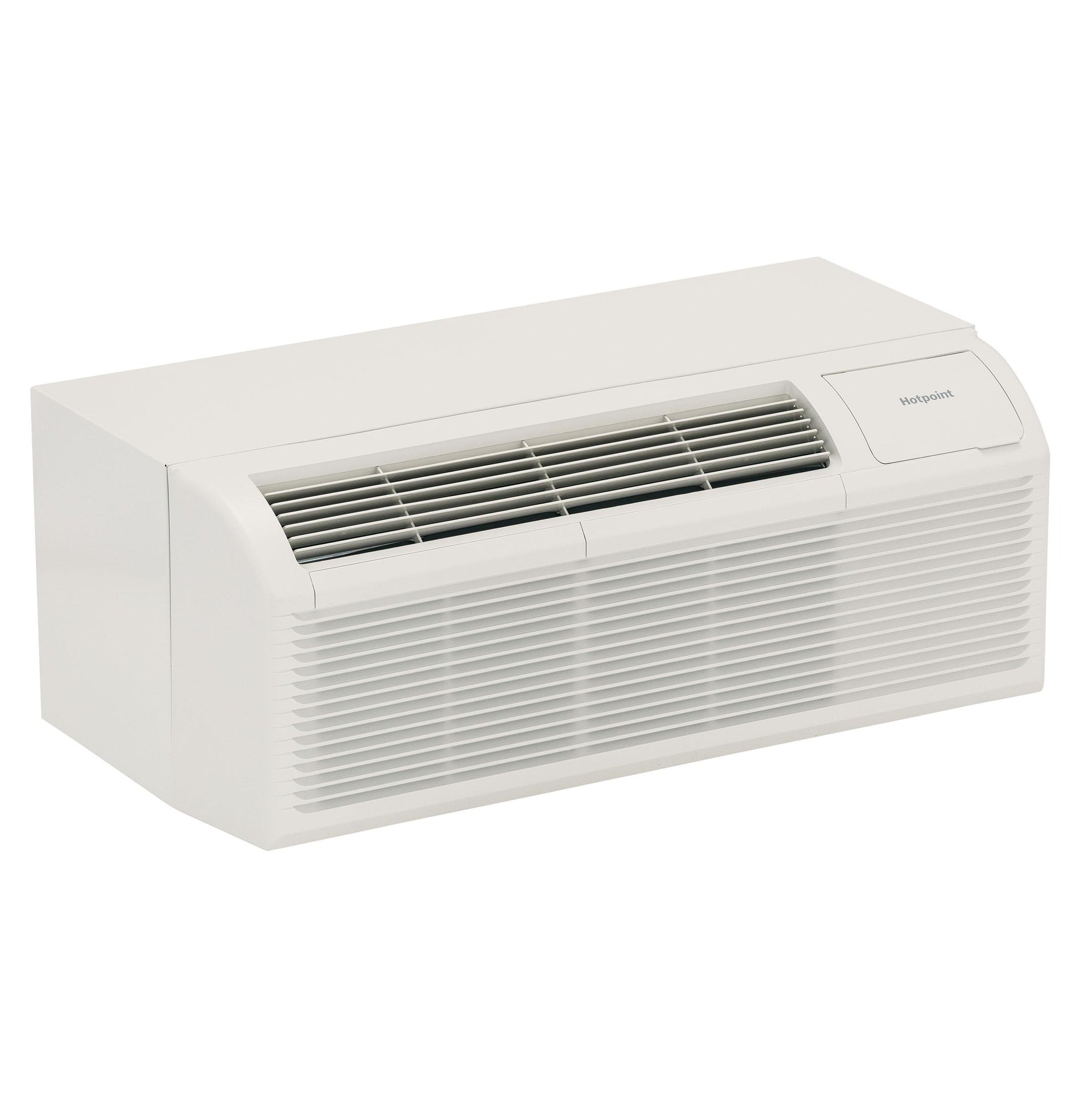

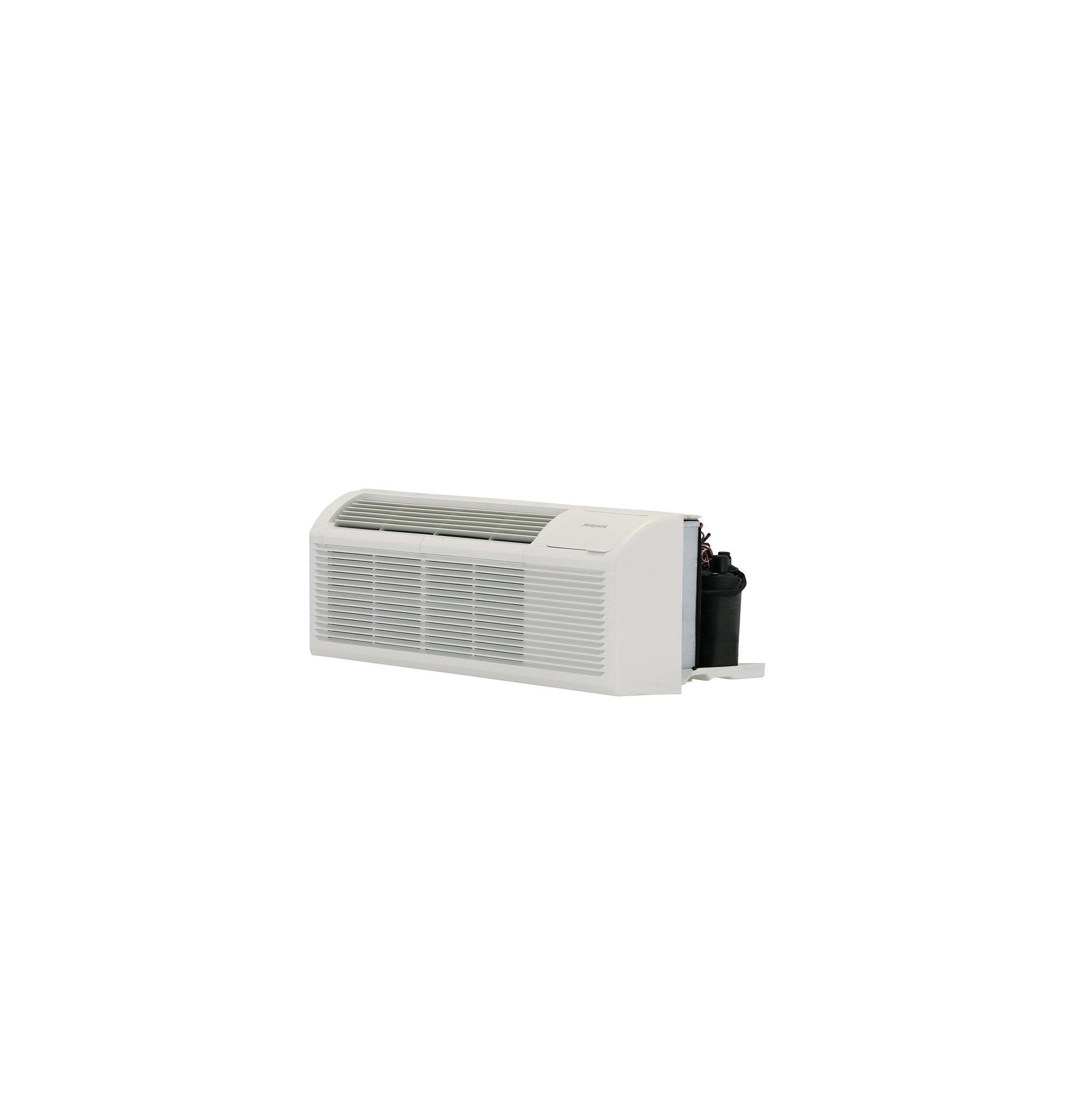

Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 12,000 BTU, 30 amps, 230/208 Volt AH11H12D5B

SKU/Model #: AH11H12D5B
Sale price$875.00
D&S May Sale Price: $787.50

Product Details

  • 3-speed fan
  • 4-temperature limiting options
  • Freeze and frost protection
  • Auto power recovery
  • Self diagnostics
  • Automatic emergency heat
  • Backed by an industry leader
  • Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
  • Intuitive display
  • Power cord (LCDI) included
  • Remote thermostat compatibility
  • Works with central desk control systems
  • Heatpump models include staged heating
  • Tangential fan for air flow and smooth sound
  • Energy-efficient heat pump models available

3-speed fan
Give guests control over their comfort with three fan speeds to choose from

4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort

Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition

Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls

Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system

Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode

Backed by an industry leader
With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand

Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

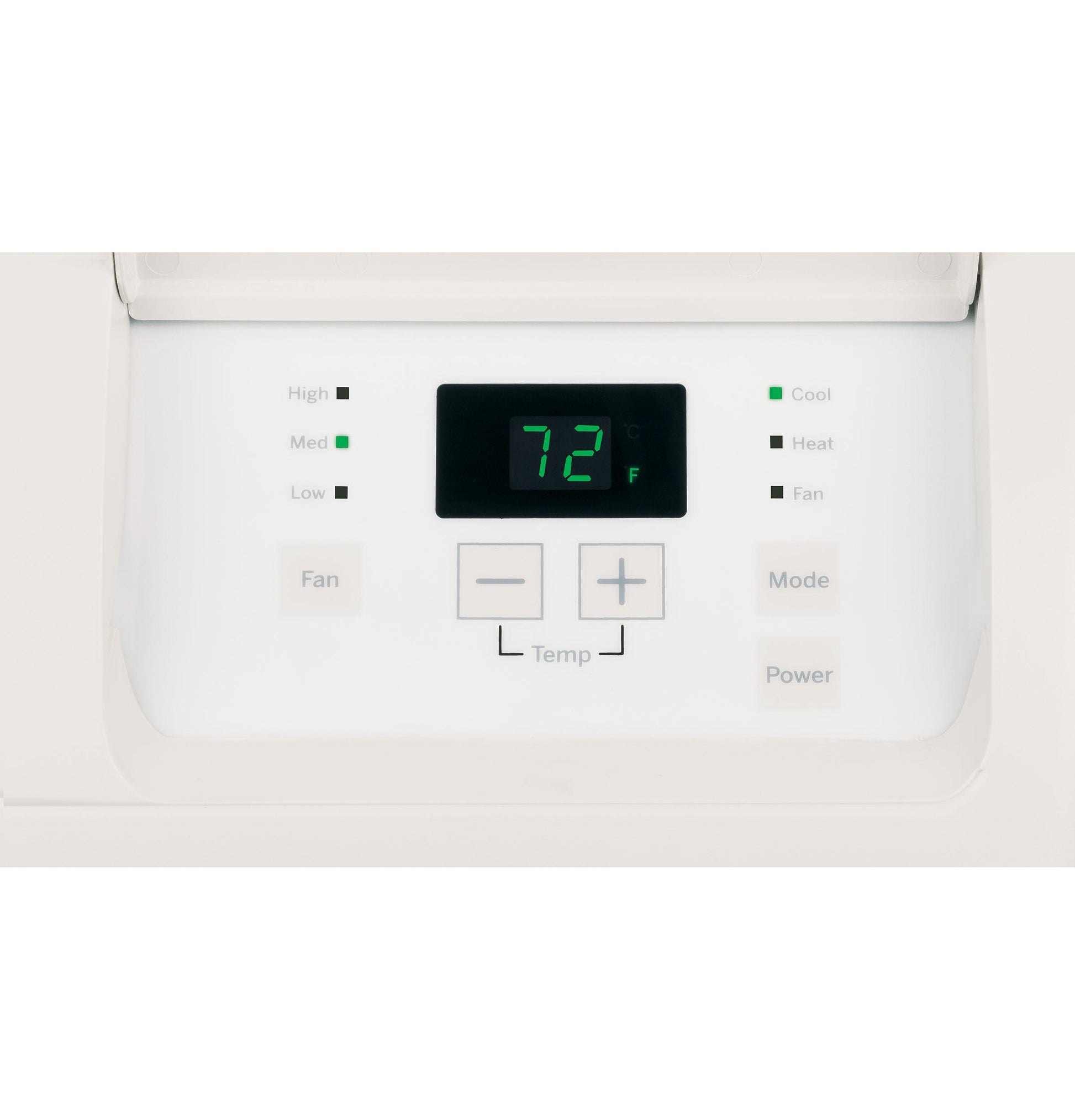

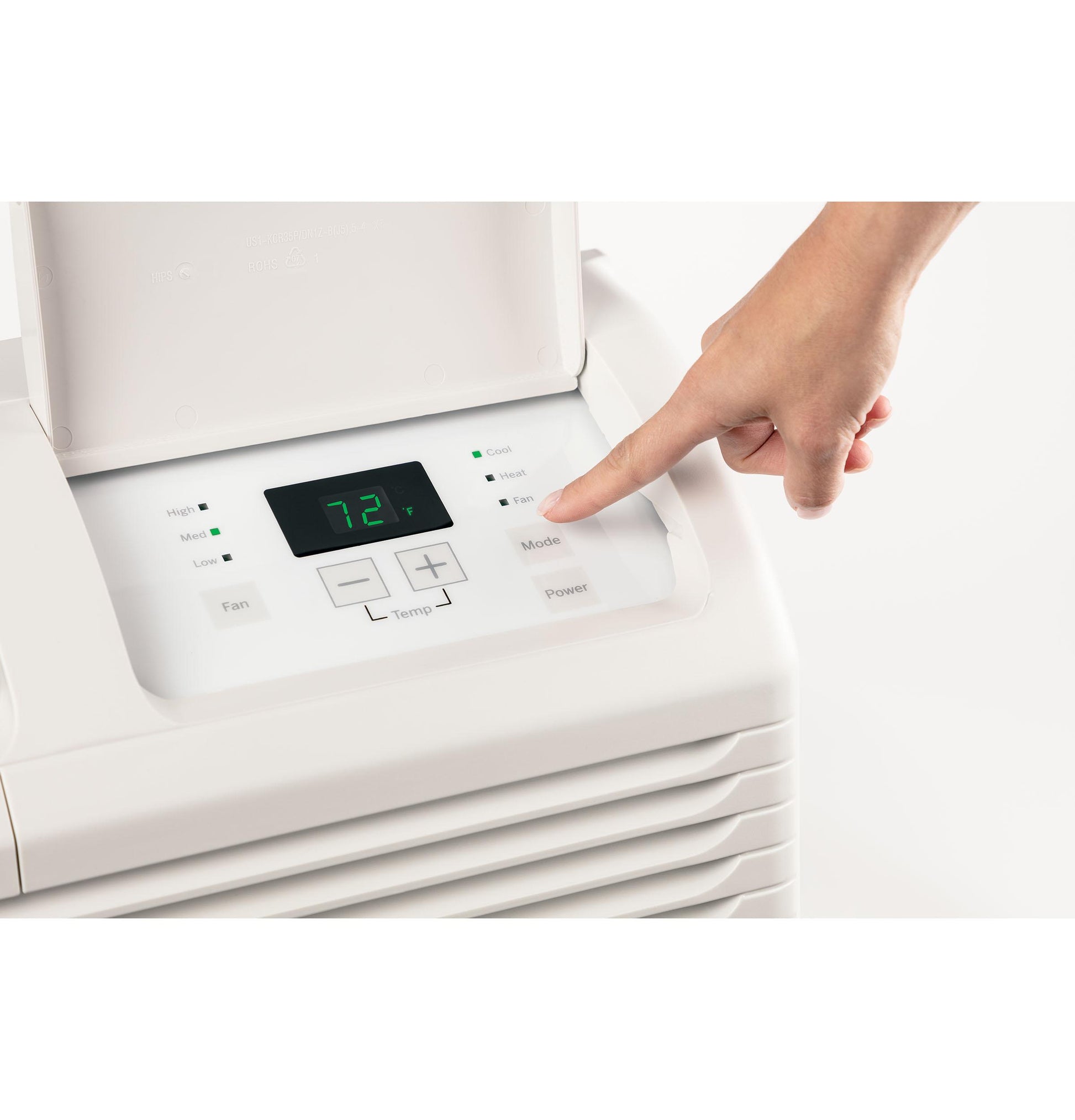

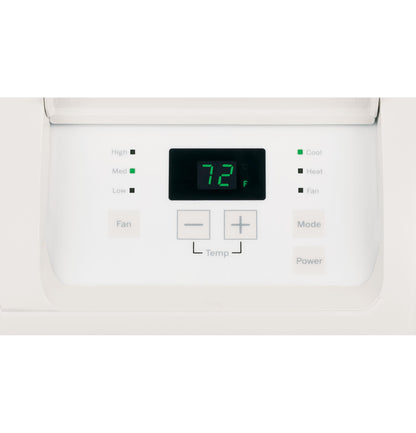

Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

Power cord (LCDI) included
Hotpoint PTACs come with everything needed for a quick and easy installation

Remote thermostat compatibility

Works with central desk control systems

Heatpump models include staged heating

Tangential fan for air flow and smooth sound

Energy-efficient heat pump models available

CAPACITY
Cooling BTUH (MAX) 12000 Btu
CFM Indoor Fan Low 310
CFM Indoor Fan Medium 349
CFM Indoor Fan High 383
Cooling EER (BTUH / Watt) 10.5
Heating - Reverse Cycle - BTUH 10800/10500
Cooling BTUH (MIN) 11800 Btu
APPEARANCE
Installation Through-the-Wall
Color Appearance White
WARRANTY
Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
POWER / RATINGS
Heating - Reverse Cycle - Watts 985/960
Cooling - Amperes 5.0/5.4
Cooling - Watts 1140/1120
Heating - Reverse Cycle - Amps 4.3/4.6
Voltage (MIN) 208 V
Heating - Electric - Heater Watts 5035/4125
Voltage (MAX) 230 V
Heating - Electric - Heater Amps 22.0/19.7

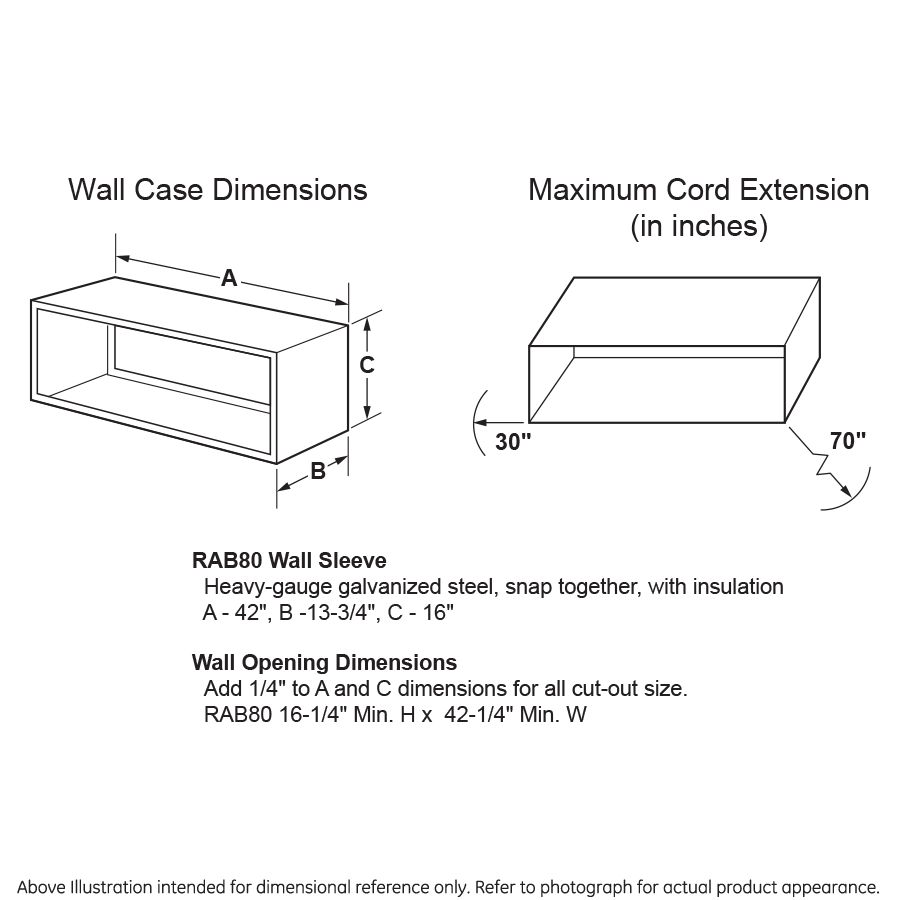

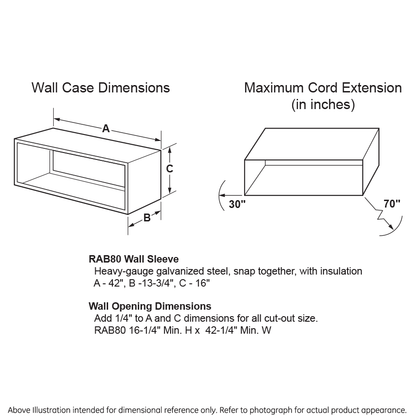

WEIGHTS & DIMENSIONS
Overall Width 42 in
Approximate Shipping Weight 126.2 lb
Overall Height 16 in
Overall Depth 21 in
Net Weight 116.8 lb
FEATURES
Control Type Electronic
Fan Speed Selections 3 Cooling
3 Fan Only
3 Heating
Discharge Grille 2-position
Product Type Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type R410A
Manual Vent Control Hidden
"SmartFan" Fan Cycle Yes

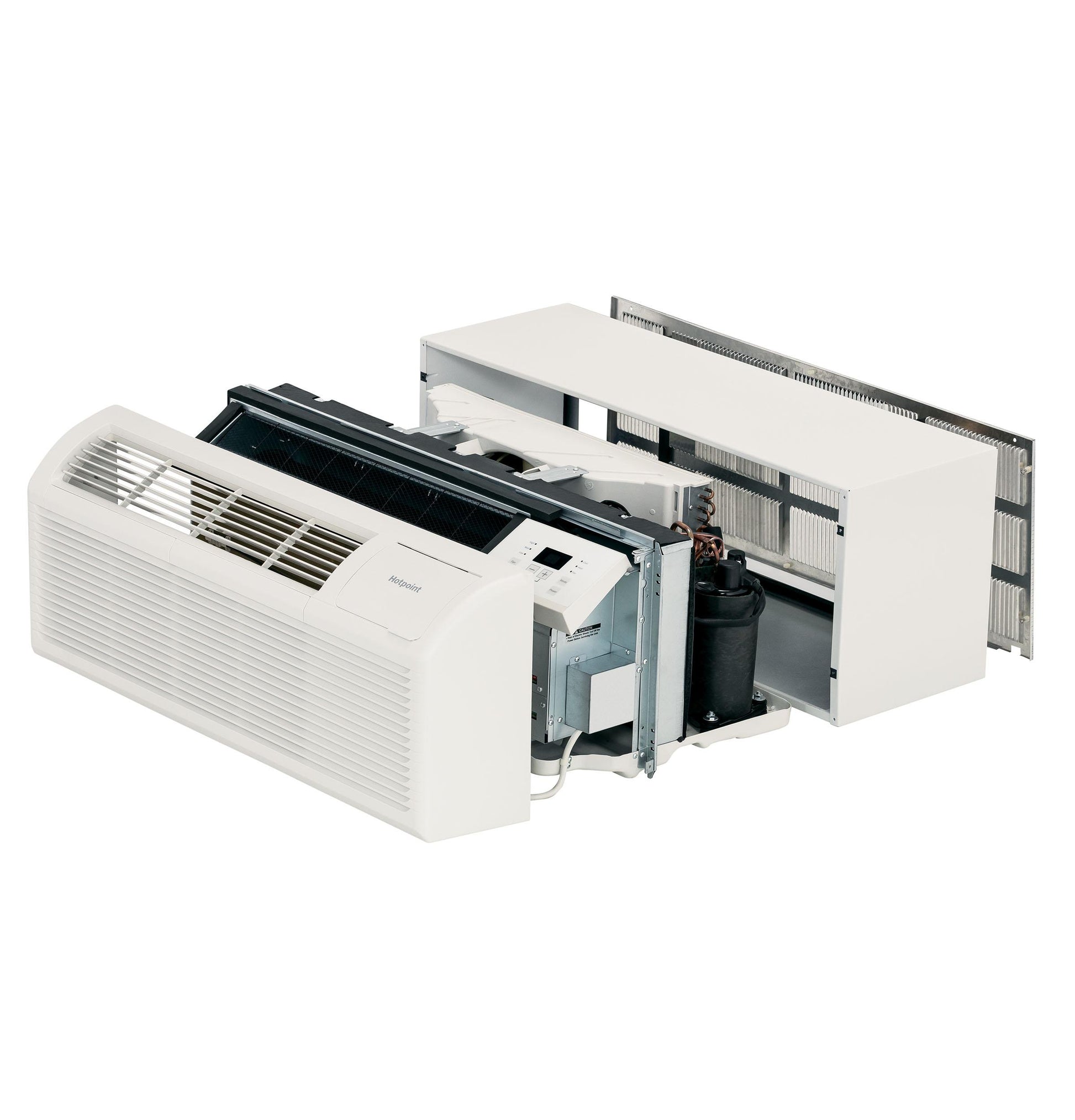

Chassis Type Slide-In
Fan Motor 2
Heat Pump Yes
Unit Features Auto Power Recovery
Automatic Emergency Heat
Automatic Indoor Frost Control
Central Desk Control Compatibility
Freeze Sentinel
Heat Pump with Resistance Heat Backup
Power Cord (LCDI) included
Remote Thermostat Compatibility
Temperature Range 62 - 86 F
Heat - Cool Yes
Auto Power Recovery Yes
Rotary Compressor Yes
Heating - Reverse Cycle - COP 3.2
Outdoor Vent / Exhaust Yes
Venting Features Concealed Manual Vent Control Vent Air Filter
Heating System Heat Pump with Resistance Backup
