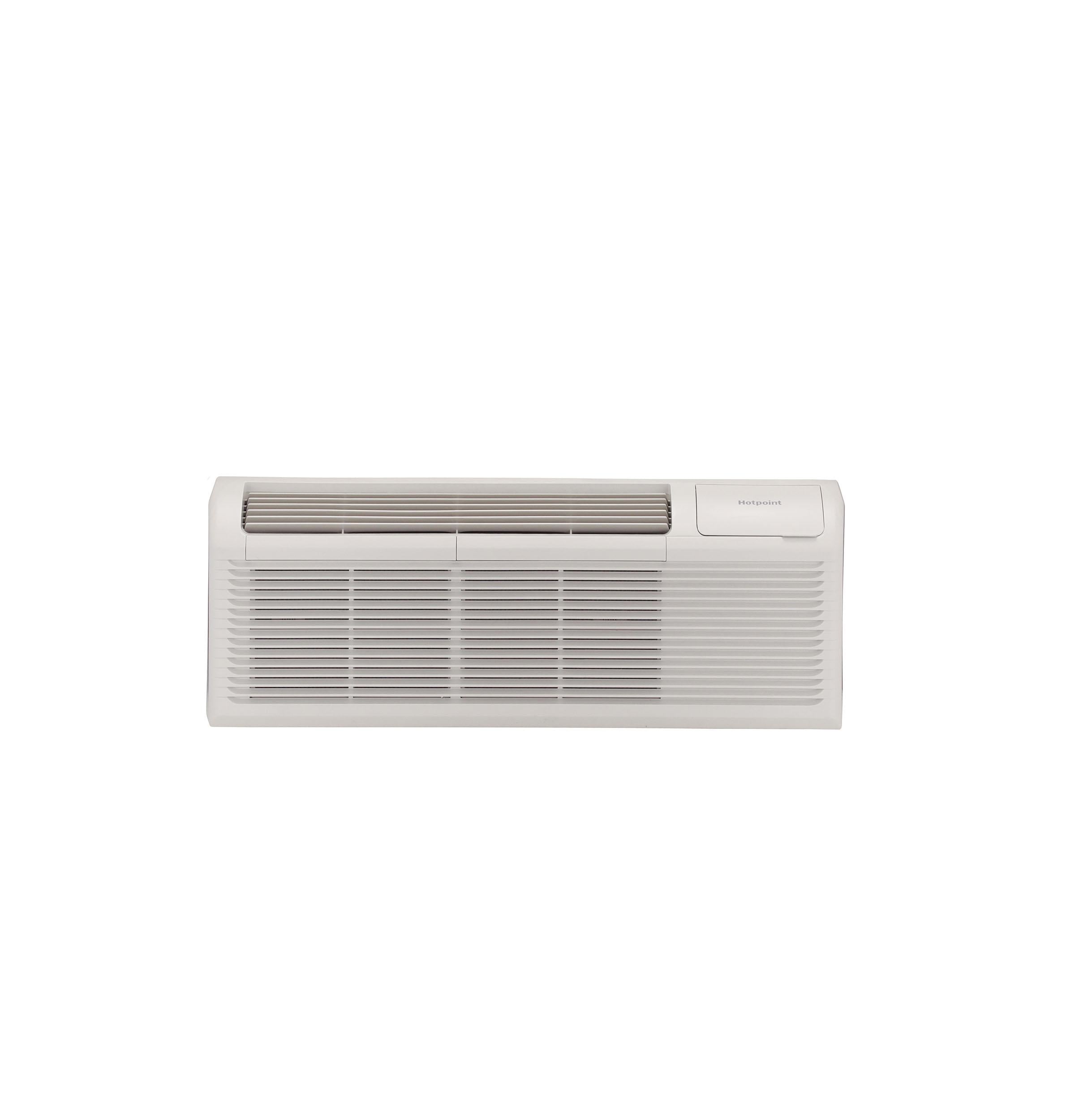

AH12E12D5B Hotpoint® PTAC with Electric Heat 12,000 BTU, 230/208V, 30amp

Item Not Available

Hotpoint® PTAC with Electric Heat 12,000 BTU, 230/208V, 30amp

CAPACITY
Cooling BTUH (MAX)	12000 Btu
CFM Indoor Fan Low	310
CFM Indoor Fan Medium	348
CFM Indoor Fan High	383
Cooling EER (BTUH / Watt)	10.7
Cooling BTUH (MIN)	11800 Btu
APPEARANCE
Installation	Through-the-Wall
Color Appearance	White
WARRANTY
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Parts Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
POWER / RATINGS
Cooling - Amperes	4.9/5.3
Cooling - Watts	1120/1100
Voltage (MIN)	208 V
Heating - Electric - Heater Watts	5035/4124
Voltage (MAX)	230 V
Heating - Electric - Heater Amps	22.0/19.7
WEIGHTS & DIMENSIONS
Overall Width	42.4 in
Approximate Shipping Weight	119.5 lb
Overall Height	16 in
Overall Depth	20.9 in
Net Weight	108.7 lb
FEATURES

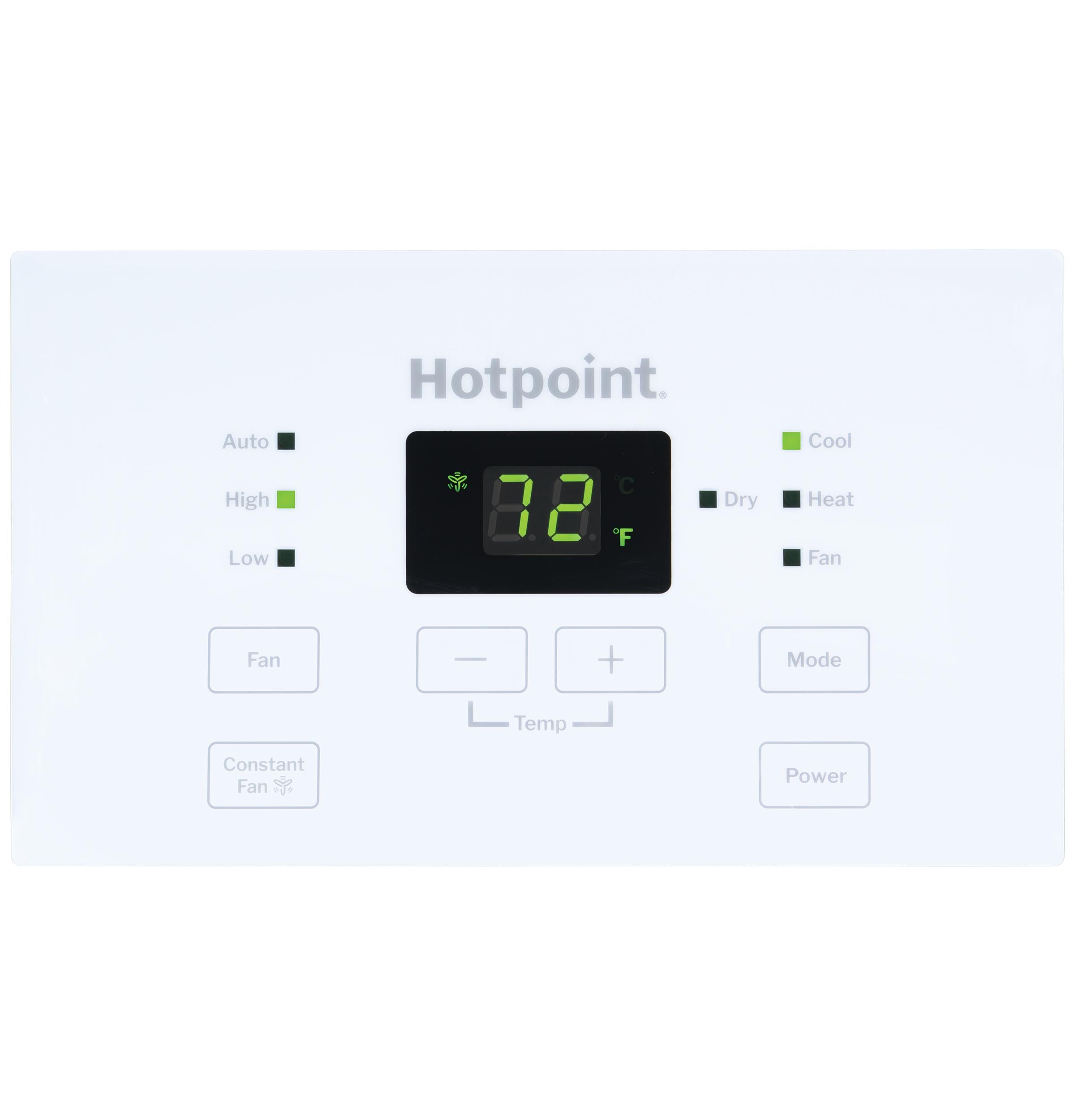

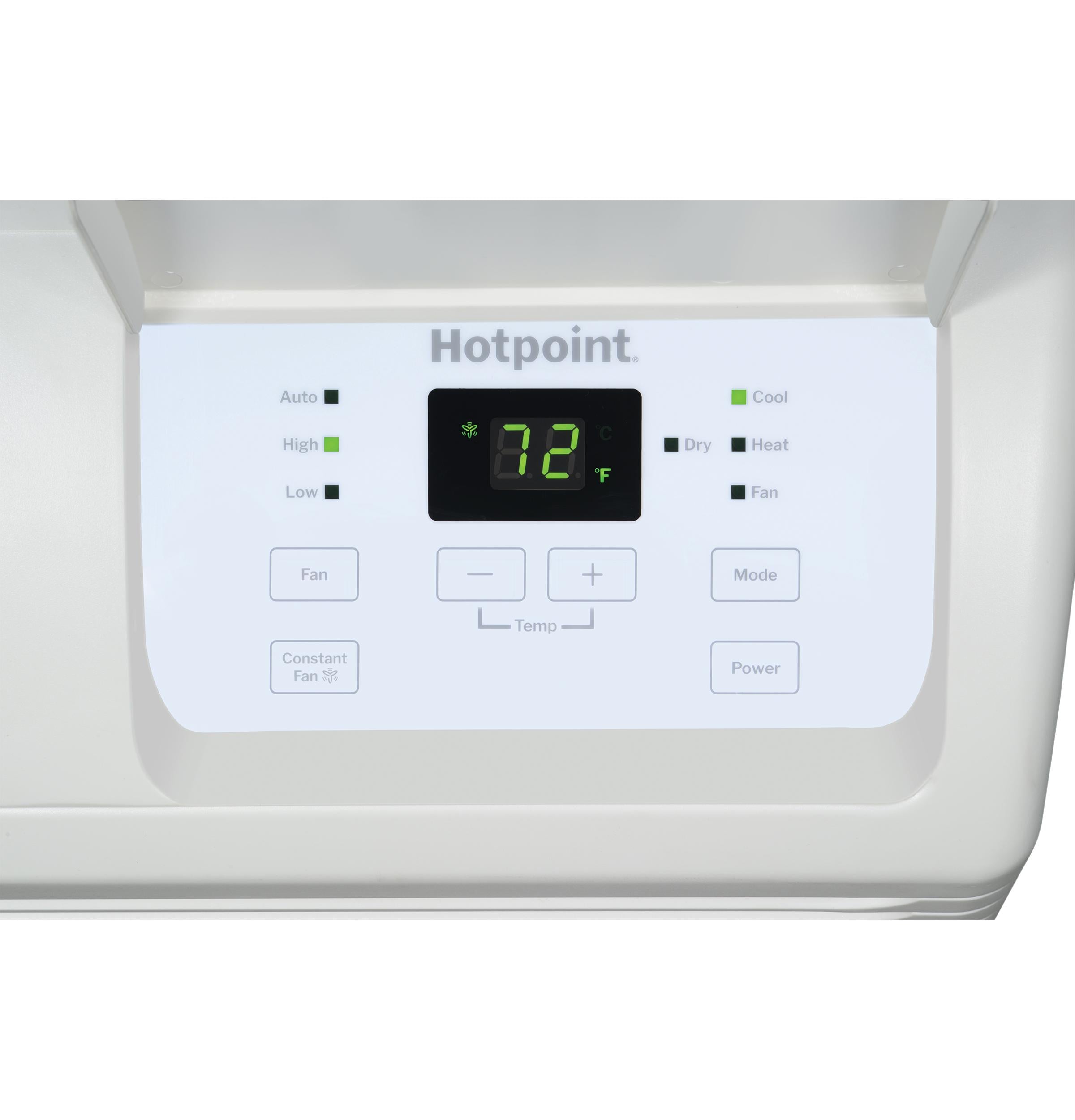

Control Type	Electronic
Fan Speed Selections	3 Cooling 3 Fan Only 3 Heating
Discharge Grille	2-position
Product Type	Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type	R32
Manual Vent Control	Hidden
"SmartFan" Fan Cycle	Yes
Chassis Type	Slide-In
Fan Motor	2
Unit Features	Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Power Cord (LCDI) included Remote Thermostat Compatibility
Temperature Range	62 - 80 F
Heat - Cool	Yes
Auto Power Recovery	Yes
Rotary Compressor	Yes
Outdoor Vent / Exhaust	Yes
Venting Features	Concealed Manual Vent Control Vent Air Filter
Heating System	Electric Resistance
