HOTPOINT AHHS07D3XXA
Authorized Reseller

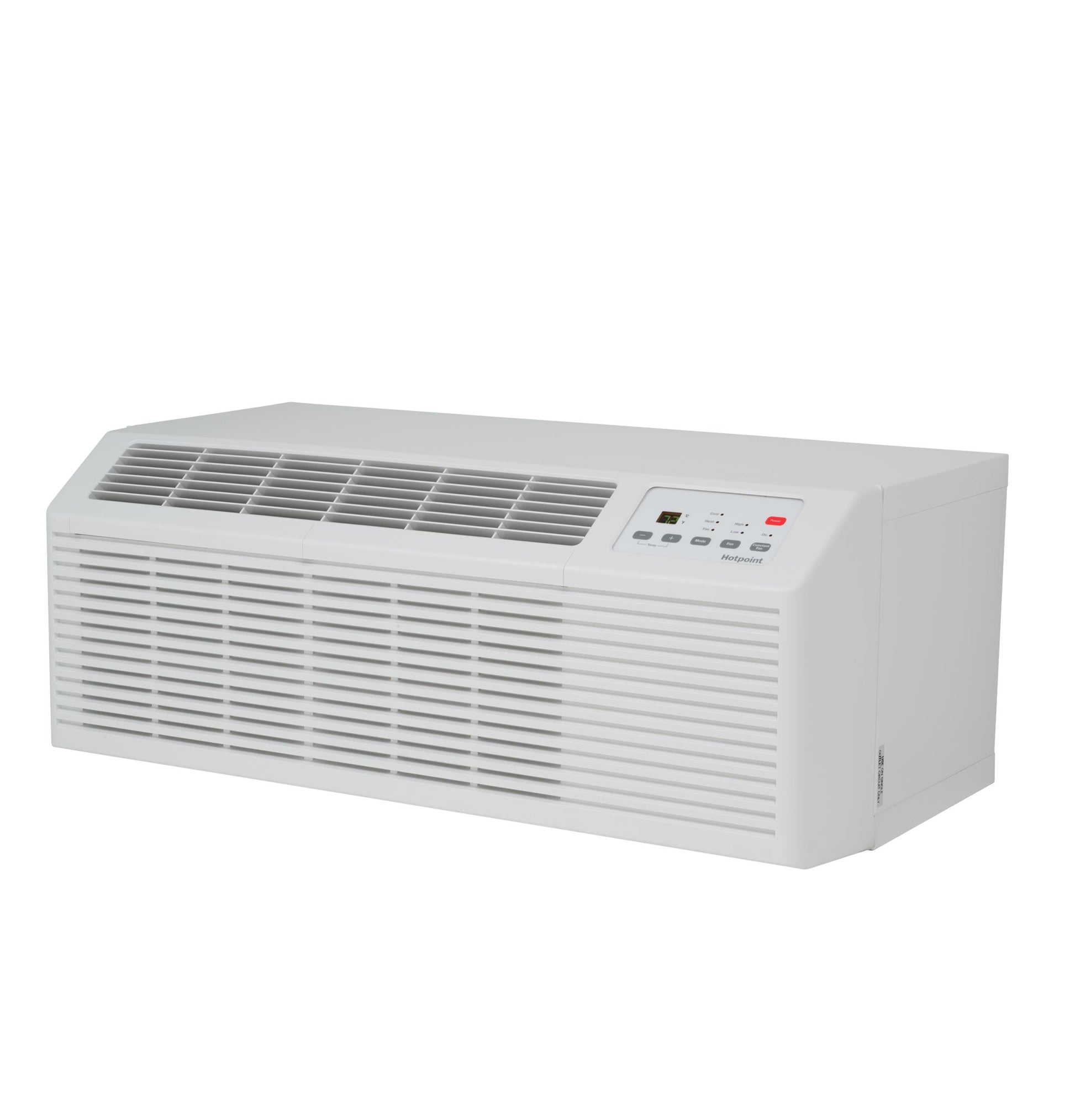

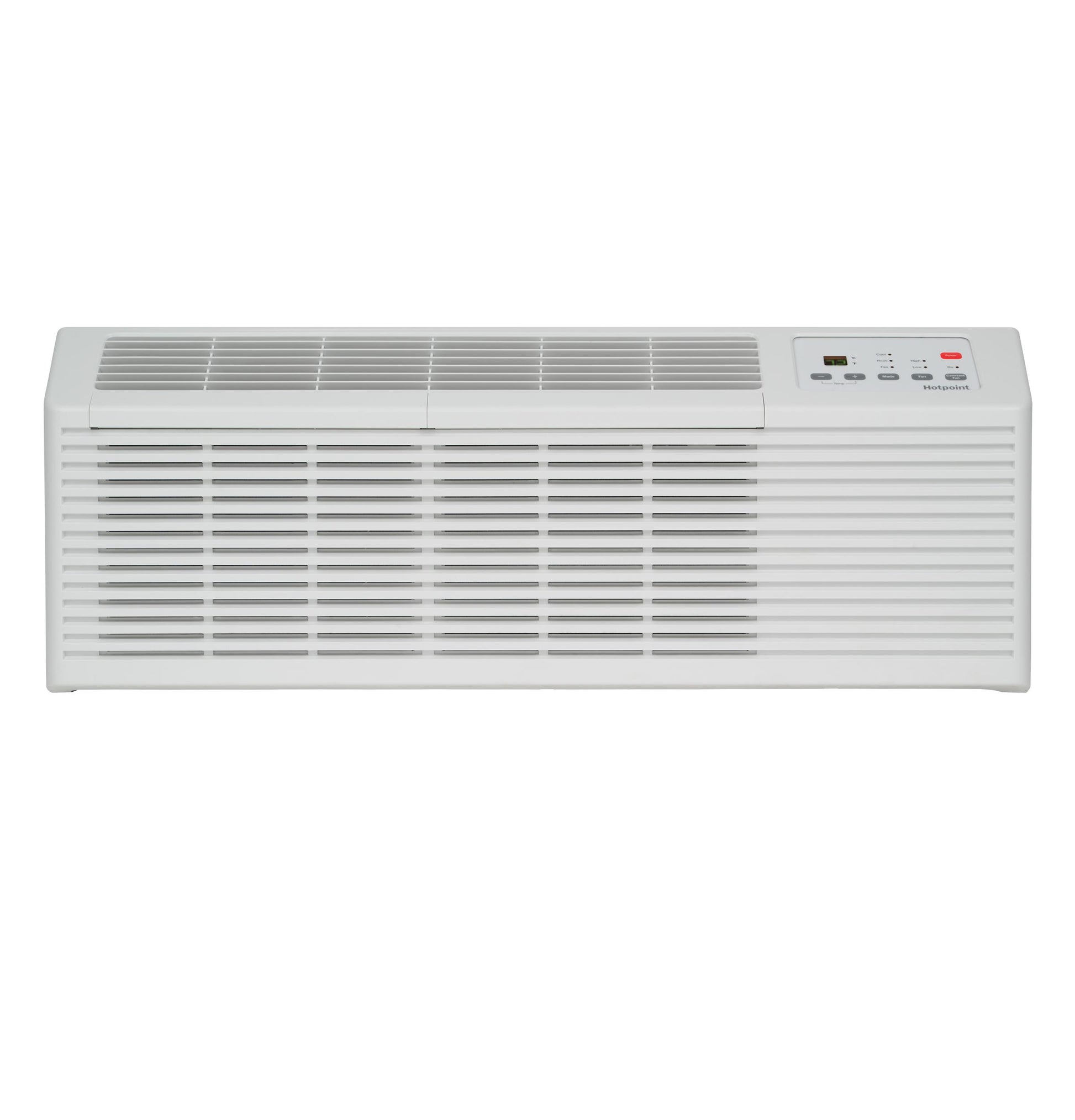

AHHS07D3XXA Hotpoint® PTAC Heat Pump 7,000 BTU, 230/208V, 20amp
AHHS07D3XXA Hotpoint® PTAC Heat Pump 7,000 BTU, 230/208V, 20amp
Regular price
$738.40
Regular price
Sale price
$738.40
Unit price
per
In Stock By Manufacturer
Couldn't load pickup availability
When Will I Get My Order?
- 2 Fan Speeds
- 4 Temperature-Limiting Options
- Auto Dimming Display
- Slinger Ring Condensate Removal

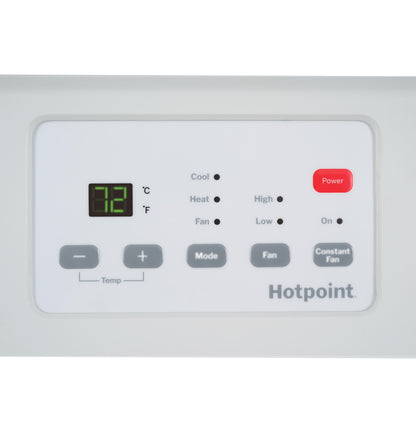

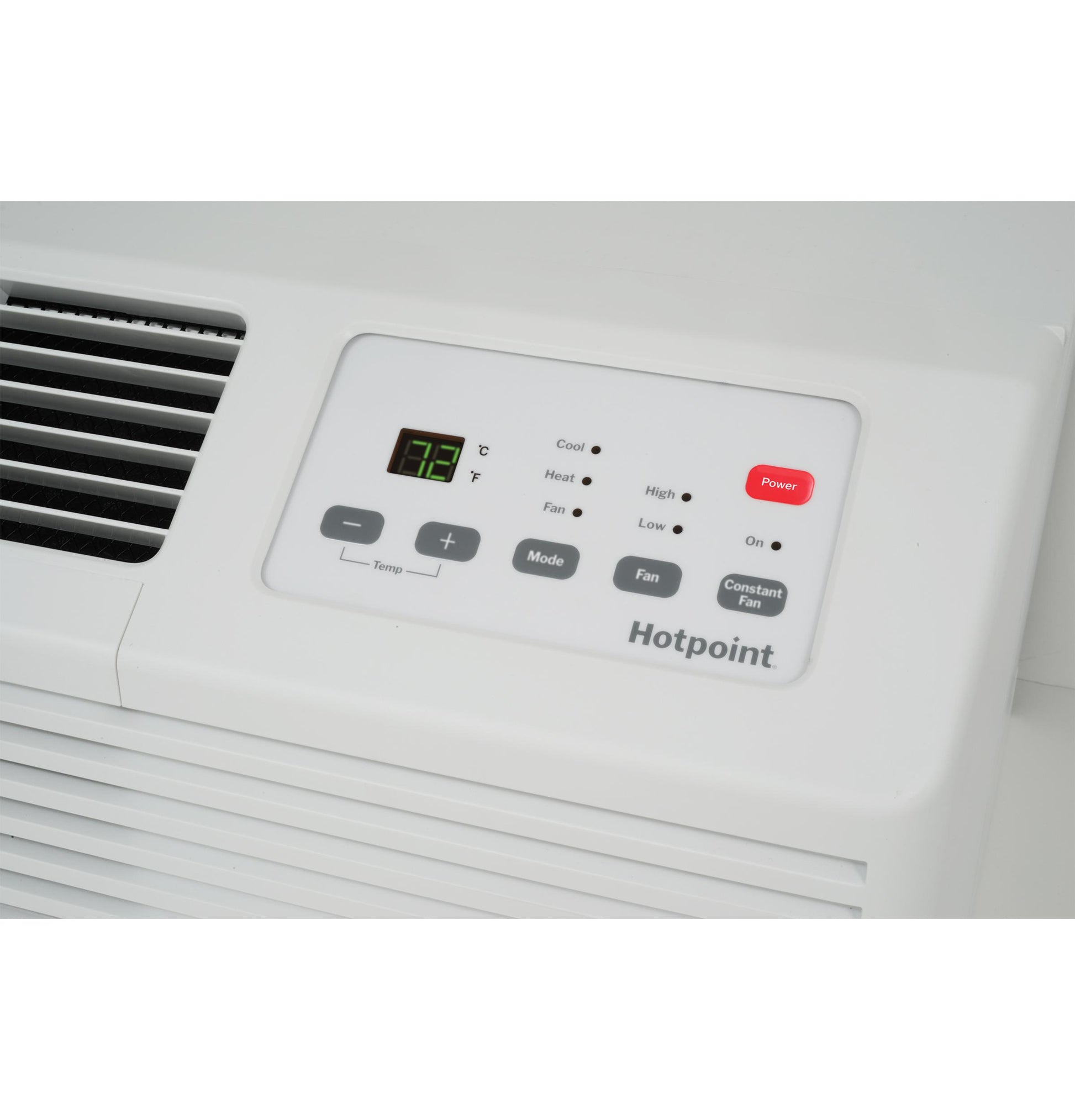

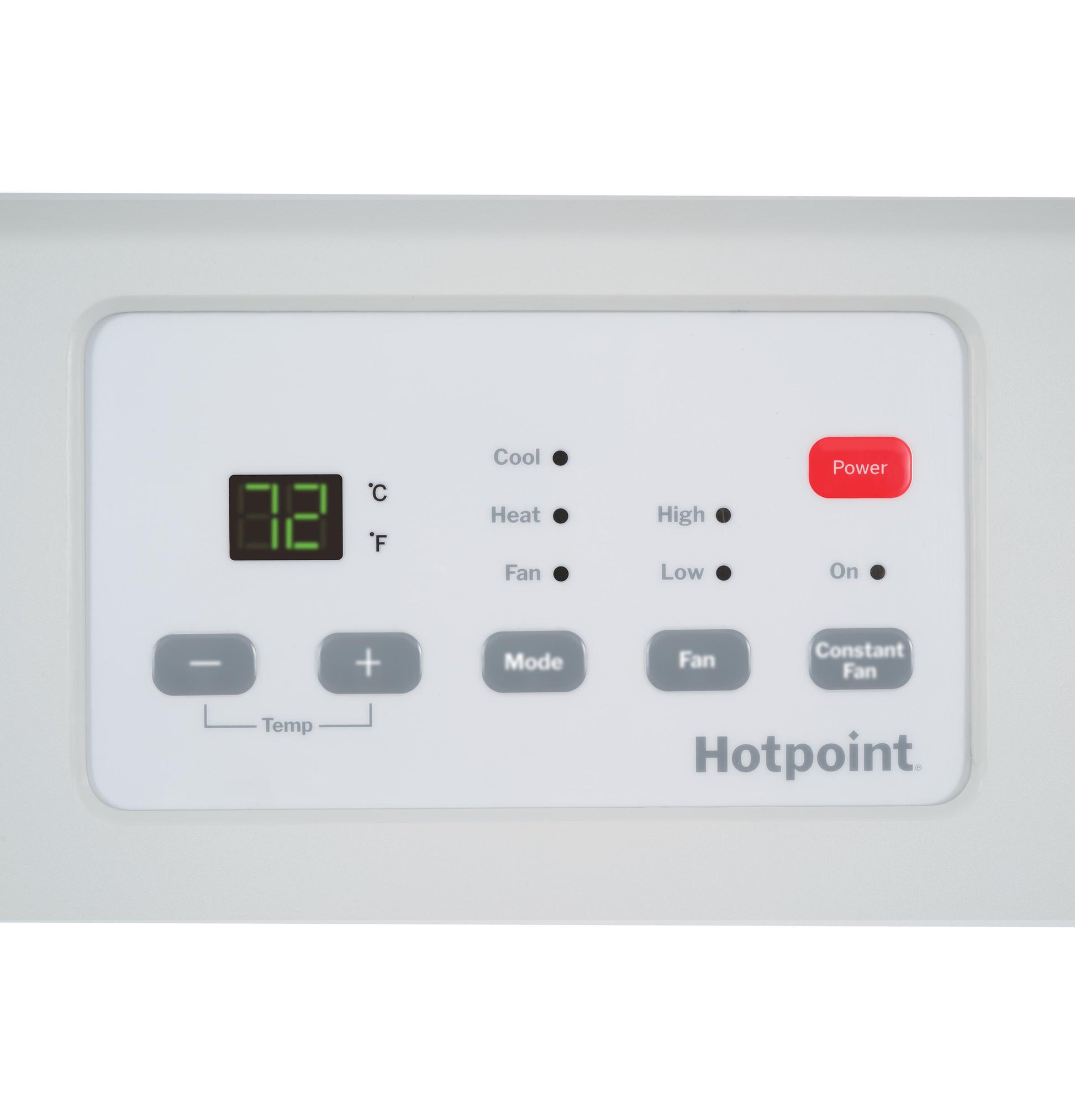

- Coverless Control Panel
- Automatic Emergency Heat
- Freeze/Frost & Overheat Protection
- Auto Power Recovery
- Self-Diagnostics
- Constant Fan Button
2 Fan Speeds
4 Temperature-Limiting Options
Auto Dimming Display
Slinger Ring Condensate Removal
Coverless Control Panel
Automatic Emergency Heat
Freeze/Frost & Overheat Protection
Auto Power Recovery
Self-Diagnostics
Constant Fan Button
4 Temperature-Limiting Options
Auto Dimming Display
Slinger Ring Condensate Removal
Coverless Control Panel
Automatic Emergency Heat
Freeze/Frost & Overheat Protection
Auto Power Recovery
Self-Diagnostics
Constant Fan Button
| CAPACITY | |
| Cooling BTUH (MAX) | 7100 Btu |
| Cooling EER (BTUH / Watt) | 12.0/12.1 |
| Heating - Reverse Cycle - BTUH | 6000/5800 |
| Cooling BTUH (MIN) | 7000 Btu |
| APPEARANCE | |
| Installation | Through-the-Wall |
| Color Appearance | White |
| POWER / RATINGS | |
| Heat Pump - Amps | 2.6/2.8 |
| Cooling - Amperes | 2.8/2.6 |
| Cooling - Watts | 590/575 |
| Voltage (MIN) | 208 V |
| Heat Pump - Watts | 515/495 |
| Voltage (MAX) | 230 V |
| WARRANTY | |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed system |
| Parts Warranty | Limited 2-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Overall Width | 42.4 in |
| Approximate Shipping Weight | 91.1 lb |
| Overall Height | 16 in |
| Overall Depth | 20.9 in |
| Net Weight | 81 lb |
| FEATURES | |
| Control Type | Electronic |
| Fan Speed Selections | 2 Cooling 2 Fan Only 2 Heating |
| Discharge Grille | 2-position |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R32 |
| Manual Vent Control | Hidden |
| "SmartFan" Fan Cycle | Yes |
| Chassis Type | Slide-In |
| Fan Motor | 1 |
| Heat Pump | Yes |
| Unit Features | Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Freeze Sentinel Heat Pump with Resistance Heat Backup Power Cord (LCDI) included Remote Thermostat Compatibility (Accessory Kit Required) |
| Temperature Range | 62 - 80 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Rotary Compressor | Yes |
| Heating - Reverse Cycle - COP | 3.4/3.4 |
| Outdoor Vent / Exhaust | Yes |
| Venting Features | Concealed Manual Vent Control |
| Heating System | Heat Pump with Resistance Backup |
