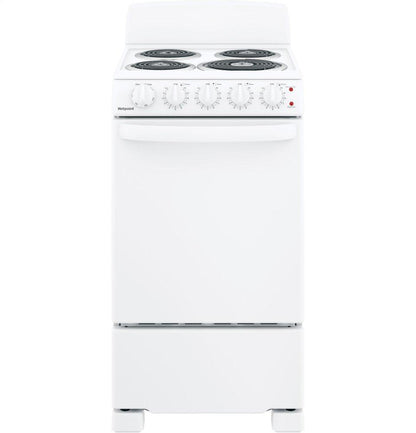

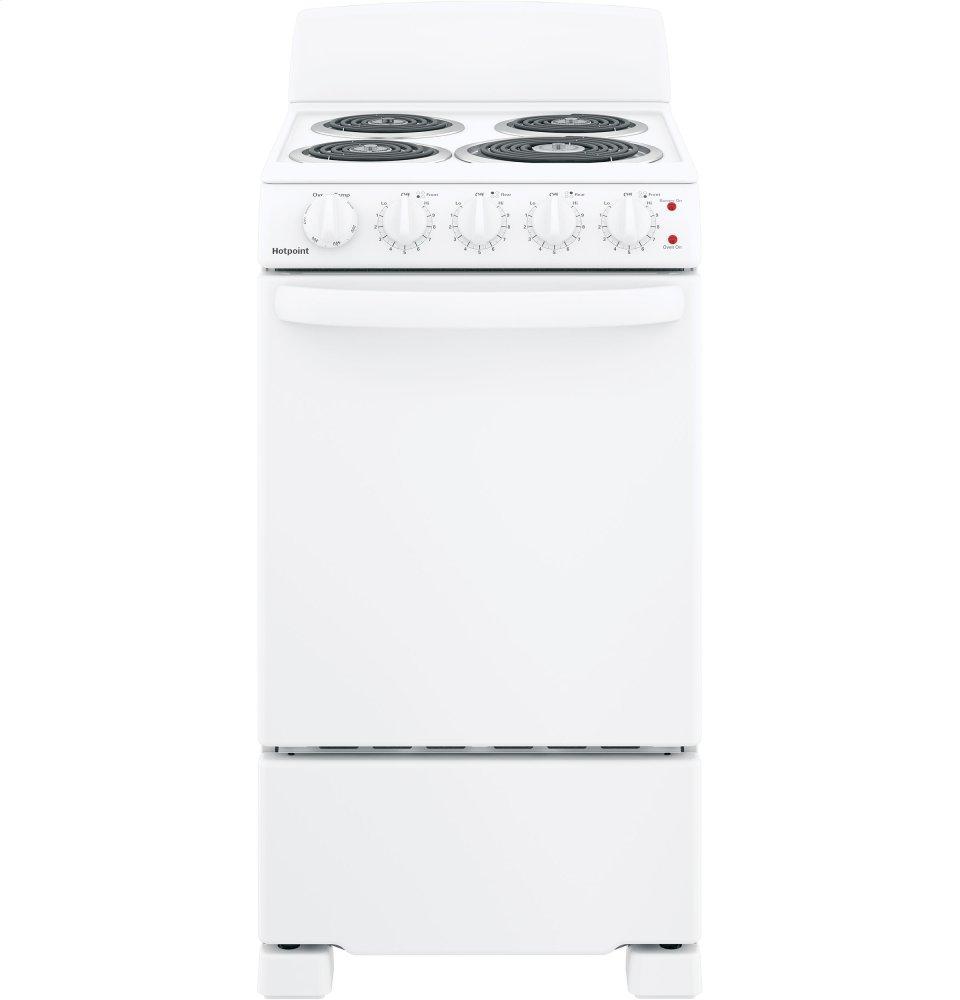

RAS200DMWW Hotpoint® ENERGY STAR® 20" Electric Free-Standing Front-Control Electric Range RAS200DMWW

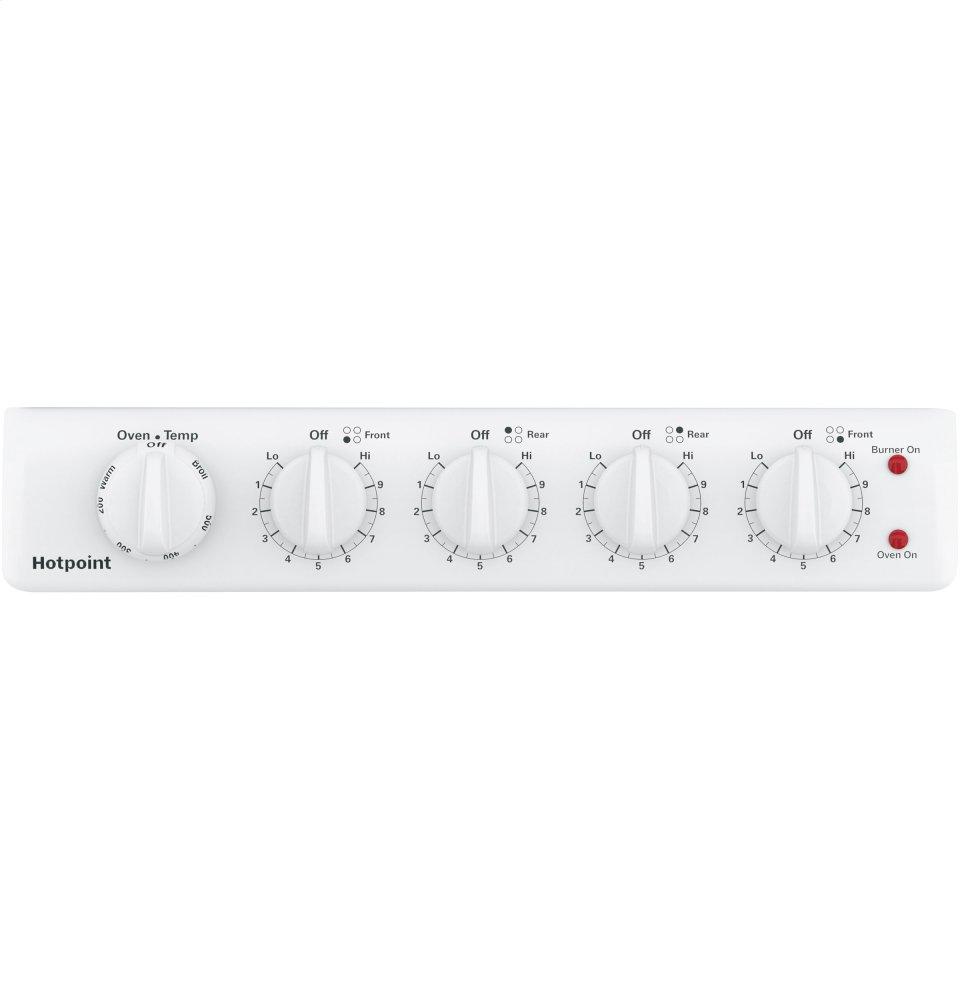

Front controls
Easily operate your range stove without reaching over hot pots and pans

Sensi-temp technology
Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety

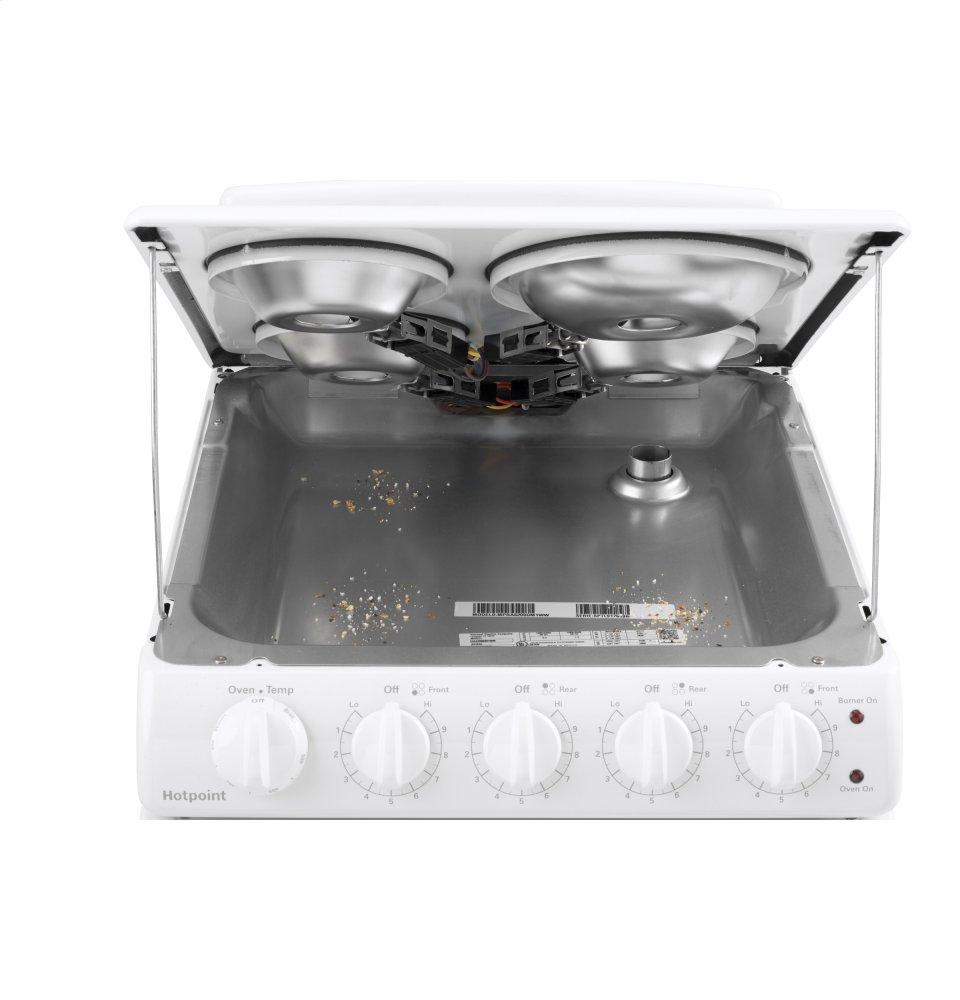

Lift-up cooktop
Quickly clean up spills and remove crumbs from the subtop

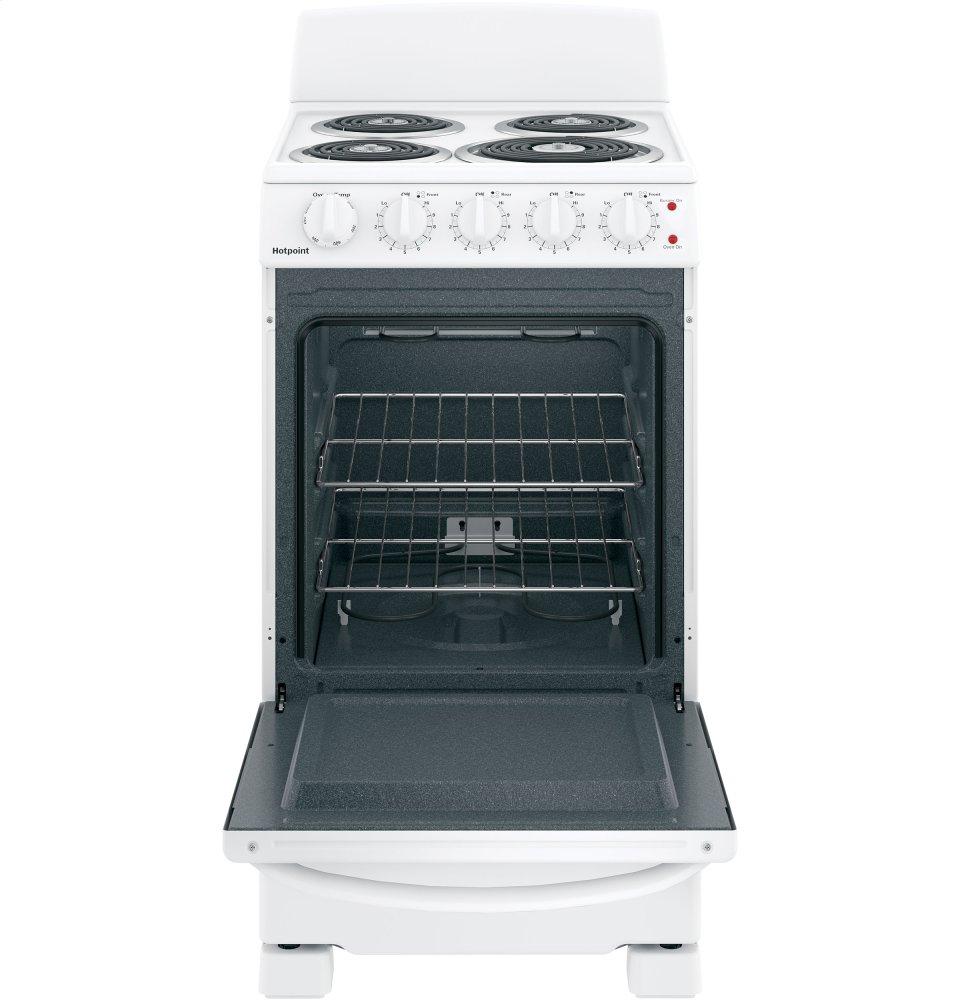

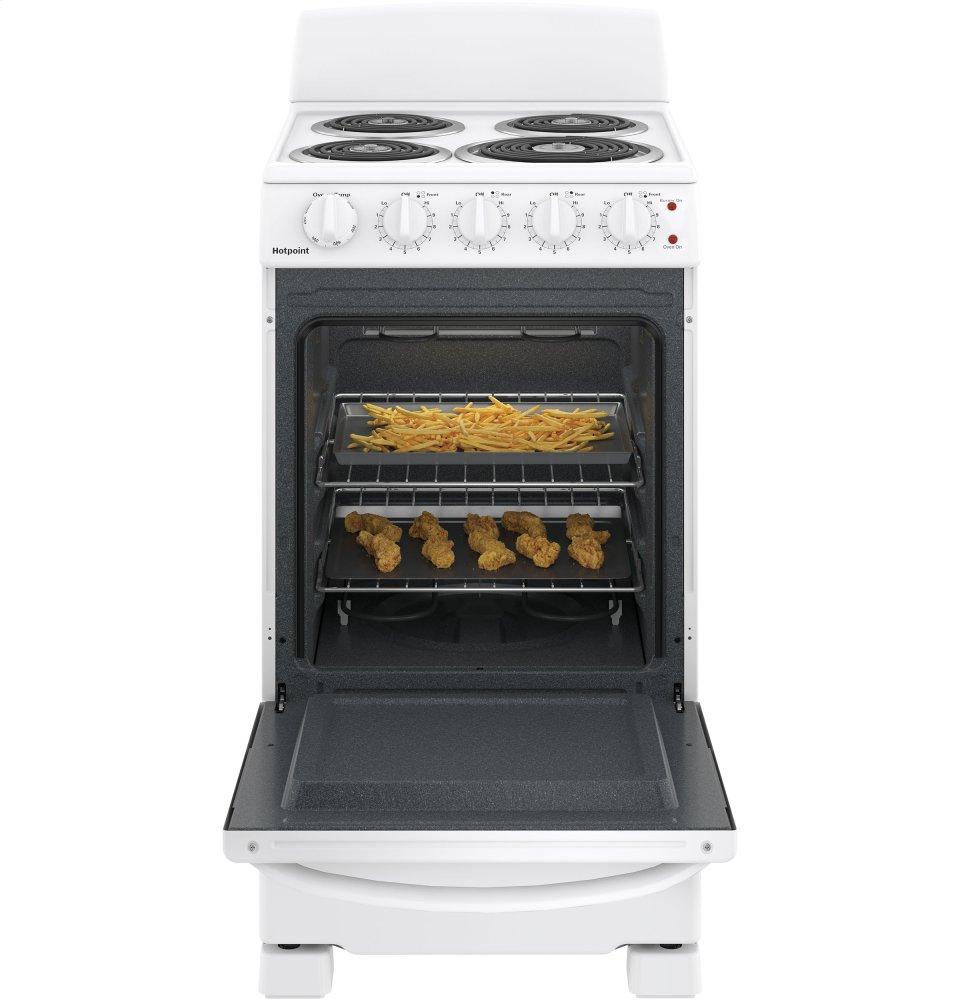

Two oven racks
Feature a durable construction to help accommodate any size or type of cookware

Standard clean oven
Smooth surface makes cleaning by hand easier

One-piece durable handle
Strong and long-lasting

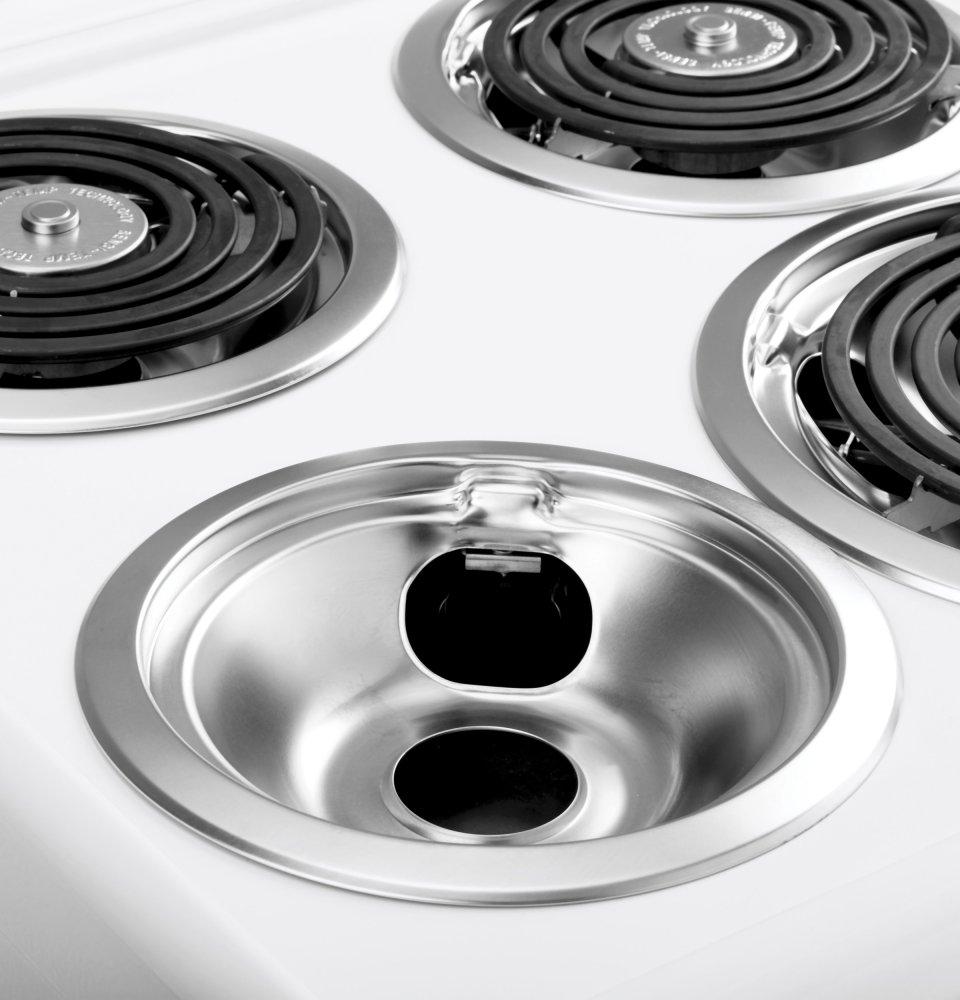

Chrome drop bowls
Contain spills and remove for easy cleaning

Cooktop "On" Indicator Light
Know when an element is on

CAPACITY
Total Capacity (cubic feet)	2.3 cu ft
FILTER
App Filter - Cleaning Type	Manual
App Filter - Voltage	240V
App Filter - Cooking Technology	Traditional
App Filter - Control Type	Rotary knobs
App Filter - Product Type	Ranges Free-Standing Single Oven
App Filter - Fuel Type	Electric
App Filter - Convection	No

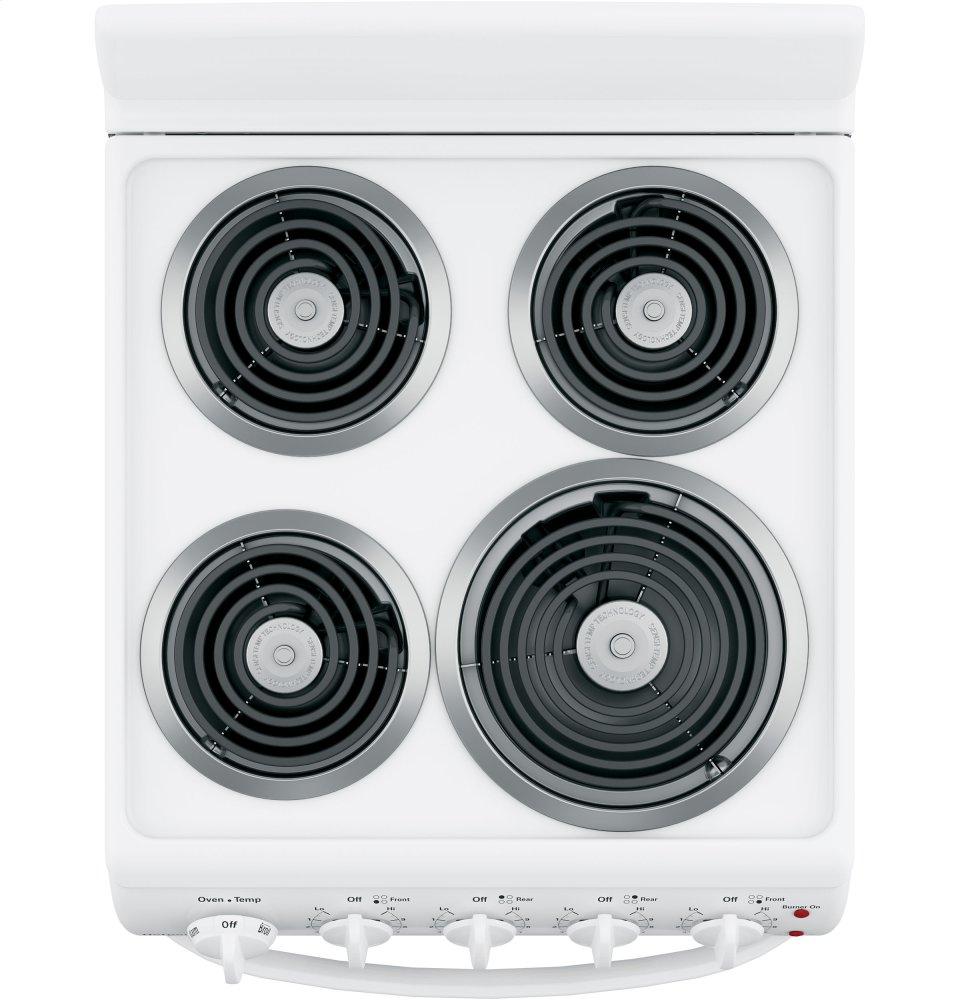

App Filter - Cooktop Type	Coil
APPEARANCE
Textured Steel Side Panels	Yes
Control Knobs	White
Handle Color	White
Door Swing	Pull-Down
Color Appearance	White
POWER / RATINGS
KW Rating at 240V	9.3
Bake Wattage	2000W
Electrical Requirements	208/240V;60Hz
Amp Rating at 208V	40
Broiler Wattage	2400W
KW Rating at 208V	7.2
Amp Rating at 240V	40
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
WEIGHTS & DIMENSIONS
Net Weight	71 lb
Depth Without Handle	24.625 in
Oven Interior Dimensions (W x H x D) (in.)	15 x 15-3/8 x 17-1/8
Height to Cooking Surface (in.)	36 3/4 +/- 1/4
Depth with Door Open	44.375 in
Cabinet Width	20 in
Approximate Shipping Weight	83 lb
Overall Width	19.75 in
Overall Depth	26.625 in
Overall Height	41.875 in
FEATURES
Oven Features	4-Pass Bake Element 4-Pass Broil Element
Element - Right Front	8" 2400W Temp Limiting Coil
Removable One-Piece Drip Bowls	Chrome
Fuel Type	Electric
OU Certified	No
Oven Cooking Modes	Bake Broil
Oven Control Features	Oven "ON" Light
Cooktop Burner Type	Coil
Oven Rack Features	2 Oven Racks
Element - Left Front	6" 1250W Temp Limiting Coil
Oven Cleaning Type	Standard Clean
Product Type	Free-Standing Single Oven
Heating Element "ON" Indicator Light	Yes
Cooktop Type	Coil
Element - Left Rear	6" 1250W Temp Limiting Coil
Sabbath Mode	Yes
Element - Right Rear	6" 1250W Temp Limiting Coil
Cooktop Surface	Lift-Up Porcelain-Enamel
Control Location	Upfront
Oven Rack Positions (Single or Upper/Lower)	4
Leveling System	Easy Level System
Cooking Technology	Traditional
