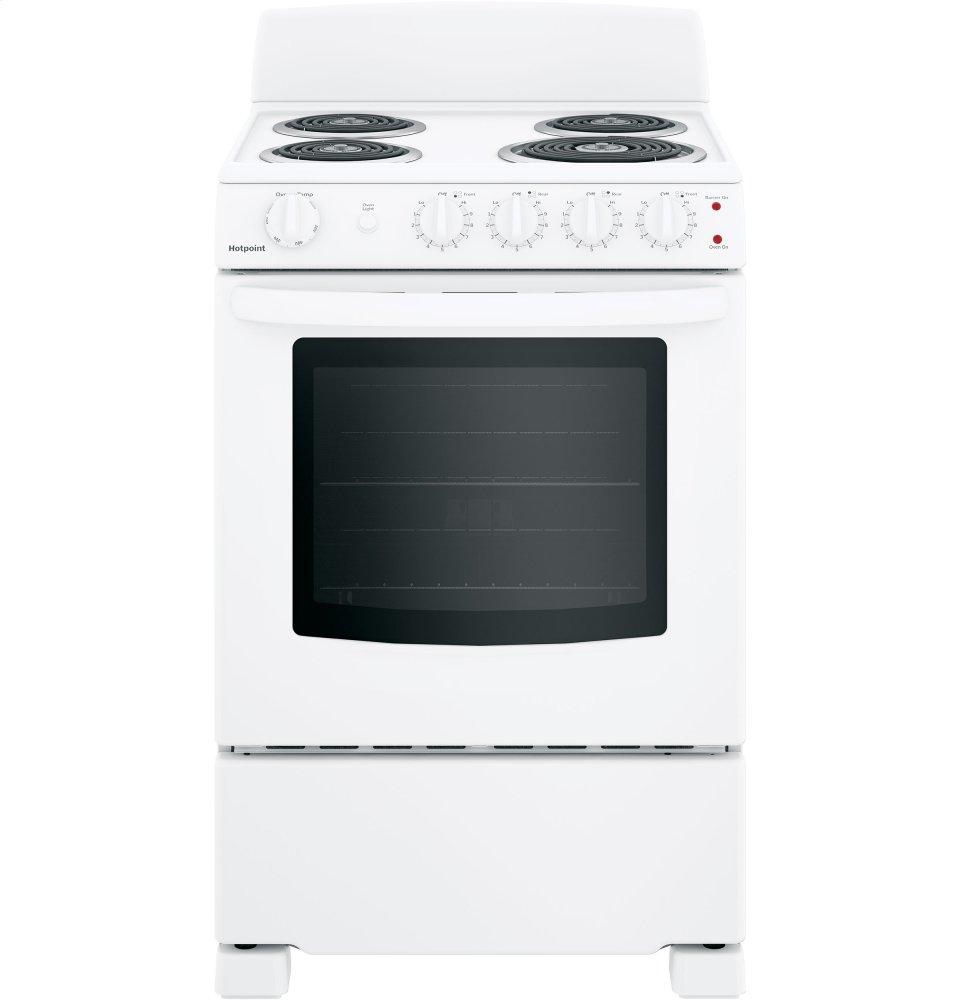

RAS240DMWW Hotpoint® ENERGY STAR® 24" Electric Free-Standing Front-Control Range RAS240DMWW

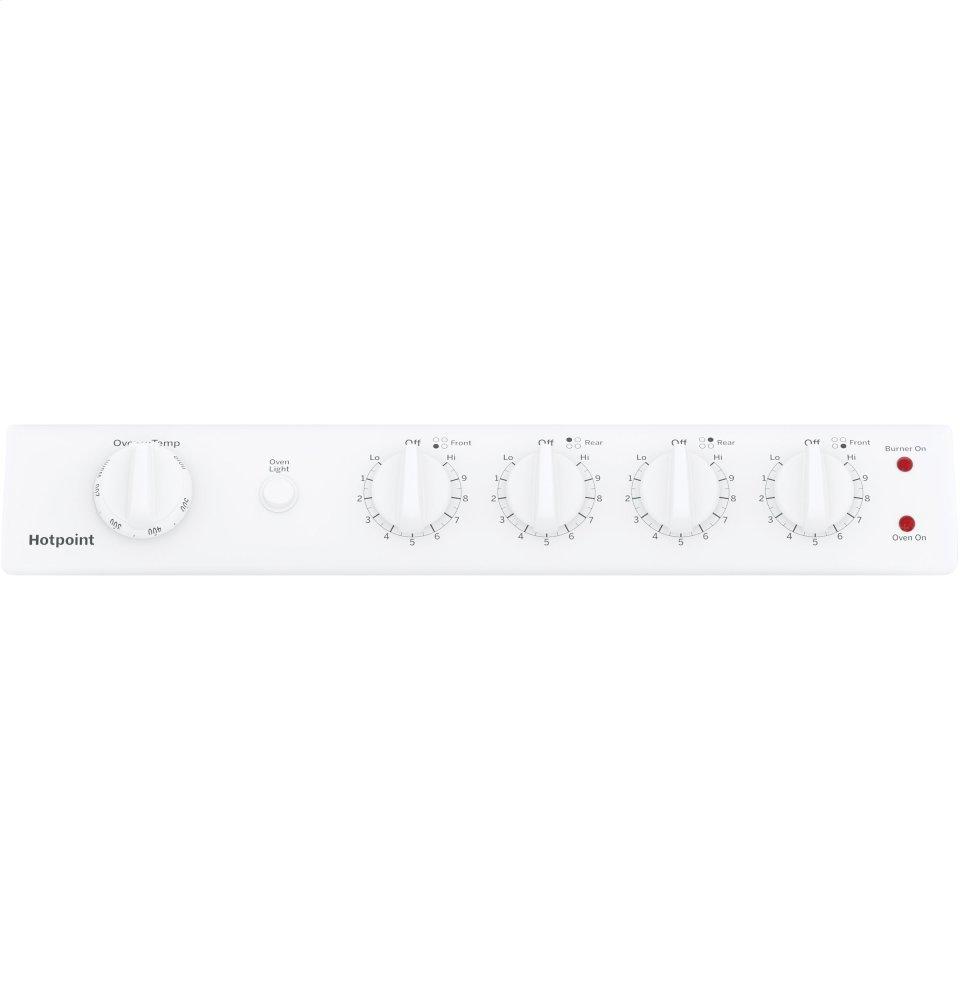

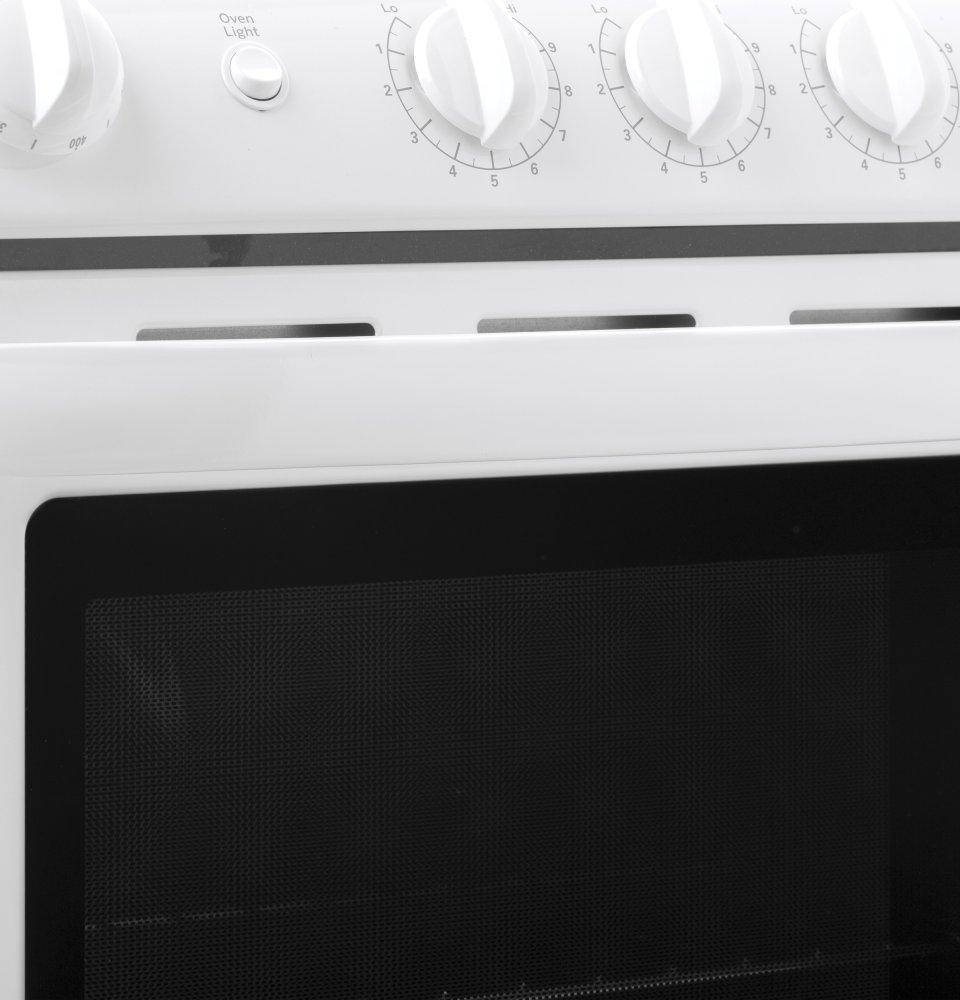

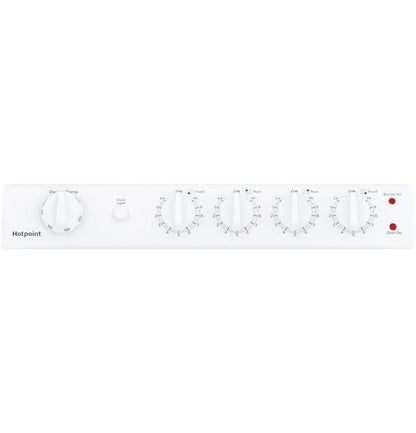

Front controls
Easily operate your range stove without reaching over hot pots and pans

Sensi-temp technology
Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety

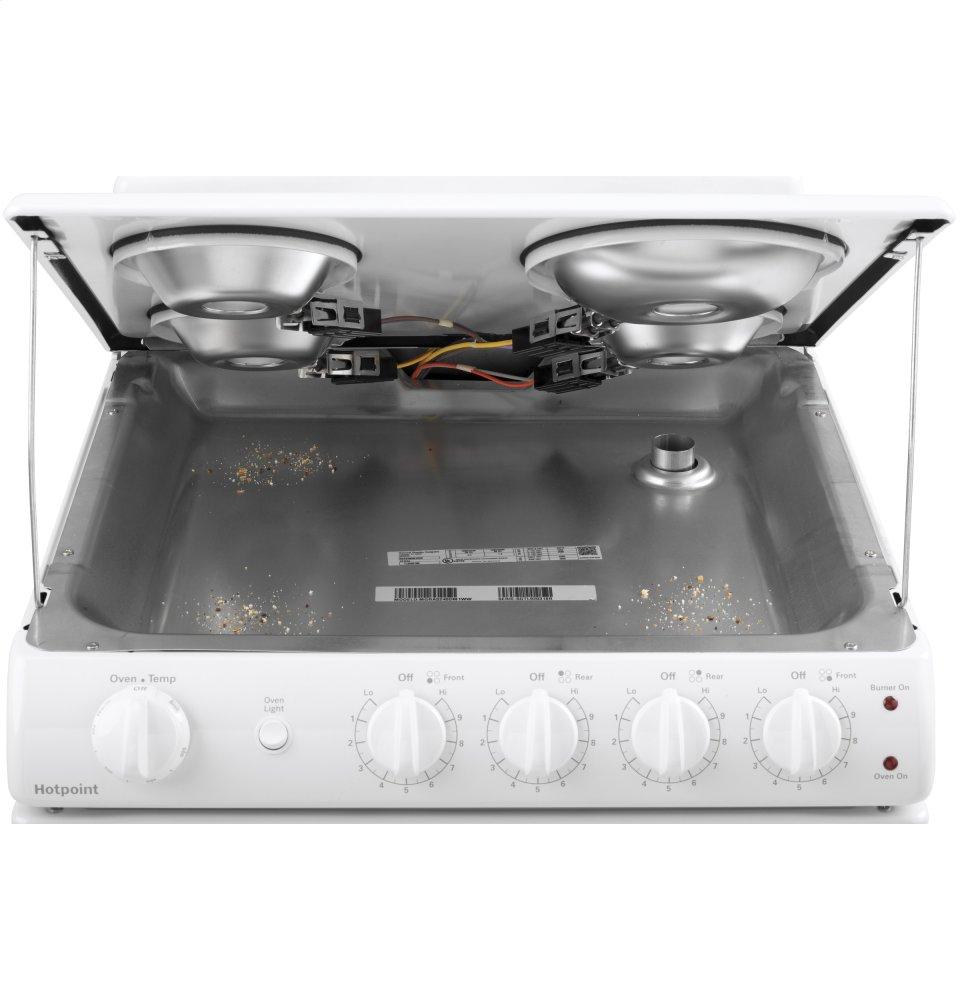

Lift-up cooktop
Quickly clean up spills and remove crumbs from the subtop

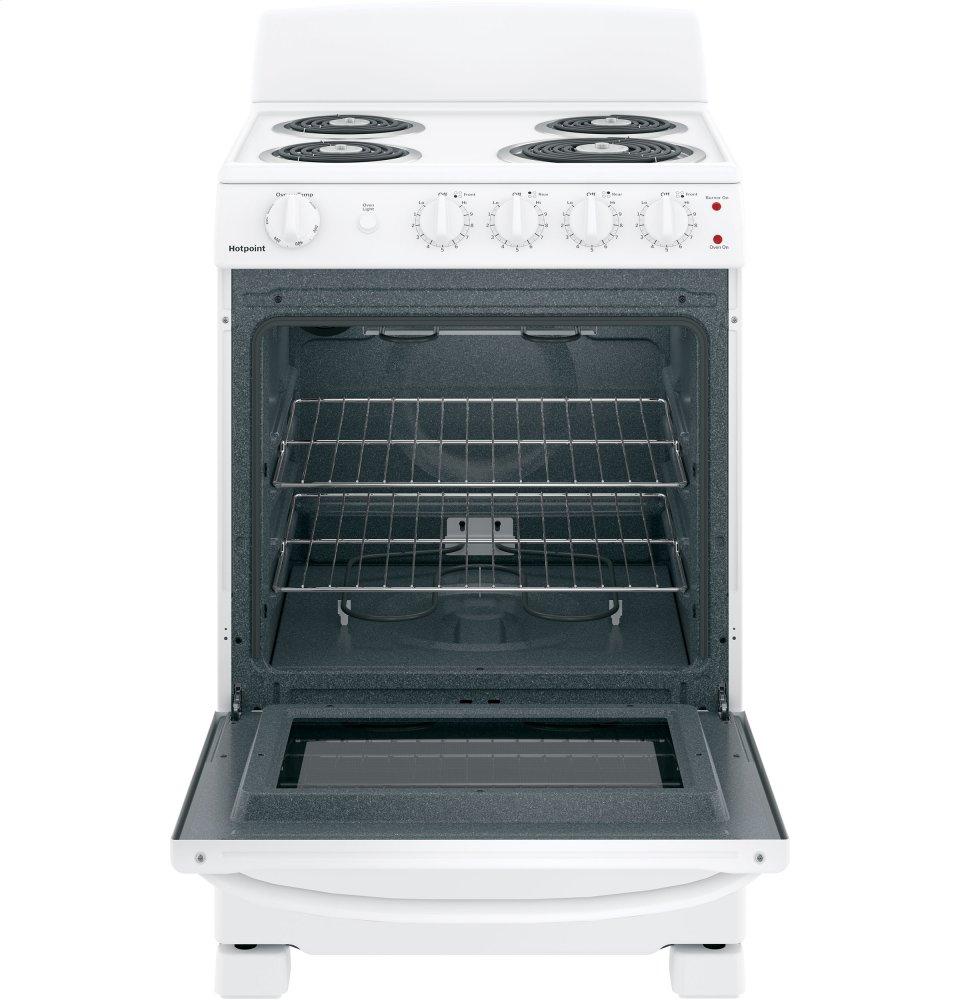

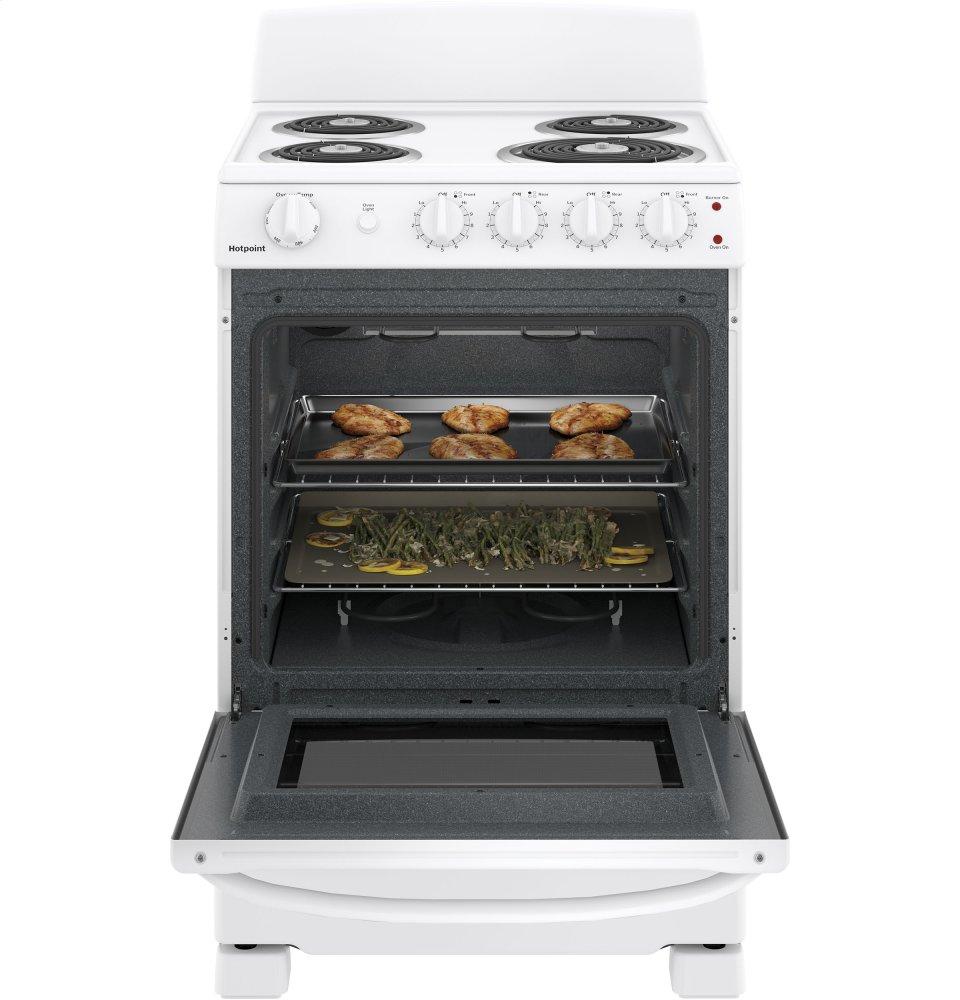

Two oven racks
Feature a durable construction to help accommodate any size or type of cookware

Standard clean oven
Smooth surface makes cleaning by hand easier

One-piece durable handle
Strong and l ong-lasting

Chrome drop bowls
Contain spills and remove for easy cleaning

Standard window
Provides a convenient viewing area to check the progress of food

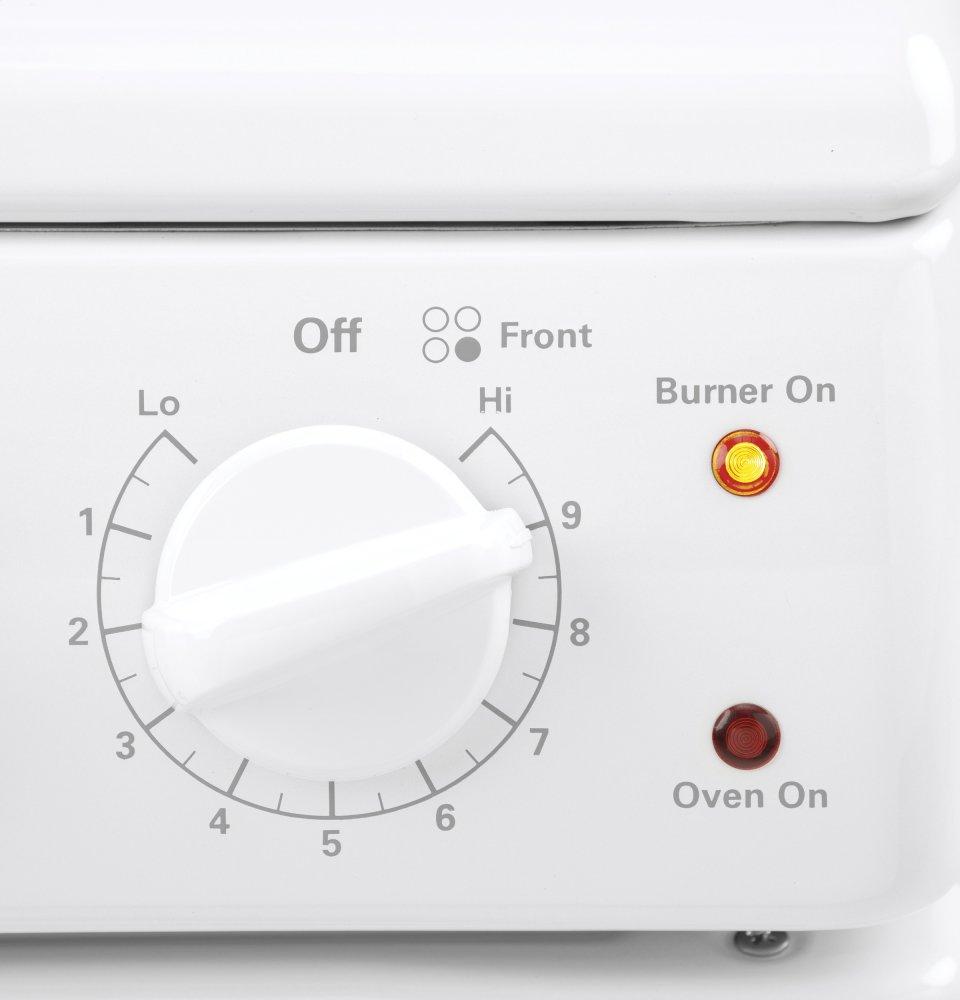

Cooktop "On" Indicator Light
Know when an element is on

CAPACITY
Total Capacity (cubic feet)	2.9 cu ft
FILTER
App Filter - Cabinet Width	Cooking 24 in.
App Filter - Control Type	Rotary knobs
App Filter - Product Type	Ranges Free-Standing Single Oven
App Filter - Fuel Type	Electric
App Filter - Cooking Technology	Traditional
App Filter - Convection	No
App Filter - Cleaning Type	Manual
App Filter - Voltage	240V
App Filter - Cooktop Type	Coil
APPEARANCE
Textured Steel Side Panels	Yes
Oven Door Features	Oven Window
Handle Color	White
Control Knobs	White
Door Swing	Pull-Down
Color Appearance	White
POWER / RATINGS
Electrical Requirements	208/240V ; 60Hz ; 40A
Amp Rating at 208V	40
Broiler Wattage	2400W
Amp Rating at 240V	40
KW Rating at 240V	9.3
Bake Wattage	2000W
KW Rating at 208V	7.2
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
WEIGHTS & DIMENSIONS
Net Weight	101 lb
Depth Without Handle	24.625 in
Height to Cooking Surface (in.)	36 3/4 +/- 1/4
Cabinet Width	24 in
Approximate Shipping Weight	114 lb
Overall Width	23.75 in
Overall Height	41.875 in
Overall Depth	26.625 in
Depth with Door Open	44.375 in
Oven Interior Dimensions (W x H x D) (in.)	19 x 15-3/8 x 17-1/8
FEATURES
Oven Control Features	Oven "ON" Light
Oven Rack Features	2 Oven Racks
Element - Left Front	6" 1250W Temp Limiting Coil
Oven Cleaning Type	Standard Clean
Product Type	Free-Standing Single Oven
Heating Element "ON" Indicator Light	Yes

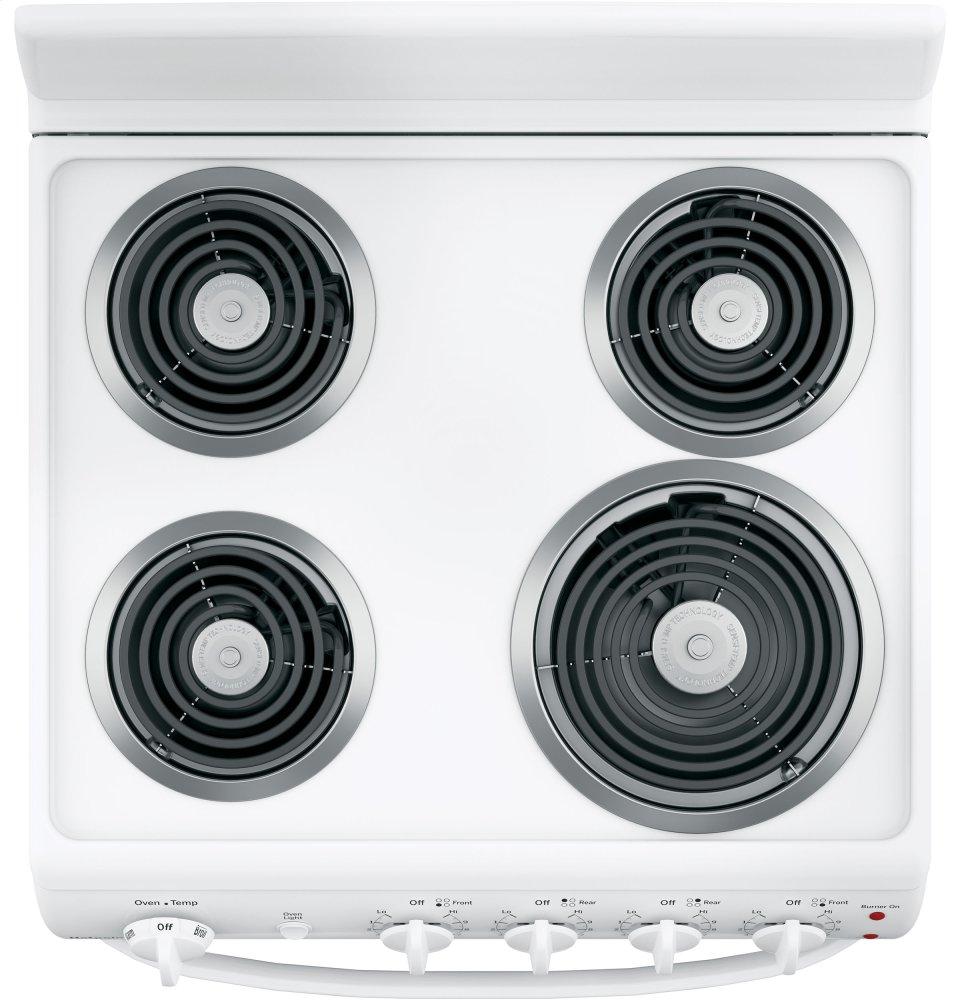

Cooktop Type	Coil
Fuel Type	Electric
Element - Right Front	8" 2400W Temp Limiting Coil
Control Location	Front
Control Type	Rotary knobs
Sabbath Mode	Yes
Leveling System	Easy Level System
Element - Left Rear	6" 1250W Temp Limiting Coil
Cooking Technology	Traditional
Removable One-Piece Drip Bowls	Chrome
OU Certified	No
Oven Cooking Modes	Bake Broil
Cooktop Burner Type	Coil
Element - Right Rear	6" 1250W Temp Limiting Coil
Cooktop Surface	Lift-Up Porcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)	4
