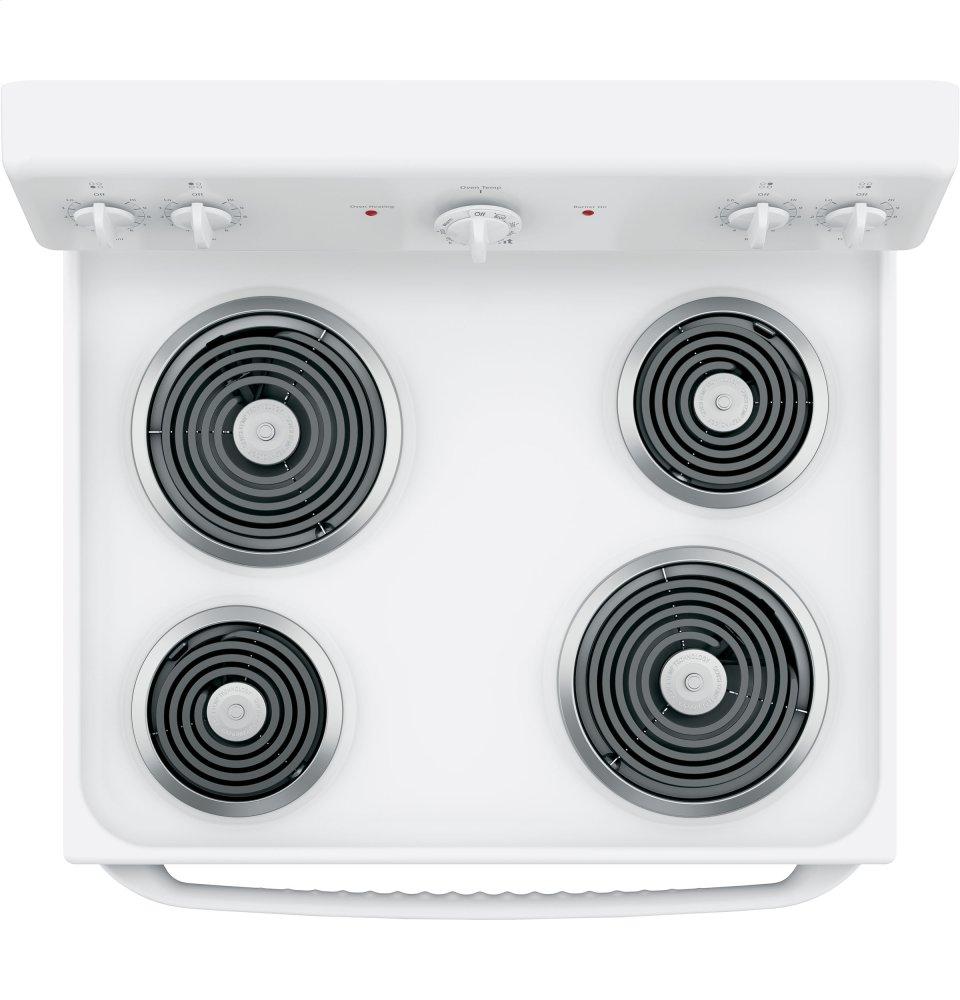

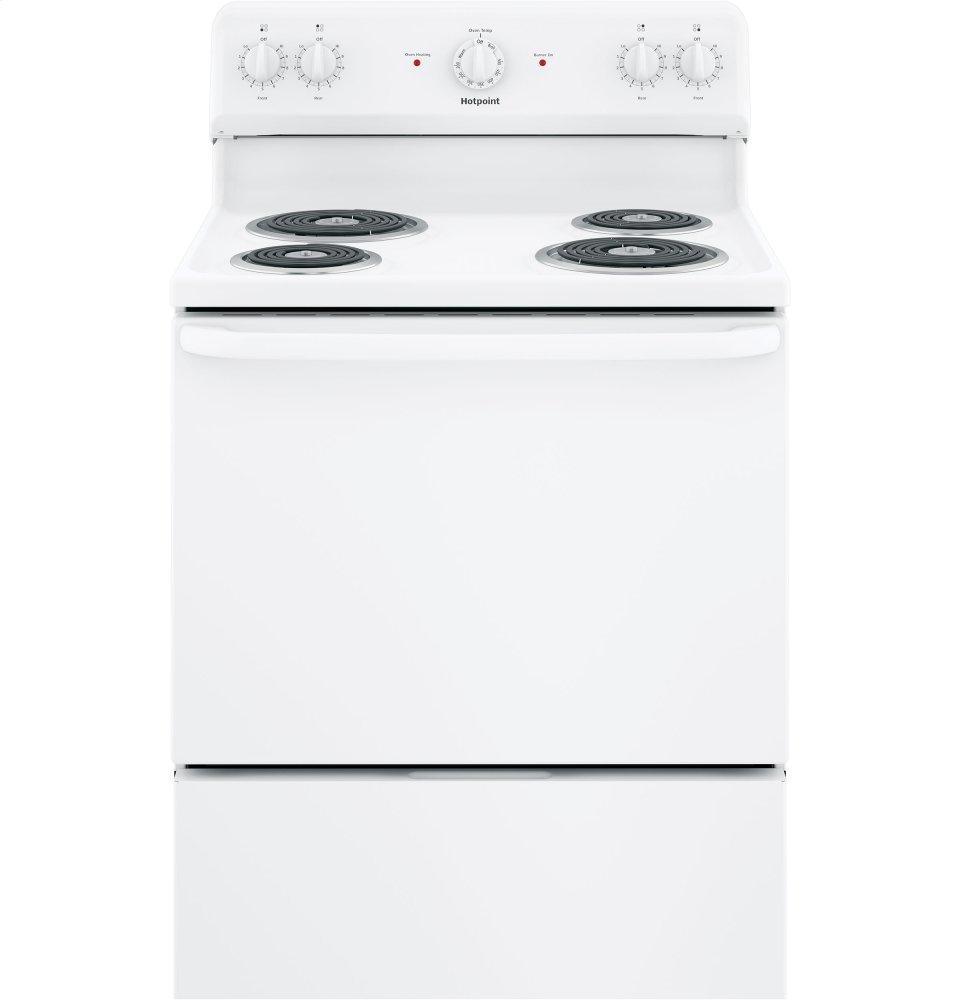

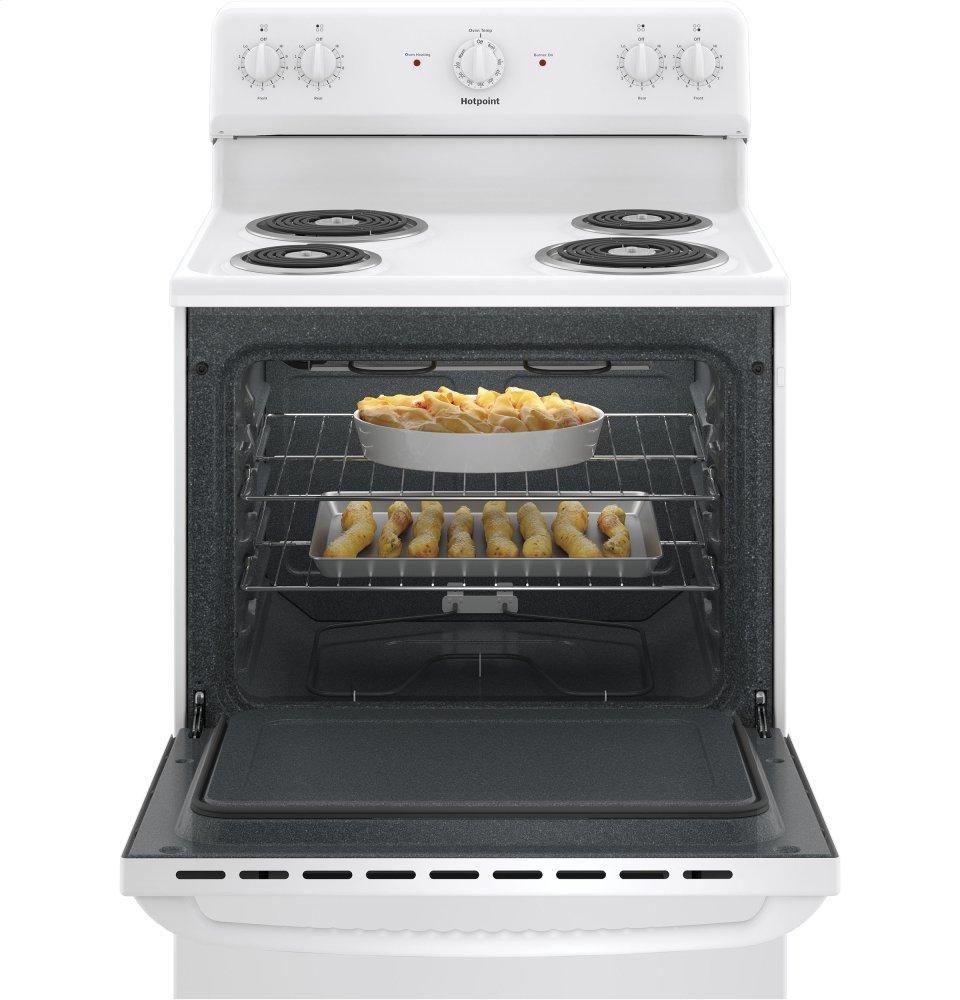

RBS160DMWW Hotpoint® ENERGY STAR® 30" Free-Standing Electric Range RBS160DMWW

Standard clean oven
Smooth surface makes cleaning by hand easier

Sensi-temp technology
Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety

Porcelain upswept cooktop
Raised edges contain spills, while the surface is easy to wipe clean

Chrome drop bowls
Contain spills and remove for easy cleaning

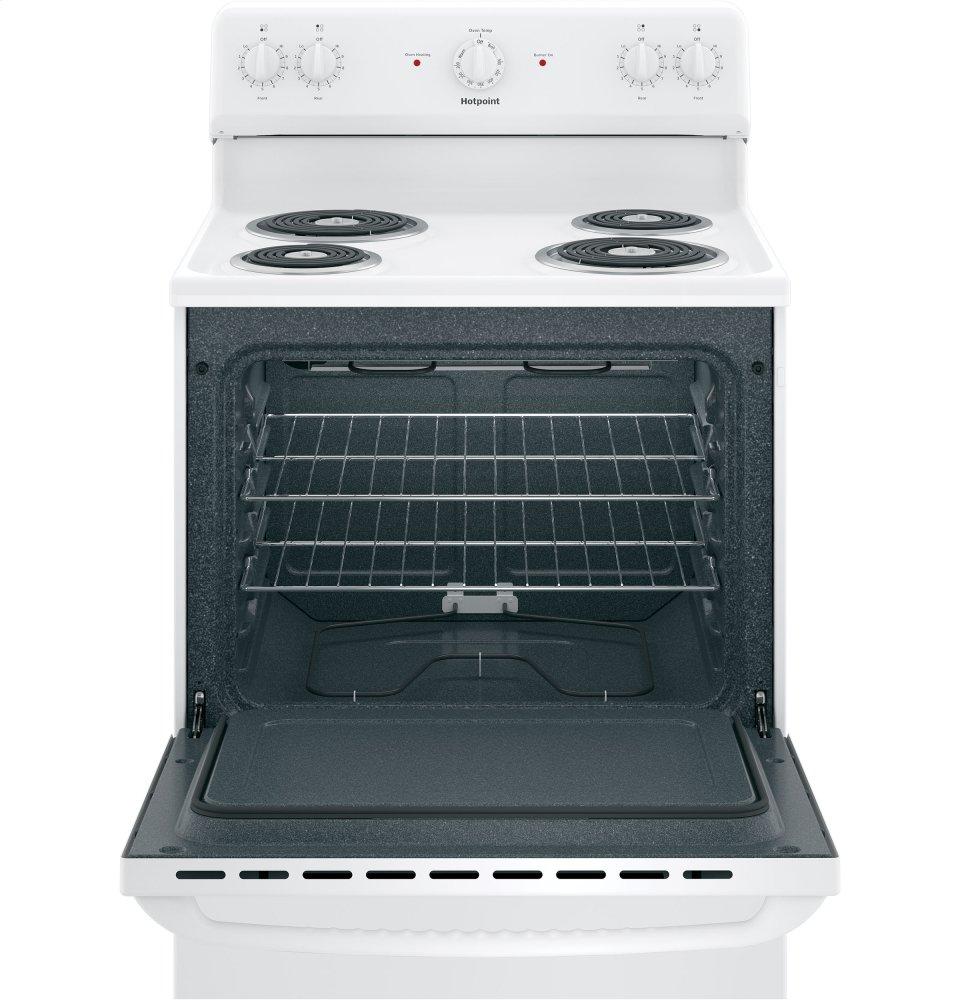

Two oven racks
Feature a durable construction to help accommodate any size or type of cookware

Removable full-width storage drawer
Store cookware or kitchen accessories

5.0 cu. ft. oven capacity
Cook more dishes at once

Broiler pan with grid
Convenient broiler pan can be used when broiling for crisping and browning

Cooktop "On" Indicator Light
Know when an element is on

Lift-up cooktop
Quickly clean up spills and remove crumbs from the subtop

CAPACITY
Total Capacity (cubic feet)	5 cu ft
APPEARANCE
Control Knobs	White
Handle Color	White
Color Appearance	White
POWER / RATINGS
KW Rating at 240V	10.1
Bake Wattage	2585W
Amp Rating at 208V	40
Broiler Wattage	3410W
KW Rating at 208V	8.0
Amp Rating at 240V	40
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
WEIGHTS & DIMENSIONS
Net Weight	135 lb
Oven Interior Dimensions (W x H x D) (in.)	23-3/4 x 19 x 18-1/2
Height to Cooking Surface (in.)	36 - 36 1/2
Depth with Door Open	46.75 in
Cabinet Width	30 in
Approximate Shipping Weight	155 lb
Overall Width	30 in
Overall Depth	28.75 in
Overall Height	46.75 in
FEATURES
Configuration	Range with Storage Drawer
Element - Right Front	8" 2400W Temp Limiting Coil
Oven Features	4-Pass Bake Element 4-Pass Broil Element
Removable One-Piece Drip Bowls	Chrome
Lift-Up Cooktop With Support Rods	Yes
Storage Drawer Features	Removable Full-Width
Fuel Type	Electric
OU Certified	No
Oven Control Features	Oven "ON" Light
Cooktop Burner Type	Coil
Oven Rack Features	2 Oven Racks
Element - Left Front	6" 1250W Temp Limiting Coil
Infinite Heat Controls	Yes
Oven Cleaning Type	Standard Clean
Heating Element "ON" Indicator Light	Yes
Cooktop Type	Coil
Element - Left Rear	6" 1250W Temp Limiting Coil
Sabbath Mode	Yes
Element - Right Rear	6" 1250W Temp Limiting Coil
Cooktop Surface	One-Piece Upswept Porcelain-Enamel
Control Location	Backsplash
Drawer Type	Lower Storage Drawer
Oven Rack Positions (Single or Upper/Lower)	6
Cooking Technology	Traditional
