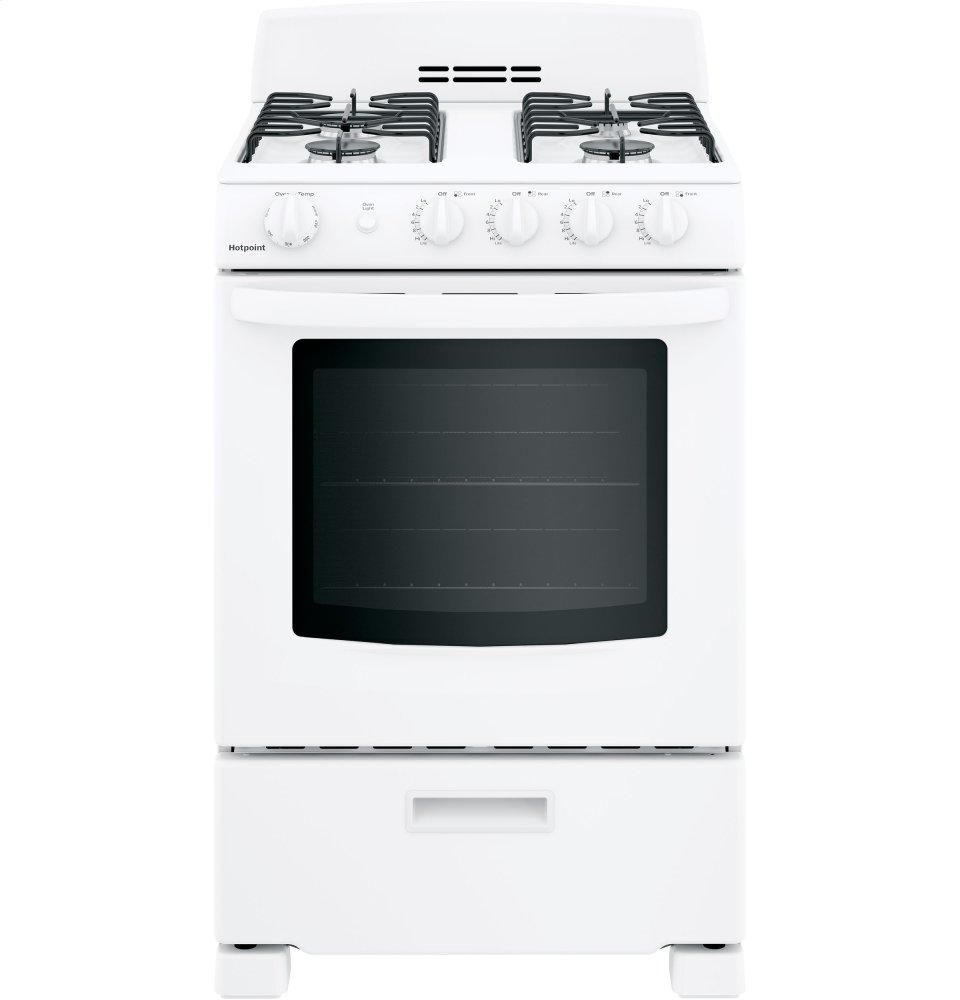

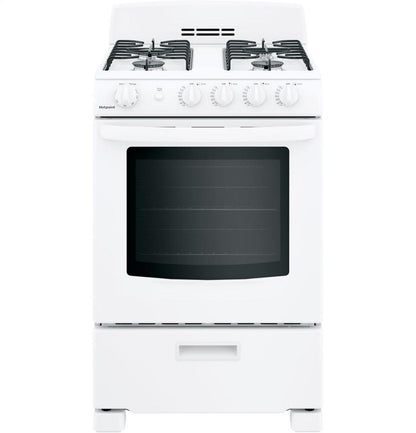

RGAS300DMWW Hotpoint® 24" Front-Control Free-Standing Gas Range with Large Window RGAS300DMWW

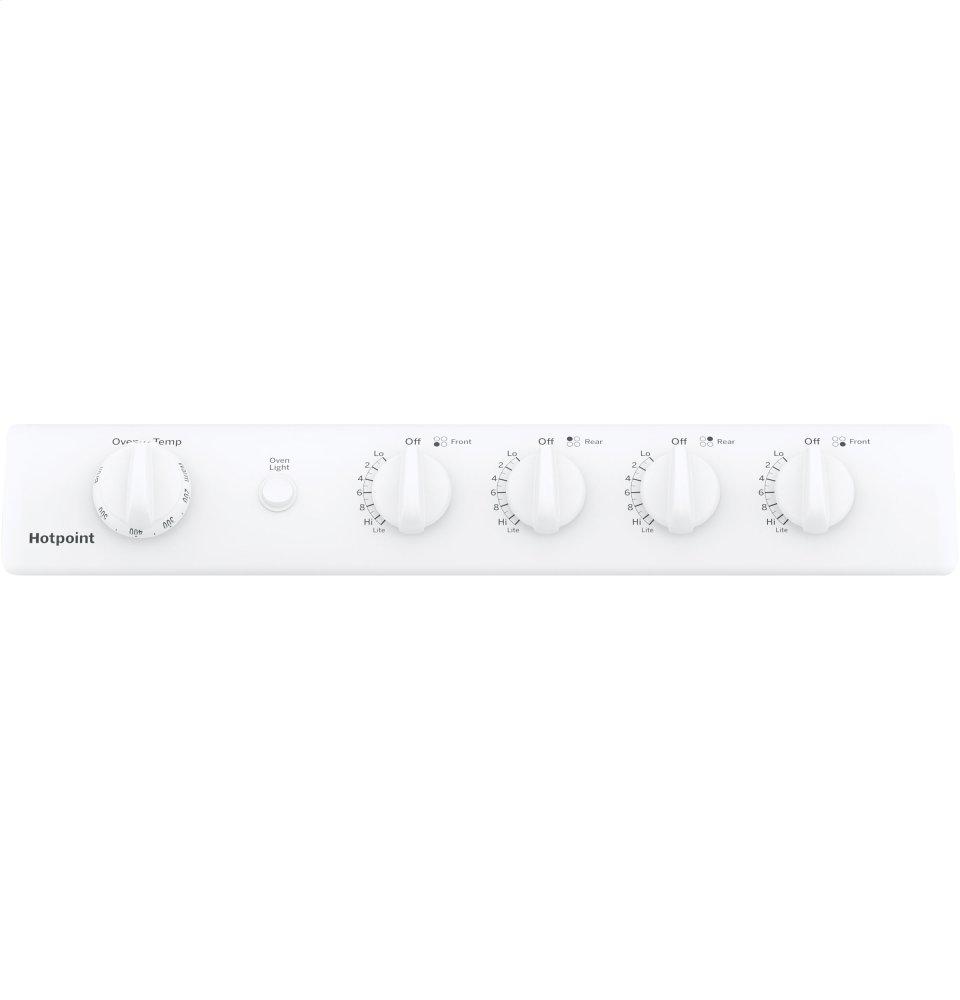

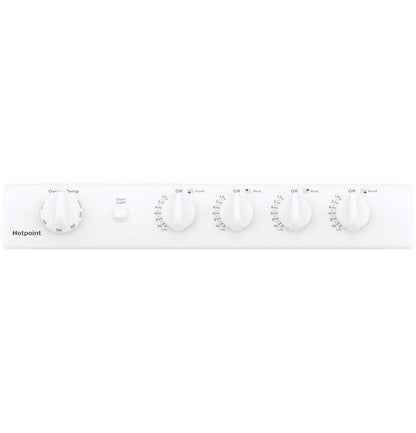

Front controls
Easily operate your range stove without reaching over hot pots and pans

Electronic pilotless ignition
Say farewell to the energy-wasting standing pilot! The electric pilotless ignition provides reliable operation.

Porcelain oven door
Scratch-resistant porcelain coating makes the door more durable and easy to maintain

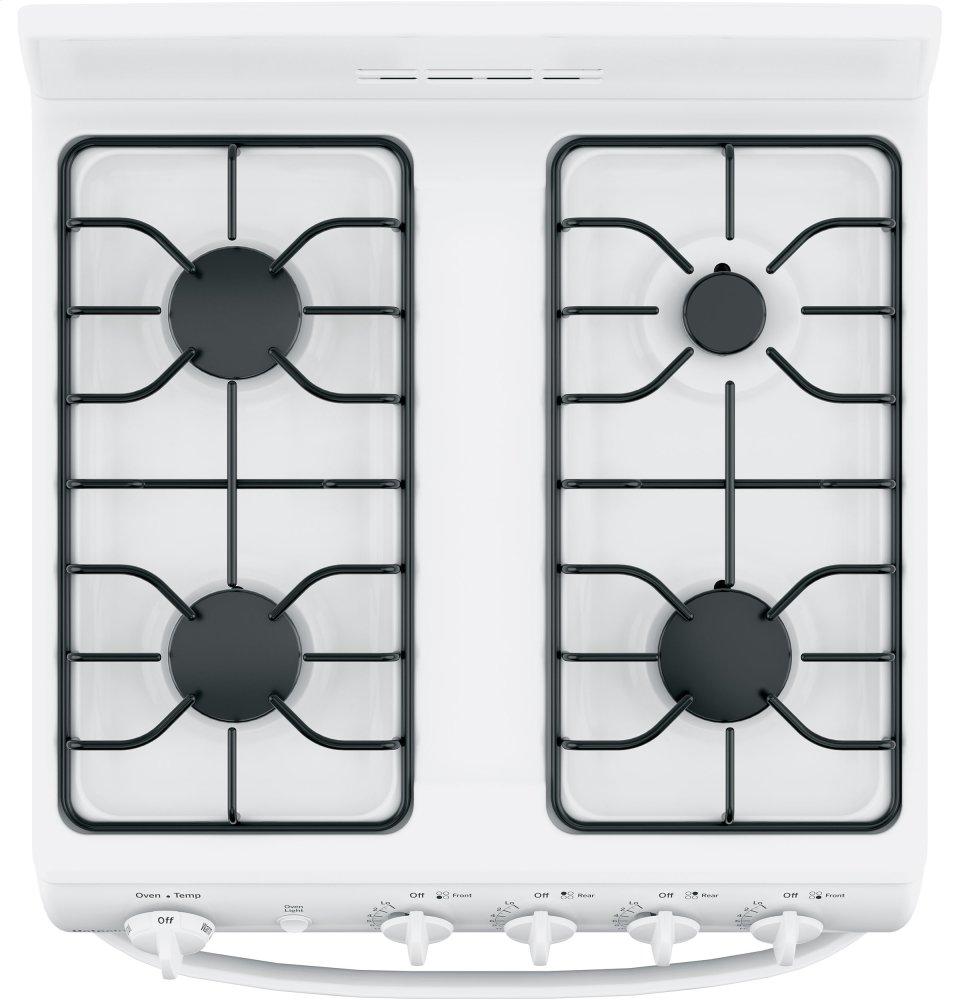

Sealed cooktop burners
Contains spills and make cleaning quick and easy

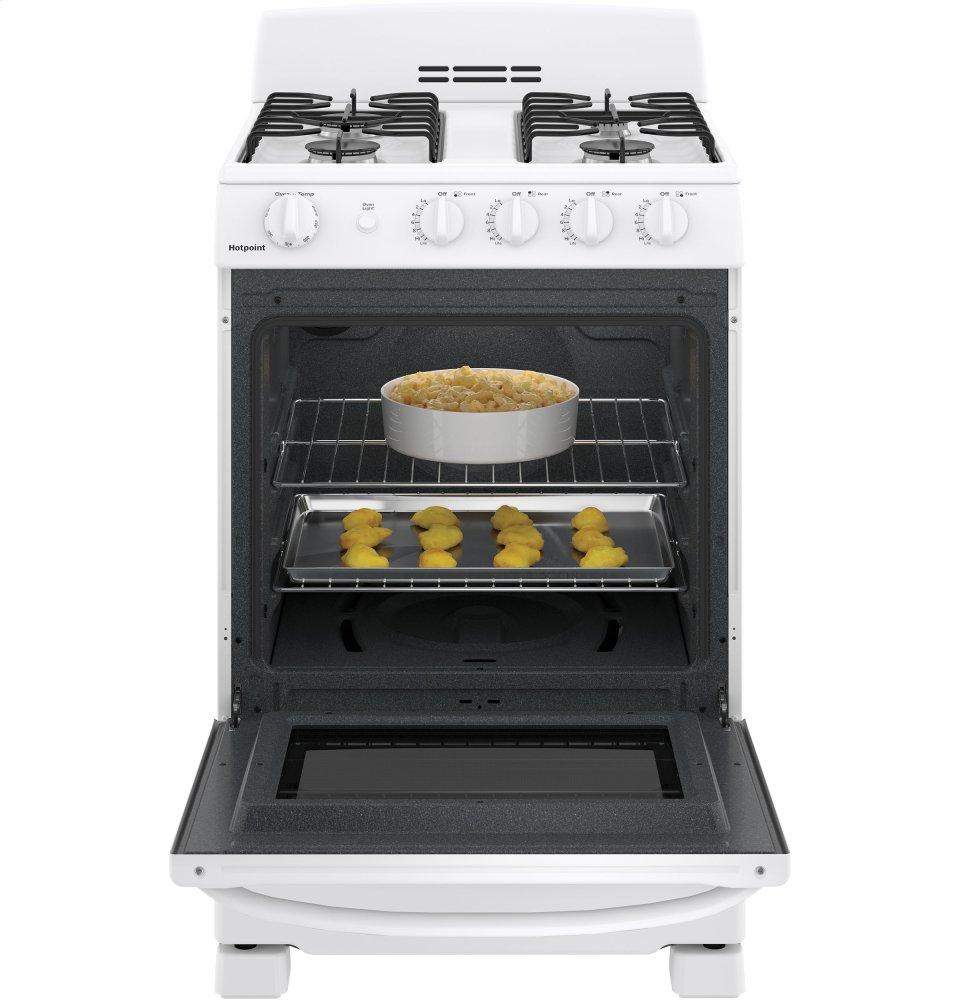

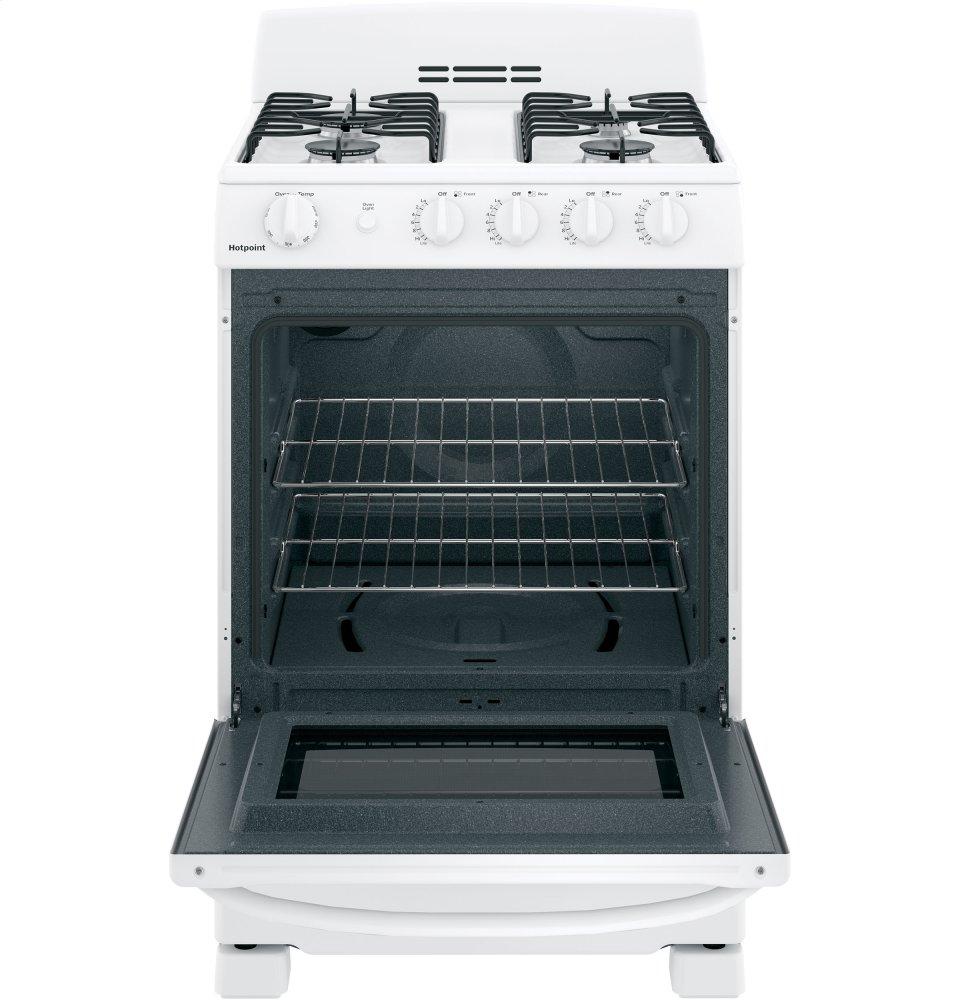

Two oven racks and multiple rack positions
Easily accommodate large cookware with two sturdy racks that can be placed in several positions

One-piece durable handle
Strong and long-lasting

Large window
Easily look inside to monitor food as it's cooking

Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy

Broiler drawer with grid
Achieve perfectly browned results

CAPACITY
Total Capacity (cubic feet)	2.9 cu ft
APPEARANCE
Oven Door Features	Oven Window
Control Knobs	White
Handle Color	White
Door Swing	Pull-Down
Color Appearance	White
POWER / RATINGS
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 12.0; (2) 9.5; (1) 5.0
Volts/Hertz/Amps	120V; 60Hz; 5A
Top Burner BTU Rating - LP (000's BTU's)	(1) 12.0; (2) 9.5; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	13.0
Bake/Broiler BTU Rating - LP (000's BTU's)	13.0
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
WEIGHTS & DIMENSIONS
Net Weight	89 lb
Depth Without Handle	24.625 in
Oven Interior Dimensions (W x H x D) (in.)	19 x 15-3/8 x 17-1/8
Height to Cooking Surface (in.)	36 3/4
Depth with Door Open	44.375 in
Cabinet Width	24 in
Approximate Shipping Weight	102 lb
Overall Width	23.75 in
Overall Depth	26.625 in
Overall Height	41.875 in
FEATURES
Configuration	Range with Broiler Drawer
Ignition System	Electronic
Burner - Right Rear	5,000 BTU
Interior Oven Light	Yes
Fuel Type	Natural Gas (factory set)
Oven Interior	1 Incandescent Light Blue Gray
OU Certified	No
Oven Cooking Modes	Bake Broil
Broiler Drawer	Yes
Cooktop Burner Type	Sealed
Oven Rack Features	2 Flat Nickel Racks
Burner - Left Rear	9,500 BTU
Oven Cleaning Type	Standard Clean
Cooktop Type	Standard Grates
Cooktop Burner Grate Material	Porcelainized Wire
Sabbath Mode	Yes
Valves (Degree of Turn)	140
Burner - Right Front	12,000 BTU
Cooktop Surface	Porcelain-Enamel
Burner - Left Front	9,500 BTU
Control Location	Front
Drawer Type	Broiler Drawer
Oven Rack Positions (Single or Upper/Lower)	4
Leveling System	4 Leveling Legs
Cooking Technology	Traditional
