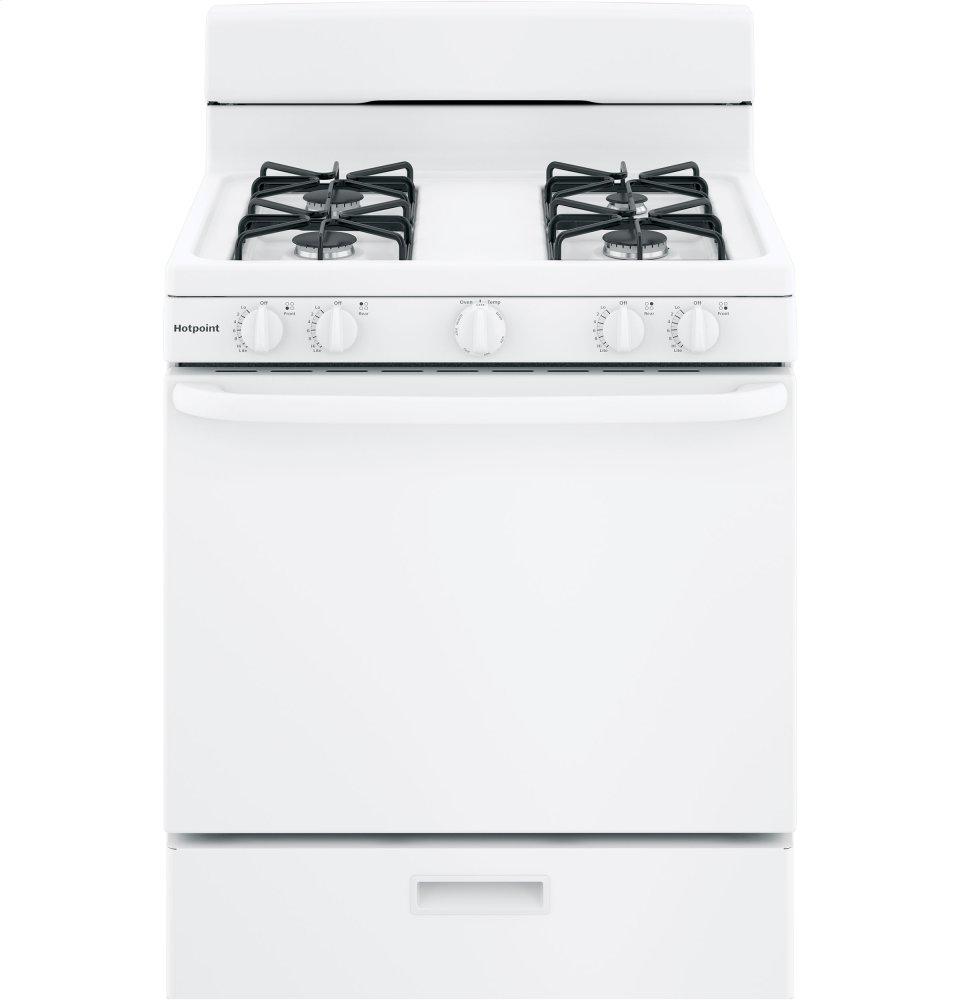

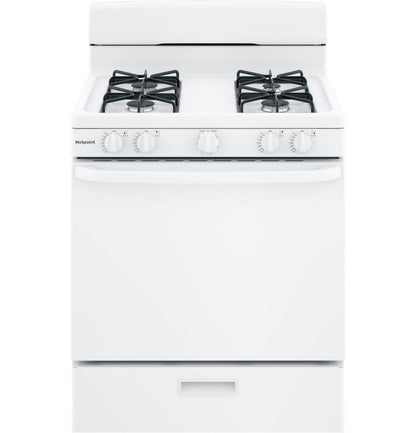

RGBS300DMWW Hotpoint® 30" Free-Standing Gas Range RGBS300DMWW

Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy

4.8 cu. ft. oven capacity
Enough room to cook an entire meal at once

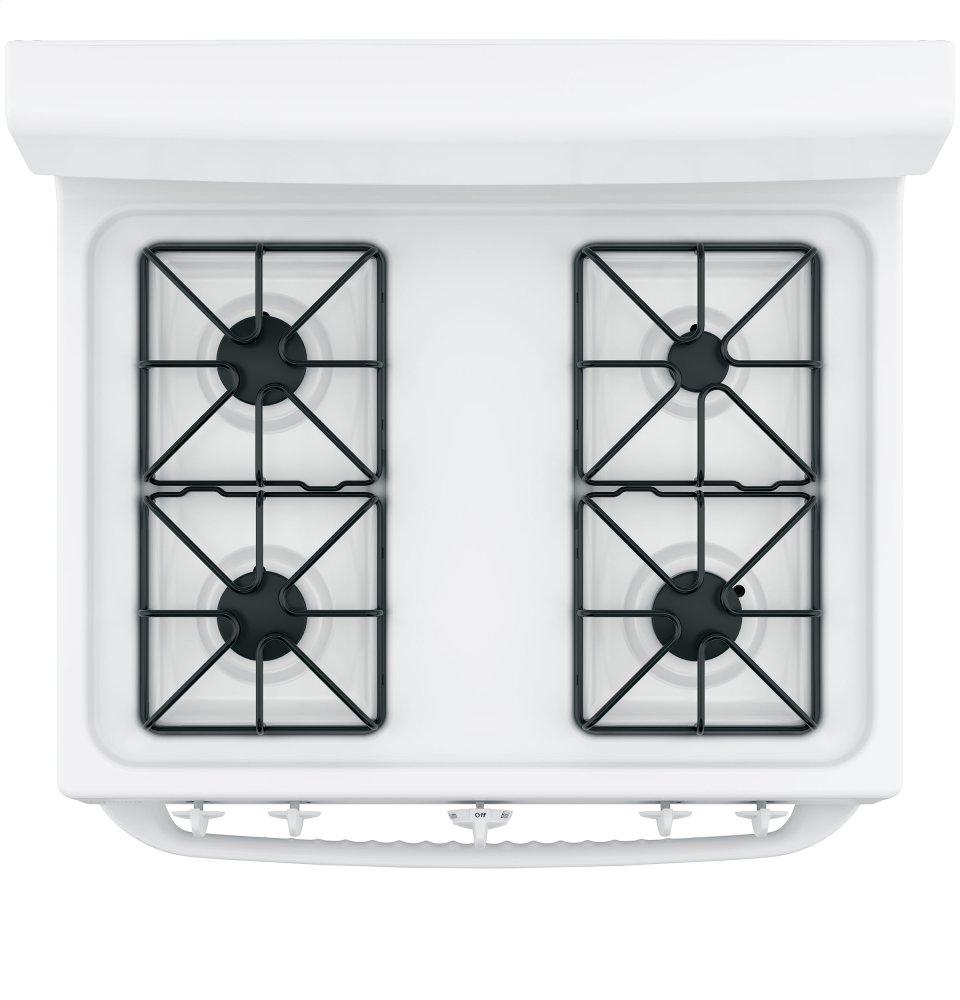

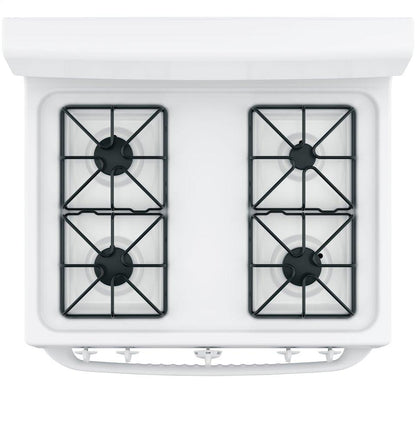

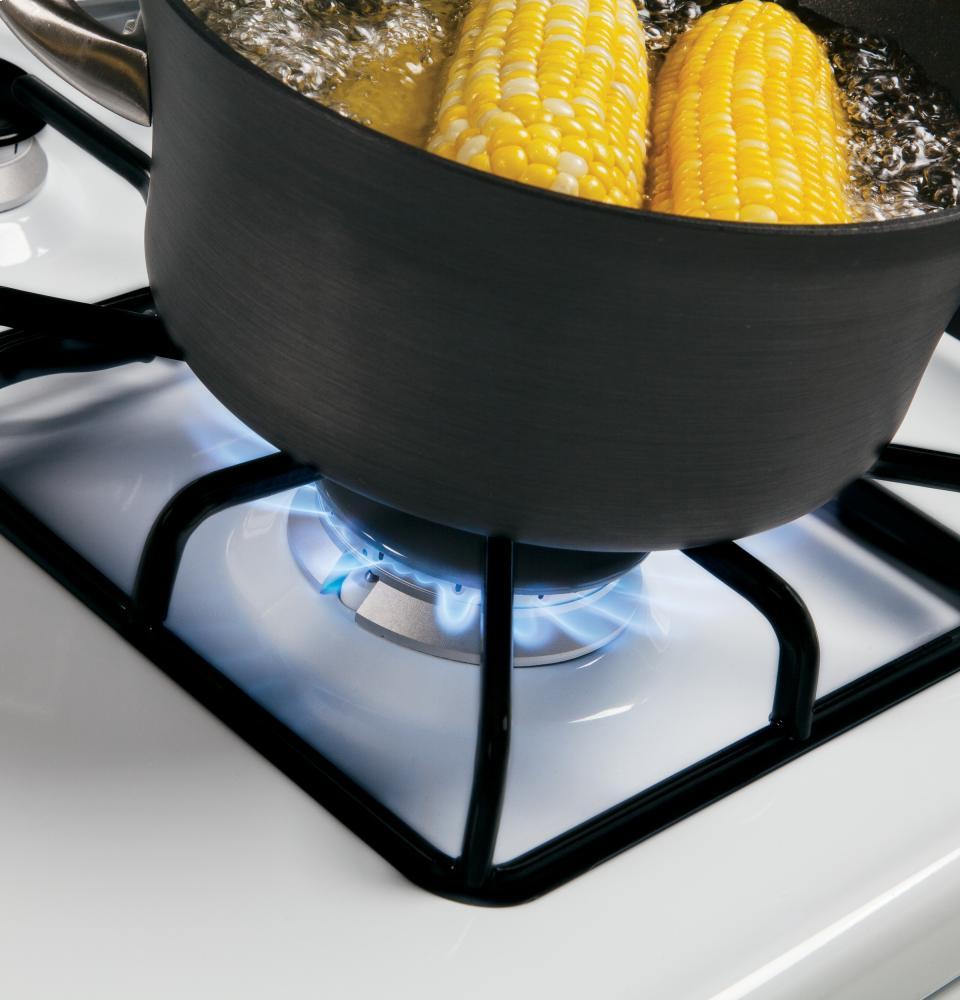

Sealed cooktop burners
Contains spills and make cleaning quick and easy

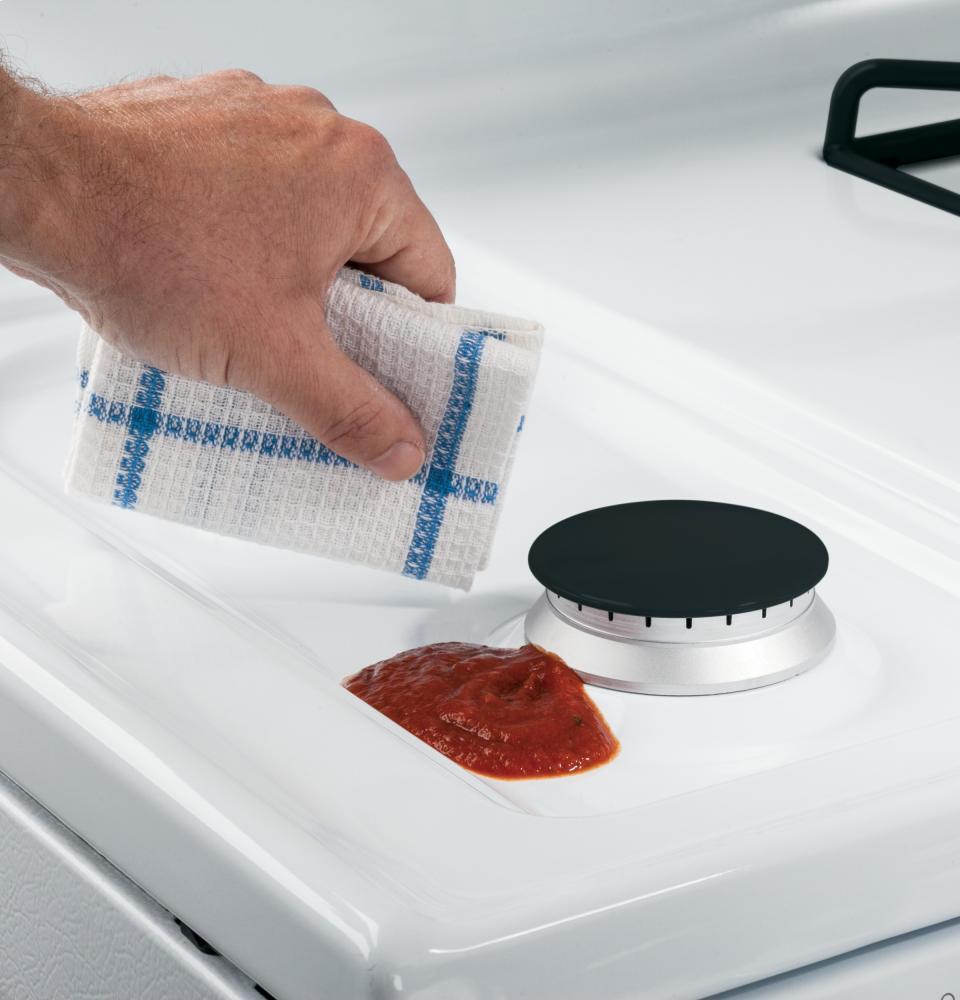

Porcelain upswept cooktop
Raised edges contain spills, while the surface is easy to wipe clean

Heavy steel grates
High-grade steel grates offer dependable, long-lasting performance

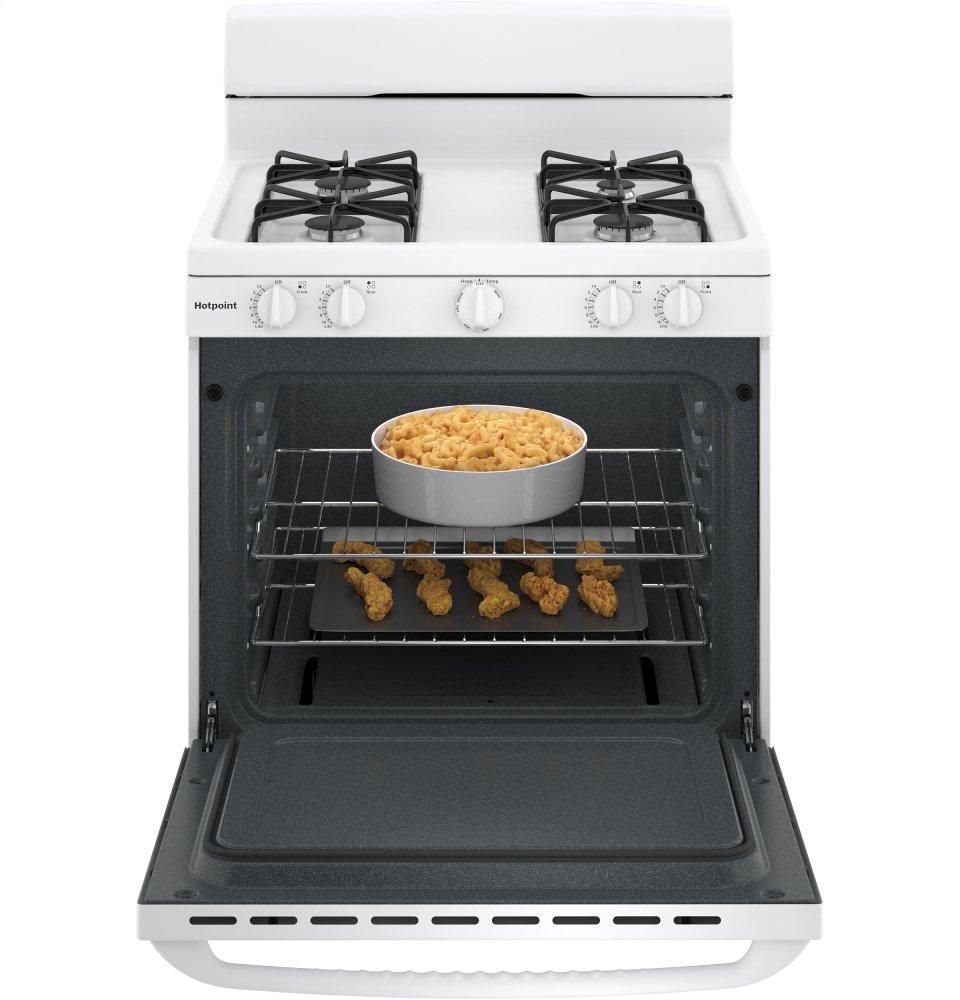

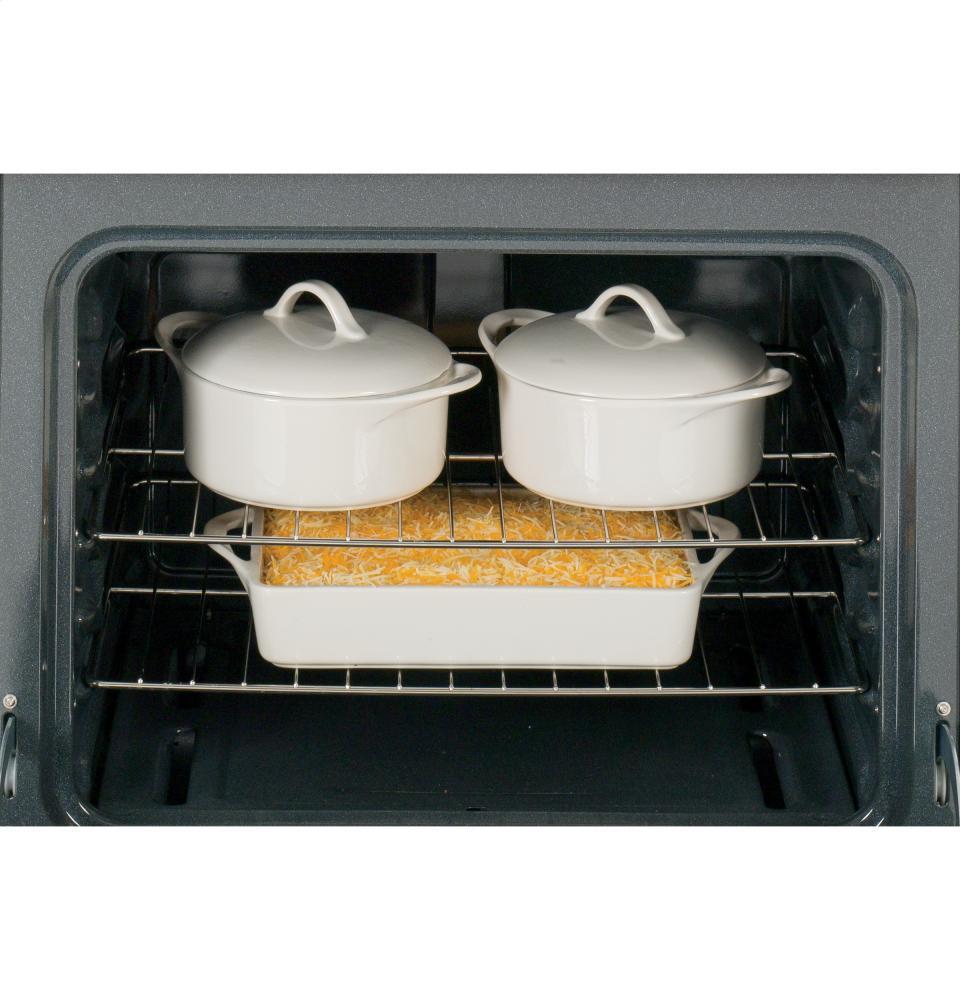

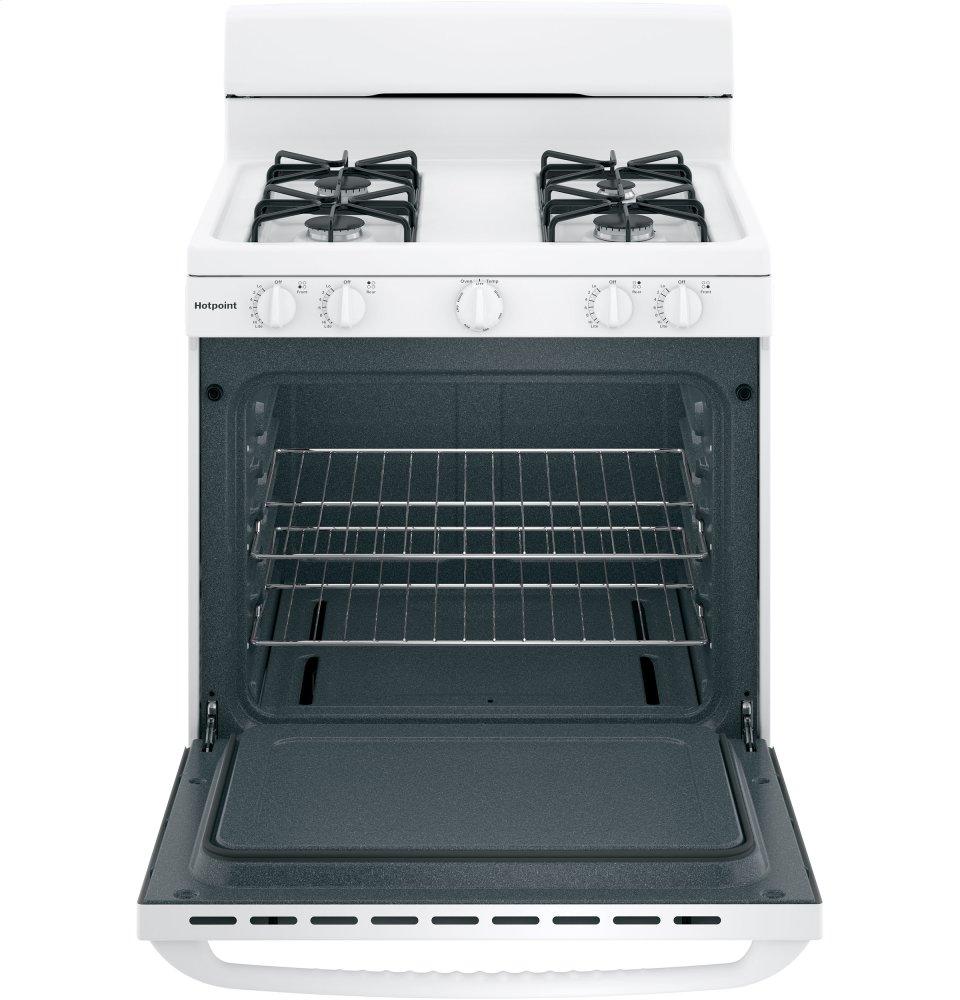

Two oven racks
Feature a durable construction to help accommodate any size or type of cookware

One-piece durable handle
Strong and long-lasting

Broiler drawer
Achieve perfectly browned results

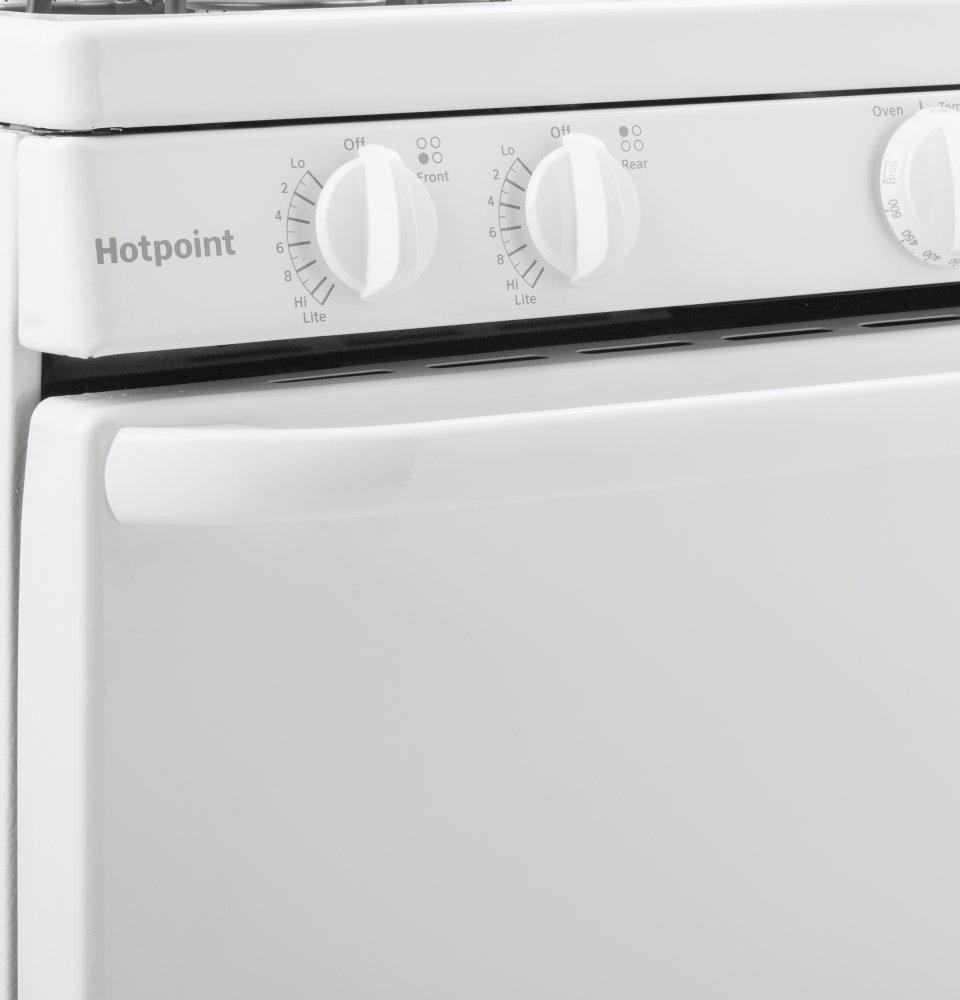

Visor handle
Features a classic design and easy cleanability

CAPACITY
Total Capacity (cubic feet)	4.8 cu ft
APPEARANCE
Cooktop Burner Grate Color	Matte Black
Frameless Oven Door(s)	Black Porcelain-Enameled
Control Knobs	White
Handle Color	White
Color Appearance	White
POWER / RATINGS
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 13.0; (2) 9.5, (1) 5.0
Volts/Hertz/Amps	120V ; 60Hz ; 15A
Top Burner BTU Rating - LP (000's BTU's)	(2) 9.5; (1) 13.0; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	18.0 Bake / 18.0 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)	16.0 Bake / 16.0 Broiler
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
ACCESSORIES
LP Conversion Kit	Included
WEIGHTS & DIMENSIONS
Net Weight	150 lb
Oven Interior Dimensions (W x H x D) (in.)	24 x 18-1/2 x 19
Height to Cooking Surface (in.)	36 1/4 +/- 1/4
Depth with Door Open	46.375 in
Cabinet Width	30 in
Approximate Shipping Weight	170 lb
Overall Width	30 in
Overall Depth	28.75 in
Overall Height	44.75 in
FEATURES
Slide - Out Broiler Drawer	Drop Down Door
Configuration	Range with Broiler Drawer
Removable One-Piece Drip Bowls	Optional Accessory
Ignition System	Electronic
Burner - Right Rear	5,000 BTU Precise Simmer
Fuel Type	Natural Gas (factory set)
OU Certified	No
Cooktop Burner Type	Sealed
Oven Rack Features	2 Flat Nickel Racks
Burner - Left Rear	9,500 BTU
Oven Cleaning Type	Standard Clean
Cooktop Type	Standard Grates
Cooktop Burner Grate Material	Heavy Steel
Sabbath Mode	Yes
Valves (Degree of Turn)	140
Burner - Right Front	13,000 BTU
Cooktop Surface	Porcelain-Enamel
Burner - Left Front	9,500 BTU

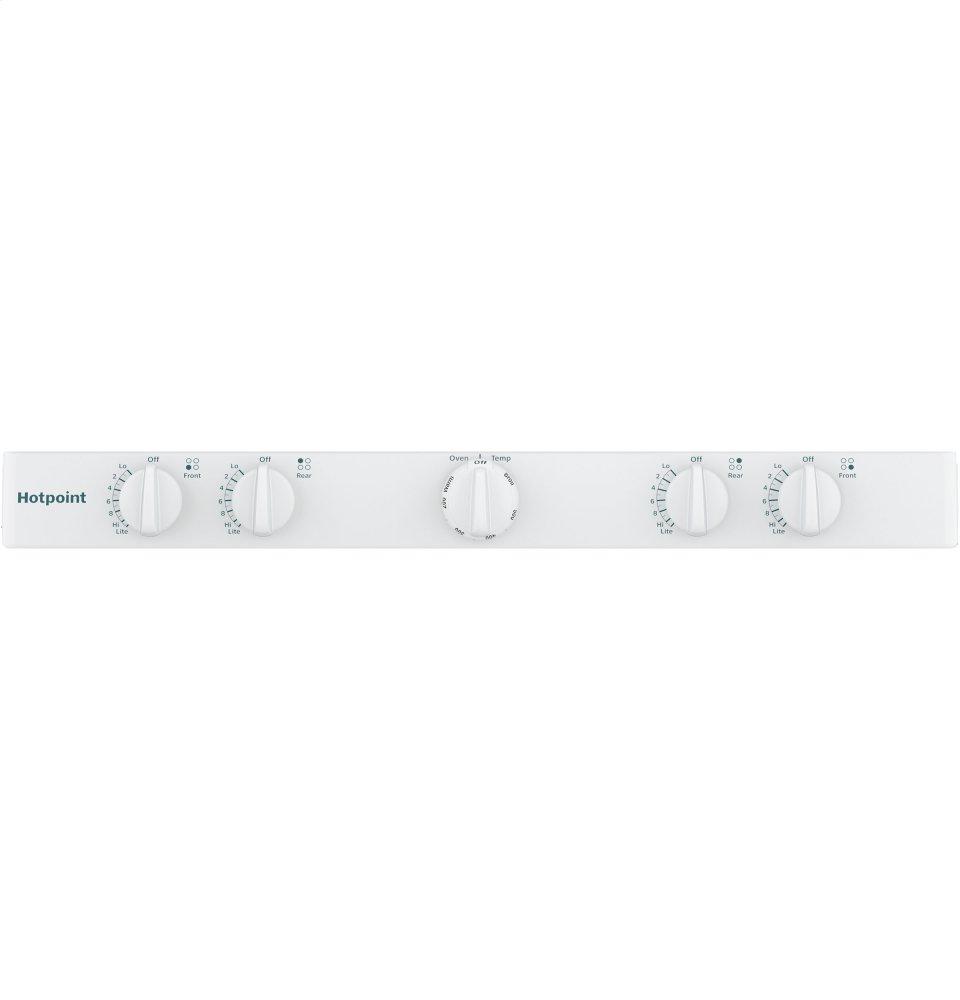

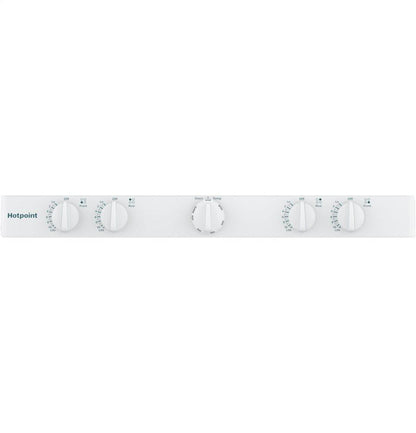

Control Location	Front
Drawer Type	Broiler Drawer
Oven Rack Positions (Single or Upper/Lower)	6
Leveling System	4 Leveling Legs
One-Piece Drip Pans	Optional Accessory
Cooking Technology	Traditional
