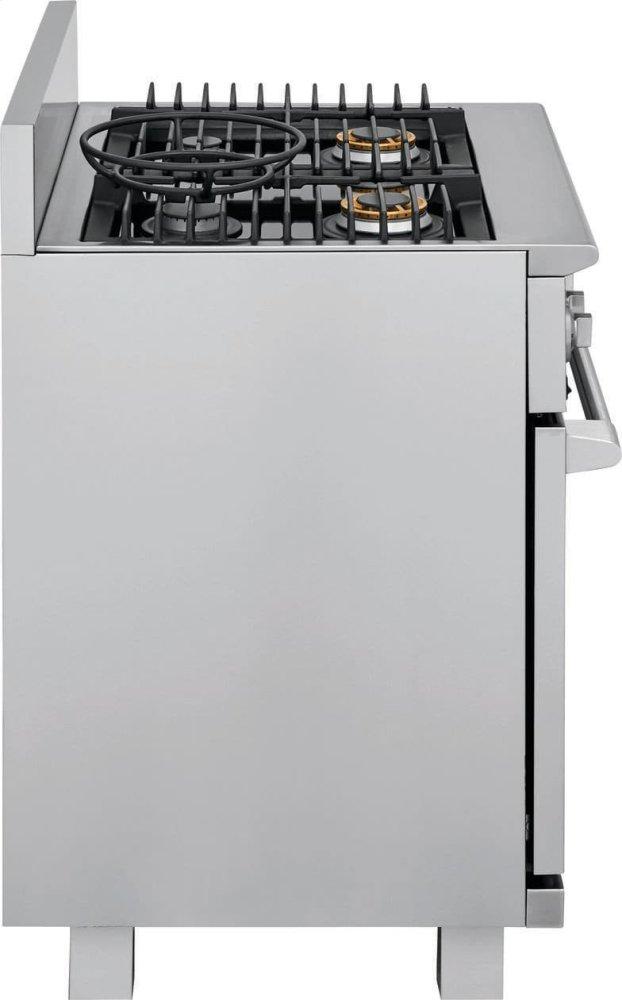

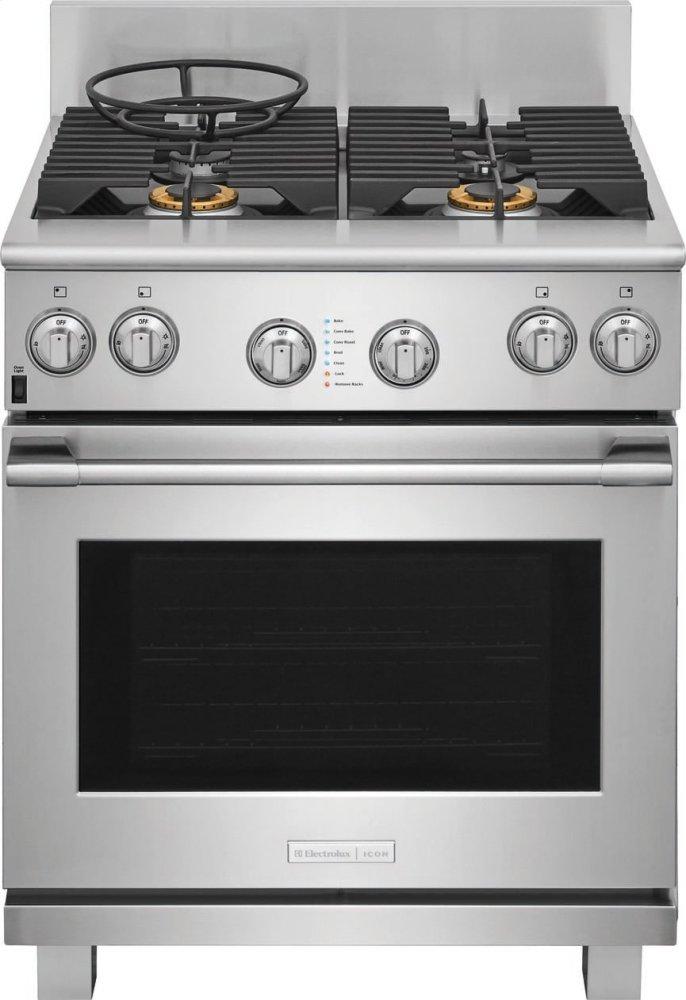

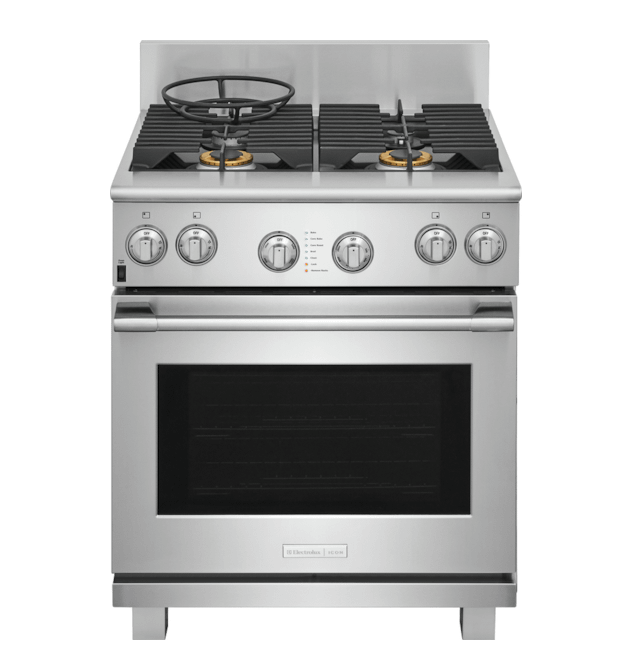

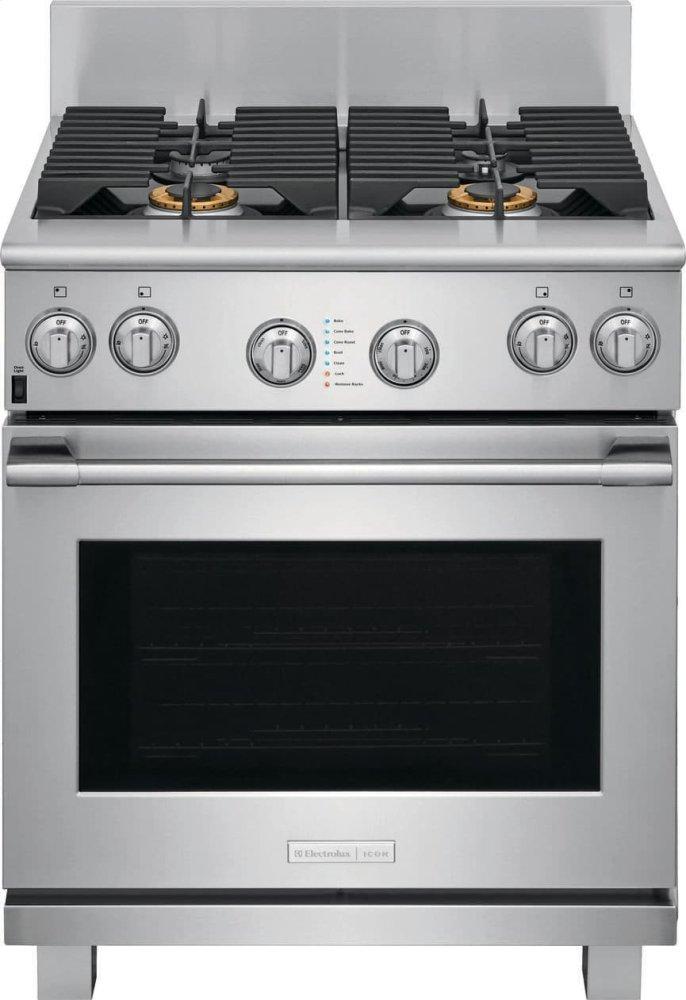

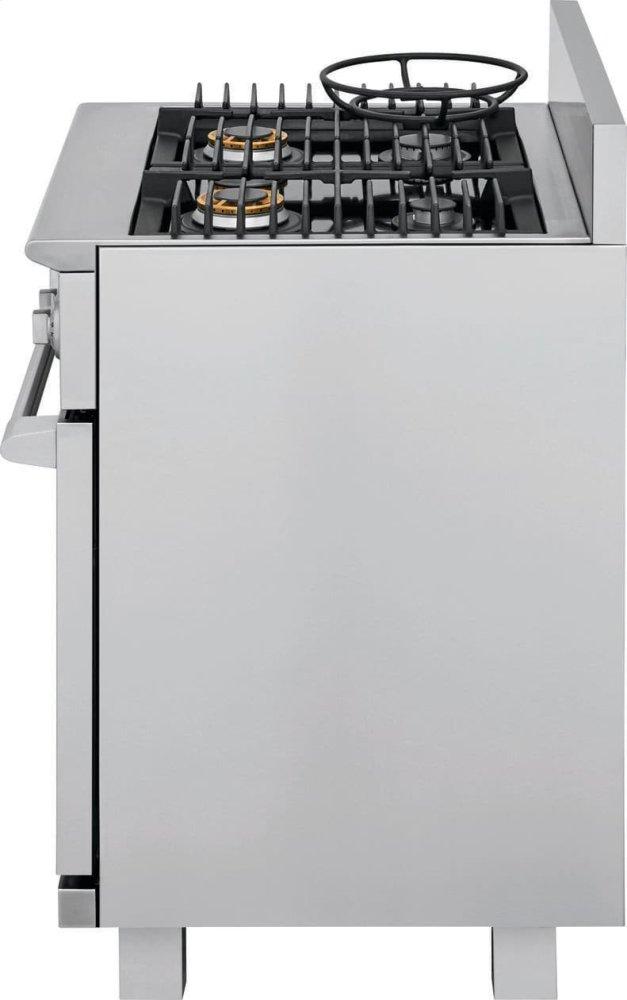

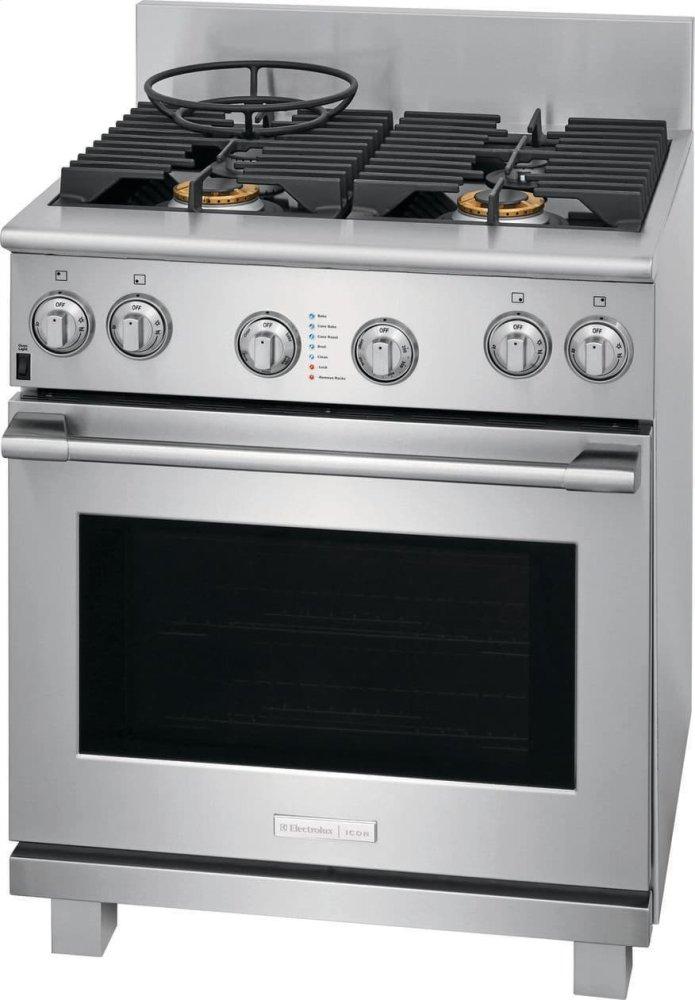

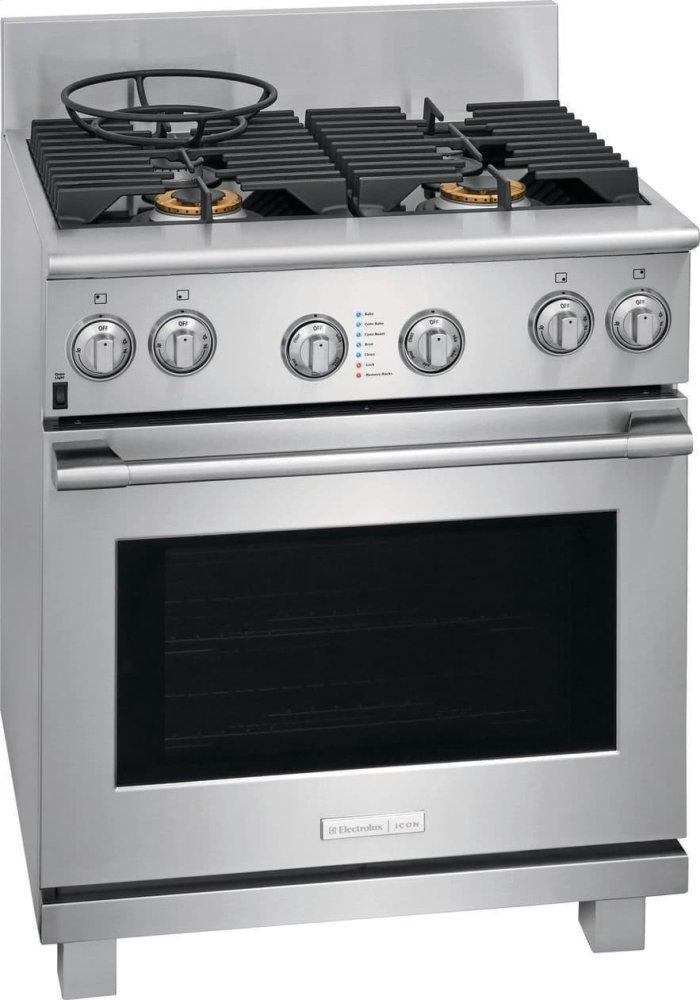

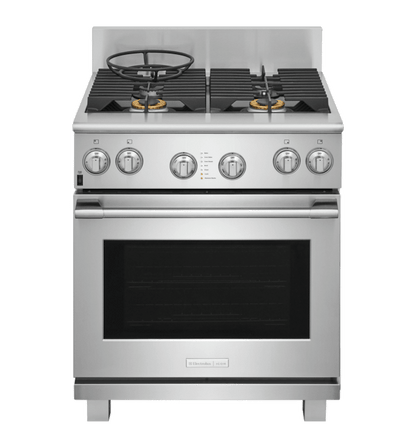

Electrolux Icon E30DF74TPS 30'' Dual-Fuel Freestanding Range E30DF74TPS
- Smooth-Glide Oven Racks
- Dual Fuel Technology
- CustomConvect ™ Convection Technology

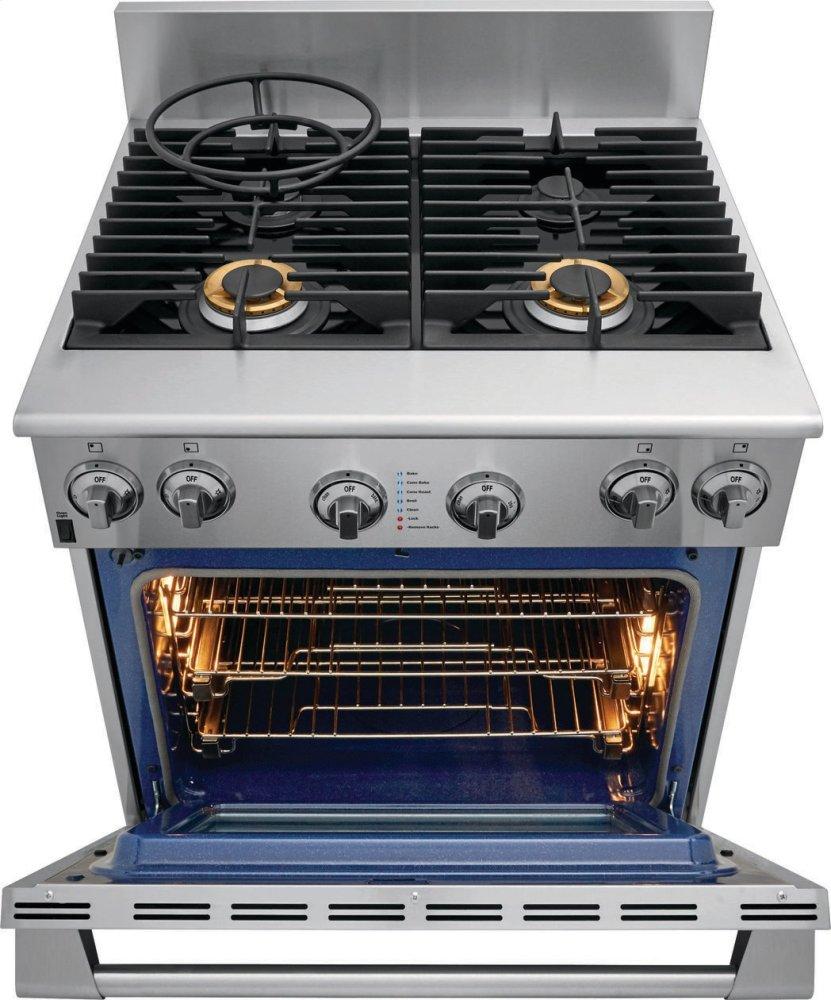

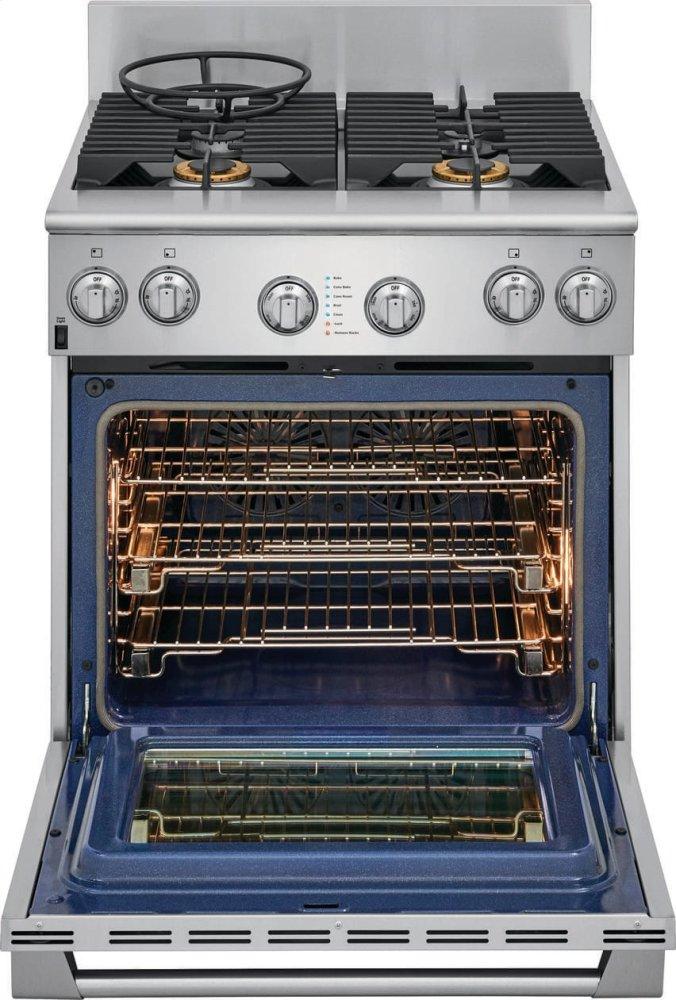

Smooth-Glide ® Oven Racks
Effortless access roasting or baking pans with Smooth-Glide ® ball-bearing oven racks that glide with unparalleled ease and extend fully.
Dual Fuel Technology
For ultimate cooking flexibility, Dual Fuel Technology uses the power of a gas cooktop with the precision of an electric oven for better baking and roasting results.

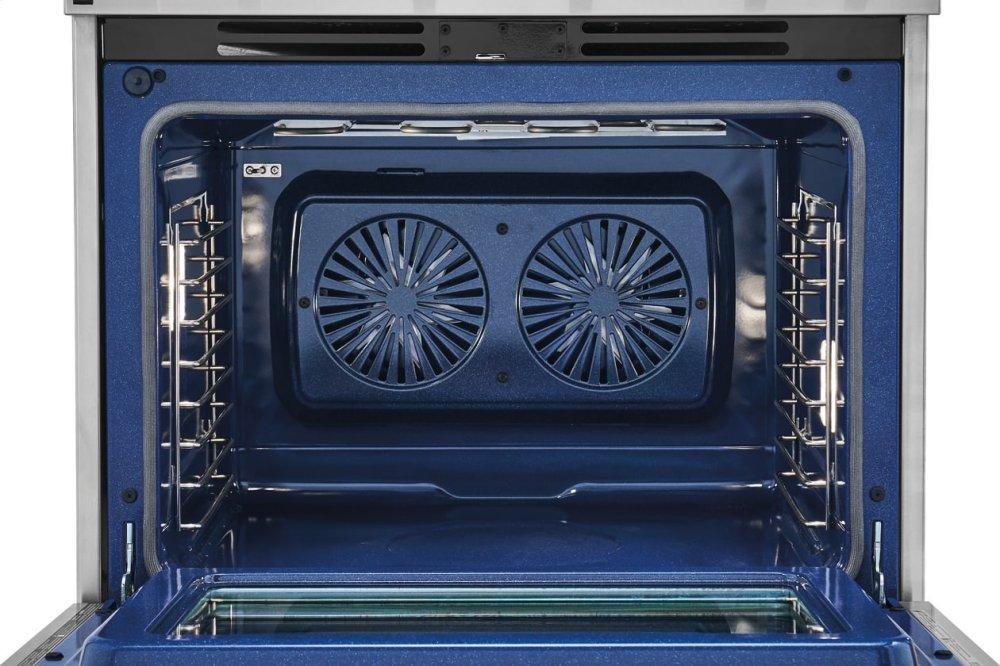

CustomConvect ™ Convection Technology
For consistently excellent taste and texture, CustomConvect Technology evenly distributes heat throughout the oven by adding a third cooking element plus a variable speed fan so you get beautiful, golden brown results every time.
Dimensions and Volume | |
Height | 41 5/8" |
Width | 29 7/8" |
Depth | 27 1/2" |
Depth With Door 90° Open | 46 1/4" |
Oven Interior Height | 17 1/2" |
Oven Interior Width | 24 1/8" |
Oven Interior Depth | 18 3/4" |
Oven Capacity | 4.6 Cu. Ft. |
Oven | |
Bake Element Pass | 8 |
Bake Element | 2,500 Watts |
Broil System | Yes |
Broil Element Pass | 8 |
Broil Element | 4,000 Watts |
Convection Type | Total |
Convection Element | 2,500 Watts |
Rack Position Type | Nickel Ladder |
Number of Rack Positions | 8 |
Rack Type 1 | Handle |
Rack Type 1 Quantity | 1 |
Rack Type 2 | Glide |
Rack Type 2 Quantity | 2 |
Oven Interior Color | Cobalt Blue |
Window Type | Large |
Installation | |
Adjustable Leveling Legs | Yes |

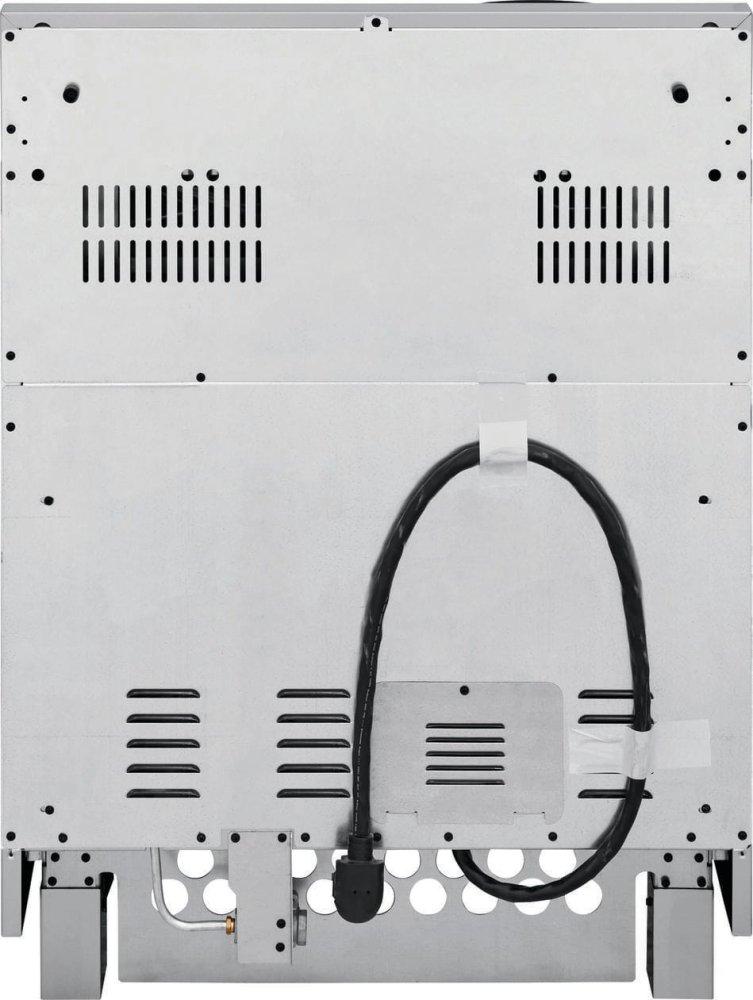

Gas Supply Connection Location | Bottom Left |
LP Conversion Kit | Yes |
Power Cord Included | Yes |
Power Supply Connection Location | Right Center |
Cooktop | |
Grate Material | Cast Iron |
Grate Style | Continuous |
Right Front Element Burner | 18,000 BTU |
Right Rear Element Burner | 5,000 BTU |
Left Front Element Burner | 18,000 BTU |
Left Rear Element Burner | 14,000 BTU |
Display | |
Display Type | Mechanical |
Exterior | |
Cooktop Finish | Color Coordinated |
Handle Color | Stainless Steel |
Handle Material | Stainless Steel |
Knob Color | Stainless Steel |
Knob Material | Stainless Steel |
General Specifications | |
Product Weight | 205.2 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Cooking Controls | |
Bake | Yes |
Broil | Yes |
Convection Bake | Yes |
Convection Roast | Yes |
Oven Indicator Light | Yes |
Oven Light | Yes |
Preheat | Yes |
Self Clean | Yes |
Sabbath Mode | No |
Electrical Specifications | |
Amps @ 240 Volts | 21 Amps |
Voltage Rating | 240 V |
Safety Certifications & Approvals | |
CSA Listed | Yes |
