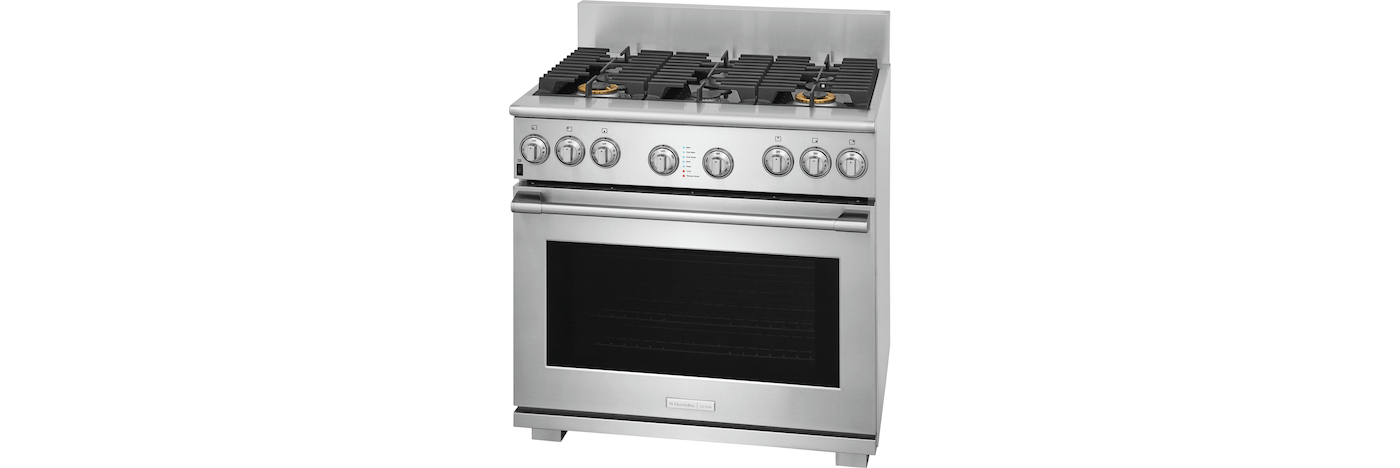

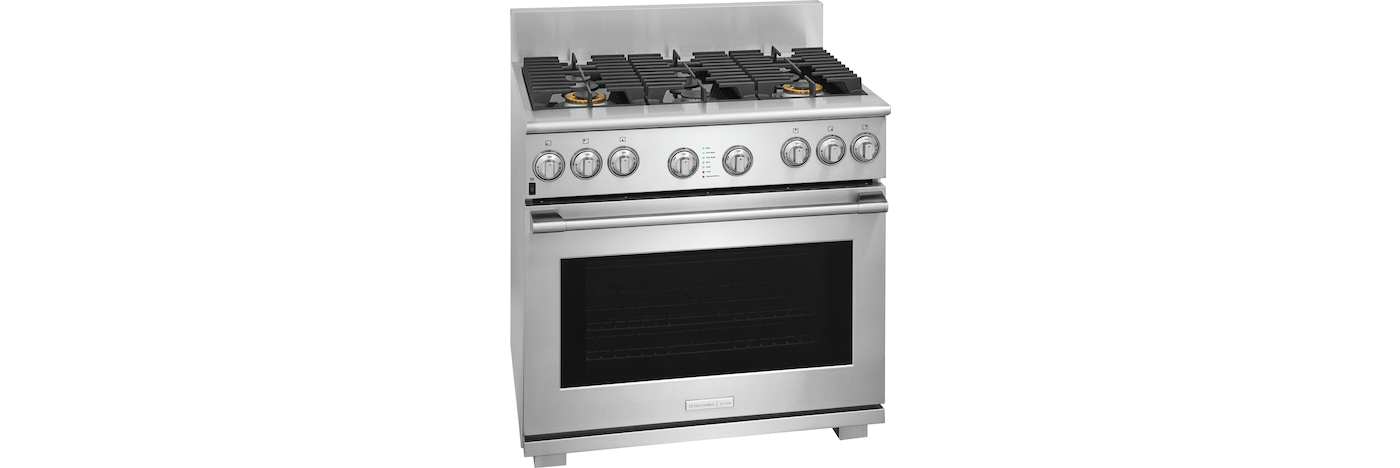

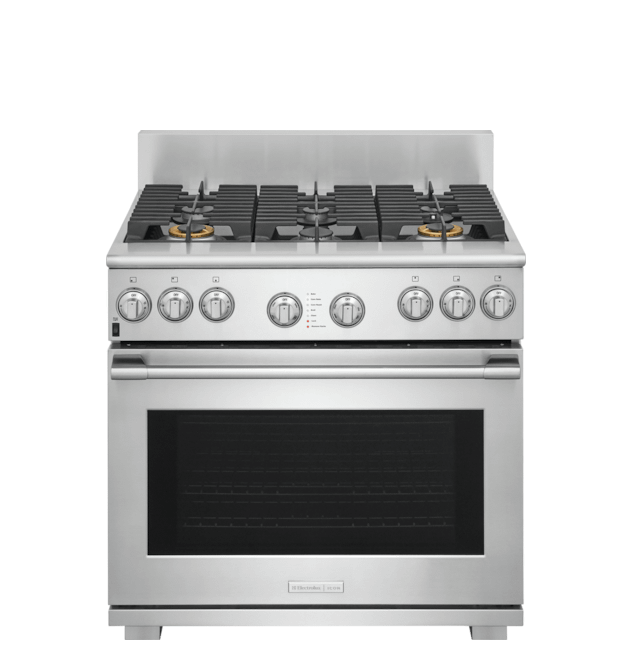

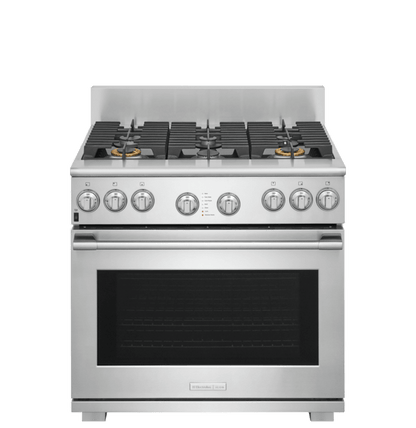

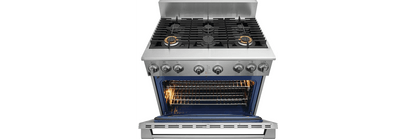

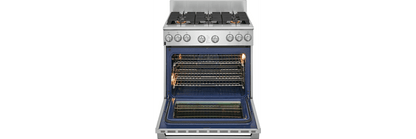

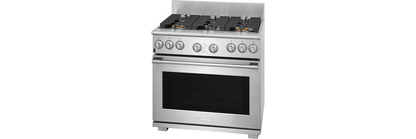

Electrolux Icon E36DF76TPS 36'' Dual-Fuel Freestanding Range E36DF76TPS
- Smooth-Glide Oven Racks
- Min-2-Max Burners
- Dual Fuel Technology
- CustomConvect ™ Convection Technology

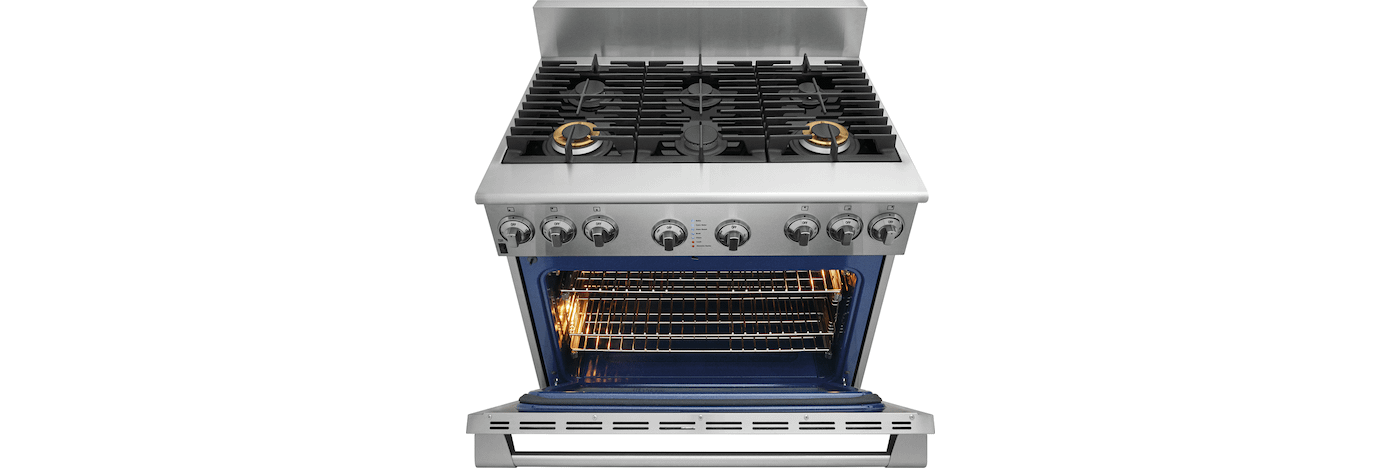

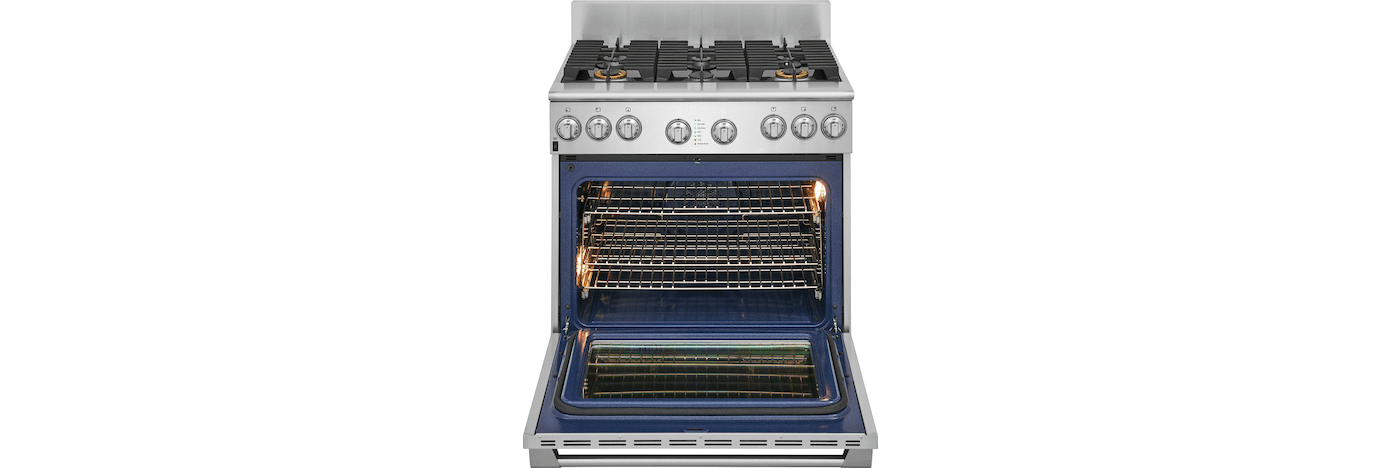

Smooth-Glide ® Oven Racks
Effortless access roasting or baking pans with Smooth-Glide ® ball-bearing oven racks that glide with unparalleled ease and extend fully.
Min-2-Max Burners ®
With the widest range of BTU performance in the industry, these dual-flame sealed burners offer unrivaled versatility - from a roaring 18,000-BTU boil to a gentle 750-BTU simmer.
Dual Fuel Technology
For ultimate cooking flexibility, Dual Fuel Technology uses the power of a gas cooktop with the precision of an electric oven for better baking and roasting results.
CustomConvect ™ Convection Technology
For consistently excellent taste and texture, CustomConvect Technology evenly distributes heat throughout the oven by adding a third cooking element plus a variable speed fan so you get beautiful, golden brown results every time.
| Dimensions and Volume | |
| Height | 41 5/8" |
| Width | 35 7/8" |
| Depth | 27 1/2" |
| Depth With Door 90° Open | 48 3/8" |
| Oven Interior Height | 18 3/4" |
| Oven Interior Width | 30 1/8" |
| Oven Interior Depth | 19 5/8" |
| Oven Capacity | 6.4 Cu. Ft. |
| Oven | |
| Bake Element Pass | 8 |
| Bake Element | 3,000 Watts |
| Broil System | Yes |
| Broil Element Pass | 8 |
| Broil Element | 4,000 Watts |
| Convection Type | True |
| Convection Element | 2,500 Watts |
| Rack Position Type | Nickel Ladder |
| Number of Rack Positions | 8 |
| Rack Type 1 | Handle |
| Rack Type 1 Quantity | 1 |
| Rack Type 2 | Glide |
| Rack Type 2 Quantity | 2 |
| Oven Interior Color | Cobalt Blue |
| Window Type | Extra Large Window |
| Installation | |
| Adjustable Leveling Legs | Yes |
| Gas Supply Connection Location | Bottom Left |
| LP Conversion Kit | Yes |
| Power Cord Included | Yes |
| Power Supply Connection Location | Right Center |
| Cooktop | |
| Cooking Surface Type | Gas |
| Grate Material | Cast Iron |
| Grate Style | Continuous |
| Right Front Element Burner | 18,000 BTU |
| Right Rear Element Burner | 5,000 BTU |
| Left Front Element Burner | 18,000 BTU |
| Left Rear Element Burner | 14,000 BTU |
| Center Front Element Burner | 14,000 BTU |
| Center Rear Element Burner | 9,500 BTU |
| Display | |
| Display Type | Mechanical |
| Exterior | |
| Cooktop Finish | Color Coordinated |
| Handle Color | Stainless Steel |
| Handle Material | Stainless Steel |
| Knob Color | Stainless Steel |
| Knob Material | Stainless Steel |
| General Specifications | |
| Product Weight | 205.2 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Cooking Controls | |
| Bake | Yes |
| Broil | Yes |
| Convection Bake | Yes |
| Convection Roast | Yes |
| Door Lock | Yes |
| Oven Indicator Light | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Self Clean | Yes |
| Sabbath Mode | No |
| Electrical Specifications | |
| Amps @ 240 Volts | 23 Amps |
| Voltage Rating | 240 V |
| Safety Certifications & Approvals | |
| CSA Listed | Yes |
