- 10" EVEN-HEAT Ultra Element w/ EVEN-HEAT Simmer adds versatility
- 3-speed fan control can be adjusted to cooking needs
- 300 CFM meets the venting needs of even high-heat searing and stir-frying
- EVEN-HEAT with a low setting that can melt, not scorch, chocolate
- 6" element has a 1200-watt power output to easily handle daily cooking needs
- Vent kit to filter and recirculate air inside, allowing flexible placement
- CookShield Finish for Glass helps protect cooktop surface from scratches

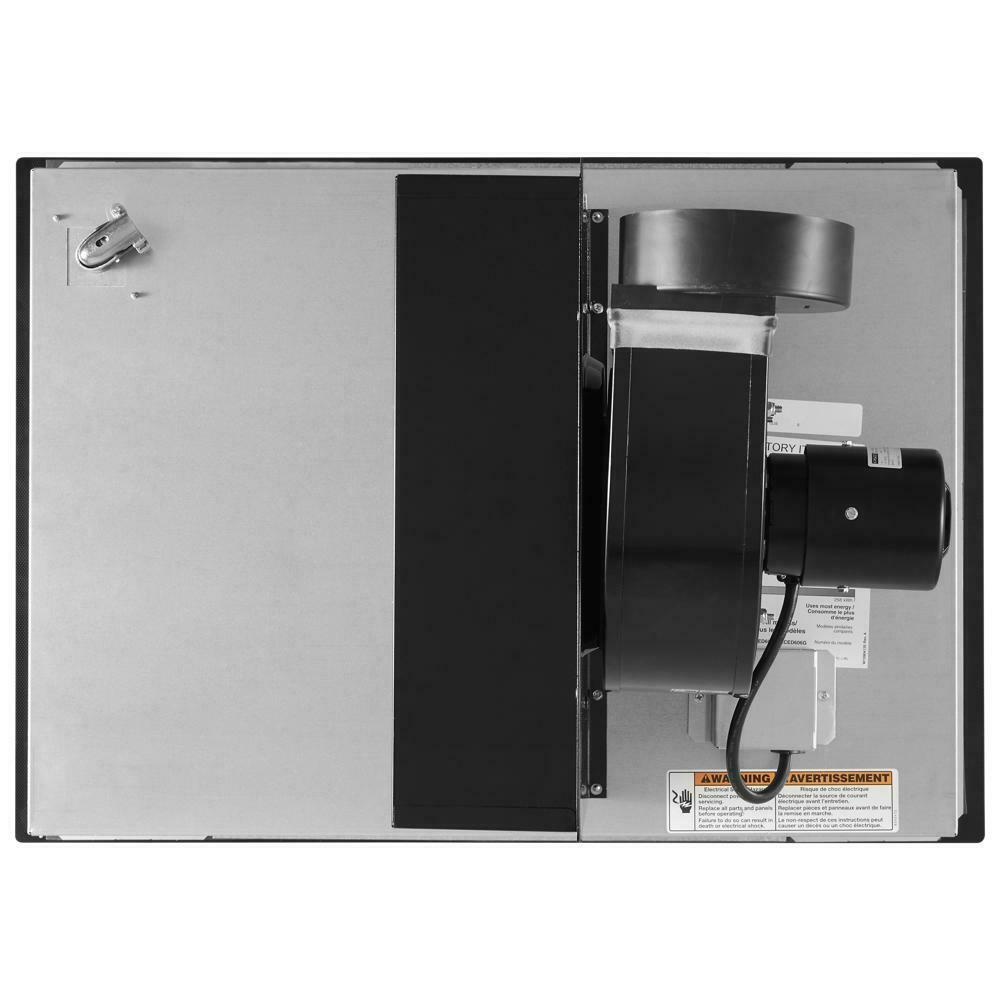

- Downdraft ventilation captures smoke/odors at the surface
- Hot surface indicator light lets you know if an element is hot to the touch
- Power Indicator light lets you know at a glance when an element is on
- Glass surface provides a sophisticated appearance with saturated colors
- Stainless steel knobs add a premium feel with their sturdy construction
This 30 electric cooktop features Downdraft, an integrated ventilation system that doesn t require a separate hood. A 10-inch Even-Heat™ Ultra element provides versatility for both high- and low-temperature cooking, and has multiple simmer settings. And with a 3-speed fan with 300 CFM exhaust rating, the venting can keep up with your culinary feats.
| Certifications | |
| Ada Compliant | No |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Right Side |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Cooktop Details | |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Digital Display | No |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Fuel Type | Electric |
| Installs Over Built-in Oven | No |
| Lp Convertible | No |
| Number of Vent Speeds | 3 |
| Power Outage Compatible | No |

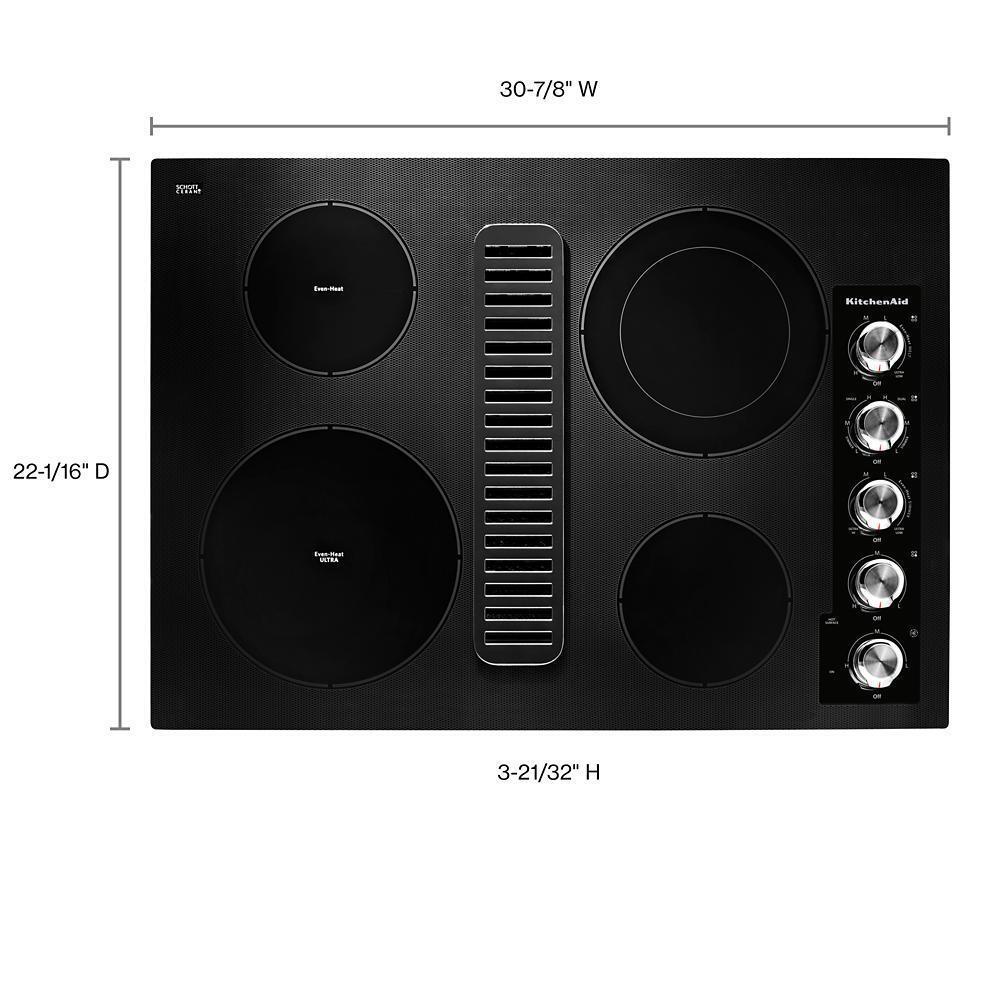

| Dimensions | |
| Product Height | 3.625 |
| Cutout Depth | 21.125 |
| Carton Height | 23.78 |
| Gross Weight | 62 |
| Carton Depth | 26.38 |
| Carton Width | 35.12 |
| Cutout Width | 28.75 |
| Product Depth | 22.0625 |
| Net Weight | 50 |
| Product Width | 30.875 |
| Electrical | |
| Power Cord Included | No |
| Element/burner Details | |
| Cooktop Element Style | Radiant |
| Cooktop Type | Downdraft |
| Left Front Element-burner Power | 3,200W |
| Left Front Element-burner Size | 10in. |
| Left Front Element-burner Type | Even-Heat™ Ultra |
| Left Rear Element-burner Power | 1,300W |
| Left Rear Element-burner Size | 6in. |
| Left Rear Element-burner Type | Even-Heat™ |
| Number of Cooking Element-burners | 4 |
| Power Boost | No |
| Right Front Element-burner Power | 1200W |
| Right Front Element-burner Size | 6in. |
| Right Front Element-burner Type | Single |
| Right Rear Element-burner Power | 3000W/1400W |
| Right Rear Element-burner Size | 9in./6in. |
| Right Rear Element-burner Type | Dual-Stacked Burner |
| Exterior Details | |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| General | |
| Cooktop Features | Cookshield Finish; Downdraft Ventilation; Even-Heat Melt Burner |
| Grate Details | |
| Grate Details | Dishwasher Safe |
| Ventilation Details | |
| Cfm Motor Class | 300 |
| Downdraft Vent | Yes |
