Kitchenaid KCGD506GSS 36" 5 Burner Gas Downdraft Cooktop KCGD506GSS
Discontinued

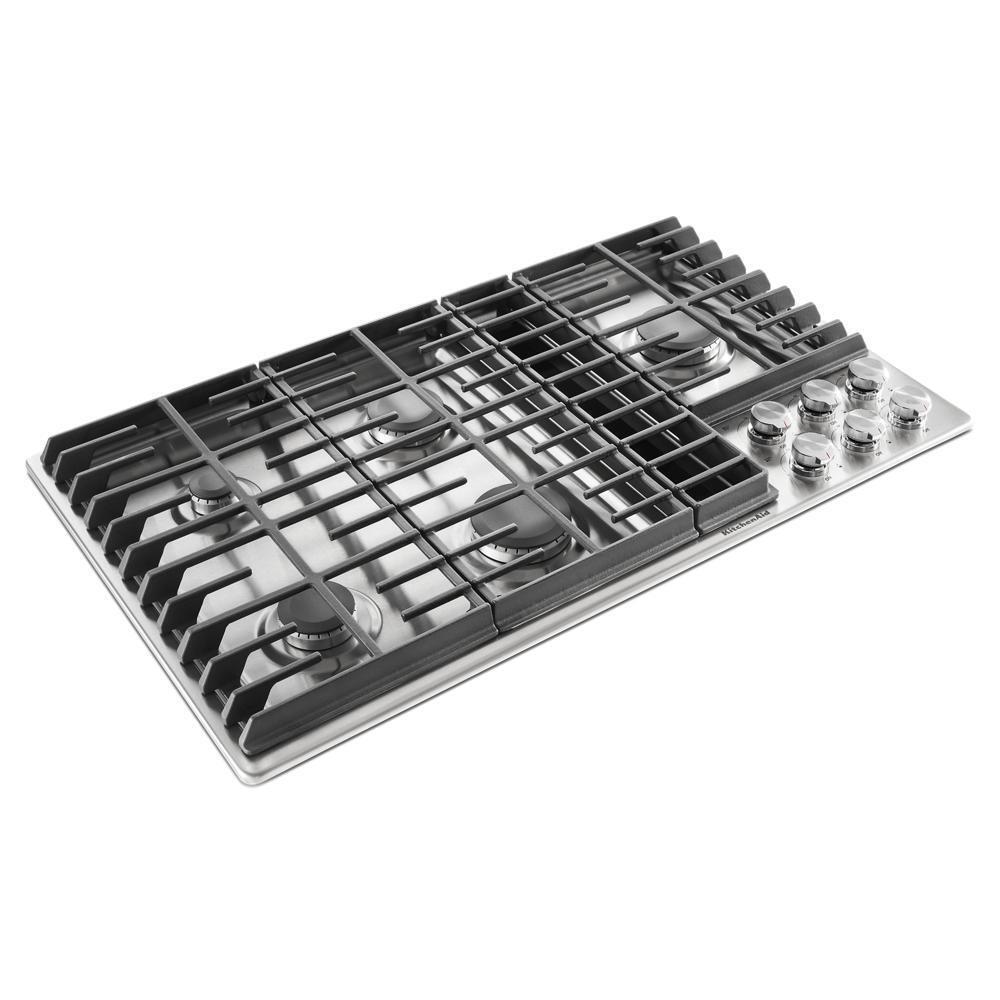

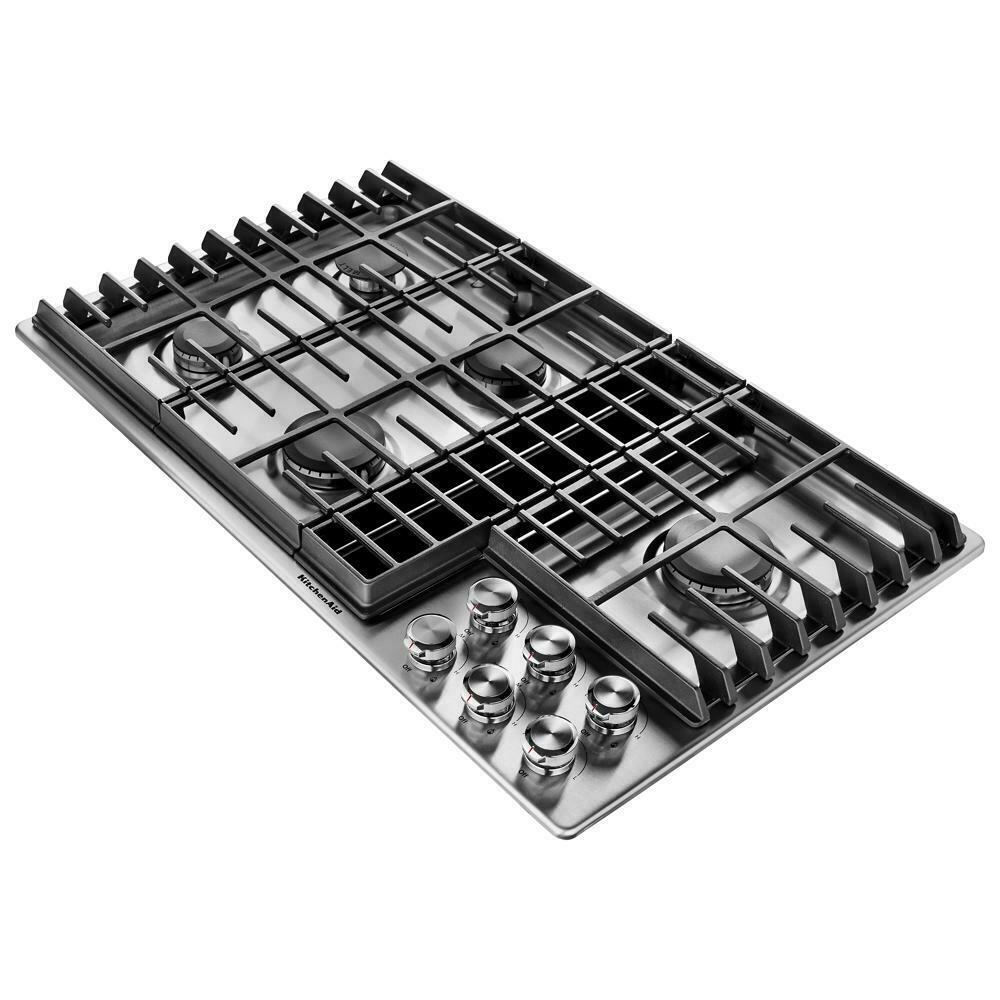

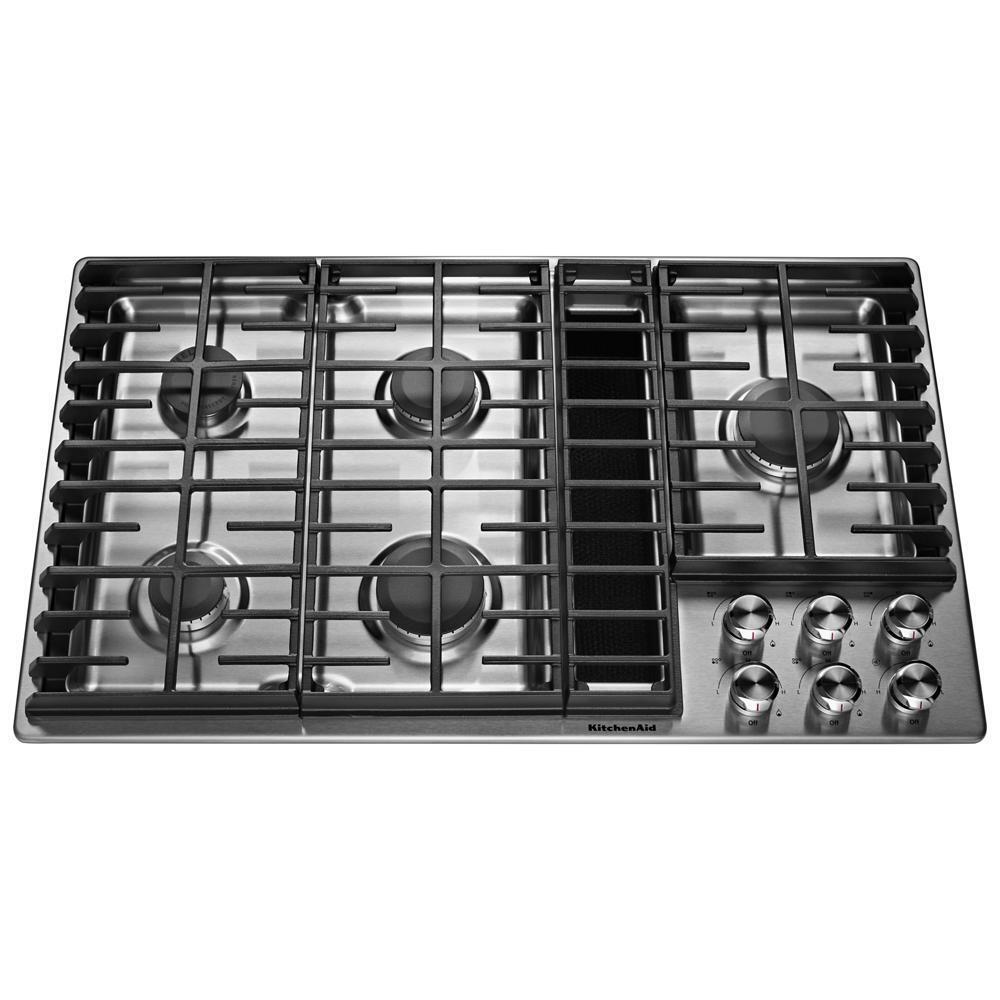

Kitchenaid KCGD506GSS 36" 5 Burner Gas Downdraft Cooktop
Free Shipping
$2,339.00
- 15K BTU Burner reaches temperatures needed for searing and quick boiling
- 17K BTU burner allows high temperatures for searing as well as low simmer
- 3-speed fan control can be adjusted to cooking needs
- 300 CFM meets the venting needs of even high-heat searing and stir-frying
- Burner with a diffuser plate for precise simmering and melting
- Vent kit to filter and recirculate air inside, allowing flexible placement

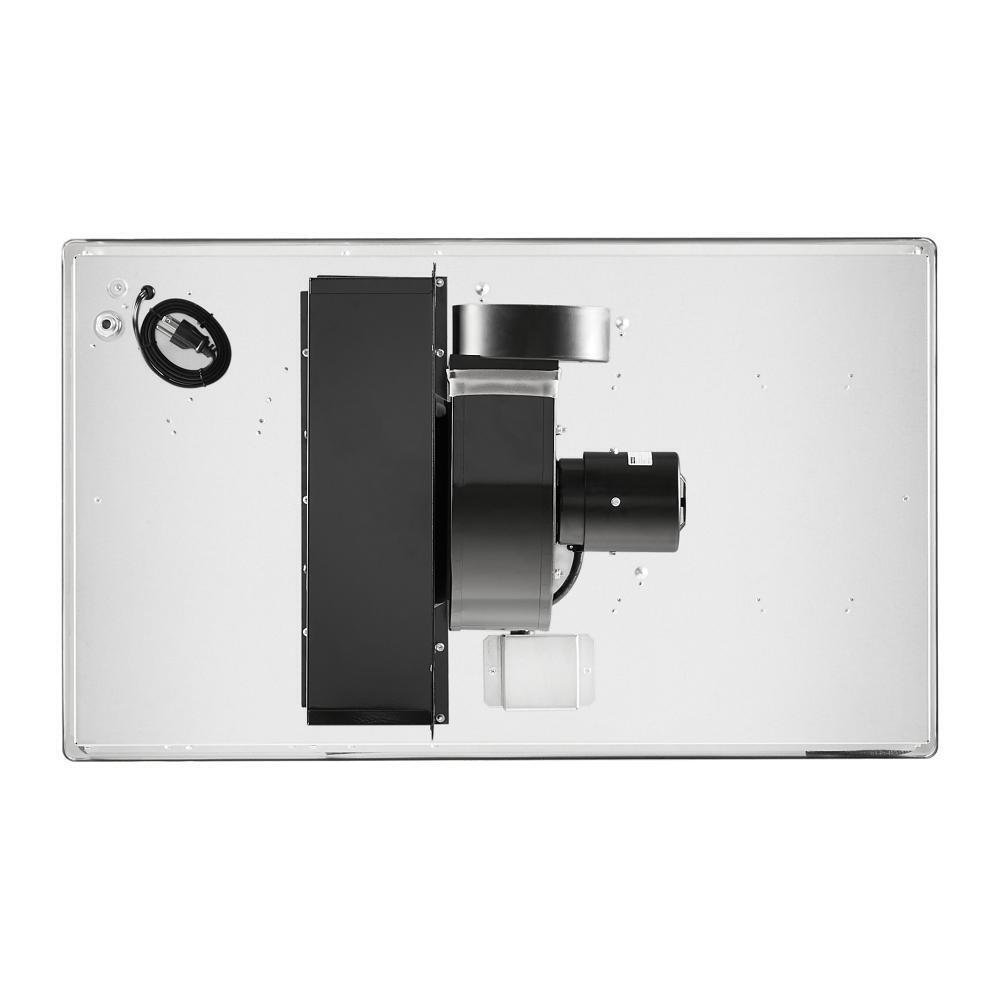

- Downdraft ventilation captures smoke/odors at the surface
- Lights burners with an electric spark and relights them if flame goes out
- Full-width grates create a beautiful look and easy movement of cookware
- LP Conversion Kit (not included) allows use cooktop with LP gas
- Produce low heat for melting with a wider burner cap

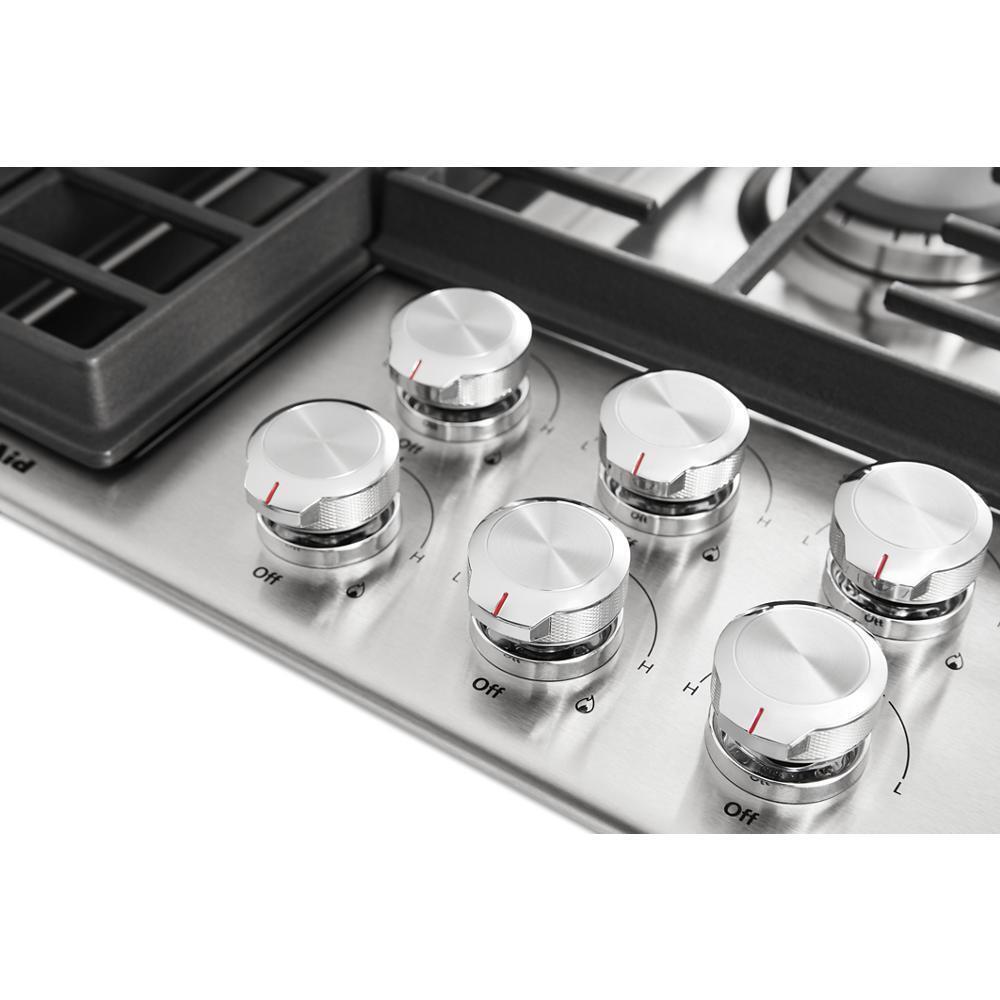

- Stainless steel knobs add a premium feel with their sturdy construction

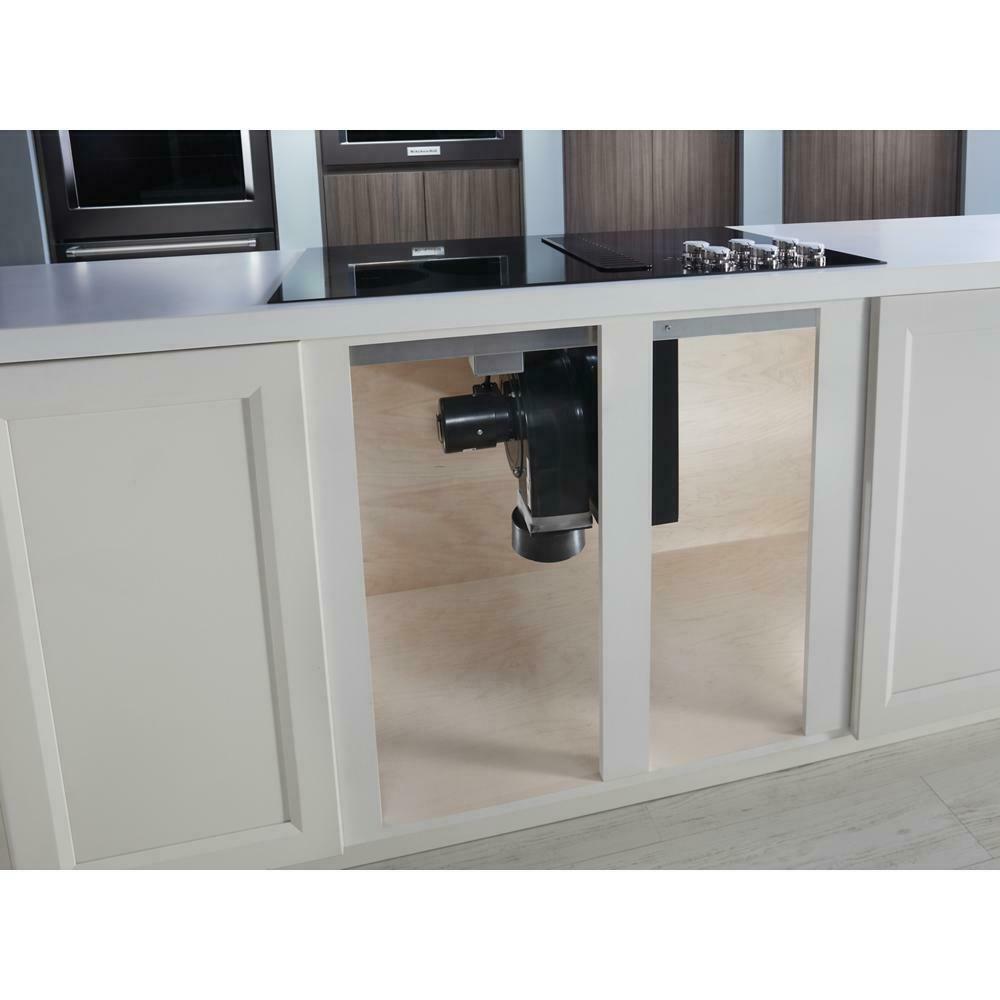

This 36 gas cooktop includes Downdraft, an integrated ventilation system that doesn t require a separate hood. The cooktop features a 17K BTU professional burner to achieve both high heat needed for searing and low simmer settings. The 5K BTU Even-Heat™ Simmer Burner enables precise simmering and melting while the 300 CFM exhaust rating means the venting can handle it all.
| Certifications | |
| Ada Compliant | No |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Right Side |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Cooktop Details | |
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Stainless Steel |
| Digital Display | No |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Flame-Sensing™ Re-ignition |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Fuel Type | Gas |
| Installs Over Built-in Oven | No |
| Lp Convertible | Yes |
| Number of Vent Speeds | 3 |
| Power Outage Compatible | Yes |

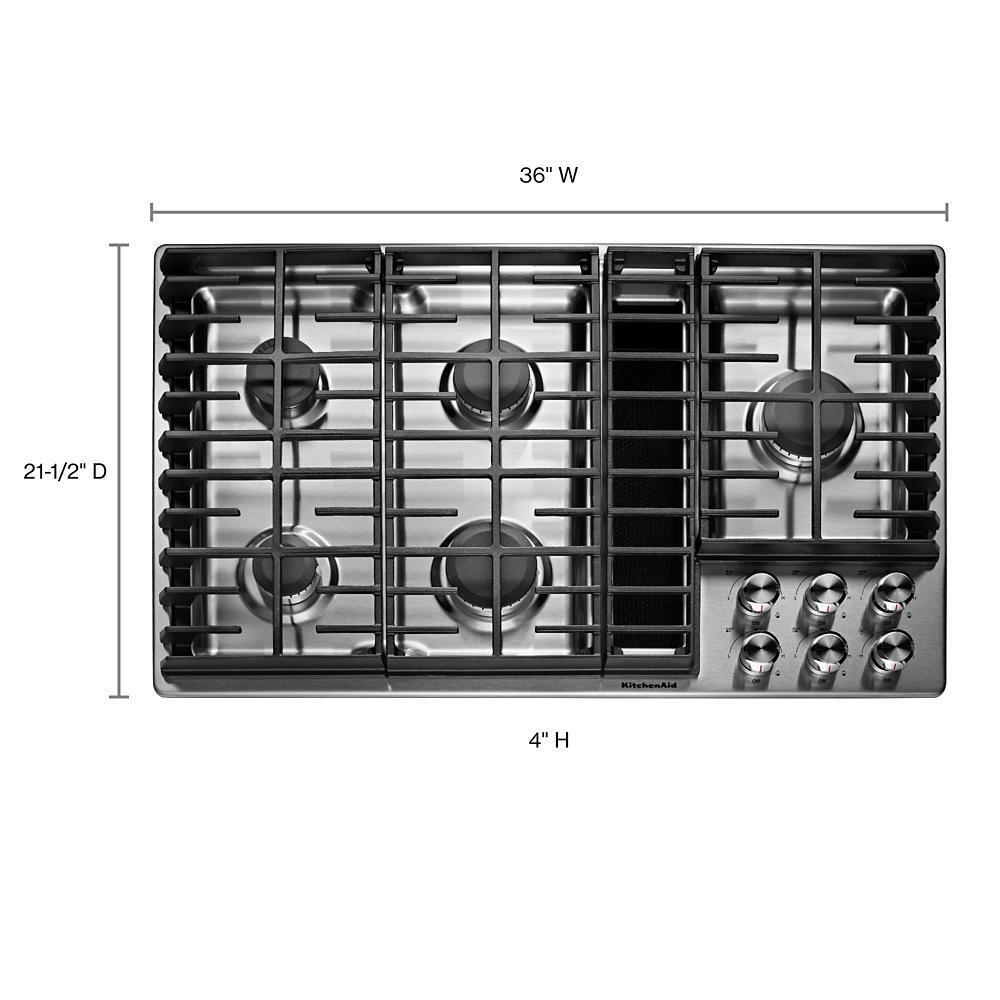

| Dimensions | |
| Carton Depth | 26.38 |
| Carton Height | 23.78 |
| Carton Width | 41.5 |
| Cutout Depth | 19.938 |
| Cutout Width | 34.75 |
| Gross Weight | 97 |
| Net Weight | 92 |
| Electrical | |
| Power Cord Included | Yes |
| Element/burner Details | |
| Center Front Element-burner Power | 15,000 BTU |
| Center Front Element-burner Type | Sealed Burner |
| Center Rear Element-burner Power | 12,500 BTU |
| Center Rear Element-burner Type | Sealed Burner |
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Downdraft |
| Left Front Element-burner Power | 10000 BTU |
| Left Front Element-burner Type | Burner |
| Left Rear Element-burner Power | 5,000 BTU |
| Left Rear Element-burner Type | Even-Heat™ |
| Number of Cooking Element-burners | 5 |
| Power Boost | No |
| Right Rear Element-burner Power | 17,000 BTU |
| Right Rear Element-burner Type | Burner |
| Exterior Details | |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| General | |
| Cooktop Features | Downdraft Ventilation; Even-Heat Melt Burner |
| Grate Details | |
| Grate Details | Cast Iron Grates; Continuous; Matte Finish |
| Number of Grates | 3 |
| Ventilation Details | |
| Cfm Motor Class | 300 |
| Downdraft Vent | Yes |
