- Assisted Cooking Presets let you quickly set and use your cooktop
- Charcoal Filter (optional) helps keep odors from recirculating
- Cleaner Air comes from a cutting-edge air extraction system
- Control Lock for Cleaning disables cooking for easy cleaning
- Dishwasher-Safe Grease Filter catches 96% of grease
- ENERGY STAR Certified
- External or Recirculating Venting Options to fit your kitchen

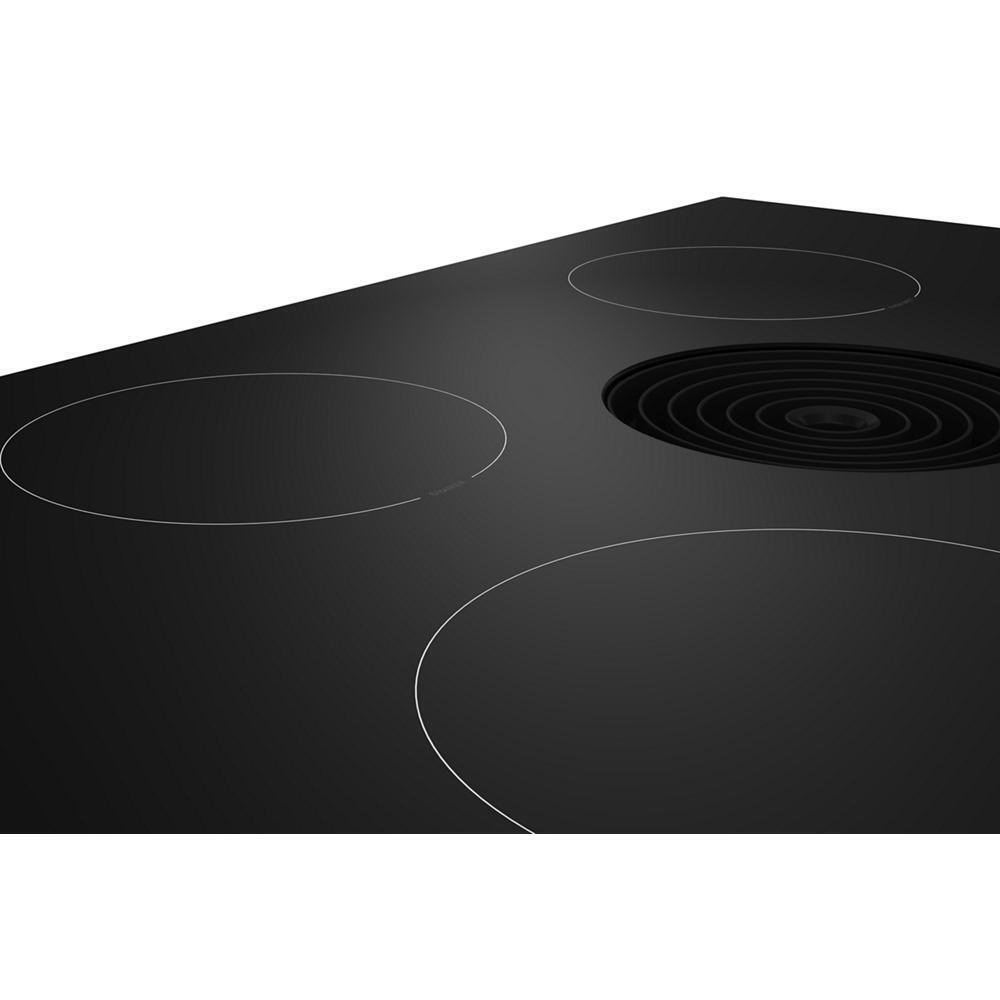

- Four Versatile Cooking Zones give you flexibility on your cooktop
- Frameless Design allows for flush installation and seamless look
- Hot-Surface Indicator Light shows if cooking surface is hot
- Maximizes Space with a hood-free design and island install
- Pan Size Detection adapts heat to pan size and placement
- Power Boost Function lets you exceed maximum heat for 5 minutes
- Power-On Indicator Light lets you know when a zone is on
- Powerful Extraction System helps remove unwanted odors and smoke
- Quiet Ventilation Technology as low as 30 dBA

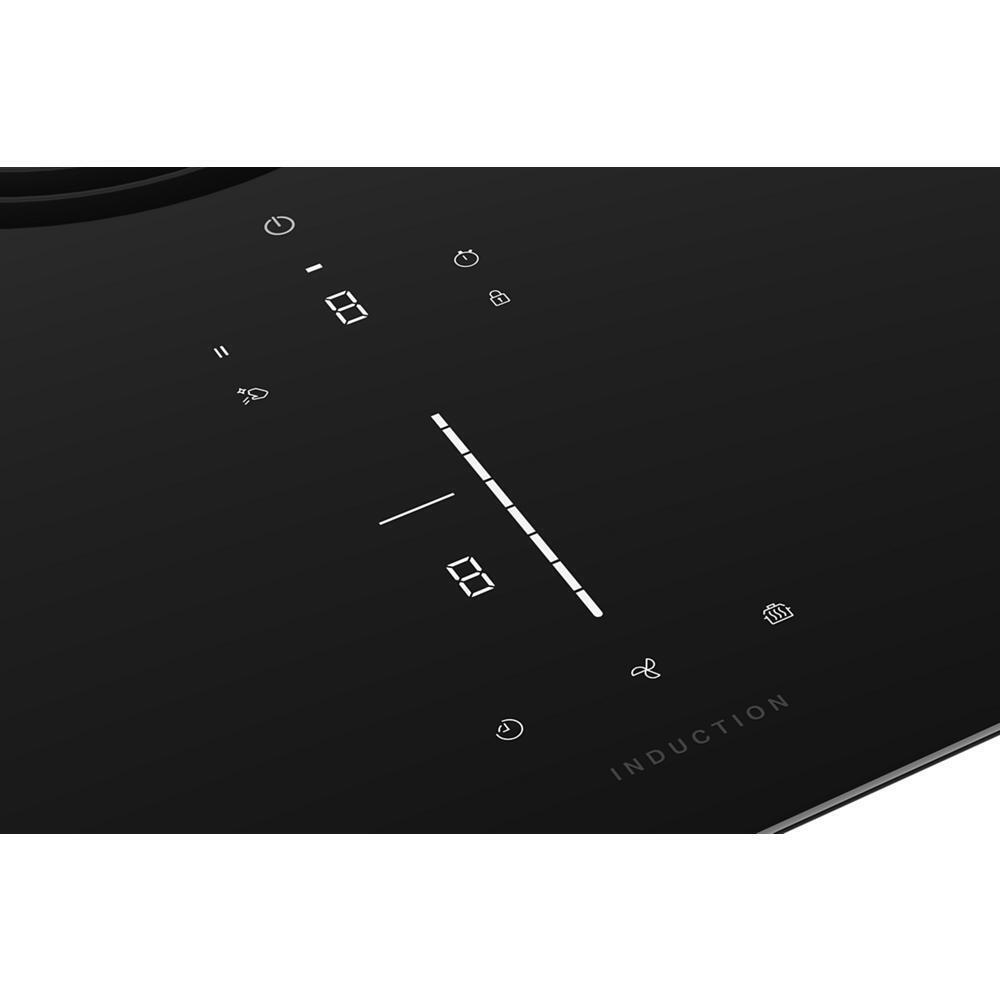

- Sliding Touch-Activated Controls offer intuitive touch operation
- Works with Most High-Quality Cookware like multi-ply stainless

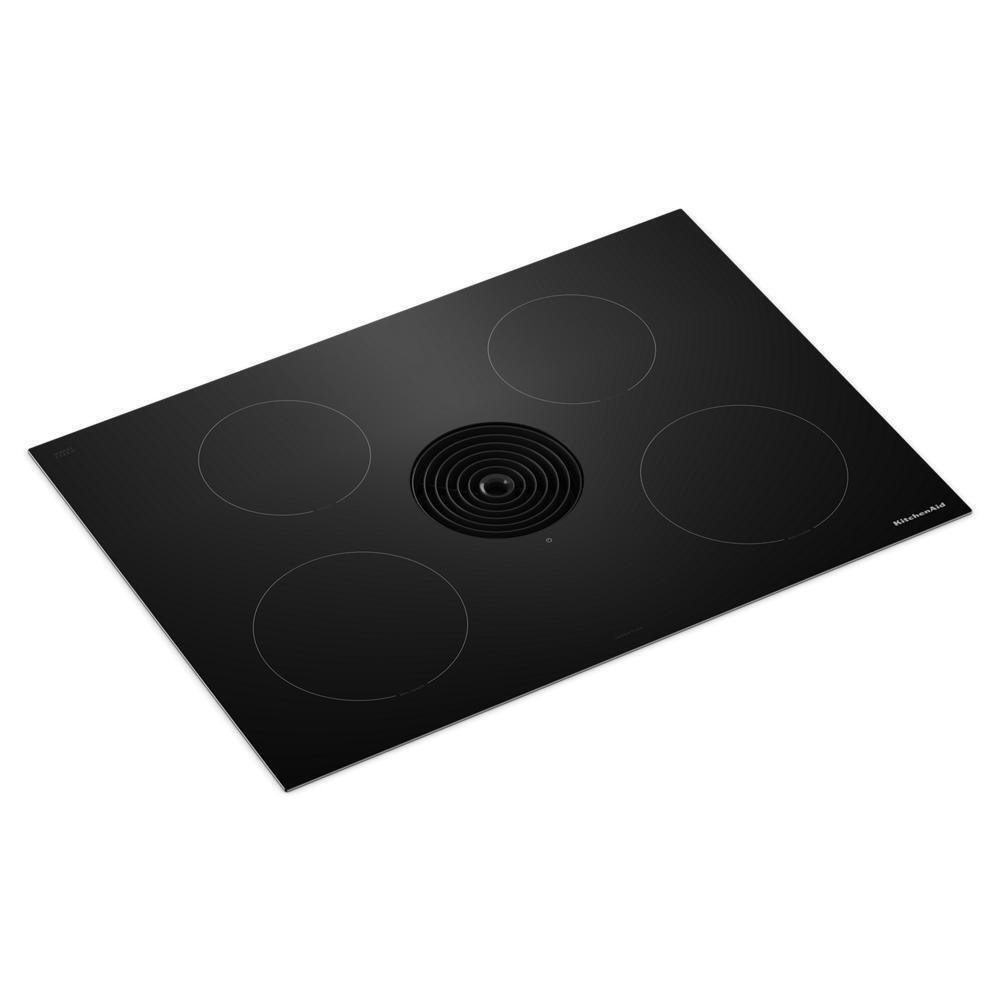

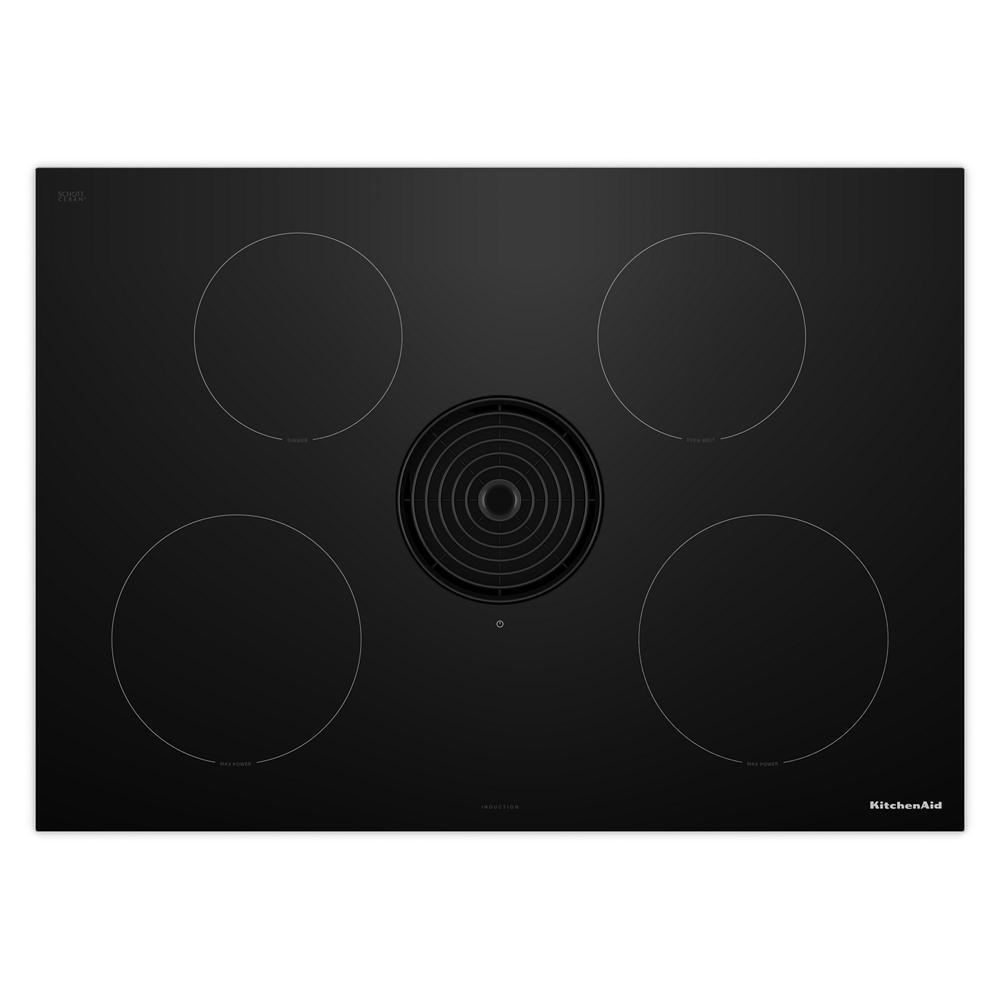

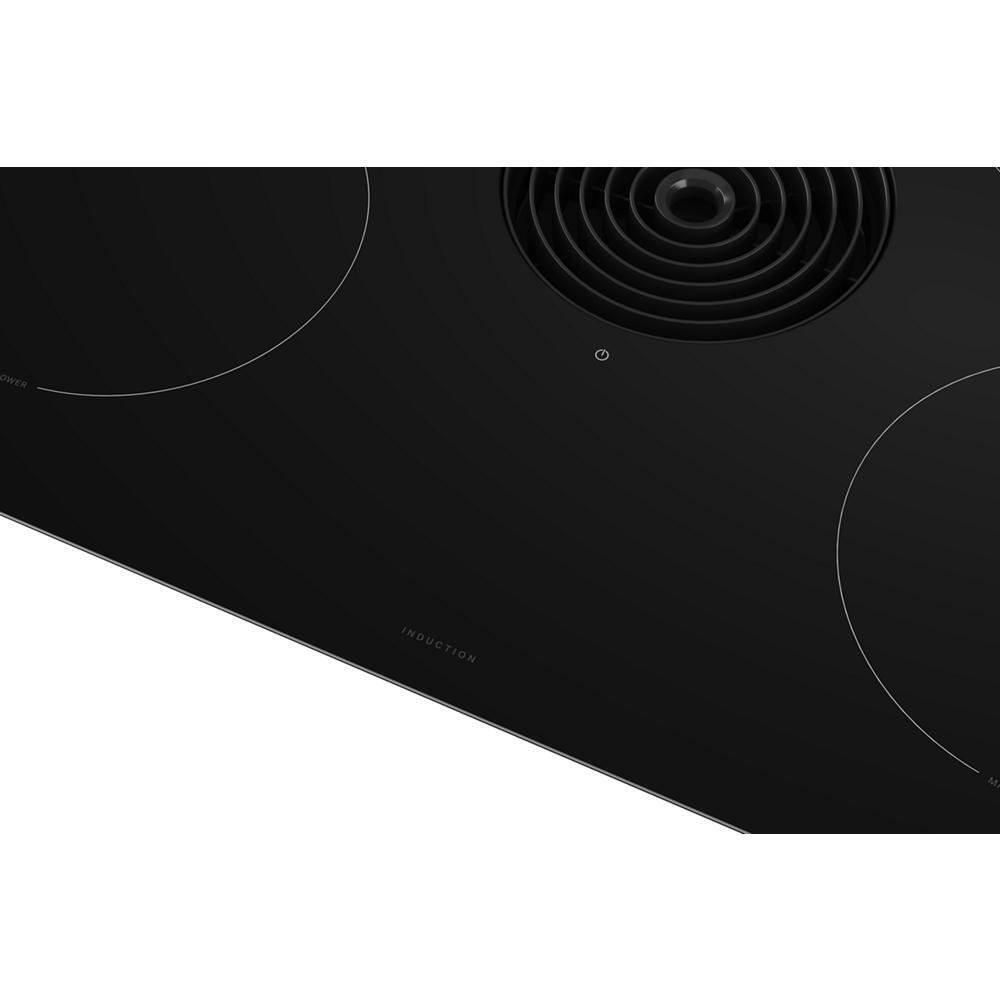

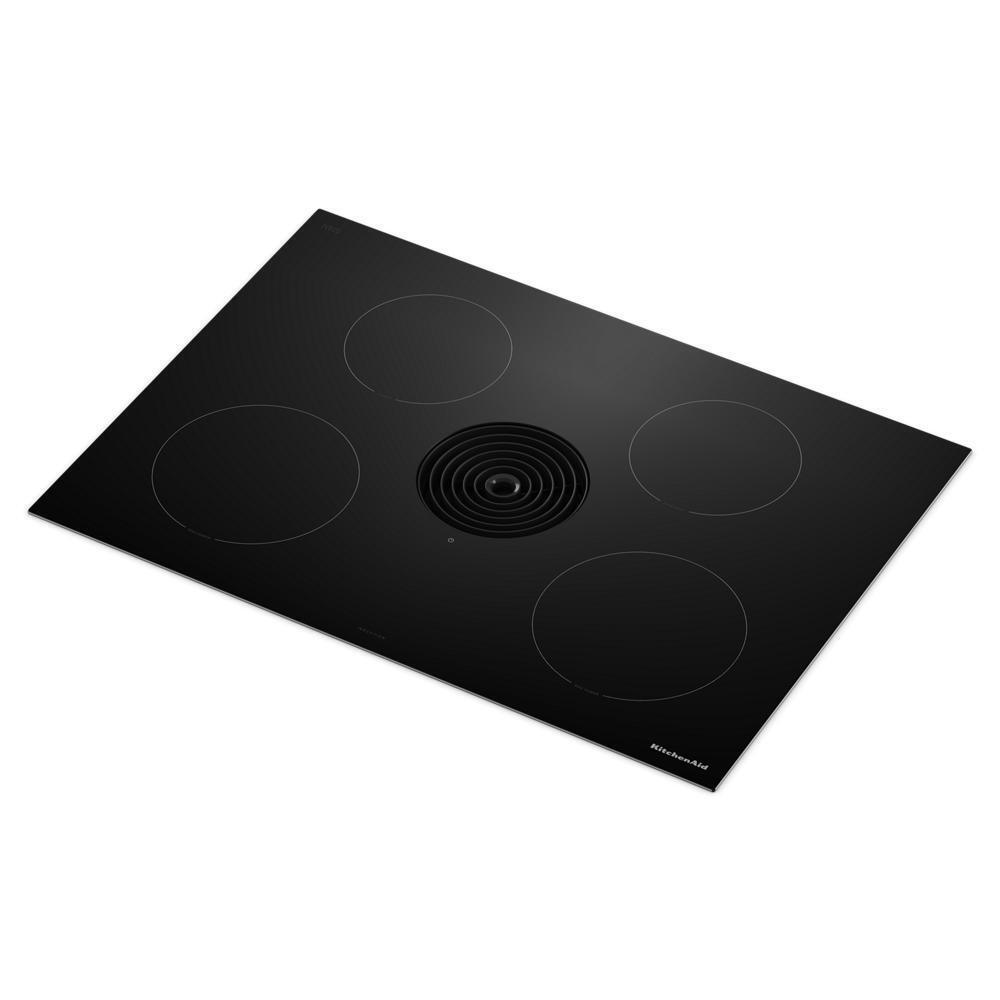

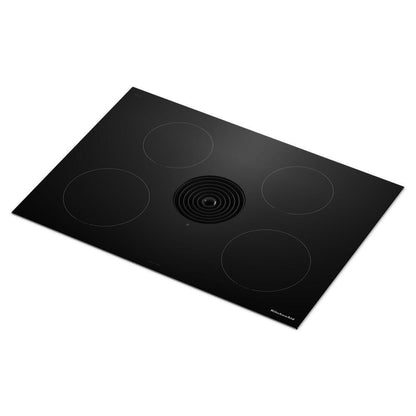

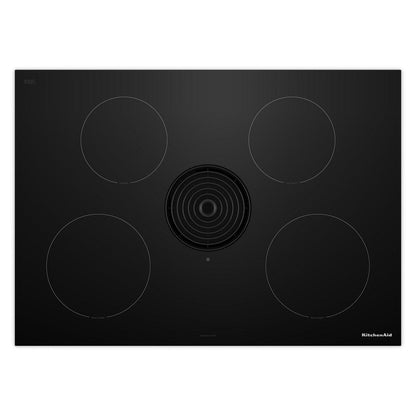

Recenter, refresh and reconnect to your kitchen with the 30" KitchenAid® Downdraft Cooktop. Designed to reconnect you to what matters most. This cooktop features a flexible install designed to fit within your island counter without a bulky hood and make your cooktop the center of your kitchen with whisper-quiet ventilation and powerful extraction.
| Certifications | |
| Ada Compliant | No |
| Cec Listed | No |
| Prop65 | Standard |
| Controls | |
| Control Location | Front |
| Control Type | Tap Touch |
| Infinite Heat Controls | No |
| Cooktop Details | |
| Cooktop Surface Material | Glass |
| Digital Display | Yes |
| Griddle Included | No |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | Yes |
| Ignition Type | Electronic Button |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | Yes |
| Automatic Pan Size Adjustment | No |
| Cooktop Configuration | All Burners |
| Fuel Type | Electric Induction |
| Installs Over Built-in Oven | No |
| Lp Convertible | No |
| Power Outage Compatible | No |

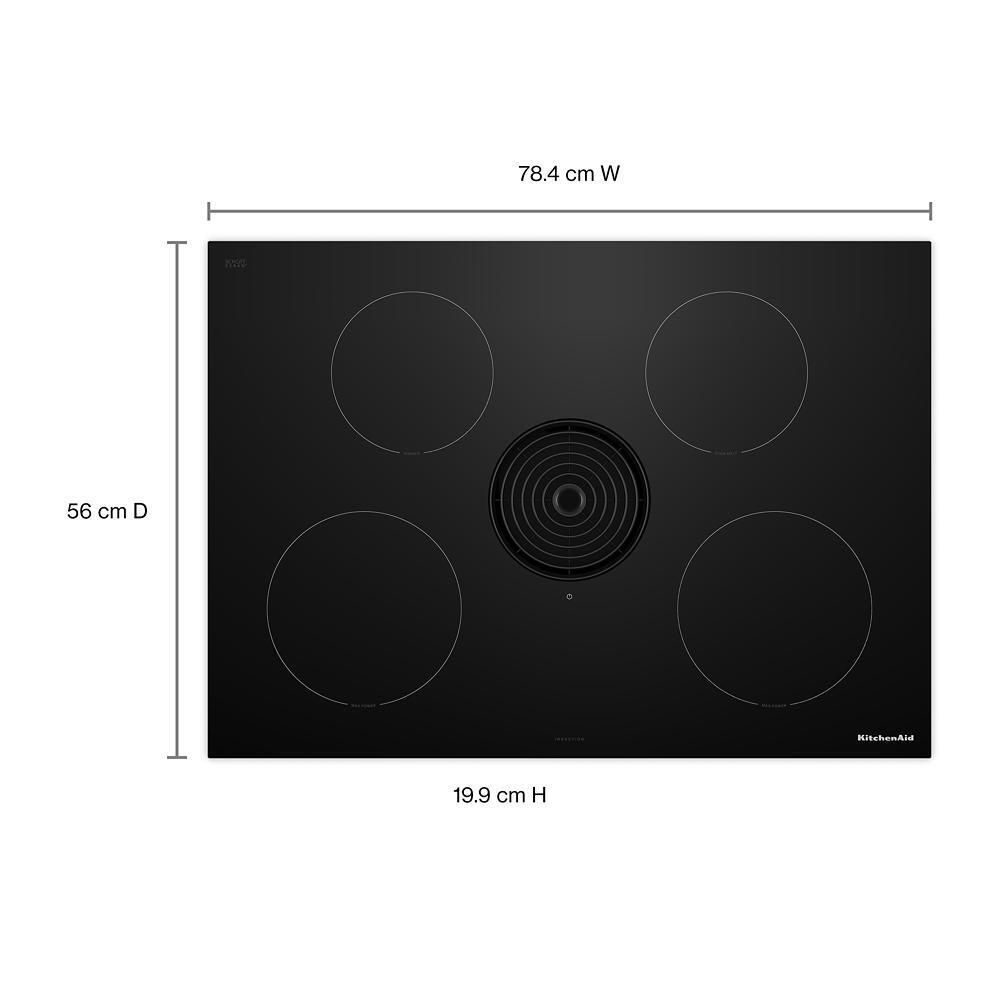

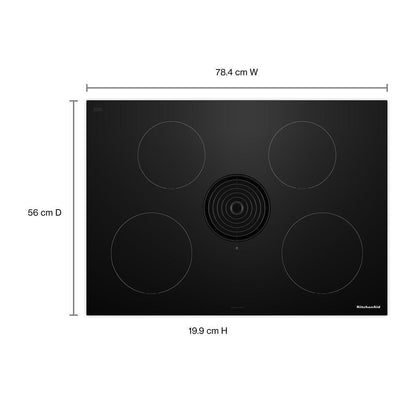

| Dimensions | |
| Product Height | 7.8281 |
| Carton Height | 13.39 |
| Gross Weight | 60.85 |
| Carton Depth | 29.13 |
| Carton Width | 33.07 |
| Product Depth | 22.0469 |
| Cutout Depth Min | 21.156 |
| Cutout Width Max | 28.859 |
| Net Weight | 42.55 |
| Product Width | 30.8594 |
| Electrical | |
| 208v Compatible | Yes |
| Power Cord Included | Yes |
| Element/burner Details | |
| Cooktop Element Style | Induction |
| Cooktop Type | Downdraft |
| Left Front Element-burner Power | 2300W/ 3000W Boost |
| Left Front Element-burner Size | 8in. |
| Left Front Element-burner Type | Round |
| Left Rear Element-burner Power | 1400W/2100W Boost |
| Left Rear Element-burner Size | 7in. |
| Left Rear Element-burner Type | Round |
| Number of Cooking Element-burners | 4 |
| Power Boost | Yes |
| Right Front Element-burner Power | 2300W/ 3000W Boost |
| Right Front Element-burner Size | 8in. |
| Right Front Element-burner Type | Round |
| Right Rear Element-burner Power | 1400W/2100W Boost |
| Right Rear Element-burner Size | 7in. |
| Right Rear Element-burner Type | Round |
| Smart Compatibility | |
| Connectivity | No |
| Ventilation Details | |
| Auto Function | No |
| Downdraft Vent | Yes |
| Ventilation Type | Downdraft |
| Venting | Exterior or Recirculating with Kit |
