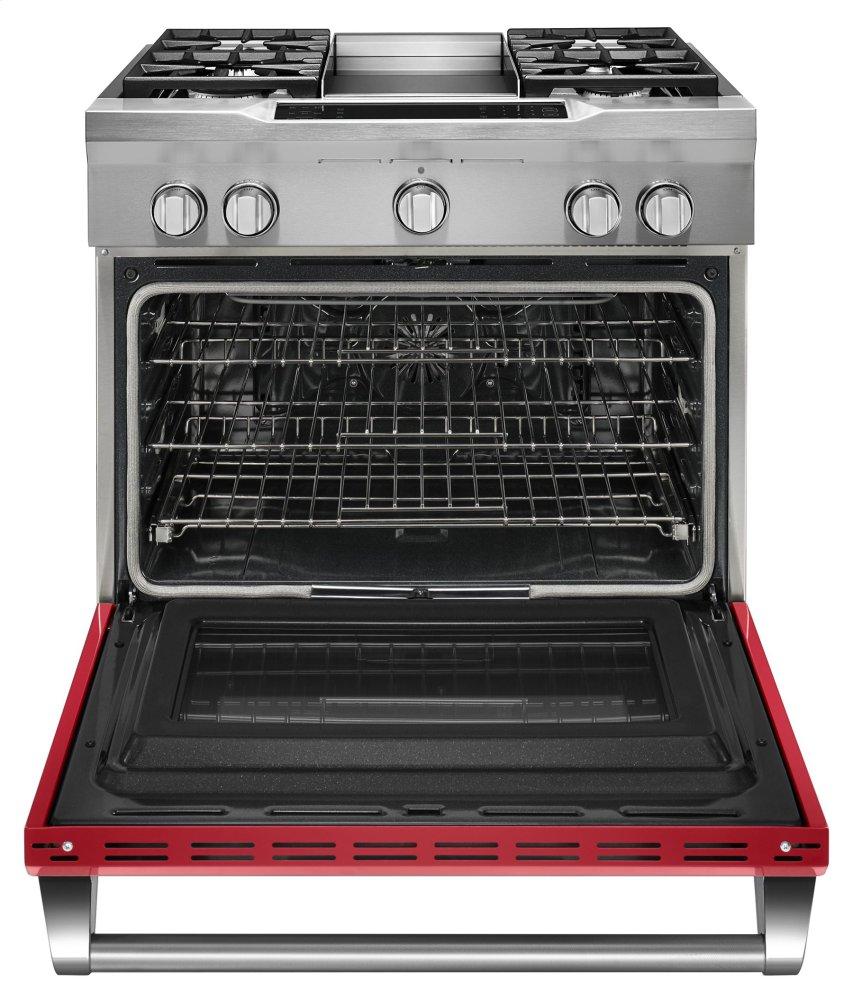

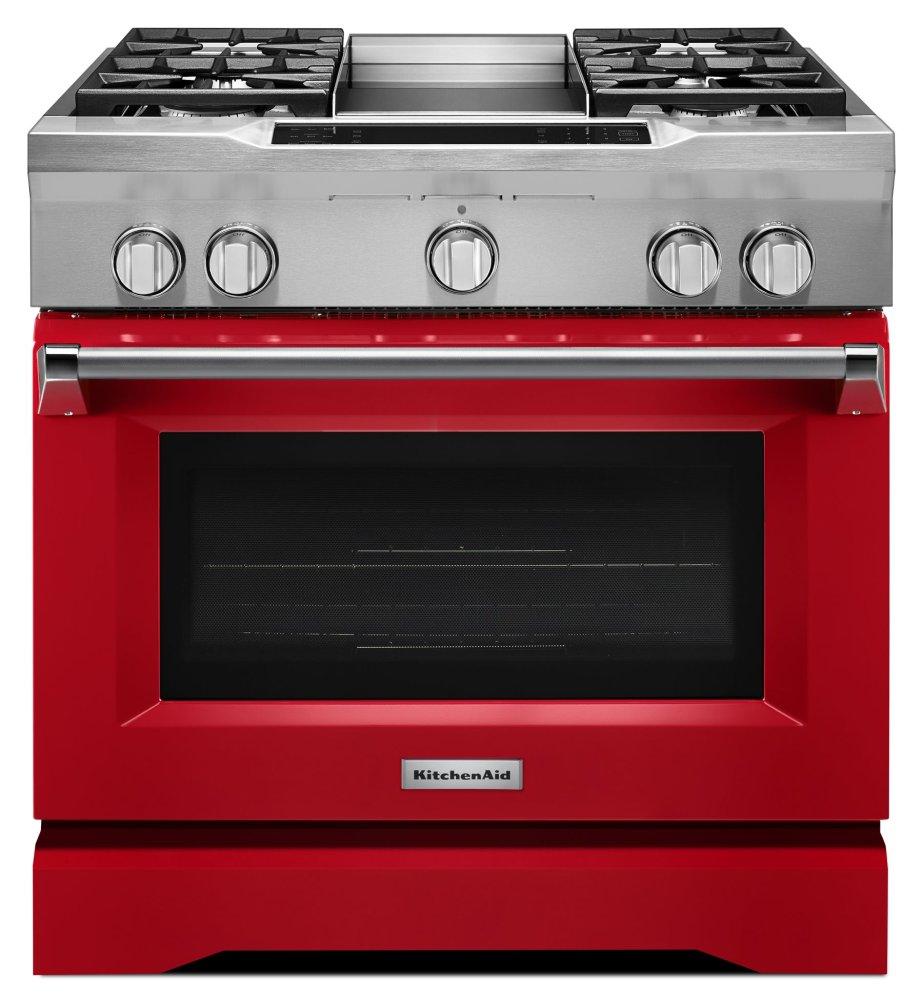

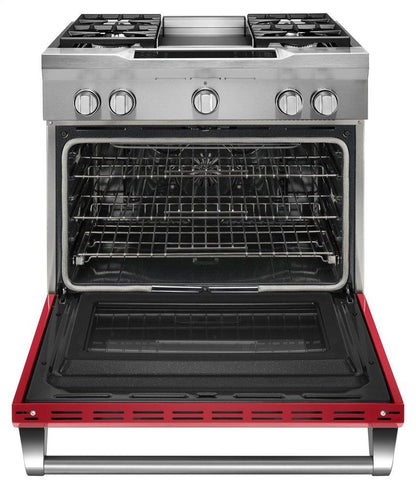

Kitchenaid KDRS463VSD 36'' 4-Burner with Griddle, Dual Fuel Freestanding Range, Commercial-Style - Signature Red KDRS463VSD

This 36-inch dual fuel range features commercial styling available in a variety of bold colors. The gas cooking surface includes four burners and the Even-Heat Chrome Electric Griddle. The electric oven features the Even-Heat True Convection System that allows passionate cooks to reach their gourmet potential, while helping their kitchens achieve their design potential.

Specifications
Dimensions
Capacity	5-1/10
Cutout Depth	24.0 in
Cutout Height	36.0 in
Cutout Width	36-1/4 in
Depth	29-9/16 in
Depth Closed Excluding Handles	27-3/4 in
Depth Closed Including Handles	29-9/16 in
Depth With Door Open 90 Degree	46-1/8 in
Height	35-3/4 in
Width	36.0 in
Configuration and Overview
ADA Compliant	ADA Height and Operation Compliant
Fuel Type	Dual Fuel
LP Convertible	Yes
Prop 65	CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .
Range Type	Slide-in
Size	36 in
UL	UL
Oven Details
Automatic Convection Conversion Temperature Adjust	Yes
Automatic Shut-Off	No
Bake Element Power	3000W
Broiler Location	Top of Oven
Convection Element Type	True
Convection Functions	Bake, Broil, Roast, Convection Conversion
Door Removable	Yes
Drawer Type	None
Hidden Bake Element	Yes
Interior Color	Grey
Number of Oven Lights	2
Number of Oven Racks	3
Number of Rack Guides	5
Oven Control Location	Front
Oven Control Type	Electronic Touch
Oven Cooking System	Convection
Oven Ignition Type	Electronic
Oven Interior Depth	17-5/8 in
Oven Interior Height	16.0 in
Oven Interior Width	31.0 in
Oven Light Type	Incandescent
Oven Rack Type	1 Gliding Roll-Out, 2 Heavy Duty
Power On Indicator Light	Yes
Appearance
Door Type	Metal & Glass
Handle Color	Stainless Steel
Handle Material	Metal
Handle Type	Towel Bar
Cooktop Details
Cooktop Control Knob Type	Metal
Cooktop Control Location	Front
Cooktop Control Type	Knobs
Cooktop Element Style	Sealed Burner
Cooktop Surface Material	Porcelain Coated Steel
Grate Details	Matte Finish, Cast Iron Grates, Individual, Dishwasher Safe
Heating Element On Indicator Light	No
Hot Surface Indicator Light	No
Ignition Type	Electronic
Left Front Element-Burner Type	Dual Flame
Left Rear Element-Burner Type	Sealed Burner
Number of Cooking Element-Burners	5
Number of Grates	4
Power Outage Compatible	Yes
Right Front Element-Burner Power	15,000 BTU
Right Rear Element-Burner Power	5000 BTU
Details
Oven Cleaning Type	Self-Cleaning
Oven Rack Type	1 Gliding Roll-Out, 2 Heavy Duty
Certifications
ADA Compliant	ADA Height and Operation Compliant
Electrical
Power Cord Included	No
Volts	120/240
Controls
Electronic Display Type	Black
Knob Color	Stainless Steel
Knob Type	Metal
Features
Griddle	Included
Natural Gas Convertible	No
Power Outage Compatible	Yes
Exterior
Oven Door	Metal & Glass
Oven Window Size	Large
