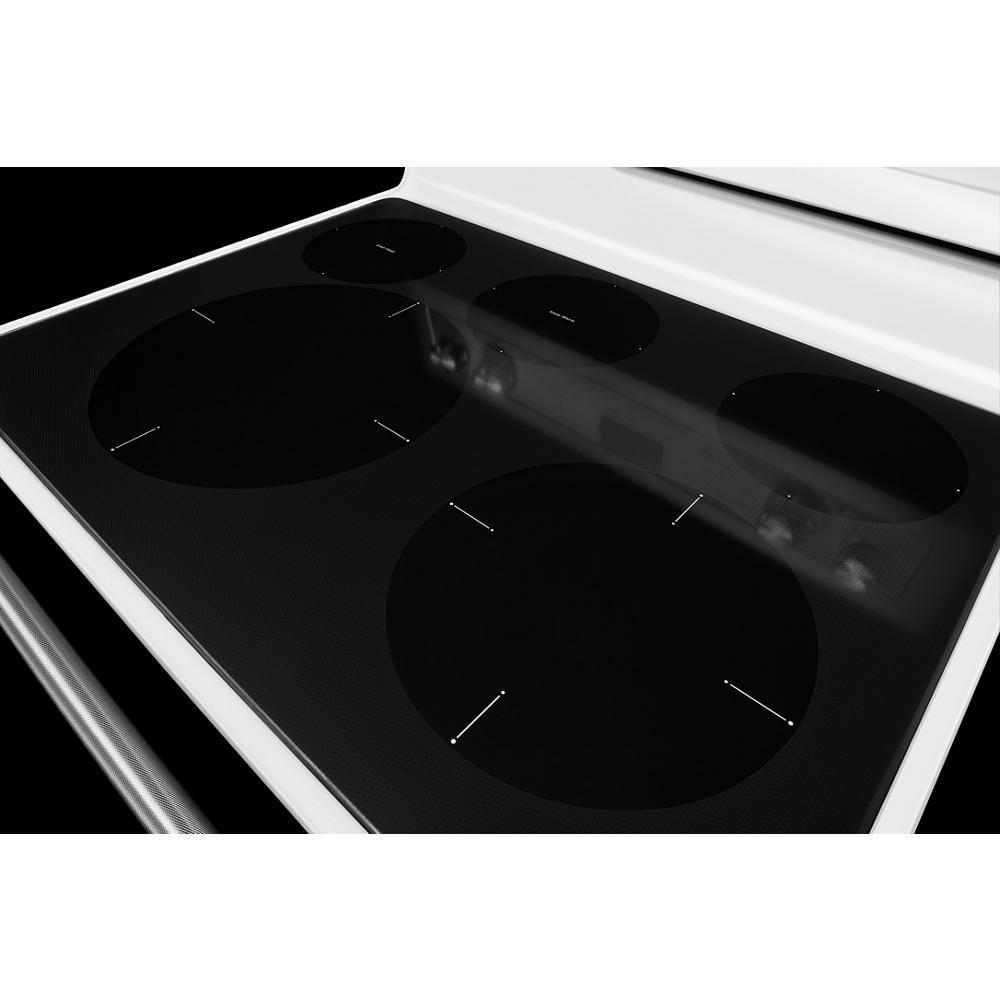

- 12/9" and 9/6" elements provide two cooking zones in one location
- Five independent elements allow for cooking versatility

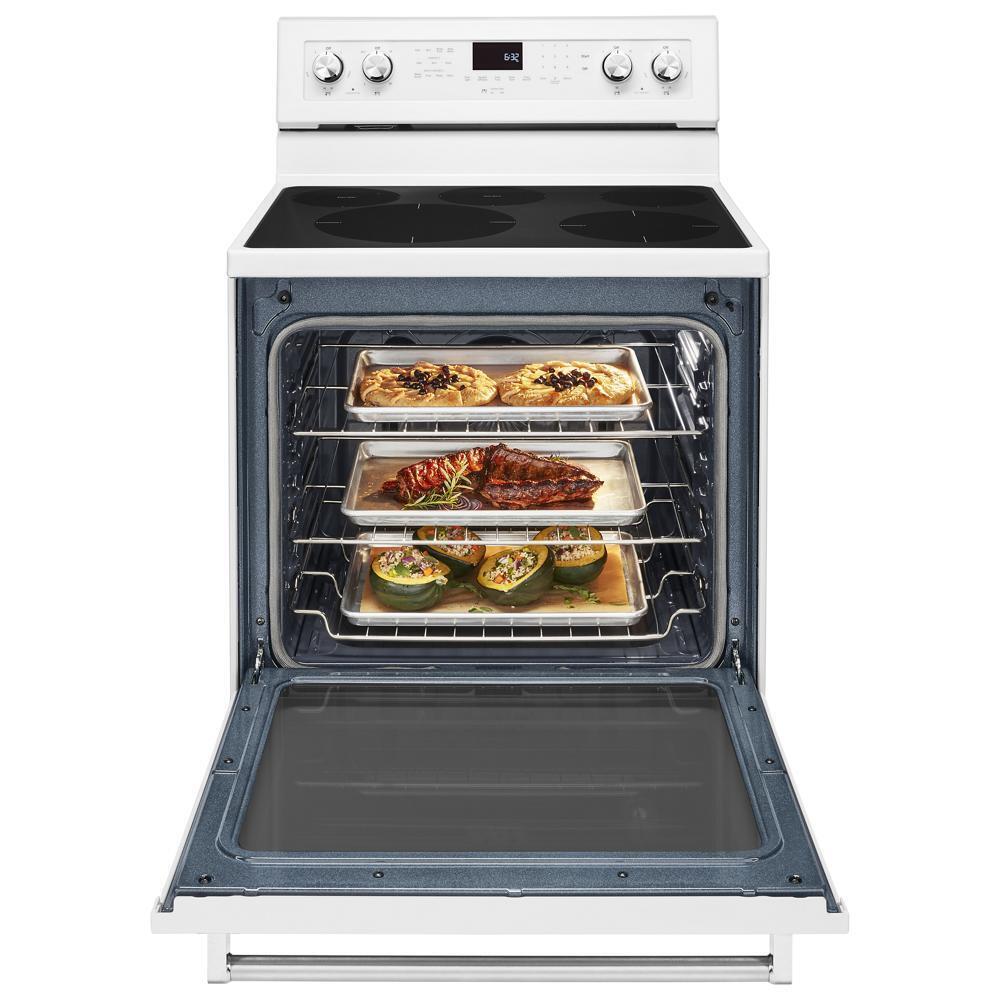

- Extra-large 6.4 cu. ft. capacity to cook multiple dishes at once
- Aqualift® combines low heat with water to release baked-on spills
- EASYCONVECT Conversion System automatically adjusts temperatures
- EVEN-HEAT True Convection for consistent baking and roasting
- Hidden Bake Element makes it easy to wipe away spills inside oven
- Storage drawer provides extra storage for cookware and bakeware

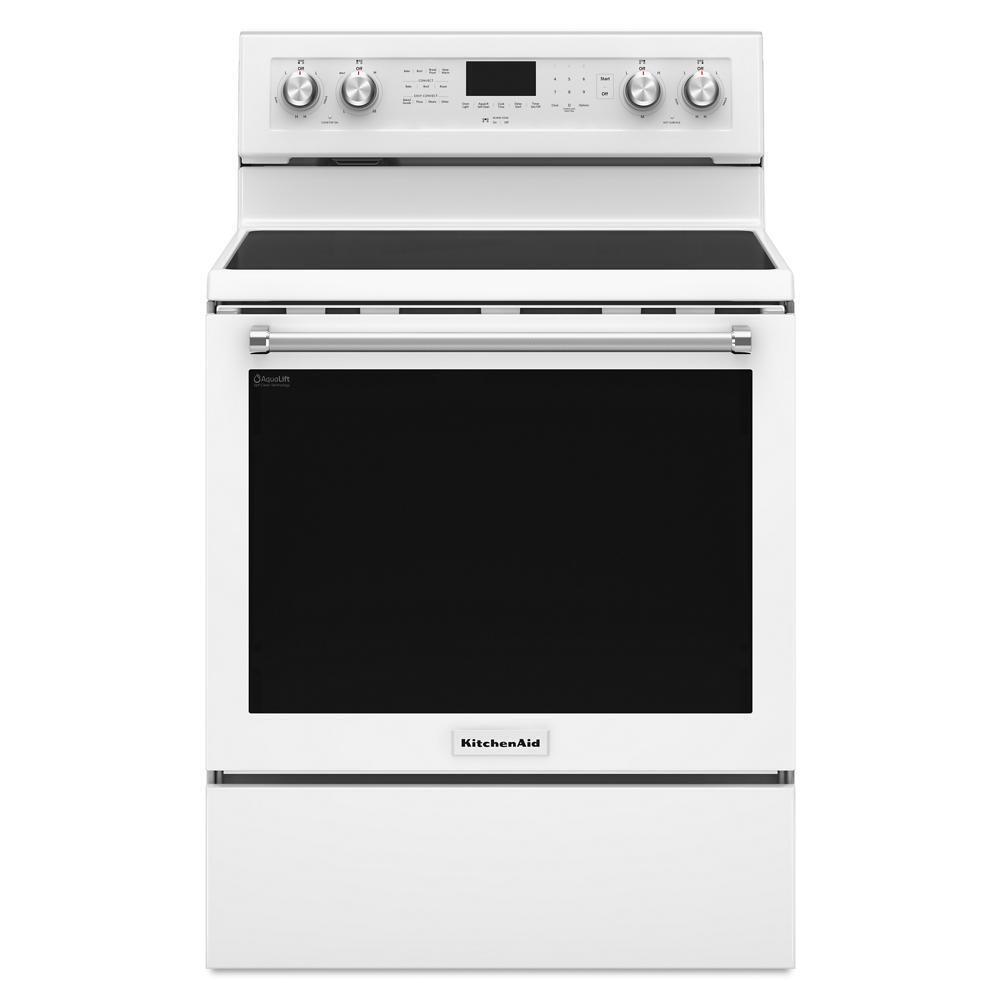

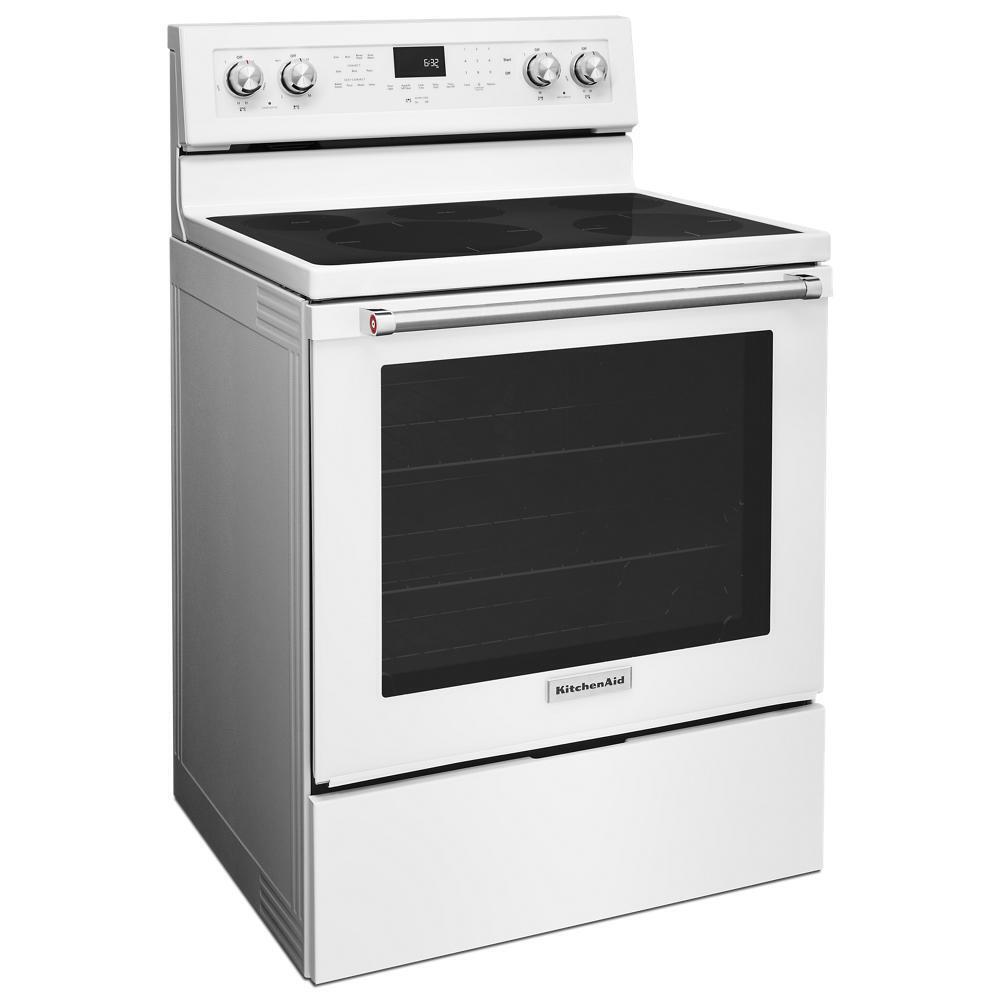

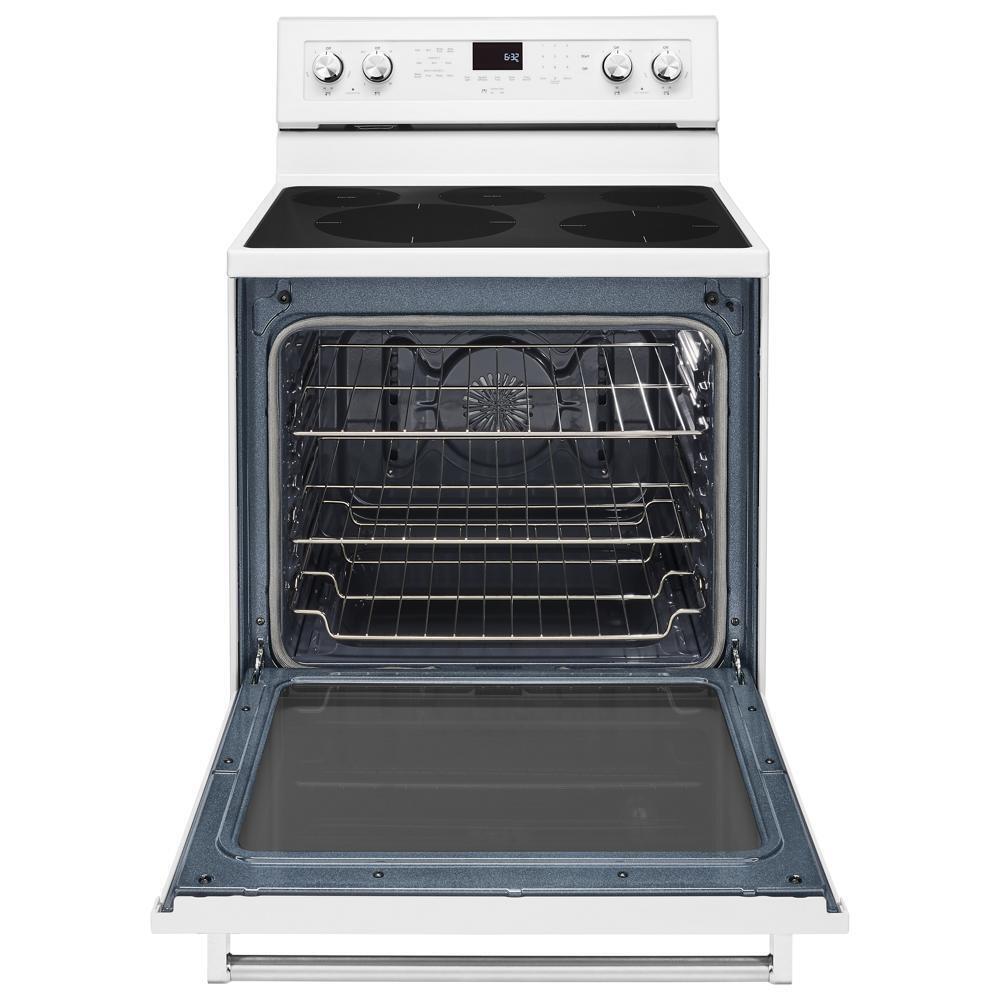

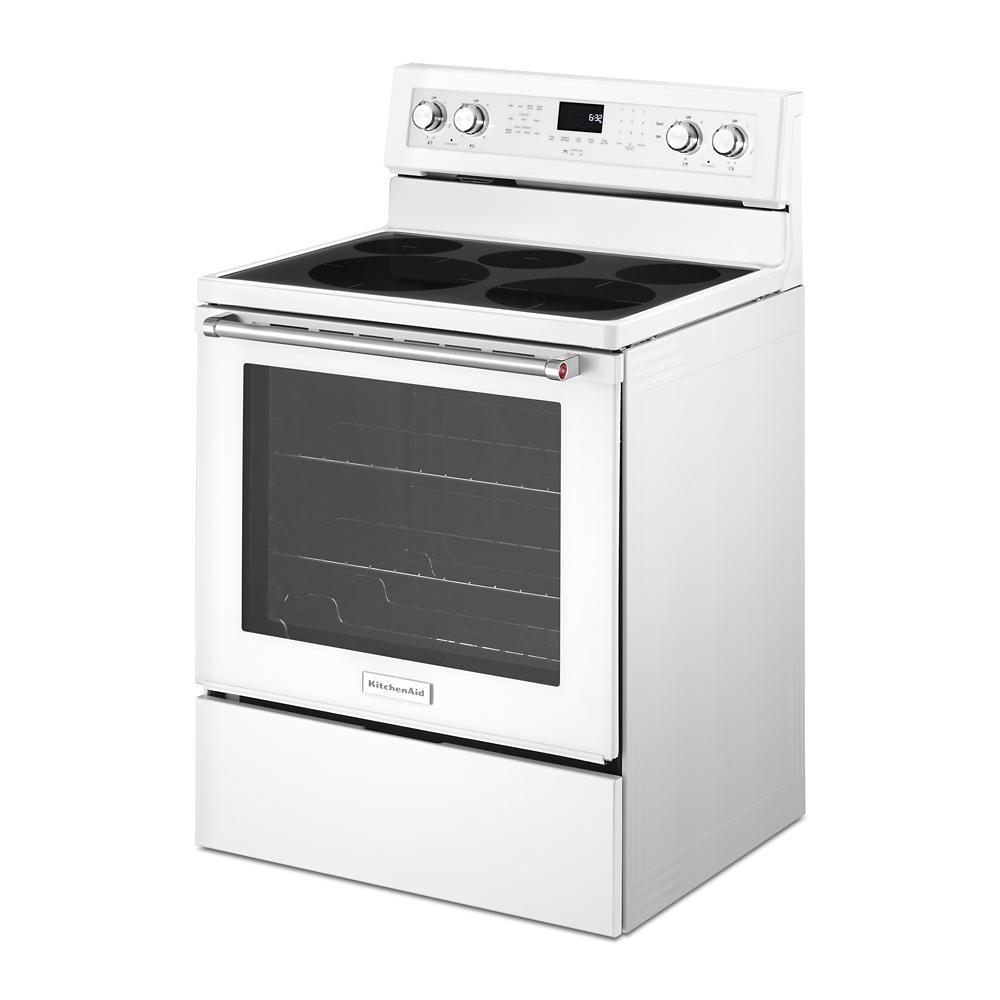

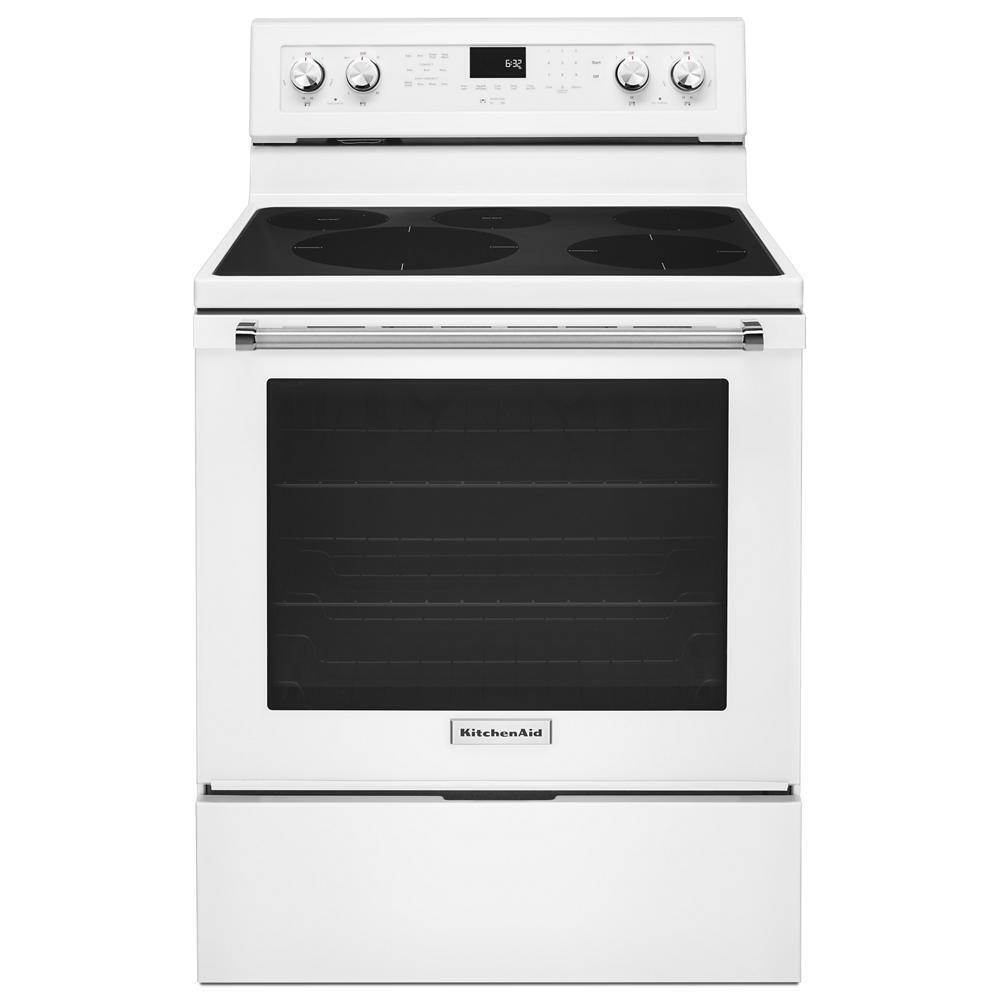

This 5-element electric range with convection produces superior cooking results with Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the ideal temperature. The oven is 6.4 cu ft., providing an extra-large capacity that lets you easily prepare multiple dishes at once. The cooktop on this 30-inch electric range features five heating elements, including a dedicated warming zone, allowing you to do more on your range.
| Certifications | |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Display Color | Red; White |
| Cooktop Details | |

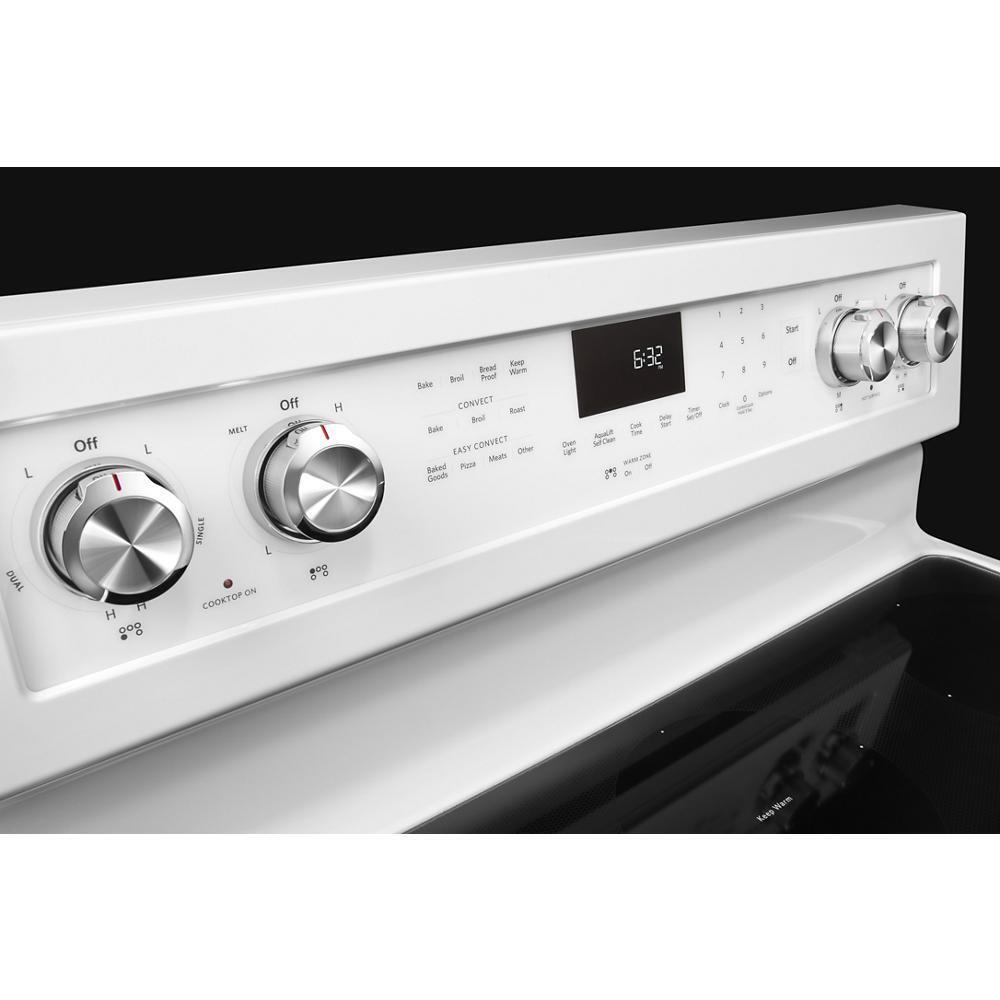

| Cooktop Control Location | Backguard |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Details | |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Fuel Type | Electric |
| Lp Convertible | No |
| Oven Configuration | Single Oven |
| Oven Selections | Cook Time Indicator; Delay Start; Easy Convect Baked Goods; Easy Convect Meats; Easy Convect Pizza; Keep Warm Setting; Proofing; Sabbath Mode; Timer |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Freestanding |
| Range Drawer Type | Storage Drawer |
| Range Type | Freestanding |

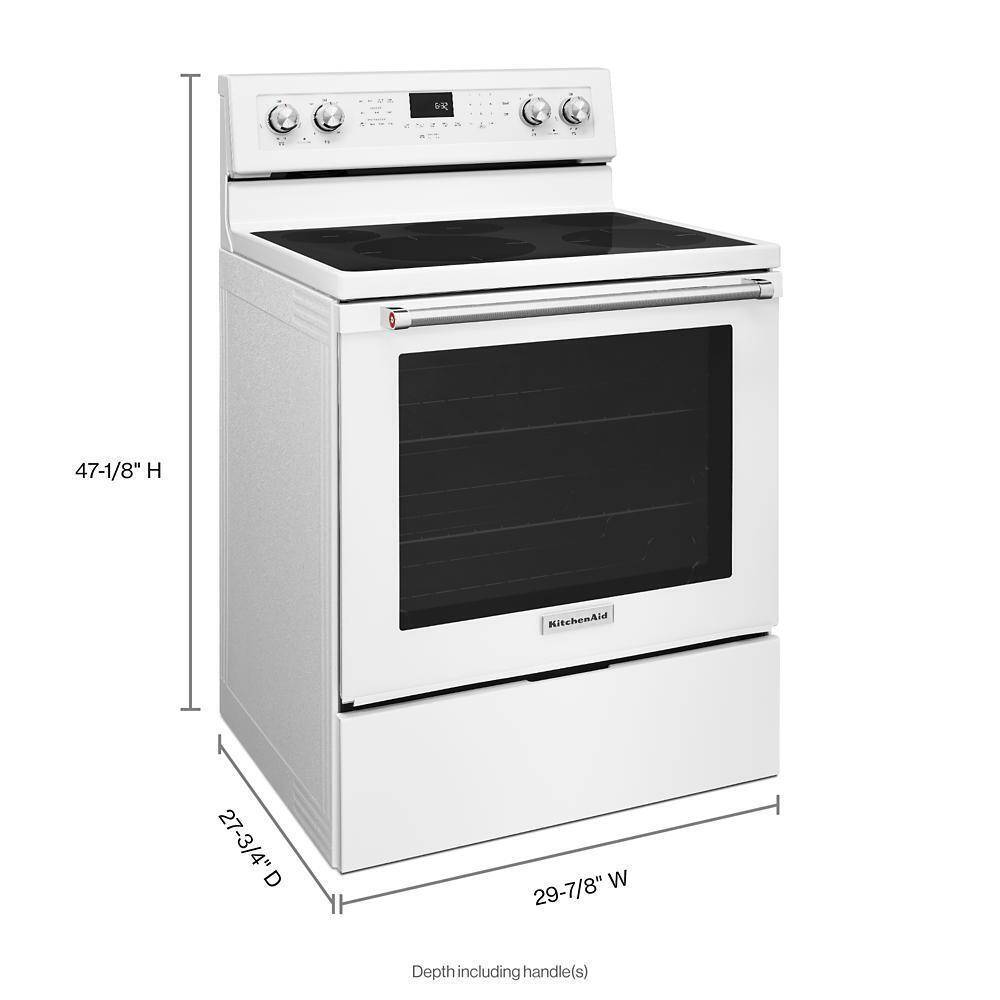

| Dimensions | |
| Product Height | 47.125 |
| Carton Height | 48.75 |
| Gross Weight | 190 |
| Oven Interior Height | 22.125 |
| Carton Width | 32 |
| Product Depth | 28.5 |
| Oven Interior Depth | 20.625 |
| Depth With Door Open 90 Degree | 47.875 |
| Depth Closed Excluding Handles | 25.313 |
| Depth Closed Including Handles | 27.75 |
| Carton Depth | 29 |
| Oven Interior Width | 24.125 |
| Net Weight | 185 |
| Product Width | 29.875 |
| Electrical | |
| Power Cord Included | No |
| Element/burner Details | |
| Center Rear Element-burner Power | 100W |
| Center Rear Element-burner Size | 6in. |
| Center Rear Element-burner Type | Warming |
| Cooktop Element Style | Radiant |
| Left Front Element-burner Power | 3000W/1900W |
| Left Front Element-burner Size | 12in./9in. |
| Left Front Element-burner Type | Dual |
| Left Rear Element-burner Power | 1,300W |
| Left Rear Element-burner Size | 6in. |
| Left Rear Element-burner Type | Hyper |
| Number of Cooking Element-burners | 5 |
| Right Front Element-burner Power | 3000W/1400W |
| Right Front Element-burner Size | 9in./6in. |
| Right Front Element-burner Type | Dual |
| Right Rear Element-burner Power | 1,200W |
| Right Rear Element-burner Size | 6in. |
| Right Rear Element-burner Type | Single |
| Exterior Details | |
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Towel Bar |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Large |
| General | |
| Range Features | EasyConvect™ Conversion; Even-Heat™ True Convection |
| Oven Details | |
| Bake Element Power | 3,600 W |
| Broiler Element Power | 3,600 W |
| Broiler Location | Top of Oven |
| Convection Element Power | 900 |
| Convection Element Type | Fan |
| Convection Functions | Bake; Broil; Roast |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Natural Gas Convertible | No |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 3 |
| Number of Rack Guides | 7 |
| Oven Cleaning Type | AquaLift® Self Clean |
| Oven Cooking System | Convection |
| Oven Light Type | Incandescent |
| Oven Rack Type | 1 Max Capacity, 2 Standard |
