- Double oven with 5.2 cu. ft. total cooking capacity

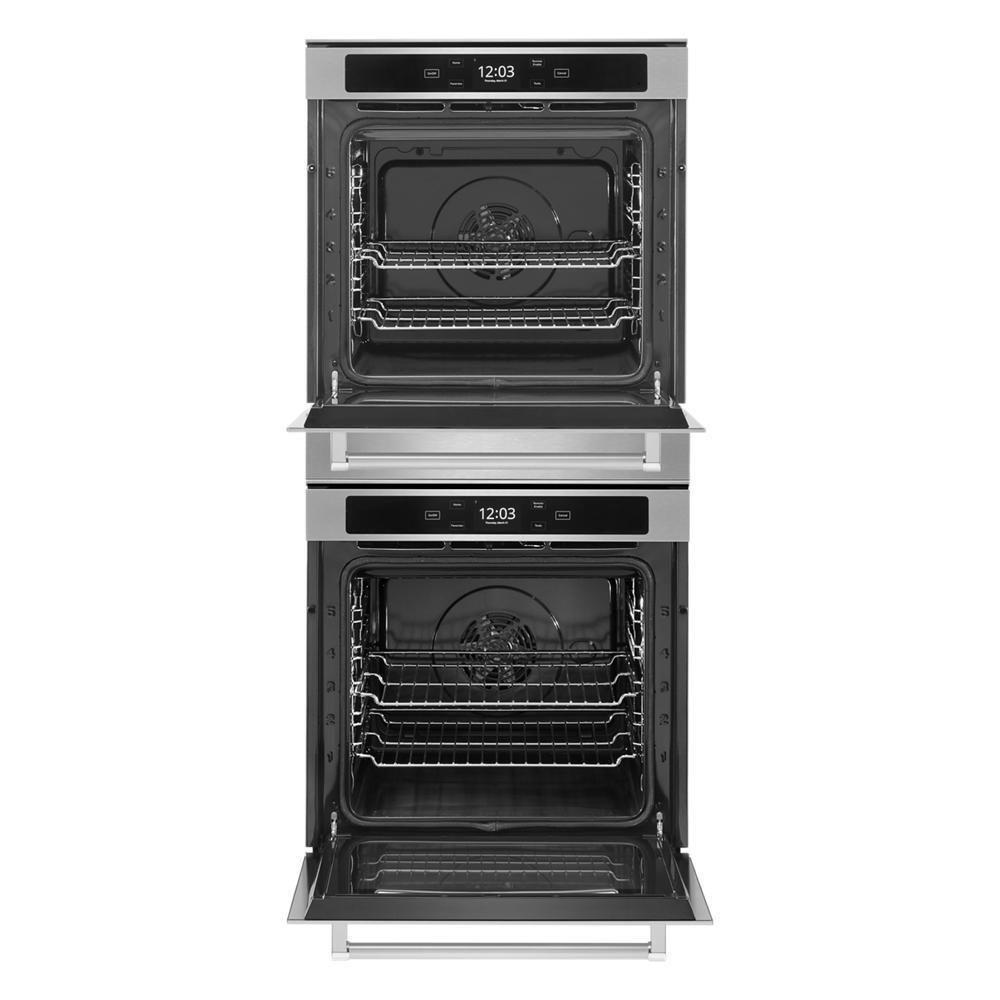

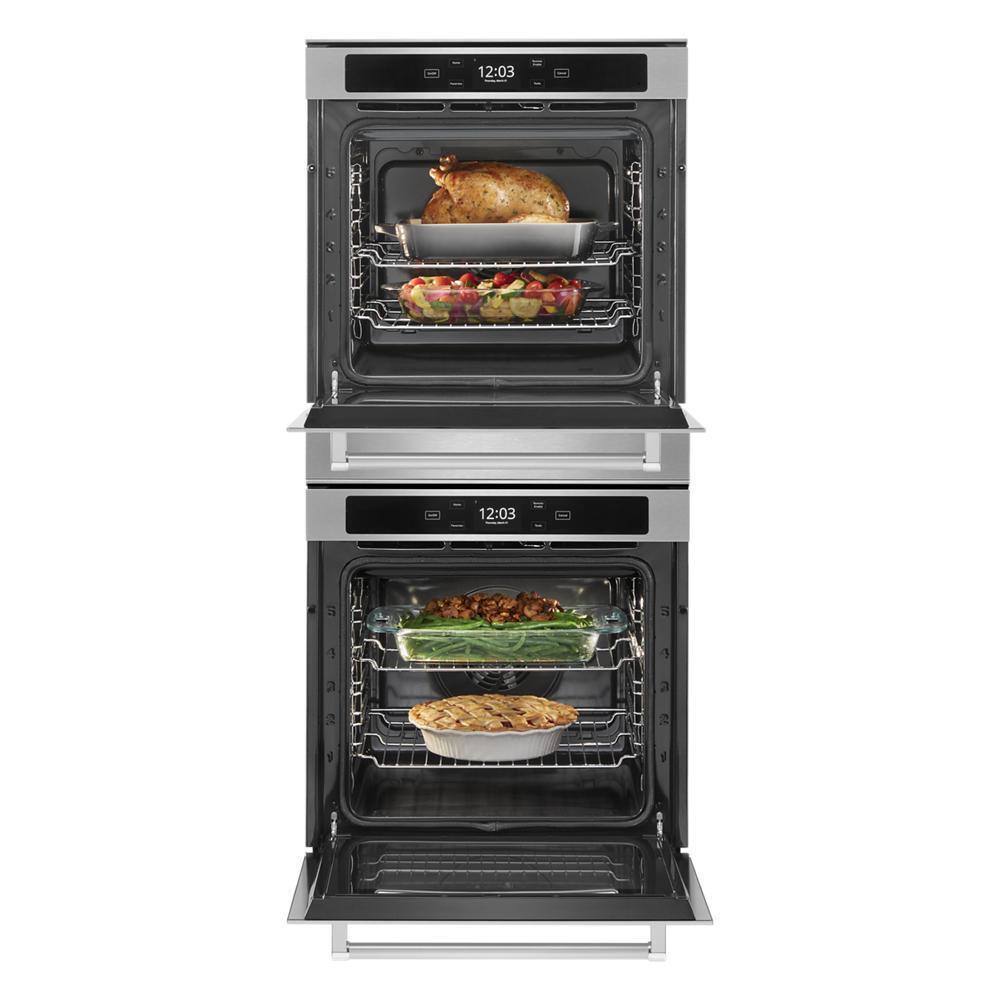

- Five-Level Rack Support makes it easy to rearrange two oven racks

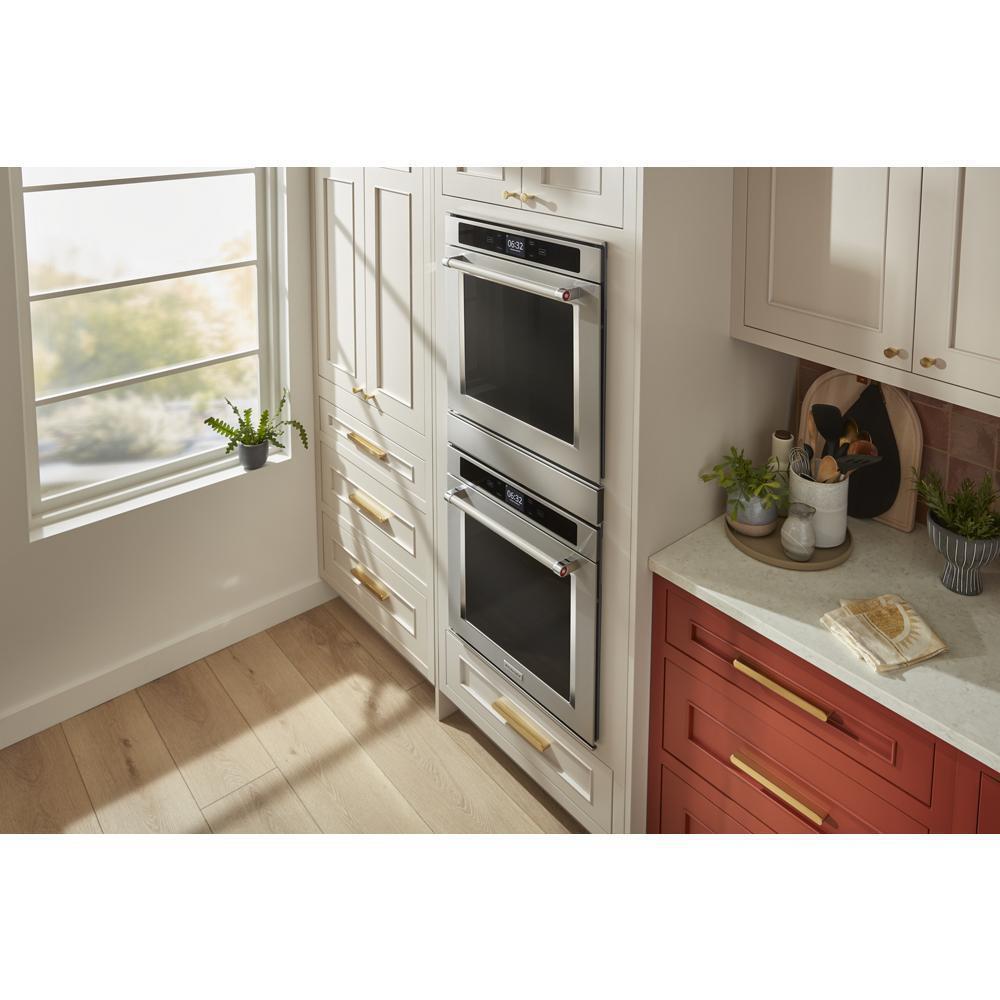

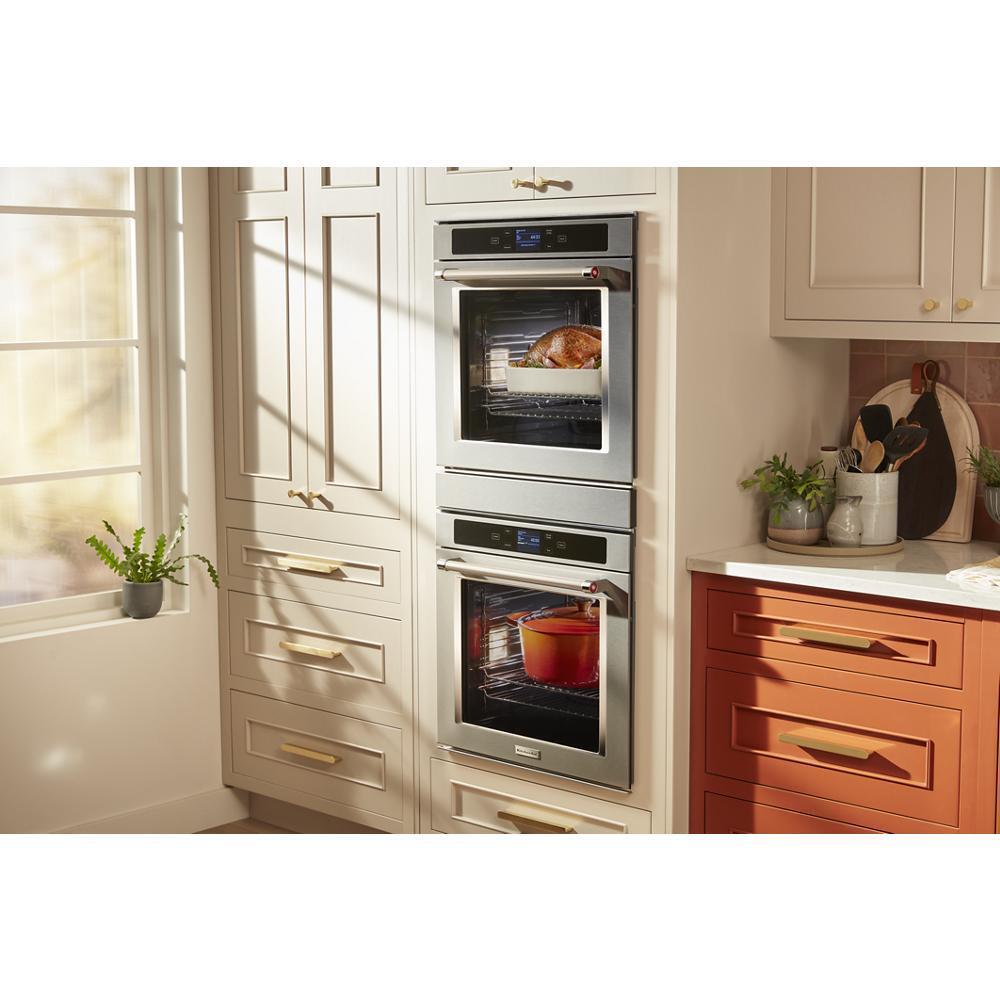

- Flush Installation Option for a seamless built-in look
- PRINTSHIELD Finish coating resists smudges and fingerprints
- Self-Cleaning Cycle uses high temperatures not harsh chemicals
- Self-Close Doors gently shut themselves when your hands are full
- Wi-Fi enabled model with smart features and mobile app

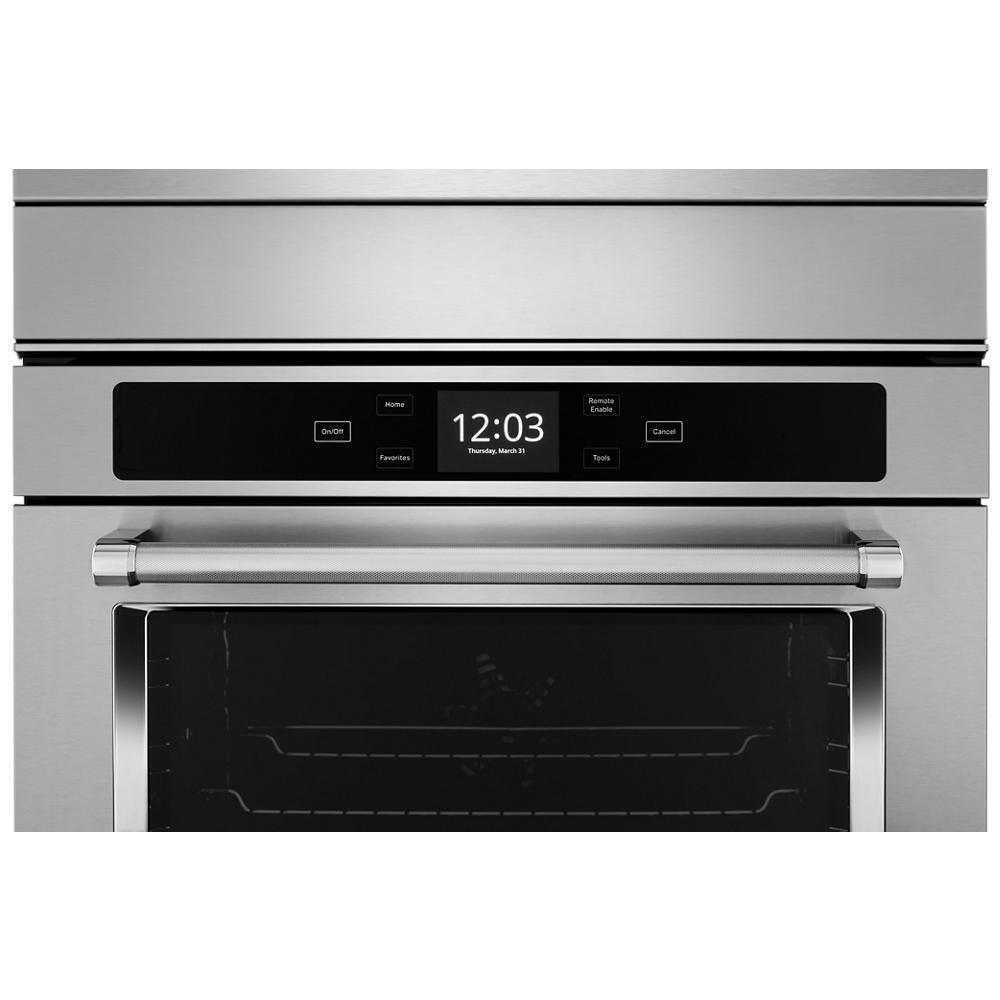

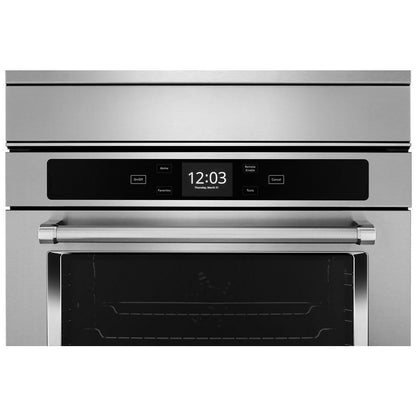

- Touchscreen Controls make it easy to see and select cooking modes

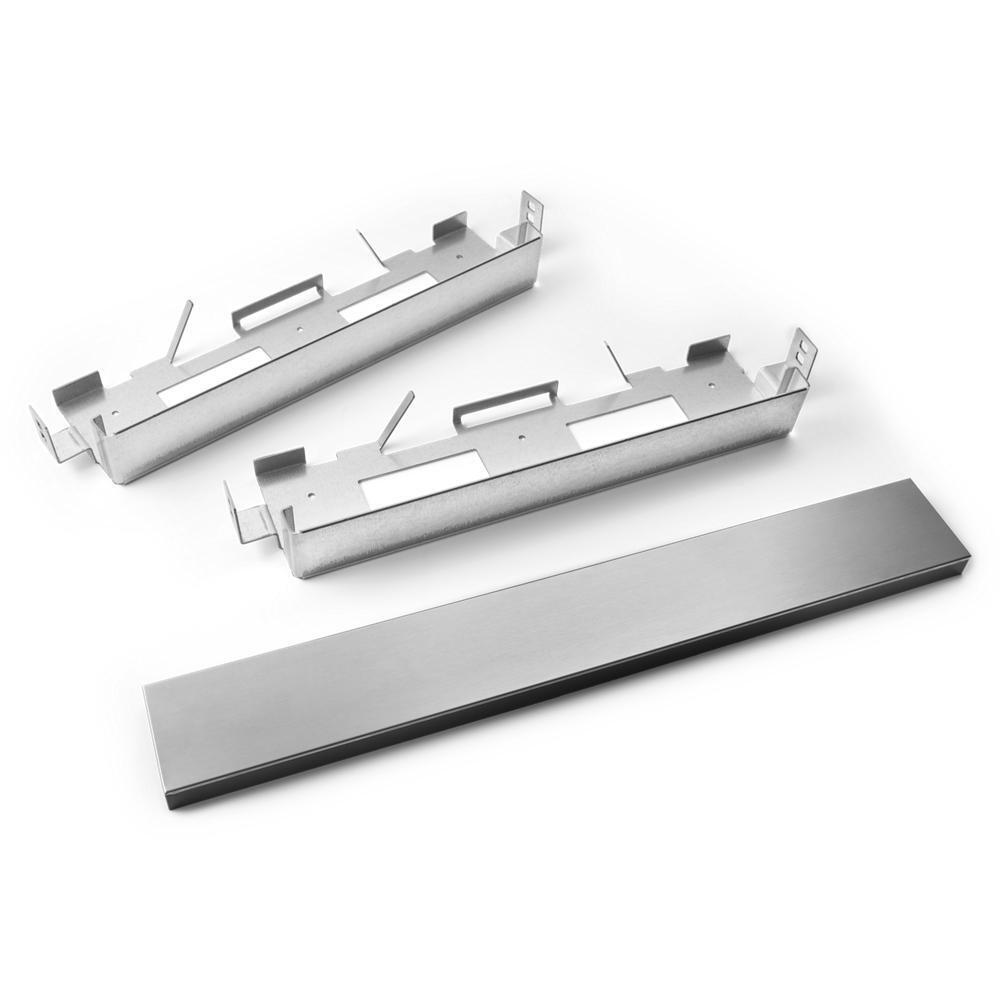

- Trim Kit included for easy replacement of existing 24" wall oven
- True Convection for consistent baking and roasting

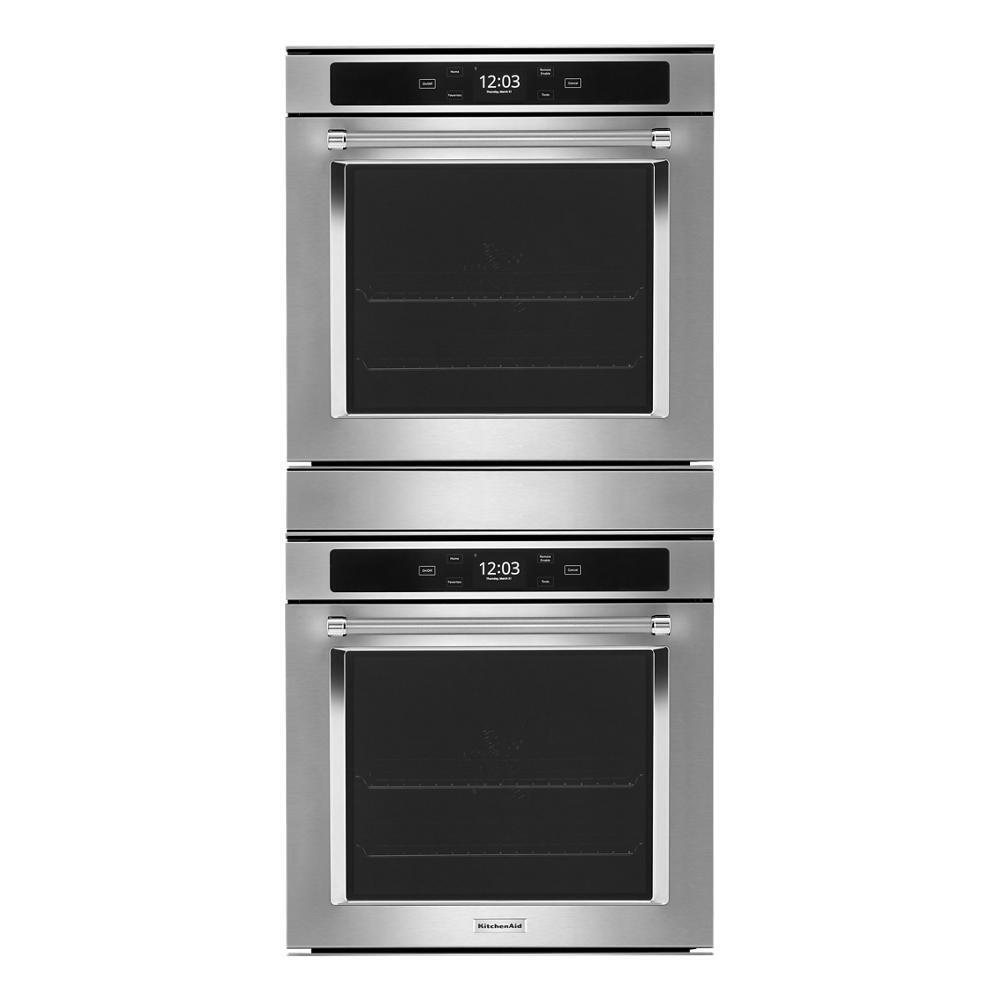

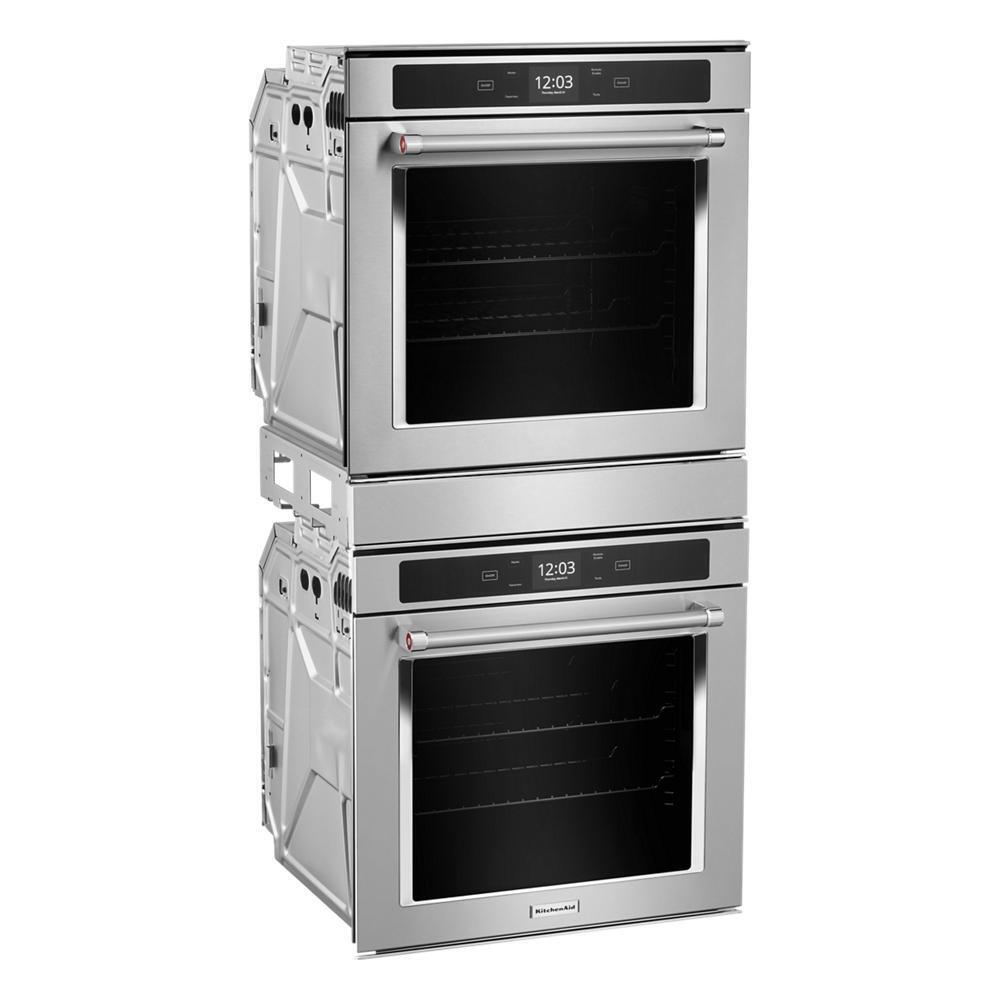

The slim design of this KitchenAid® 24" Smart Double Wall Oven helps you fit your baking, broiling and roasting in any size kitchen. The Five-Level Rack Support makes it easy to rearrange two oven racks, adding flexibility for a variety of cooking adventures. True Convection circulates hot air throughout the entire oven, providing consistent temperatures for pastries, roasts and more.
| Certifications | |
| Cul | Yes |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Type | Glass Touch Digital Display |
| Display Color | Full Color |
| Electronic Display Type | LCD Touch Screen |
| Details | |
| Delay Clean | Delay Clean (Upper Oven) |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| Light Control | Oven Light Touch Pad |
| Oven Automatic Shut-off | Yes |
| Oven Selections | Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Favorites; Frozen Bake; Full Meal Cook; Keep Warm/Warm Hold; Language Conversion; Proofing; Start Time; Stop Time; Timer |
| Oven Type | Double |
| Power On Indicator Light | Yes |
| Temperature Conversion | Yes |

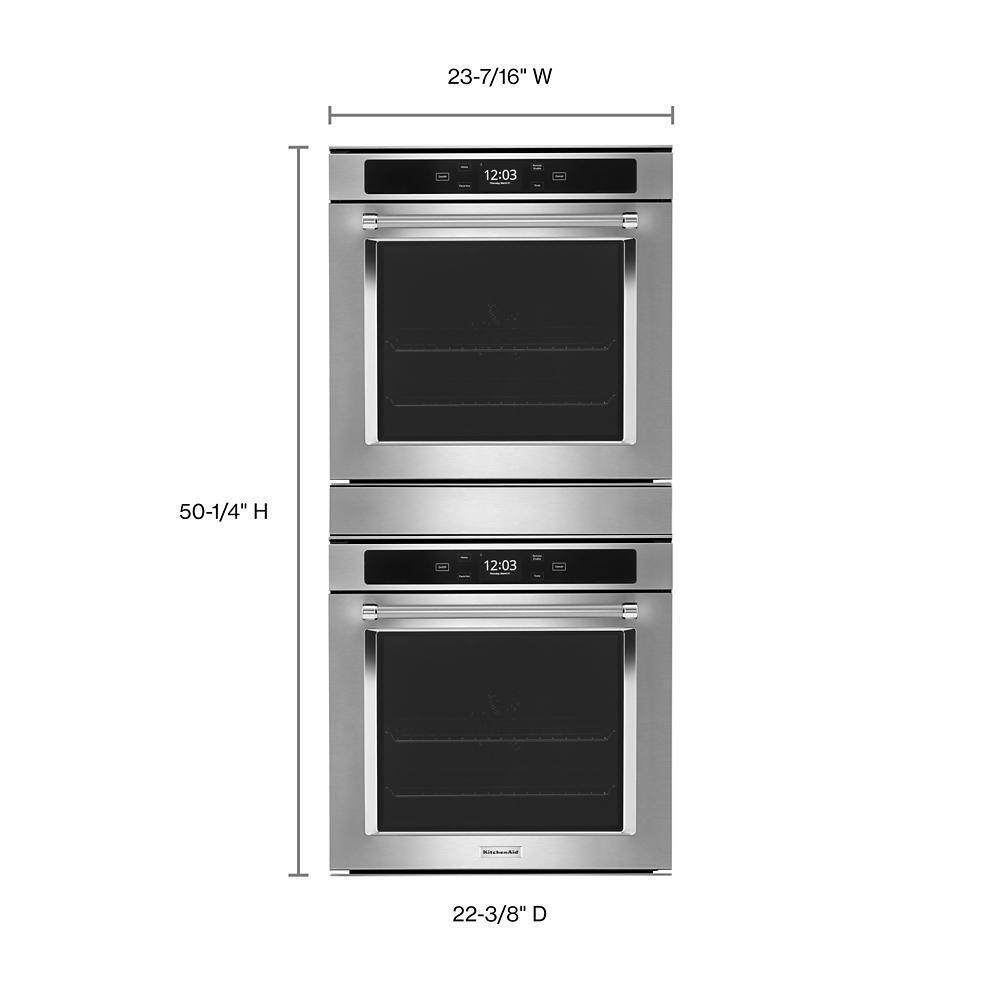

| Dimensions | |
| Product Height | 50.25 |
| Carton Height | 61.42 |
| Gross Weight | 178.6 |
| Carton Width | 25.2 |
| Lower Oven Interior Height | 14.563 |
| Upper Oven Interior Width | 18 |
| Product Depth | 22.5 |
| Depth With Door Open 90 Degree | 40.5 |
| Lower Oven Interior Width | 18 |
| Cutout Depth | 23.25 |
| Cutout Height | 49.75 |
| Depth Closed Excluding Handles | 22.5 |
| Depth Closed Including Handles | 24.75 |
| Upper Oven Interior Depth | 17 |
| Carton Depth | 27.17 |
| Cutout Width | 22.625 |
| Upper Oven Interior Height | 14.563 |
| Net Weight | 167.6 |
| Product Width | 23.4375 |
| Lower Oven Interior Depth | 17 |
| Electrical | |
| Power Cord Included | No |
| Exterior Details | |
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| General | |
| Wall Oven Features | Smart Appliance |
| Microwave Details | |
| Language Conversion | English/French |
| Oven Details | |
| Bake Element Power | 1,150 W |
| Broiler Element Power | 2,045 W |
| Broiler Location | Top of Oven |
| Convection Element Power | 2,000 |
| Convection Element Type | True Convection |
| Convection Functions | Bake; Broil |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | No |
| Interior Coating | Porcelain |
| Interior Color | Grey |
| Light Type | Halogen |
| Lower Oven Number of Oven Lights | 2 |
| Number of Bake Elements | 1 |
| Number of Broil Elements | 1 |
| Number of Lower Oven Racks | 2 |
| Number of Upper Oven Racks | 2 |
| Number of Upper Rack Guides | 5 |
| Oven Cleaning Type | Self-Cleaning Upper/Manual Clean Lower |
| Upper Oven Number of Oven Lights | 2 |
| Smart Compatibility | |
| Connectivity | Amazon Alexa; Android; Google Assistant; iOS |
| Smart Appliance | Yes |
| Works With | App; Remote Access; Voice Controlled; WiFi |
