- Assisted Cooking Modes offer 30+ modes from broil to slow roast

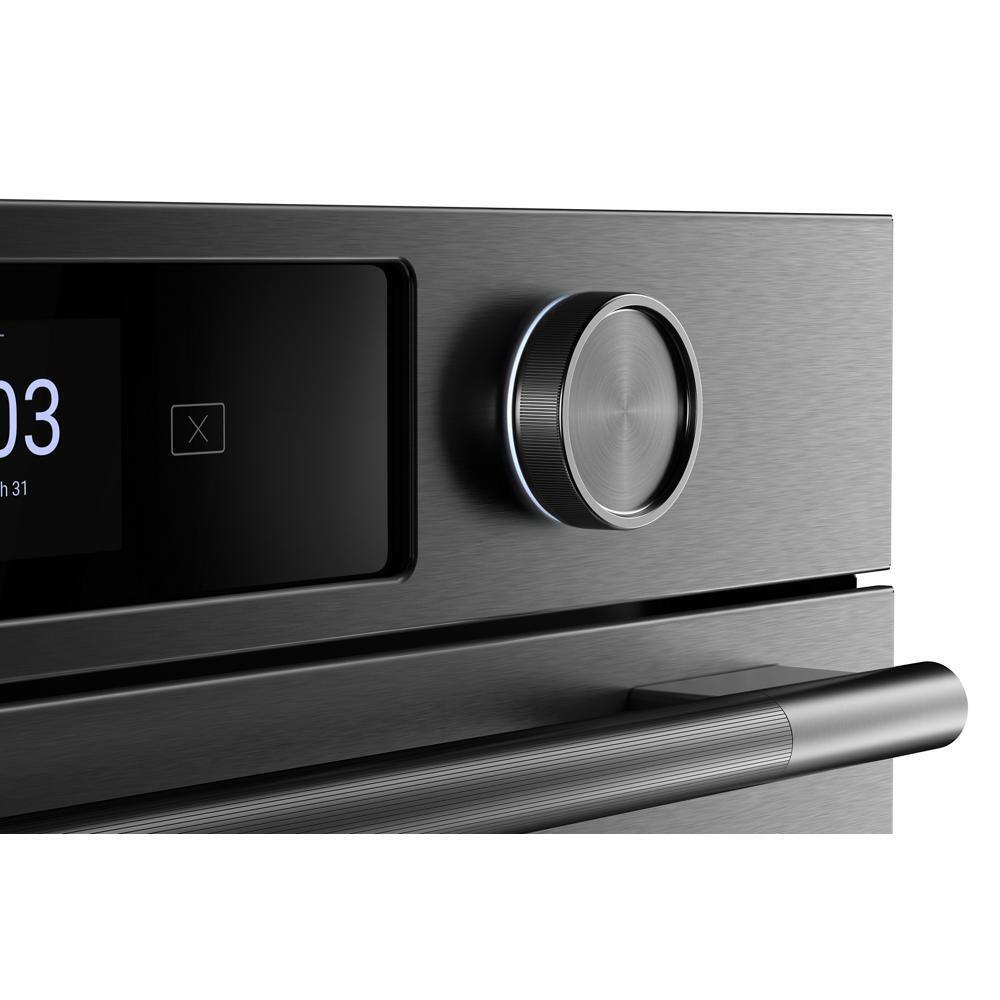

- Backlit Knobs twist to navigate cooking modes and home screen
- FIT System Limited Guarantee allows oven to match existing cabinet cutout height
- Make your own restaurant-style pizzas with Fresh Pizza Mode
- KitchenAid Brand's Most Precise Even-Heat™ True Convection
- No Preheat Air Fry Mode circulates hot air to crisp and brown
- No Preheat Slow Roast works with a high, medium or low setting
- This microwave is a Wi-Fi enabled Smart Appliance model
- Steam Bake mode plus the included tray adds additional moisture during baking
- Temperature Probe provides readouts wihtout opening the door

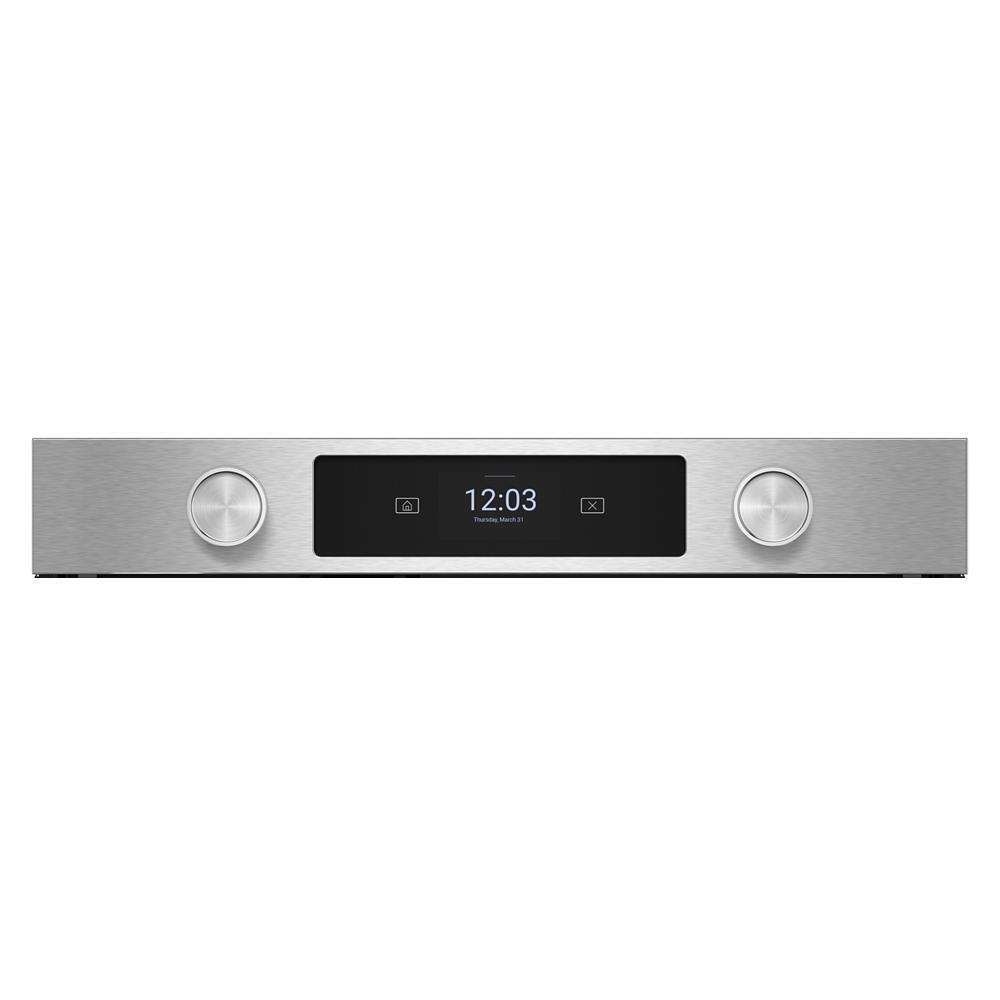

- Touch-Activated Controls with easy-to-read LCD Display

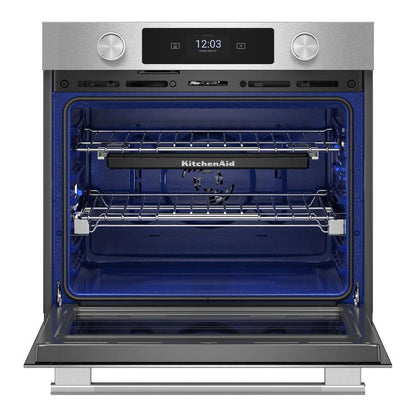

Explore new recipes with built-in tips on this KitchenAid smart wall oven, featuring our Most Precise Even-Heat™ True Convection and Assisted Cooking Modes. LED Touchscreen display and backlit knobs allow for tactile display navigation. The backlit knobs also provide a visual cue throughout the cooking process, illuminating when the oven is preheating and flashing when cooking is finished.
Certifications | |
Ada Compliant | Yes |
Cul | Yes |
Energy Rating (kwh/year) | 333 |
Prop65 | Standard |
Star K Certified | Star K Certified |
Ul | Yes |
Controls | |
Control Type | Full Color LCD Electronic Touch |
Display Color | Full Color |
Electronic Display Type | LCD |
Details | |
Air Fry | Yes |
Cooktop Combinations | KCES550; KCES556; KCES950; KCES956; KCGS350; KCGS356; KCGS550; KCGS556; KCGS950; KCGS956; KCIG550; KCIG556; KECC604; KECC607; KECC664; KECC667; KGCC506; KGCC566; KICU509; KICU569 |
Delay Clean | No |
Flush Installation Approved | Yes |
Fuel Type | Electric |
Light Control | Oven Light Touch Pad |
Lp Convertible | No |
Oven Automatic Shut-off | Yes |
Oven Configuration | Single Oven |
Oven Type | Single |
Power On Indicator Light | Yes |

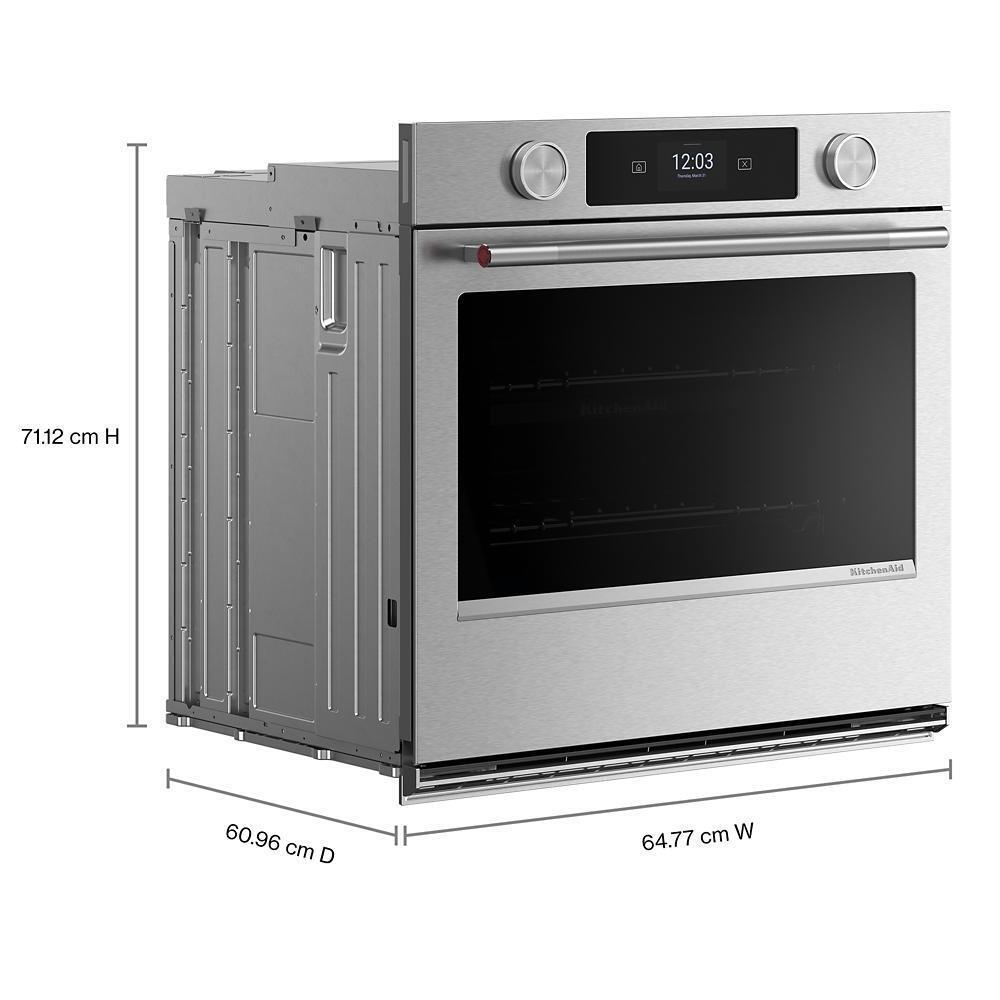

Dimensions | |
Product Height | 28.0 |
Carton Height | 31.81 |
Gross Weight | 169.9 |
Oven Interior Height | 18 |
Carton Width | 32 |
Product Depth | 24.0 |
Oven Interior Depth | 19 |
Depth With Door Open 90 Degree | 46.188 |
Depth Excluding Doors | 23.25 |
Cutout Depth | 24 |
Cutout Height | 28 |
Depth Closed Excluding Handles | 24.5 |
Depth Closed Including Handles | 26.938 |
Carton Depth | 31 |
Cutout Width | 25.5 |
Oven Capacity | 4.3 |
Oven Interior Width | 22 |
Net Weight | 164.9 |
Product Width | 25.5 |
Electrical | |
Power Cord Included | No |
Exterior Details | |
Door Type | Metal & Glass |
Oven Window Size | Extra Large |
Microwave Details | |
Language Conversion | English/French/Spanish |
Oven Details | |
Bake Element Power | 2800W |
Broiler Element Power | 4000W |
Broiler Location | Top of Oven |
Convection Element Power | 3200 |
Convection Element Type | True Convection |
Convection Functions | Bake, Broil, Air Fry; Convection Conversion |
Door Broil Position | Closed |
Door Lock | Yes |
Door Removable | Yes |
Hidden Bake Element | Yes |
Installable Under Cooktop | Yes |
Installable Under Oven | Yes |
Interior Coating | Porcelain |
Light Type | Halogen |
Number of Bake Elements | 2 |
Number of Broil Elements | 1 |
Number of Oven Lights | 1 |

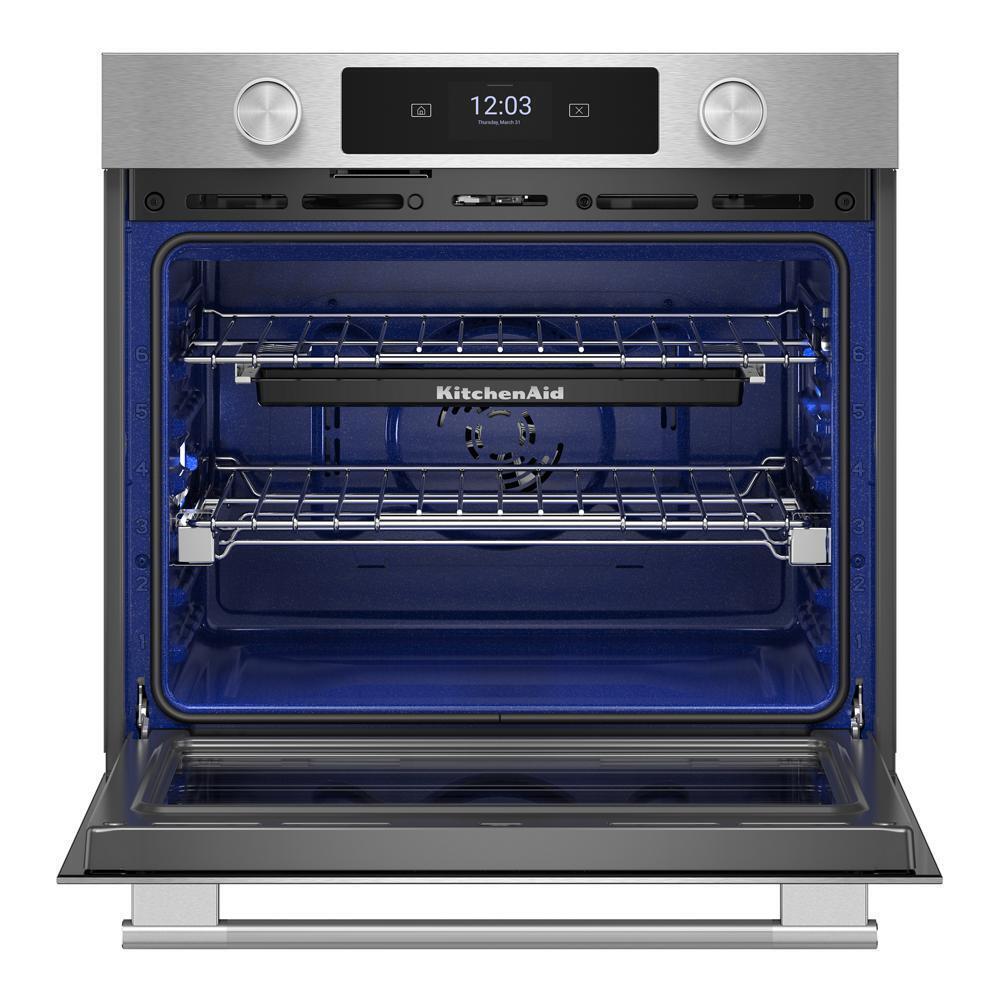

Number of Oven Racks | 2 |
Number of Rack Guides | 6 |
Oven Cleaning Type | Self Clean + Steam Clean |
Self-cleaning Oven Racks | No |
Temperature Probe | Yes |
Smart Compatibility | |
Connectivity | Yes |
