- 5.0 Cu. Ft. Oven Capacity perfect for large items
- 5.0 Cu. Ft. Oven Capacity to cook multiple dishes at once
- Assisted Cooking Modes suggest cook times and temperatures

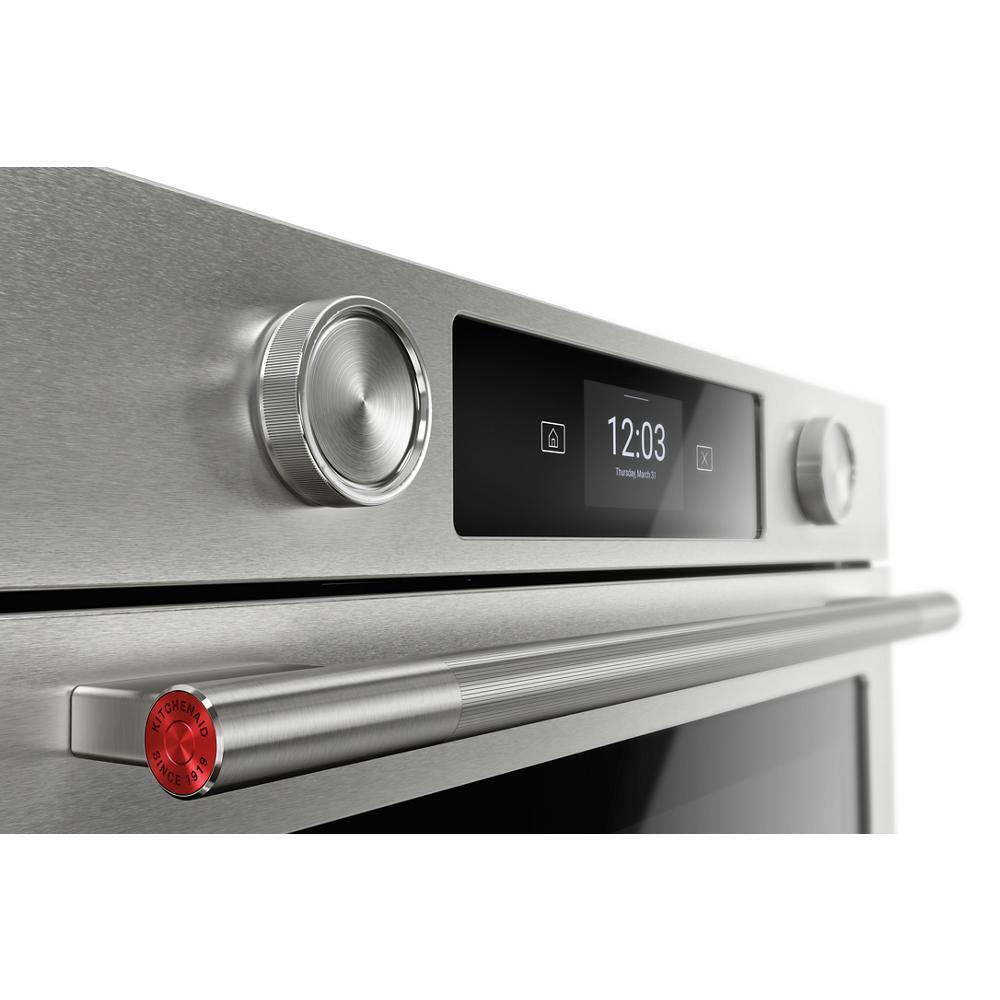

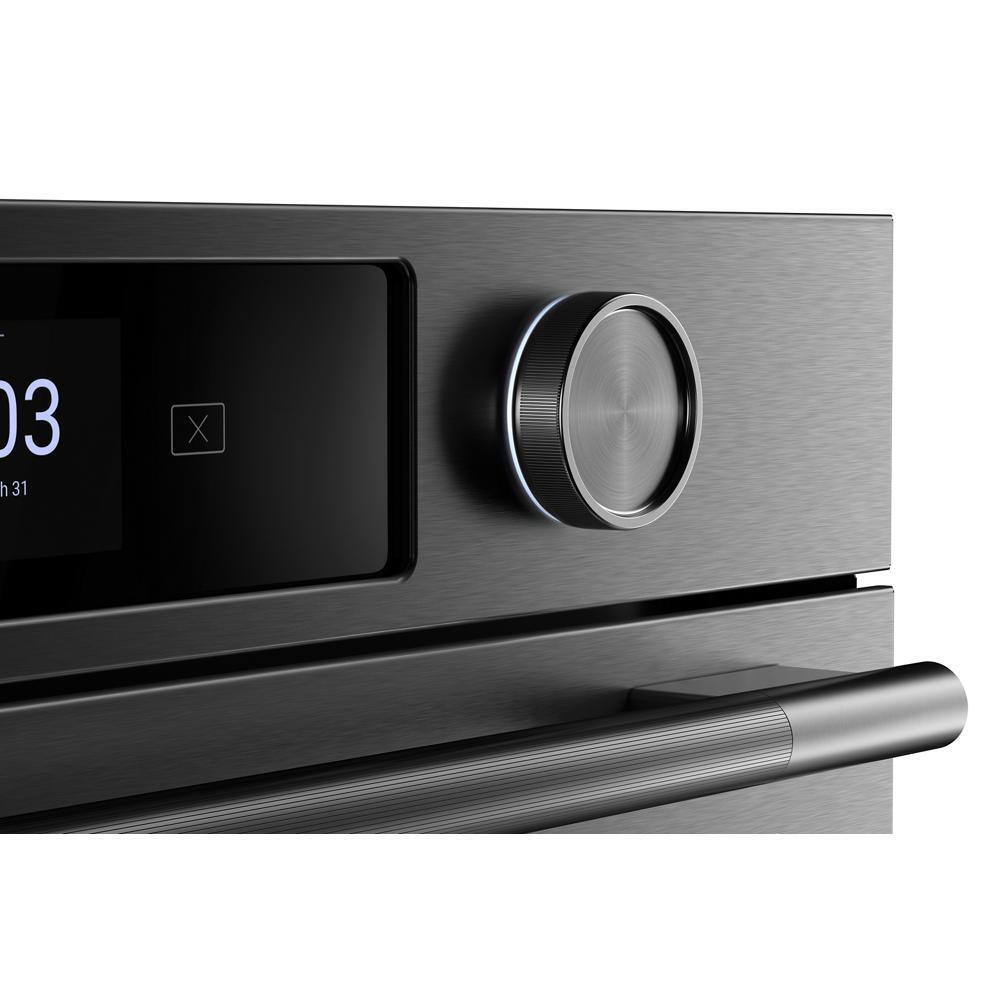

- Backlit Knobs twist to navigate cooking modes and home screen
- Designed To Be Personalized with a curated palette of handles and knobs
- Fit System Limited Guarantee. Exclusions apply. See terms.
- Far View Screen makes it easy to read temperature status from across the room
- Make your favorite cooking settings easy to access by creating and saving them right in the KitchenAid™ App when connected to your appliance
- Make your own restaurant-style pizzas with Fresh Pizza Mode
- KitchenAid Brand's Most Precise Even-Heat™ True Convection

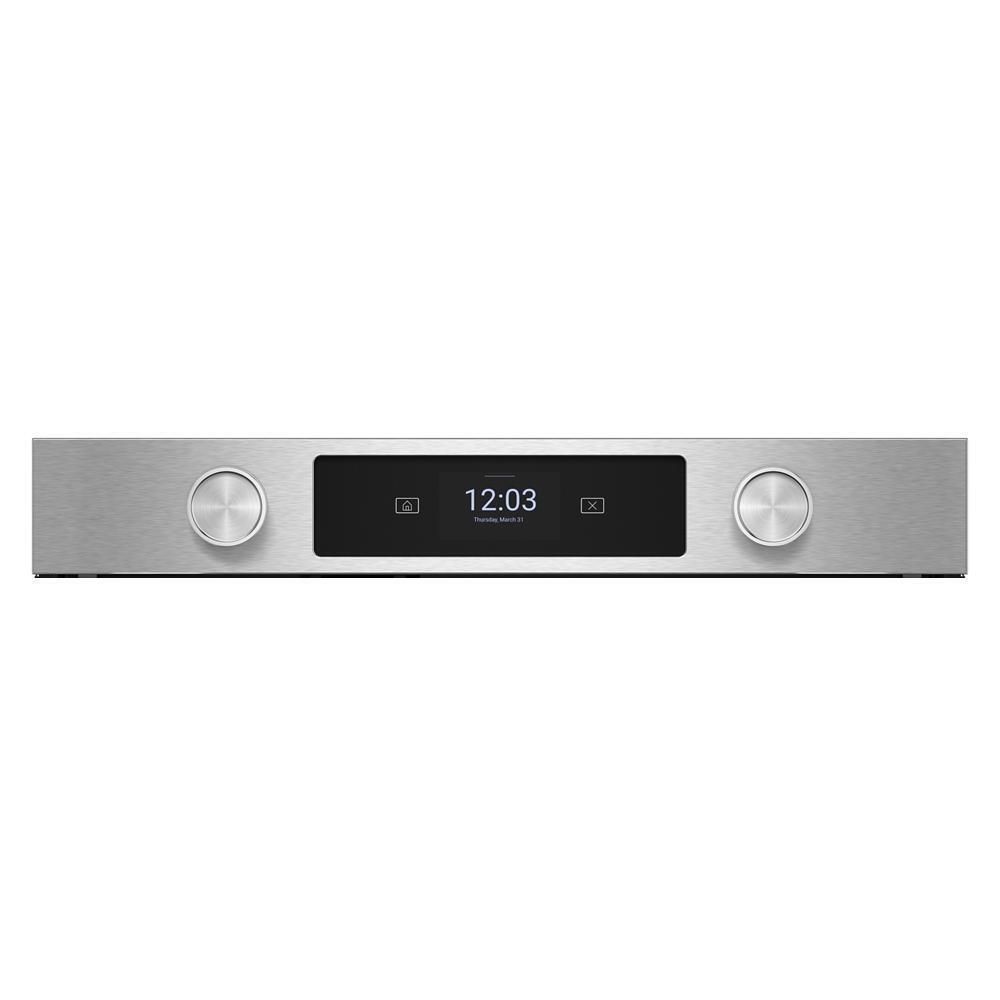

- LCD Touchscreen Display makes it easy to choose settings and track cooking progress at a glance.
- No Preheat Air Fry Mode circulates hot air to crisp and brown
- No Preheat Slow Roast works with a high, medium or low setting
- PRINTSHIELD Finish coating resists fingerprints and smudges
- Proofing Mode promotes rise of yeast doughs
- Proudly assembled in Cleveland, Tennessee, U.S.A.

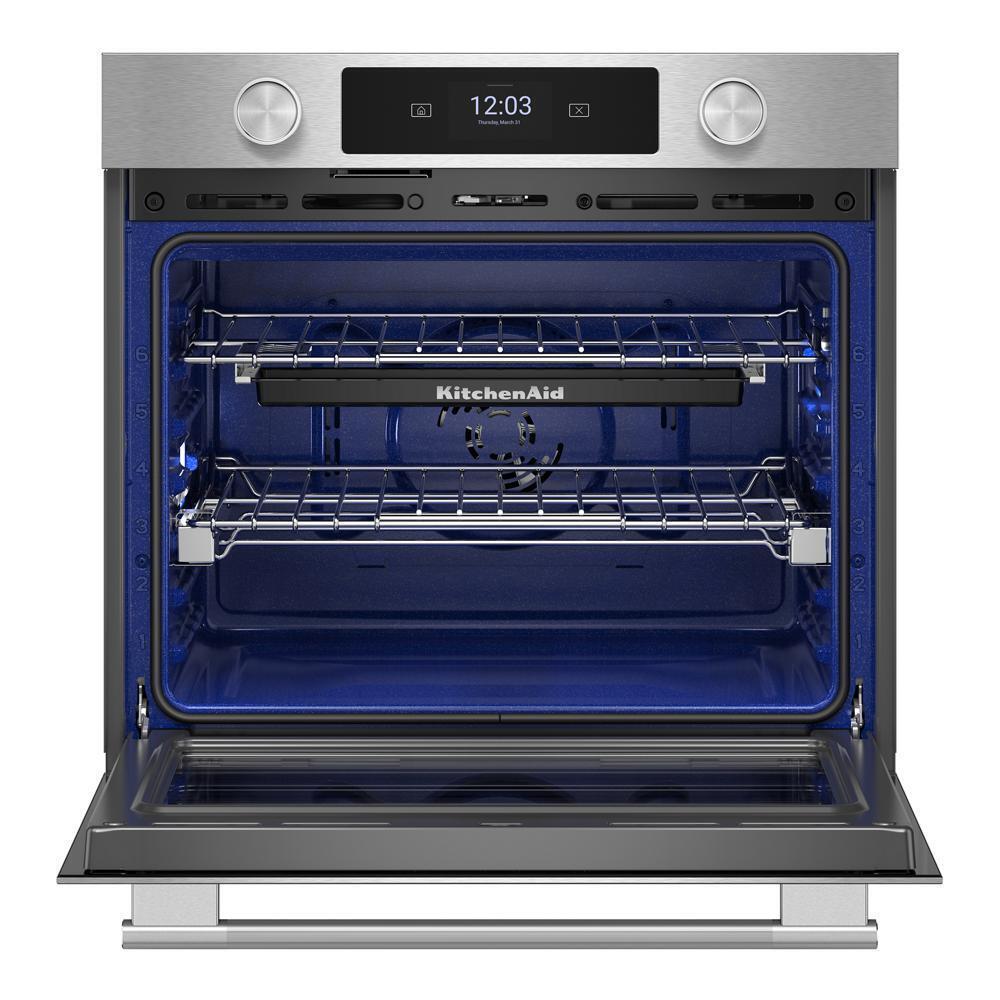

- SATINGLIDE Roll-Out Extension Rack with an easy-grip handle
- Slow Cook builds flavors by cooking at a low temperature over several hours.
- Wi-Fi enabled model with smart features and mobile app
- Smooth-Close Door effortlessly closes to help prevent slamming
- Star-K Certified Sabbath Mode for use on religious holidays
- Steam Bake with Tray adds moisture during baking
- Steam Clean & Self-Cleaning Cycles help keep your oven clean
- Temperature Probe provides readouts wihtout opening the door

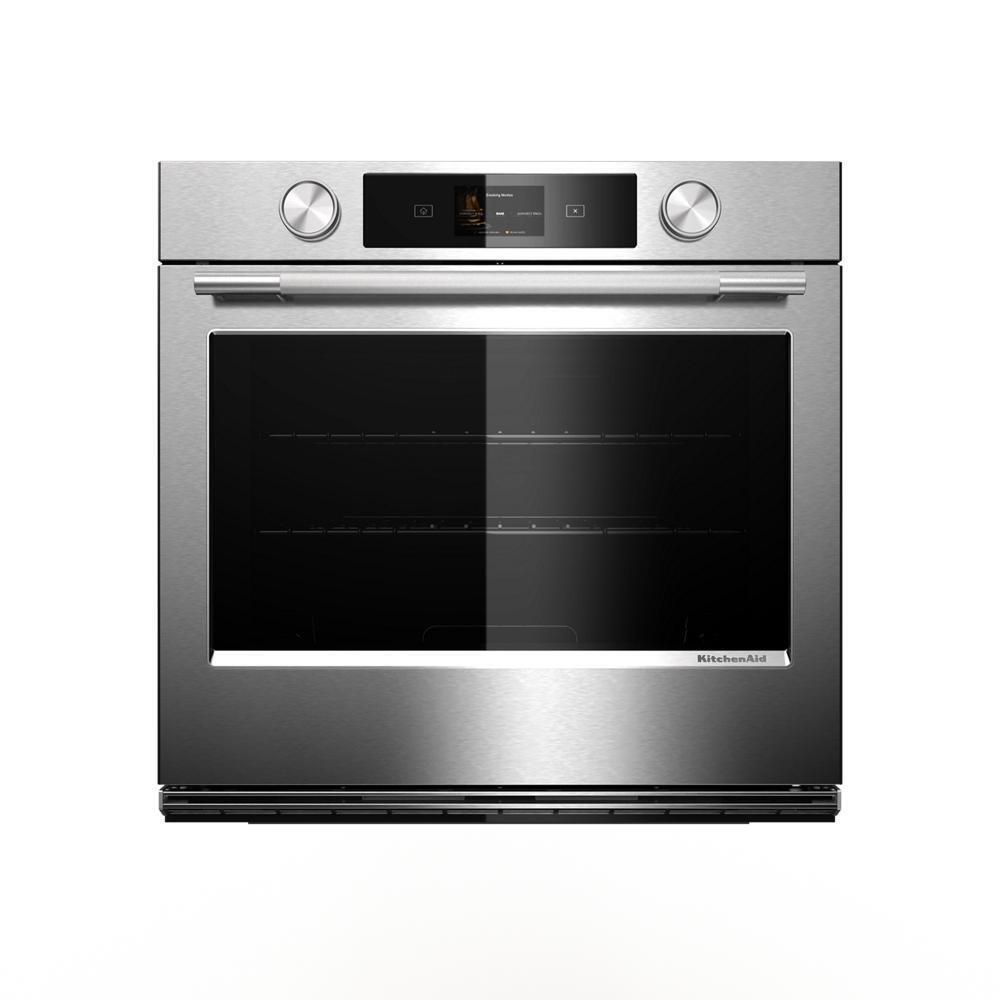

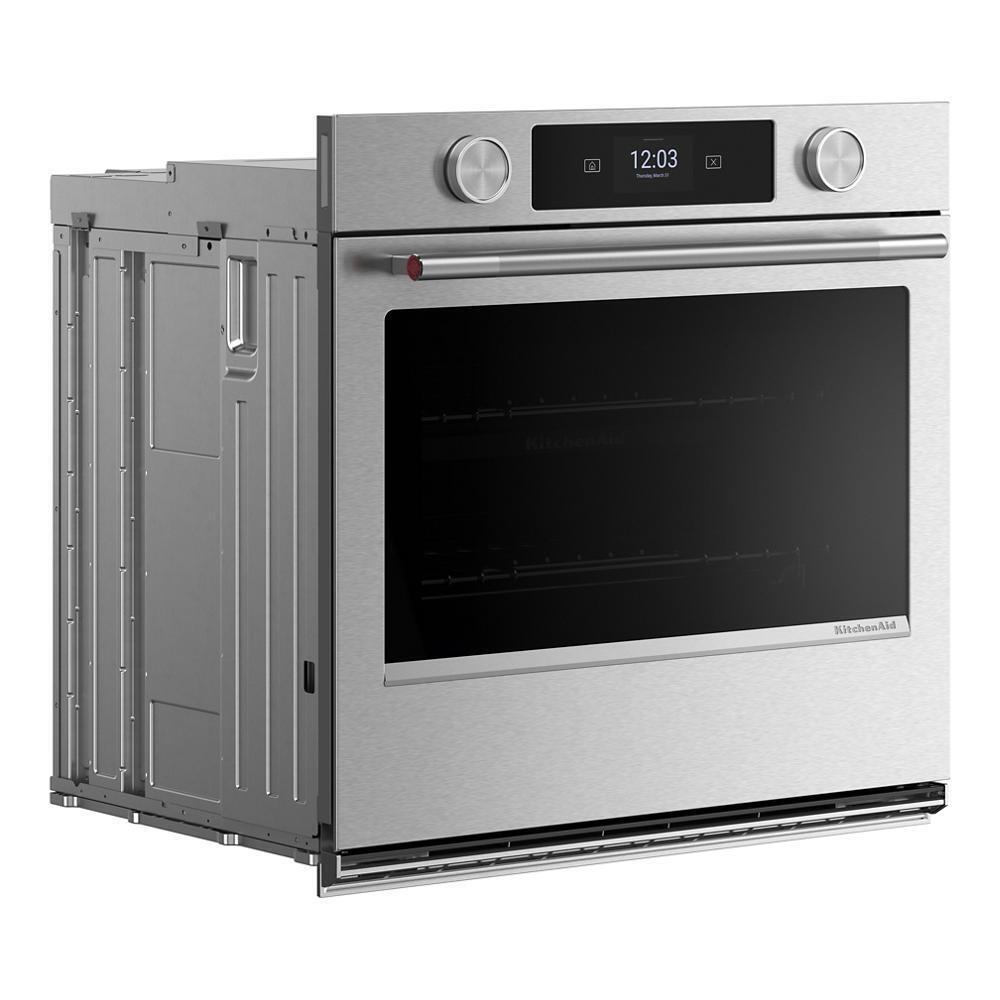

Explore new recipes with built-in tips on this KitchenAid smart wall oven, featuring our Most Precise Even-Heat™ True Convection and Assisted Cooking Modes. LED Touchscreen display and backlit knobs allow for tactile display navigation. The backlit knobs also provide a visual cue throughout the cooking process, illuminating when the oven is preheating and pulsing when cooking is finished. Designed to be personalized, these wall ovens are available in a curated palette of exterior finishes and can be customized with mixed metal hardware.
| Certifications | |
| Ada Compliant | Yes |
| Cul | Yes |
| Energy Rating (kwh/year) | 356 |
| Prop65 | Standard |
| Star K Certified | Star K Certified |
| Ul | Yes |
| Controls | |
| Control Type | Full Color LCD Electronic Touch |
| Display Color | Full Color |
| Electronic Display Type | LCD |
| Details | |
| Air Fry | Yes |
| Cooktop Combinations | KCES550; KCES556; KCES950; KCES956; KCGS350; KCGS356; KCGS550; KCGS556; KCGS950; KCGS956; KECC056; KECC602; KECC604; KECC607; KECC664; KECC667; KGCC506; KGCC566; KICU509; KICU569 |
| Delay Clean | No |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| Light Control | Oven Light Touch Pad |
| Lp Convertible | No |
| Oven Automatic Shut-off | Yes |
| Oven Configuration | Single Oven |
| Oven Selections | Air Fry; Assisted Cooking; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Bake; Convect Broil; Convect Modes; Convect Roast; Cook Time Indicator; Delay Start; Favorites; Keep Warm/Warm Hold; Language Conversion; Proofing; Sabbath Mode; Slow Cook; Start Time; Steam Bake; Temperature Probe; Timer |
| Oven Type | Single |
| Power On Indicator Light | Yes |
| Temperature Conversion | No |

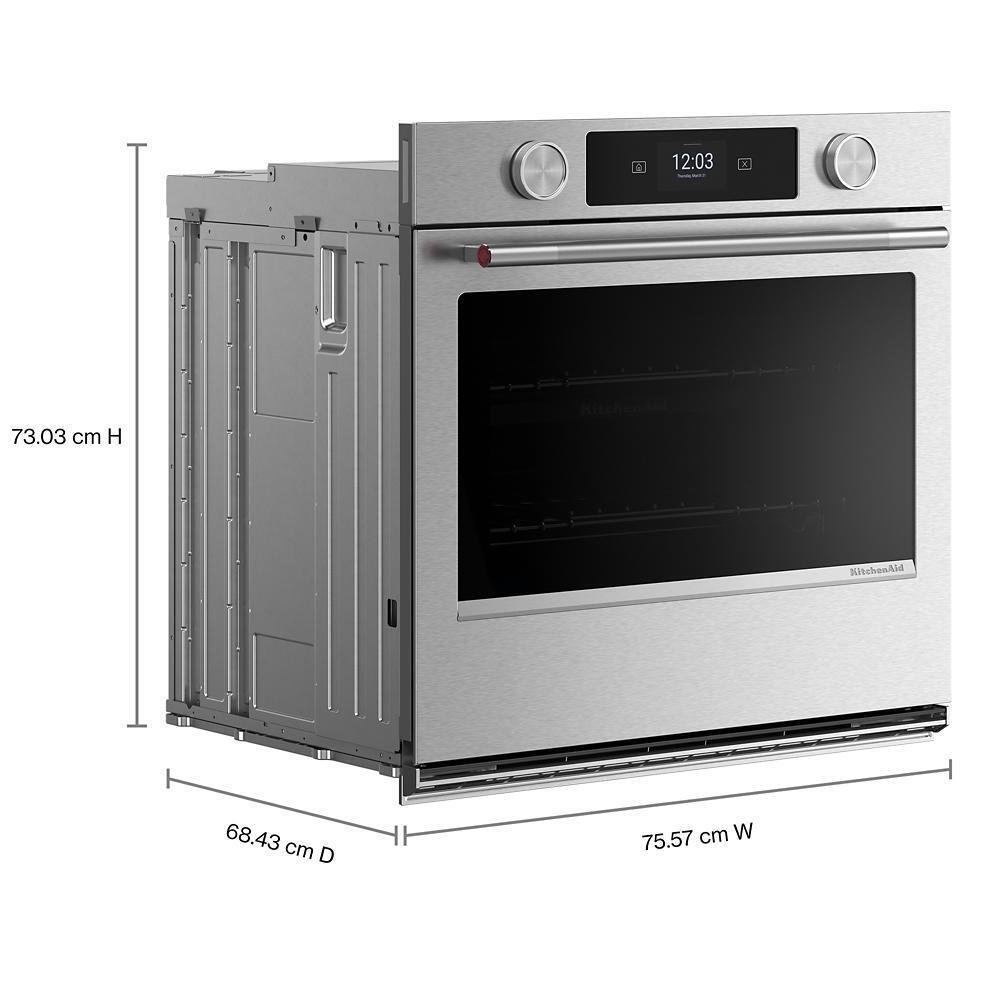

| Dimensions | |
| Product Height | 28.75 |
| Carton Height | 31.81 |
| Gross Weight | 172.4 |
| Oven Interior Height | 18 |
| Carton Width | 35 |
| Product Depth | 26.9375 |
| Oven Interior Depth | 19 |
| Depth With Door Open 90 Degree | 46.188 |
| Depth Excluding Doors | 23.25 |
| Cutout Depth | 24 |
| Cutout Height | 28 |
| Depth Closed Excluding Handles | 24.5 |
| Depth Closed Including Handles | 26.938 |
| Carton Depth | 31 |
| Cutout Width | 28.5 |
| Oven Capacity | 5 |
| Oven Interior Width | 25 |
| Net Weight | 167.4 |
| Product Width | 29.75 |
| Electrical | |
| Power Cord Included | No |
| Exterior Details | |
| Door Type | Metal & Glass |
| Oven Window Size | Extra Large |
| General | |
| Personalized Hardware | Yes |
| Microwave Details | |
| Language Conversion | English/French/Spanish |
| Oven Details | |
| Bake Element Power | 2800W |
| Broiler Element Power | 4000W |
| Broiler Location | Top of Oven |
| Convection Element Power | 3200 |
| Convection Element Type | True Convection |
| Convection Functions | Bake, Broil, Air Fry; Convection Conversion |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | Yes |
| Installable Under Oven | Yes |
| Interior Coating | Porcelain |
| Light Type | Halogen |
| Number of Bake Elements | 2 |
| Number of Broil Elements | 1 |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 6 |
| Oven Cleaning Type | Self Clean + Steam Clean |
| Oven Cooking System | True Convection |
| Oven Rack Type | 1 Steam Rack, 1 Gliding Roll-out Rack |
| Self-cleaning Oven Racks | No |
| Temperature Probe | Yes |
| Temperature Sensor | Yes |
| Smart Compatibility | |
| Connectivity | Amazon Alexa; Android; Google Assistant; iOS |
| Smart Appliance | Yes |
| Works With | App; Bluetooth; Remote Access; WiFi |
