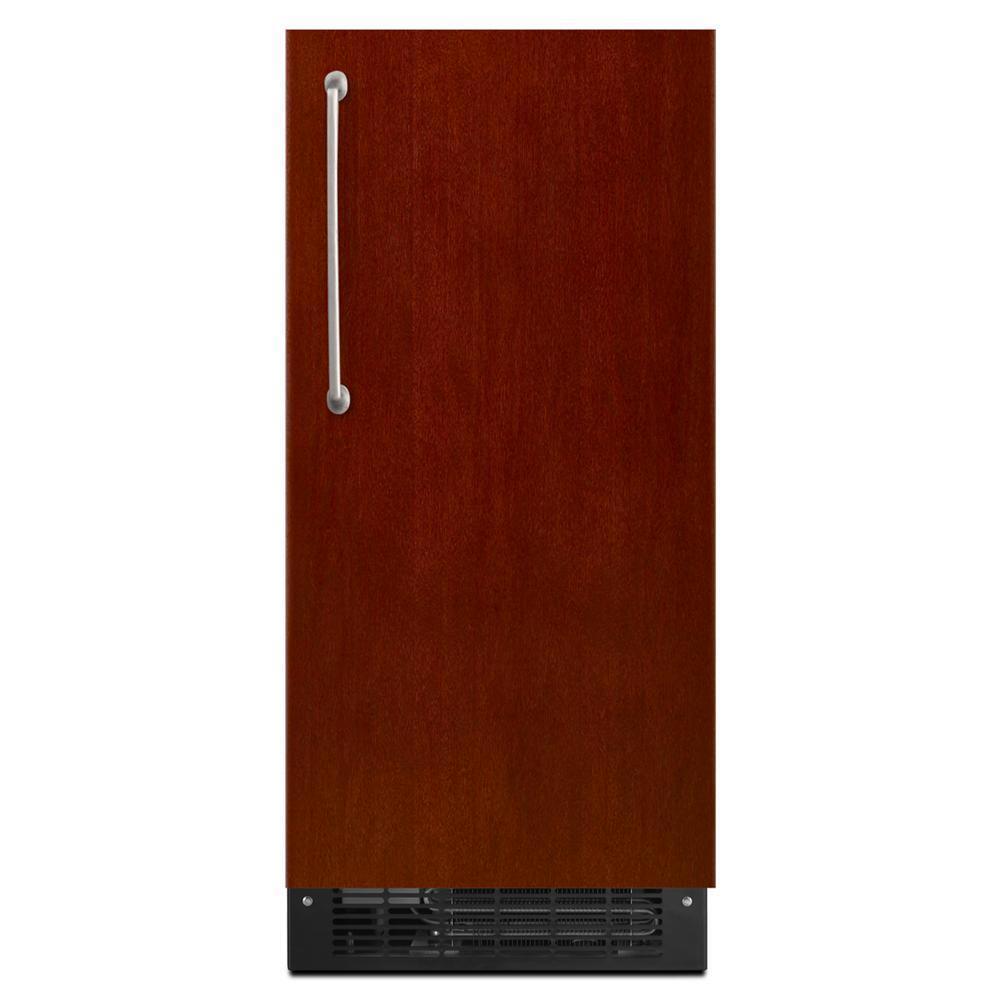

KUIX535HPA KitchenAid® 15'' Automatic Ice Maker KUIX535HPA

Enjoy an ample supply of clear, uniformly shaped ice cubes ideal for a variety of everyday applications. This 15-inch ice maker accepts an overlay-style front panel (requires custom panel and handle, not included) that adds an elegant finishing touch to your kitchen or bar area. Fully Flush Installation blends with surrounding cabinetry for a refined built-in look.

Certifications
Ada Compliant	No
Prop65	Standard
Ul	Yes
Controls
Ambient Temperature Range	55F to 110F
Control Location	Interior Up Front
Control Type	Electronic Touch
Details
Door Opening Direction	Right
Drain Connection	Rear Access 5/8in. OD
Drain Pump	Pump Included
Ice Capacity Storage	25
Stainless Steel Cutting Grid	3/4in. x 3/4in. Cubes
Water Inlet Connection	1/4in. OD PEX Tubing
Water Supply Pressure	30 - 120 psi

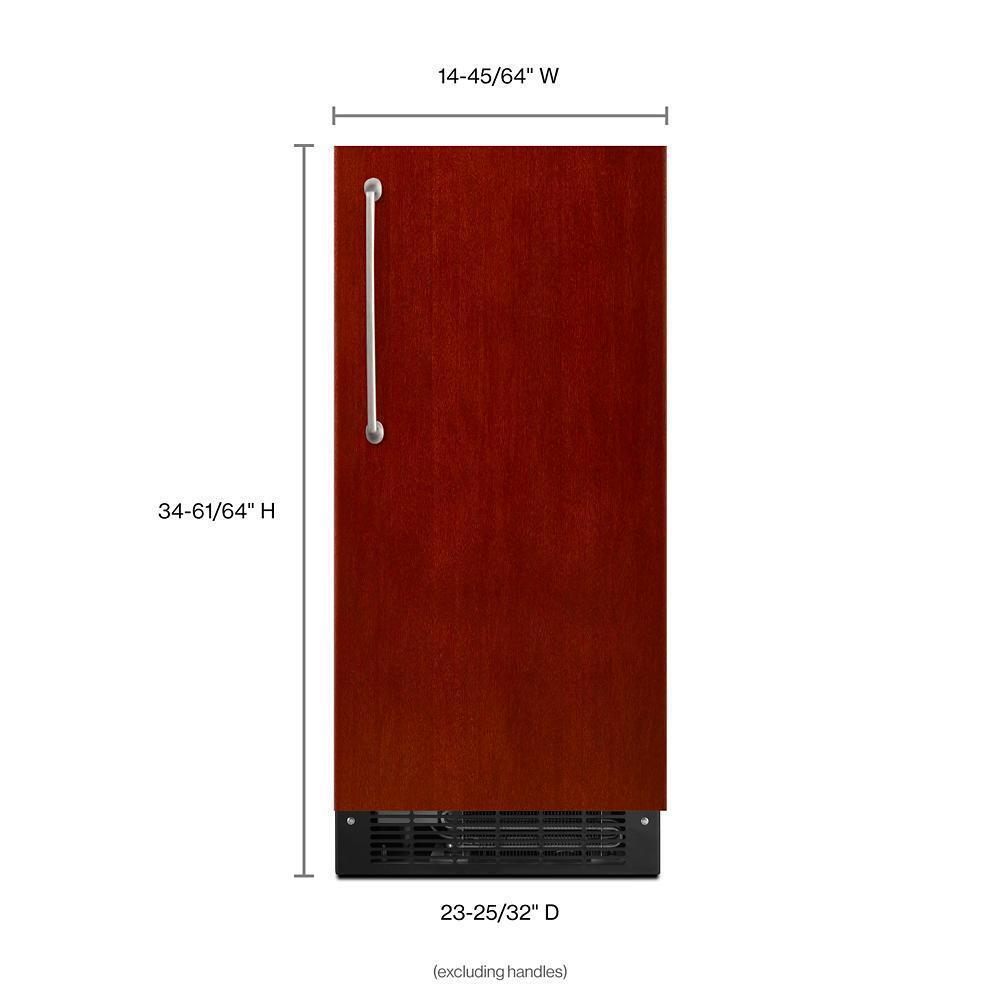

Dimensions
Carton Depth	28.37
Carton Height	36.07
Carton Width	17.25
Cutout Depth	25
Cutout Height	34.5
Cutout Width	15
Gross Weight	107
Height To Top of Cabinet	33.625
Height To Top of Door Hinge	34.063
Net Weight	96.5
Exterior Details
Cabinet Finish	Textured
Cabinet Material	Prepainted Steel
Handle Location	Horizontal
Reversible Door	Yes
Filter Details
Water Filter Indicator/reset	Yes
Water Filter Location	Interior
Water Filter Part Number	F2WC9I1
Freezer Details
Defrost Type	Automatic Defrost
Icemaker Details
Ice Maker On/off	Yes
Oven Details
Interior Light	LED
Refrigerator Details
Interior Liner Finish	Plastic
Liner Color	White
