- 55" UHD 4K Resolution (3,840 x 2,160)
- Zoom™ Certifed for maxium effiency
- UHD 4K camera & built-in microphone that automatically focus on speaker
- Built-in Windows PC & speakers
- In-cell touch digital whiteboard with touch pen
- Pre-installed video conferencing applications
Make your online meetings more productive and interactive with LG One:Quick Works.
All-in-One Video Conferencing Solution
Video conferencing setup doesn't need to be stressful. This all-in-one solution features a built-in Windows PC, crisp 4K UHD camera, microphone, speaker and a digital whiteboard. Experience clear video and sound qualities in your meetings.

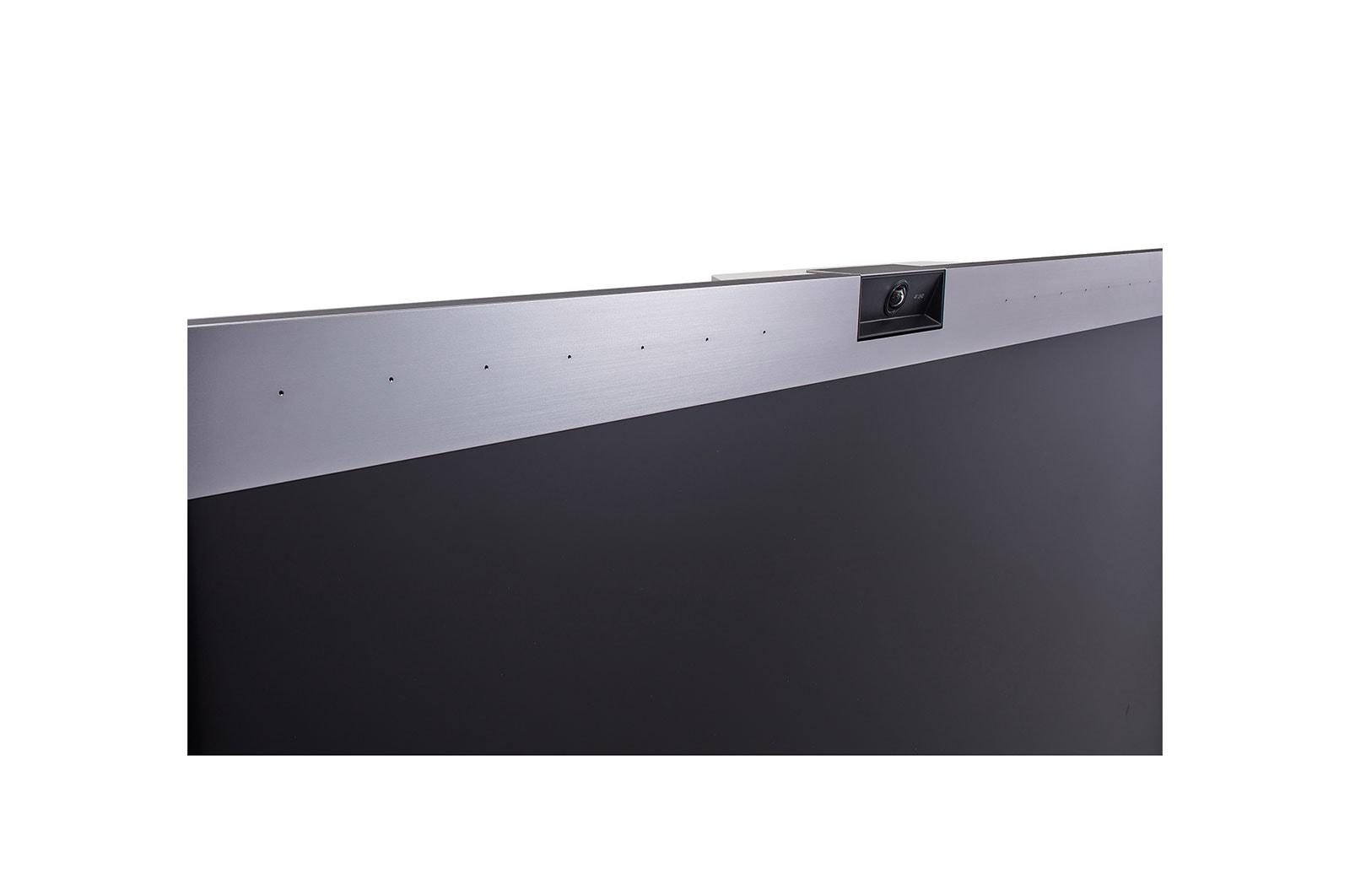

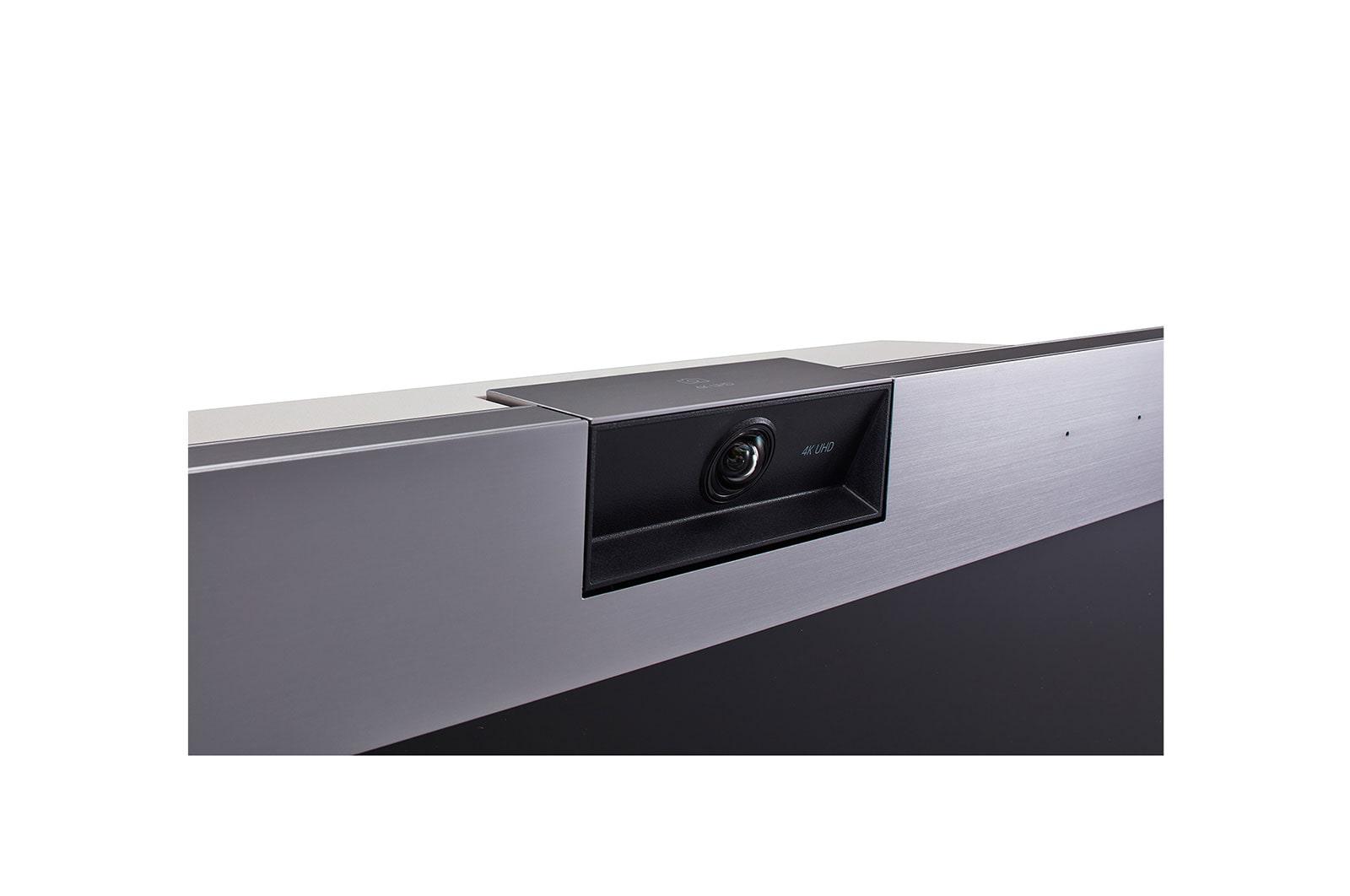

Smart Auto Focusing
Have the camera and mic move to you, not the other way around. One:Quick Works* automatically focuses on the speaker and it is effective in clearly capturing voices up to six meters away with minimal background noise, while the UHD 4K camera automatically tracks and focuses on the individual speaker.
Multi-Touch and Annotation
Equipped with In-cell touch, One:Quick Works helps turn ideas into reality with 10 points of multi touch. You can also write with the touch pen that is included. And, it conveniently sends files such as notes, writings, drawings* and images created in meetings via e-mail.
Voice Recording
Rather than keeping separate meeting minutes, simply record* the meeting and share files with participants via e-mail.
Split View for Multi-Tasking
Share files and organize ideas simultaneously with members in the meeting room.

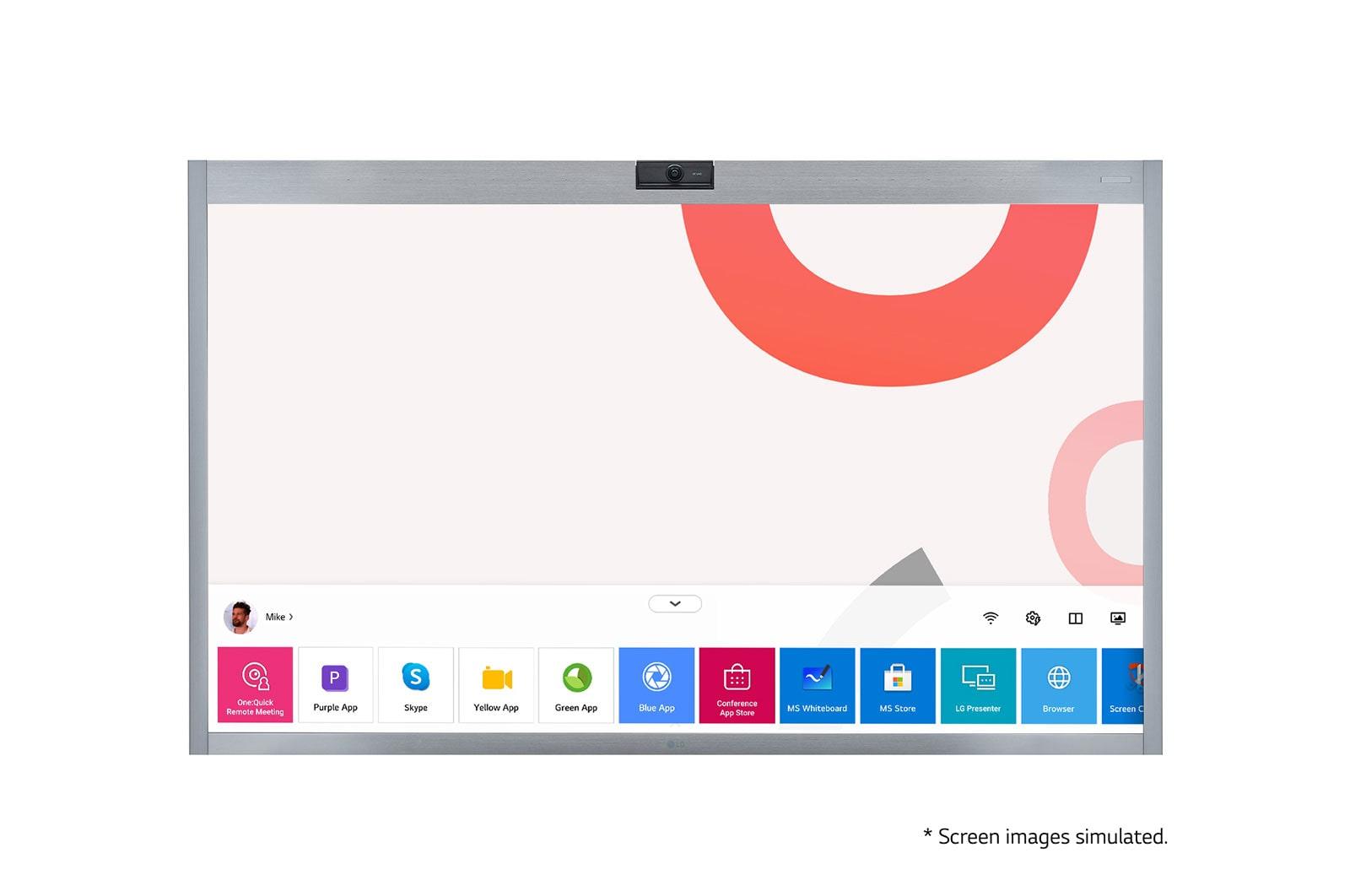

Optimized User Experience

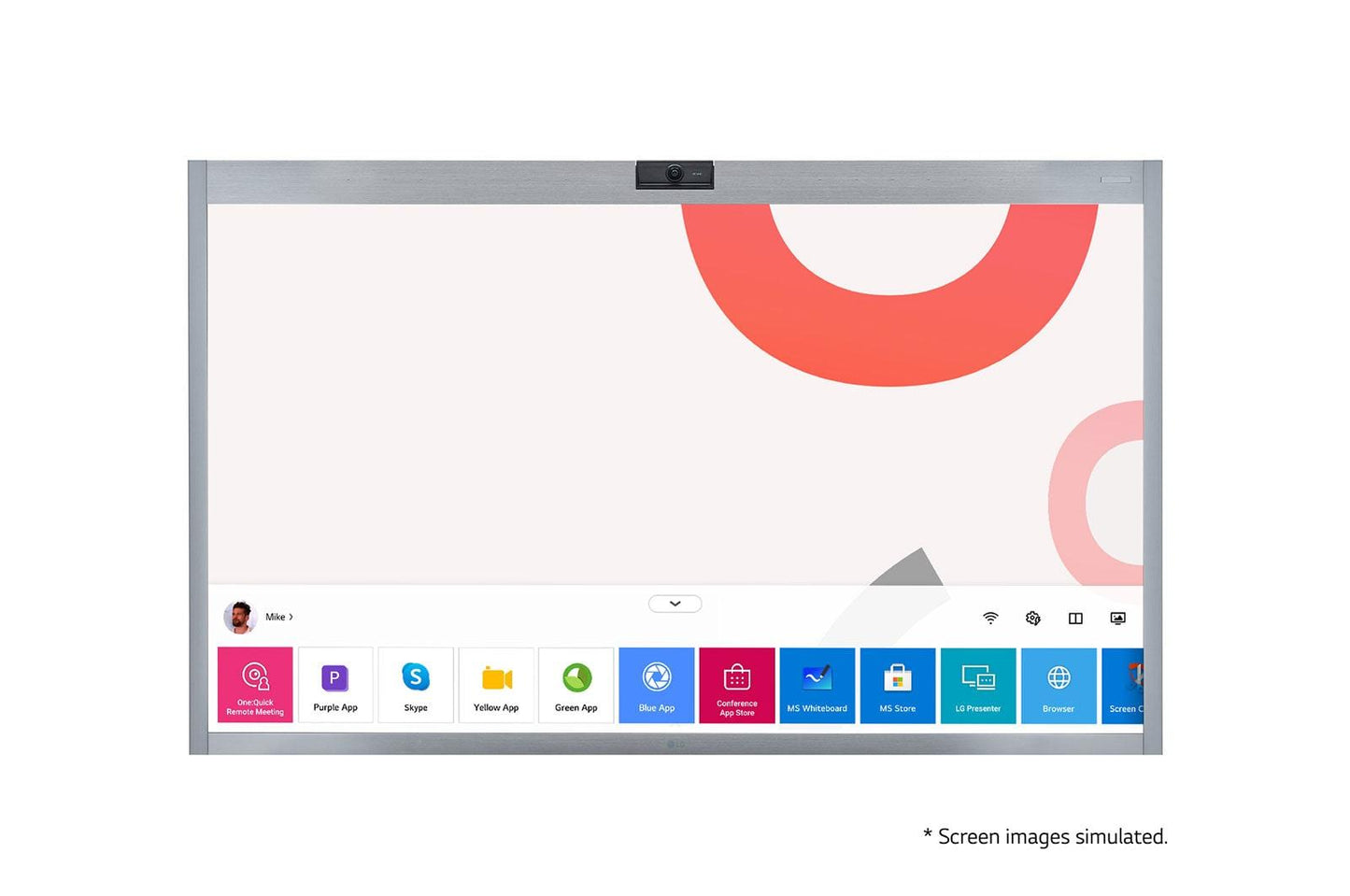

Provides a user friendly interface, from adjusting network settings for meetings, screen division to display settings. Supports quick and easy access to video conferencing apps with the One:Quick Works launcher.
2-way Installation

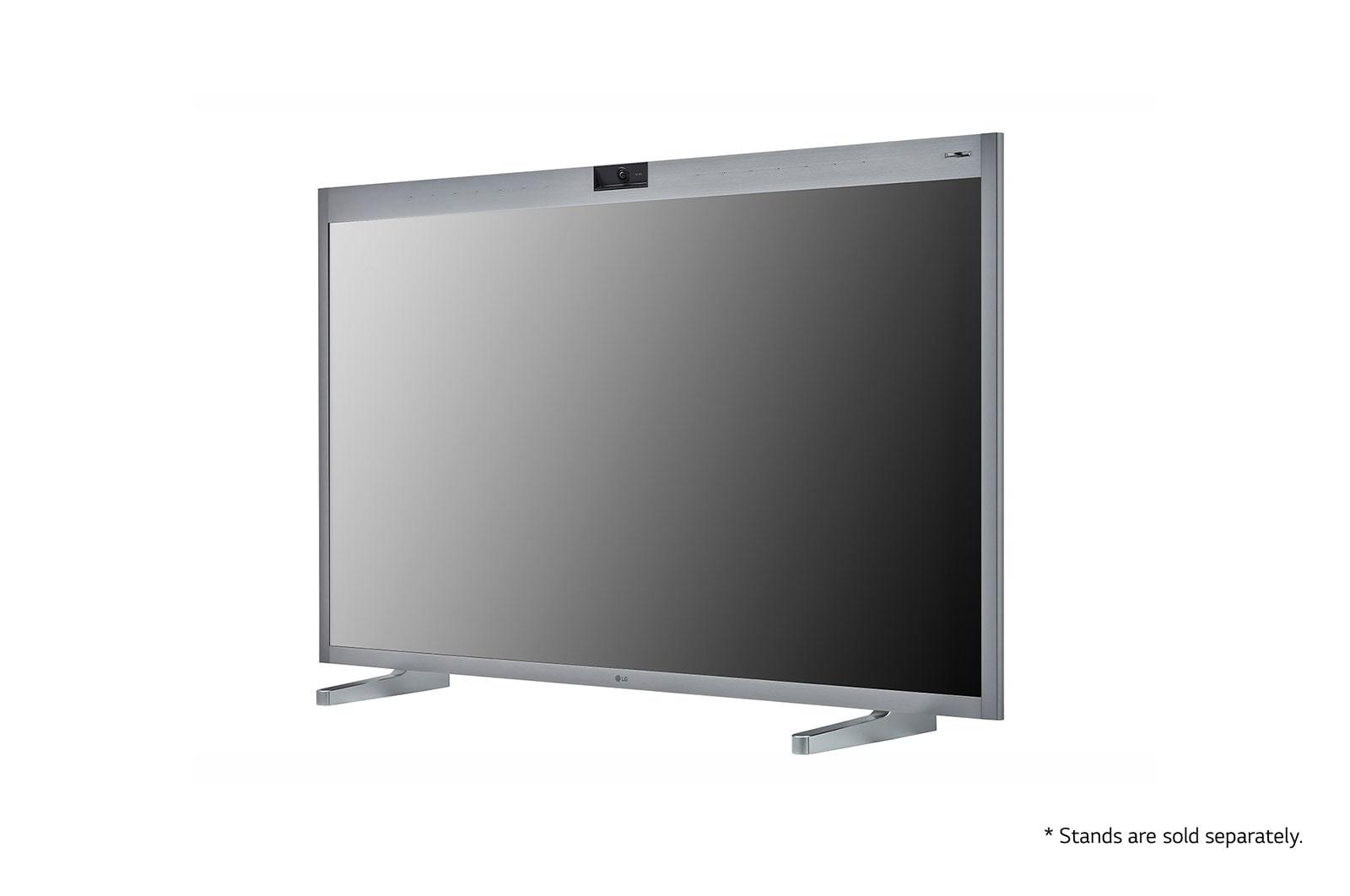

Depending on your surroundings and needs, choose between wall installation for maximum space utilization or desk top installation*.
Pre-installed Video Conferencing Application
LG's One:Quick Remote Meeting works virtually seamlessly with One: Quick Works for users to share documents in various formats, perform real-time interactive drawings and detect who's speaking on the other end automatically.
Easy-To-Use Conference App Store
Shortcuts for installing video conferencing and collaboration apps are included to help with user productivity. A true all-in-one video conferencing solution must be able to use a wide variety of video conferencing apps.
Beautiful Sleek Design
With an impressive award-winning design, the One:Quick Works blends seamlessly with the rest of the workspace. Also brings an elevated aesthetic while providing a practical workspace for all participant.
| PANEL | |
| Screen Size | 55" |
| Panel Technology | IPS In-Cell Touch |
| Back Light Type | Edge |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 60 Hz |
| Brightness* | 450 nits |
| Contrast Ratio | 1,000:1 |
| Color Gamut | NTSC 72% |
| Viewing Angle (H x V) | 178° x 178° |
| Color Depth | 10-bit (D), 1.07 Billion colors |
| Response Time | 9ms |
| Operation Hours (Hours/Days) | 24/7 |
| Portrait / Landscape | Landscape only |
| TOUCHSCREEN | |
| Available Object Size for Touch | 8 mm |
| Accuracy | less than 3.5mm |
| Interface | USB 1.1 |
| Operating System Support | Windows 7 / 8 / 8.1 / 10 MacOS 10.9 Android 4.4 Linux kernel 3.9 |
| Multi touch point | MAX 10 Points |
| External USB Touch Compatibility | Yes |
| CAMERA, MIC & SOUND | |
| Camera Resolution | 3840 x 2160 (UHD) |
| Camera Field of View (FoV) | 120° |
| Camera Zoom (ePTZ) | 4x Zoom |
| Camera Video Framing | Yes |
| Mic Array | 10EA |
| Mic Beamforming | Yes |
| Mic Pickup Range | 6m |
| Built-in Speakers | 10W x 2 |
| FEATURES(DISPLAY) | |
| Built-in Wi-Fi | No |
| Temperature Sensor | Yes |
| Auto Brightness sensor | Yes |
| Acceleration (Gyro) Sensor | No |
| Local Key Operation | Jog Key |
| Fanless Design | Yes |
| Booting Logo Image | Yes |
| No Signal Image | Yes |
| Screen Rotation | Yes |
| External Input Rotation | Yes |
| Crestron Inside | Yes |
| Smart Energy Saving | Yes |
| PM mode | Yes |
| Wake on LAN | Yes |
| HDMI-CEC | Yes |
| Bluelight | Yes |

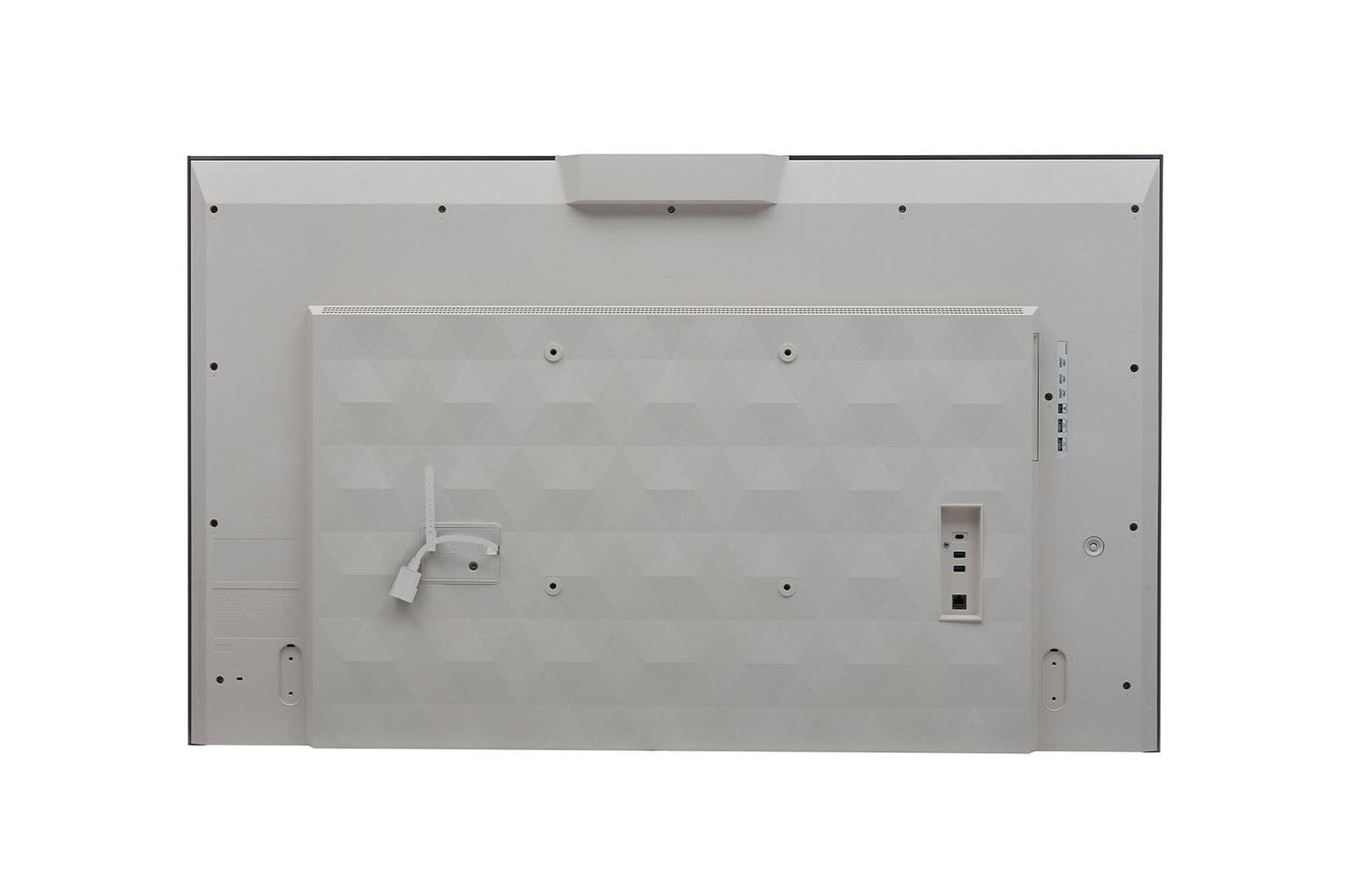

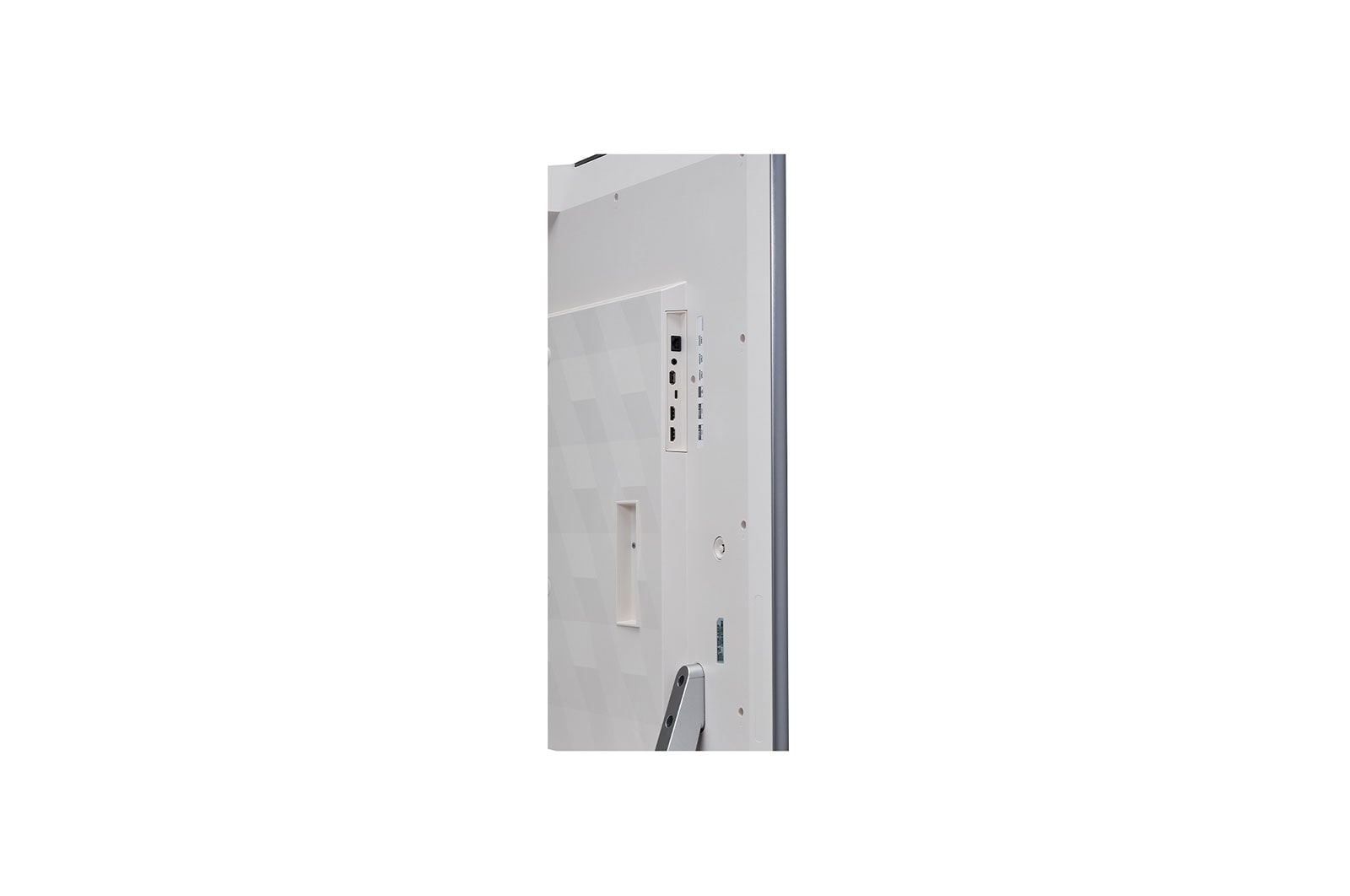

| CONNECTIVITY(WINDOWS) | |
| RJ45 (LAN) | Yes |
| USB Type C In | Yes |
| USB 3.1 Type A In | Yes (x2) |
| CONNECTIVITY(DISPLAY) | |
| HDMI In | Yes (x2) |
| DP In | USB-Type C |
| RS232C In | Yes |
| RJ45 (LAN) | Yes |
| IR In | Yes |
| USB 2.0 Type A In | Yes |
| FEATURES(WINDOWS) | |
| CPU | AMD Ryzen Embedded V1605B |
| Graphics | AMD Radeon Vega |
| eMMC | 256 GB |
| RAM | 8 GB |
| Wi-Fi | 802.11ac 2x2 |
| Bluetooth | Bluetooth 5.0 |
| OS | Windows 10 IOT LTSC |
| Built-in Apps | Zoom Rooms Application |
| MECHANICAL | |
| Bezel Color | Silver |
| Bezel Width | 57.2 / 26.2 / 26.2 / 28.9 mm |
| Weight | 57.3 lbs / 26 kg |
| Weight with Stand | 58.6 lbs / 26.6 kg |
| Shipping Weight | 68.3 lbs / 31 kg |
| Dimensions (W x H x D) | 49.8 x 30.3 x 2.4 in / 1265 x 769.5 x 61.8 mm |
| Dimensions with Floor Stand - Landscape (W x H x D) | 49.8 x 32.1 x 11.4 in / 1265 x 815 x 290 mm |
| Dimensions with Floor Stand - Portrait (W x H x D) | 49.8 x 32.1 x 11.4 in / 1265 x 815 x 290 mm |
| Dimensions with Desktop Stand (W x H x D) | 49.8 x 32.1 x 11.4 in / 1265 x 815 x 290 mm |
| Shipping Dimensions Without Stand | 54.0 x 35.6 x 6.6 in / 1372 x 903 x 168 mm |
| VESA Compatible | 300 x 300 |
| POWER | |
| Power Supply | 100 to 240 Vac, 50/60 Hz |
| Power Type | Built-in Power |
| Power Consumption (Typ.) | 195 W / 81 BTU |
| Max. | 275 W |
| DPM | Less than 0.5W |
| Power Off | Less than 0.5 W |
| WARRANTY & OTHER" | |
| Warranty | 3 Year Limited |
| FCC (Regulatory) | Class "B" |
| CE (Regulatory) | Yes |
| ErP (Environmental) | Yes |
| Energy Star (Environmental) | 8.0 |
| Onscreen Display Languages | English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic, Turkish |
| Accessories | Remote Control (includes 2 batteries), Power Cord, Touch Pen, Pen tip, Manual, Warranty Card, Installation Guide |
