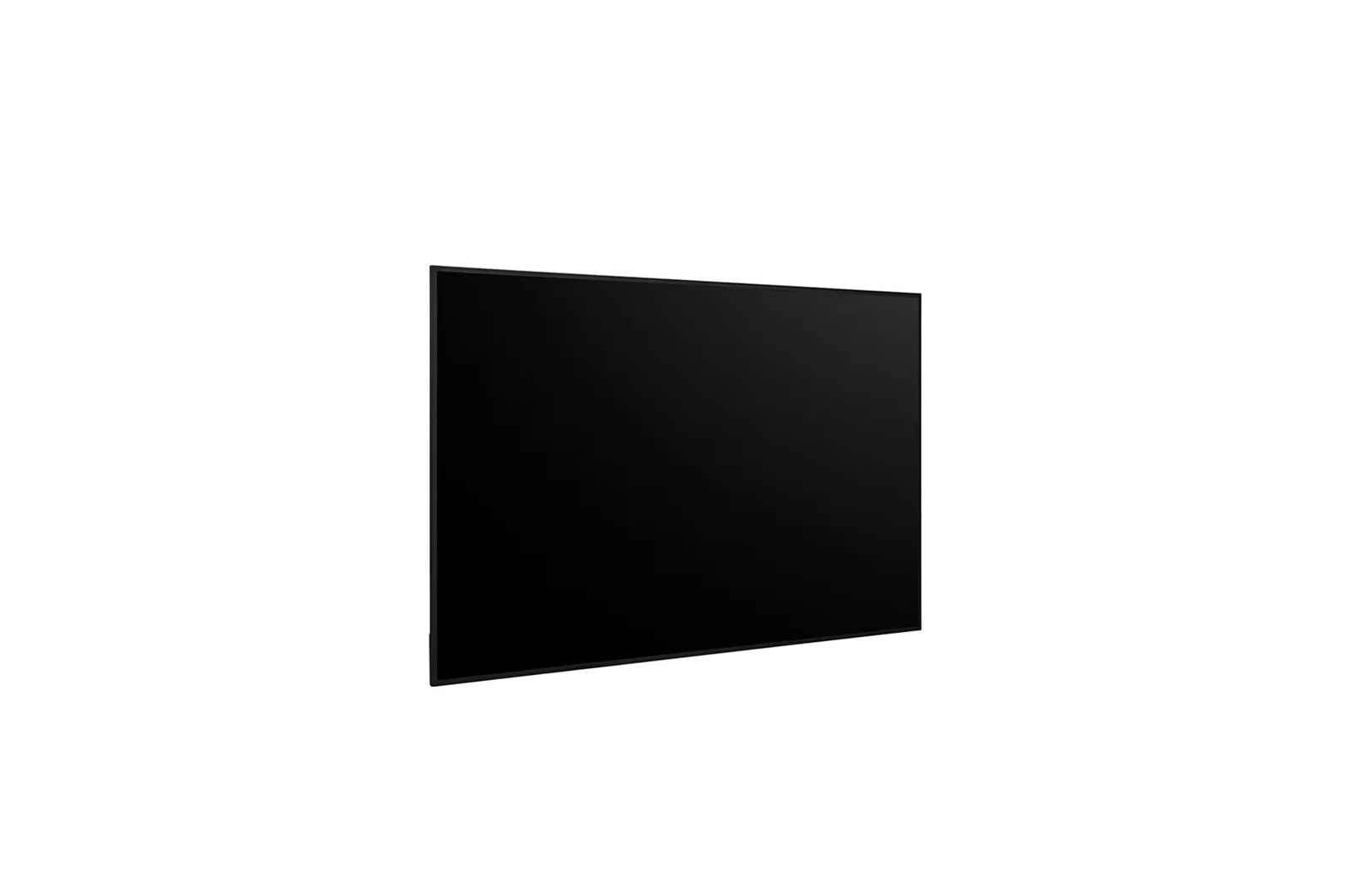

Lg 86UL5QM 86" UL5Q-M Series UHD webOS Signage for 24/7 Operation
Lg 86UL5QM 86" UL5Q-M Series UHD webOS Signage for 24/7 Operation
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Superb Picture Quality with Ultra HD Resolution
- 24Hr Usage Scene (24 Hours / 7 Days)
- Face Up/Down with Tilt Support
- Even Bezel
- High-Performance with webOS 6.1
86" UL5Q-M Series UHD webOS Signage for 24/7 Operation
| System | |
| Operating System (OS) | webOS™ 6.1 |
| Internal Memory | 86GB |
| Electrical | |
| Power Type | Built-in Power |
| Power Consumption (Max.) | 330W |
| Power Supply | 100~240V (50/60 Hz) |
| Power Consumption (Display Power Management - DPM) | 0.5W |
| Power Consumption (Power Off) | 0.5W |
| Power Consumption (Smart Energy Saving - 70%) | 154W |
| BTU Heat Generation (Max.) | 1126 |
| BTU Heat Generation (Typ.) | 750.7 |
| Power Consumption (Typ.) | 220W |

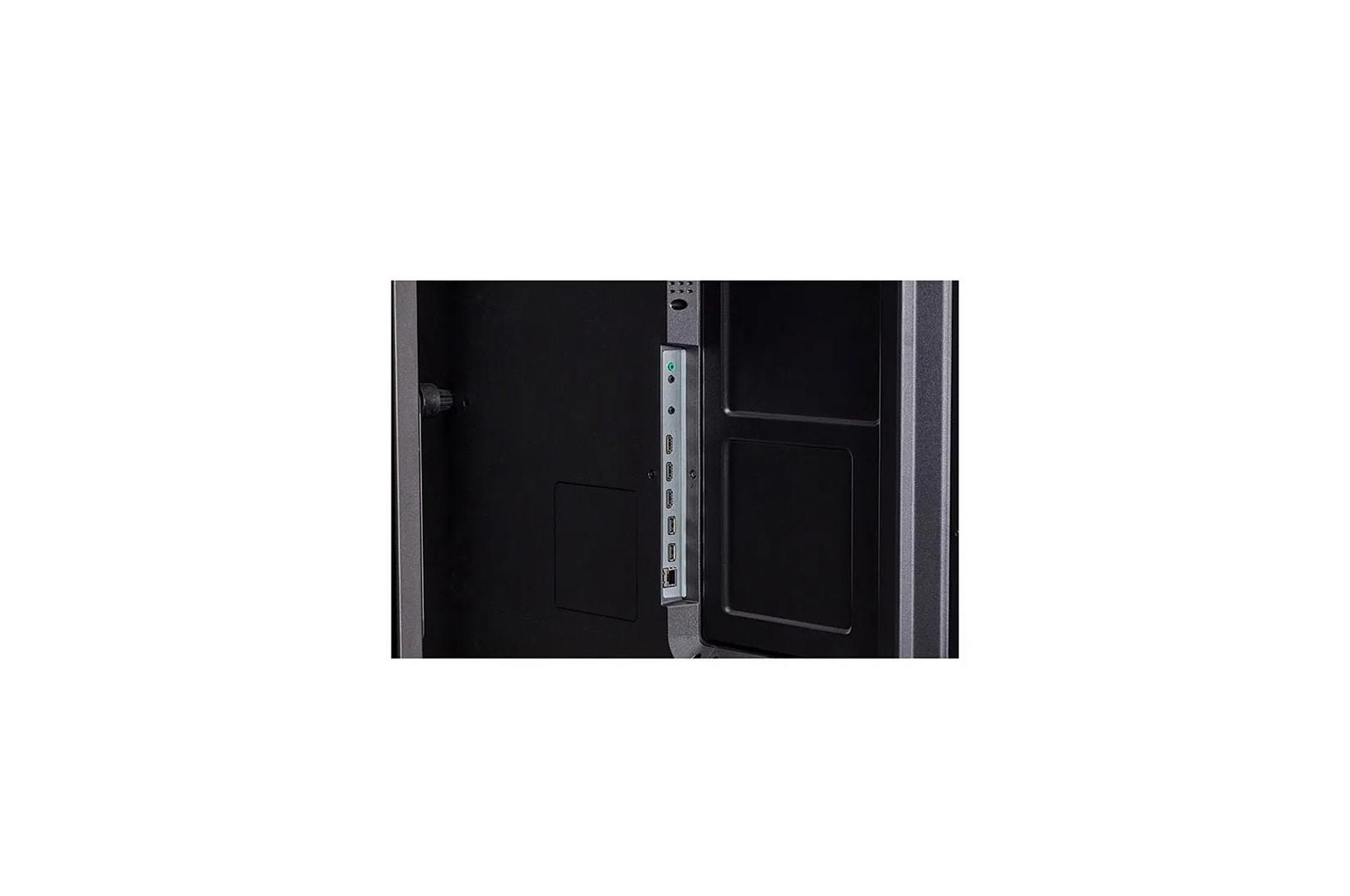

| Connectivity | |
| HDMI In | Yes (x3) |
| RS-232C In (3.5 mm 4-pin) | Yes (x1) |
| RJ45 (LAN) In | Yes (x1) |
| USB Type-A In | Yes (x2) |
| Audio Out (3.5 mm) | Yes (x1) |
| Touch USB | N/A |
| Built-in Wi-Fi | Yes |
| Panel | |
| Screen Size (Inches) | 86" |
| Panel Technology | ADS |
| Backlight Type | Direct |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ.) | 500 nit |
| Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 1000000:1 |
| Color Gamut | DCI 80% |
| Color Depth (Number of Colors) | 10 bit (D), 1.07 Billion Colors |
| Viewing Angle (H x V) | 178° x 178° |
| Response Time (G to G) | 8 ms |
| Surface Treatment (Haze) | 1% |
| Operation Hours (Hours per Day / Days per Week) | 24/7 |
| Lifetime | 50,000 hrs |
| Orientation | Portrait / Landscape |
| Audio/Sound | |
| Built-in Speakers | Yes (x2) 10W |
| Features | |
| Failover | Yes |
| Crestron Certified Compatibility | Yes |
| Beacon | Yes |
| Play Via URL | Yes |
| Mechanical | |
| Bezel Color | Black |
| Bezel Width | 12.9 mm |
| Tilt (Face Down) | Yes (-15°) |
| Tilt (Face Up) | Yes (+15 ) |
| Weight | 70.1 lbs |
| Shipping Weight | 93.9 lbs |
| Conformal Coating (Power Board) | Yes |
| VESA™ Standard Mount Interface | 600 x 400 mm |
| LG Software Compatible | |
| SuperSign™ Control+ | Yes |
| SuperSign™ WB | Yes |
| SuperSign™ CMS | Yes |
| SuperSign™ Cloud | Yes |
| Mobile CMS | Yes |
| ConnectedCare™ | Yes |
| Regulatory & Certifications | |
| UL Certification | Yes |
| ERP (Environmental) | N/A |
| U.S. ePEAT (Environmental) | Yes |
| FCC (Regulatory) | Class B |
| Energy Star (Environmental) | Yes |
| CE Marking (Regulatory) | Yes |
| Warranty & Other | |
| Warranty | 3 Year Limited |
| Onscreen Display Languages | Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, T rk e |
| UPC | 195174133811 |
| Basic Accessories (included) | Remote Controller(include battery 2ea), Power Cord, Regulation Book, Easy setup guide, Warranty Card, Phone to D-Sub9 Gender |
| Hospitality Features | |
| Pro:Idiom® | Yes |
| Wake on LAN | Yes |
| Hardware Features | |
| Acceleration (Gyro) Sensor | Yes |
| Local Key Operation | Yes (Power On/Off only) |
| Temperature Sensor | Yes |
| Auto Brightness Sensor | Yes |
| Software Features | |
| Network Ready | Yes |
| RS-232C Sync | Yes |
| Gapless Playback | Yes |
| Picture-by-Picture (PBP) | Yes (x2) |
| webRTC (Real Time Communication) | Yes |
| Video Tag | Yes (x4) |
| Control Manager | Yes |
| PM mode | Yes |
| Picture-in-Picture (PIP) | Yes |
| Local Network Sync | Yes |
| Smart Energy Saving | Yes |
| SI Server Setting | Yes |
| Tile Mode Setting | Yes |
| External Input Rotation | Yes |
| Status Mailing | Yes |
| No Signal Image | Yes |
| SNMP | Yes |
| Auto Set ID | Yes |
| ISM Method | Yes |
| Booting Logo Image | Yes |
| Local Contents Scheduling | Yes |
| HDMI-CEC | Yes |
| USB Plug & Play | Yes |
| Environmental Conditions | |
| Operation Humidity | 10% to 80% |
| Operation Temperature | 32°F to 104°F / 0°C to 40°C |
