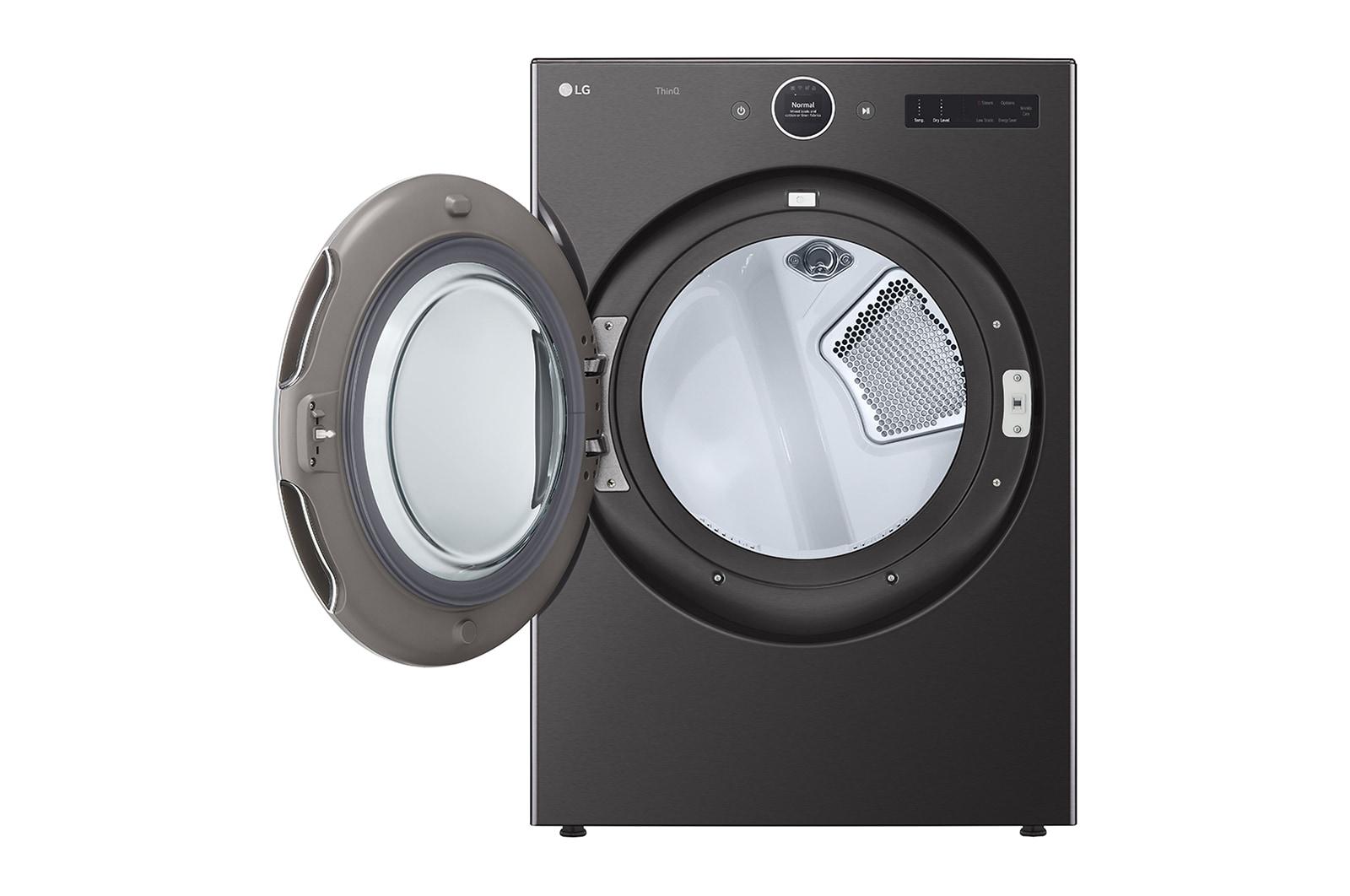

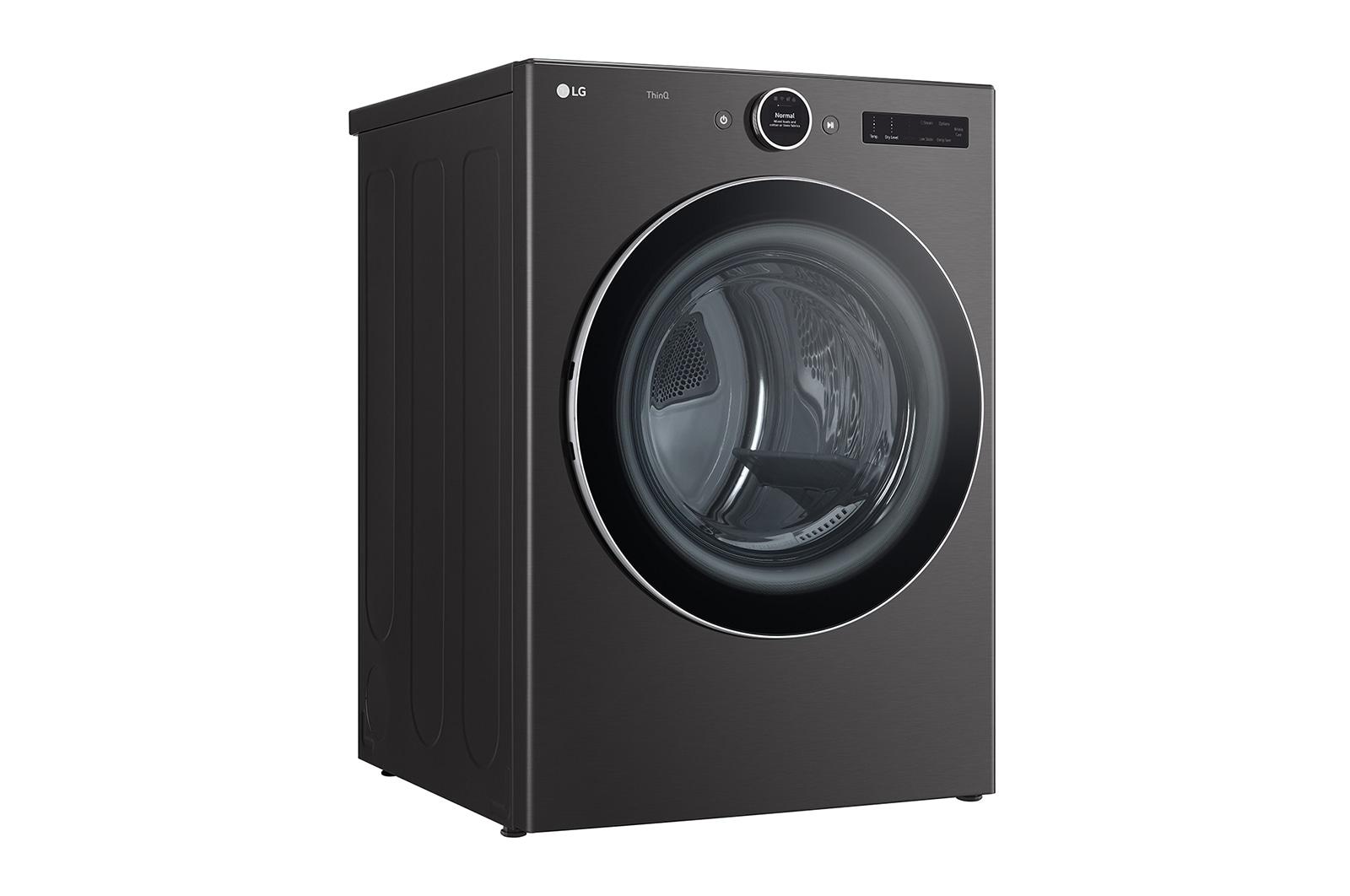

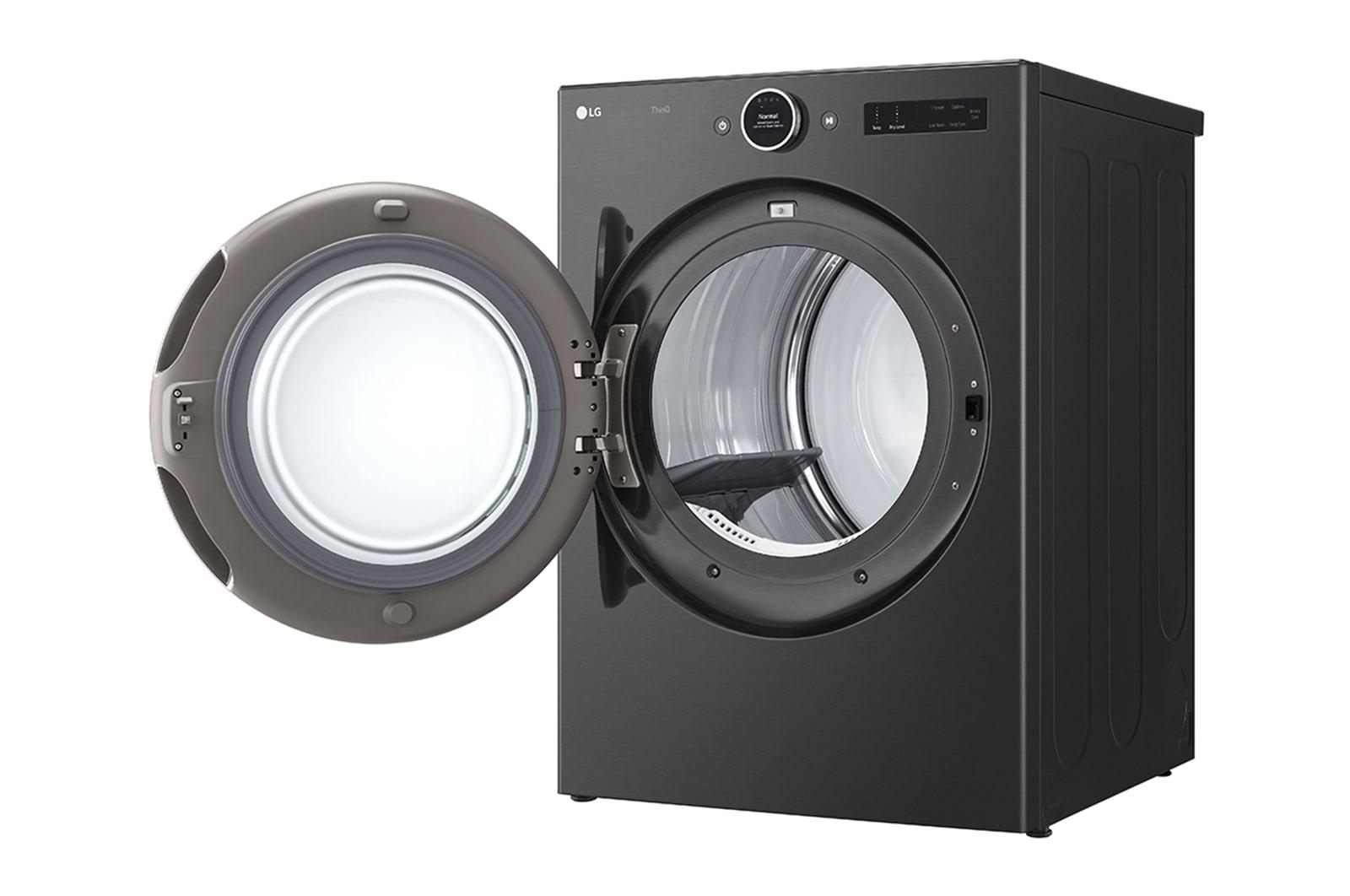

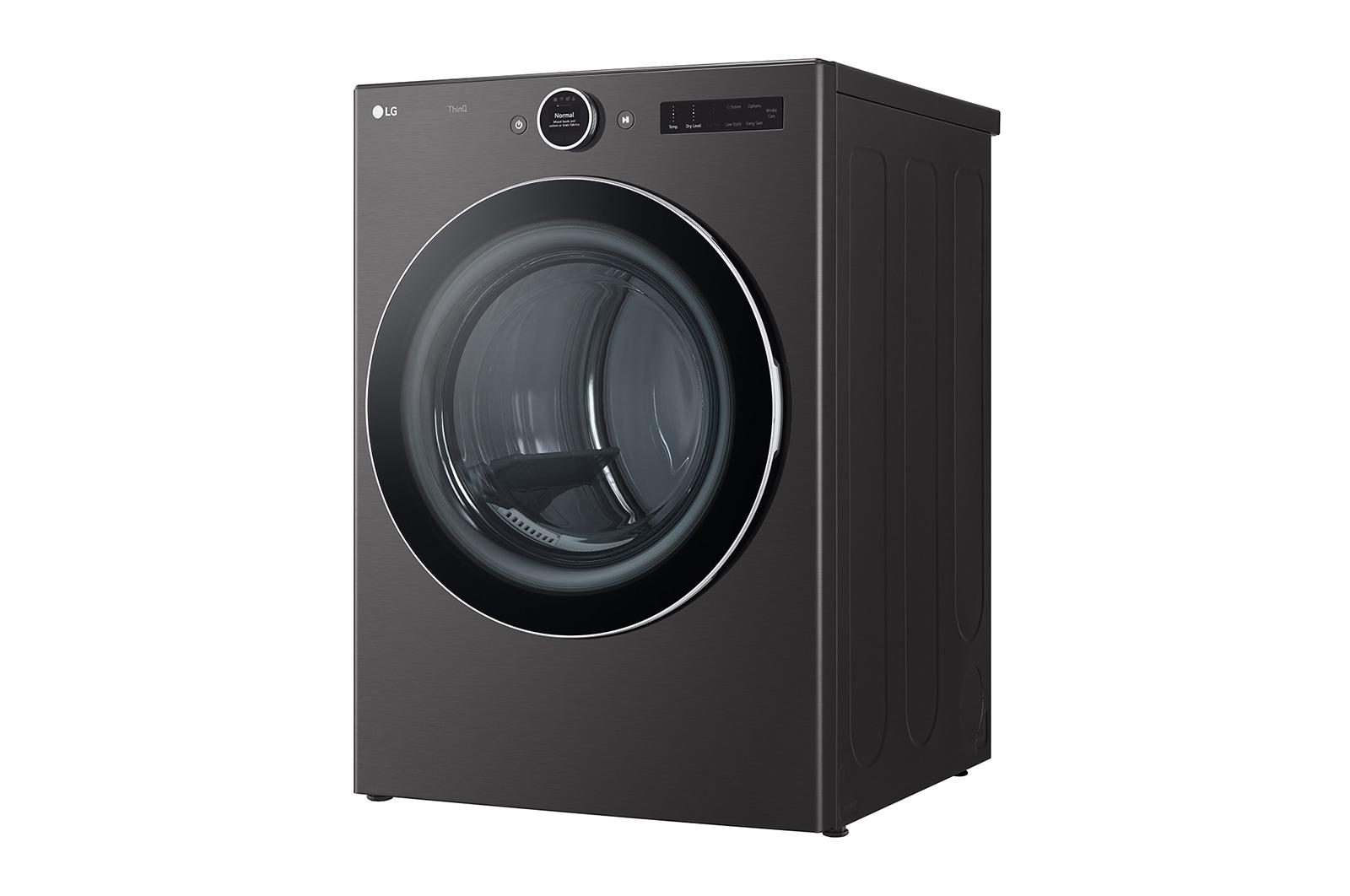

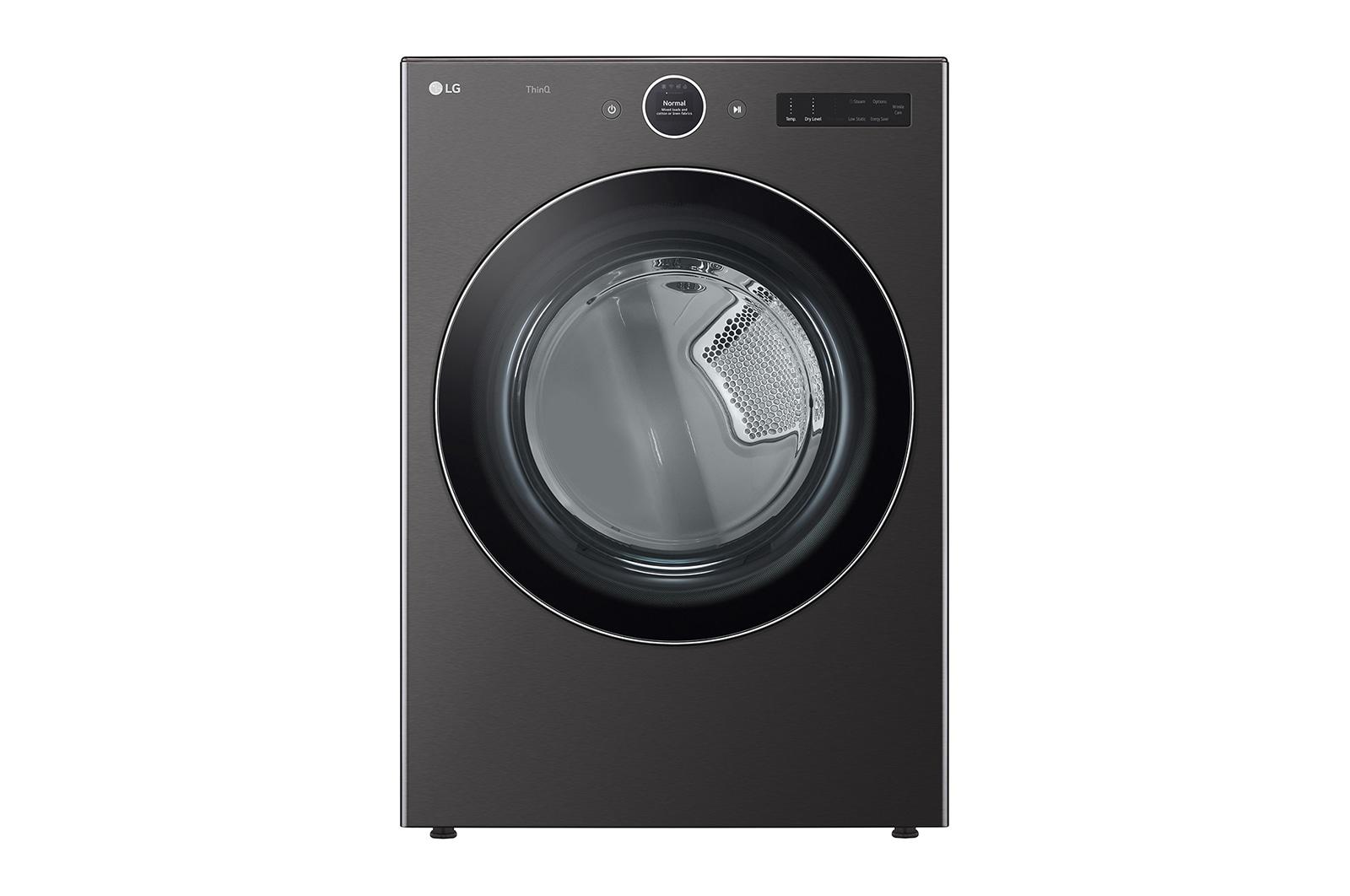

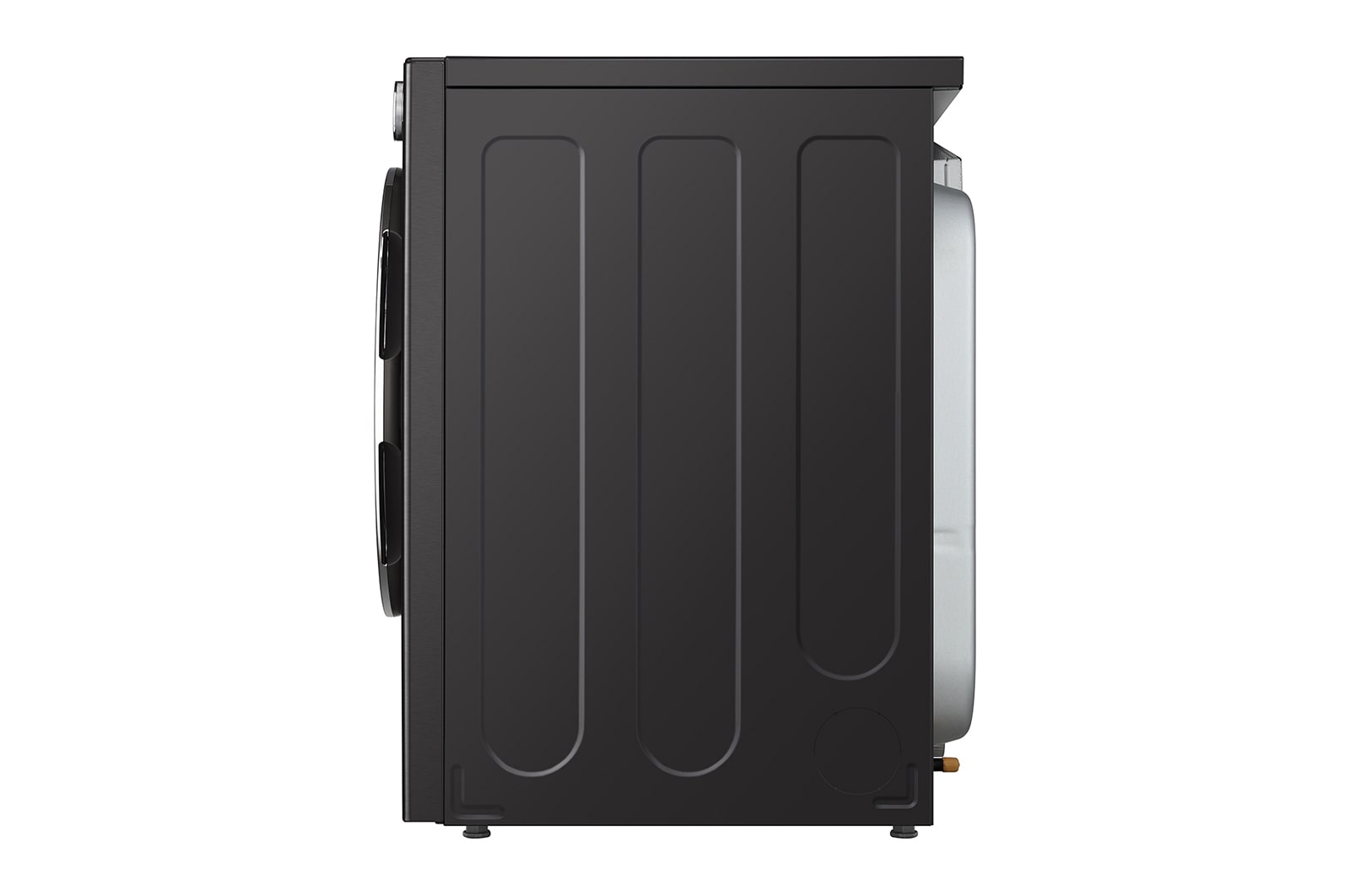

7.4 cu. ft. Ultra Large Capacity Smart Front Load Gas Dryer with Built-In Intelligence & TurboSteam®
Available Colors:

- 7.4 cu. ft. Ultra Large Capacity
- TurboSteam® Technology
- Built-In Intelligence (AI Fabric Sensor / Smart Pairing™ - Dryer)
- ThinQ® Technology with Proactive Customer Care (2020 NPI)
- FlowSense® Duct Clogging & Lint Filter Indicators
- ENERGY STAR® Certified
Refresh instantly* with TurboSteam® that generates steam penetrating deep into fabrics.
SUMMARY | |
Series | LG |
Type | Front Load Dryer |
Vent Type | Vented |
Dryer Type: | Gas |
Capacity: | 7.4 cu. ft. |
Matching Washer | WM6700HBA |
Sensor Dry: | Yes |
Steam | Yes |
Color | Black Steel |
APPEARANCE: | |
On-Door Electronic Control Panel with LED Display | No |

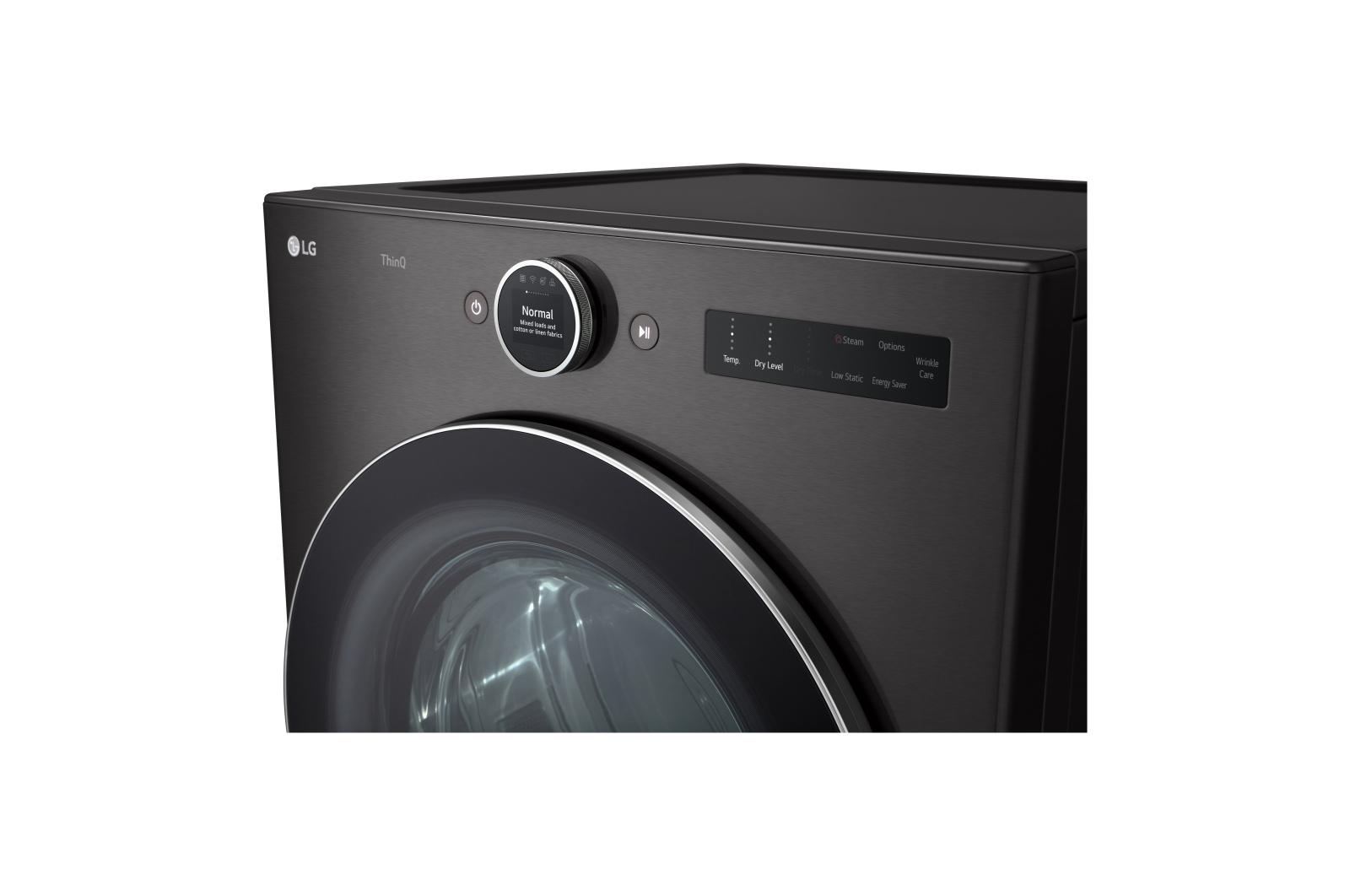

LCD Display | Yes |
Hard Buttons | No |
Dial-A-Cycle™ | Yes |
Touch Buttons | Yes |
Full Touch Electronic Control Panel with LED Display | No |
DRYER PROGRAMS | |
No. of Programs | 23 |
Programs (Sensor Dry) | Normal, AI Dry, Bedding, Delicates, Towels, Quick Dry, Timed Dry, Antibacterial, Perm.Press, SteamFresh™, Heavy Duty, Air Dry, Steam SanitaryTM, Super Dry, Active Wear, Denim -> Jeans, Blanket Refresh, Low Temp Dry, Overnight Dry, Easy Ironing, Small Load, Large Load Dry, X Large Load Dry. |
No. of Options | 11 |
Options | Cycle Optimization, Damp Dry Signal, Wrinkle Care, Control Lock, Wi-Fi, Energy Saver, TurboSteam™, Reduce Static, Remote Start, Drum Light, Signal. |
Temperature Settings | High, Med.High, Medium, Low, Ultra Low |
Drying Levels | Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry |
Dry mode | No |
Manual Dry Times | 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time |
FABRIC CARE FEATURES | |
AI Sensor Dry™ | Yes |
Sensor Dry | Yes |
Precise Temperature Control with Variable Heater | Yes |
Precise Temperature Control with Variable Compressor | No |
Steam | TurboSteam™ |
CONVENIENCE FEATURES | |
3 Minute Installation Check | Yes |
End of Cycle Signal | Yes |
Drum Light (door open): | Yes |
Reversible Door | Yes |
FlowSense® Duct Clogging Indicator | Yes |
Wrinkle Care Option | Yes |
Control Lock: | Yes |
Venting Option | Electric: 4 Way Venting / Gas: 3 Way Venting |
4 Adjustable Legs | Yes |
Remaining Time Display/Status Indicator(s) | Yes |
THINQ™ TECHNOLOGY: | |
SmartDiagnosis™ (v3.0) | Yes |
Wi-Fi | Yes |
NFC Tag On Technology | No |
Proactive Customer Care (PCC) Remote start and cycle monitor | Yes |
Energy Monitoring | Yes |
ENERGY | |
ENERGY STAR® Qualified | Yes |
CEF | 3.49 |
MATERIALS AND FINISHES | |
Aluminized Alloy Steel Drum | No |

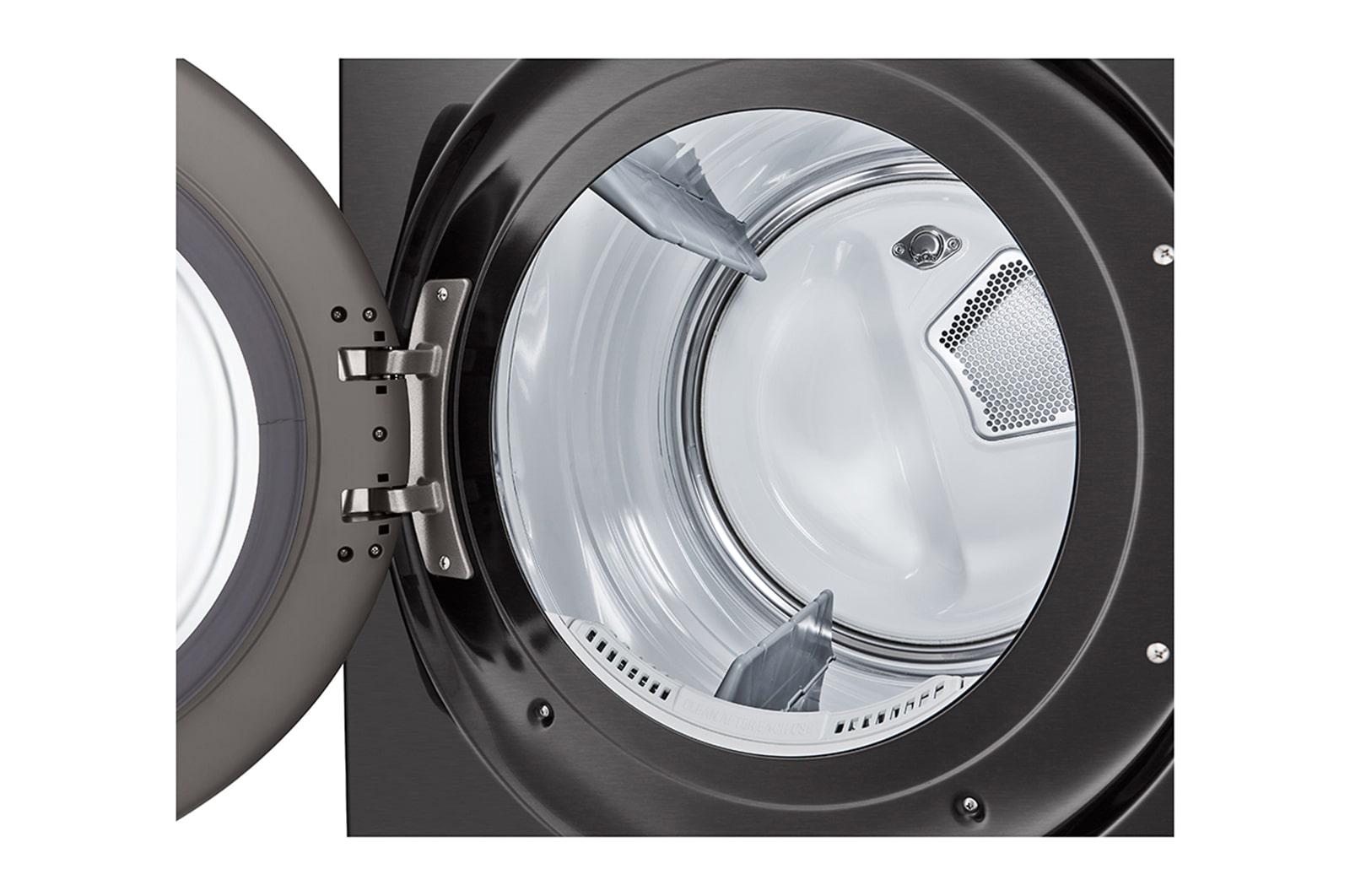

NeveRust® Stainless Steel Drum | Yes |
Cabinet | Painted Steel |
Door | Tempered Glass Door |
All Available Colors | Black Steel |
POWER SOURCE | |
Ratings | CSA Listed |
Electrical Requirements | 120V, 15 Amps (Gas) / 240V 30 Amps (Electric) |
Vent Type: | Vented |
Type | Gas |
BTU Rating | Electric: N/A, Gas: 20,000 |
OPTIONS: | |
LP Conversion Kit | 383EEL3002D |
Side Venting Kit | 3911EZ9131X (replaces 383EEL9001B) |
Drying Rack | 3750EL1001A |
Pedestal | WDP6B |
Pedestal (WxHxD) | 27" x 13 5/8" x 25 3/8" (43 7/8" D with door open) |
DIMENSIONS | |
Product (WxHxD) | 27" x 39" x 30 1/8" |
Depth with Door Open | 51 3/8" |
Carton (WxHxD) | 29 5/8" x 43 5/16" x 31 9/16" |
Weight (Product) | 134.0 lbs |
Weight (Carton) | 145.7 lbs |
WARRANTY: | |
Parts & Labor | 1 Year |
Drum | 3 Years |
UPC CODES: | |
UPC | 195174036983 |
