- Coin devices must be purchased separately

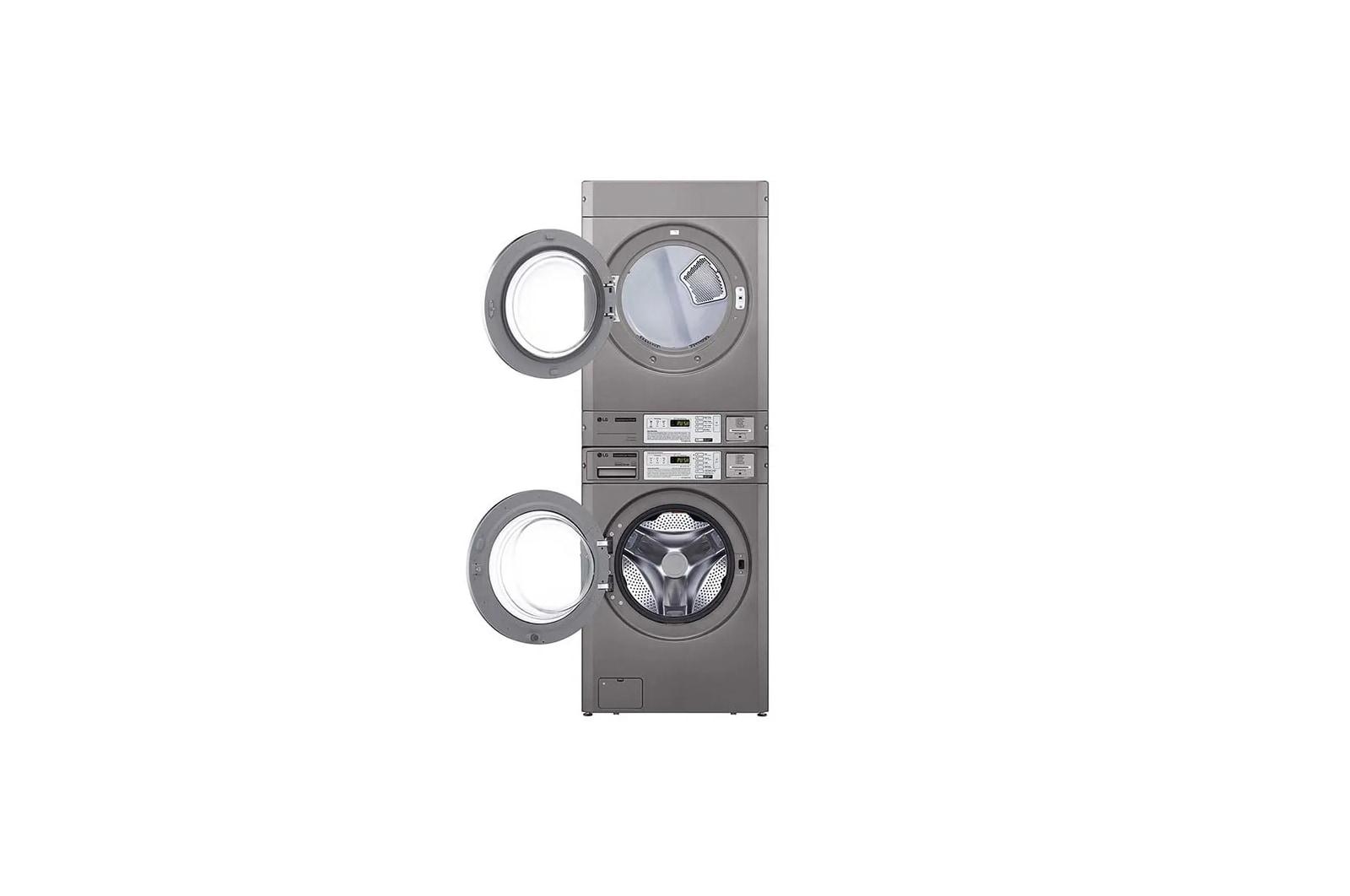

- Reversible Door
- Sensor Dry
- Easy Front Repair

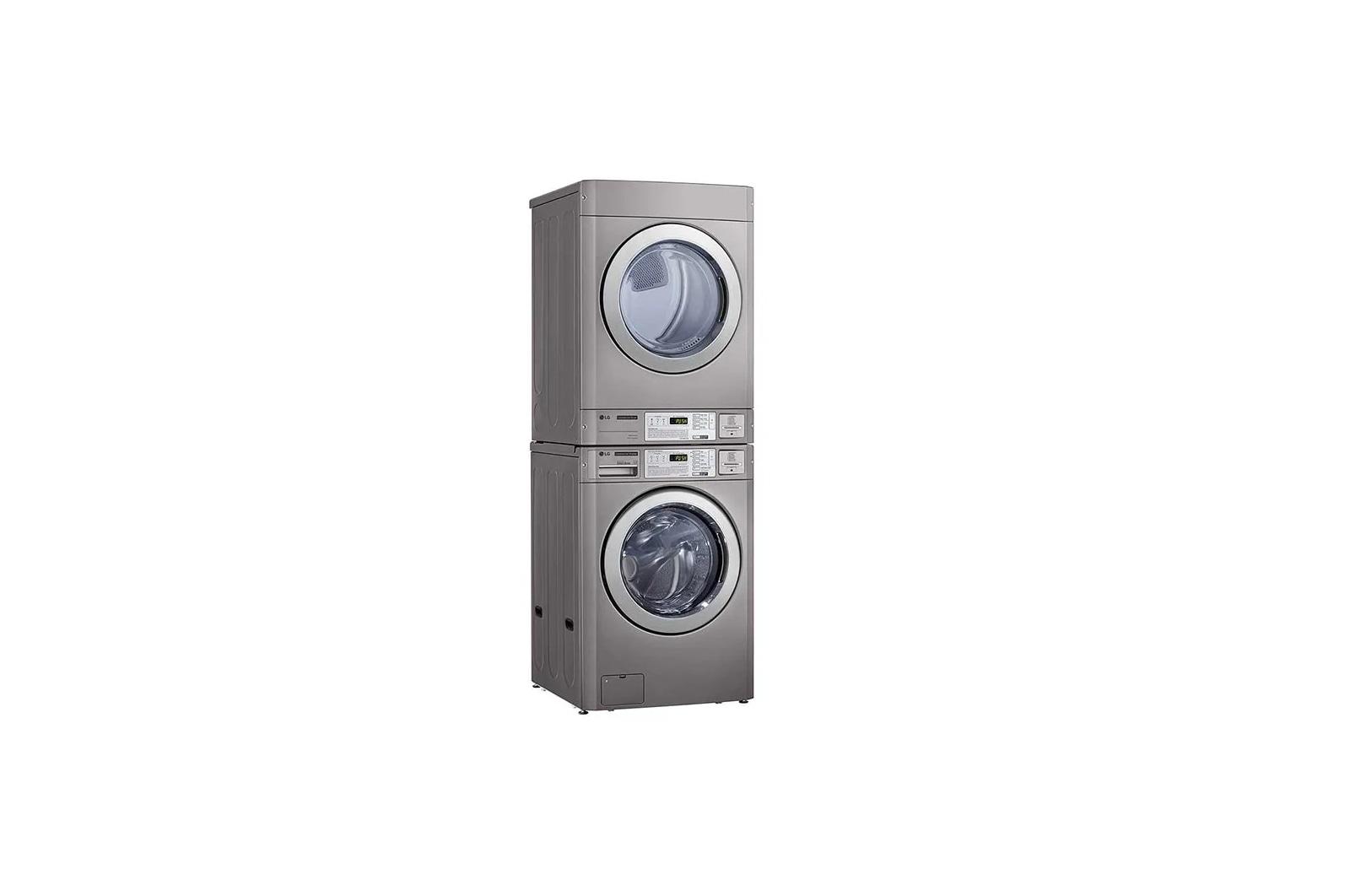

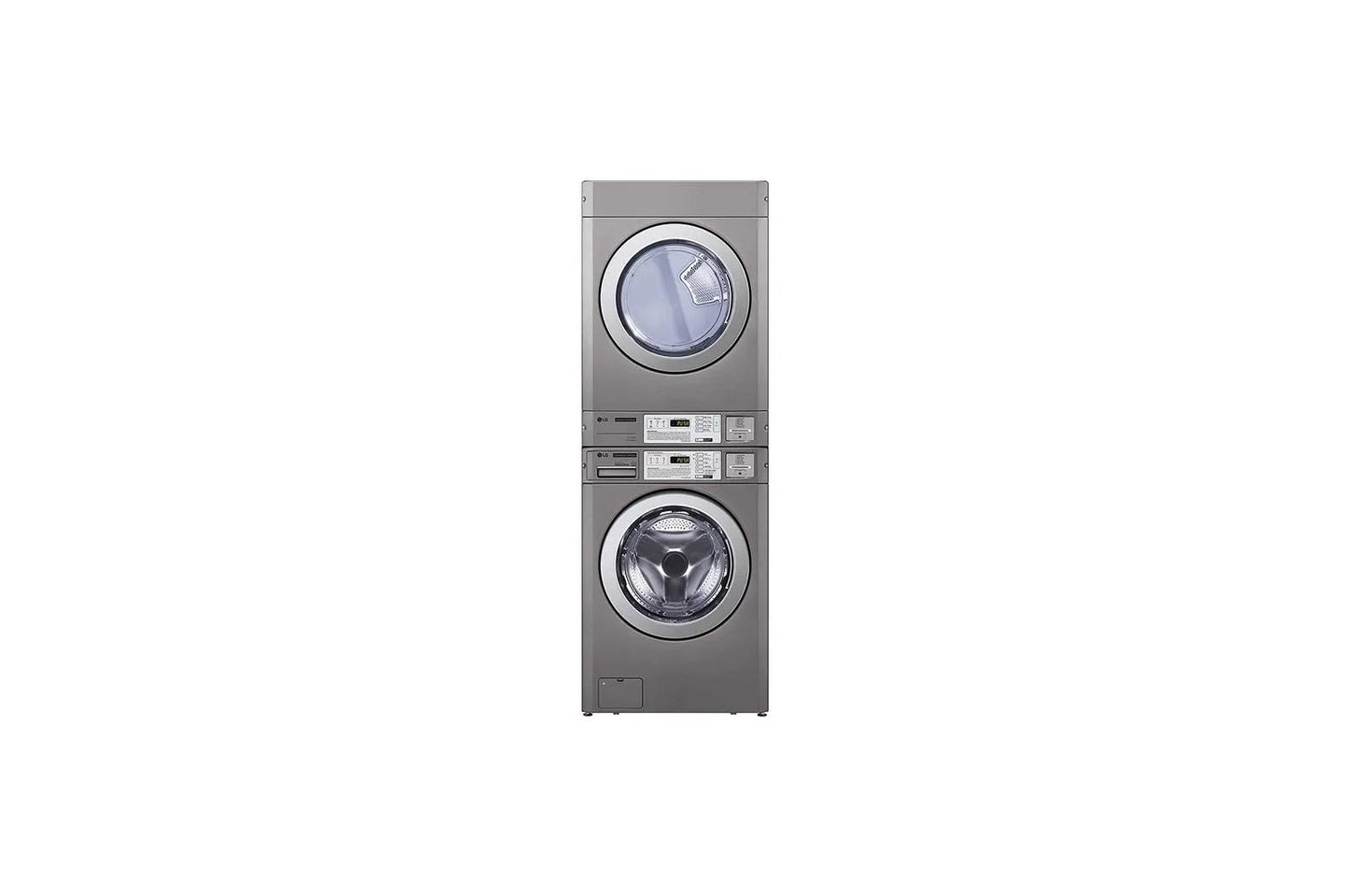

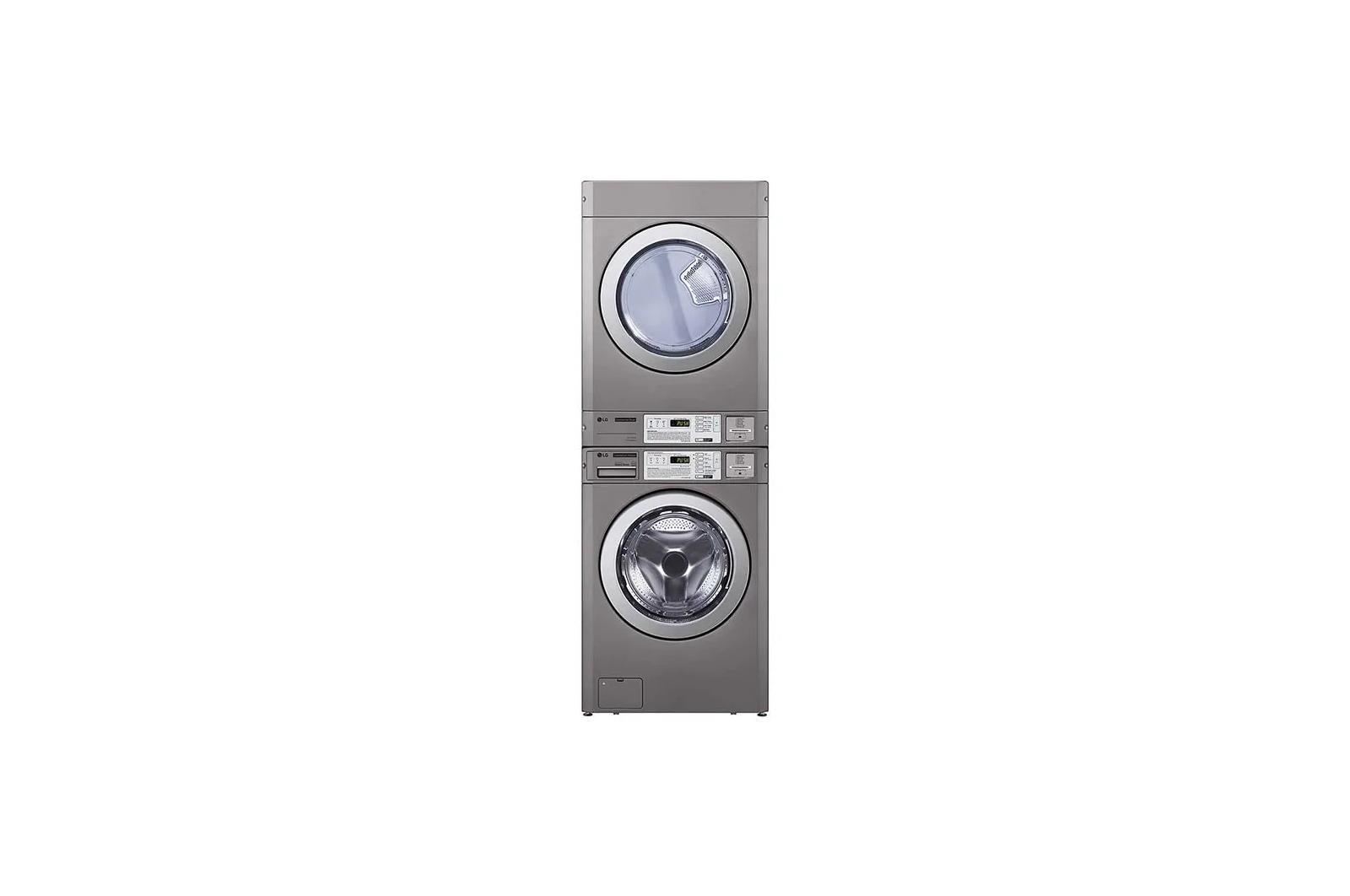

7.3 cu.ft Standard Capacity Dryer
| Dimensions | |
| With Door Open - in. (mm) | 49.8 (1,264) |
| Carton (WxHxD) - in | 29.9 x 46.1.4 x 31.3 |
| Carton (WxHxD) - mm | 760 x 1,170x 795 |
| Weight (Product/Carton) - lb (kg) | 130 (59)/143 (65) |
| Product (WxHxD) - mm | 686 x 983 x 764 |
| Product (WxHxD) - in | 27 x 38.7 x 30.1 |
| Connections | |
| Air Outlet Diameter - in. (mm) | 4 (100) |
| Exhaust Airflow Diameter - in. (mm) | 4 (100) |
| Consumption Index (Per Cycle) | |
| Gas | 5,810W |
| Electricity | 350W |
| Cylinder | |
| Diameter - in. (mm) | 26.1 (663) |
| Depth - in. (mm) | 22.5 (570.6) |
| Drum Volume - cu.ft (l) | 7.3 (207) |
| External Finish | |
| Drum | Alcosta |
| Programs | |
| Program List | High Temp, Med Temp, Low Temp, No Heat |
| Rating | |
| Gas Ratings - V/Hz/A | 120/60/5, 220~240/50/2.4, 220/60/3 |
| Electric Ratings - V/Hz/A | 120 (240)/60/26, 220~240/50/22.5, 220/60/21, 240/50/19.5 ? |
| System & Control | |
| Gas Ratings - KW/BTU | 5.8/20,000 |
| Heating Type | Gas (LNG/LPG) ? |
| Motor - kW | 0.3 (220~240V/50Hz) |
| Type of Drying | Ventilation |
| Air Flow - CFM | 160 |
| Program Duratin in Minutes (Default) - min | 45 (NA)/50 (EU)/45 (Australia) |
