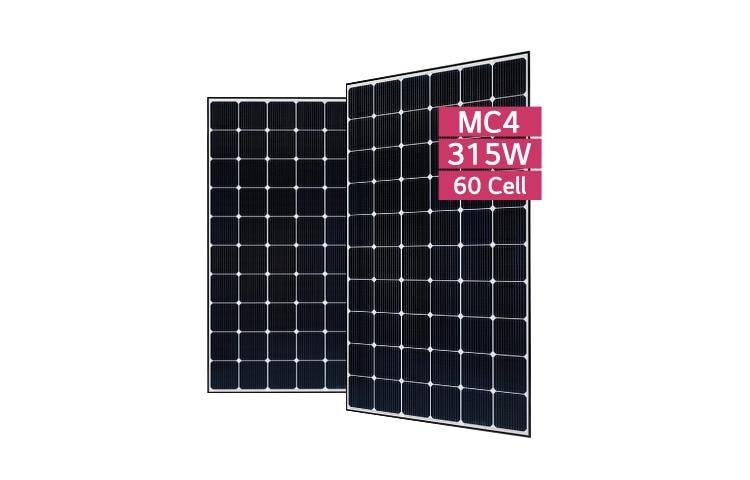

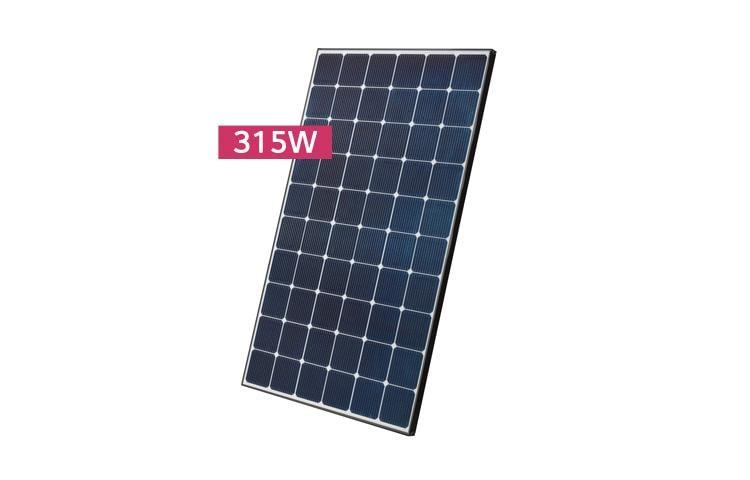

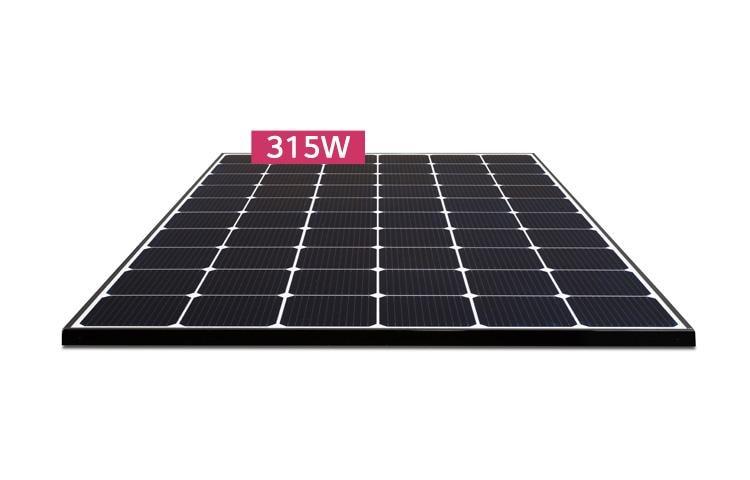

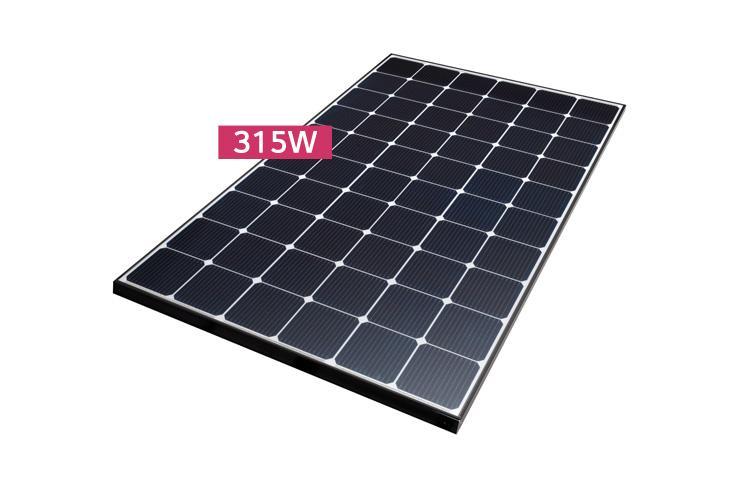

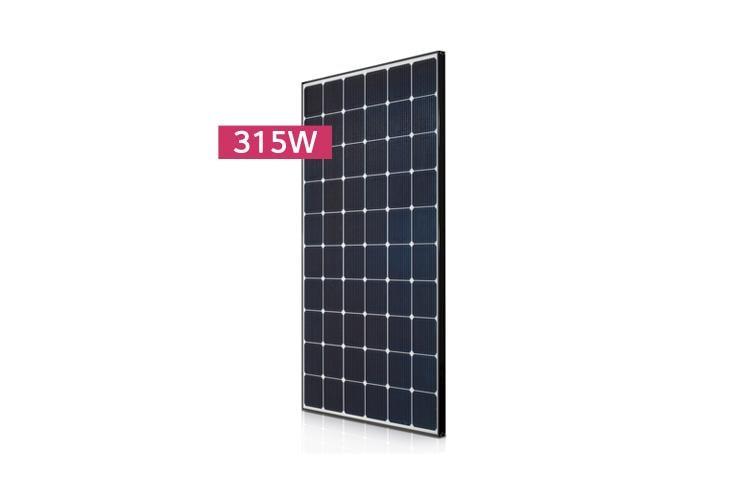

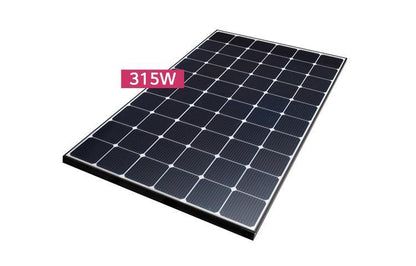

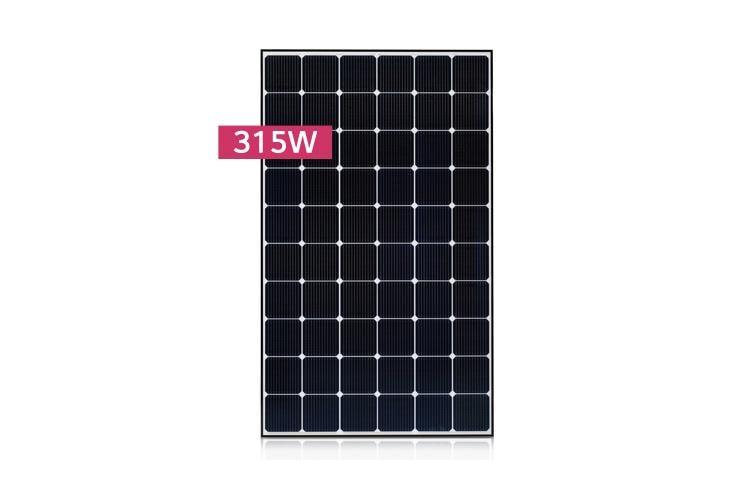

Lg LG315N1CG4 High Efficiency LG NeON® 2 Module Cells: 6 x 10 Module efficiency 19.2% Connector Type: MC4, MC4 Compatible, IP67
Lg LG315N1CG4 High Efficiency LG NeON® 2 Module Cells: 6 x 10 Module efficiency 19.2% Connector Type: MC4, MC4 Compatible, IP67
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Enhanced Performance Warranty
- Roof Aesthetics
- High Power Output
High Efficiency LG NeON® 2 Module Cells: 6 x 10 Module efficiency 19.2% Connector Type: MC4, MC4 Compatible, IP67
| CERTIFICATIONS & WARRANTY | |
| Certifications | IEC 61215, IEC 61730-1/-2, UL 1703, ISO 9001, IEC 62716 (Ammonia Test), IEC 61701(Salt Mist Corrosion Test) |
| Module Fire Performance | Type 1 (UL 1703)(LGxxxN1C-G4.AUF) |
| Product Warranty | 12 years |
| Output Warranty of Pmax | Linear warranty* |
| * | 1) 1st year: 98%, 2) After 2nd year: 0.6% annual degradation, 3) 83.6% for 25 years |
| Fire Rating (for CANADA) | Class C (ULC/ORD C1703) |
| ELECTRICAL PROPERTIES(NOCT*) | |
| Maximum Power(Pmax) | 230 |
| MPP Voltage (Vmpp) | 30.4 |
| MPP Current (Impp) | 7.58 |
| Open Circuit Voltage (Voc) | 37.6 |
| Short Circuit Current (Isc) | 8.08 |
| * | NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s |
| Electrical Properties (STC*) | |
| MPP Voltage (Vmpp) | 33.2 |
| MPP Current (Impp) | 9.5 |
| Open Circuit Voltage (Voc) | 40.6 |
| Short Circuit Current (Isc) | 10.02 |
| Module Efficiency (%) | 19.2 |
| Operating Temperature (°C) | -40 ~ +90 |
| Maximum System Voltage (V) | 1000 |
| Maximum Series Fuse Rating (A) | 20 |
| Power Tolerance (%) | 0 ~ +3 |
| * | STC (Standard Test Condition): Irradiance 1000 W/m2, Module Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The typical change in module efficiency at 200 W/m2 in relation to 1000 W/m2 is -2.0%. |
| MECHANICAL PROPERTIES | |
| Cells | 6 x 10 |
| Cell vendor | LG |
| Cell Type | Monocrystalline / N-type |
| Cell Dimensions | 156.75 x 156.75 mm / 6 inches |
| # of Busbar | 12 (Multi Wire Busbar) |
| Dimensions (L x W x H) | 1640 x 1000 x 40 mm 64.57 x 39.37 x 1.57 inch |
| Front Load | 6000 Pa / 125 psf |
| Rear Load | 5400 Pa / 113 psf |
| Weight | 17.0 0.5 kg / 37.48 1.1 lbs |
| Connector Type | MC4, MC4 Compatible, IP67 |

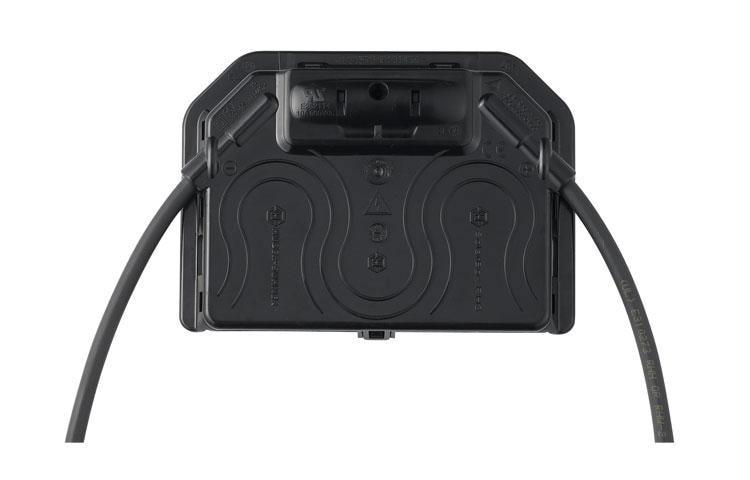

| Junction Box | IP 67 with 3 bypass diodes |
| Length of Cables | 2 x 1000 mm / 2 x 39.37 in |
| Frame | Anodized aluminum |
| Glass | Tempered Glass with AR Coating |
| Temperature Characteristics | |
| NOCT | 46 3 °C |
| Pmpp | -0.38 %/°C |
| Voc | -0.28 %/°C |
| Isc | 0.03 %/°C |
