LG LG330N1CA5
Authorized Reseller

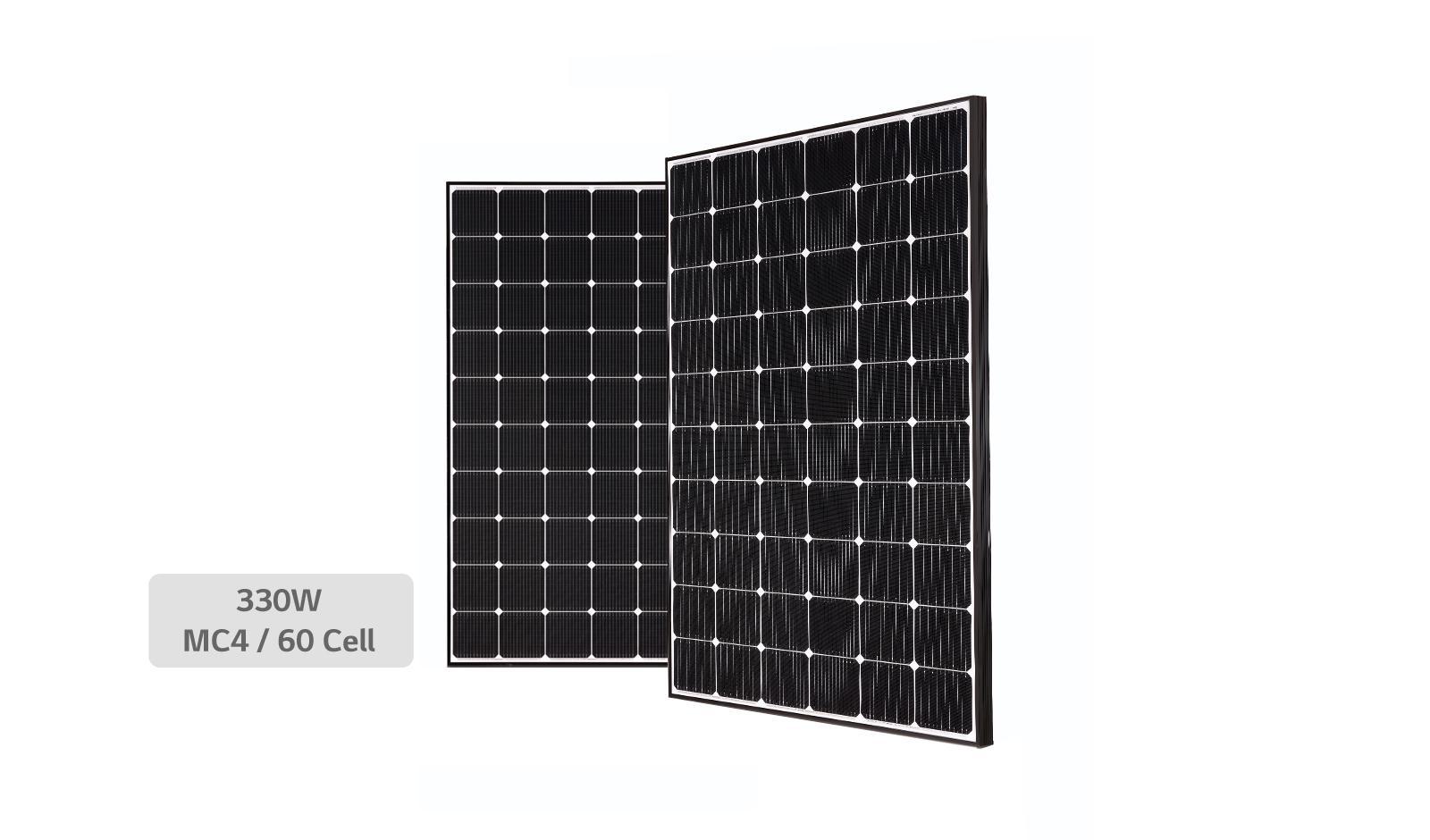

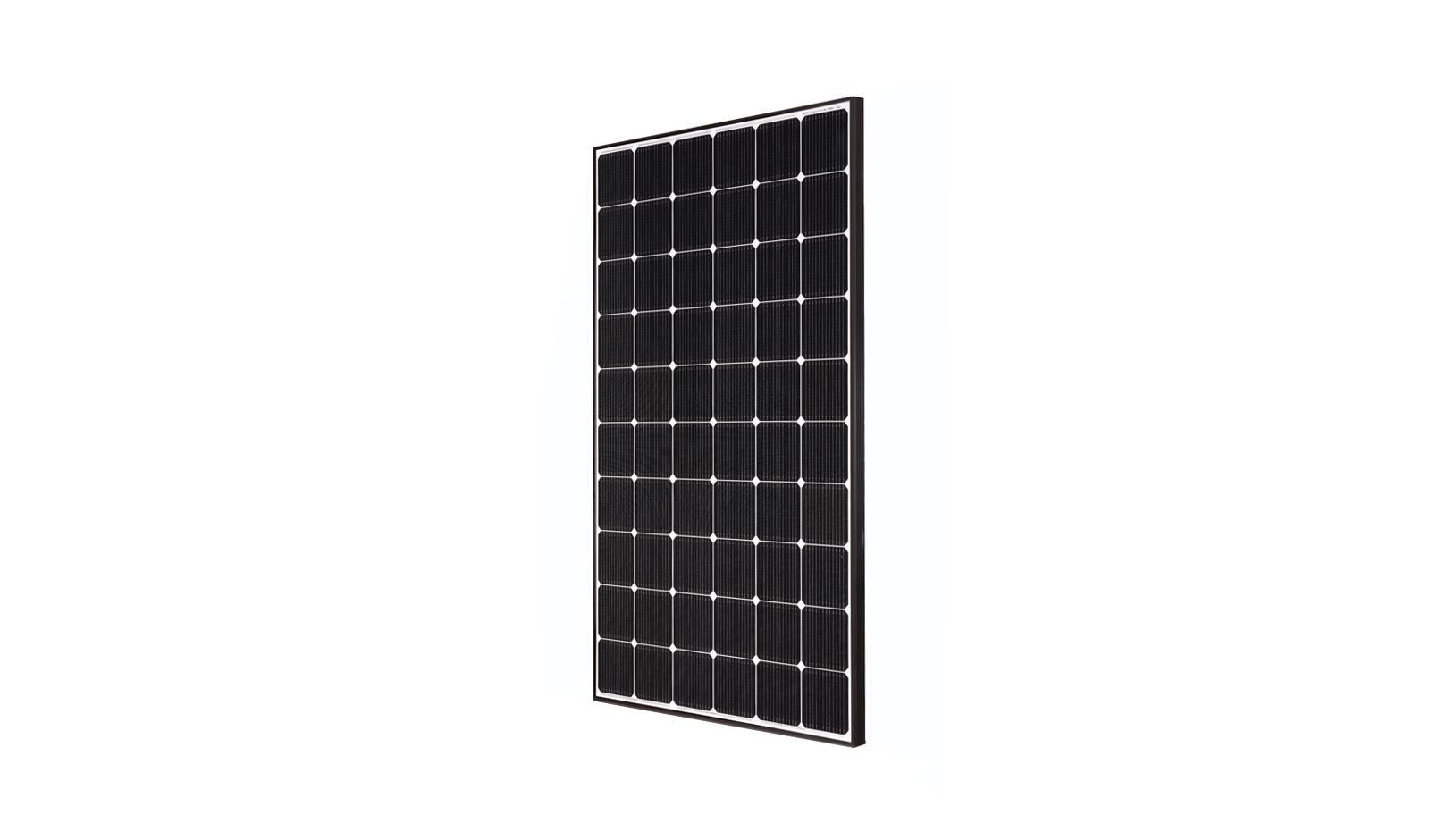

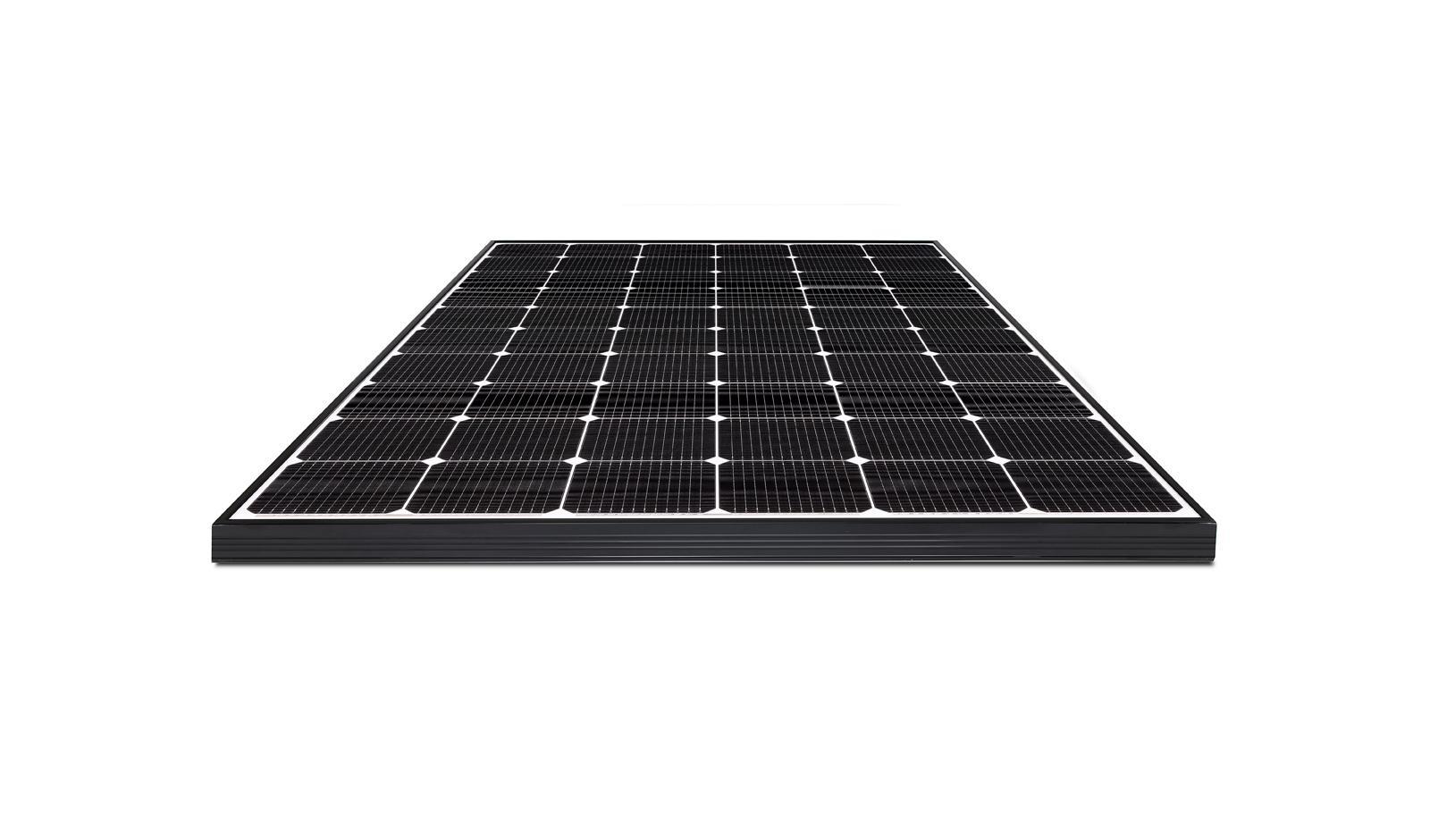

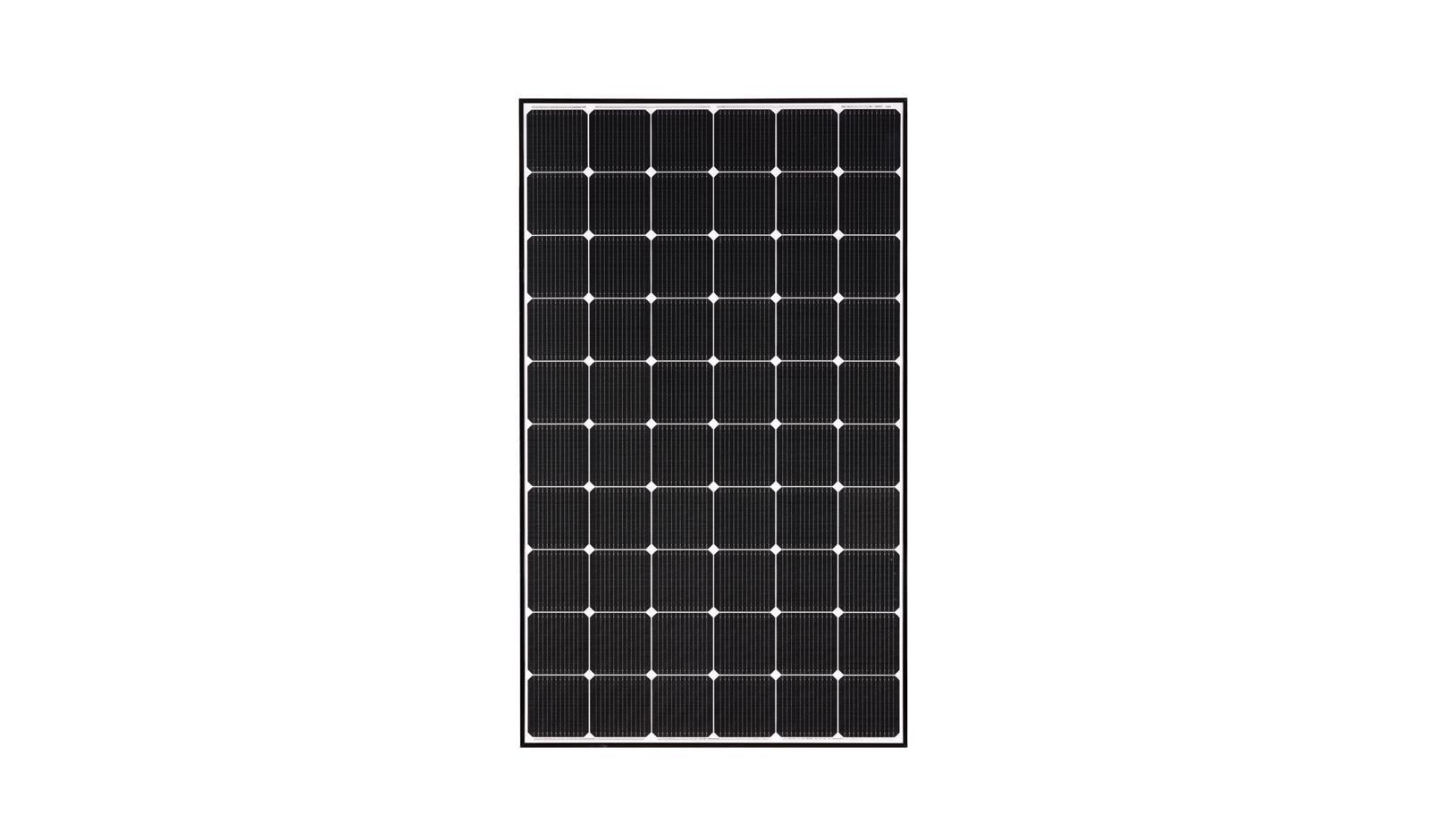

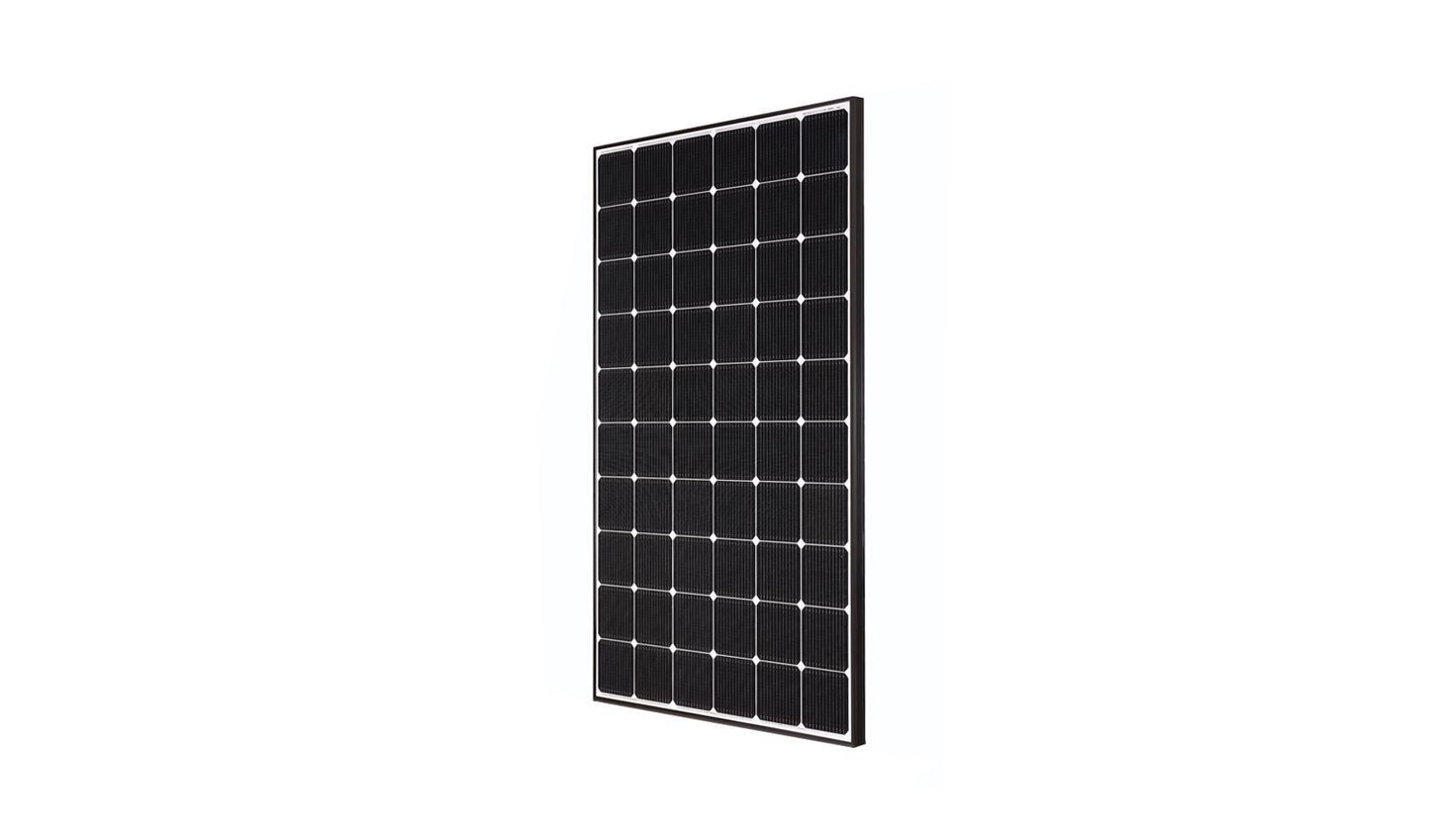

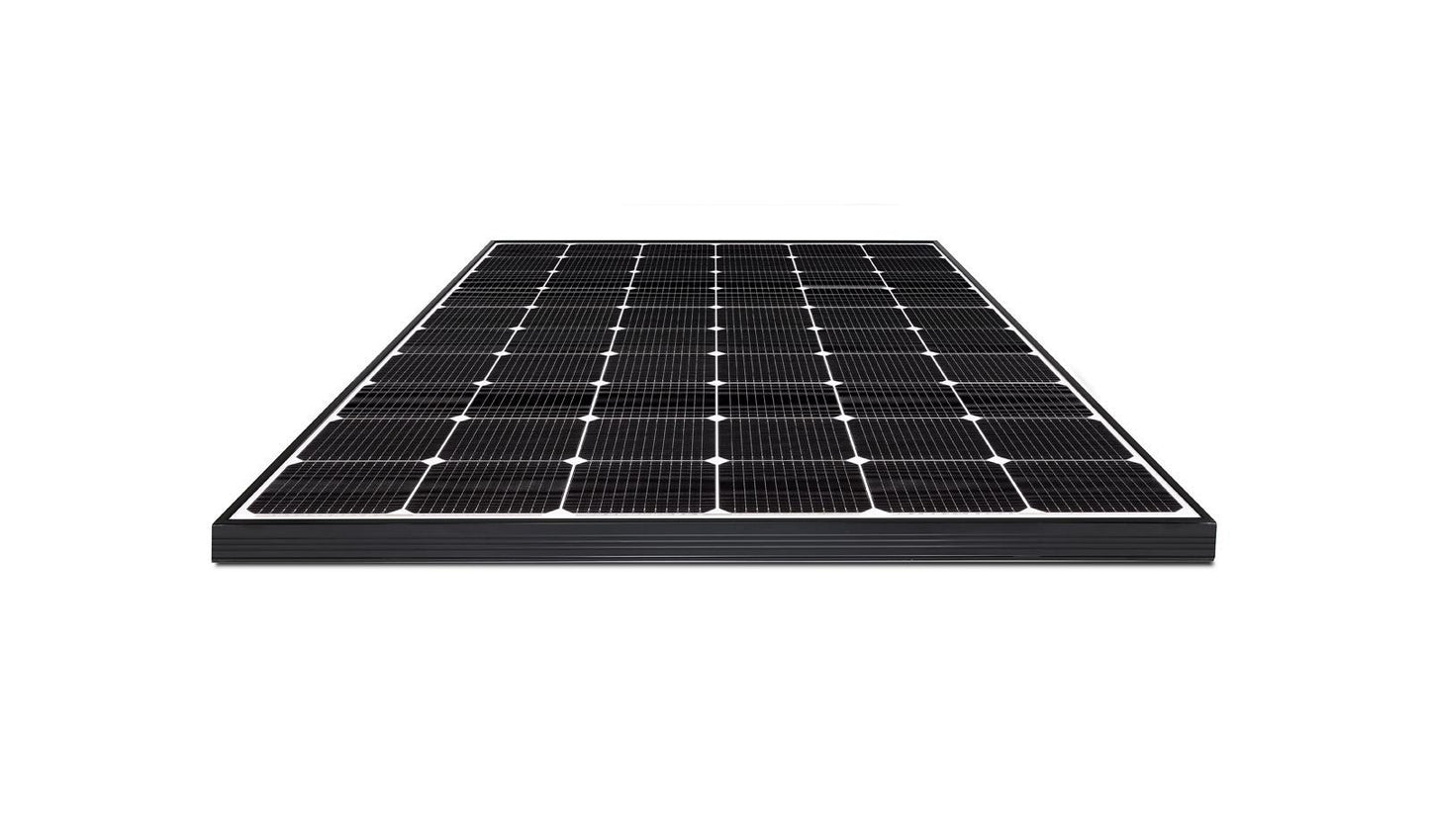

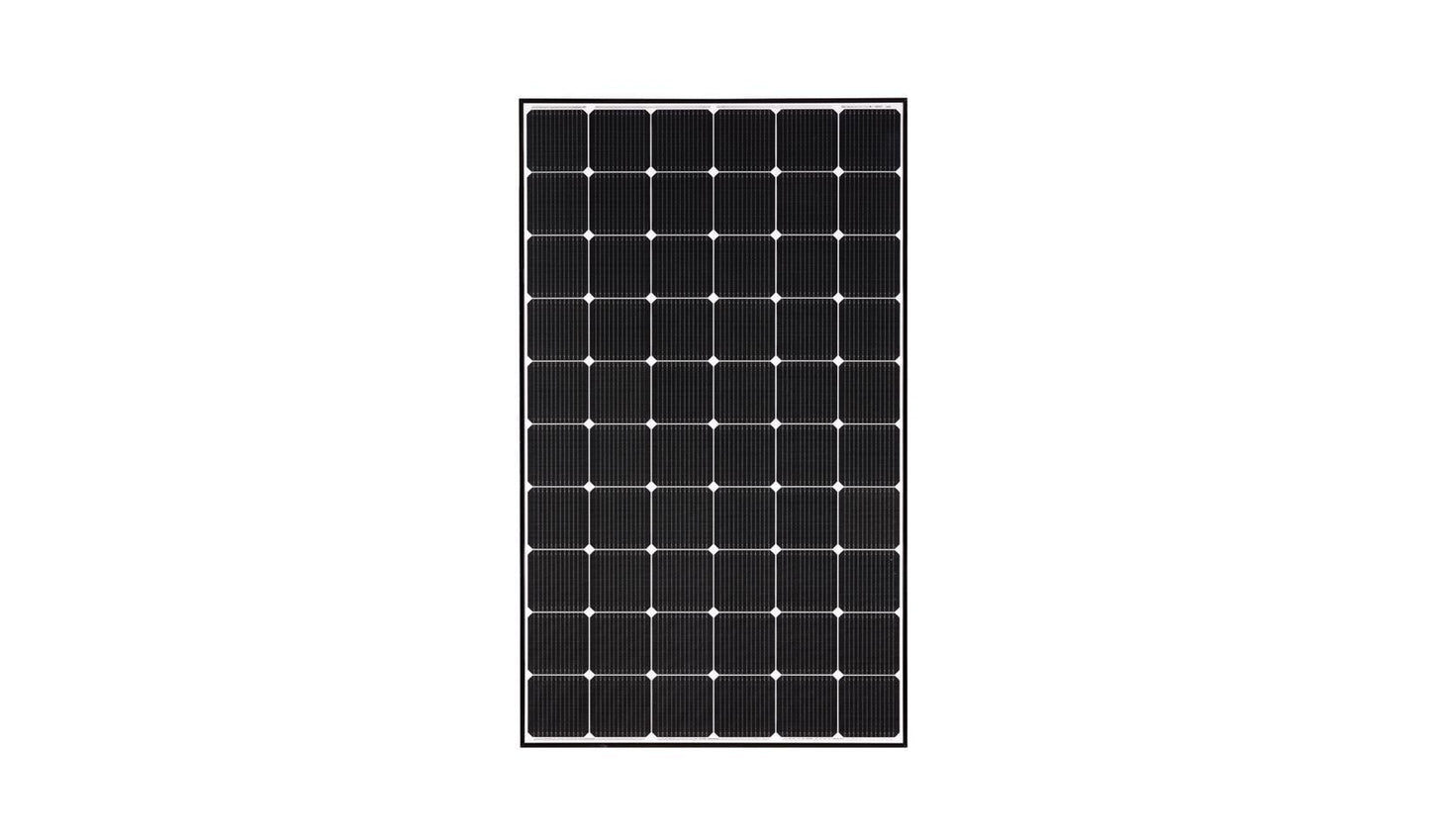

Lg LG330N1CA5 High Efficiency LG NeON® 2 Module Cells: 6 x 10 Module efficiency 19.3% Connector Type: MC4
Lg LG330N1CA5 High Efficiency LG NeON® 2 Module Cells: 6 x 10 Module efficiency 19.3% Connector Type: MC4
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Enhanced Performance Warranty
- High Power Output
- Roof Aesthetics
High Efficiency LG NeON® 2 Module Cells: 6 x 10 Module efficiency 19.3% Connector Type: MC4
| CERTIFICATIONS & WARRANTY | |
| Certifications | IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt mist corrosion t est), IEC 62716 (Ammonia corrosion test), ISO 9001 |
| Module Fire Performance | Type 2 |
| Product Warranty | 25 years |
| Output Warranty of Pmax | Linear warranty** |
| ** | 1) 1 st year : 98%, 2) After 1st year : 0.5% annual degradation, 3) 25 years : 86% |
| Fire Rating (for CANADA) | Class C (ULC/ORD C1703) |
| ELECTRICAL PROPERTIES(NOCT*) | |
| Maximum Power(Pmax) | 243 |
| MPP Voltage (Vmpp) | 31.2 |
| MPP Current (Impp) | 7.81 |
| Open Circuit Voltage (Voc) | 38.1 |
| Short Circuit Current (Isc) | 8.41 |
| * | Power at NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C,wind speed 1 m/s |
| Electrical Properties (STC*) | |
| MPP Voltage (Vmpp) | 33.7 |
| MPP Current (Impp) | 9.8 |
| Open Circuit Voltage (Voc) | 40.9 |
| Short Circuit Current (Isc) | 10.45 |
| Module Efficiency (%) | 19.3 |
| Operating Temperature (°C) | -40 ~ +90 |
| Maximum System Voltage (V) | 1000 |
| Maximum Series Fuse Rating (A) | 20 |
| Power Tolerance (%) | 0 ~ +3 |
| * | STC (Standard Test Condition): Irradiance 1,000 W/m , Ambient Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The Typical change in module efficiency at 200W/m in relation to 1000W/m2 is -2.0%. |
| Maximum Power (Pmax) | 330 |
| MECHANICAL PROPERTIES | |
| Cells | 6 x 10 |
| Cell vendor | LG |
| Cell Type | Monocrystalline / N-type |
| Cell Dimensions | 161.7 x 161.7 mm / 6 inches |
| # of Busbar | 12 (Multi Wire Busbar) |
| Dimensions (L x W x H) | 1686 x 1016 x 40 mm / 66.38 x 40 x 1.57 inch |
| Front Load | 6000Pa |
| Rear Load | 5400Pa |
| Weight | 18 kg |
| Connector Type | MC4 |

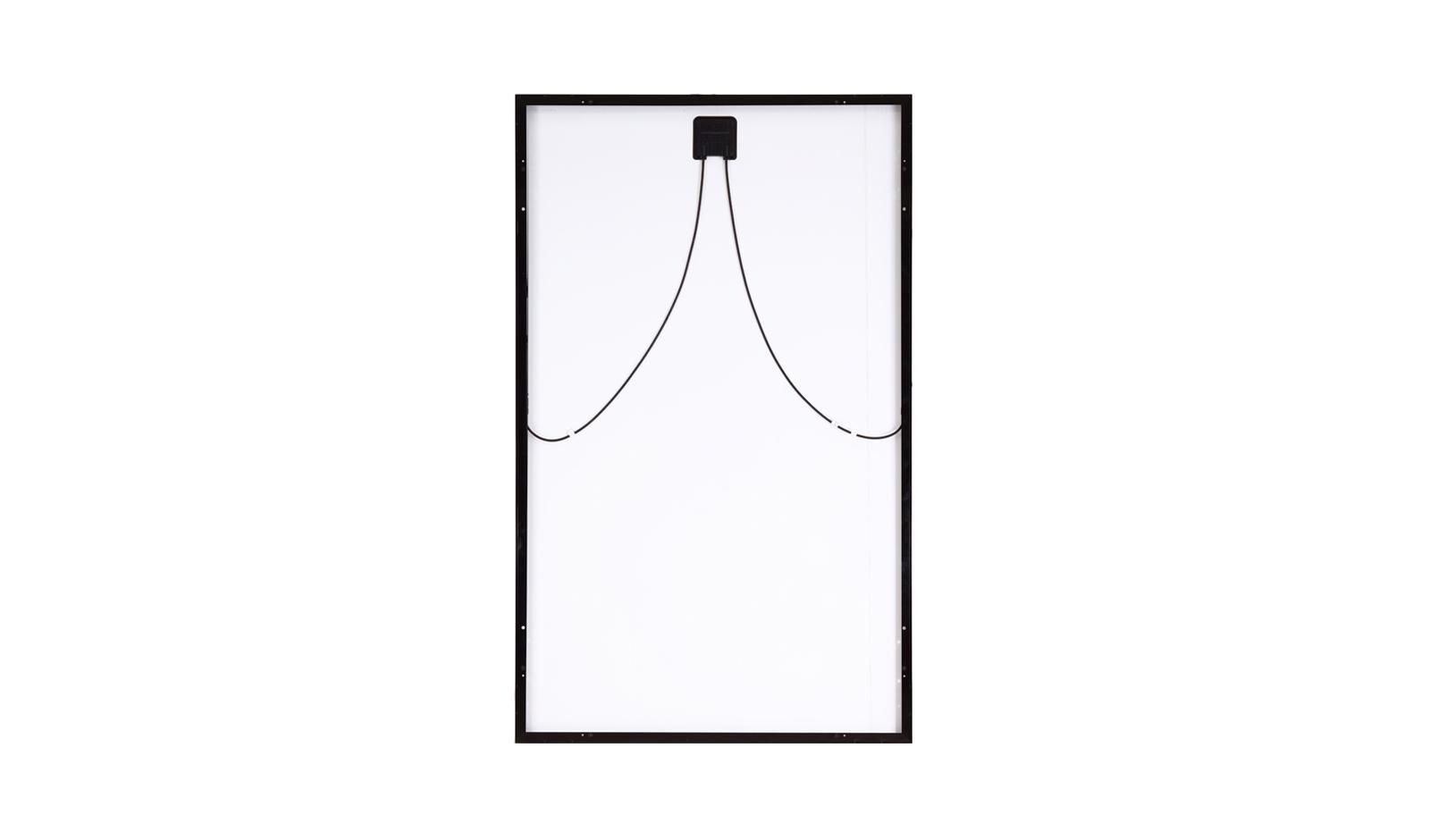

| Junction Box | IP68 with 3 Bypass Diodes |
| Frame | Anodized aluminum |
| Glass | Tempered Glass with AR Coating |
| Cables | 1000 mm x 2 ea |
| Temperature Characteristics | |
| NOCT | 45 3 °C |
| Pmpp | -0.37%/°C |
| Voc | -0.27%/°C |
| Isc | 0.03 %/°C |
