LG LG345N1CV5
Authorized Reseller
LG345N1CV5 LG345N1C-V5
LG345N1CV5 LG345N1C-V5
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Enhanced Performance Warranty
- Enhanced Product Warranty
- Better Performance on a Sunny Day
- Roof Aesthetics

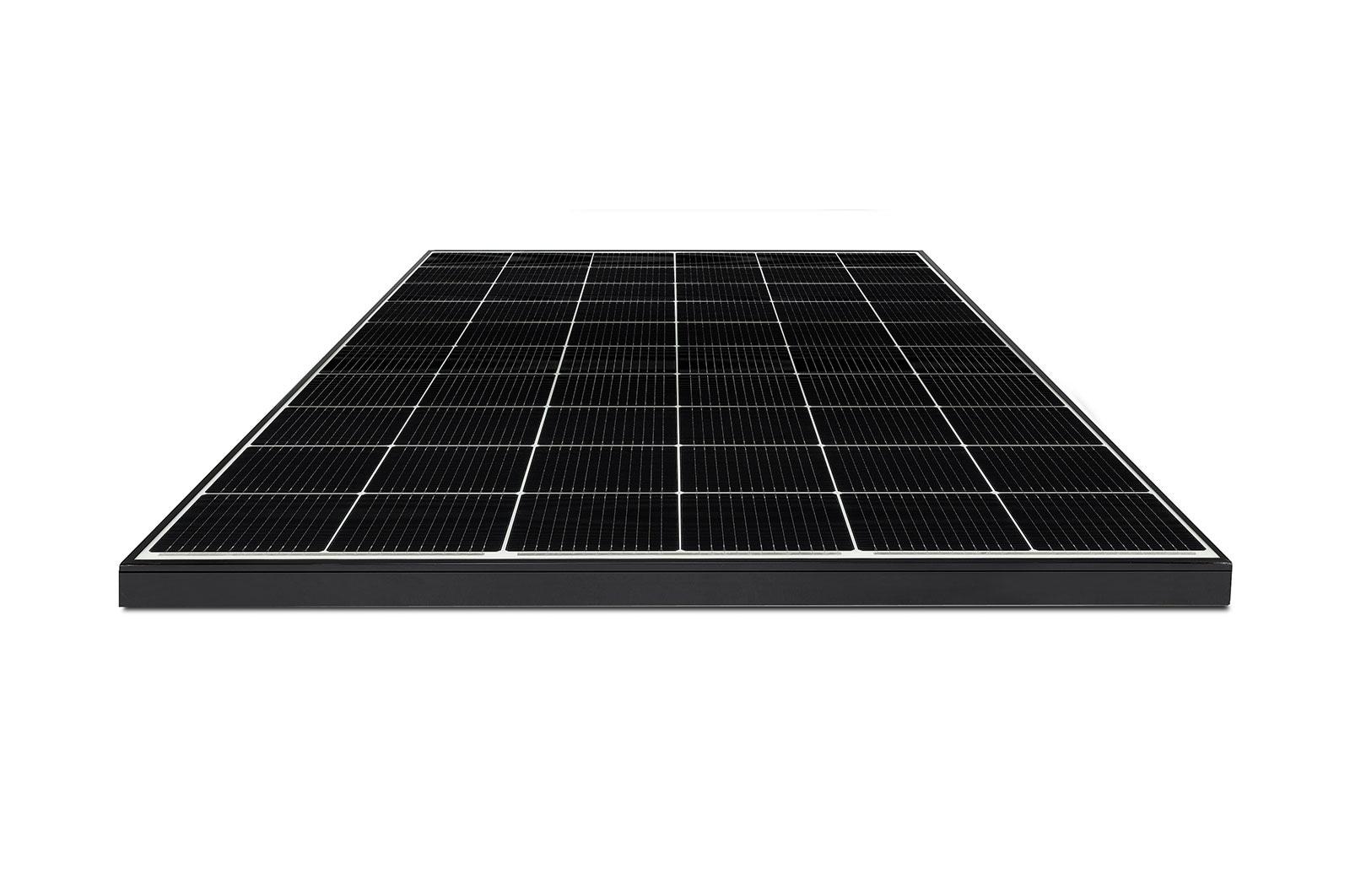

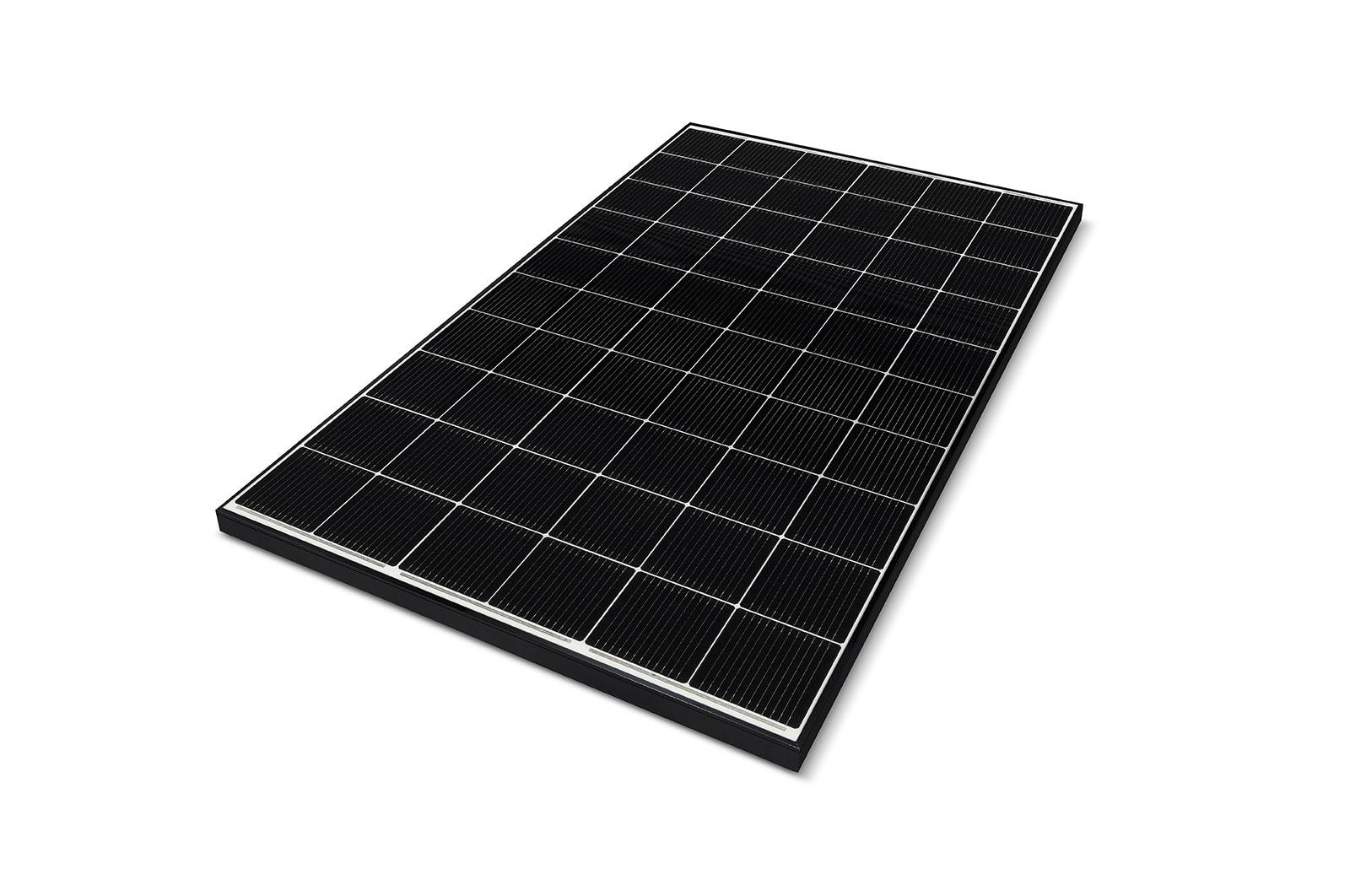

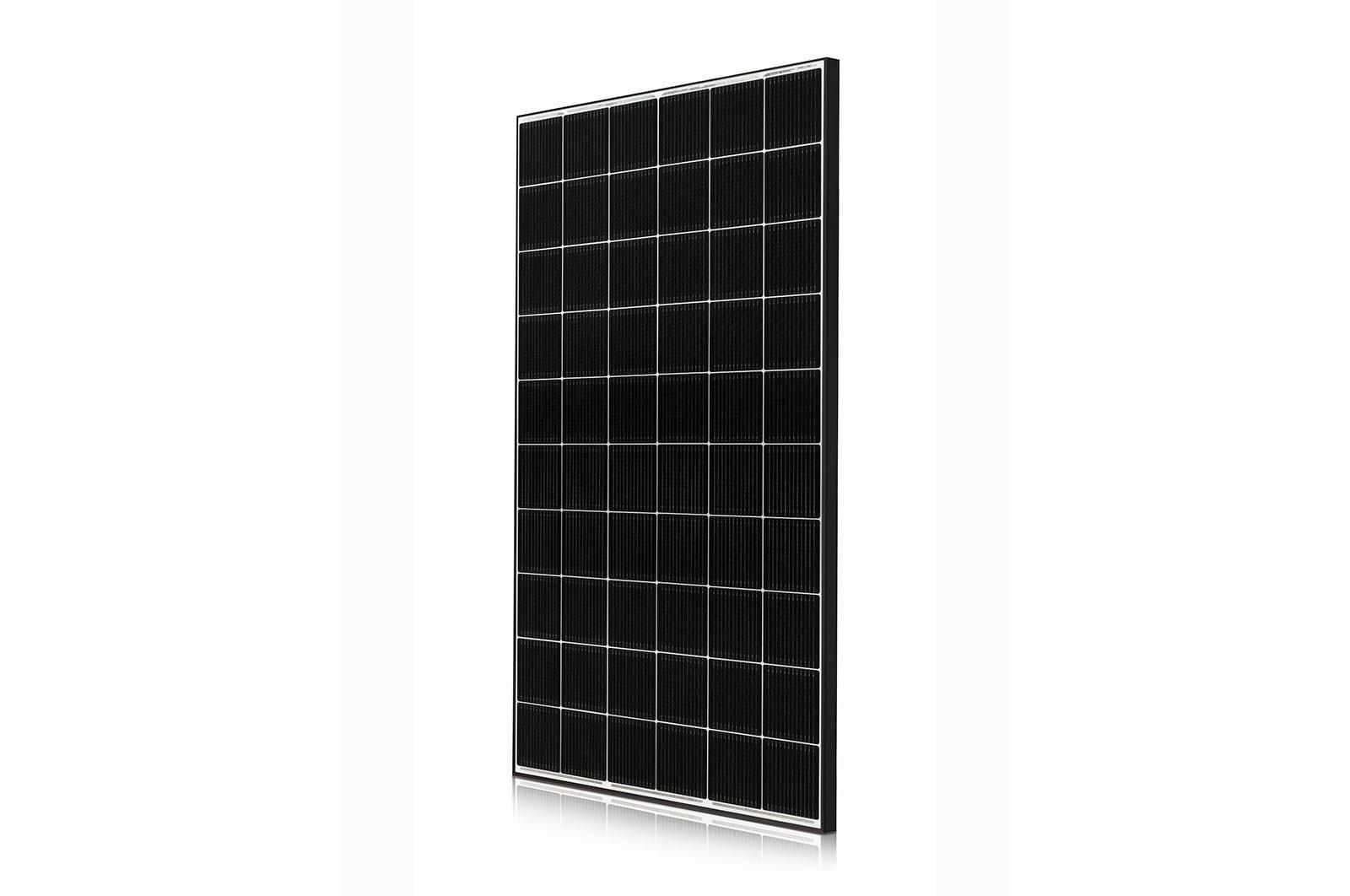

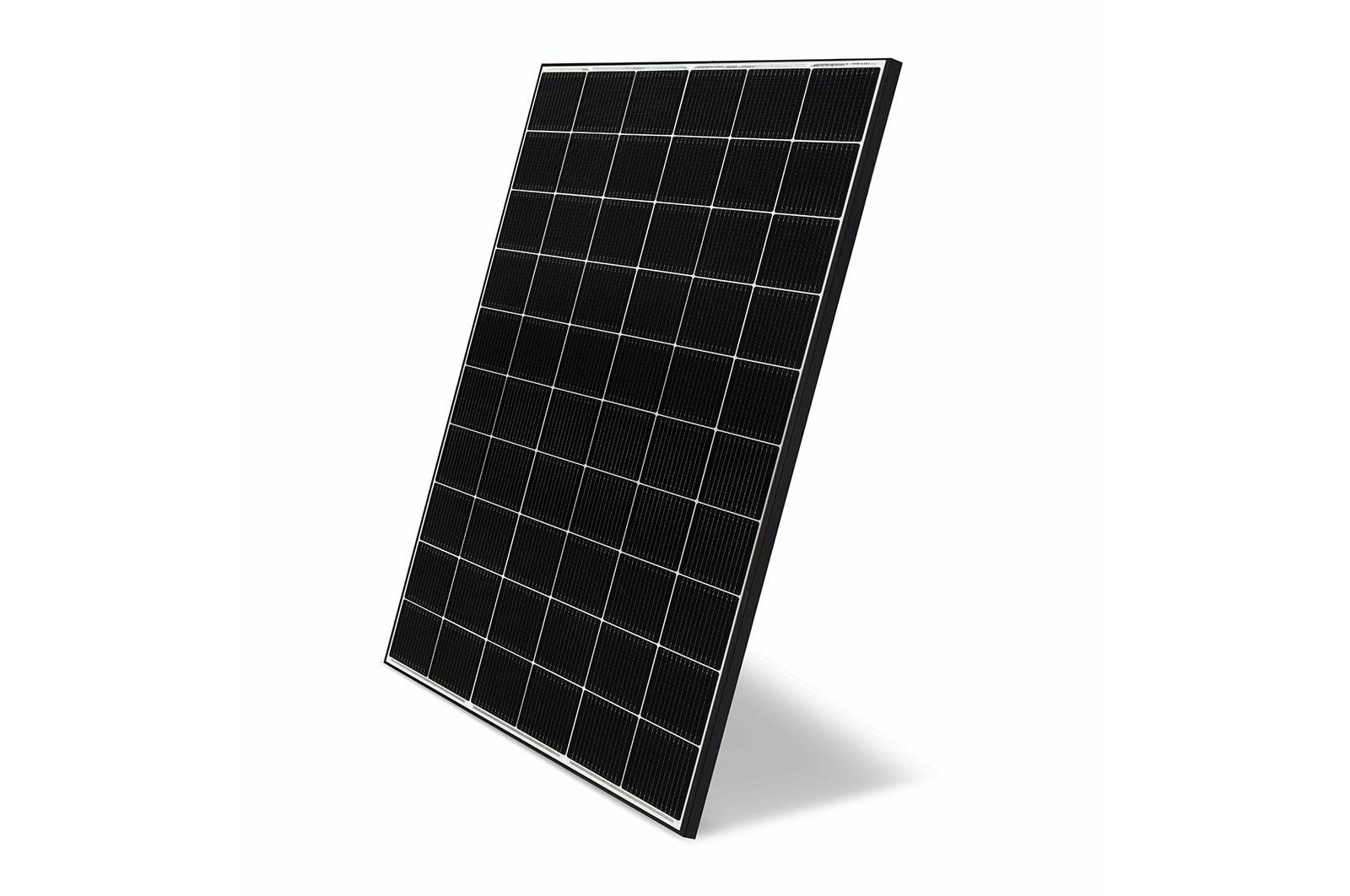

LG345N1C-V5
| General Data | |
| Cell Properties (Material/Type) | Monocrystalline/N-type |
| Cell Maker | LG |

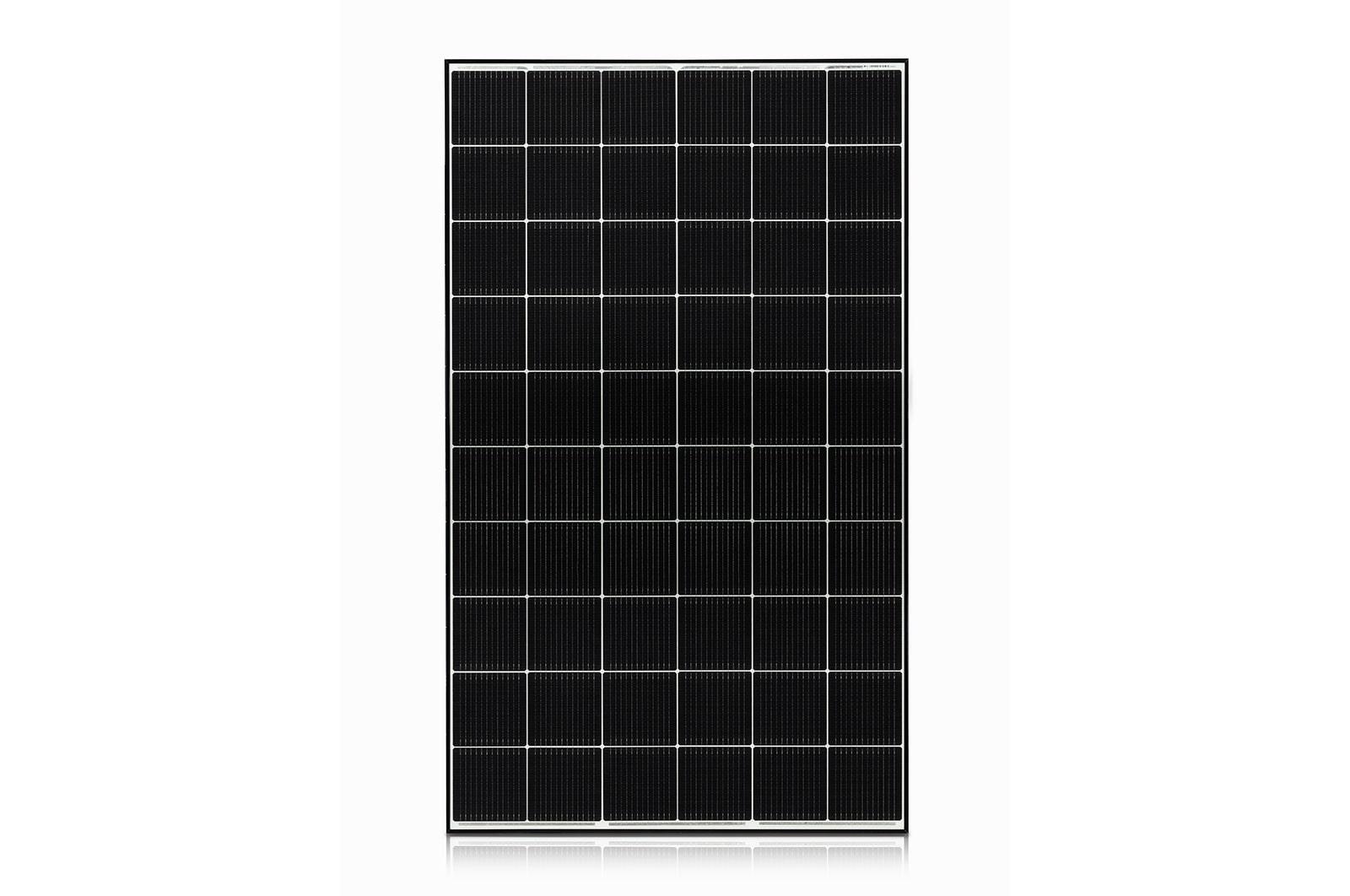

| Cell Configuration | 60 Cells (6 x 10) |
| Number of Busbars | 12EA |
| Module Dimensions (L x W x H) | 1,686mm x 1,016mm x 40 mm |
| Weight | 17.1kg |
| Glass (Material) | Tempered Glass with AR Coating |
| Backsheet (Color) | White |
| Frame (Material) | Anodized Aluminium |

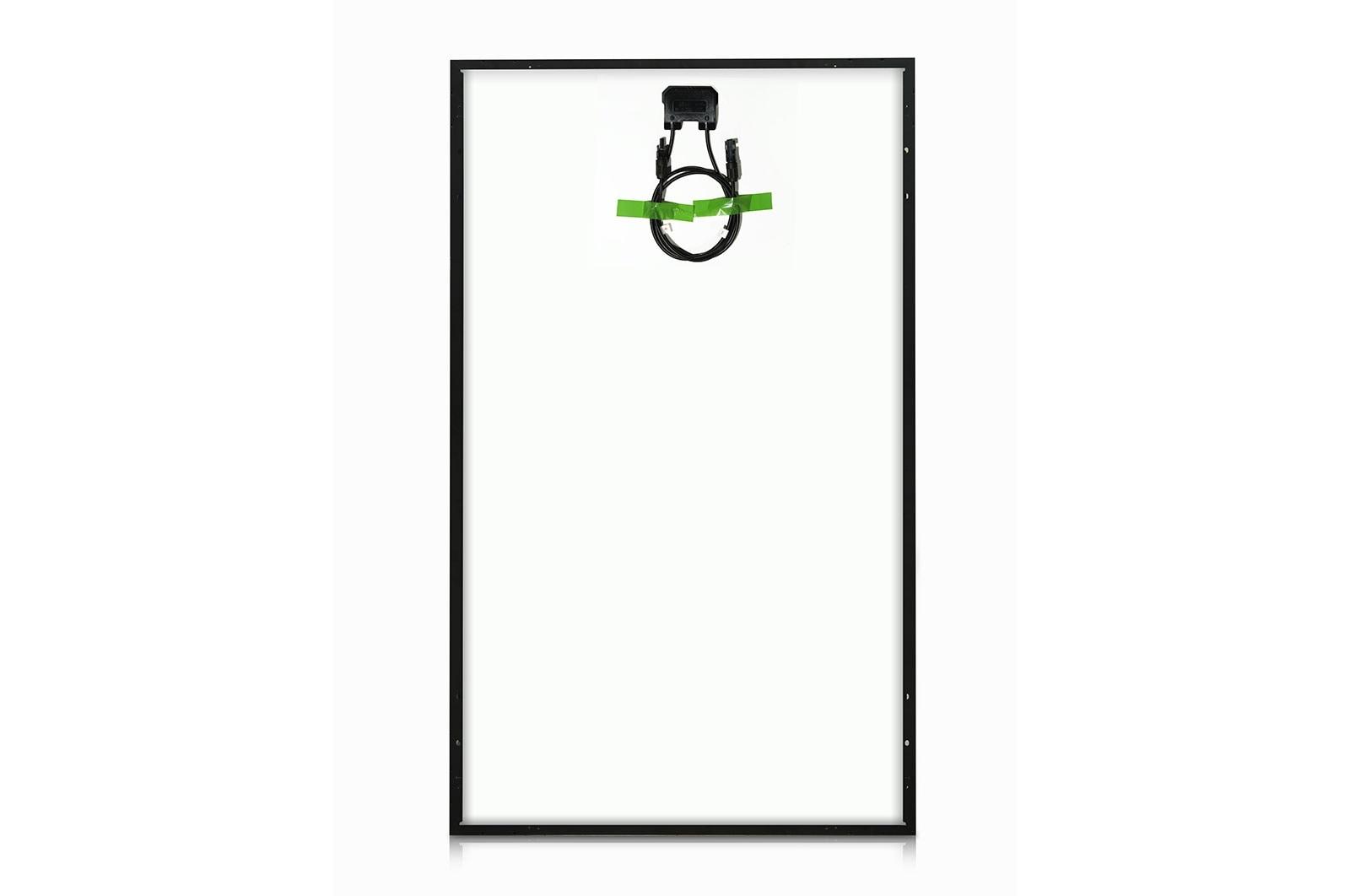

| Junction Box (Protection Degree) | IP 68 with 3 Bypass Diodes |
| Cables (Length) | 1,000mm x 2EA |
| Connector (Type/Maker) | MC 4/MC |
| Certifications and Warranty | |
| Certifications | IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, UL 1703, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001 |
| Salt Mist Corrosion Test | IEC 61701:2012 Severity 6 |
| Ammonia Corrosion Test | IEC 62716:2013 |
| Module Fire Performance | Type 1 (UL 1703) |
| Fire Rating | Class C (UL 790, ULC/ORD C 1703) |
| Solar Module Product Warranty | 25 Years |
| Solar Module Output Warranty | Linear Warranty* |
| * | Improved: 1st year 98%, from 2-24th year: 0.33%/year down, after 25th year: 90.08% |
| Temperature Characteristics | |
| NMOT* [°C] | 42 3 |
| Pmax [%/°C] | -0.36 |
| Voc [%/°C] | -0.26 |
| Isc [%/°C] | 0.03 |
| * | NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m , Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5 |
| Electrical Properties (NMOT) | |
| Model | LG345N1C-V5 |
| Maximum Power (Pmax) [W] | 259 |
| MPP Voltage (Vmpp) [V] | 32.8 |
| MPP Current (Impp) [A] | 7.89 |
| Open Circuit Voltage (Voc) [V] | 38.8 |
| Short Circuit Current (Isc) [A] | 8.49 |
| Electrical Properties (STC*) | |
| Model | LG345N1C-V5 |
| Maximum Power (Pmax) [W] | 345 |
| MPP Voltage (Vmpp) [V] | 34.9 |
| MPP Current (Impp) [A] | 9.89 |
| Open Circuit Voltage (Voc 5%) [V] | 41.2 |
| Short Circuit Current (Isc 5%) [A] | 10.57 |
| Module Efficiency [%] | 20.1 |
| Bifaciality Coefficient of Power [%] | 10 |
| Power Tolerance [%] | 0 ~ +3 |
| * | STC (Standard Test Condition): Irradiance 1000 W/m , cell temperature 25 °C, AM 1.5. |
| ** | Measurement Tolerance: 3% |
| Operating Conditions | |
| Operating Temperature [°C] | -40 ~+90 |
| Maximum System Voltage [V] | 1,000 |
| Maximum Series Fuse Rating [A] | 20 |
| Mechanical Test Load (Front) [Pa/psf] | 5,400/113 |
| Mechanical Test Load (Rear) [Pa/psf] | 4,000/84 |
| * | Mechanical Test Load 5,400Pa/4,000Pa based on IEC 61215-2 : 2016, Test Load = Design Load x Safety Factor (1.5) |
| Packaging Configuration | |
| Number of Modules per Pallet [EA] | 25 |
| Number of Modules per 40ft HQ Container [EA] | 650 |
| Packaging Box Dimensions (L x W x H) [mm] | 1,750 x 1,120 x 1,221 |
| Packaging Box Gross Weight [kg] | 464 |
