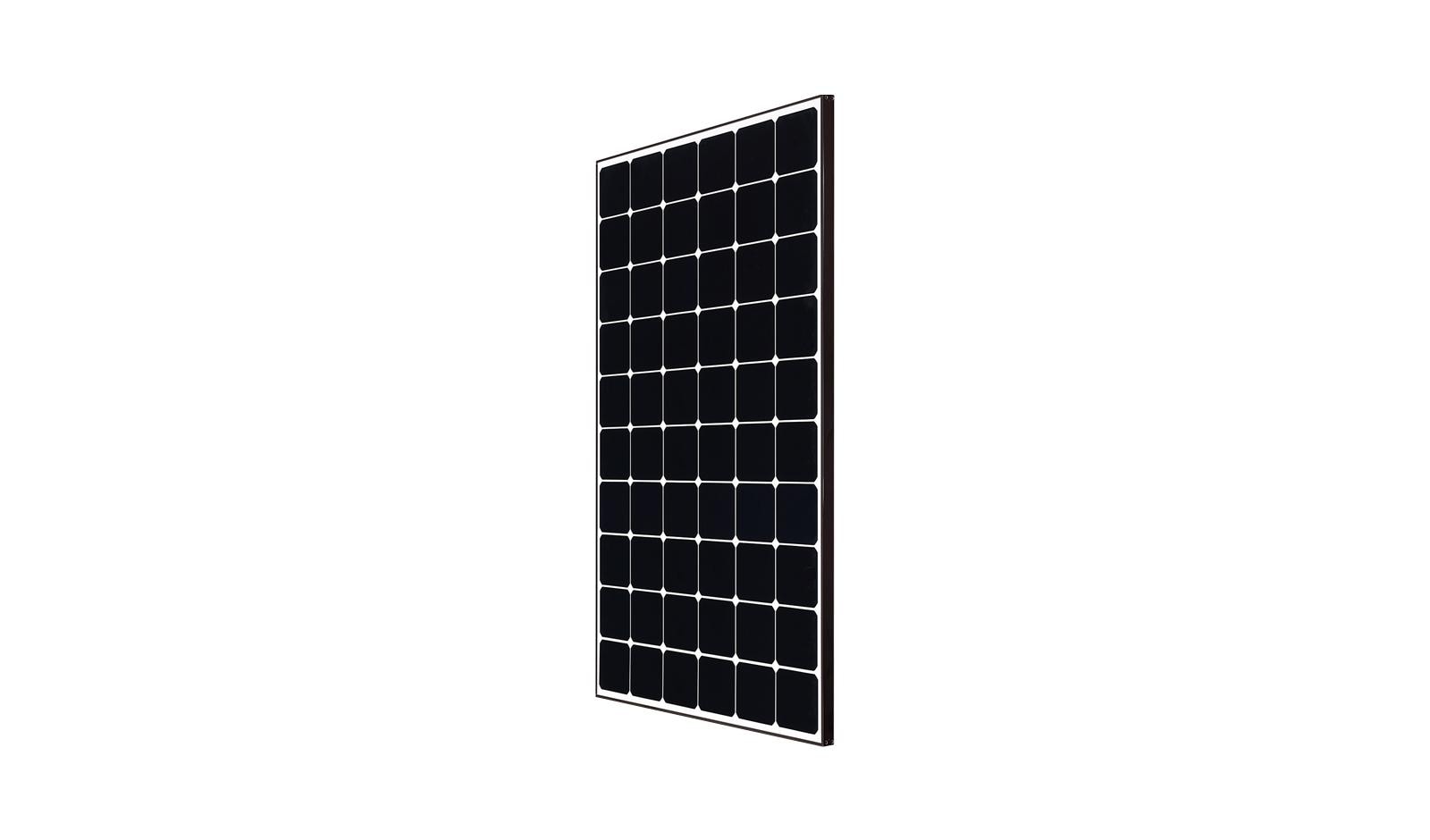

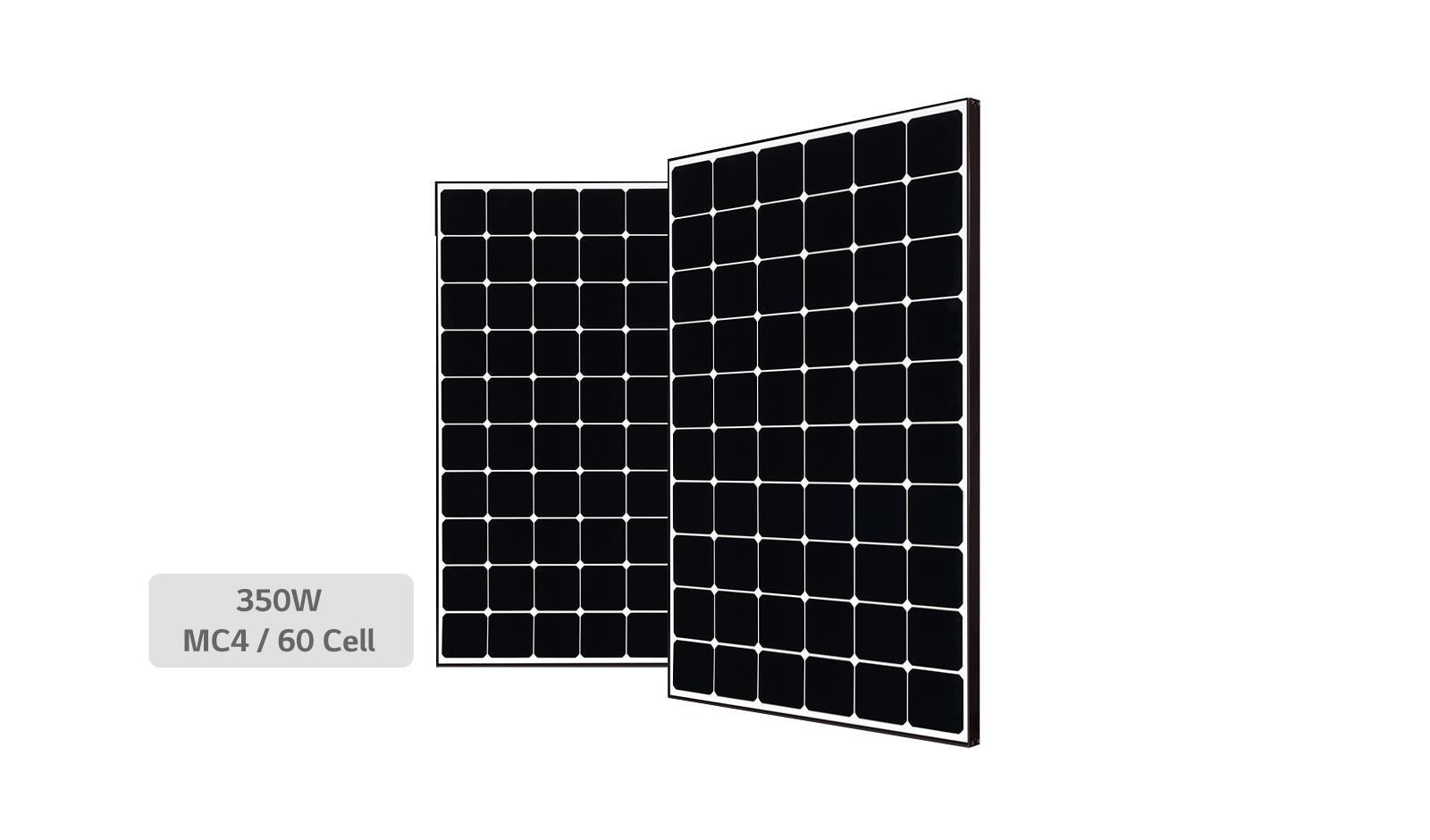

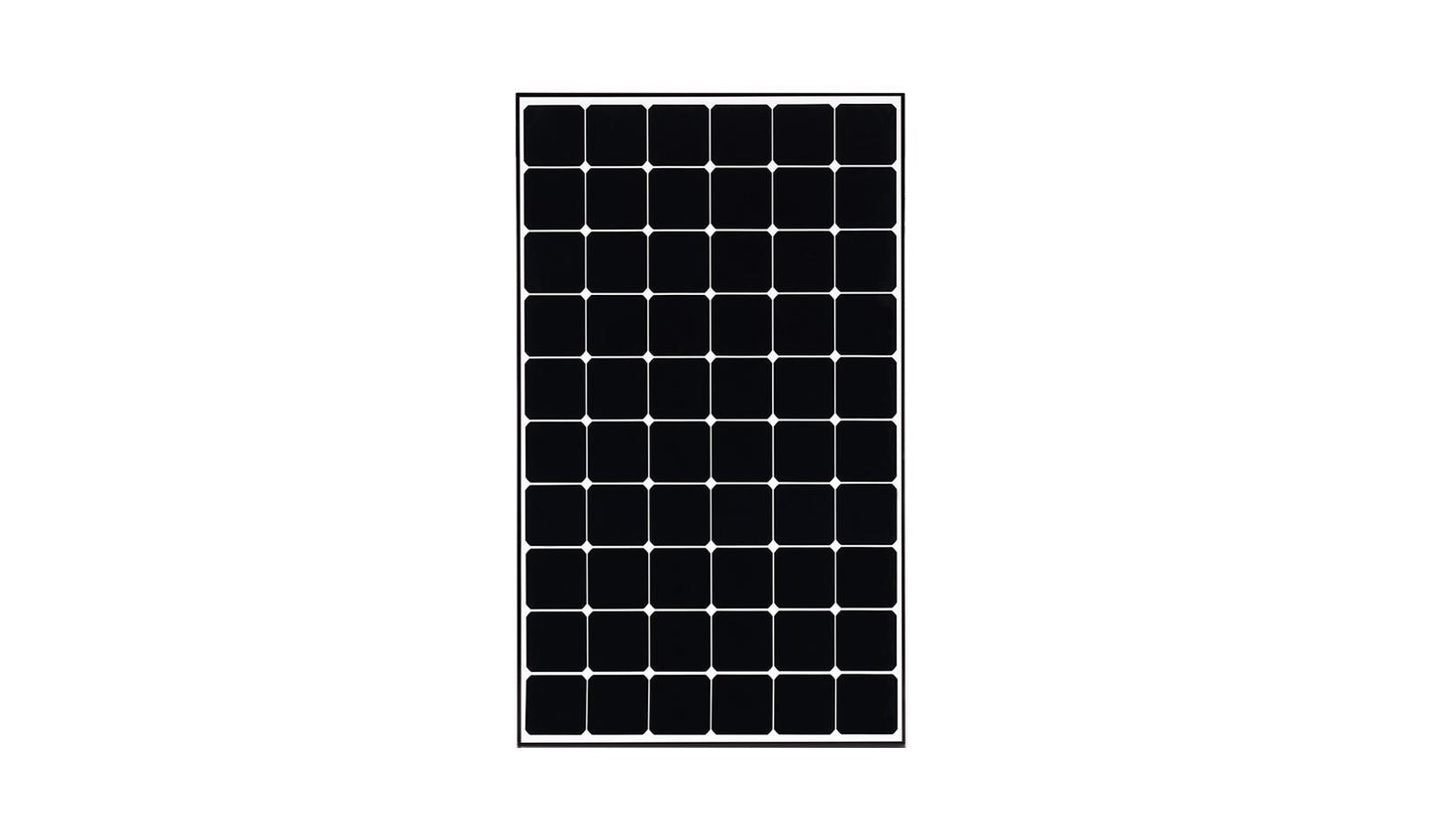

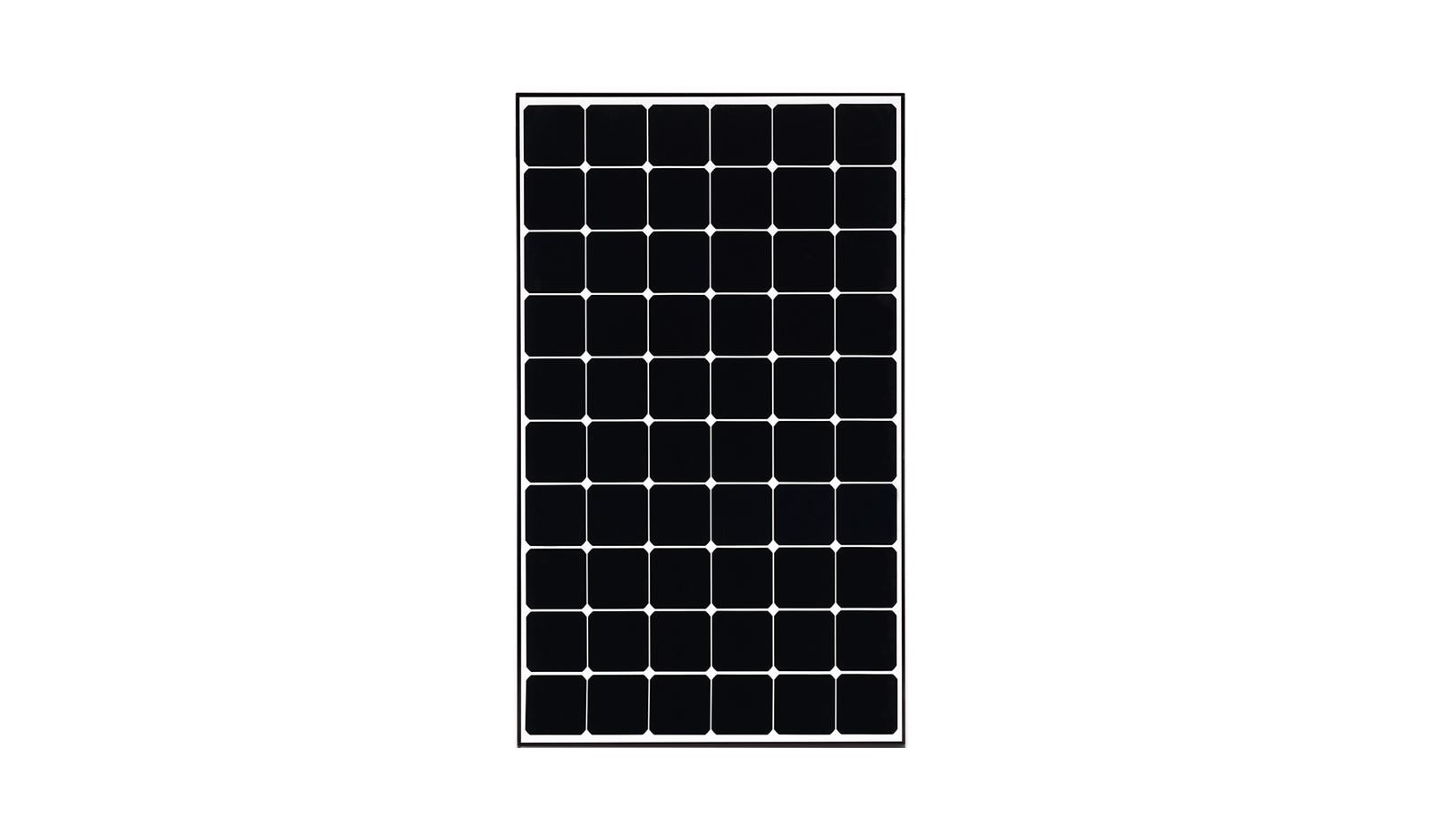

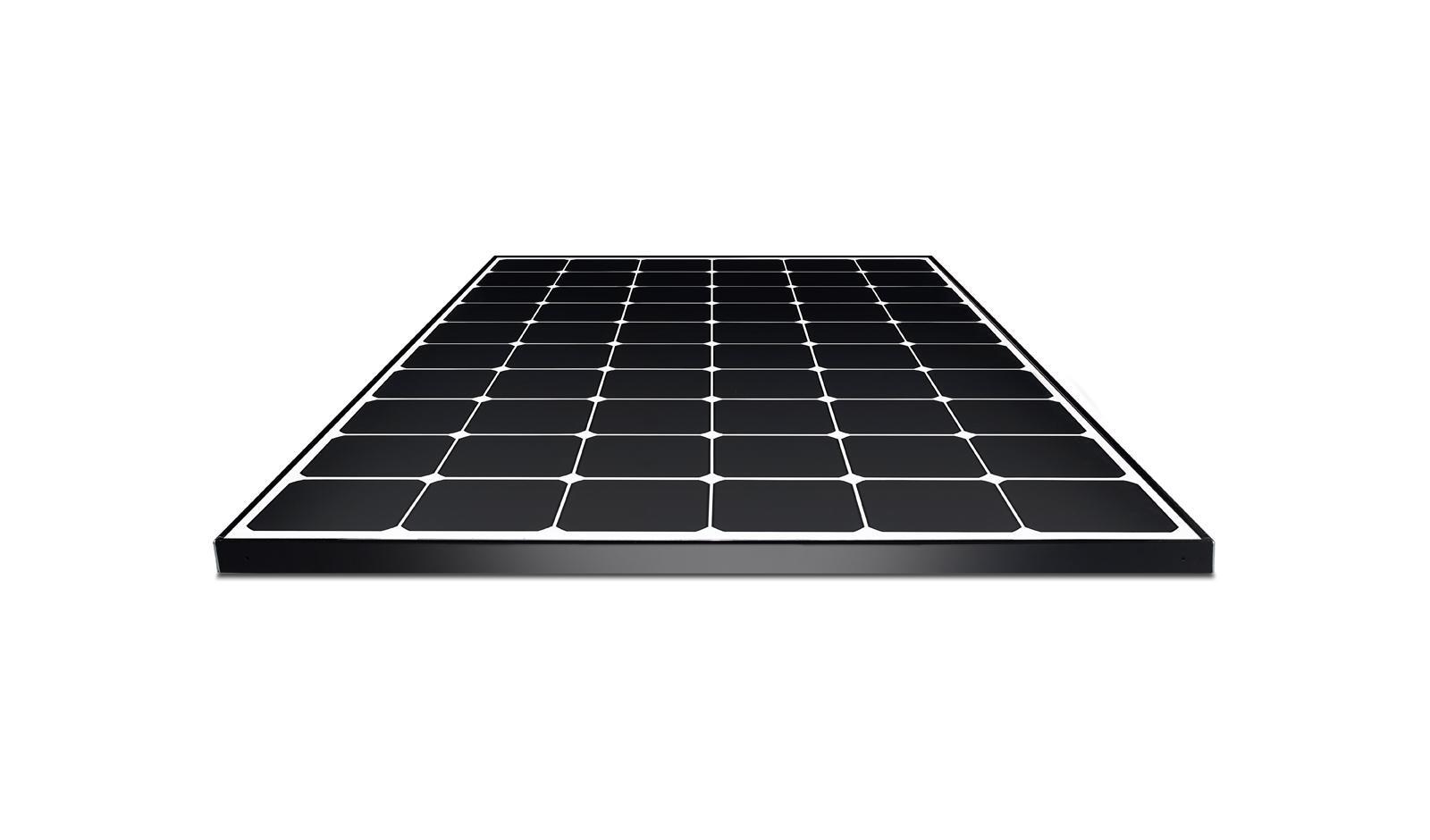

Lg LG350Q1CA5 High Efficiency LG NeON® R Module Cells: 6 x 10 Module efficiency: 20.3% Connector Type: MC4
Lg LG350Q1CA5 High Efficiency LG NeON® R Module Cells: 6 x 10 Module efficiency: 20.3% Connector Type: MC4
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Enhanced Performance Warranty
- High Power Output
- Roof Aesthetics
High Efficiency LG NeON® R Module Cells: 6 x 10 Module efficiency: 20.3% Connector Type: MC4
| CERTIFICATIONS & WARRANTY | |
| Certifications | IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt mist corrosion test), IEC 62716 (Ammonia corrosion test), ISO 9001 |
| Module Fire Performance | Type 1 |
| Product Warranty | 25 years |
| Output Warranty of Pmax | Linear warranty** |
| ** | 1) First 5 years : 95%, 2) After 5th year : 0.4% annual degradation, 3) 25 years : 88.4% |
| Fire Rating (for CANADA) | Class C (ULC/ORD C1703) |
| ELECTRICAL PROPERTIES(NOCT*) | |
| Maximum Power(Pmax) | 264 |
| MPP Voltage (Vmpp) | 36.3 |
| MPP Current (Impp) | 7.26 |
| Open Circuit Voltage (Voc) | 40.9 |
| Short Circuit Current (Isc) | 8.54 |
| * | NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s |
| Electrical Properties (STC*) | |
| MPP Voltage (Vmpp) | 36.4 |
| MPP Current (Impp) | 9.62 |
| Open Circuit Voltage (Voc) | 43.5 |
| Short Circuit Current (Isc) | 10.60 |
| Module Efficiency (%) | 20.3 |
| Operating Temperature (°C) | -40 ~ +90 |
| Maximum System Voltage (V) | 1000 |
| Maximum Series Fuse Rating (A) | 20 |
| Power Tolerance (%) | 0 ~ +3 |
| * | STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. |
| Maximum Power (Pmax) | 350 |
| MECHANICAL PROPERTIES | |
| Cells | 6 x 10 |
| Cell vendor | LG |
| Cell Type | Monocrystalline / N-type |
| Cell Dimensions | 161.7 x 161.7 mm / 6 inches |
| # of Busbar | 30 (Multi Ribbon Busbar) |
| Dimensions (L x W x H) | 1700 x 1016 x 40 mm / 66.93 x 40.0 x 1.57 inch |
| Front Load | 6000 Pa / 125 psf |
| Rear Load | 5400 Pa / 113 psf |
| Weight | 18.5 kg |
| Connector Type | MC4 |
| Junction Box | IP 67 with 3 bypass diodes |
| Length of Cables | 1000 mm x 2 ea |
| Frame | Anodized aluminium |
| Glass | Tempered Glass with AR Coating |
| Temperature Characteristics | |
| NOCT | 44 3 °C |
| Pmpp | -0.30 %/°C |
| Voc | -0.24 %/°C |
| Isc | 0.04 %/°C |
