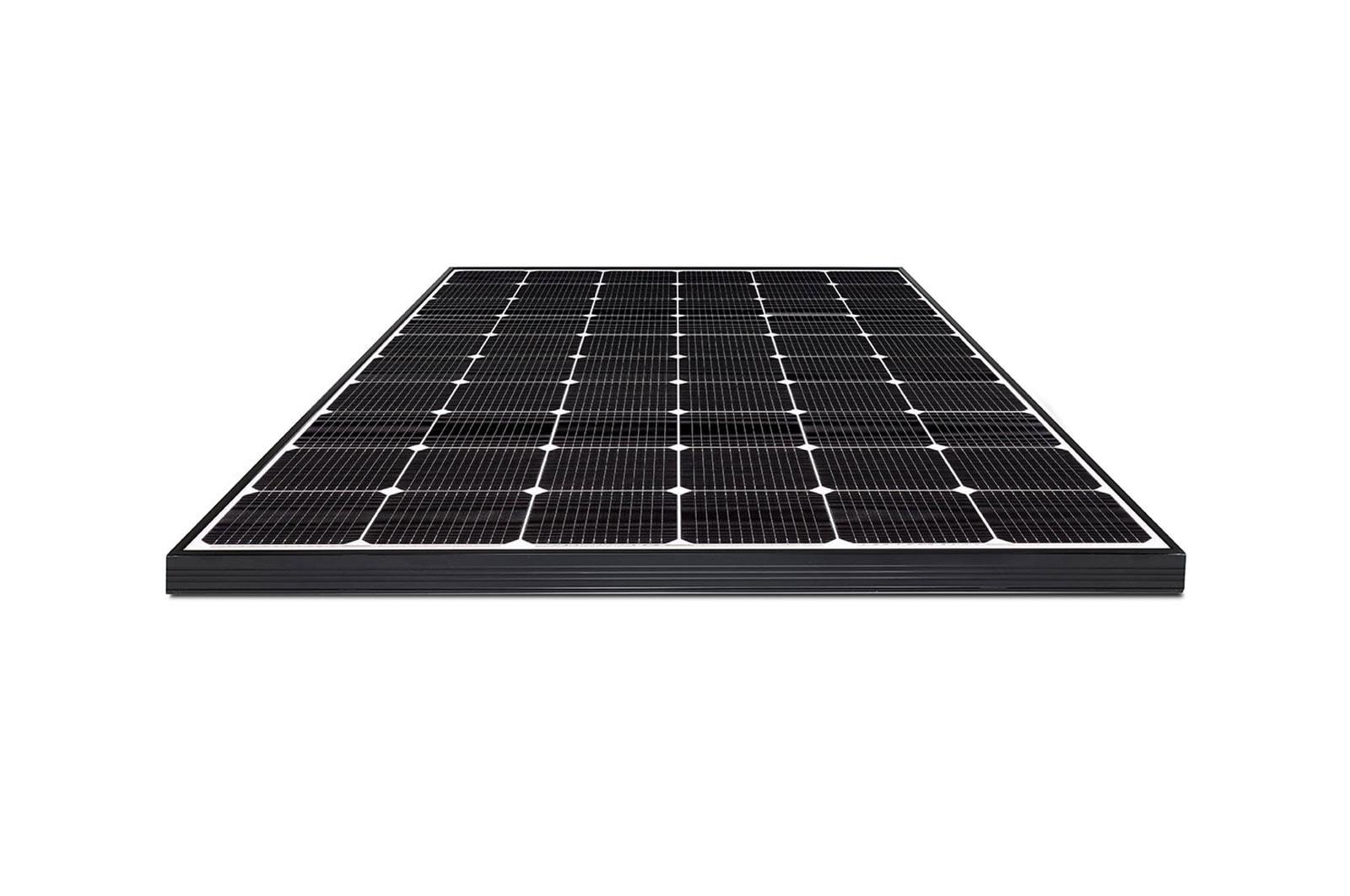

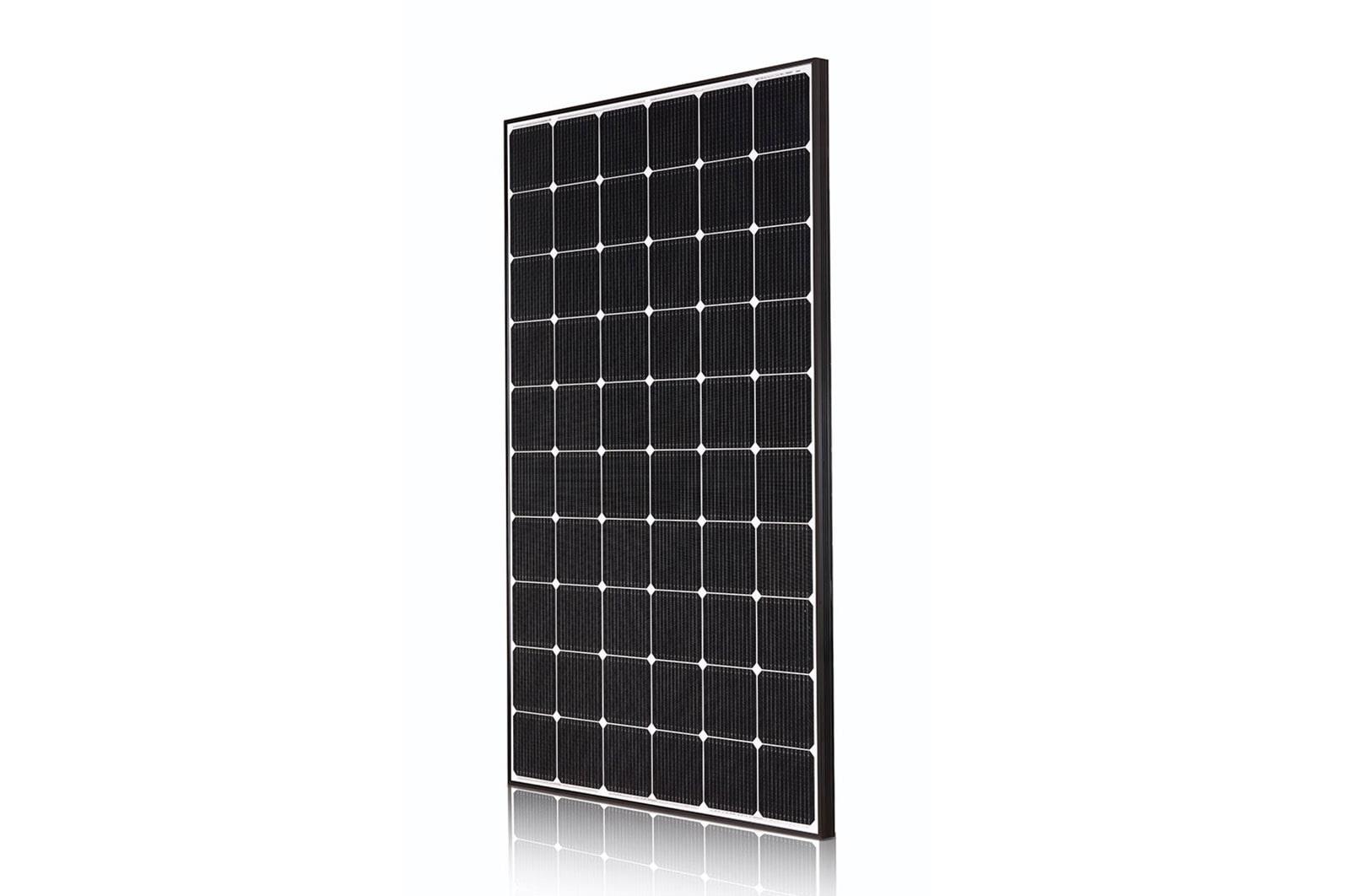

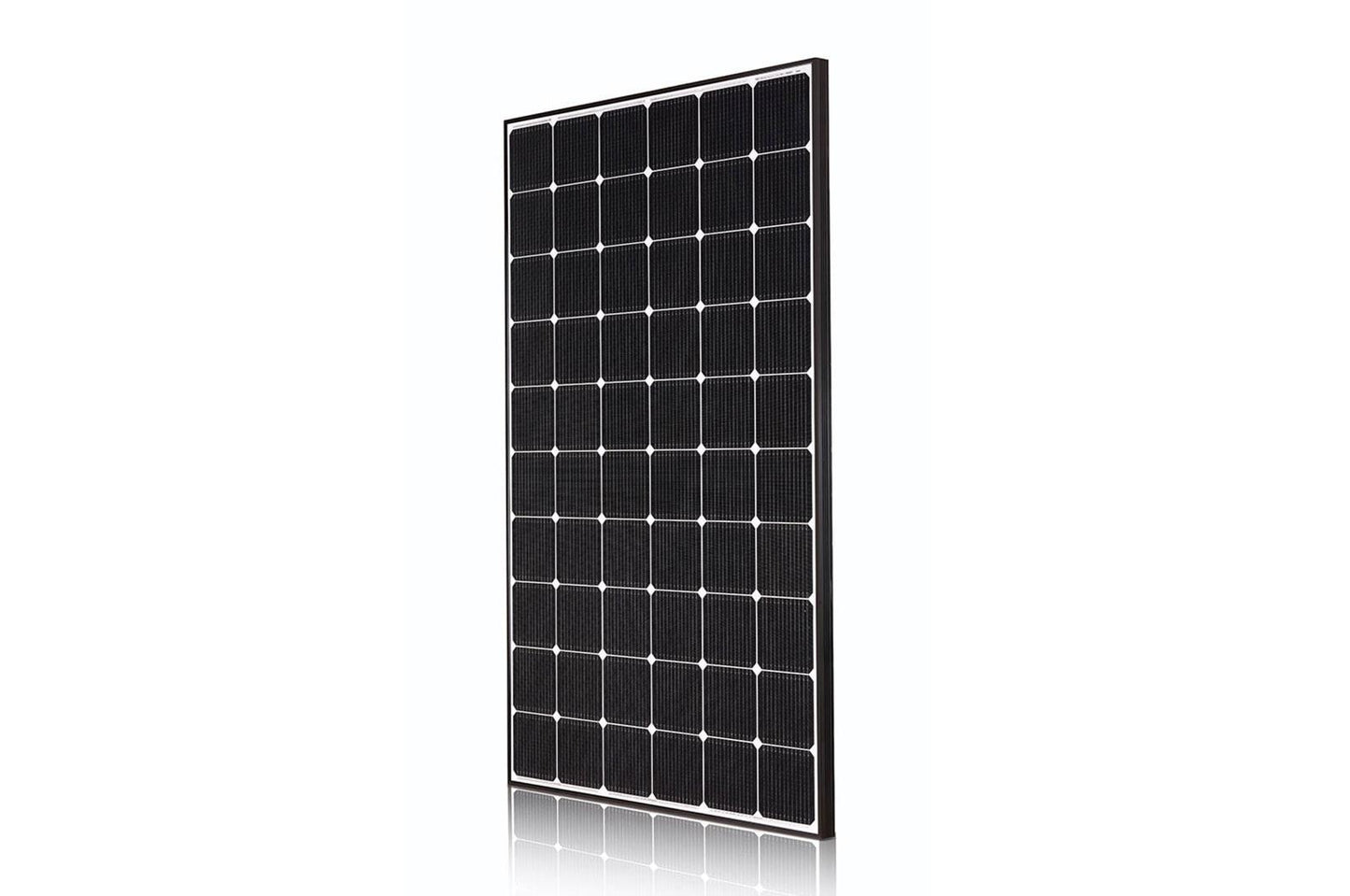

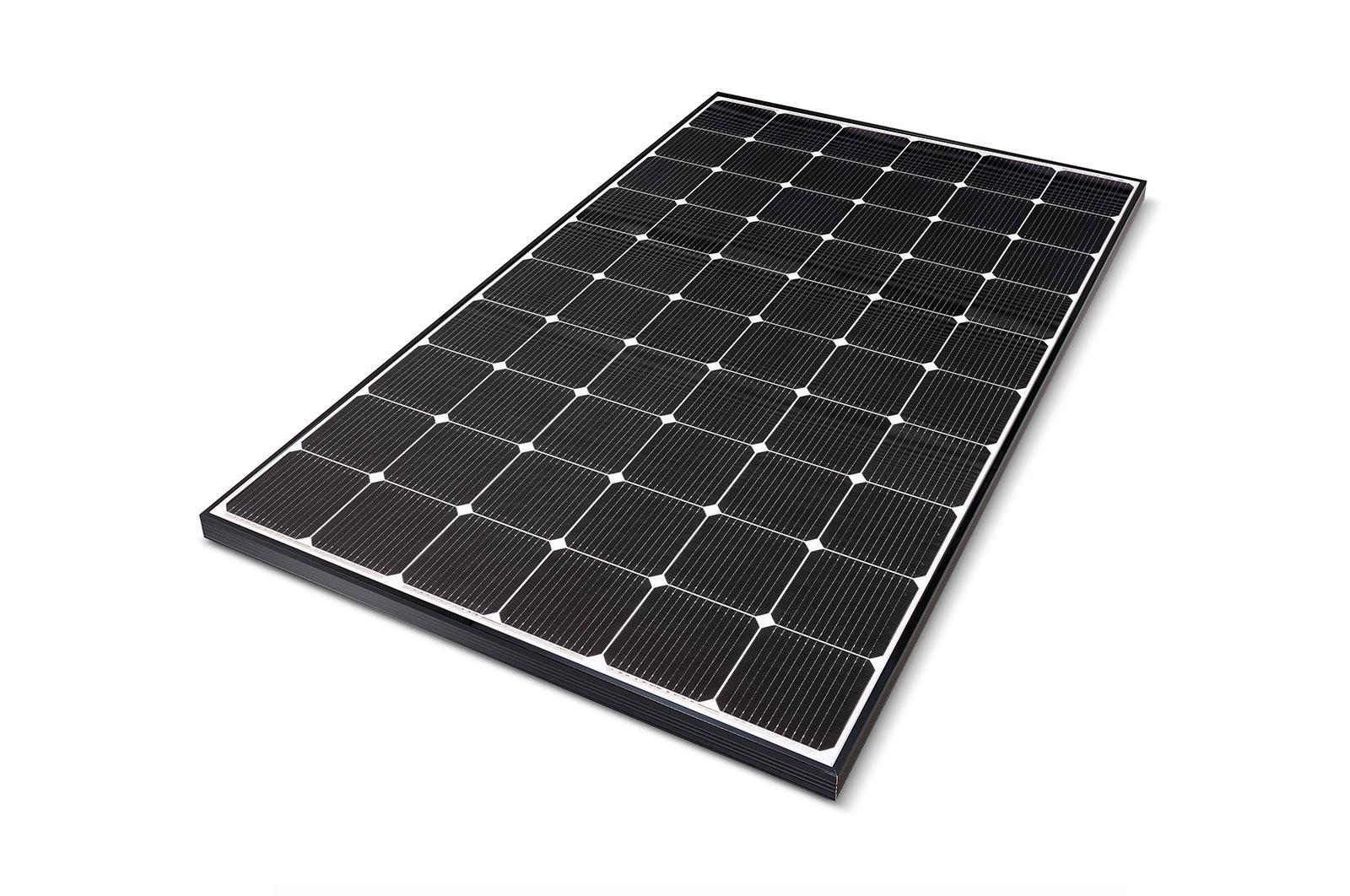

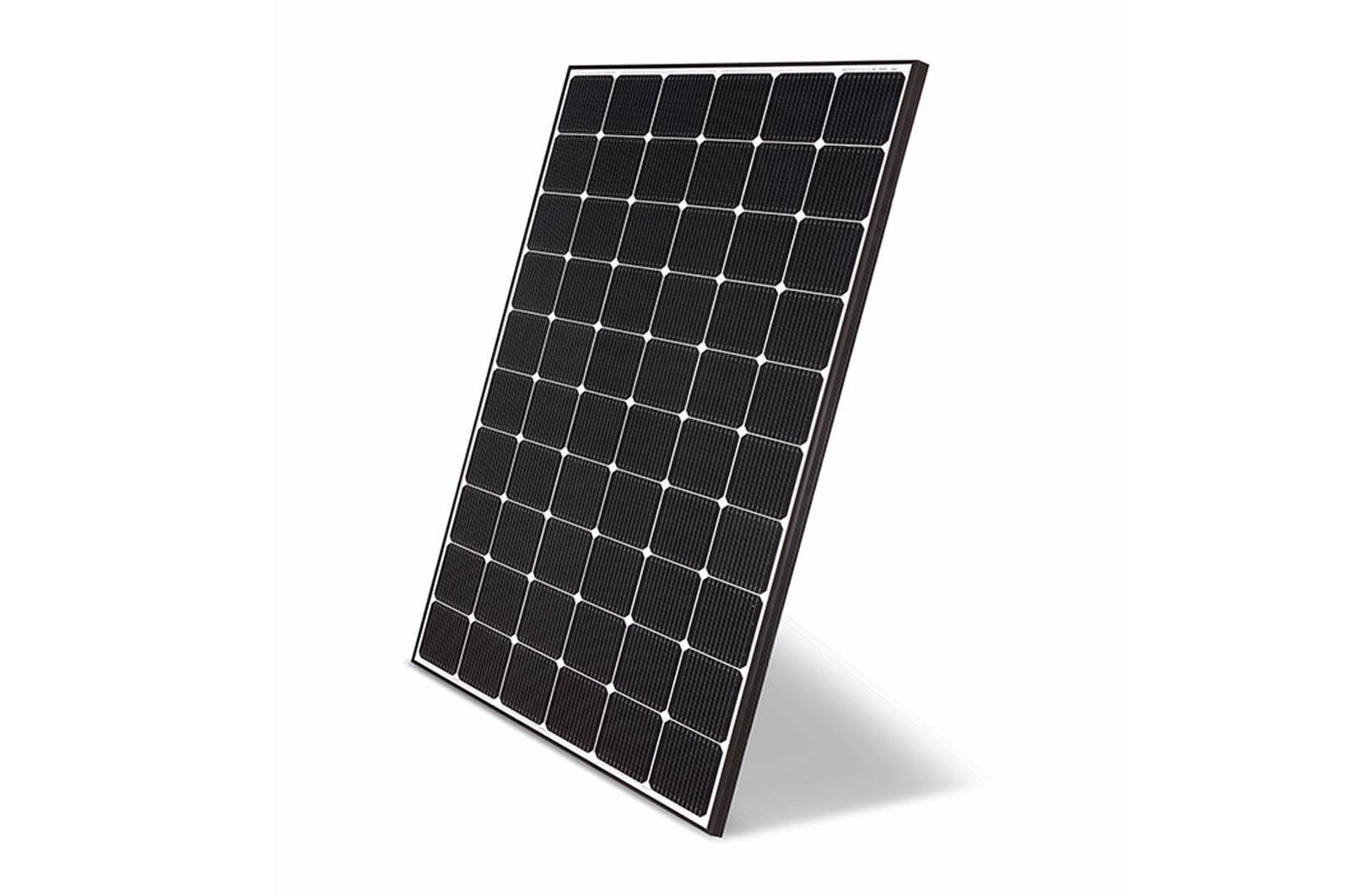

Lg LG365N1CN5 365W NeON® 2 Solar Panel for Home
Lg LG365N1CN5 365W NeON® 2 Solar Panel for Home
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 60 Cell (6 x 10) Solar Panel for Home
- 25-Year Limited Warranty
- Solid Performance on a Sunny Day
- Award-Winning Cello Technology™
- Attractive Roof Aesthetic
365W NeON® 2 Solar Panel for Home
| General Data | |
| Cell Properties (Material/Type) | TBD |
| Cell Maker | TBD |
| Cell Configuration | TBD |
| Number of Busbars | TBD |
| Module Dimensions (L x W x H) | TBD |
| Weight | TBD |
| Glass (Material) | TBD |
| Backsheet (Color) | TBD |
| Frame (Material) | TBD |
| Junction Box (Protection Degree) | TBD |
| Cables (Length) | TBD |
| Connector (Type/Maker) | TBD |
| CERTIFICATIONS & WARRANTY | |
| Certifications | IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001, UL 1703, IEC 61701 (Salt Mist Corrosion Test), IEC 62716 (Ammonia Corrosion Test) |
| Salt Mist Corrosion Test | TBD |
| Ammonia Corrosion Test | TBD |
| Module Fire Performance | Type 1 |
| Fire Rating | Class C (UL 790, ULC/ORD C 1703) |
| Product Warranty | 25 Year Limited |
| Output Warranty of Pmax | Linear warranty* |
| * | Improved: 1st year 98%, from 2-24th year: 0.33%/year down, 90.1% at year 25 |
| Temperature Characteristics | |
| NMOT | 42 3 |
| Pmax | -0.34 |
| Voc | -0.26 |
| Isc | 0.03%/°C |
| * | NMOT (Nominal Module Operating Temperature):Irradiance 800W/m , Ambient temperature 20 , Wind speed 1m/s, Spectrum AM 1.5 |
| Electrical Properties (NMOT) | |
| Model | TBD |
| Maximum Power (Pmax) | 273.9 |
| MPP Voltage (Vmpp) | 33.3 |
| MPP Current (Impp) | 8.21 |
| Open Circuit Voltage (Voc) | 39.3 |
| Short Circuit Current (Isc) | 8.74 |
| Electrical Properties (STC*) | |
| Model | TBD |
| Maximum Power (Pmax) [W] | TBD |
| MPP Voltage (Vmpp) | 35.5 |
| MPP Current (Impp) | 10.30 |
| Open Circuit Voltage (Voc) | 41.7 |
| Short Circuit Current (Isc) | 10.88 |
| Module Efficiency (%) | 21.1 |
| Operating Temperature (°C) | -40 ~ +90 |
| Maximum System Voltage (V) | 1000 (IEC/UL) |
| Maximum Series Fuse Rating (A) | 20 |
| Bifaciality Coefficient of Power [%] | 10 |
| Power Tolerance (%) | 0 ~ +3 |
| * | STC (Standard Test Condition): Irradiance 1000 W/m , cell temperature 25°C, AM 1.5 Measurement Tolerance of Pmax: 3% |
| Operating Conditions | |
| Operating Temperature [°C] | TBD |
| Maximum System Voltage [V] | TBD |
| Maximum Series Fuse Rating [A] | TBD |
| Mechanical Test Load (Front) [Pa/psf] | TBD |
| Mechanical Test Load (Rear) [Pa/psf] | TBD |
| * | Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa/5,400 Pa based on IEC 61215 : 2005 |
| Packaging Configuration | |
| Number of Modules per Pallet [EA] | TBD |
| Number of Modules per 40ft HQ Container [EA] | TBD |
| Number of Modules per 53' HQ Cont | TBD |
| Packaging Box Dimensions (L x W x H) [mm] | TBD |
| Packaging Box Dimensions (L x W x H) [in] | TBD |
| Packaging Box Gross Weight [kg] | TBD |
| Packaging Box Gross Weight [lb] | TBD |
| MECHANICAL PROPERTIES | |
| Cells | 6 x 10 |
| Cell vendor | LG |
| Cell Type | Monocrystalline / N-type |
| Cell Dimensions | 162mm x 162mm/6.37" |
| # of Busbar | 12 (Multi Wire Busbar) |
| Dimensions (L x W x H) | 1,700mm x 1,016mm x 40mm |
| Front Load | 5,400 Pa/113 psf |
| Rear Load | 4,000 Pa/84 psf |
| Weight | 18.0kg |
| Connector Type | MC4, MC4 Compatible, IP67 |

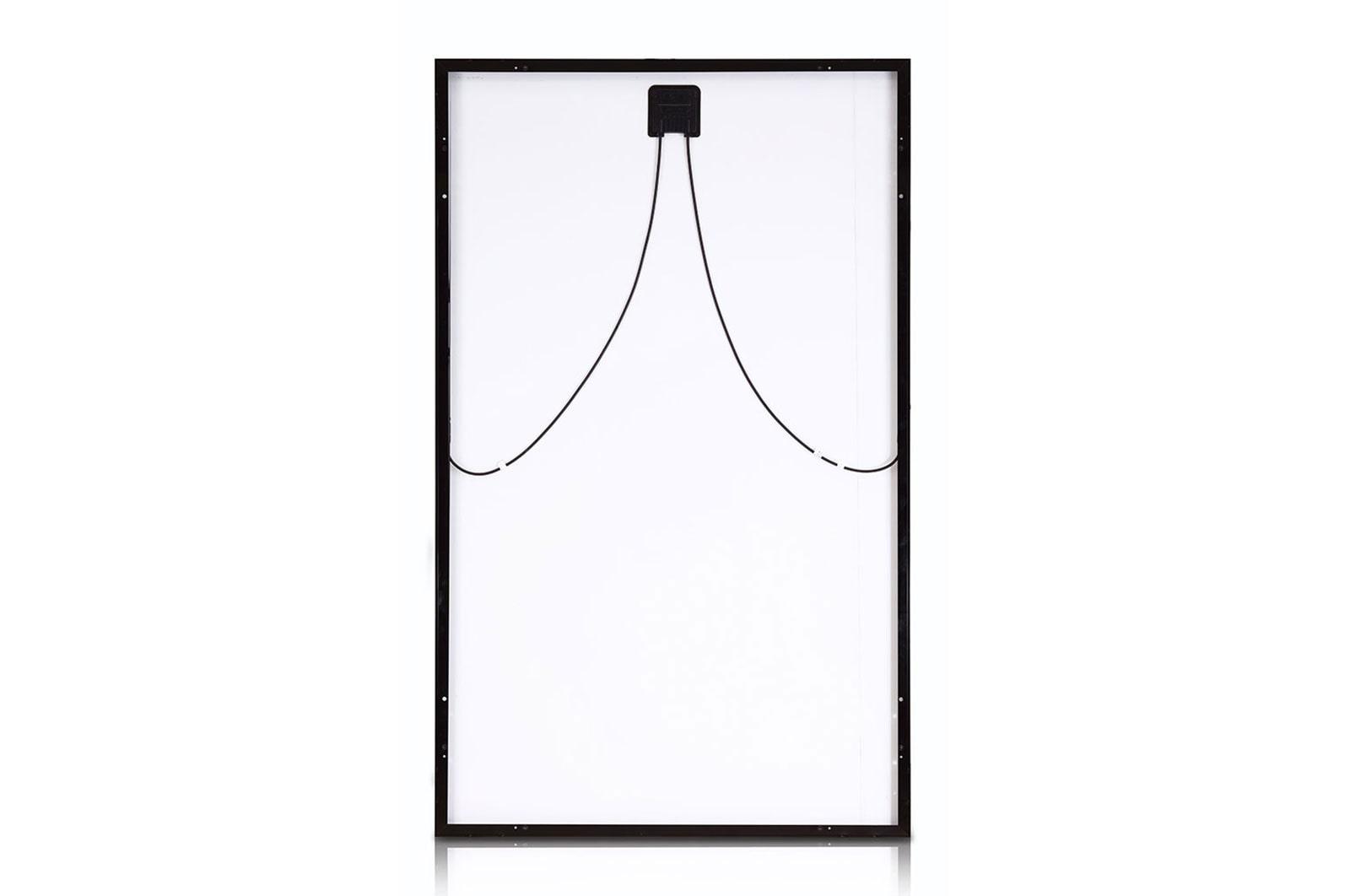

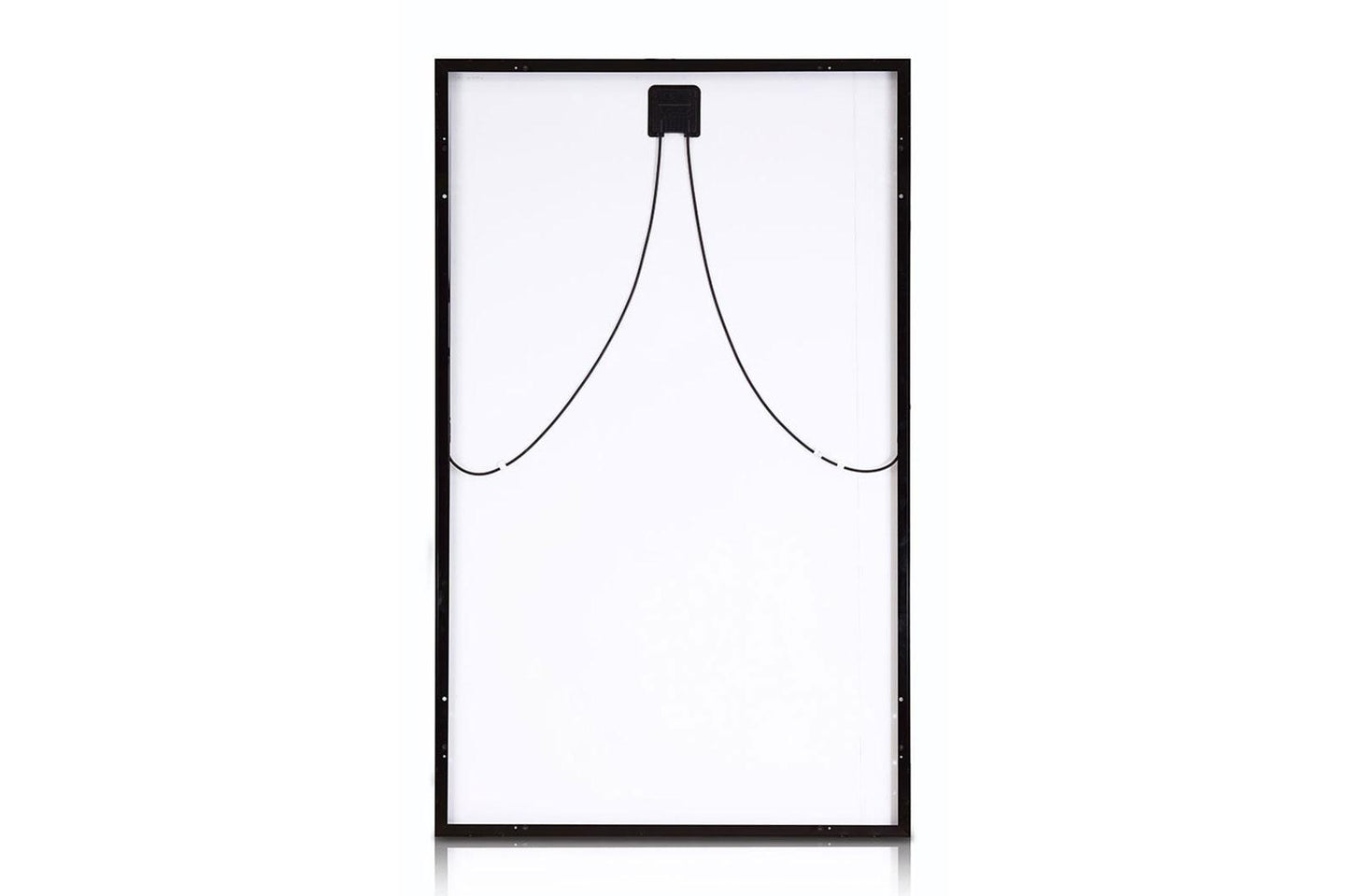

| Junction Box | IP 67 with 3 bypass diodes |
| Frame | Anodized aluminium |
| Glass | 2.8mm/Tempered Glass with High Transmission Anti-Reflective Coating |
| Cables | 1000mm x 2ea |
