LG LG365N1KA6
Authorized Reseller

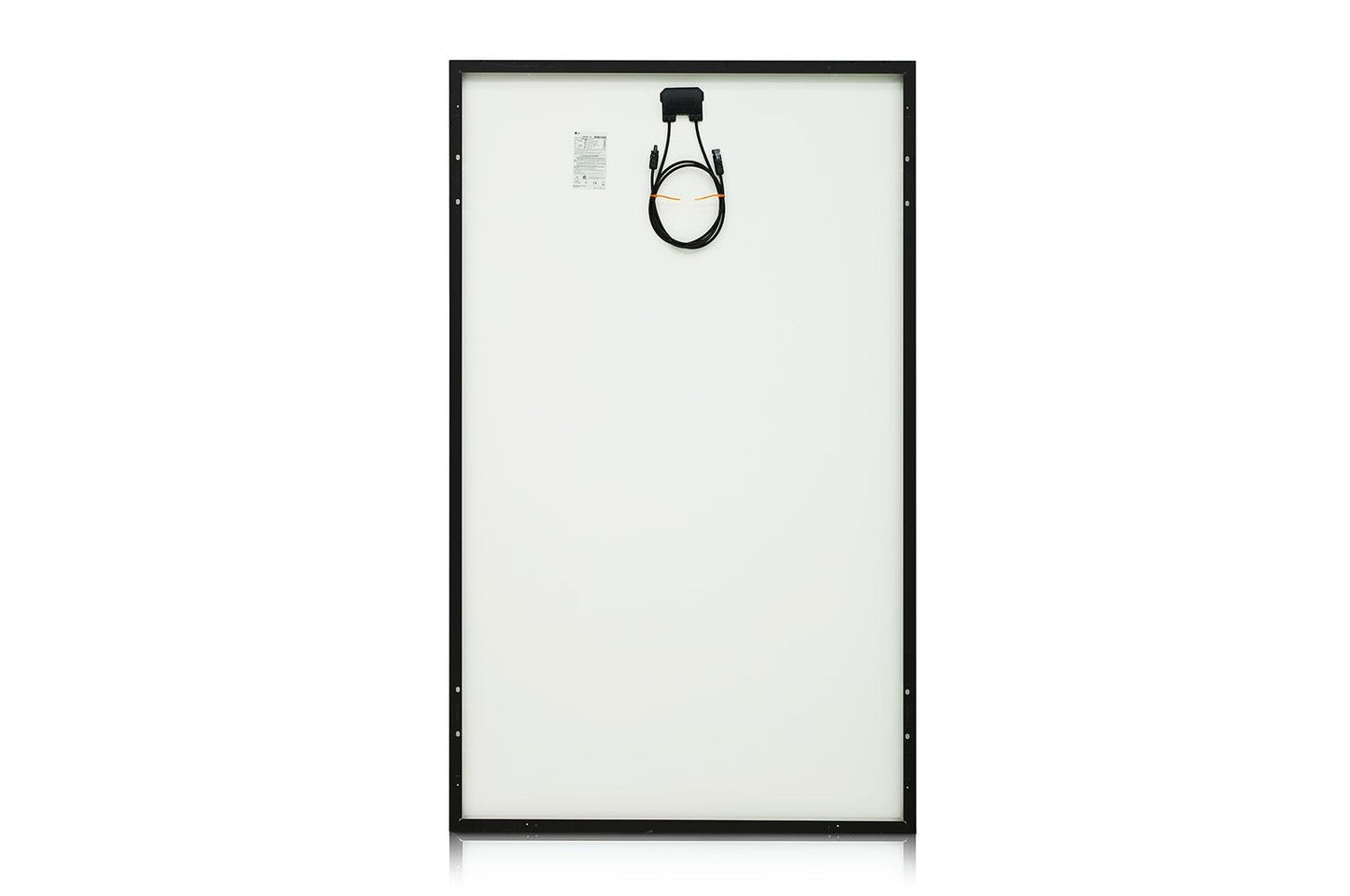

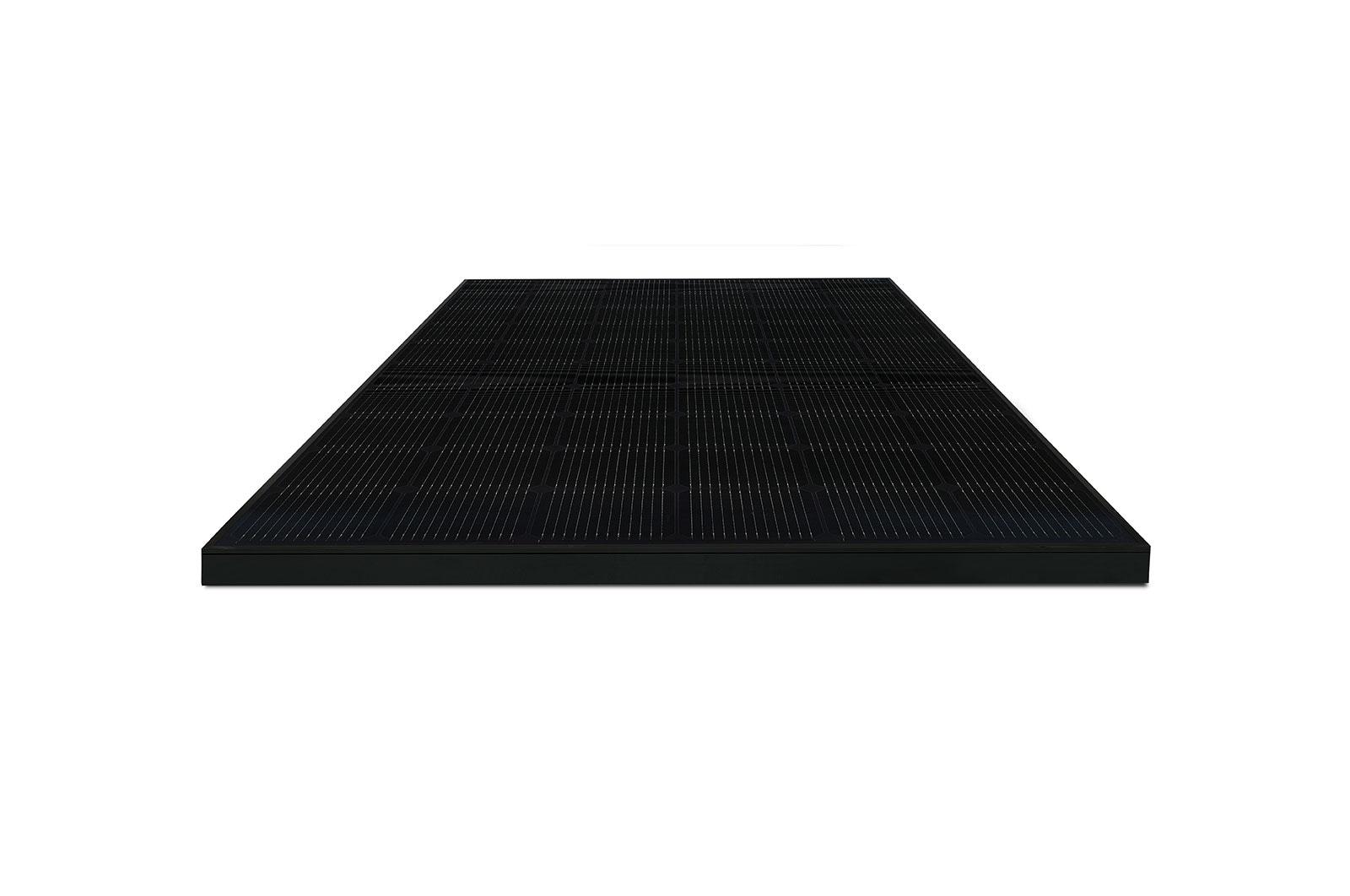

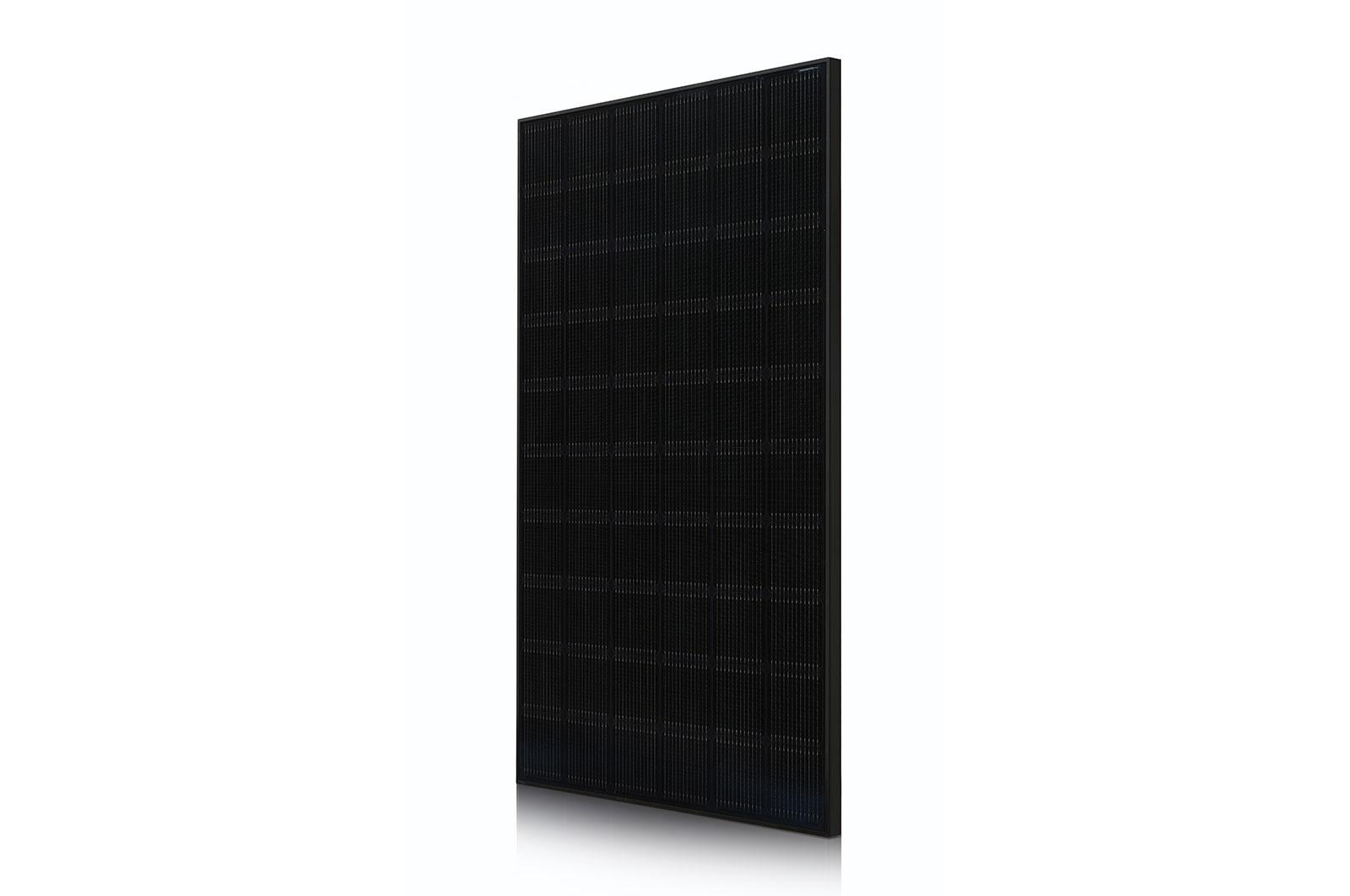

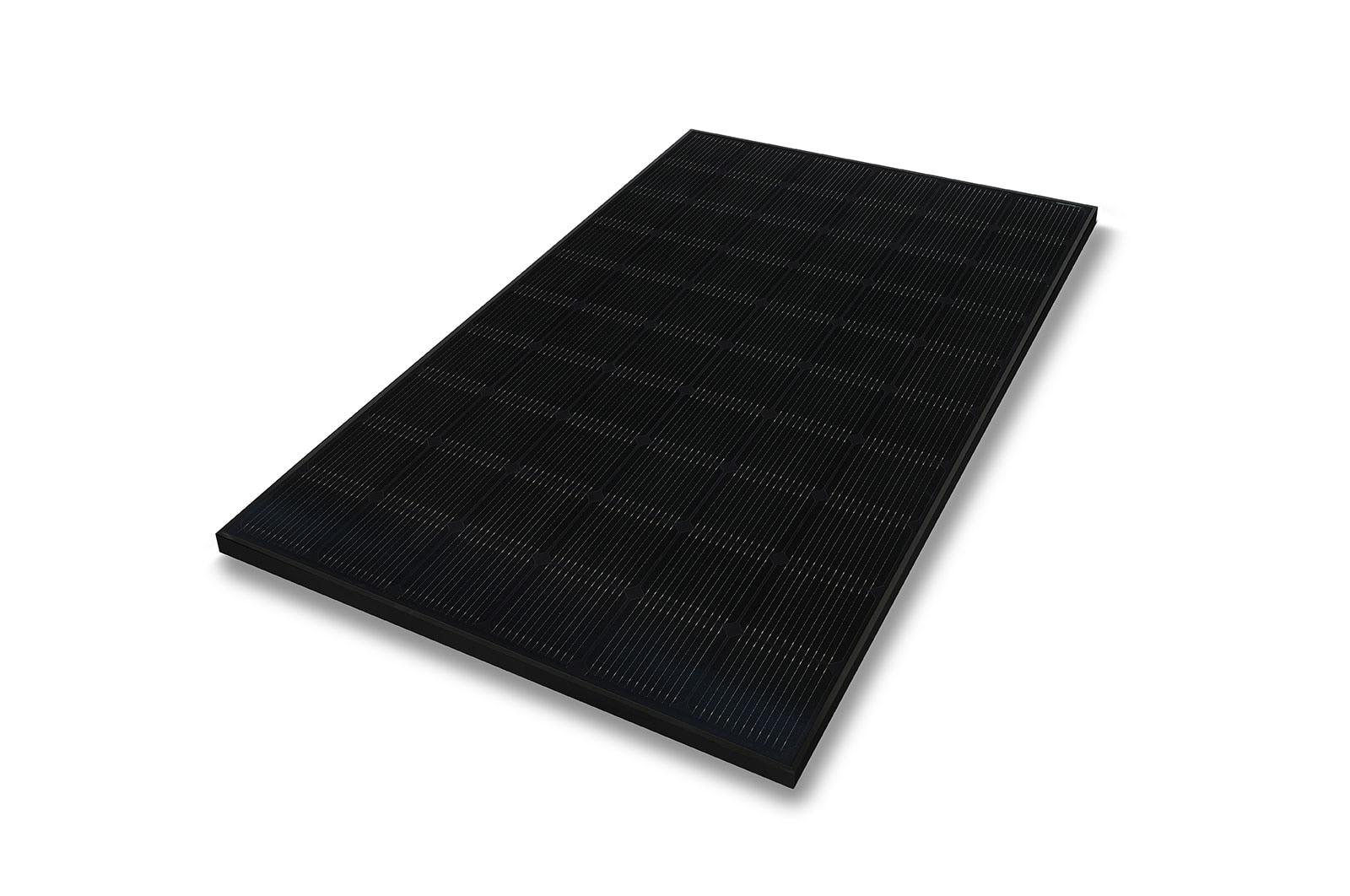

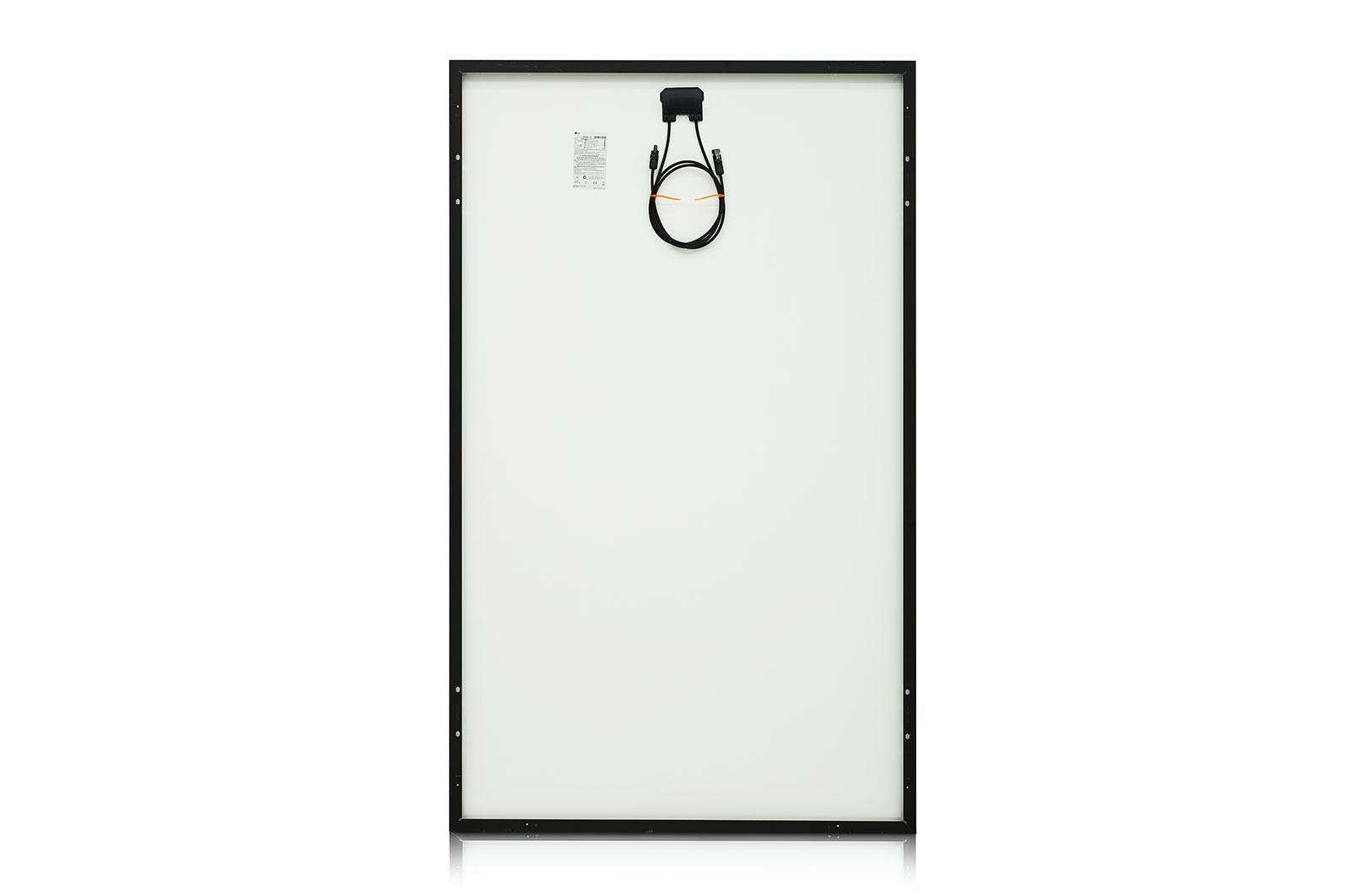

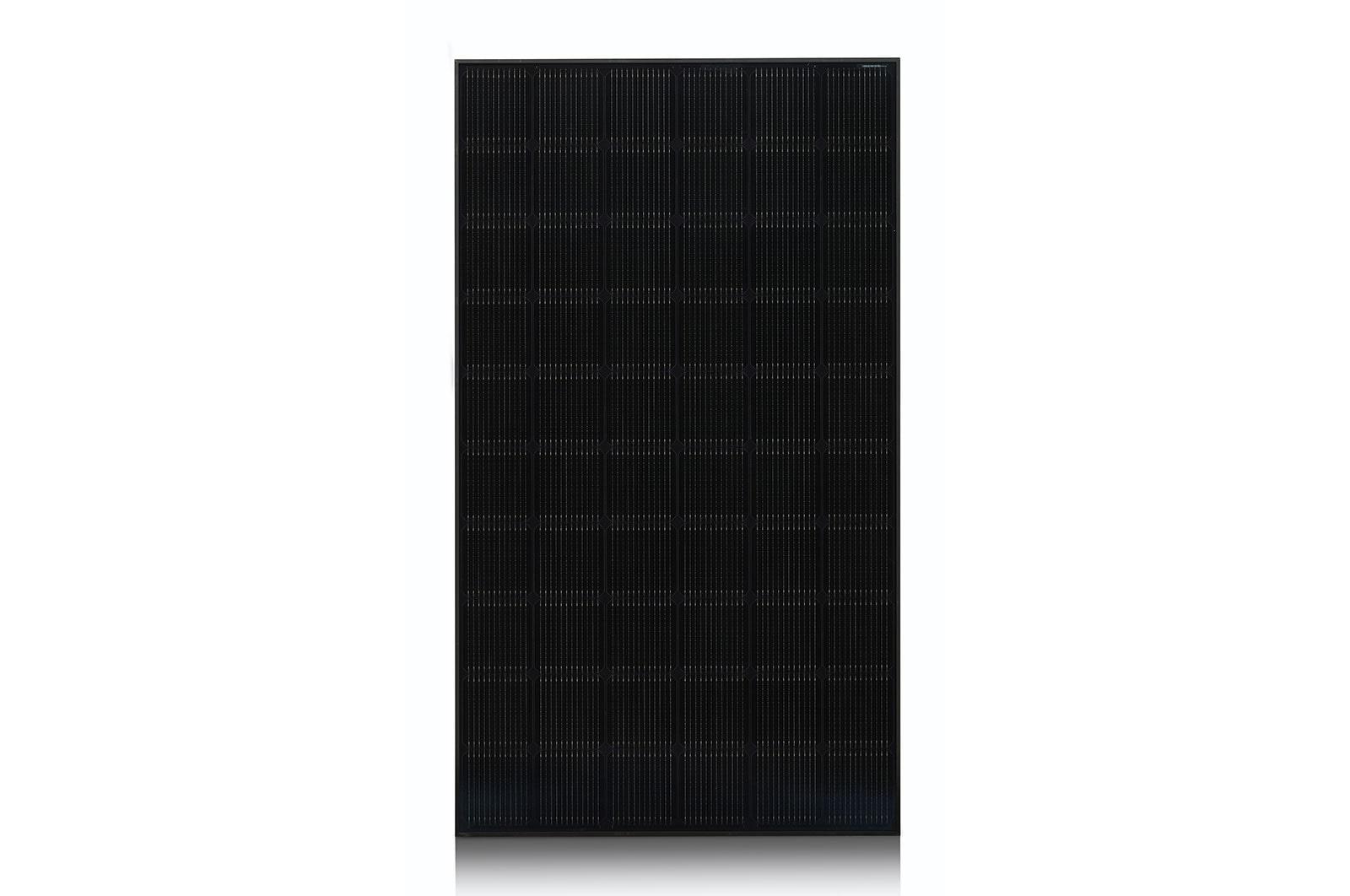

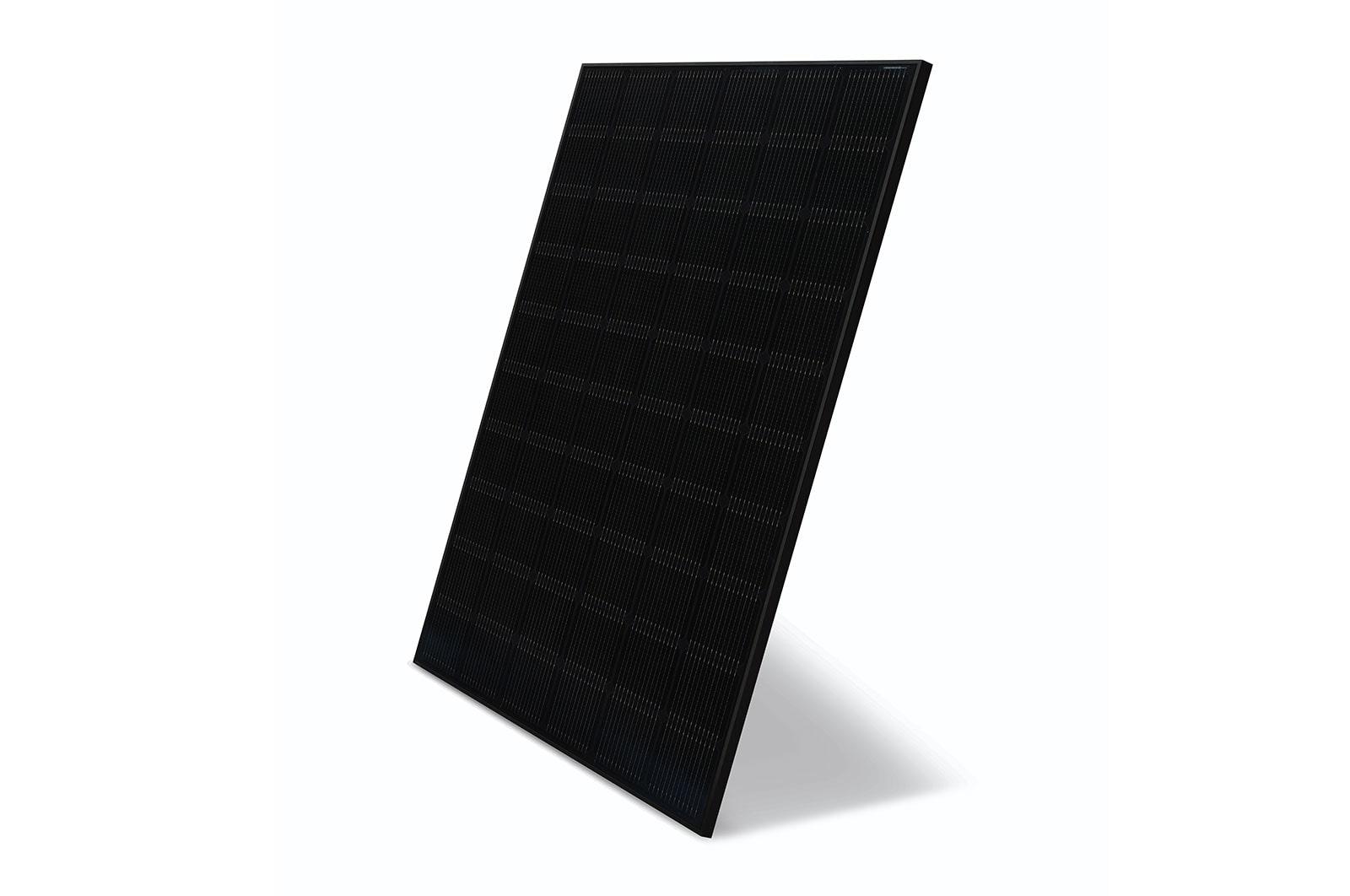

Lg LG365N1KA6 365W High Efficiency LG NeON® 2 Solar Panel for Home with 60 Cells (6 x 10), Module Efficiency: 20.1%, Connector Type: MC4
Lg LG365N1KA6 365W High Efficiency LG NeON® 2 Solar Panel for Home with 60 Cells (6 x 10), Module Efficiency: 20.1%, Connector Type: MC4
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 60 Cell (6 x 10) Solar Panel for Home
- 25-Year Limited Warranty
- Solid Performance on a Sunny Day
- 20.1% Module Efficiency
- Award-Winning Cello Technology™
- Attractive Roof Aesthetic
Double-Sided Cell Structure
The rear of the cell used in the LG NeON® 2 Black contributes to generation, just like the front; the light beam reflected from the rear of the module is reabsorbed to generate additional power.
| General Data | |
| Cell Properties (Material/Type) | Monocrystalline/N-type |
| Cell Maker | LG |
| Cell Configuration | 60 Cells (6 x 10) |
| Number of Busbars | 12EA |
| Module Dimensions (L x W x H) | 1,740mm x 1,042mm x 40mm |
| Weight | 18.6kg |
| Glass (Material) | Tempered Glass with AR Coating |
| Backsheet (Color) | Black |
| Frame (Material) | Anodized Aluminium |
| Junction Box (Protection Degree) | IP 68 with 3 Bypass Diodes |
| Cables (Length) | 1,100mm x 2EA |
| Connector (Type/Maker) | MC 4/MC |
| CERTIFICATIONS & WARRANTY | |
| Certifications | IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001, UL 61730-1 2017, UL61730-2 2017, IEC 61701 (Salt Mist Corrosion Test), IEC 62716 (Ammonia Corrosion Test) |
| Salt Mist Corrosion Test | TBD |
| Ammonia Corrosion Test | TBD |
| Module Fire Performance | Type 2 |
| Fire Rating | Class C (UL 790, ULC/ORD C 1703) |
| Product Warranty | 25 Year Limited |
| Output Warranty of Pmax | Linear warranty* |
| * | Improved: 1st year 98.5%, from 2-24th year: 0.33%/year down, 90.6% at year 25 |
| Temperature Characteristics | |
| NMOT | 42 3 |
| Pmax | -0.35 |
| Voc | -0.26 |
| Isc | 0.03%/°C |
| * | NMOT (Nominal Module Operating Temperature):Irradiance 800W/m , Ambient temperature 20 , Wind speed 1m/s, Spectrum AM 1.5 |
| Electrical Properties (NMOT) | |
| Model | TBD |
| Maximum Power (Pmax) | 274 |
| MPP Voltage (Vmpp) | 33.0 |
| MPP Current (Impp) | 8.30 |
| Open Circuit Voltage (Voc) | 39.4 |
| Short Circuit Current (Isc) | 8.78 |
| Electrical Properties (STC*) | |
| Model | TBD |
| Maximum Power (Pmax) | 365 |
| MPP Voltage (Vmpp) | 35.1 |
| MPP Current (Impp) | 10.41 |
| Open Circuit Voltage (Voc) | 41.8 |
| Short Circuit Current (Isc) | 10.92 |
| Module Efficiency (%) | 20.1 |
| Power Tolerance (%) | 0 ~ +3 |
| Operating Temperature (°C) | -40 ~+85 |
| Maximum System Voltage (V) | 1000 (IEC/UL) |
| Maximum Series Fuse Rating (A) | 20 |
| * | STC (Standard Test Condition): Irradiance 1000W/m , cell temperature 25°C, AM 1.5. |
| Operating Conditions | |
| Operating Temperature [°C] | TBD |
| Maximum System Voltage [V] | TBD |
| Maximum Series Fuse Rating [A] | TBD |
| Mechanical Test Load (Front) [Pa/psf] | TBD |
| Mechanical Test Load (Rear) [Pa/psf] | TBD |
| * | Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa/5,400 Pa based on IEC 61215 : 2005 |
| Packaging Configuration | |
| Number of Modules per Pallet [EA] | 25 |
| Number of Modules per 40ft HQ Container [EA] | 650 |
| Number of Modules per 53' Container [EA] | 850 |
| Packaging Box Dimensions (L x W x H) [mm] | 1,790 x 1,120 x 1,213 |
| Packaging Box Dimensions (L x W x H) [in] | TBD |
| Packaging Box Gross Weight [kg] | 500 |
| Packaging Box Gross Weight [lb] | TBD |
