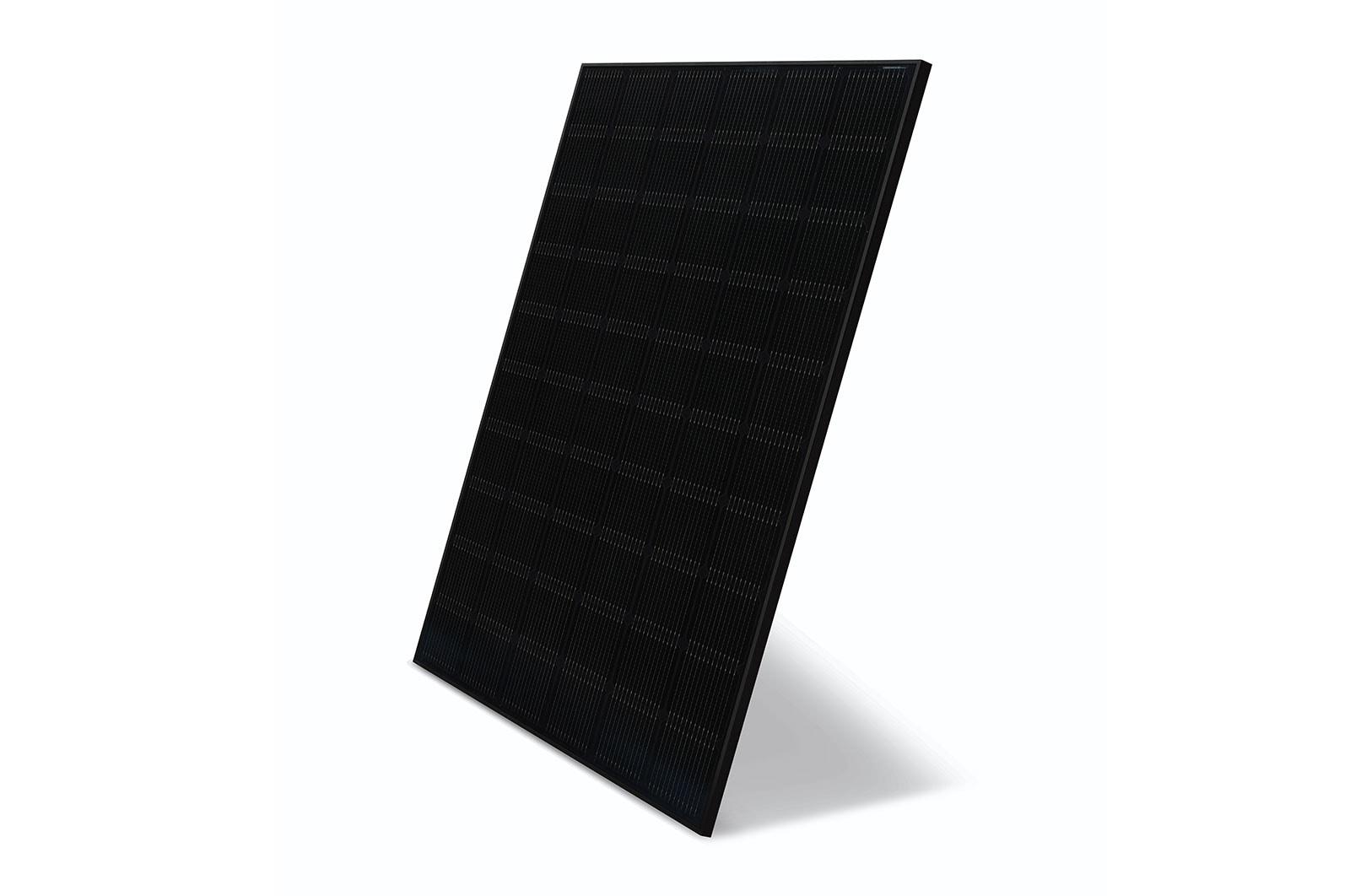

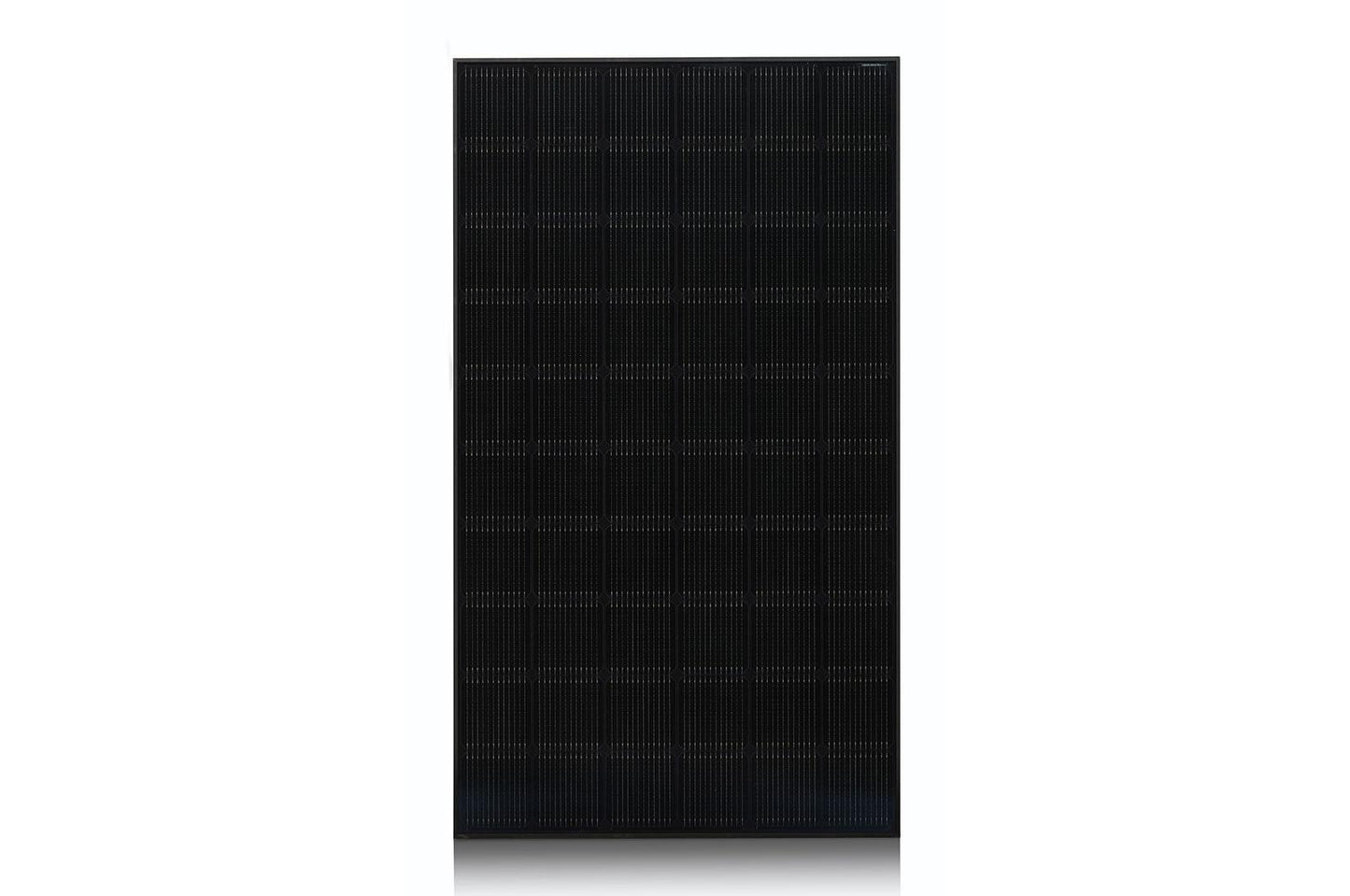

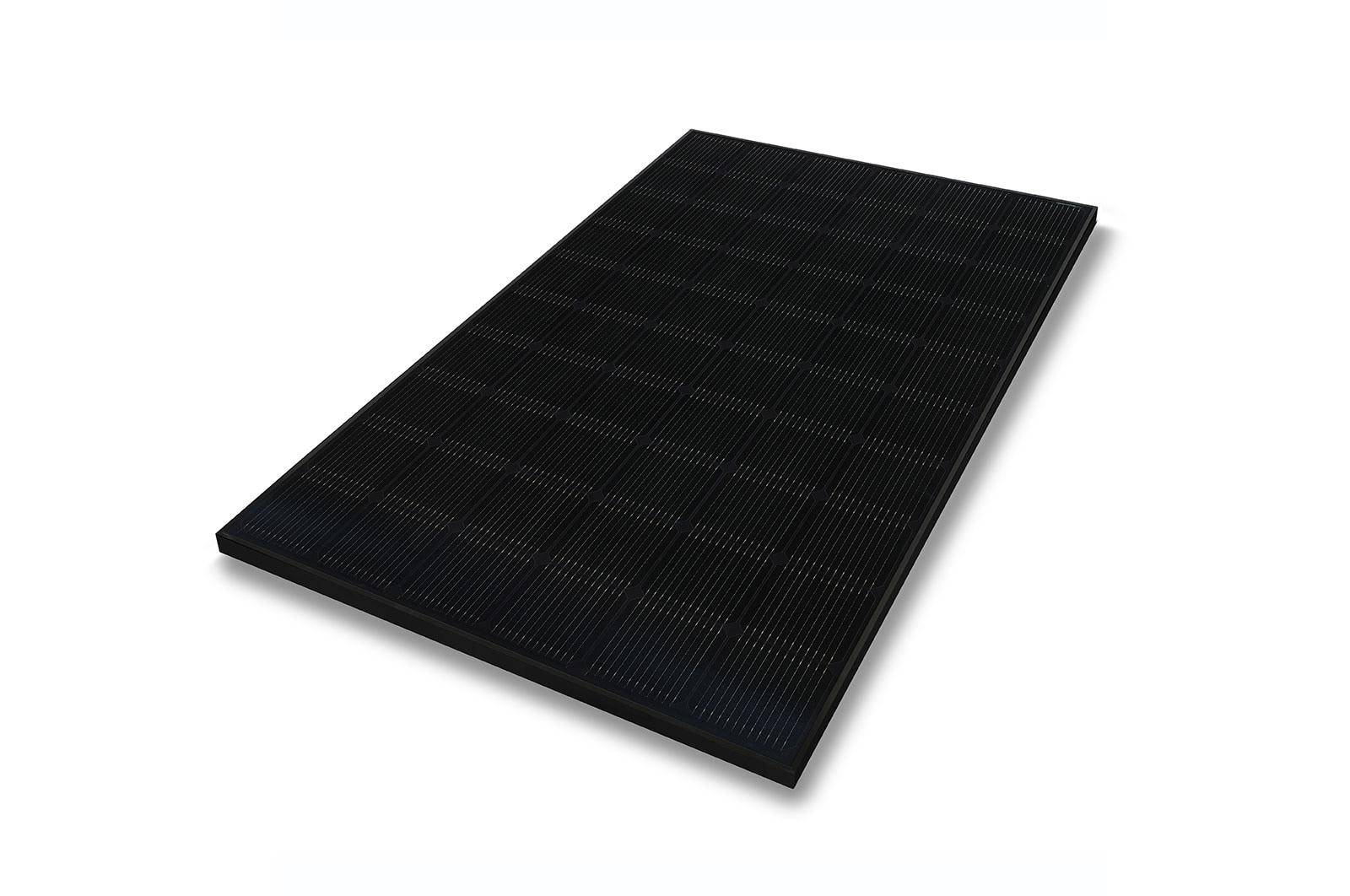

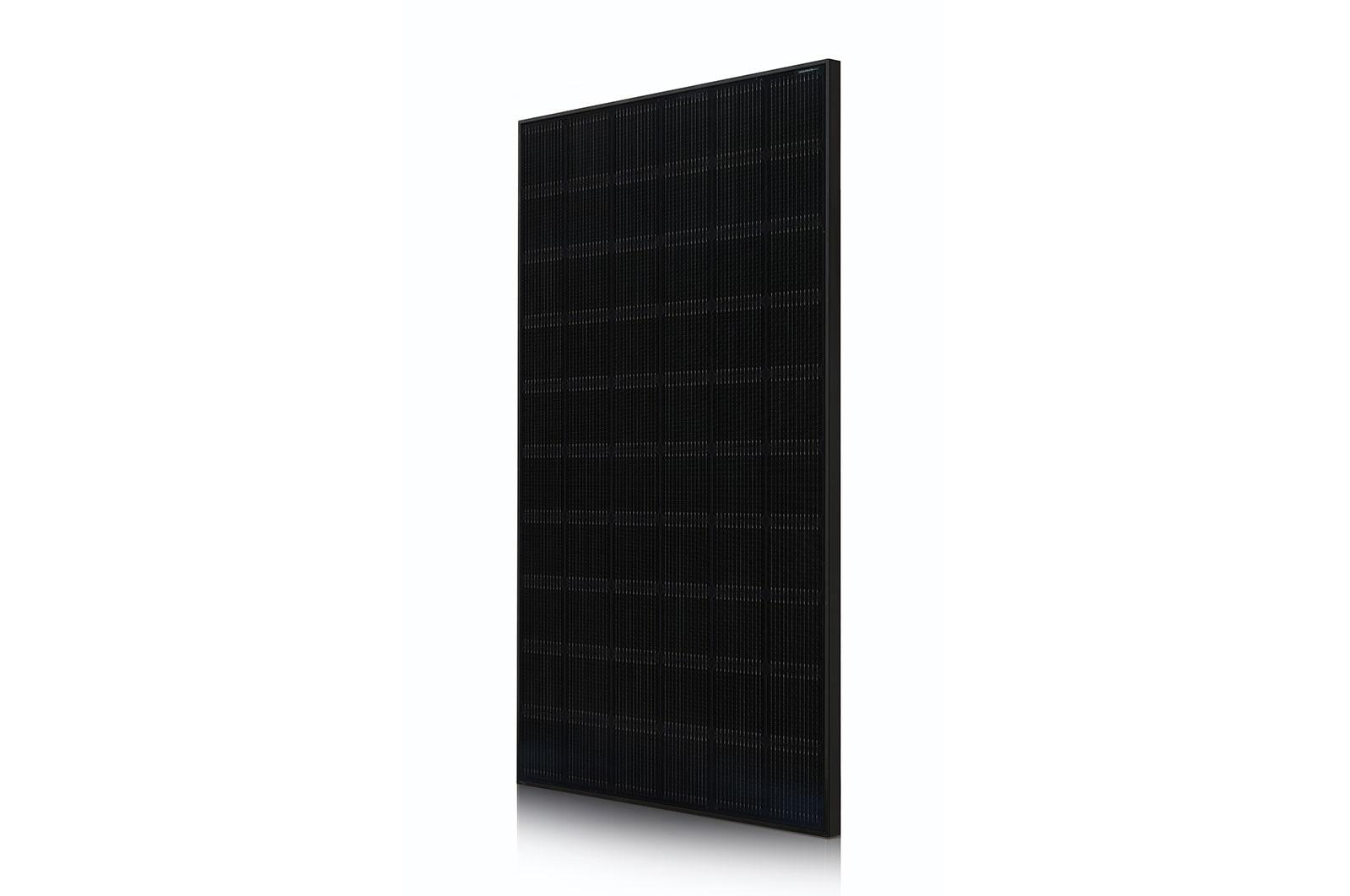

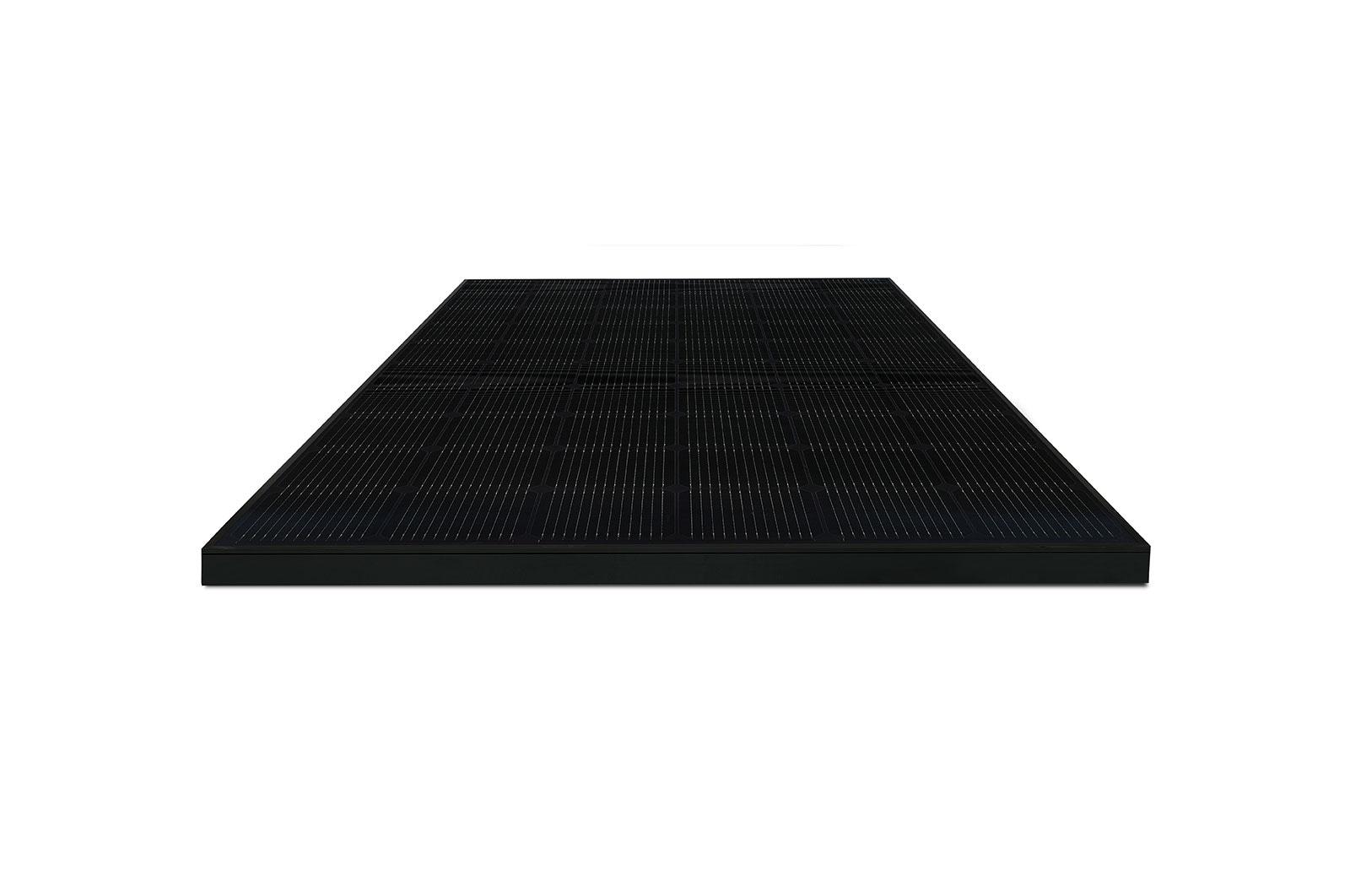

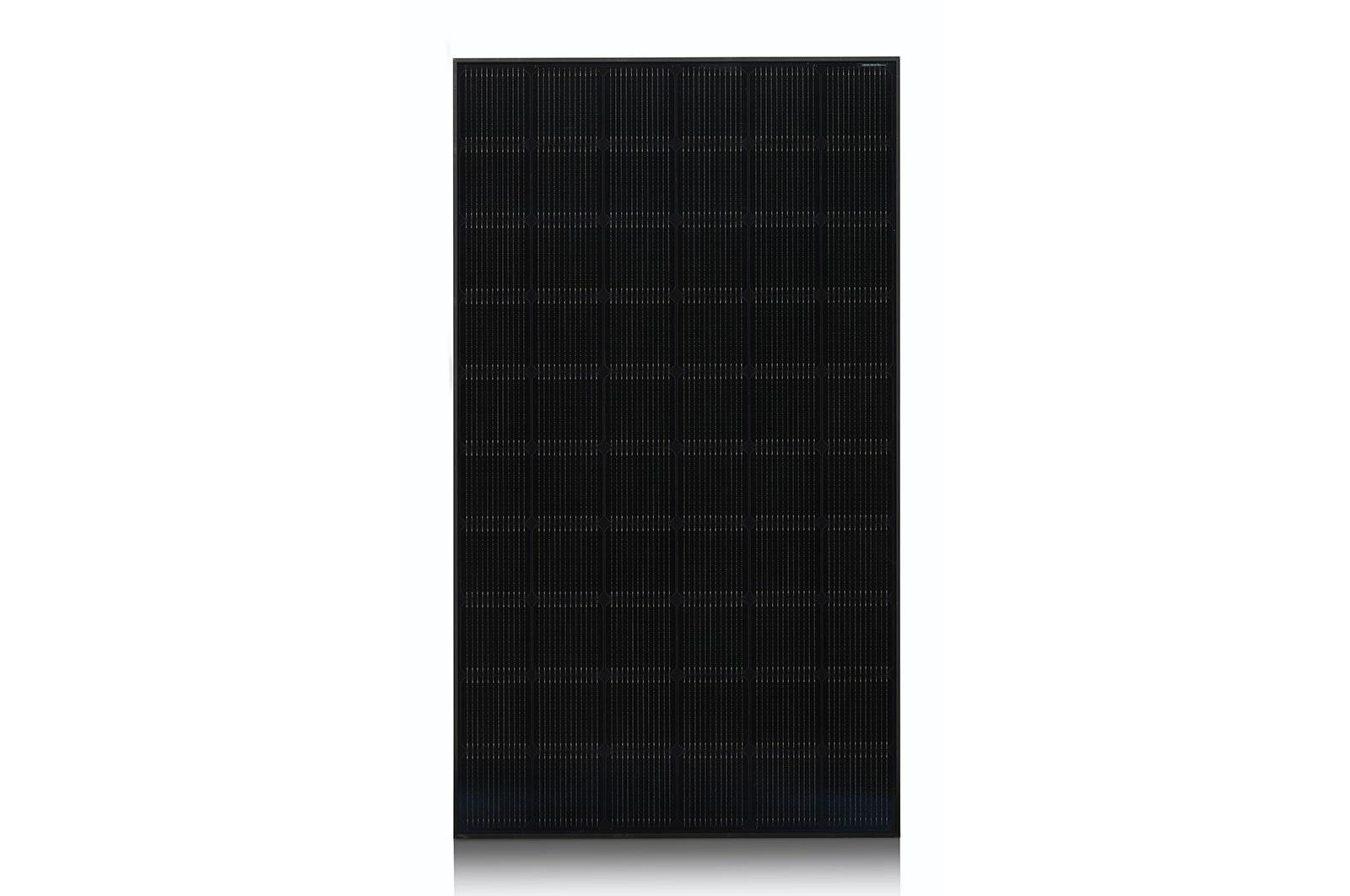

Lg LG370M1KA6 370W High Efficiency LG NeON® 2 ACe Solar Panel with Built-in Microinverter, 60 Cells (6 x 10), Module Efficiency: 20.4%
Lg LG370M1KA6 370W High Efficiency LG NeON® 2 ACe Solar Panel with Built-in Microinverter, 60 Cells (6 x 10), Module Efficiency: 20.4%
Item Not Available
Couldn't load pickup availability
Check Delivery:

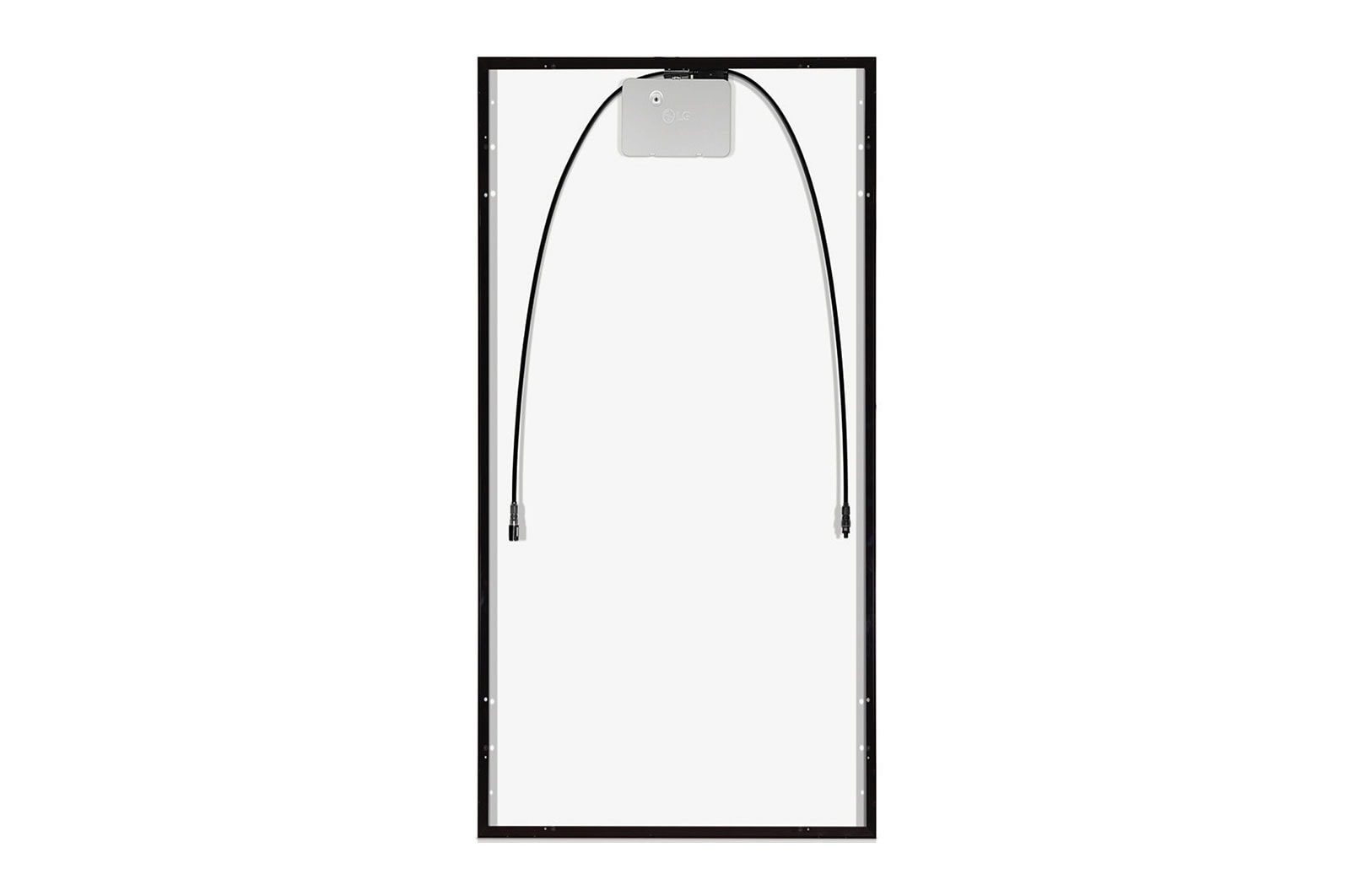

- Built-in Microinverter System
- Top-level Output (DC 360W, AC 320W)
- Conversion Efficiency 97% (based on CEC standards)
- Sleek Modern Design
- 25 Year Limited Warranty
- Compatible with future LG HEMS Ecosystem
370W High Efficiency LG NeON® 2 ACe Solar Panel with Built-in Microinverter, 60 Cells (6 x 10), Module Efficiency: 20.4%
| General Data | |
| Cells | 60 Cells (6 x 10) |
| Cell Vendor | LG |
| Cell Type | Monocrystalline/N-type |
| Cell Dimensions | 161.7 x 161.7 mm/6 inches |
| Cell Properties (Material/Type) | TBD |
| Cell Maker | TBD |
| Cell Configuration | TBD |
| Number of Busbars | 12EA |
| Module Dimensions (L x W x H) | TBD |
| Dimensions (L x W x H) | 1,740mm x 1,042mm x 40mm |
| Weight | 20.2kg |
| Glass | 2.8mm/Tempered Glass with High Transmission Anti-Reflective Coating |
| Backsheet (Color) | TBD |
| Frame | Anodized Aluminium |
| Junction Box (Protection Degree) | TBD |
| Cables (Length) | TBD |
| Connector (Type/Maker) | TBD |
| Mechanical Test Load* | 5,400Pa (Front)/4,000Pa (Rear) |
| Cooling | Natural Convection - No Fans |
| Enclosure Environmental Rating | Outdoor - NEMA 250 type 6 (Micro Inverter) |
| Operating Ambient Temperature | -40 ~ +65°C (-40 ~+149°F ) |
| Storage Temperature | -40 ~+65°C |
| Inverter Model (Grid Support Utility Interactive) | LM320UE-A2 |
| *Mechanical Test Load | 5,400pa/4,000pa based on IEC 61215 - 2:2016 (Test Load = Design Load x Safety Factor (x1.5)) |
| Certifications and Warranty | |
| Certifications | ISO 9001, ISO 14001, ISO 50001, OHSAS 18001 UL1741, IEEE1547, UL1741SA (FCC Part 15 Class B) |
| Salt Mist Corrosion Test | TBD |
| Ammonia Corrosion Test | TBD |
| Fire Rating | TBD |
| Module Fire Performance | Type 1 |
| Solar Module Product Warranty | 25 Year Limited |
| Solar Module Output Warranty | TBD |
| Micro Inverter Warranty | 25 Year Limited |
| Output Warranty of Pmax (DC) (Measurement Tolerance 3%) | Linear Warranty* Please contact customer support for full warranty details. |
| * | Improved: 1st year %, from 2-24th year: %/year down, % at year 25 |
| DC Temperature Characteristics | |
| NMOT | 44 C 3 |
| Pmax | -0.35 |
| Voc | -0.26 |
| Isc | 0.03 |
| *NOCT | (Nominal Operating Cell Temperature): Irradiance 800W/m , ambient temperature 20°C, wind speed 1m/s |
| * | NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m2, Ambient temperature 20°C, Wind speed 1 m/s, Spectrum AM 1.5 |
| AC CABLE PROPERTIES | |
| Standard | TBD |
| Rated Voltage/Current | TBD |
| Wire Size Range | TBD |
| Cable Length (only cable length) | TBD |
| Protection Degree | TBD |
| Diameter range of cable | TBD |
| AC ELECTRICAL PROPERTIES | |
| Power (Inverter Rated continuous) [W] | TBD |
| Voltage (Rated Output) [V] | TBD |
| Current (Rated Output) [A] | TBD |
| Max. Continuous Output Power (VA) | 320 |
| Nominal Voltage / Range (V) | 240/211 ~ 264 ; 208/183 ~ 229 |
| Nominal Output Current (A) | 1.33 ; 1.54 |
| Cable Length (only cable length) (mm) | Cable 1 : 1,200 ; Cable 2 : 1,100 |
| Number of Maximum AC Modules | 12 ; 10 |
| Nominal Frequency / Range (Hz) | 60.0/59.3~60.5 |
| Frequency (Extended) Hz | TBD |
| Power Factor / Adjustable | 1/0.8 leading...0.8 lagging |
| Max. Branch Circuit Over Current Protection (A) | 20 |
| Max Units Per 20A Branch Circuit | 240V: 12, 208V: 10 |
| CEC Weighted Efficiency (%) | 97.0 ; 96.5 |
| Electrical Properties (NMOT) | |
| Model | TBD |
| Maximum Power (Pmax) | TBD |
| MPP Voltage (Vmpp) | TBD |
| MPP Current (Impp) | TBD |
| Open Circuit Voltage (Voc) | TBD |
| Short Circuit Current (Isc) | TBD |
| DC ELECTRICAL PROPERTIES(STC*) | |
| Model | TBD |
| Maximum Power (Pmax)** | 370 |
| MPP Voltage(Vmpp) | TBD |
| MPP Current (Impp) | TBD |
| Open Circuit Voltage (Voc, +/-5%) | TBD |
| Short Circuit Current (Isc, +/-5%) | TBD |
| Module Efficiency | 20.4% |
| Power Tolerance (%) | 0 ~ +3 |
| *STC (Standard Test Condition) | Irradiance 1000 W/ , Cell temperature 25 , AM 1.5 , Measure tolerance of Pmax : 3% |
| **Measurement Tolerance of Pmax: | 3% |
| Operating Conditions | |
| Operating Temperature [°C] | TBD |
| Maximum System Voltage [V] | TBD |
| Maximum Series Fuse Rating [A] | TBD |
| Mechanical Test Load (Front) [Pa/psf] | TBD |
| Mechanical Test Load (Rear) [Pa/psf] | TBD |
| * | Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa/5,400 Pa based on IEC 61215 : 2005 |
| Packaging Configuration | |
| Number of Modules per Pallet [EA] | 25 |
| Number of Modules per 40ft HQ Container [EA] | 650 |
| Number of Modules per 53ft Container [EA] | 850 |
| Packaging Box Dimensions (L x W x H) [mm] | 1,790 x 1,120 x 1,213 |
| Packaging Box Dimensions (L x W x H) [in] | TBD |
| Packaging Box Gross Weight [kg] | 538 |
| Packaging Box Gross Weight [lb] | TBD |
