LG LG370N1KA6
Authorized Reseller

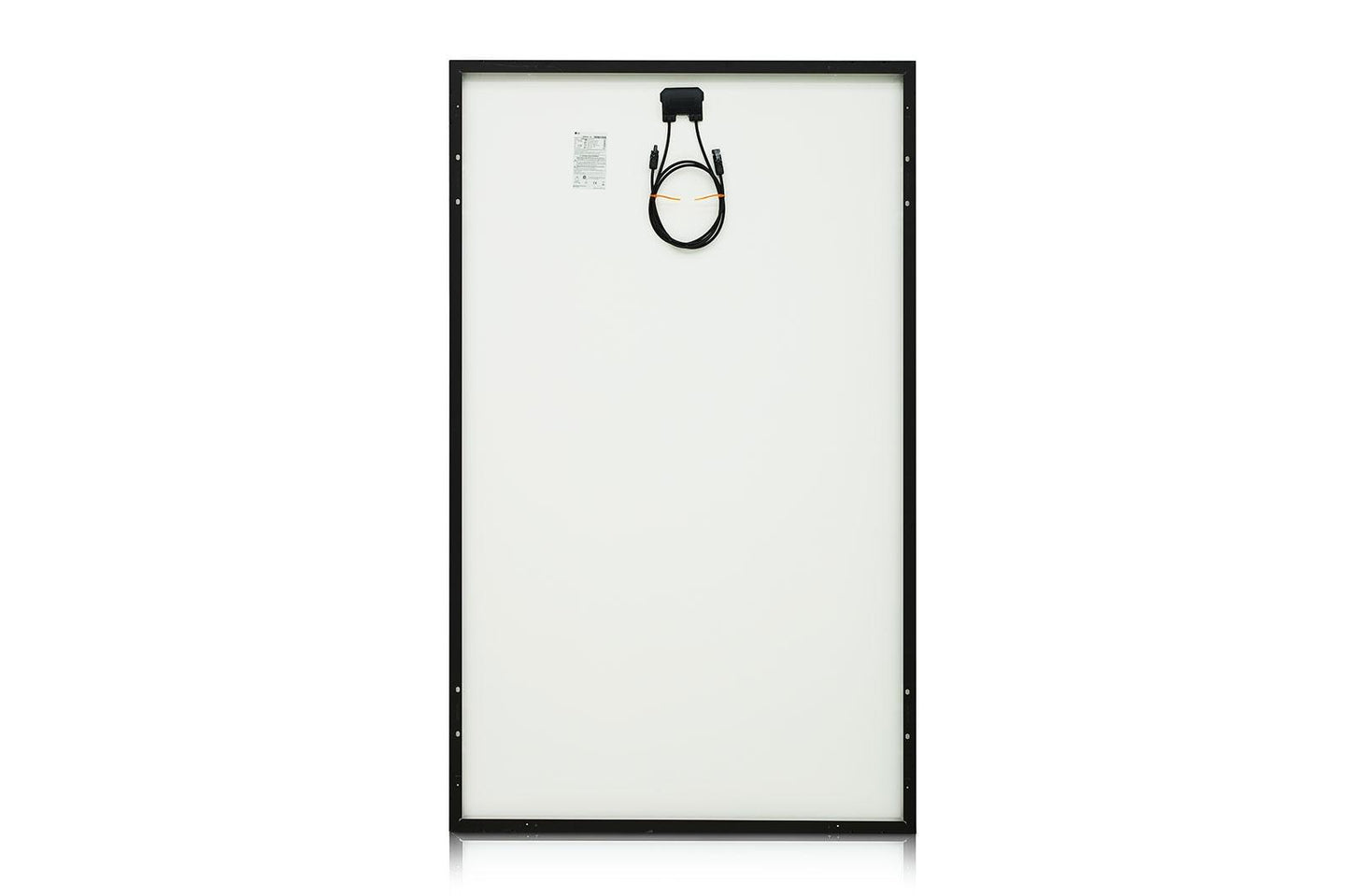

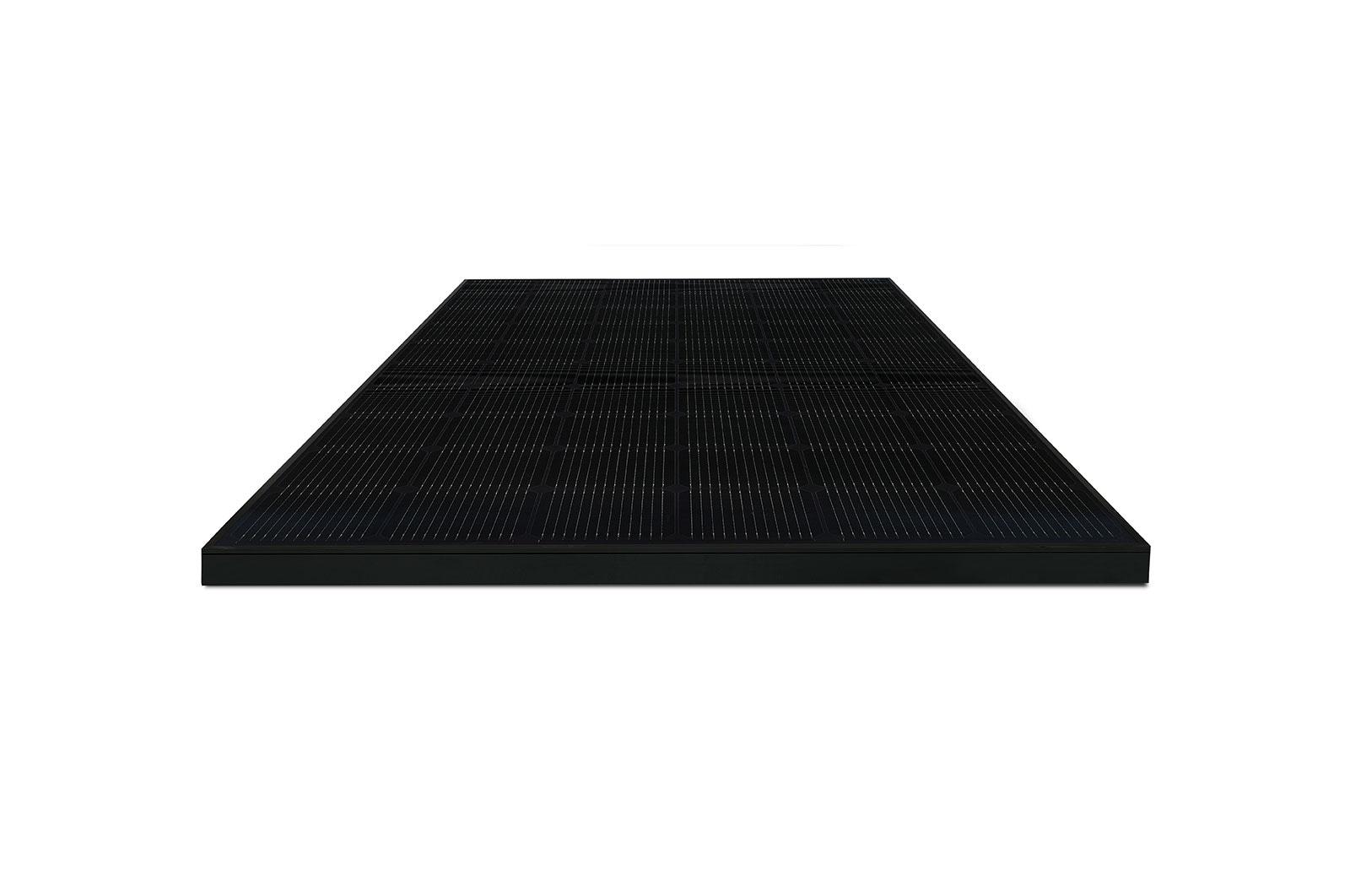

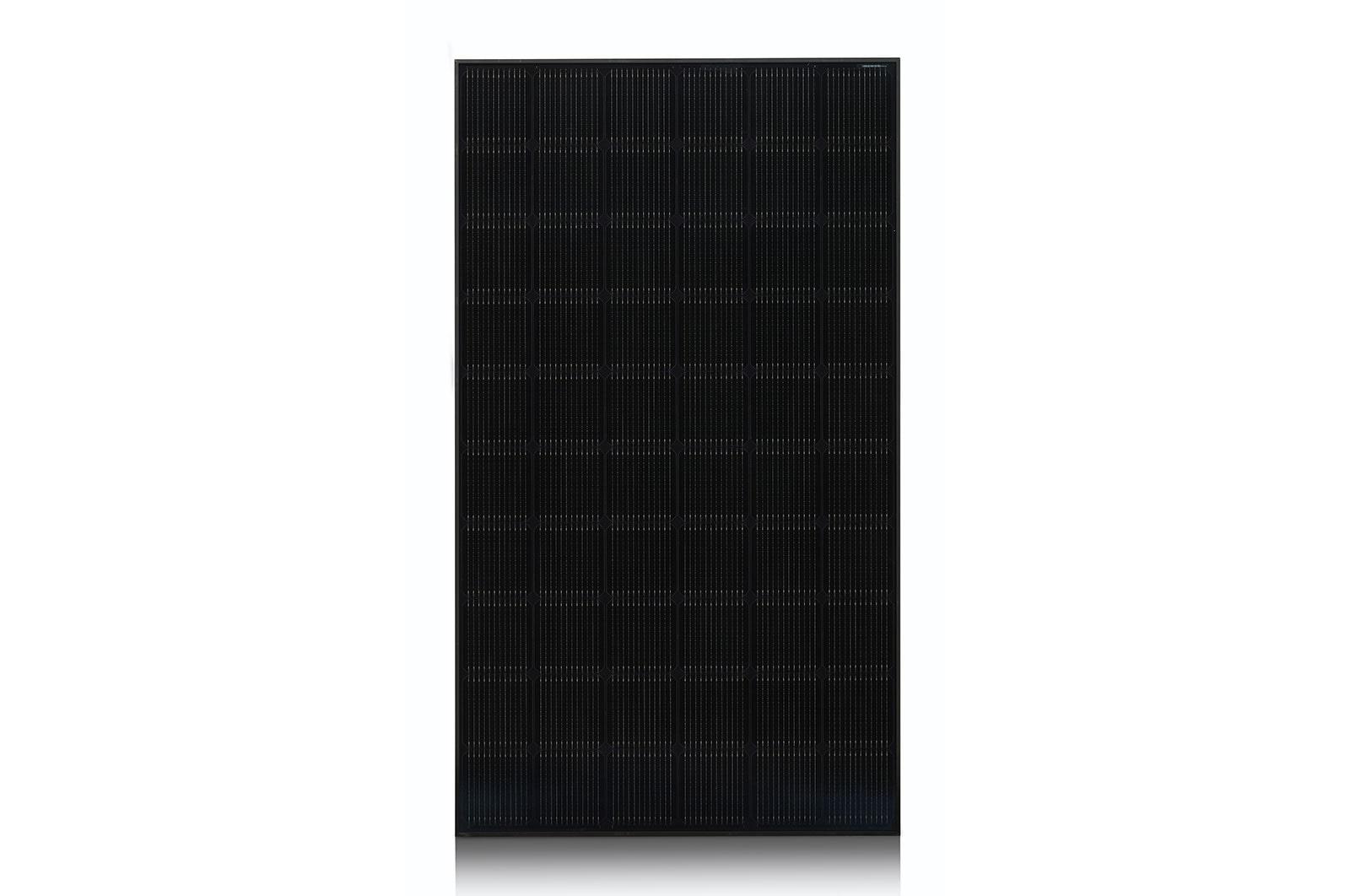

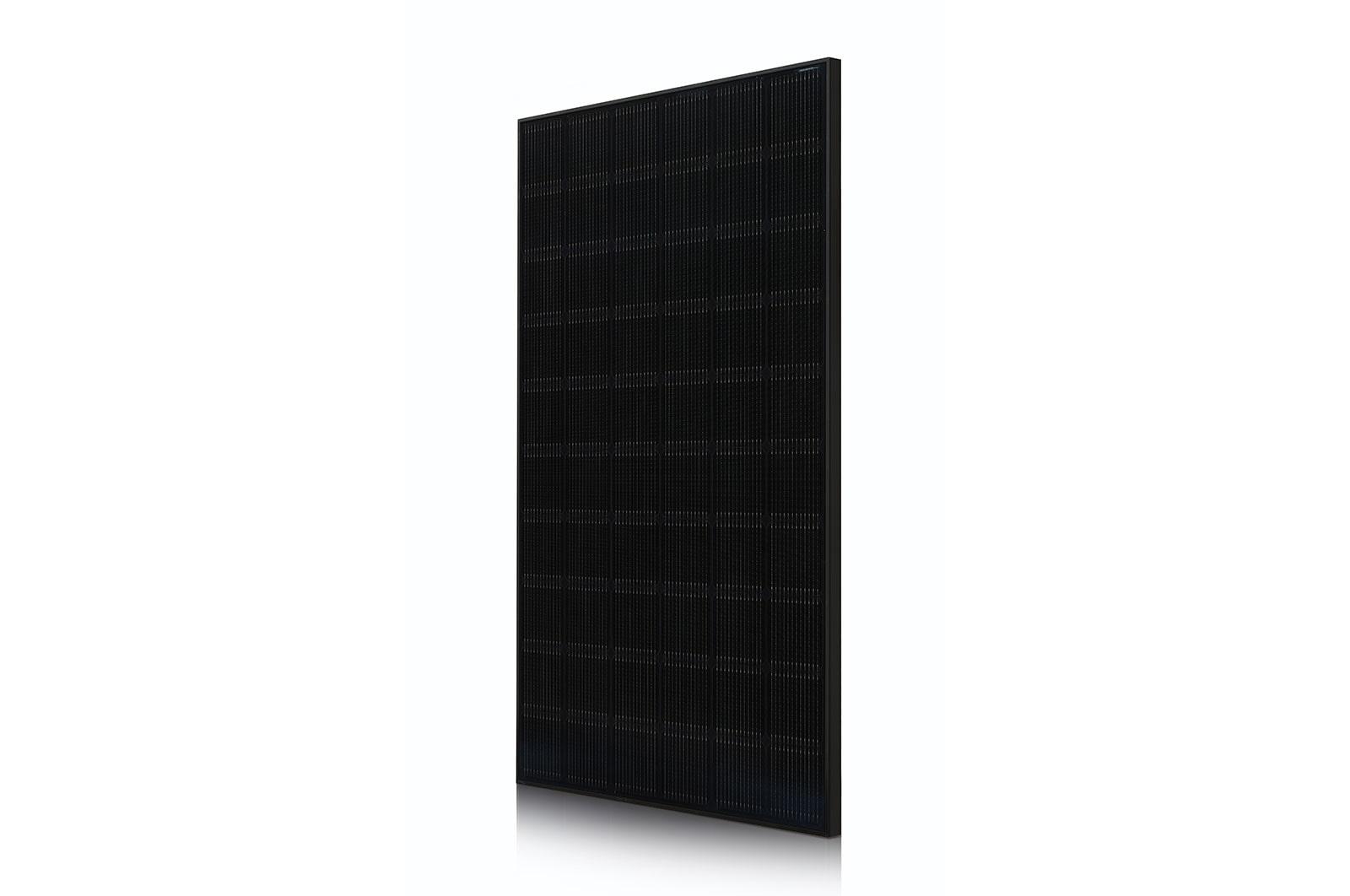

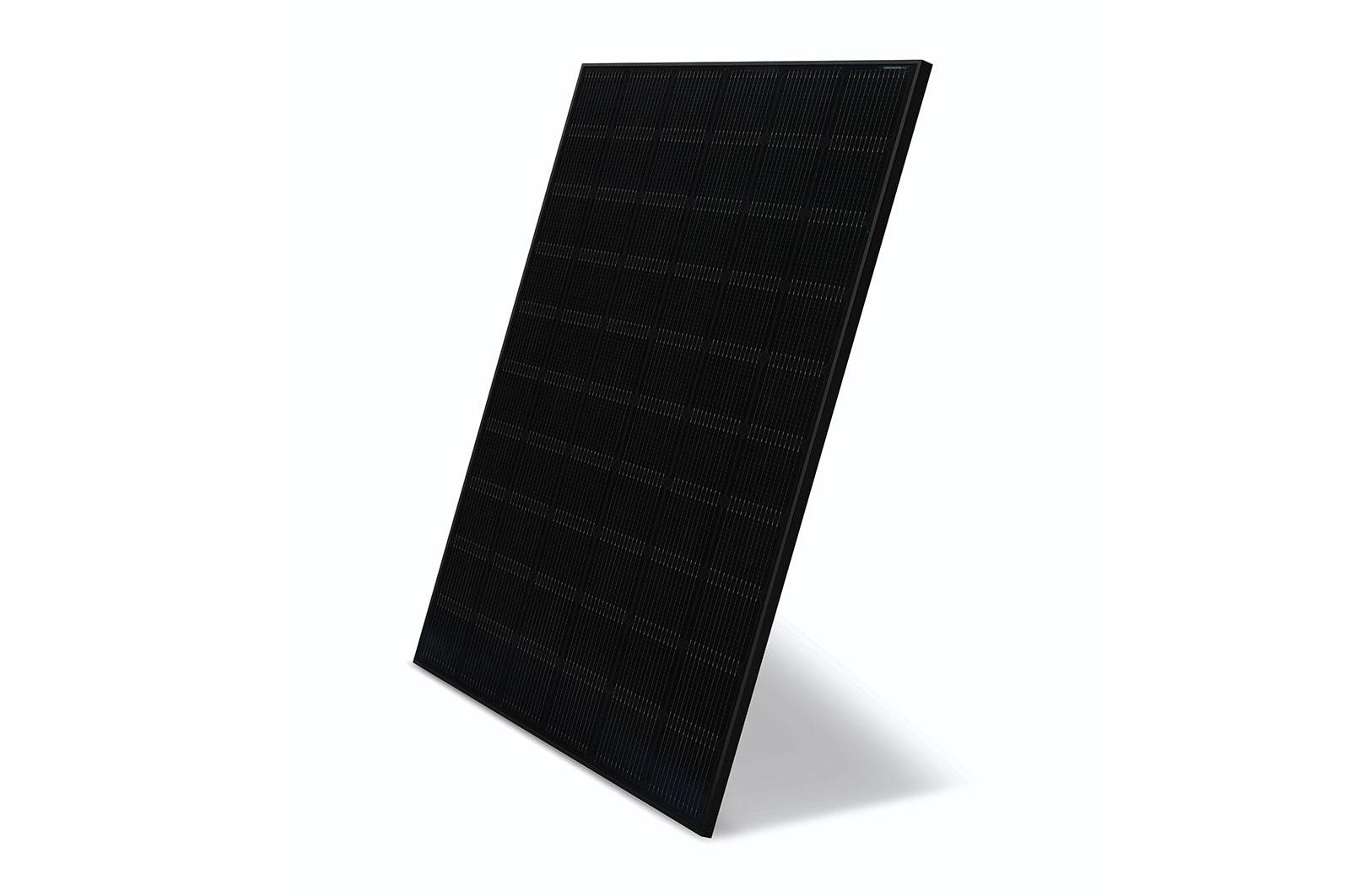

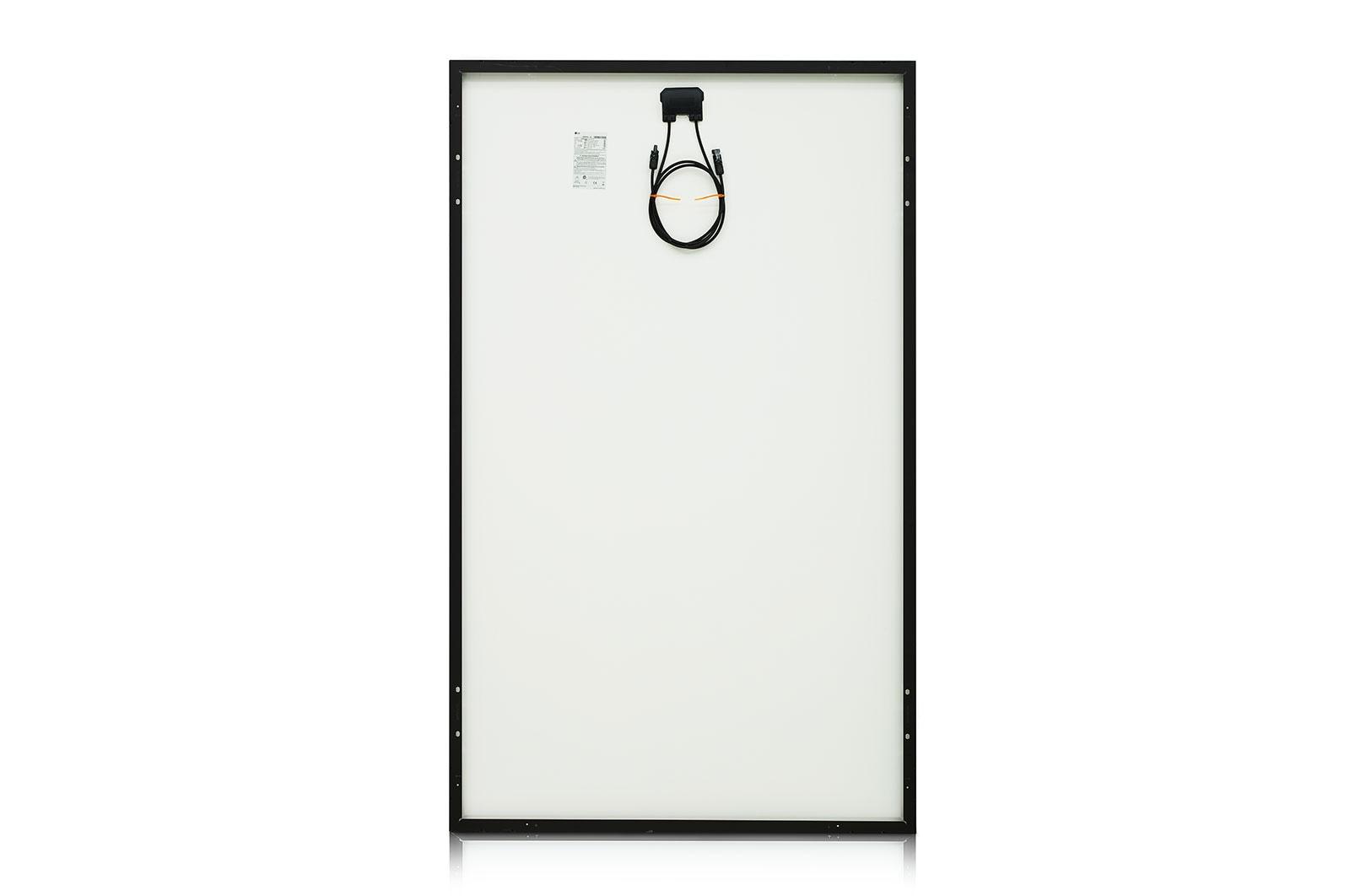

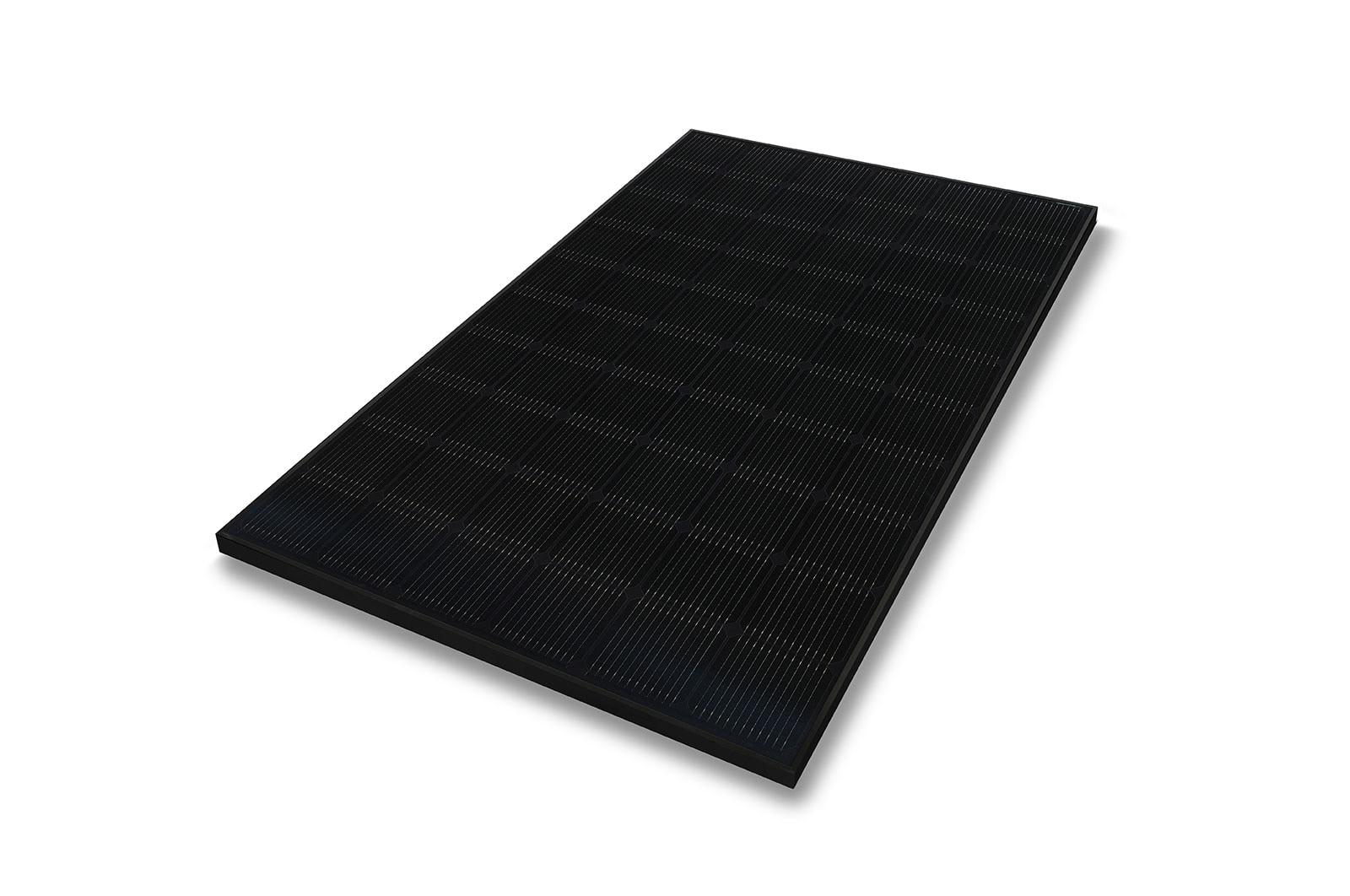

Lg LG370N1KA6 370W High Efficiency LG NeON® 2 Solar Panel for Home with 60 Cells (6 x 10), Module Efficiency: 20.4%, Connector Type: MC4
Lg LG370N1KA6 370W High Efficiency LG NeON® 2 Solar Panel for Home with 60 Cells (6 x 10), Module Efficiency: 20.4%, Connector Type: MC4
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 60 Cell (6 x 10) Solar Panel for Home
- 25-Year Limited Warranty
- Solid Performance on a Sunny Day
- 20.4% Module Efficiency
- Award-Winning Cello Technology™
- Attractive Roof Aesthetic
Double-Sided Cell Structure
The rear of the cell used in the LG NeON® 2 Black contributes to generation, just like the front; the light beam reflected from the rear of the module is reabsorbed to generate additional power.
| General Data | |
| Cell Properties (Material/Type) | Monocrystalline/N-type |
| Cell Maker | LG |
| Cell Configuration | 120 Cells (6 x 20) |
| Number of Busbars | 9EA |
| Module Dimensions (L x W x H) | 1,740mm x 1,042mm x 40mm |
| Weight | 18.5 kg |
| Glass (Material) | Tempered Glass with AR Coating |
| Backsheet (Color) | Black |
| Frame (Material) | Anodized Aluminium |
| Junction Box (Protection Degree) | IP 68 with 3 Bypass Diodes |
| Cables (Length) | 1,200mm x 2EA |
| Connector (Type/Maker) | MC 4/MC |
| CERTIFICATIONS & WARRANTY | |
| Certifications | IEC 61215-1/-1-1/2 : 2016, IEC 61730-1/2 : 2016, UL 61730-1 : 2017, UL 61730-2 : 2017, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001 |
| Salt Mist Corrosion Test | IEC 61701:2011 Severity 6 |
| Ammonia Corrosion Test | IEC 62716:2013 |
| Module Fire Performance | Type 2 (UL 61730) |
| Fire Rating | Class C (UL 790) |
| Solar Module Product Warranty | TBD |
| Solar Module Output Warranty | Linear Warranty* |
| * | *Improved: 1st year 98%, from 2-24th year: -0.45%/year down, 87.2% at year 25 |
| Temperature Characteristics | |
| NMOT | 42 3 |
| Pmax | -0.33 |
| Voc | -0.26 |
| Isc | 0.04 |
| * | NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m , Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5. |
| Electrical Properties (NMOT) | |
| Model | TBD |
| Maximum Power (Pmax) | 276 |
| MPP Voltage (Vmpp) | 32.3 |
| MPP Current (Impp) | 8.56 |
| Open Circuit Voltage (Voc) | 38.6 |
| Short Circuit Current (Isc) | 9.06 |
| Electrical Properties (STC*) | |
| Model | TBD |
| Maximum Power (Pmax) | 370 |
| MPP Voltage (Vmpp) | 34.7 |
| MPP Current (Impp) | 10.68 |
| Open Circuit Voltage (Voc 5%) | 41.4 |
| Short Circuit Current (Isc 5%) | 11.23 |
| Module Efficiency (%) | 20.1 |
| Power Tolerance (%) | 0 ~ +3 |
| * | *STC (Standard Test Condition): Irradiance 1000 W/m2, cell temperature 25°C, AM 1.5 Measurement Tolerence of Pmax: 3% |
| Operating Conditions | |
| Operating Temperature [°C] | -40 ~+85 |
| Maximum System Voltage [V] | 1,000 (UL/IEC) |
| Maximum Series Fuse Rating [A] | 20 |
| Mechanical Test Load (Front) [Pa/psf] | 5,400 |
| Mechanical Test Load (Rear) [Pa/psf] | 4,000 |
| * | *Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor (1.5)) Mechanical Test Loads 6,000Pa/5,400Pa based on IEC 61215:2005 |
| Packaging Configuration | |
| Number of Modules per Pallet [EA] | 25 |
| Number of Modules per 40ft HQ Container [EA] | 650 |
| Number of Modules per 53' Container [EA] | 850 |
| Packaging Box Dimensions (L x W x H) [mm] | 1,790 x 1,120 x 1,213 |
| Packaging Box Dimensions (L x W x H) [in] | 70.5 x 44.1 x 47.8 |
| Packaging Box Gross Weight [kg] | 510 |
| Packaging Box Gross Weight [lb] | 1,124 |
