LG LG375N1CA6
Authorized Reseller

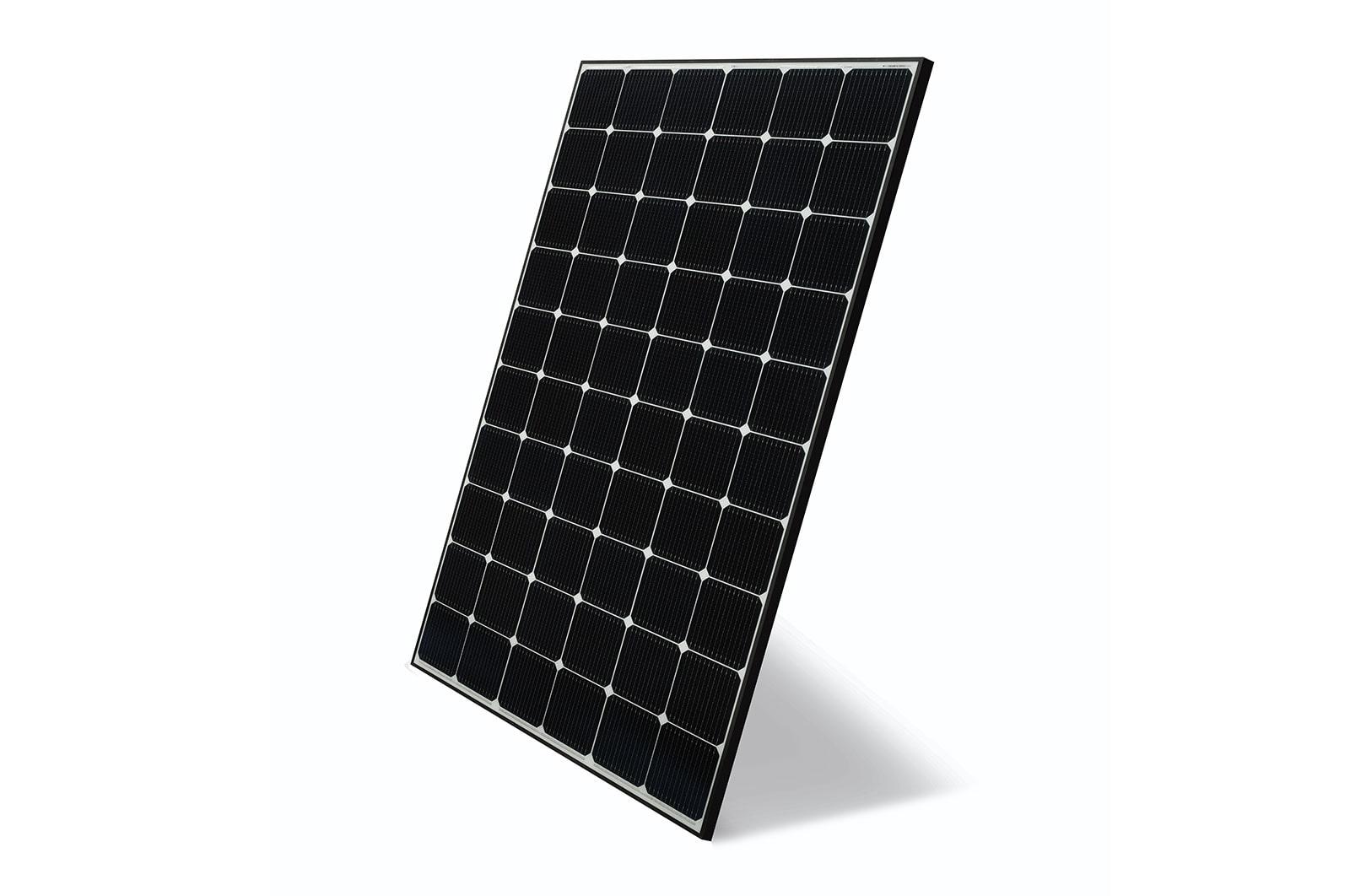

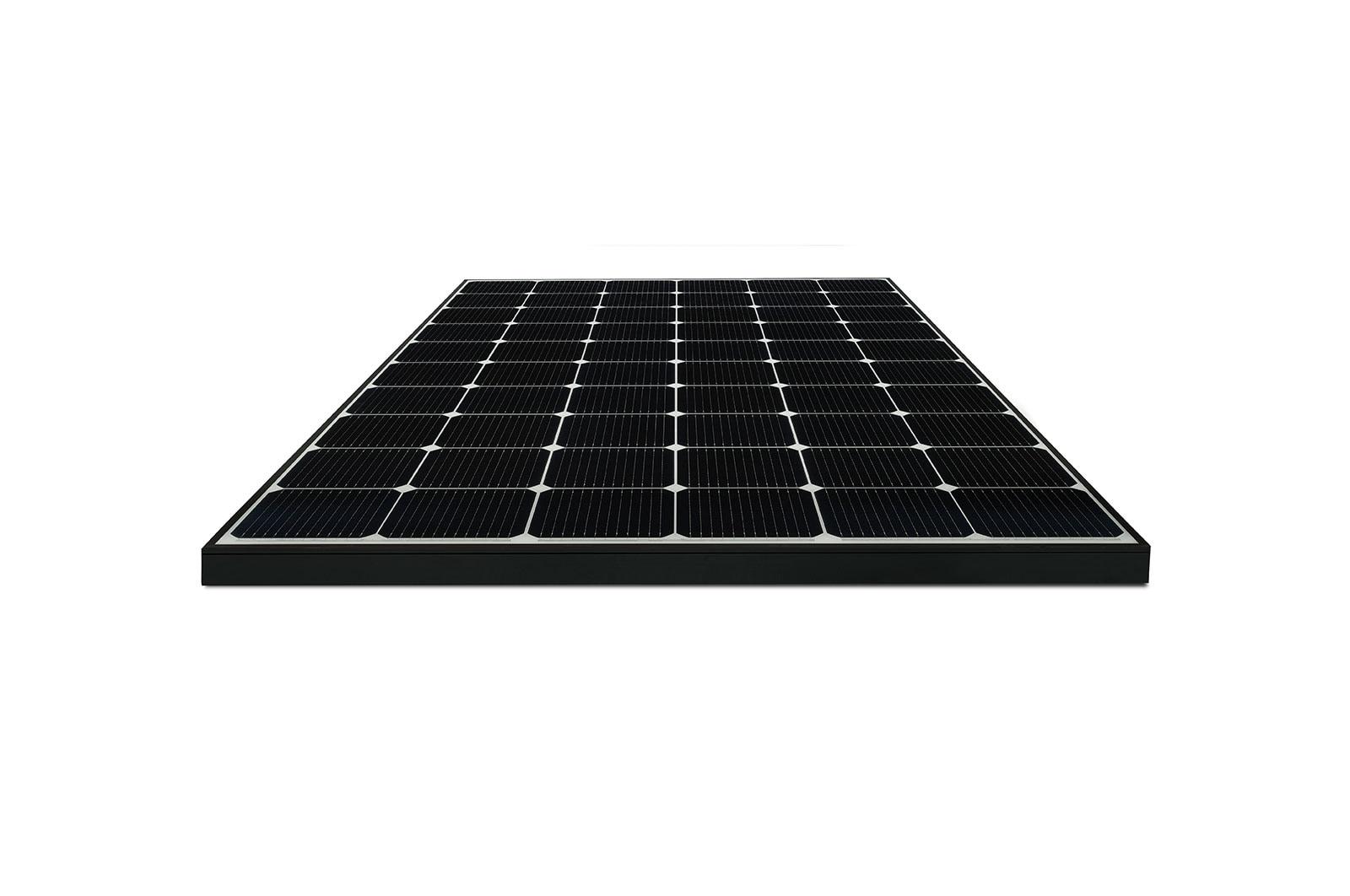

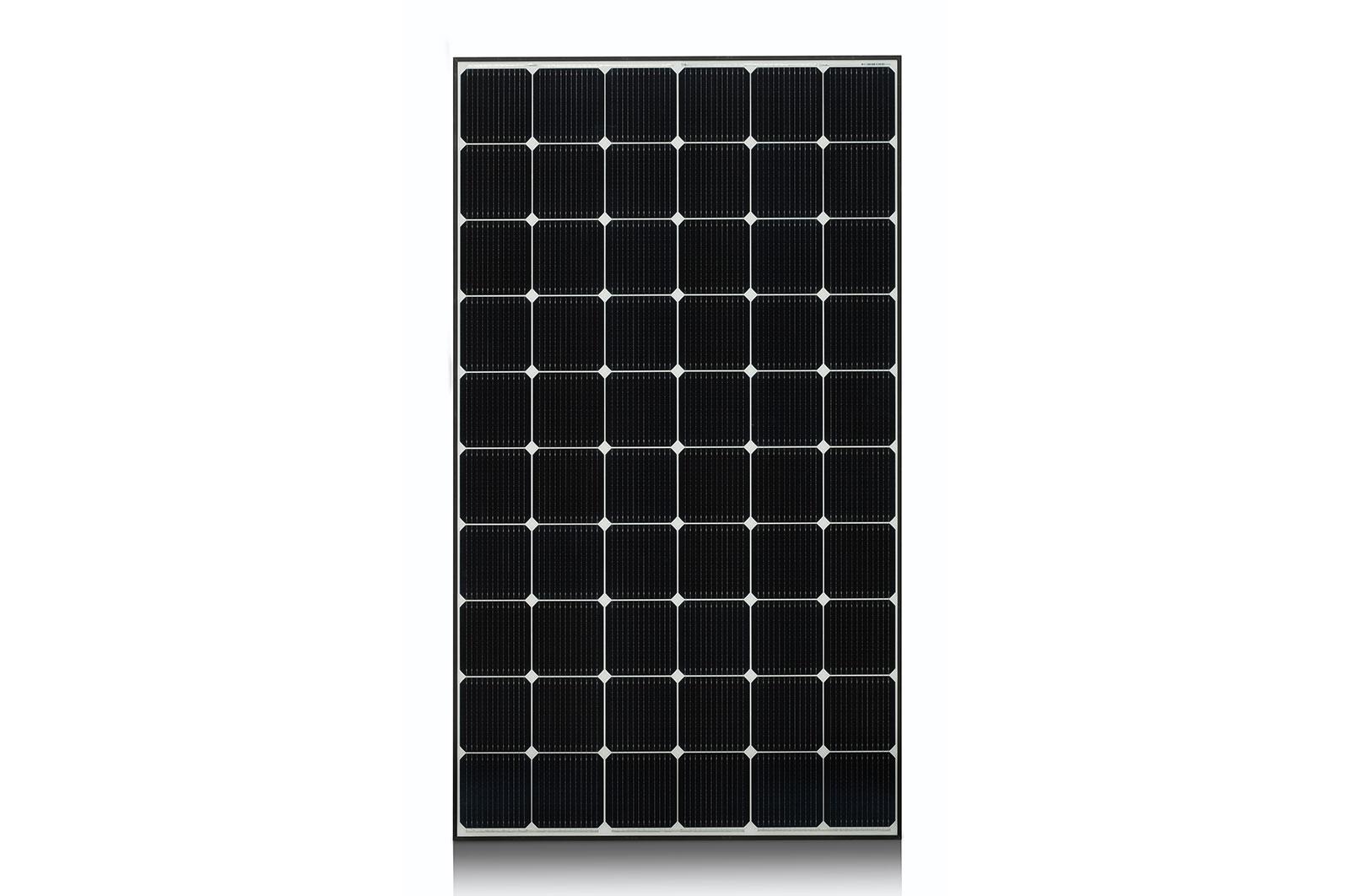

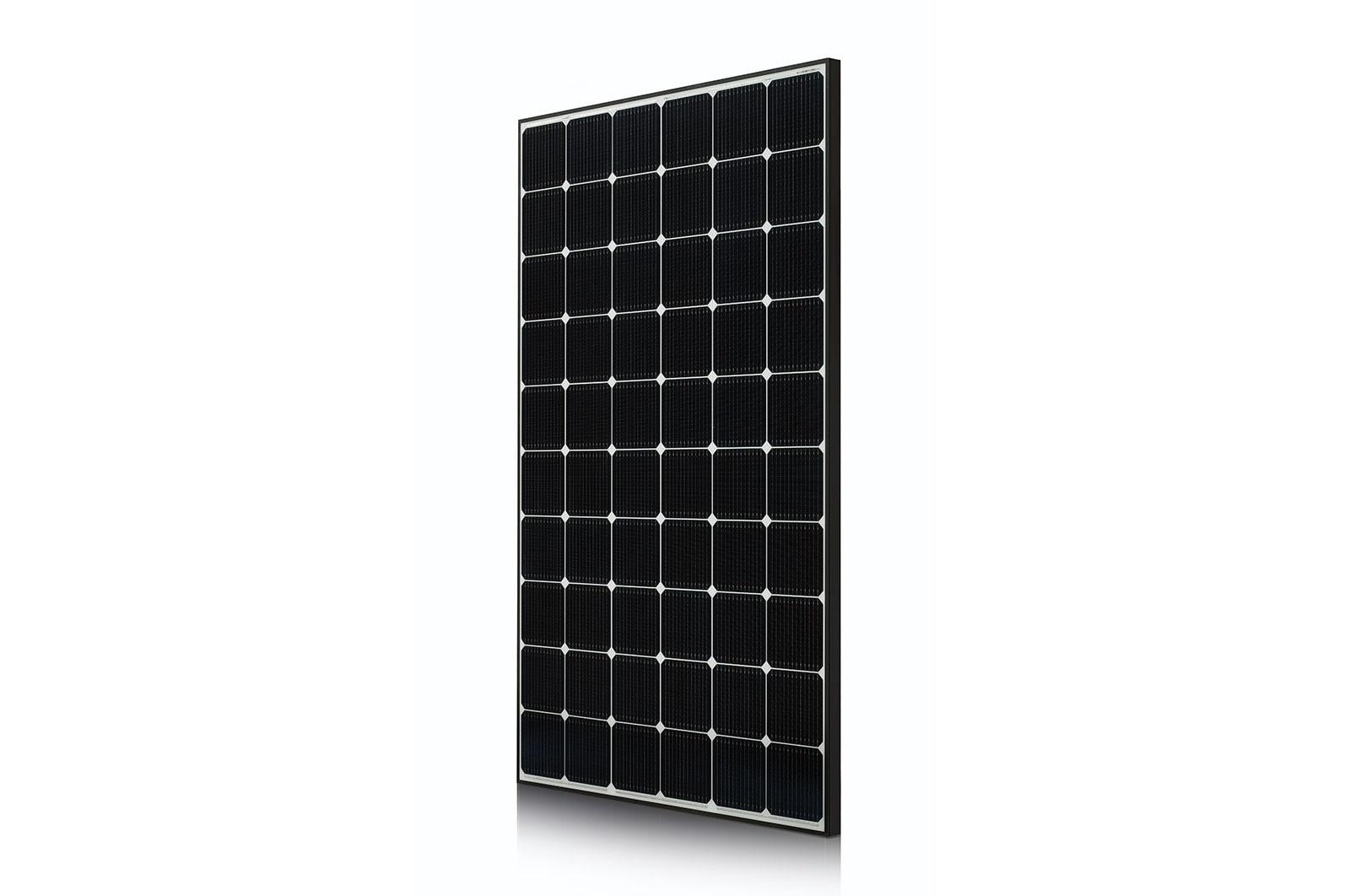

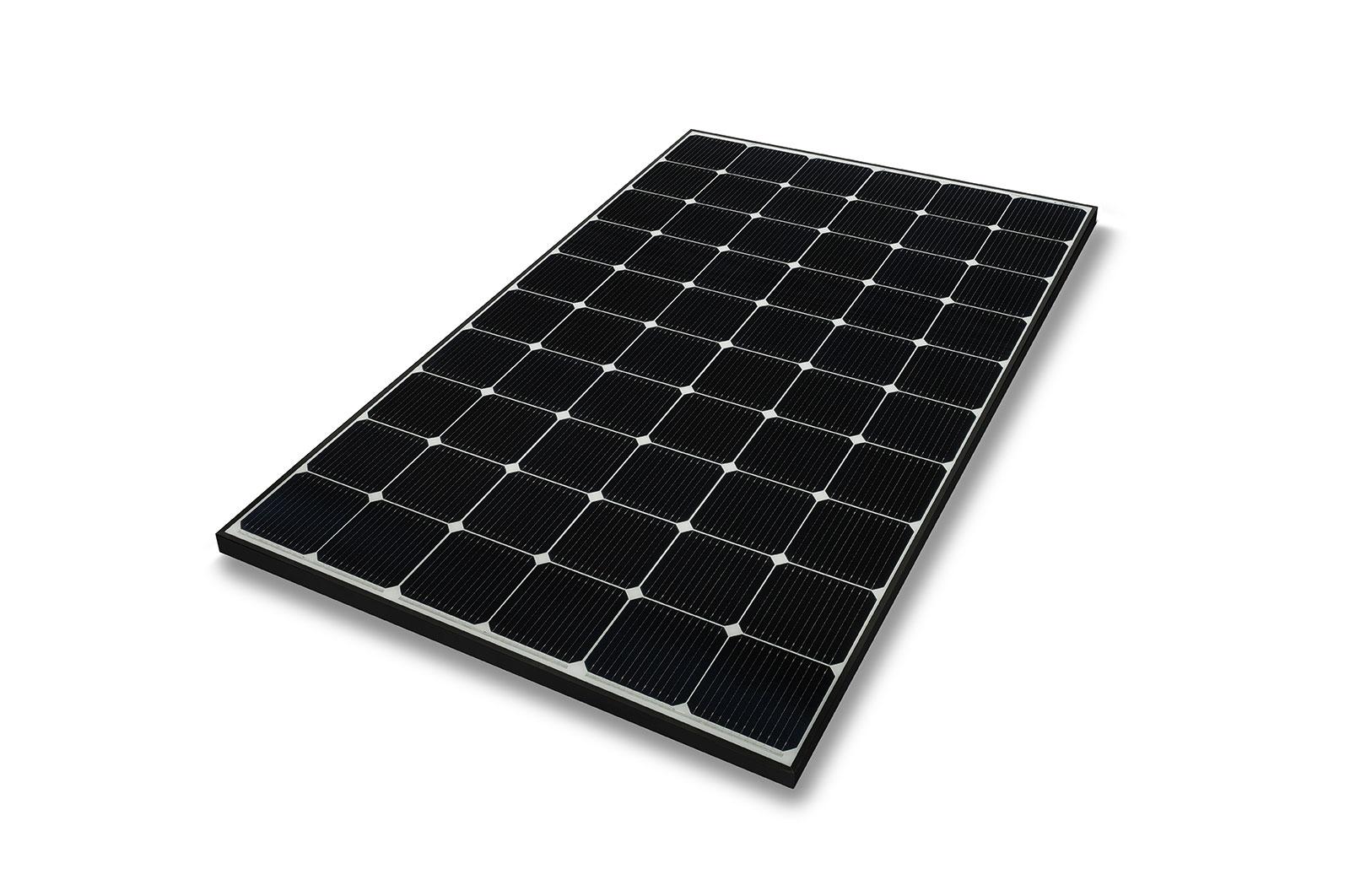

Lg LG375N1CA6 375W High Efficiency LG NeON® 2 Solar Panel for Home with 60 Cells (6 x 10), Module Efficiency: 20.7%, Connector Type: MC4
Lg LG375N1CA6 375W High Efficiency LG NeON® 2 Solar Panel for Home with 60 Cells (6 x 10), Module Efficiency: 20.7%, Connector Type: MC4
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 60 Cell (6 x 10) Solar Panel
- 25 Year Limited Warranty
- Better Performance on a Sunny Day
- 20.7% Module Efficiency
- Award-Winning Cello Technology™
- Attractive Roof Aesthetic
375W High Efficiency LG NeON® 2 Solar Panel for Home with 60 Cells (6 x 10), Module Efficiency: 20.7%, Connector Type: MC4
| General Data | |
| Cell Properties (Material/Type) | Monocrystalline/N-type |
| Cell Maker | LG |
| Cell Configuration | 60 Cells (6 x 10) |
| Number of Busbars | 12EA |
| Module Dimensions (L x W x H) | 1,740mm x 1,042mm x 40mm |
| Weight | 18.6kg |
| Glass (Material) | Tempered Glass with AR Coating |
| Backsheet (Color) | White |
| Frame (Material) | Anodized Aluminium |

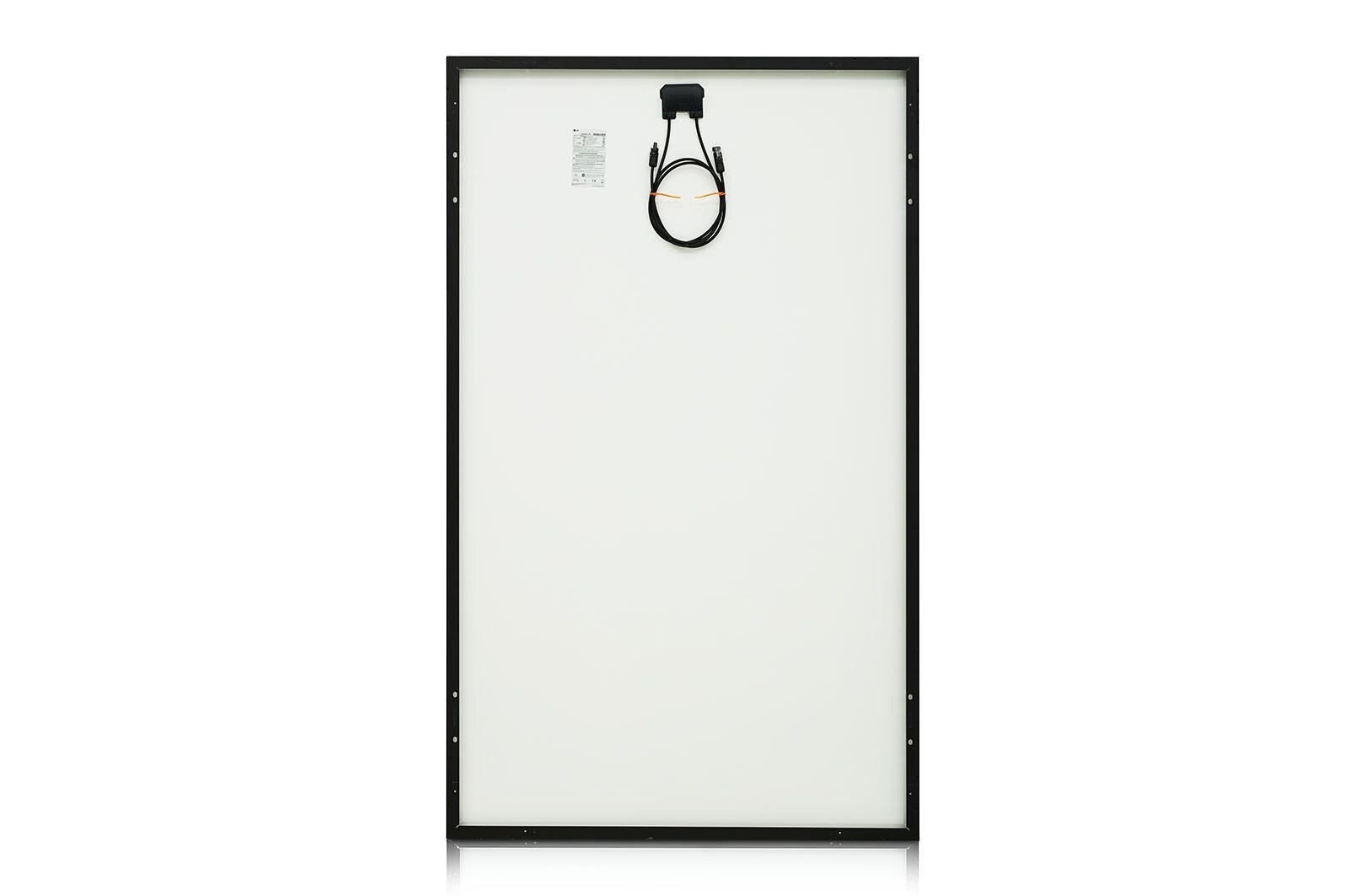

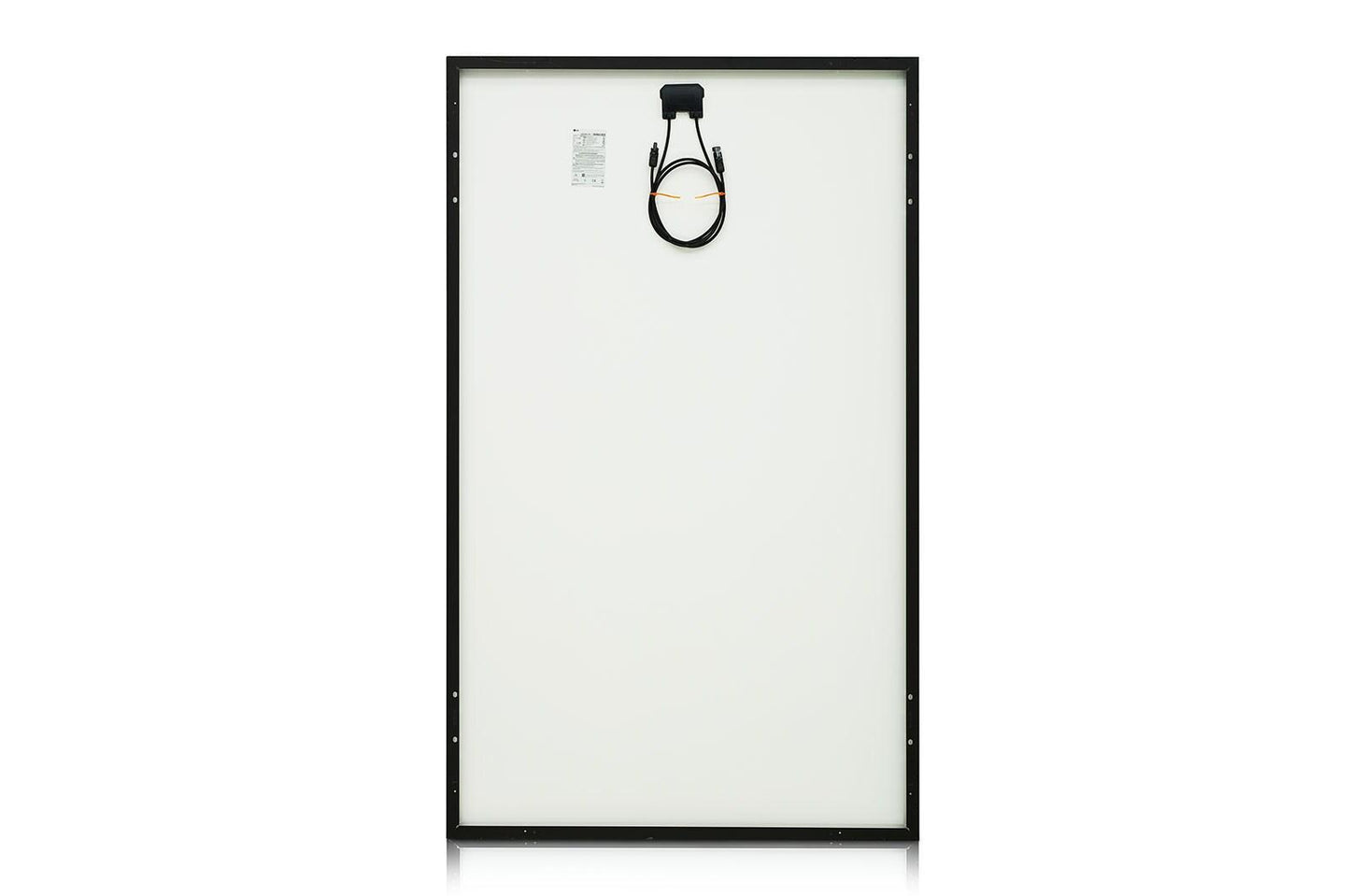

| Junction Box (Protection Degree) | IP 68 with 3 Bypass Diodes |
| Cables (Length) | 1,100mm x 2EA |
| Connector (Type/Maker) | MC 4/MC |
| Certifications and Warranty | |
| Certifications | IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, UL 61730-1: 2017, UL 61730-2:2017, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001 |
| Salt Mist Corrosion Test | IEC 61701:2012 Severity 6 |
| Ammonia Corrosion Test | IEC 62716:2013 |
| Module Fire Performance | Type 1 (UL 61730) |
| Fire Rating | Class C (UL 790, ULC/ORD C 1703) |
| Solar Module Product Warranty | 25 Year Limited |
| Solar Module Output Warranty | Linear Warranty* |
| * | Improved: 1st year 98.5%, from 2-24th year: 0.33%/year down, 90.6% at year 25 |
| Temperature Characteristics | |
| NMOT* [°C] | 42 3 |
| Pmax [%/°C] | -0.34 |
| Voc [%/°C] | -0.26 |
| Isc [%/°C] | 0.03 |
| * | NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m , Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5. |
| Electrical Properties (NMOT) | |
| Model | TBD |
| Maximum Power (Pmax) [W] | 281 |
| MPP Voltage (Vmpp) [V] | 33.2 |
| MPP Current (Impp) [A] | 8.48 |
| Open Circuit Voltage (Voc) [V] | 39.4 |
| Short Circuit Current (Isc) [A] | 9.13 |
| Electrical Properties (STC*) | |
| Model | TBD |
| Maximum Power (Pmax) [W] | 375 |
| MPP Voltage (Vmpp) [V] | 35.3 |
| MPP Current (Impp) [A] | 10.63 |
| Open Circuit Voltage (Voc 5%) [V] | 41.8 |
| Short Circuit Current (Isc 5%) [A] | 11.35 |
| Module Efficiency [%] | 20.7 |
| Power Tolerance [%] | 0 ~ +3 |
| * | STC (Standard Test Condition): Irradiance 1000 W/m , cell temperature 25 °C, AM 1.5, Measure Tolerance of Pmax: +/- 3%. |
| Operating Conditions | |
| Operating Temperature [°C] | -40 ~+85 |
| Maximum System Voltage [V] | 1,000 |
| Maximum Series Fuse Rating [A] | 20 |
| Mechanical Test Load (Front) [Pa/psf] | 5,400/113 |
| Mechanical Test Load (Rear) [Pa/psf] | 4,000/84 |
| * | Mechanical Test Load 5,400Pa/4,000Pa based on IEC 61215-2 : 2016, Test Load = Design Load x Safety Factor (1.5) |
| Packaging Configuration | |
| Number of Modules per Pallet [EA] | 25 |
| Number of Modules per 40ft HQ Container [EA] | 650 |
| Number of Modules per 53' Container [EA] | 850 |
| Packaging Box Dimensions (L x W x H) [mm] | 1,790 x 1,120 x 1,213 |
| Packaging Box Dimensions (L x W x H) [in] | TBD |
| Packaging Box Gross Weight [kg] | 500 |
| Packaging Box Gross Weight [lb] | TBD |
