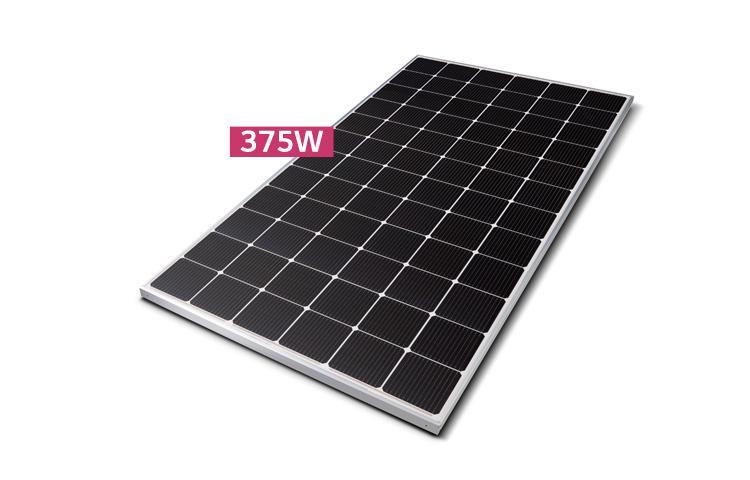

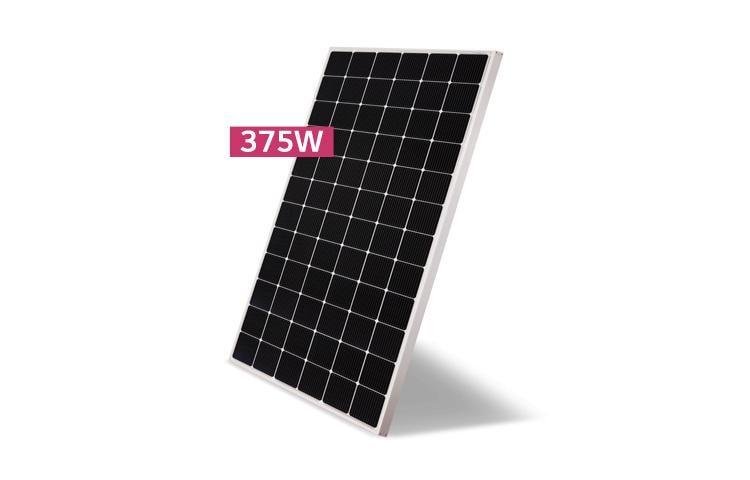

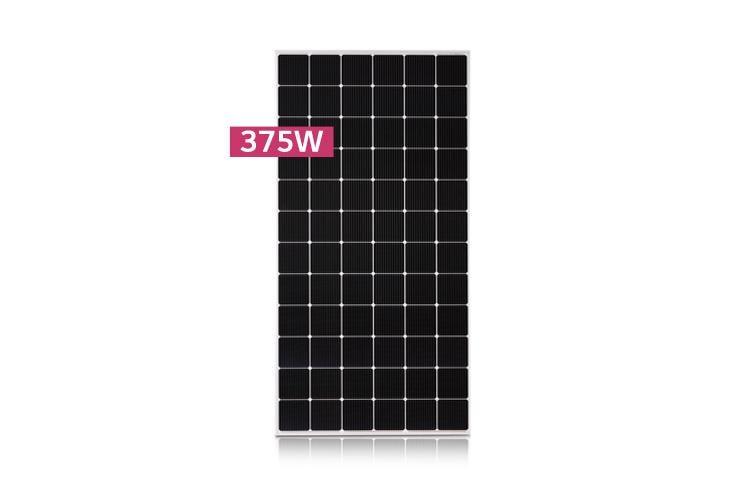

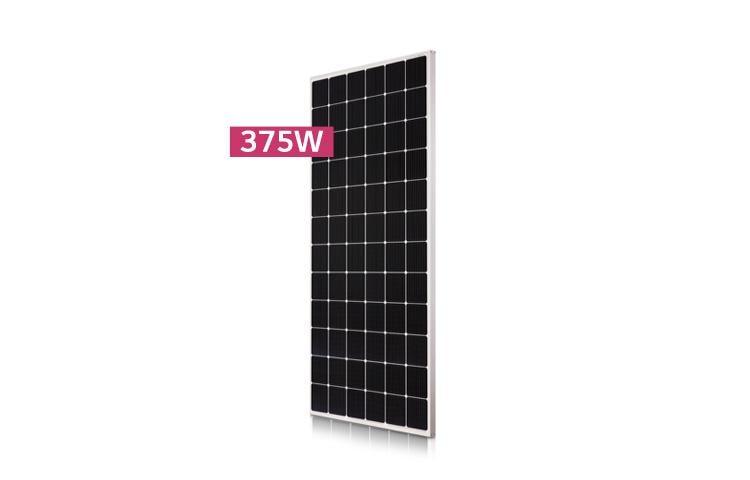

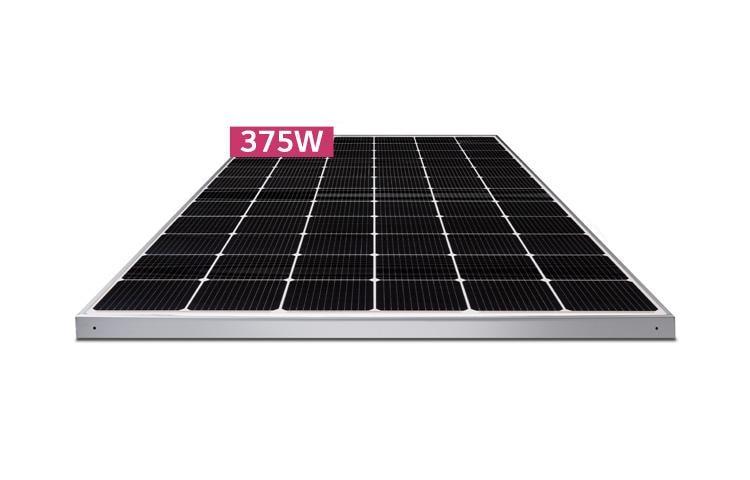

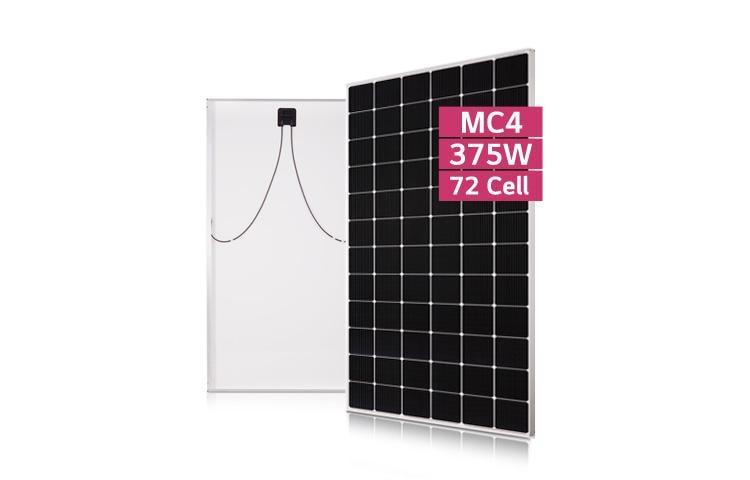

Lg LG375N2WG4 High Efficiency LG NeON®2 72cell Module Cells: 6 x 12 Module efficiency 19.1% Connector Type: MC4
Lg LG375N2WG4 High Efficiency LG NeON®2 72cell Module Cells: 6 x 12 Module efficiency 19.1% Connector Type: MC4
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Enhanced Performance Warranty
- High Power Output
- Improved Product Warranty
High Efficiency LG NeON®2 72cell Module Cells: 6 x 12 Module efficiency 19.1% Connector Type: MC4
| CERTIFICATIONS & WARRANTY | |
| Certifications | IEC 61215, IEC 61730-1/-2 UL1703 IEC 61701 (Salt corrosion test)* IEC 62716 (Ammonia corrosion test)*,ISO 9001 |
| Module Fire Performance | Type 2 |
| Fire Resistance Class | Class C |
| Product Warranty | 12 years |
| Output Warranty of Pmax | Linear warranty** |
| * | in progress |
| ** | 1) 1st year: 98%, 2) After 2nd year: 0.6%p annual degradation, 3) 83.6% for 25 years |
| ELECTRICAL PROPERTIES(NOCT*) | |
| Maximum Power(Pmax) | 277 |
| MPP Voltage (Vmpp) | 36.6 |
| MPP Current (Impp) | 7.57 |
| Open Circuit Voltage (Voc) | 45 |
| Short Circuit Current (Isc) | 8.08 |
| * | NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s |
| Electrical Properties (STC*) | |
| MPP Voltage (Vmpp) | 39.6 |
| MPP Current (Impp) | 9.5 |
| Open Circuit Voltage (Voc) | 48.3 |
| Short Circuit Current (Isc) | 10.04 |
| Module Efficiency (%) | 19.1 |
| Operating Temperature (°C) | -40 ~ +90 |
| Maximum System Voltage (V) | 1000 |
| Maximum Series Fuse Rating (A) | 20 |
| Power Tolerance (%) | 0 ~ +3 |
| * | STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. |
| MECHANICAL PROPERTIES | |
| Cells | 6 x 12 |
| Cell vendor | LG |
| Cell Type | Monocrystalline / N-type |
| Cell Dimensions | 156.75 x 156.75 mm / 6 inches |
| # of Busbar | 12 (Multi Wire Busbar) |
| Dimensions (L x W x H) | 1960 x 1000 x 46 mm |
| Front Load | 5400 Pa |
| Rear Load | 2400 Pa |
| Weight | 20.3 0.5 kg |
| Connector Type | MC4 |
| Junction Box | IP 67 with 3 bypass diodes |
| Length of Cables | 1200 mm x 2 ea |
| Frame | Anodized aluminium |
| Glass | Tempered Glass with AR Coating |
| Temperature Characteristics | |
| NOCT | 45 3 °C |
| Pmpp | -0.38 %/°C |
| Voc | -0.28 %/°C |
| Isc | 0.03 %/°C |
