LG LG385N1CA6
Authorized Reseller

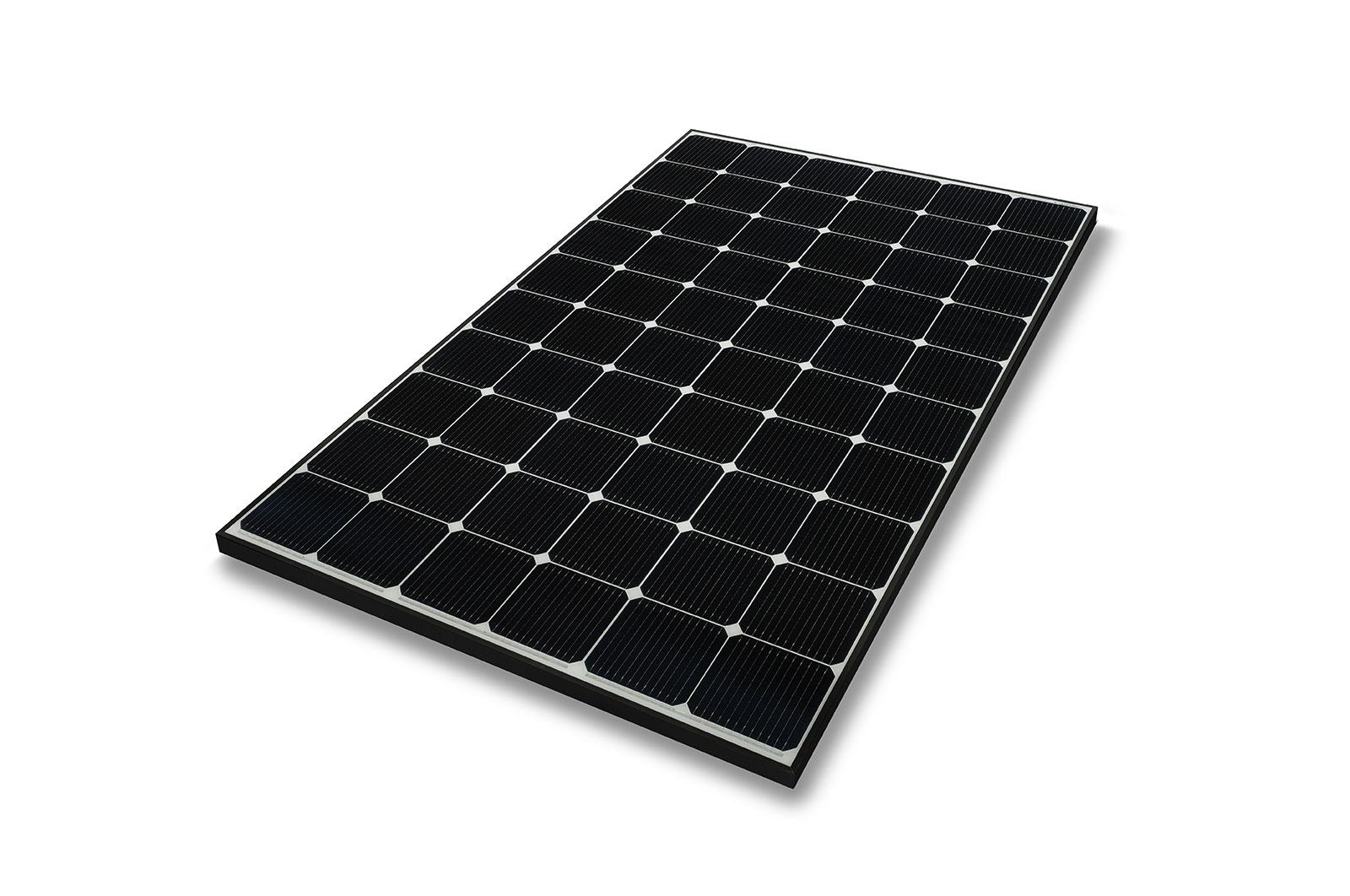

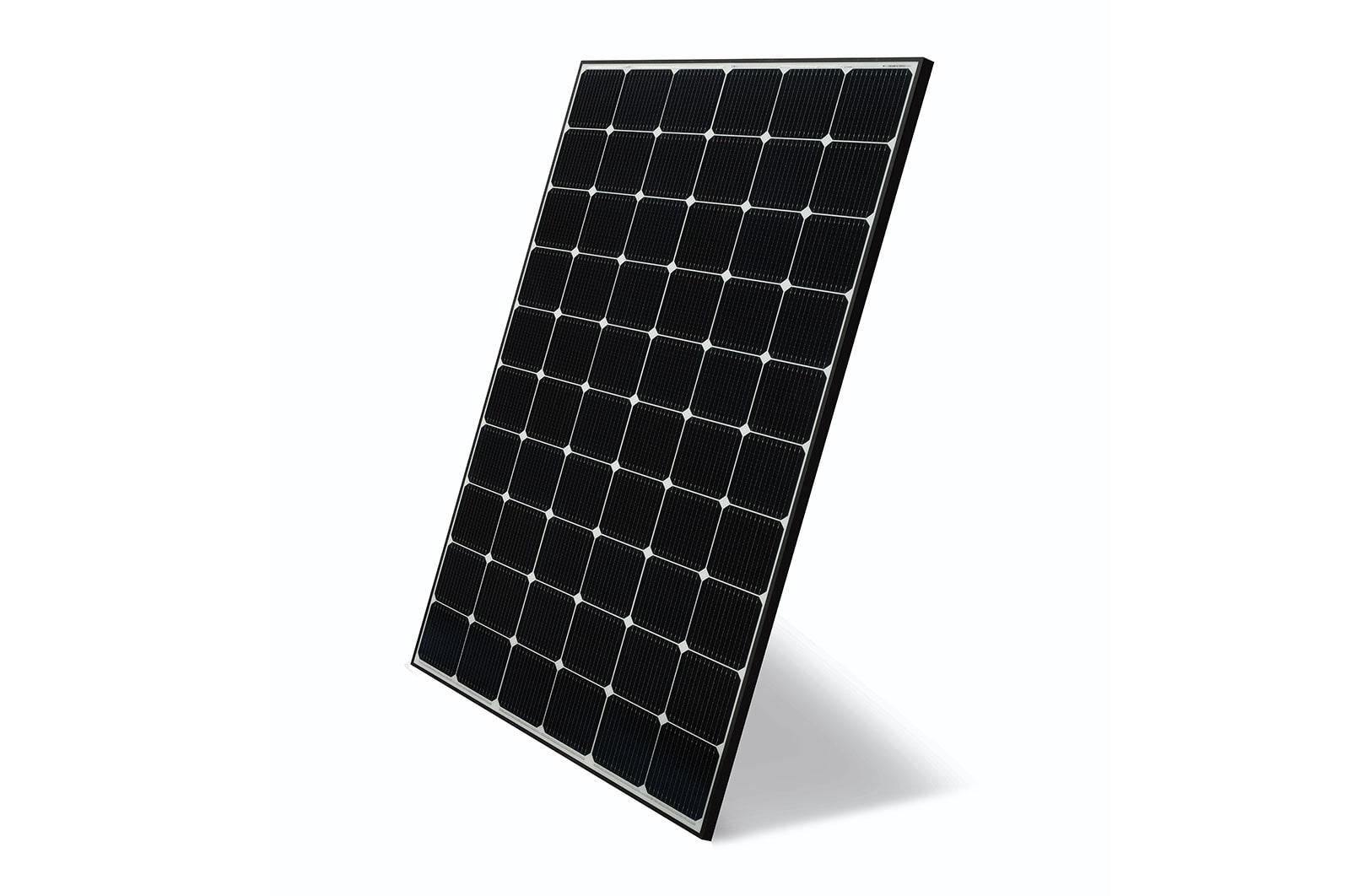

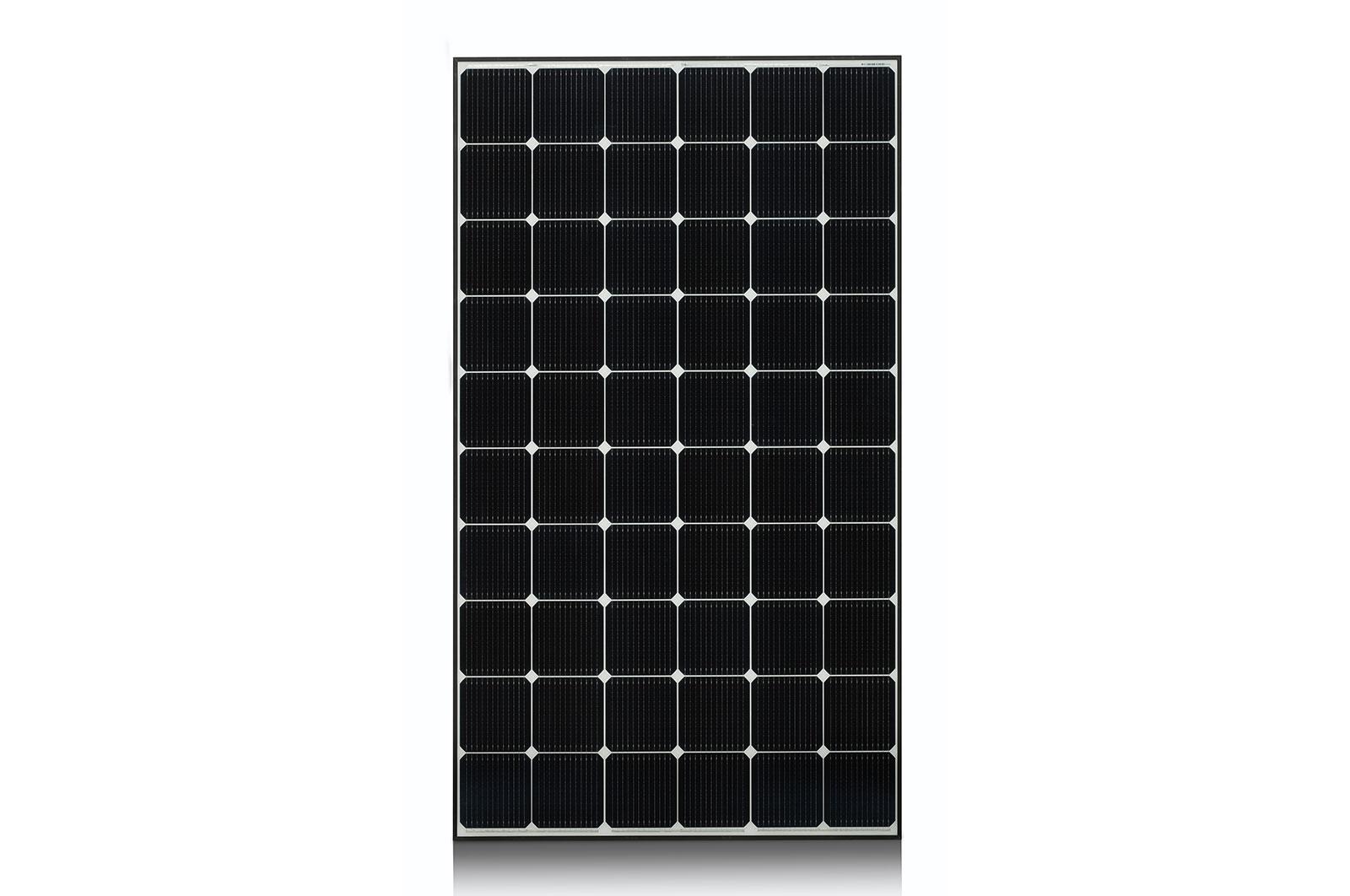

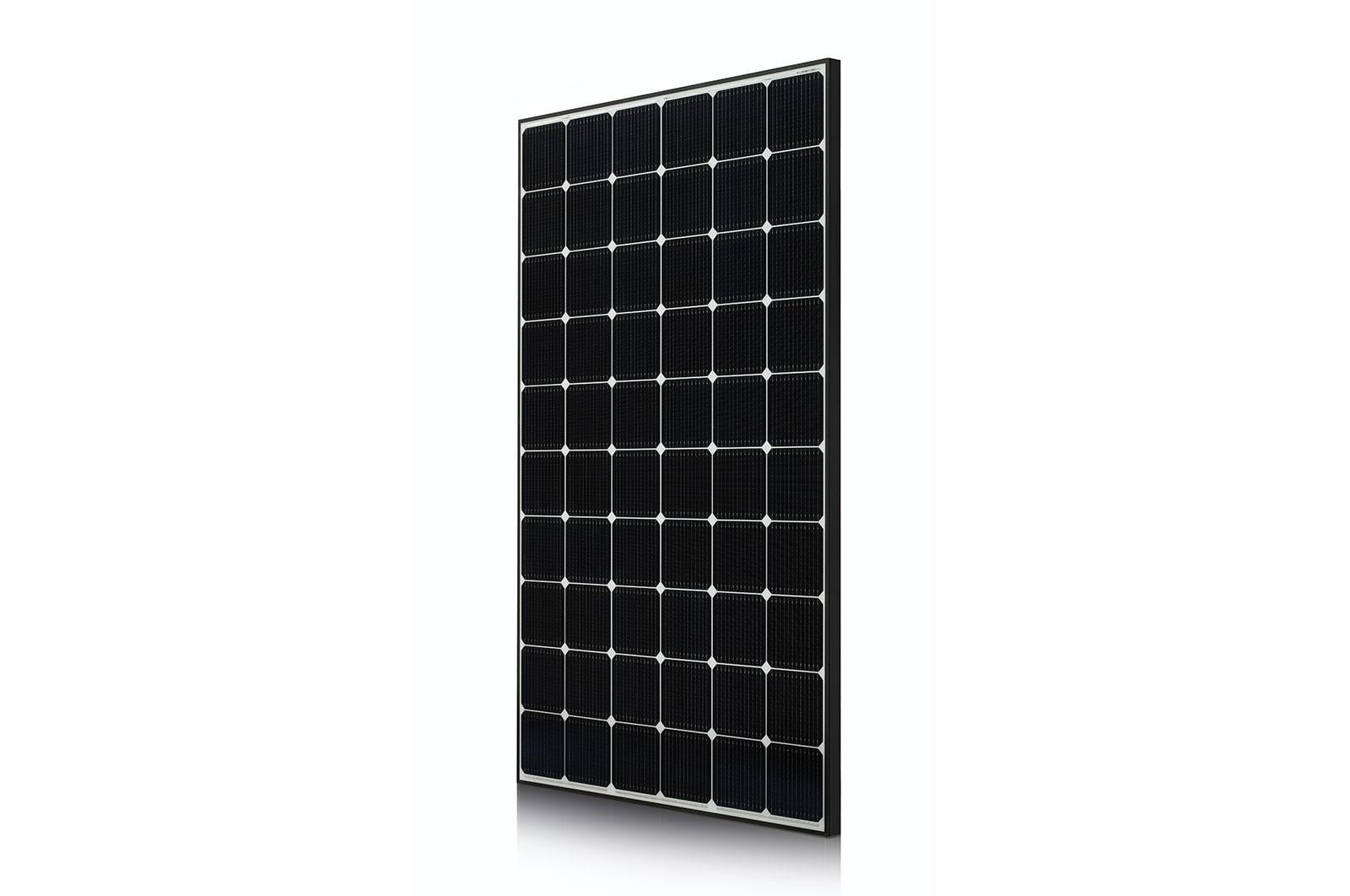

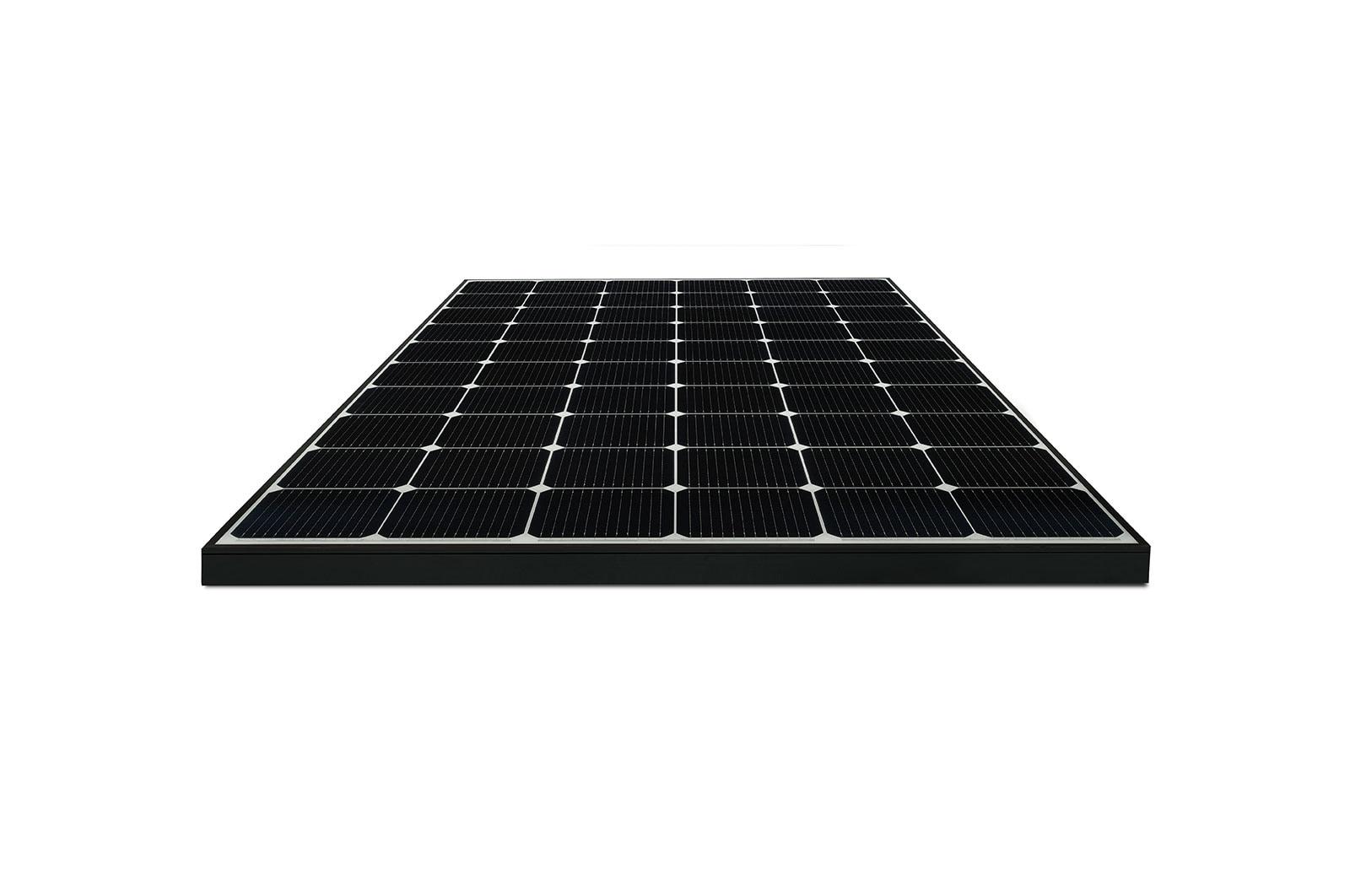

Lg LG385N1CA6 385W High Efficiency LG NeON® 2 Solar Panel for Home with 60 Cells (6 x 10), Module Efficiency: 21.2%, Connector Type: MC4
Lg LG385N1CA6 385W High Efficiency LG NeON® 2 Solar Panel for Home with 60 Cells (6 x 10), Module Efficiency: 21.2%, Connector Type: MC4
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 60 Cell (6 x 10) Solar Panel
- 25 Year Limited Warranty
- Better Performance on a Sunny Day
- 21.0% Module Efficiency
- Award-Winning Cello Technology™
- Attractive Roof Aesthetic
385W High Efficiency LG NeON® 2 Solar Panel for Home with 60 Cells (6 x 10), Module Efficiency: 21.2%, Connector Type: MC4
| General Data | |
| Cell Properties (Material / Type) | Monocrystalline / N-type |
| Cell Maker | LG |
| Cell Configuration | 60 Cells (6 x 10) |
| Number of Busbars | 12 EA |
| Module Dimensions (L x W x H) | 1,740 mm x 1,042 mm x 40 mm |
| Weight | 18.6 kg |
| Glass (Material) | Tempered Glass with AR Coating |
| Backsheet (Color) | White |
| Frame (Material) | Anodized Aluminium |

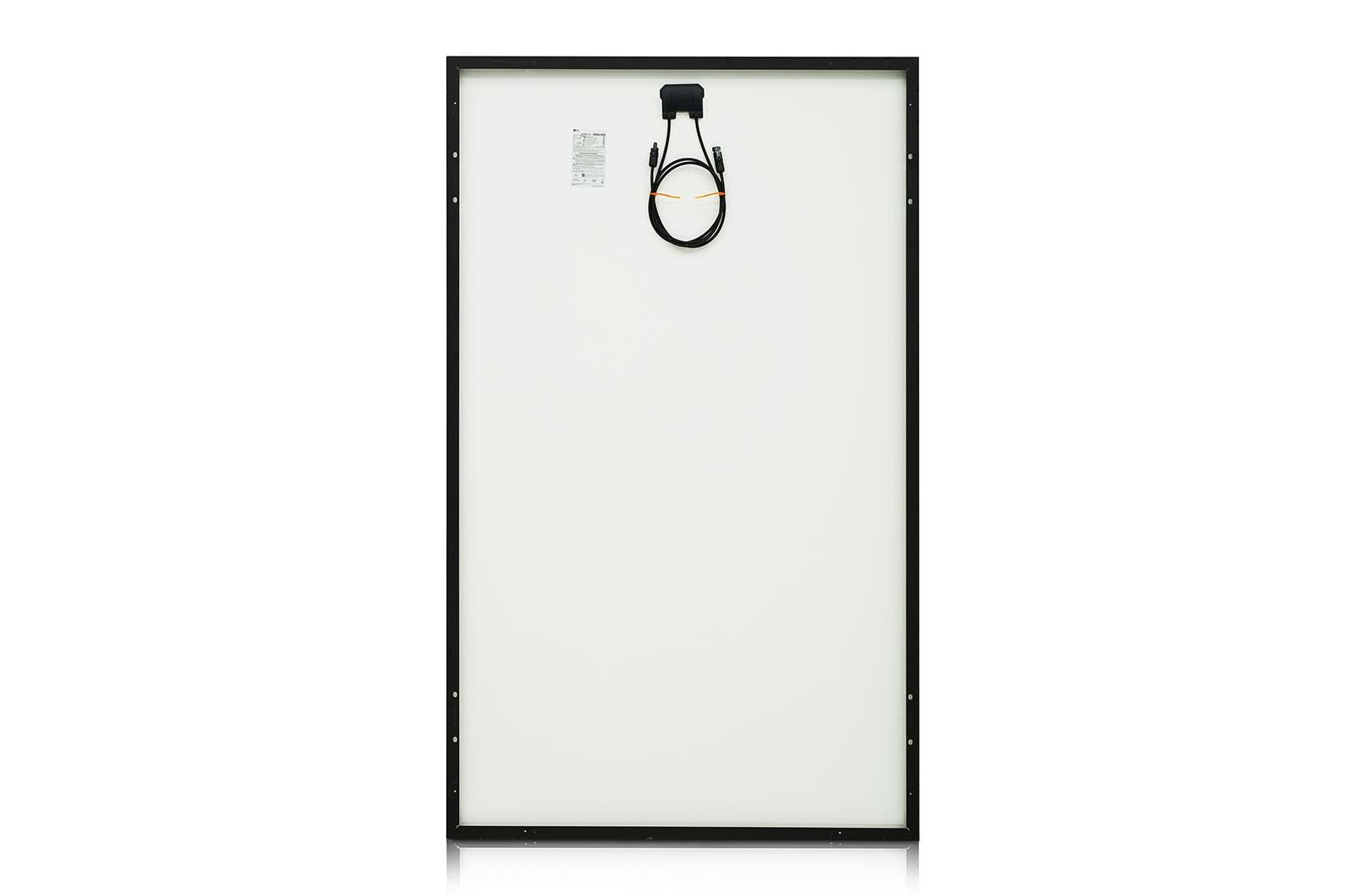

| Junction Box (Protection Degree) | IP 68 with 3 Bypass Diodes |
| Cables (Length) | 1,100 mm x 2 EA |
| Connector (Type / Maker) | MC4 / MC |
| Electrical Properties (STC*) | |
| Model | LG385N1C-A6 |
| Maximum Power (Pmax) [W] | 385 |
| MPP Voltage (Vmpp) [V] | 36.1 |
| MPP Current (Impp) | 10.67 |
| Open Circuit Voltage (Voc, 5 %) [ V ] | 42.0 |
| Short Circuit Current (Isc, 5 %) [ A ] | 11.43 |
| Module Efficiency [%] | 21.2 |
| Power Tolerance [%] | 0 ~ +3 |
| * | STC (Standard Test Condition): Irradiance 1000 W/ , Cell temperature 25 , AM 1.5 , Measure tolerance of Pmax : 3% |
| Temperature Characteristics | |
| NMOT* [°C] | 42 3 |
| Pmax [%/°C] | -0.34 |
| Voc [%/°C] | -0.26 |
| Isc [%/°C] | 0.03 |
| * | NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m2 , Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5 |
| Electrical Properties (NMOT) | |
| Model | LG385N1C-A6 |
| Maximum Power (Pmax) [W] | 289 |
| MPP Voltage (Vmpp) [V] | 33.9 |
| MPP Current (Impp) [A] | 8.51 |
| Open Circuit Voltage (Voc) [V] | 39.5 |
| Short Circuit Current (Isc) [A] | 9.19 |
| Certifications and Warranty | |
| Certifications | IEC 61215-1/-1-1 / 2:2016, IEC 61730-1/2:2016, UL 61730-1:2017, UL 61730-2:2017 ISO 9001, ISO 14001, ISO 50001 OHSAS 18001 |
| Salt Mist Corrosion Test | IEC 61701 : 2011 Severity 6 |
| Ammonia Corrosion Test | IEC 62716 : 2013 |
| Module Fire Performance | Type 1 (UL 61730) |
| Fire Rating | Class C (UL 790) |
| Solar Module Product Warranty | 25 Years |
| Solar Module Output Warranty | Linear Warranty* |
| * | *1) First years : 98.5%, 2) After 1st year : 0.33% annual degradation, 3) 90.6% for 25 years |
| Operating Conditions | |
| Operating Temperature [°C] | -40 ~ +85 |
| Maximum System Voltage [V] | 1000 |
| Maximum Series Fuse Rating [A] | 20 |
| Mechanical Test Load* (Front) [Pa] | 5,400 |
| Mechanical Test Load* (Rear) [Pa] | 4,000 |
| * | *Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa / 5,400 Pa based on IEC 61215 : 2005 |
| Packaging Configuration | |
| Number of Modules per Pallet [EA] | 25 |
| Number of Modules per 40ft HQ Container [EA] | 650 |
| Packaging Box Dimensions (L x W x H) [mm] | 1790x1120x1213 |
| Packaging Box Gross Weight [kg] | 500 |
