LG LG390N2TA5
Authorized Reseller

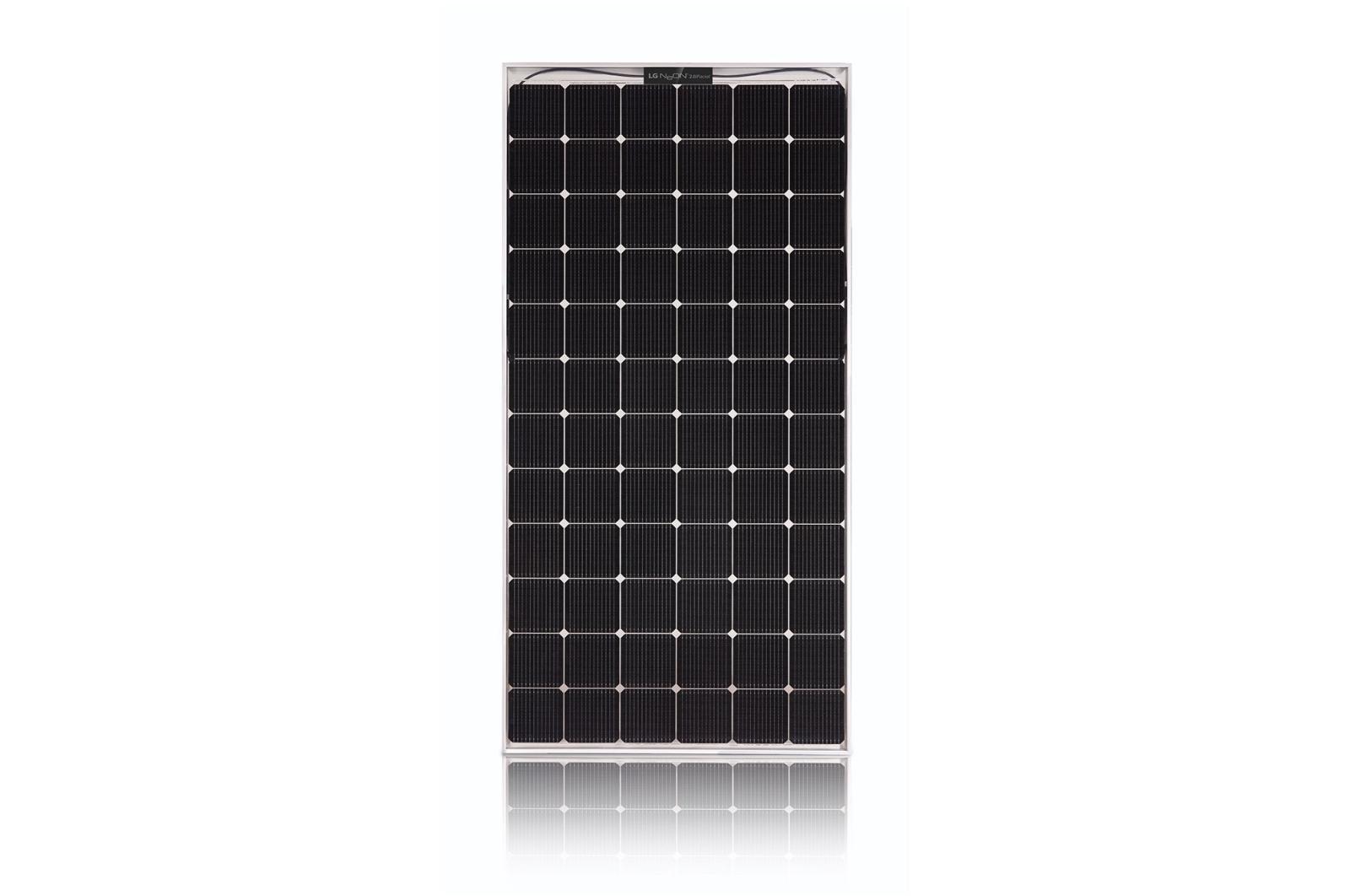

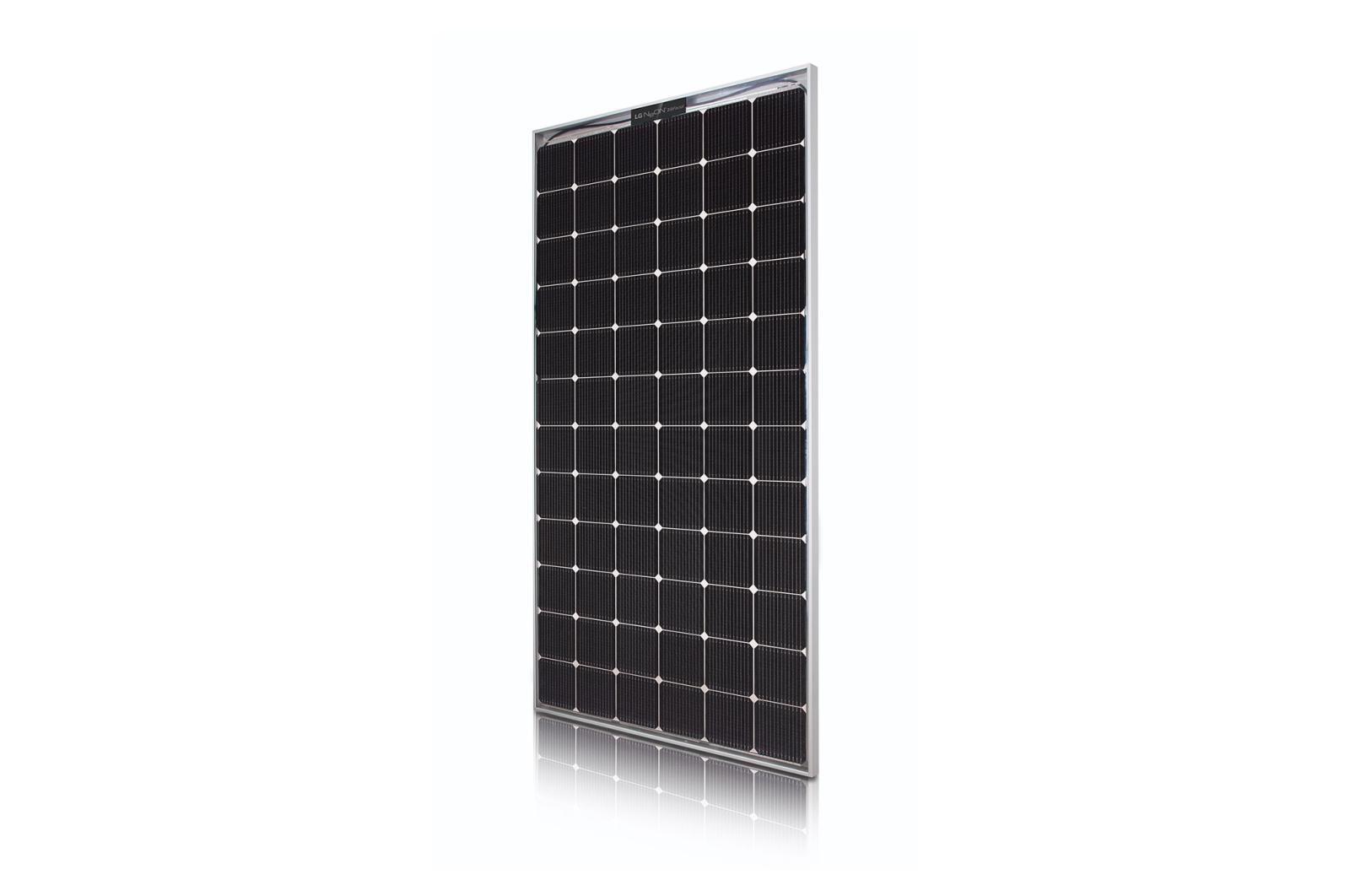

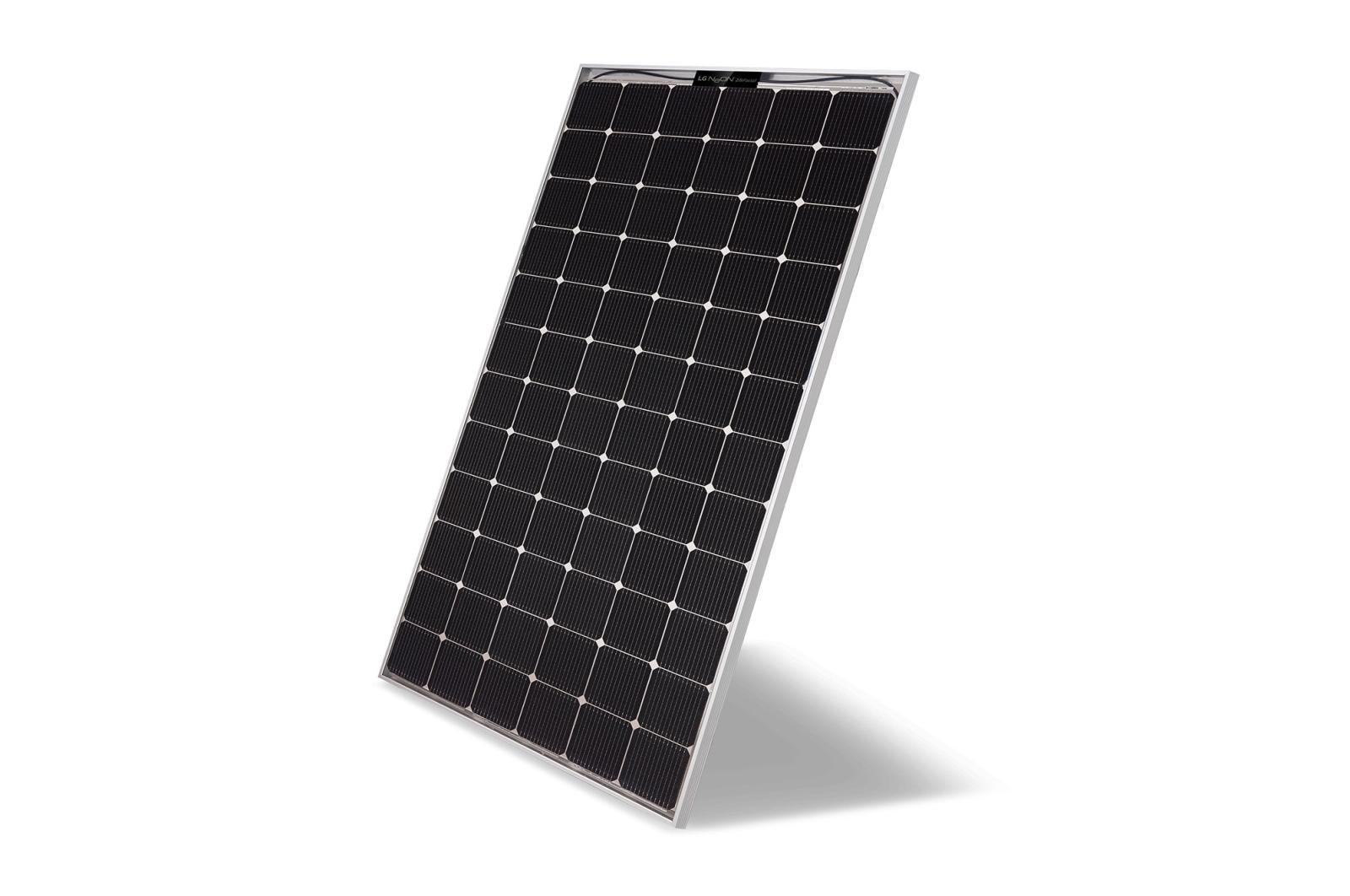

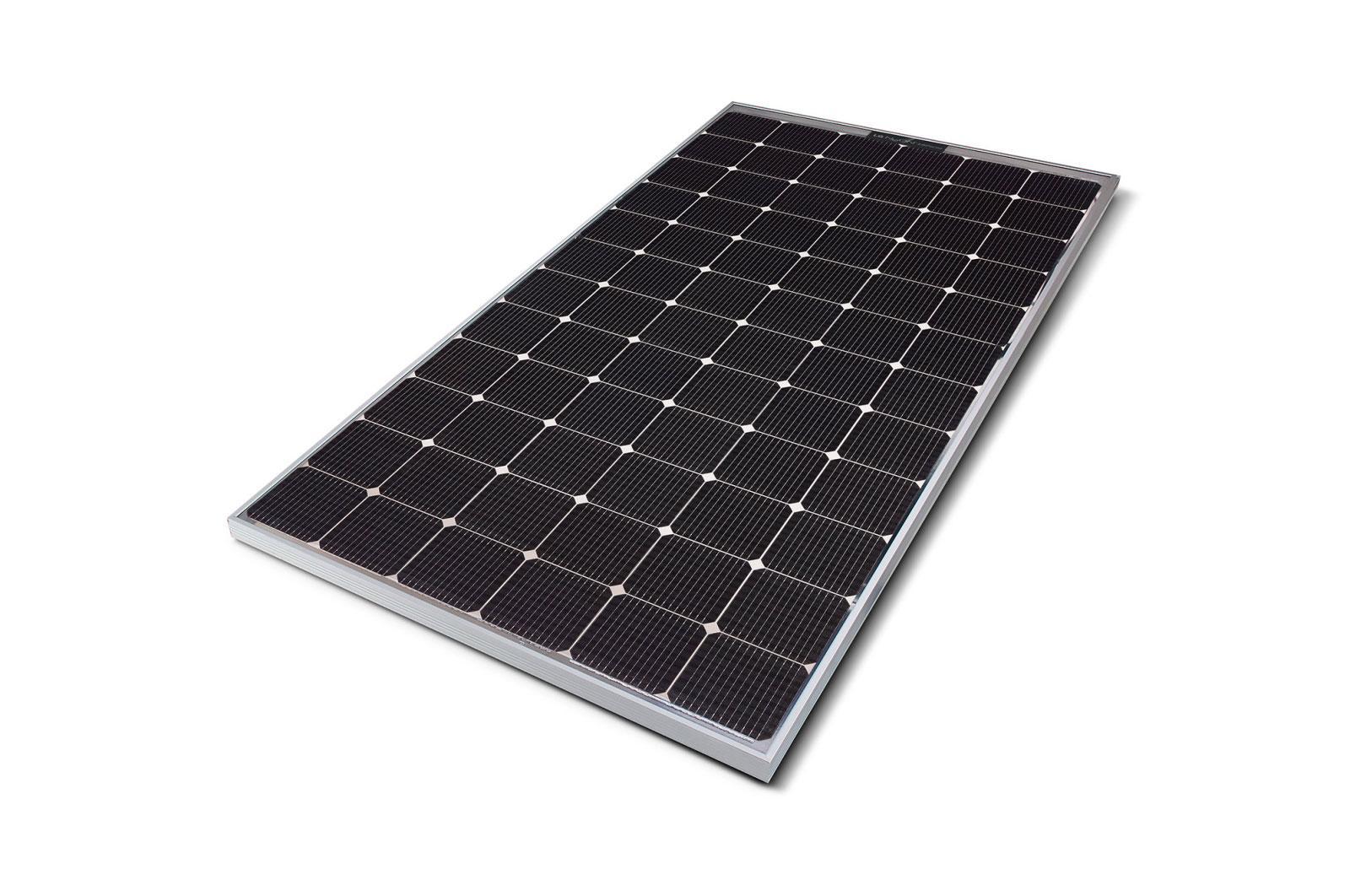

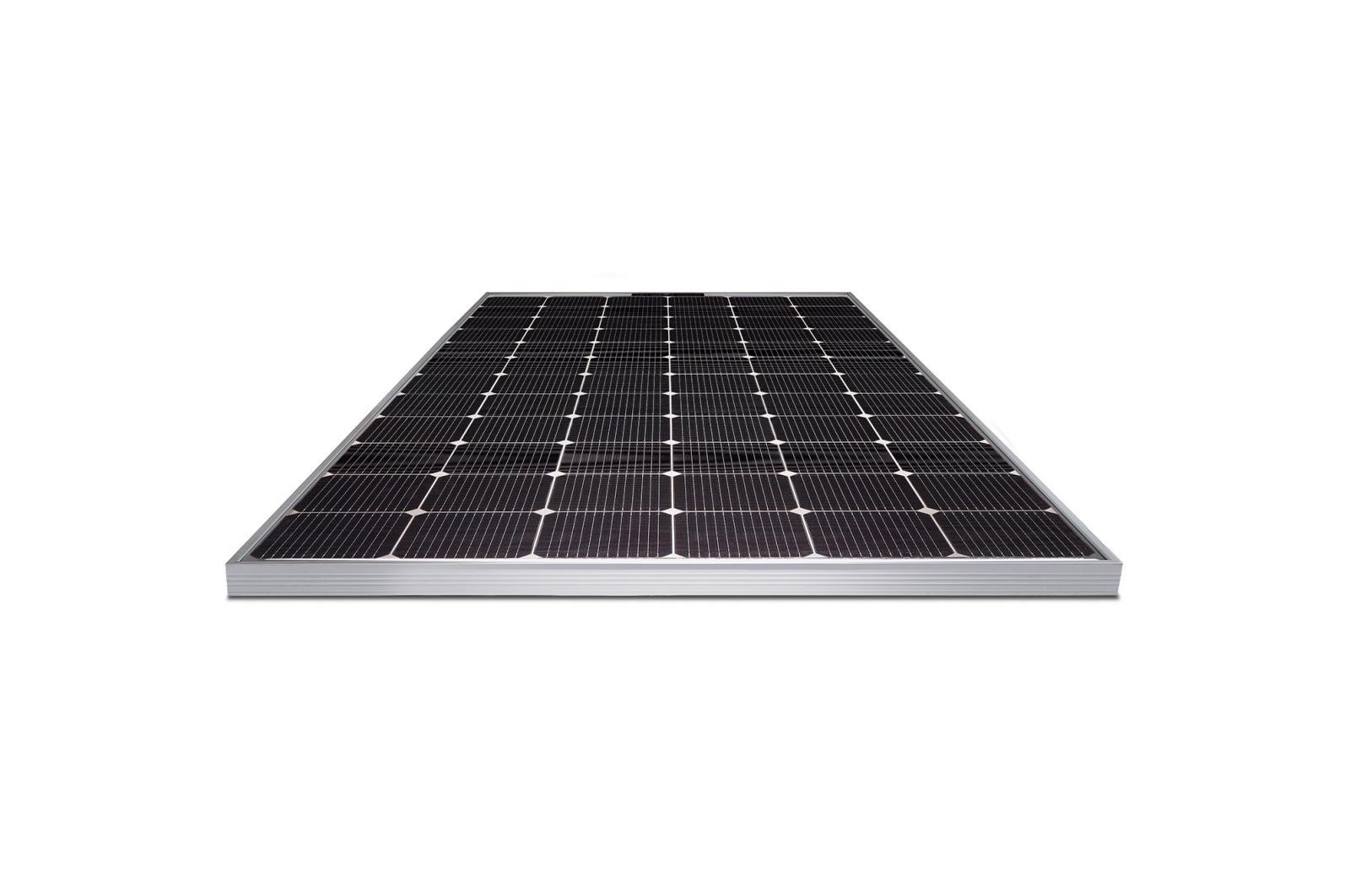

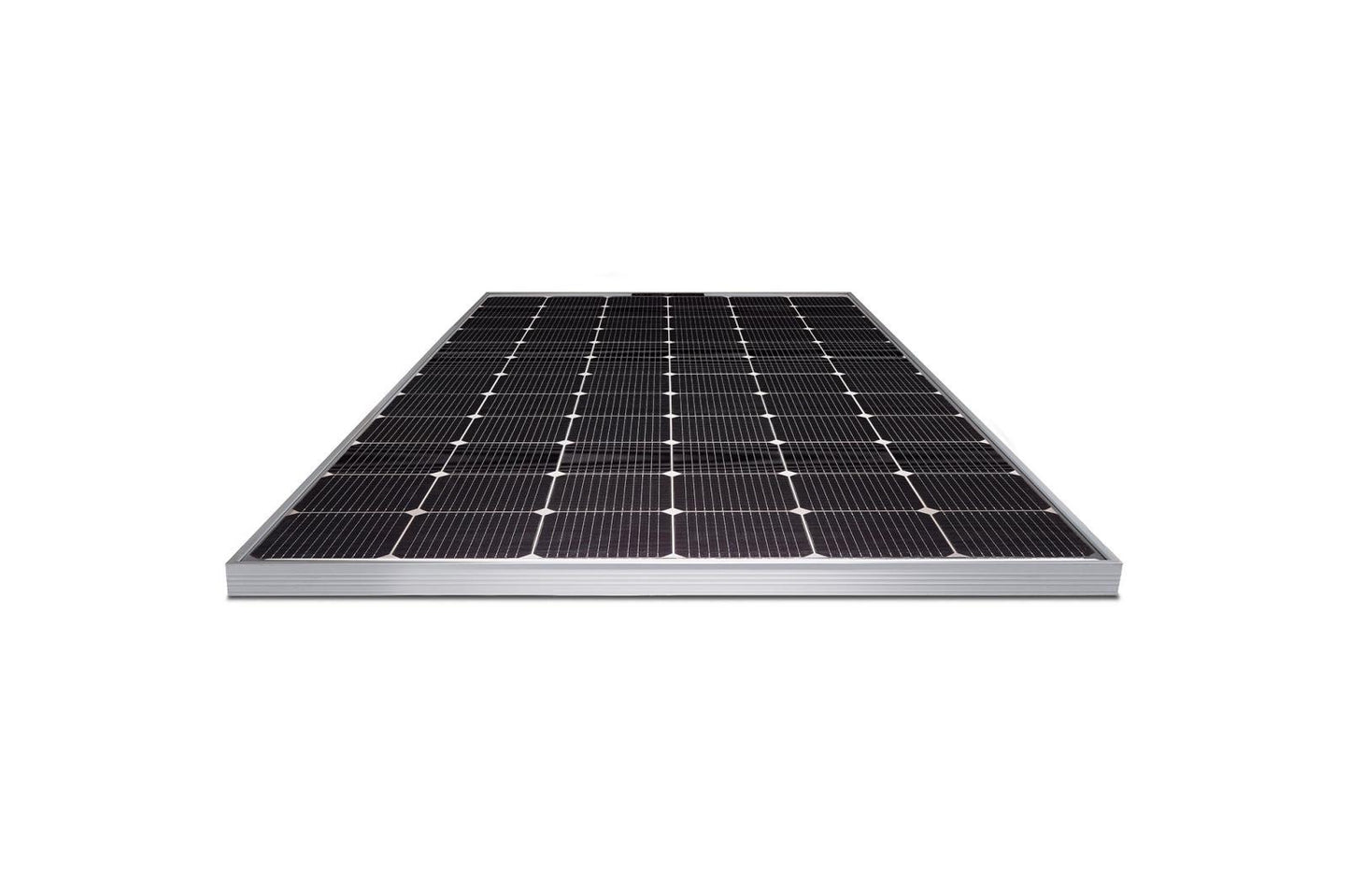

Lg LG390N2TA5 High Efficiency LG NeON® 2 BiFacial Module Cells: 6 x 12 Module efficiency 18.5% Connector Type: MC4
Lg LG390N2TA5 High Efficiency LG NeON® 2 BiFacial Module Cells: 6 x 12 Module efficiency 18.5% Connector Type: MC4
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Enhanced Performance Warranty
- High Power Output

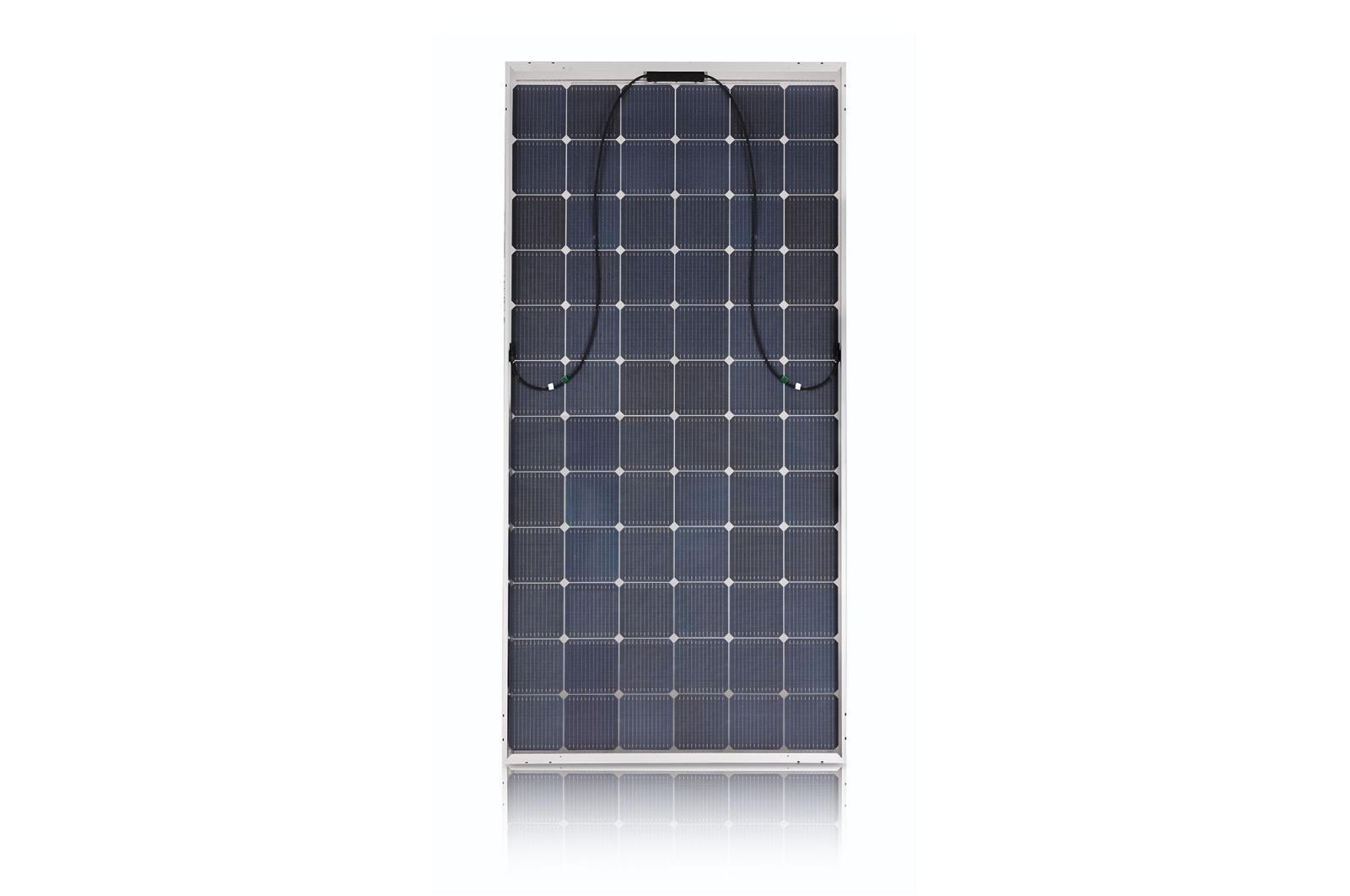

- Double-sided Generation
High Efficiency LG NeON® 2 BiFacial Module Cells: 6 x 12 Module efficiency 18.5% Connector Type: MC4
| CERTIFICATIONS & WARRANTY | |
| Certifications | UL 1703,IEC 61215, IEC 61730-1/-2,IEC 61701 (Salt mist corrosion test),IEC 62716 (Ammonia corrosion test),;ISO 9001 |
| Module Fire Performance | Type 1(UL 1703) |
| Fire Resistance Class | Class C (ULC/ORD C1703, IEC 61730) |
| Product Warranty | 25 Years |
| Output Warranty of Pmax | Linear warranty* |
| * | 1) 1st year: 98%, 2) After 1st year: 0.5% annual degradation, 3) 86% for 25 years |
| ELECTRICAL PROPERTIES(NOCT*) | |
| Maximum Power(Pmax) | 289 |
| MPP Voltage (Vmpp) | 38.3 |
| MPP Current (Impp) | 7.54 |
| Open Circuit Voltage (Voc) | 45.9 |
| Short Circuit Current (Isc) | 8.17 |
| * | NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s |
| Electrical Properties (STC*) | |
| MPP Voltage (Vmpp) | 41.4 |
| MPP Current (Impp) | 9.43 |
| Open Circuit Voltage (Voc) | 49.2 |
| Short Circuit Current (Isc) | 10.15 |
| Module Efficiency (%) | 18.5 |
| Operating Temperature (°C) | -40 ~ +90 |
| Maximum System Voltage (V) | 1,500
|
| Maximum Series Fuse Rating (A) | 20 |
| Power Tolerance (%) | 0 ~ +3 |
| * | STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. |
| Pmax Bifaciality Coefficient*** [%] | 76 |
| The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. | |
| ** | Bifacial Gain: The additional gain from the back side compared to the power of the front side at the standard test condition. It depends on installation condition. |
| *** | Pmax Bifaciality Coefficient 25years warranty based on front output warranty. tolerance 7% |
| MECHANICAL PROPERTIES | |
| Cells | 6 x 12 |
| Cell Type | Monocrystalline / N-type |
| Cell Dimensions | 161.7 x 161.7 mm / 6 inches |
| # of Busbar | 12(Multi Wire Busbar) |
| Dimensions (L x W x H) | 2,064 x 1,024 x 40 mm / 81.26 x 40.31 x 1.57 in |
| Front Load | 5,400 Pa / 113 psf* |
| Rear Load | 4,300 Pa / 90 psf* |
| Weight | 22.0 kg / 48.72 lb |
| Connector Type | MC4 (MC), PV-JM601A (JMTHY) |
| Junction Box | IP68 with 3 Bypass Diodes |
| Frame | Anodized aluminium |
| Glass | Tempered Glass with AR Coating |
| * | Please refer to the installation manual for the details |
| Cables | 1,200 mm x 2 ea / 47.24 in x 2 ea |
| Temperature Characteristics | |
| NOCT | 45 3 |
| Pmpp | 0.0036 |
| Voc | -0.0027 |
| Isc | 0.03 %/°C |
| Pmax [%/°C] | -0.36 |
