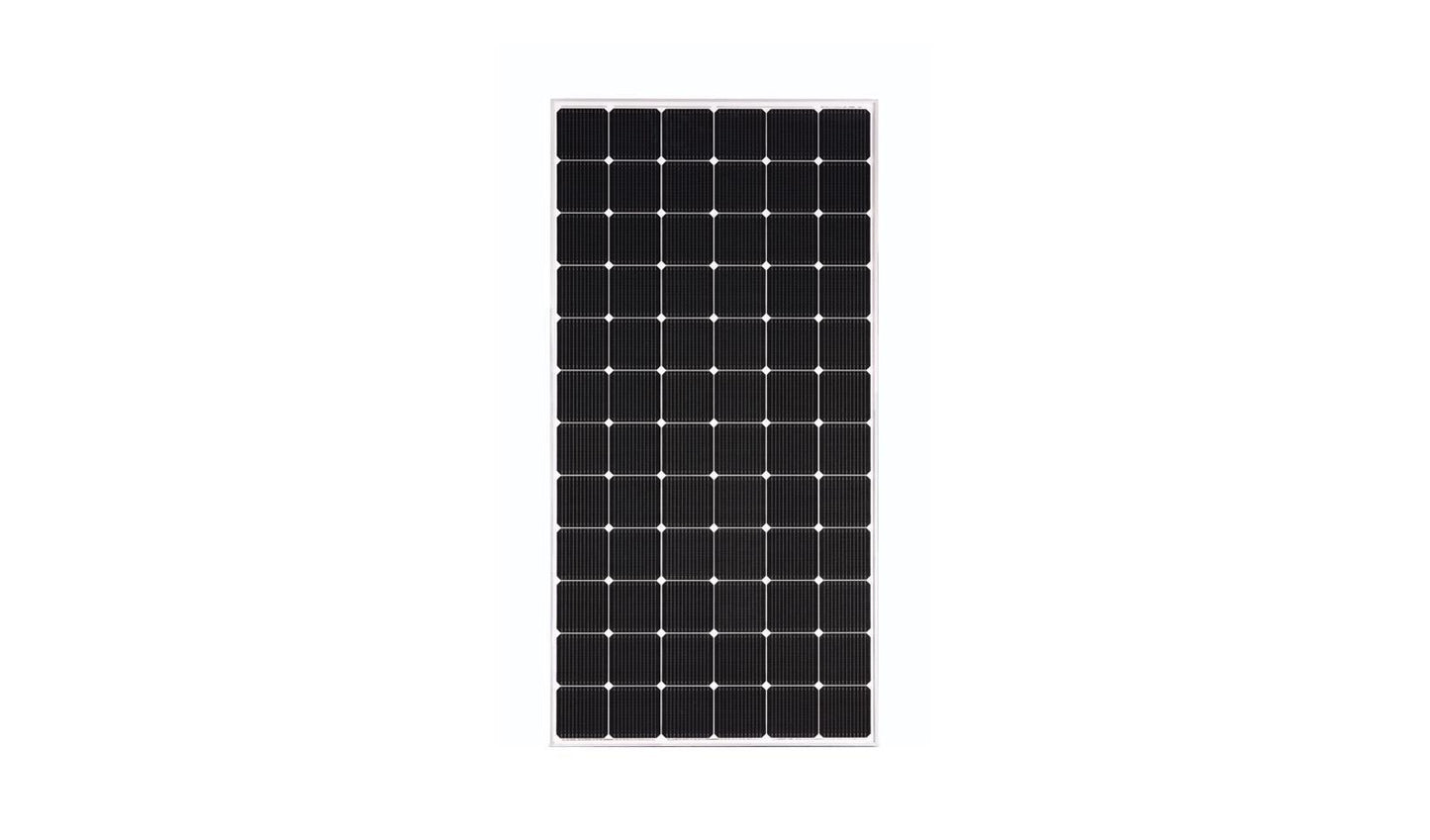

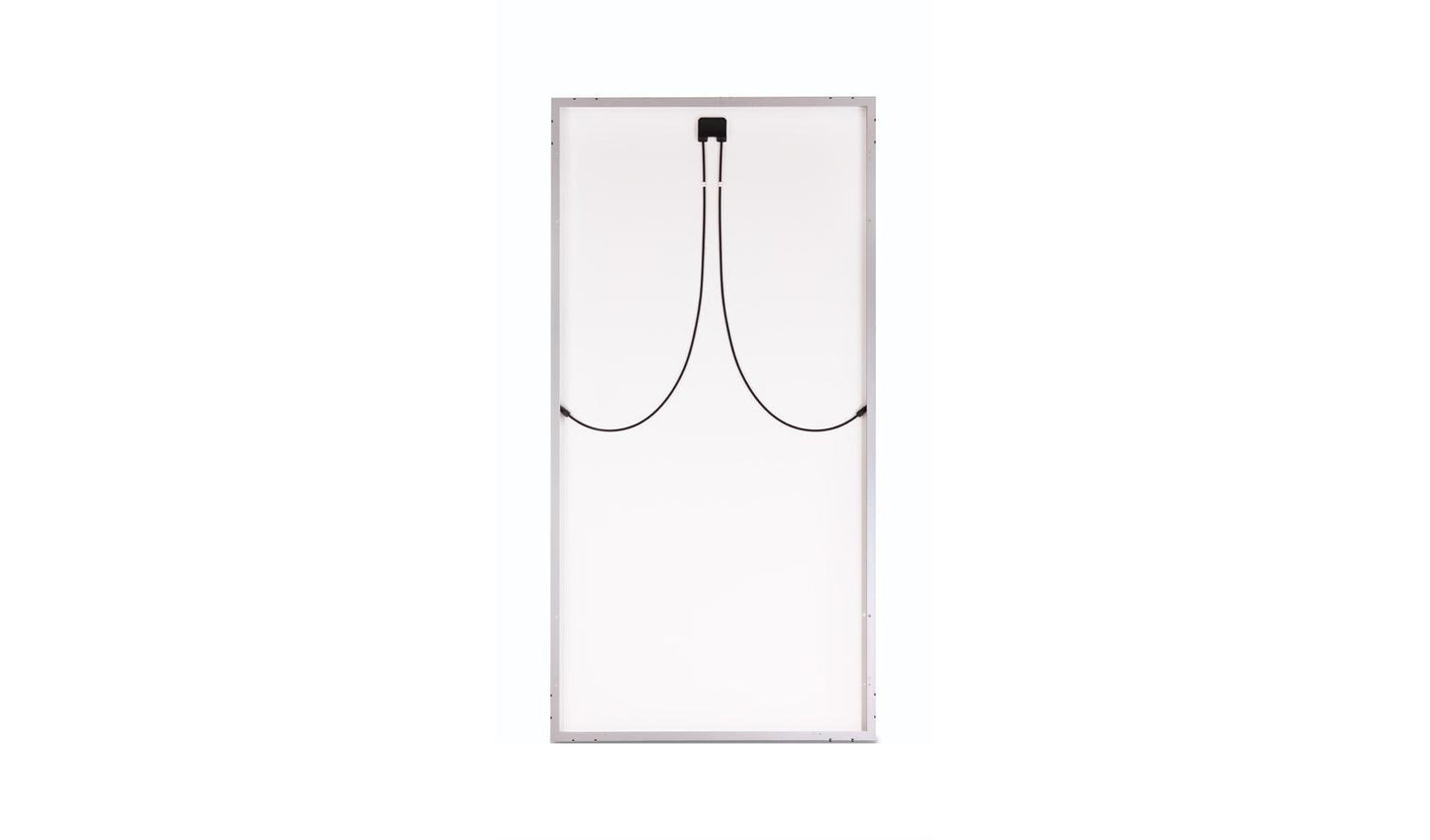

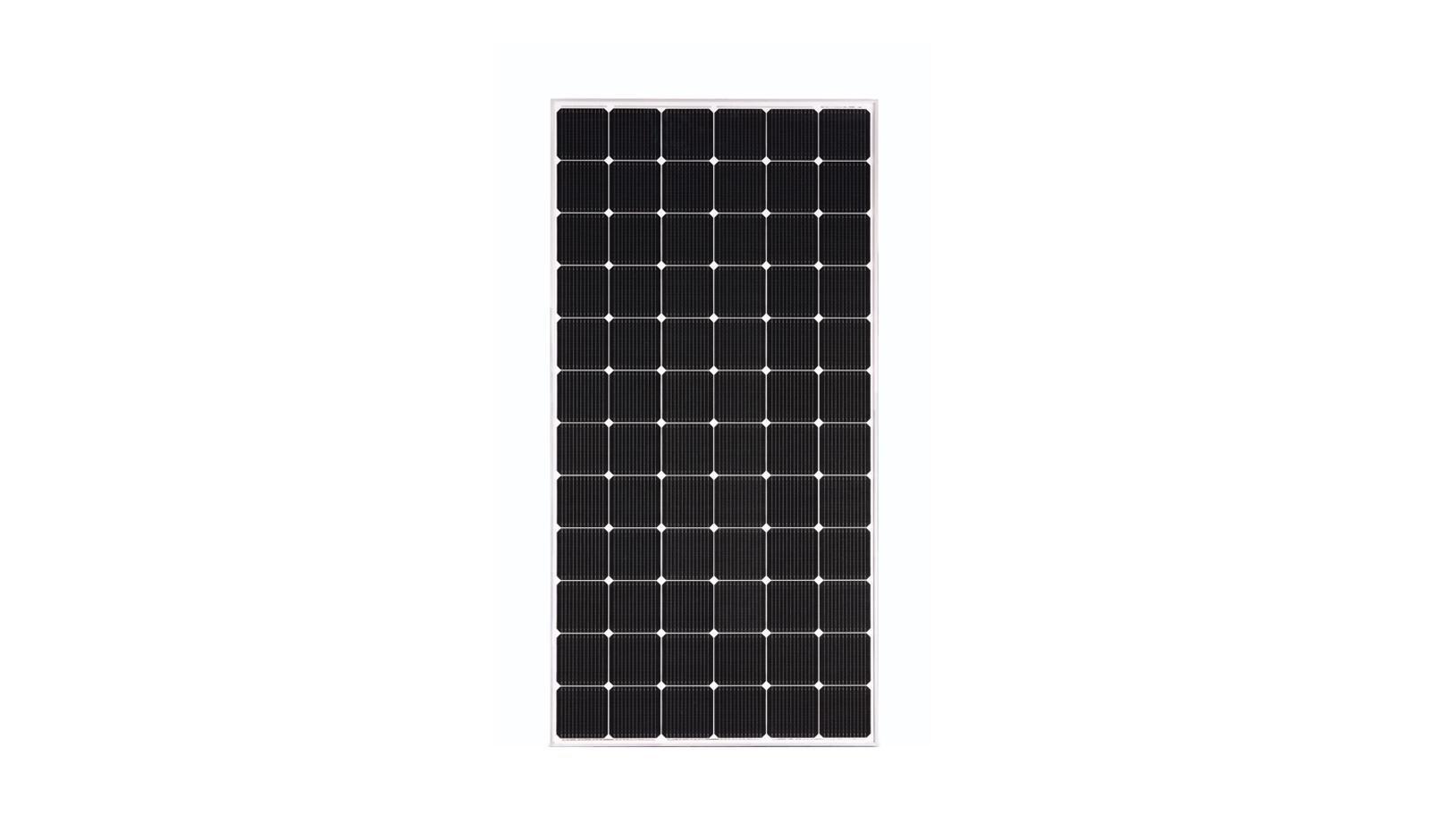

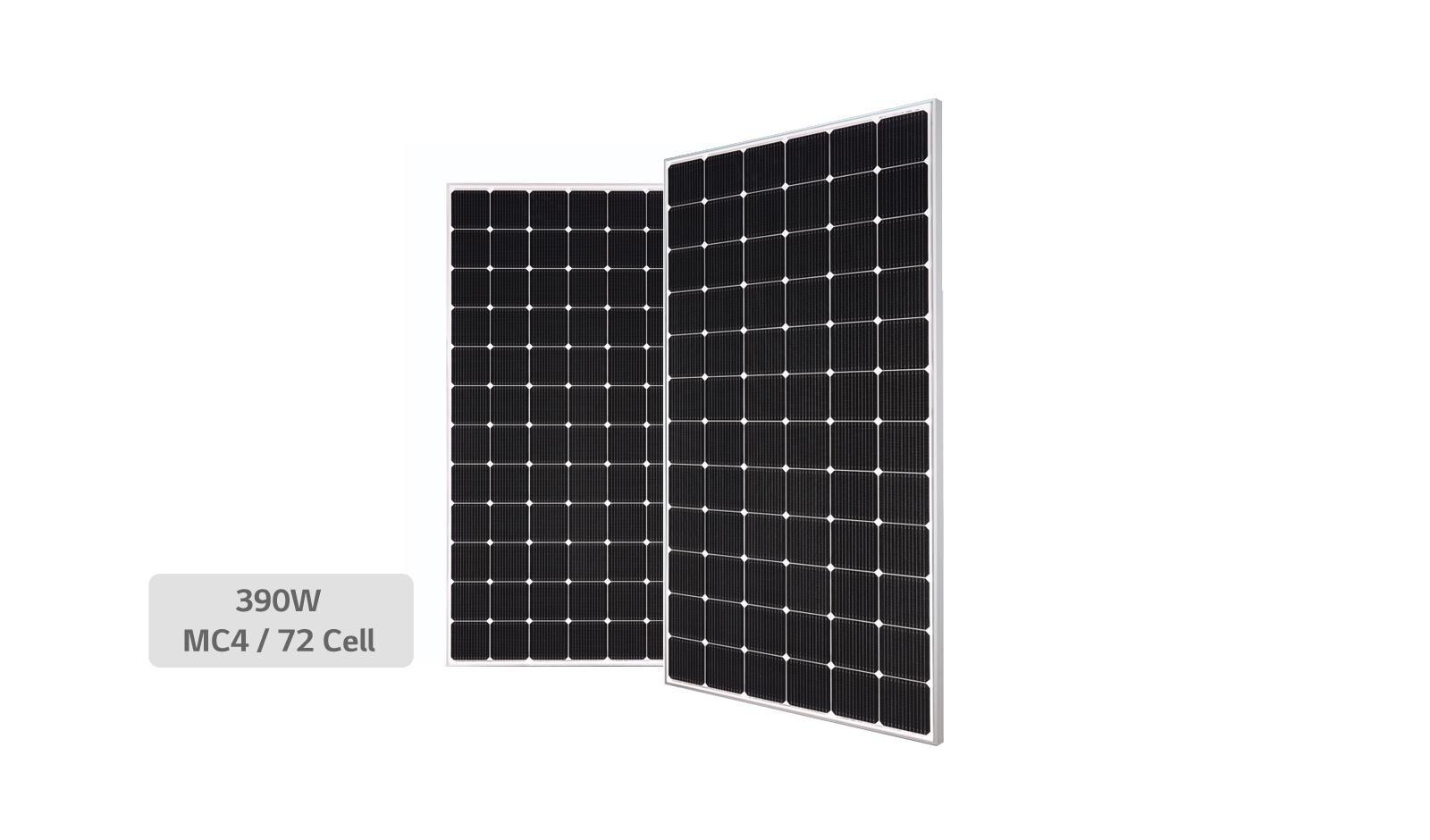

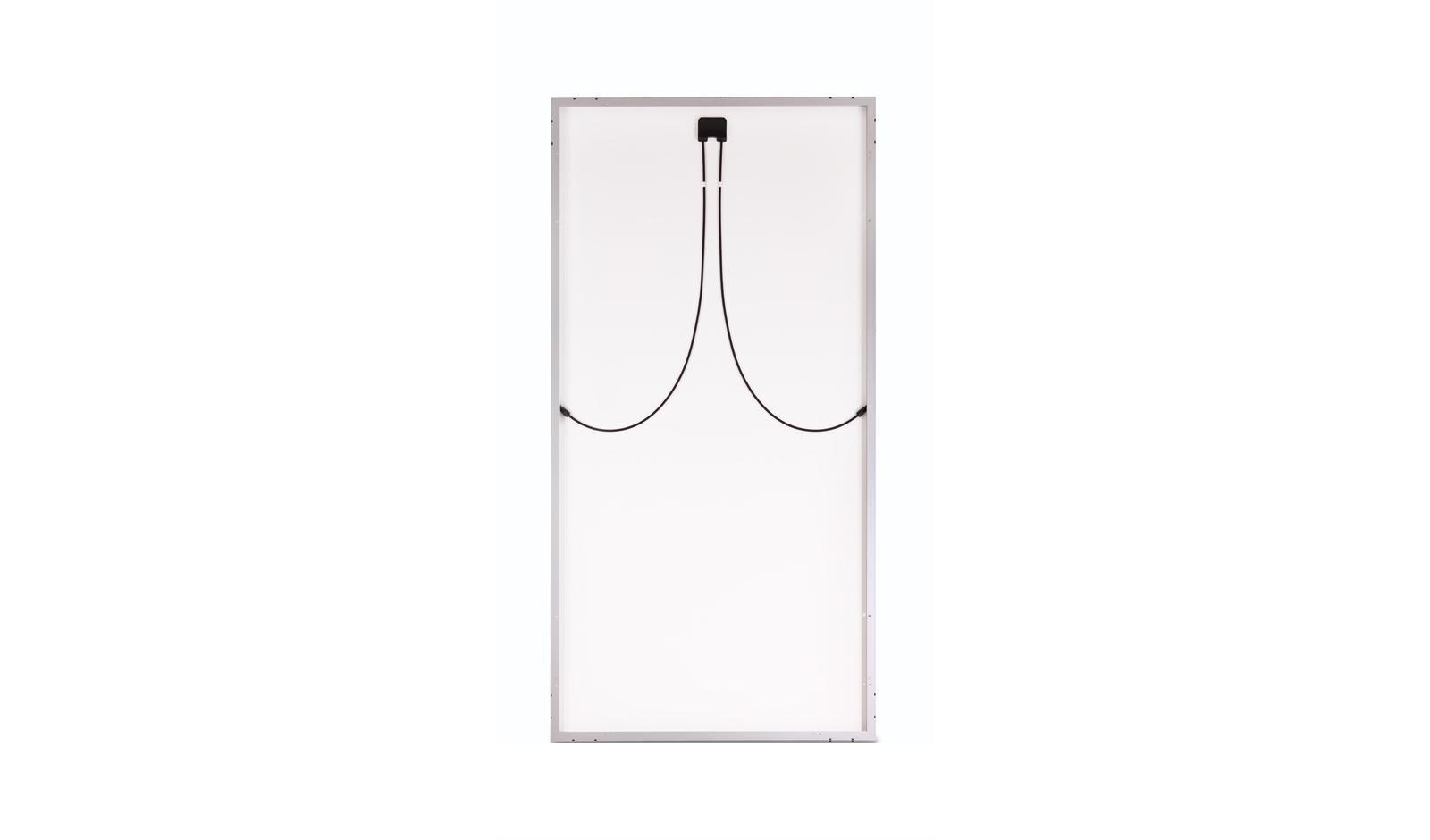

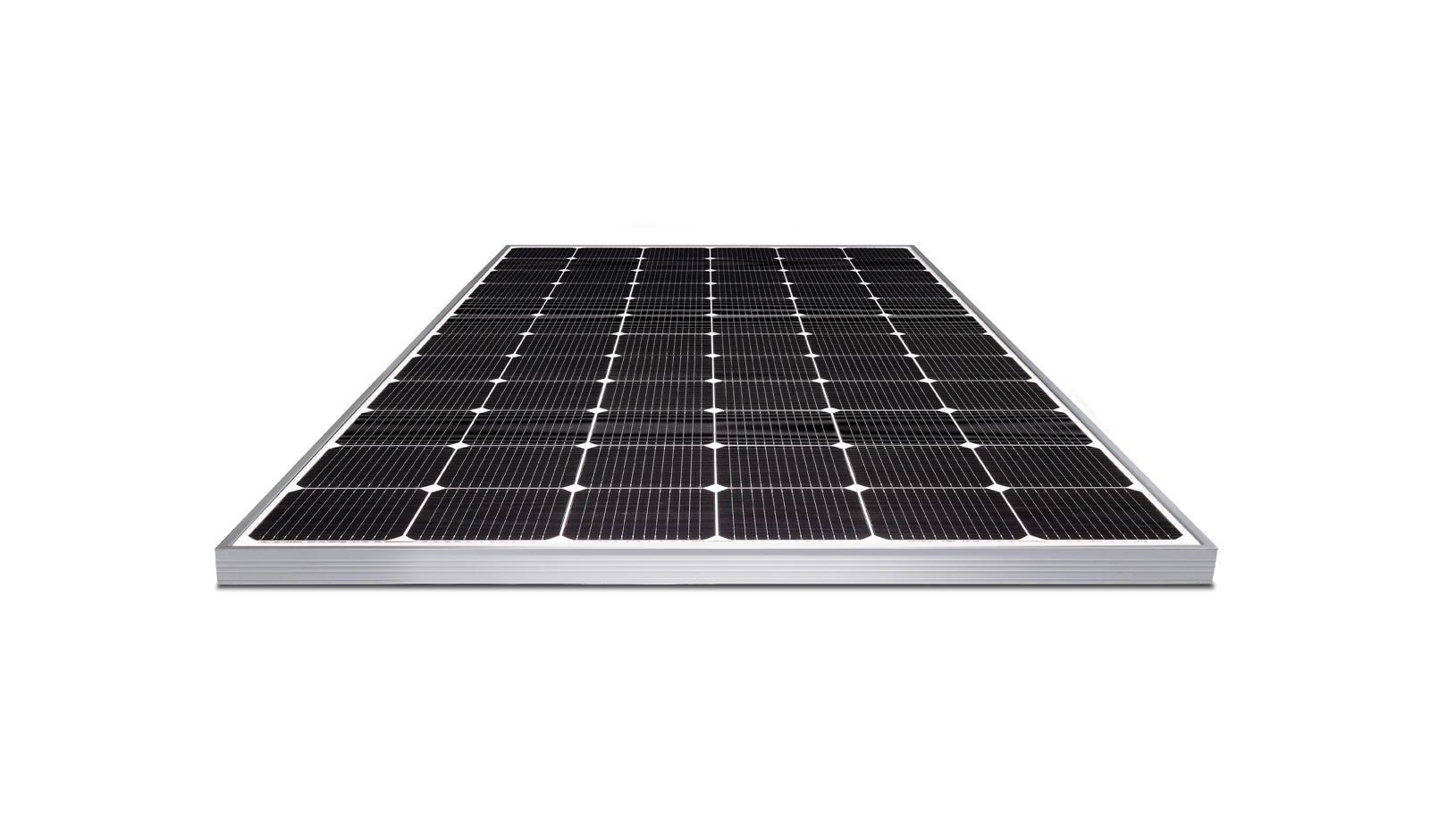

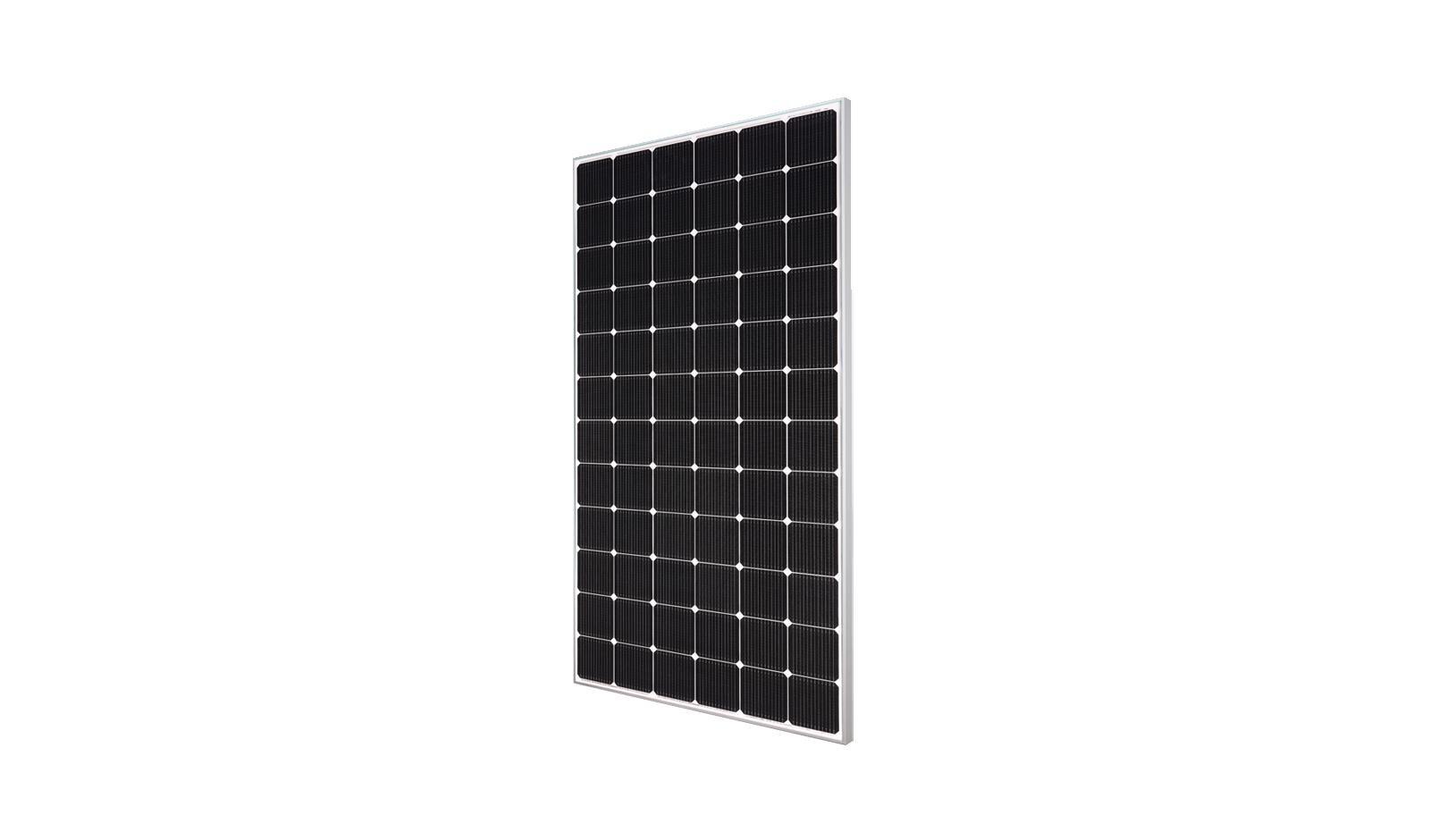

Lg LG390N2WA5 High Efficiency LG NeON® 2 72cell Module Cells: 6 x 12 Module efficiency 18.8% Connector Type: MC4
Lg LG390N2WA5 High Efficiency LG NeON® 2 72cell Module Cells: 6 x 12 Module efficiency 18.8% Connector Type: MC4
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Enhanced Performance Warranty
- High Power Output
- Roof Aesthetics
High Efficiency LG NeON® 2 72cell Module Cells: 6 x 12 Module efficiency 18.8% Connector Type: MC4
| CERTIFICATIONS & WARRANTY | |
| Certifications | IEC 61215, IEC 61730-1/-2, UL 1703, ISO 9001, IEC 62716 (Ammonia Test), IEC 61701(Salt Mist Corrosion Test) |
| Module Fire Performance | Type 1 |
| Product Warranty | 25 years |
| Output Warranty of Pmax | Linear warranty** |
| ** | 1) 1 st year : 98%, 2) After 1st year : 0.5% annual degradation, 3) 25 years : 86% |
| Fire Rating (for CANADA) | Class C (ULC/ORD C1703) |
| ELECTRICAL PROPERTIES(NOCT*) | |
| Maximum Power(Pmax) | 289 |
| MPP Voltage (Vmpp) | 36.9 |
| MPP Current (Impp) | 7.84 |
| Open Circuit Voltage (Voc) | 45.9 |
| Short Circuit Current (Isc) | 8.35 |
| * | NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s |
| Electrical Properties (STC*) | |
| MPP Voltage (Vmpp) | 39.8 |
| MPP Current (Impp) | 9.81 |
| Open Circuit Voltage (Voc) | 49.1 |
| Short Circuit Current (Isc) | 10.39 |
| Module Efficiency (%) | 18.8 |
| Operating Temperature (°C) | -40 ~ +90 |
| Maximum System Voltage (V) | 1500 |
| Maximum Series Fuse Rating (A) | 20 |
| Power Tolerance (%) | 0 ~ +3 |
| * | * STC (Standard Test Condition): Irradiance 1,000 W/m , Cell Temperature 25 °C, AM 1.5 * The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. * The Typical change in module efficiency at 200W/m in relation to 1000W/m is -2.0% |
| Maximum Power (Pmax) | 390 |
| MECHANICAL PROPERTIES | |
| Cells | 6 x 12 |
| Cell vendor | LG |
| Cell Type | Monocrystalline / N-type |
| Cell Dimensions | 161.7 x 161.7 mm / 6 inches |
| # of Busbar | 12 (Multi Wire Busbar) |
| Dimensions (L x W x H) | 2024 x 1024 x 40 mm / 79.69 x 40.31 x 1.57 inch |
| Front Load | 5400 Pa |
| Rear Load | 4300Pa |
| Weight | 21.7 kg |
| Connector Type | MC4 |
| Junction Box | IP68 with 3 Bypass Diodes |
| Frame | Anodized aluminium |
| Glass | Tempered Glass with AR Coating |
| Cables | 1200 mm x 2 ea |
| Temperature Characteristics | |
| NOCT | 45 3 °C |
| Pmpp | -0.37%/°C |
| Voc | -0.27%/°C |
| Isc | 0.03 %/°C |
