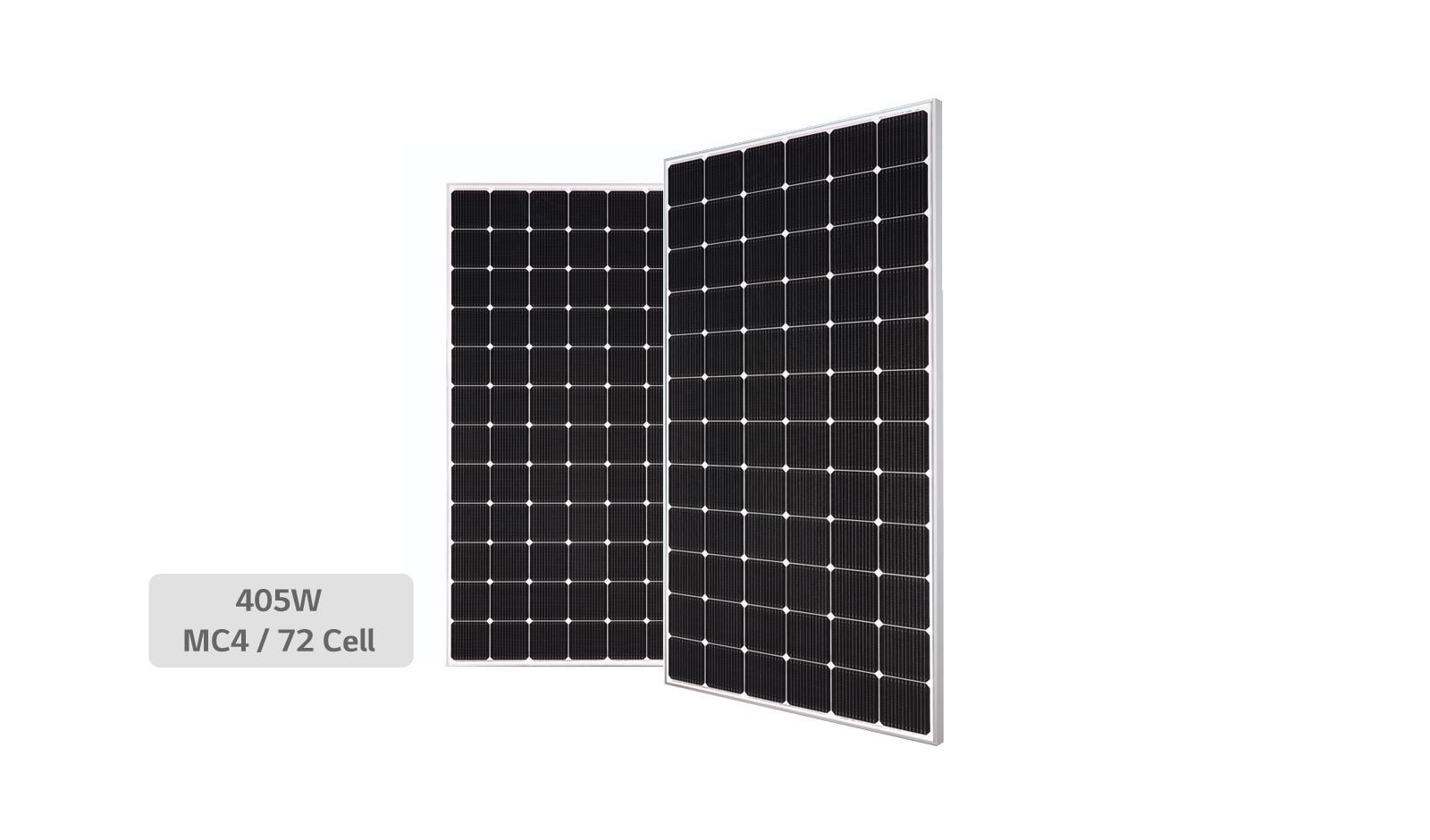

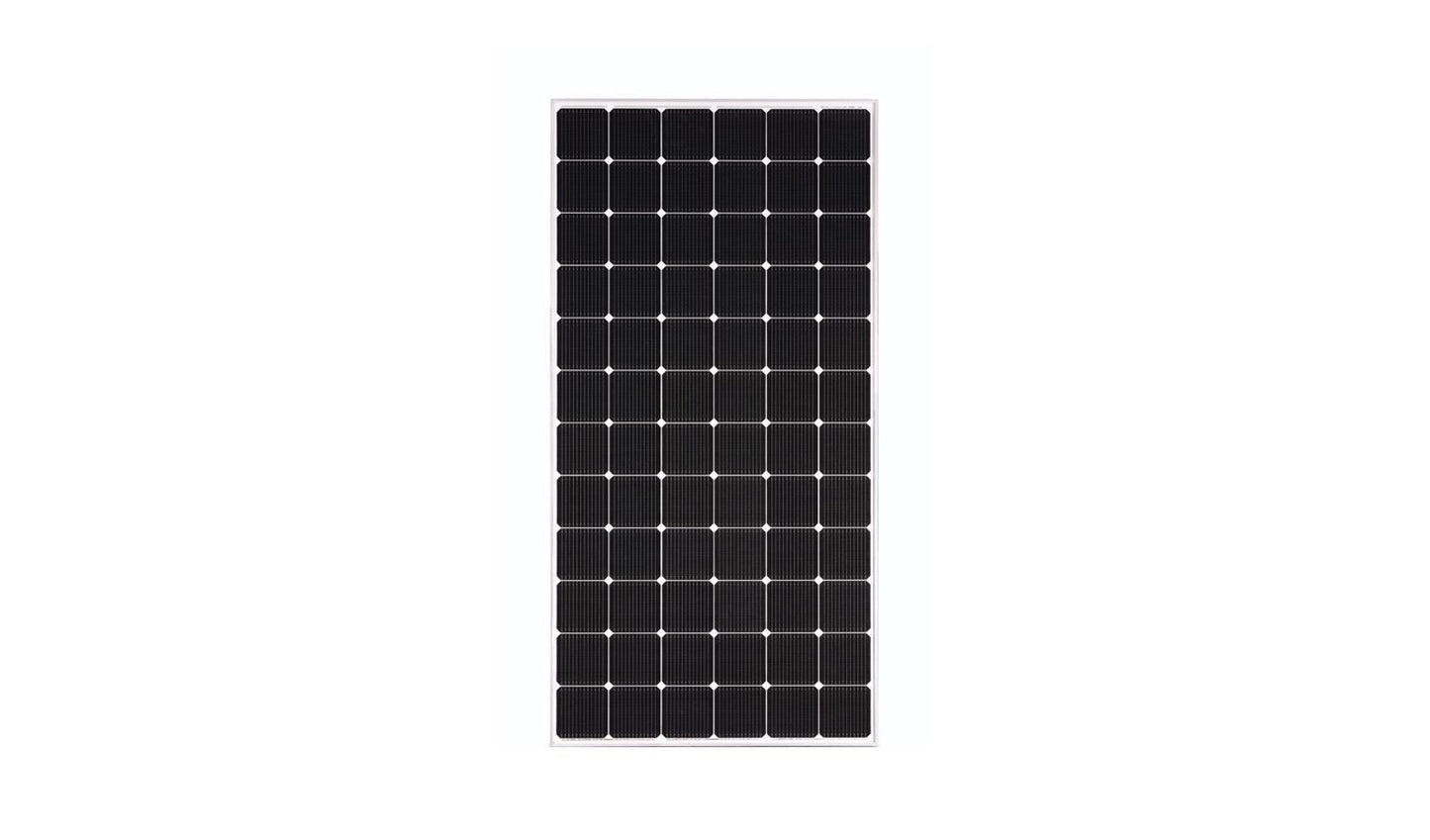

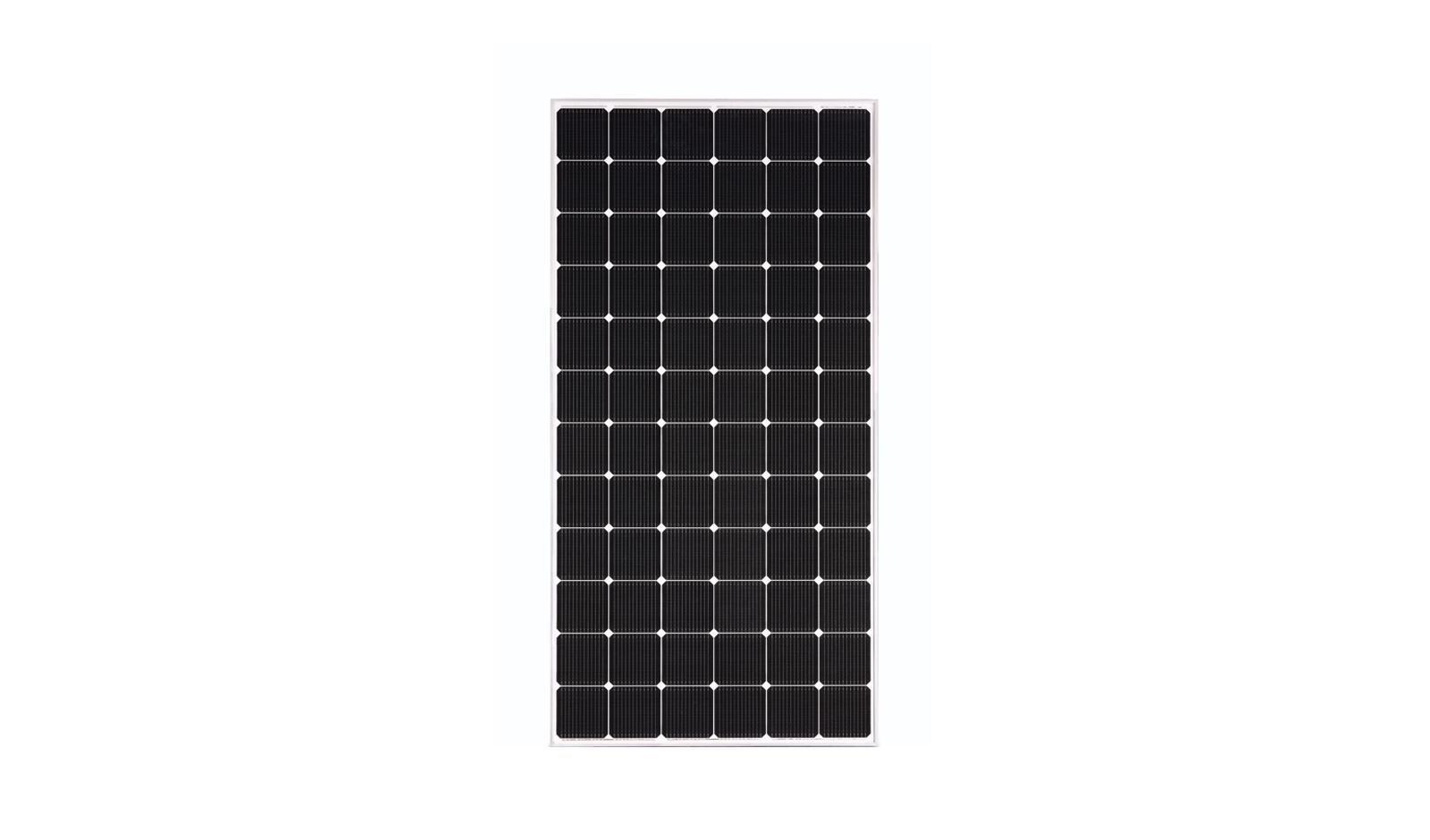

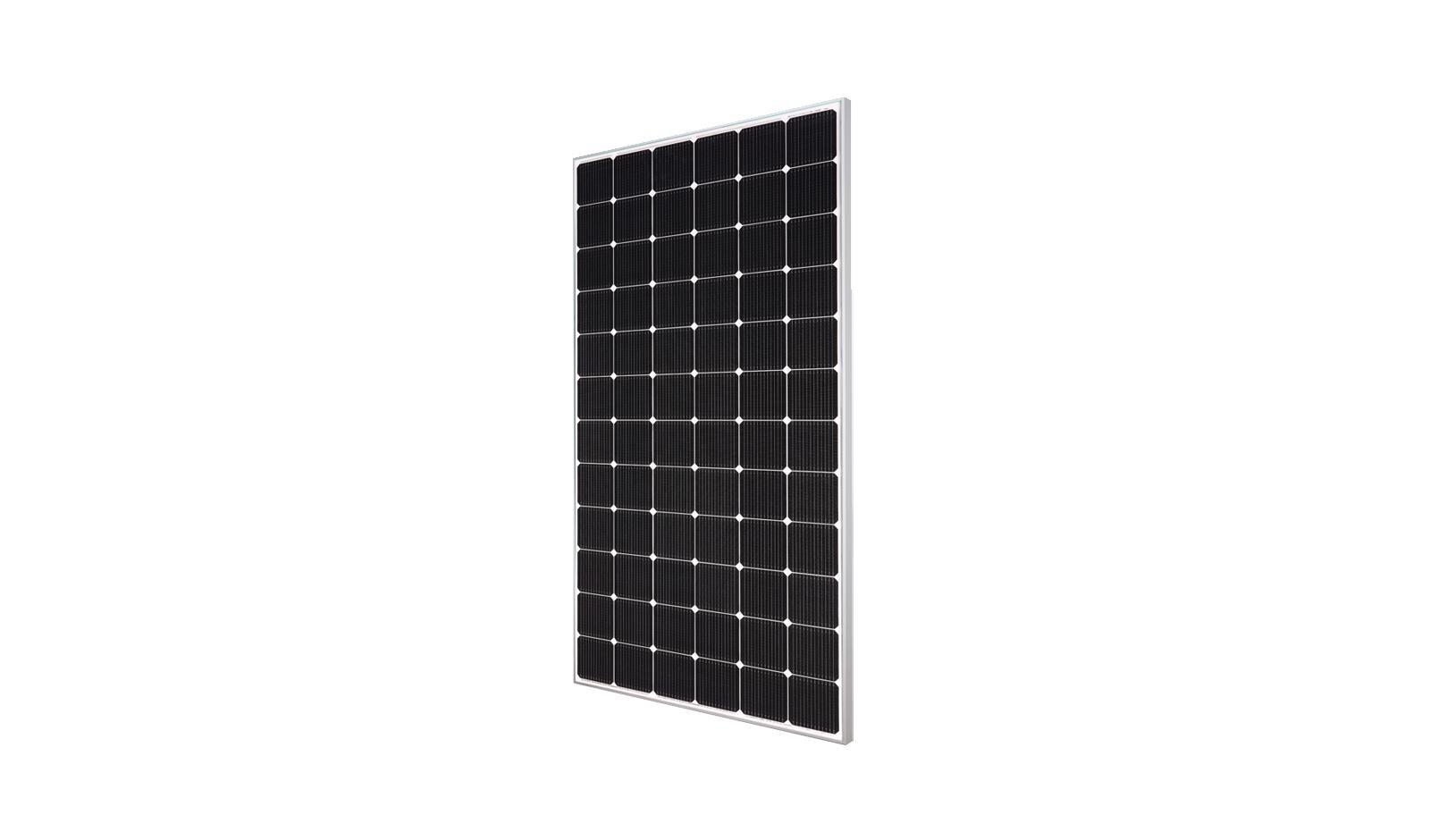

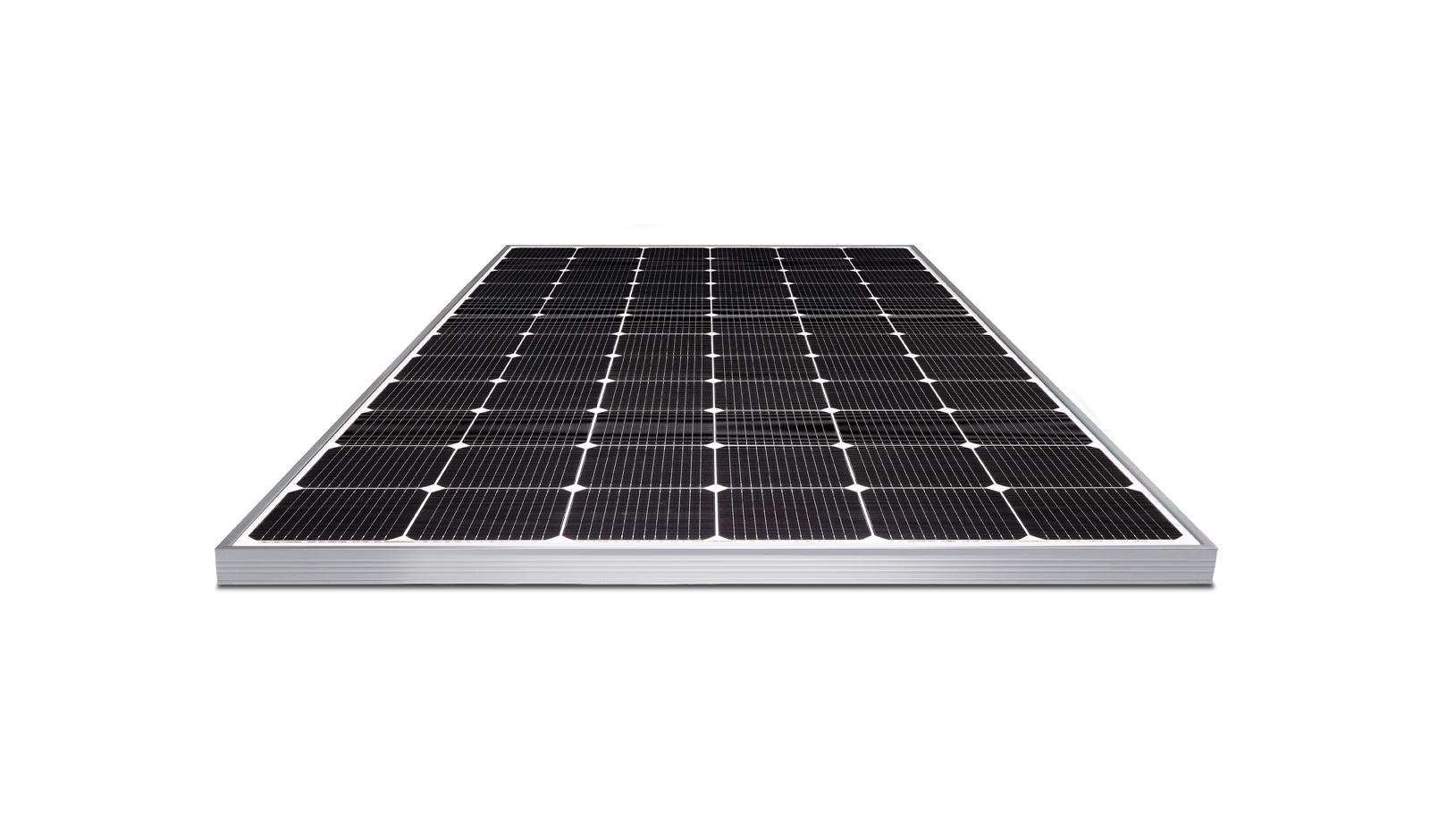

Lg LG405N2WA5 High Efficiency LG NeON® 2 72cell Module Cells: 6 x 12 Module efficiency 19.5% Connector Type: MC4

Item Not Available

High Efficiency LG NeON® 2 72cell Module Cells: 6 x 12 Module efficiency 19.5% Connector Type: MC4

CERTIFICATIONS & WARRANTY
Certifications	IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt mist corrosion test), IEC 62716 (Ammonia corrosion test), ISO 9001
Module Fire Performance	Type 1
Product Warranty	25 years
Output Warranty of Pmax	Linear warranty**
Fire Rating (for CANADA)	Class C (ULC/ORD C1703)
ELECTRICAL PROPERTIES(NOCT*)
Maximum Power(Pmax)	300
MPP Current (Impp)	7.91
Open Circuit Voltage (Voc)	46.2
Short Circuit Current (Isc)	8.44
Module	400W
Electrical Properties (STC*)
MPP Voltage (Vmpp)	41.0
MPP Current (Impp)	9.89
Open Circuit Voltage (Voc)	49.4
Short Circuit Current (Isc)	10.51
Module Efficiency (%)	0.195
Operating Temperature (°C)	-40 ~ +90
Maximum System Voltage (V)	1500
Maximum Series Fuse Rating (A)	20
Power Tolerance (%)	0 ~ +3
Maximum Power (Pmax)	405
Module	405W
MECHANICAL PROPERTIES
Cells	6 x 12
Cell vendor	LG
Cell Type	Monocrystalline / N-type
Cell Dimensions	161.7 x 161.7 mm / 6 inches
# of Busbar	12 (Multi Wire Busbar)
Dimensions (L x W x H)	2024 x 1024 x 40 mm / 79.69 x 40.31 x 1.57 inch
Front Load	5400 Pa
Rear Load	4300Pa
Weight	21.7 kg
Connector Type	MC4

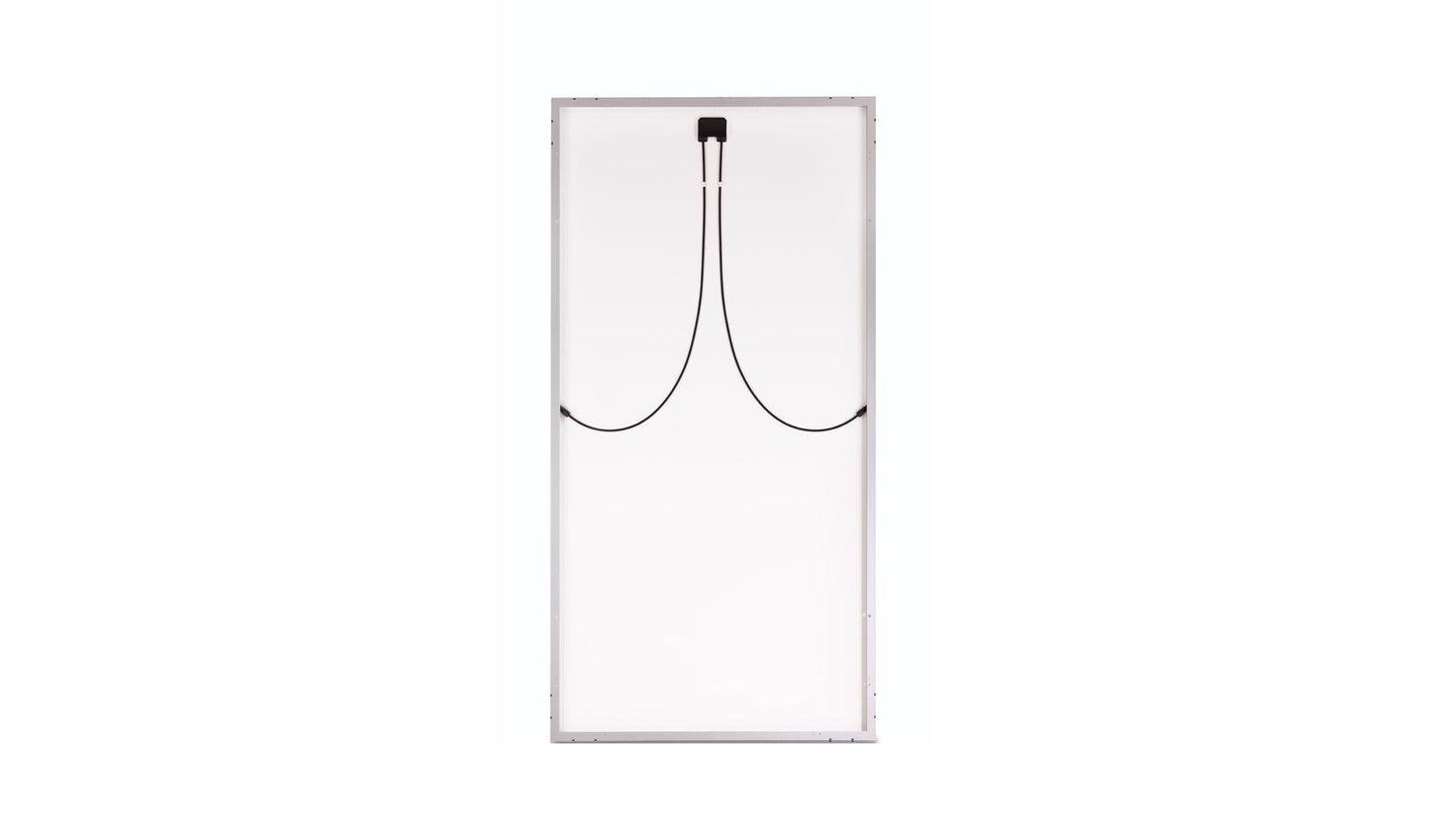

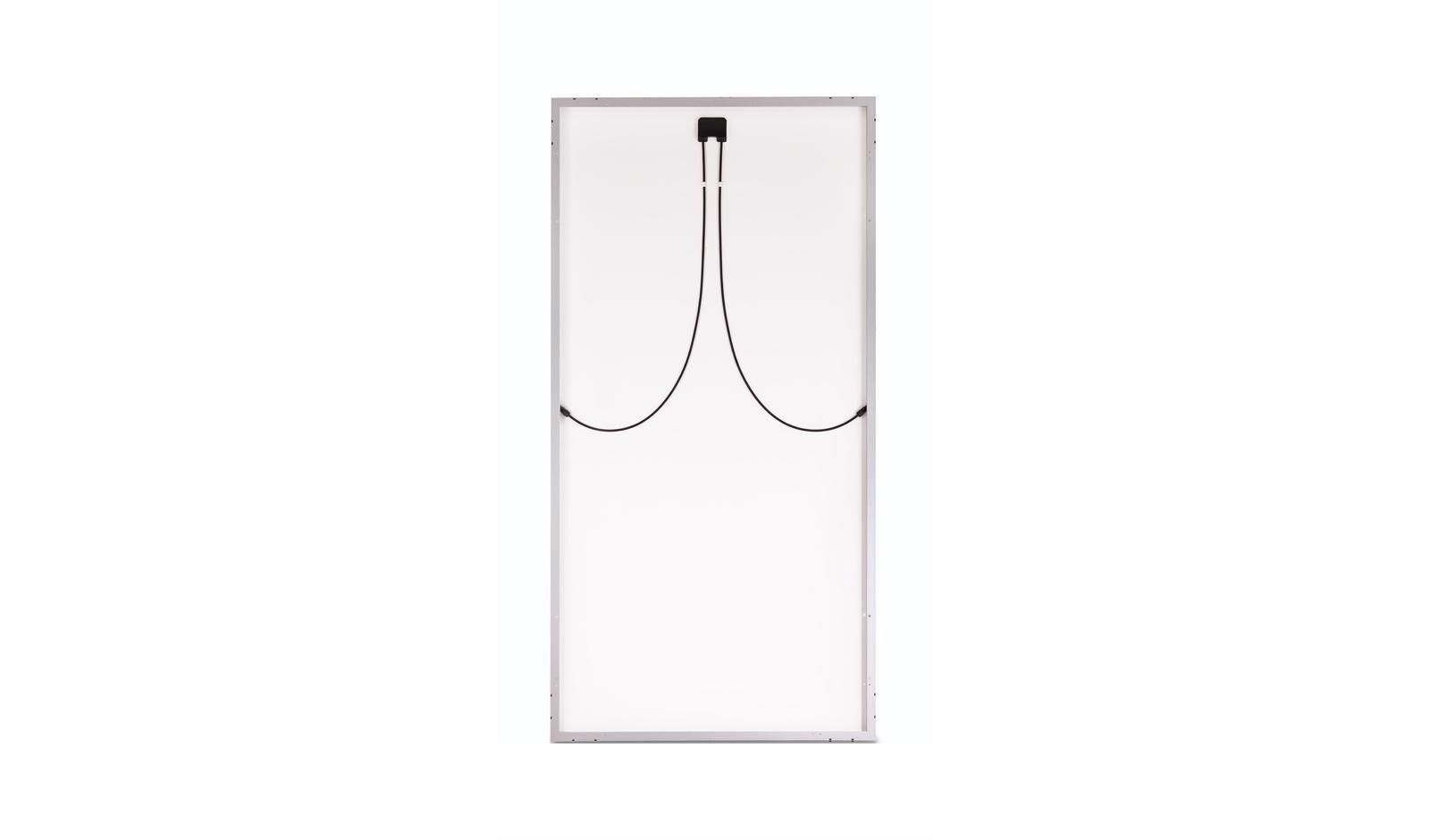

Junction Box	IP68 with 3 Bypass Diodes
Frame	Anodized aluminum
Glass	Tempered Glass with AR Coating
Cables	1200 mm x 2 ea
Temperature Characteristics
NOCT	45 3 °C
Pmpp	-0.36%/°C
Voc	-0.26%/°C
Isc	(-) 0.02%
