LG LG405N3KV6
Authorized Reseller

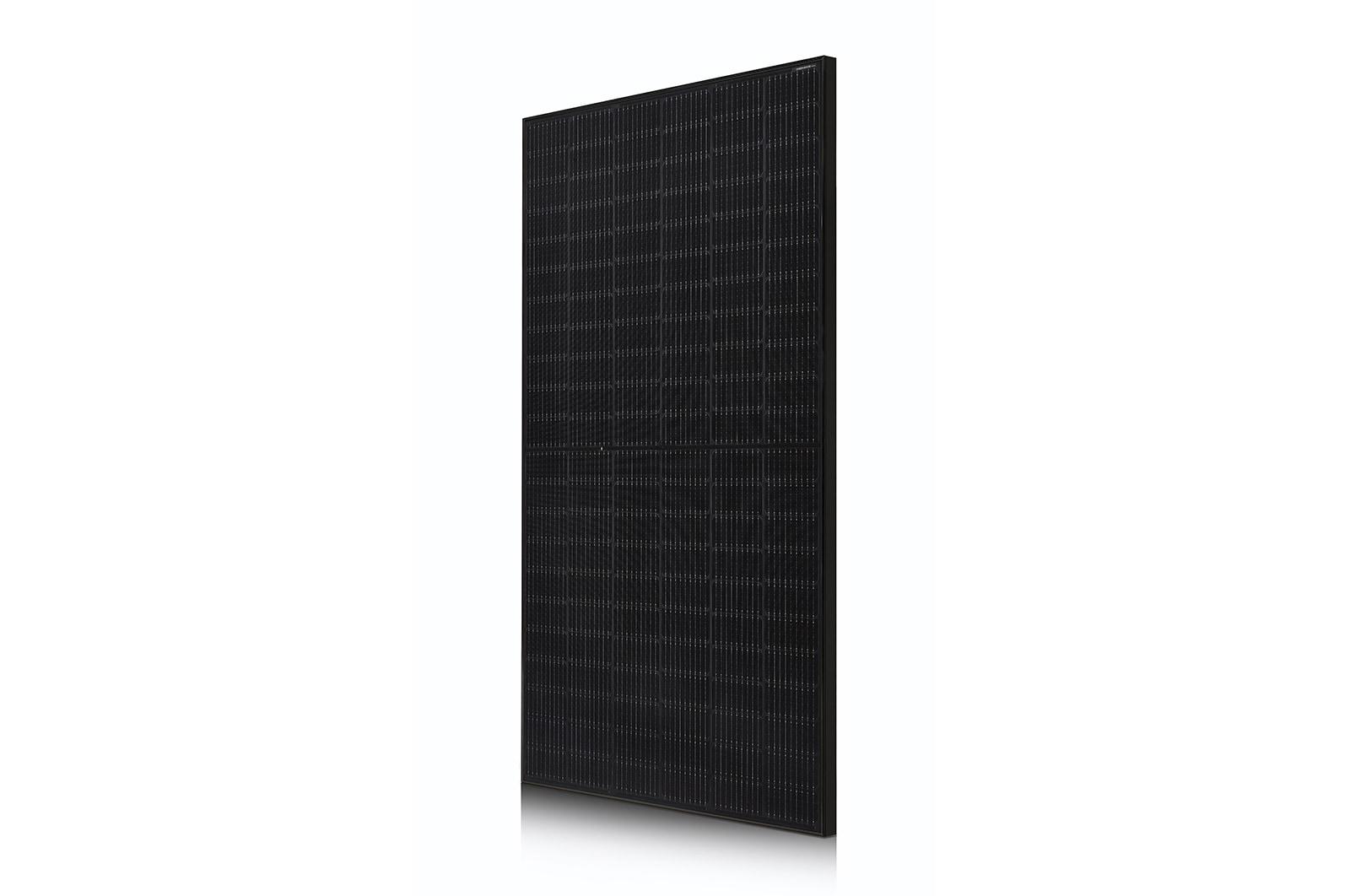

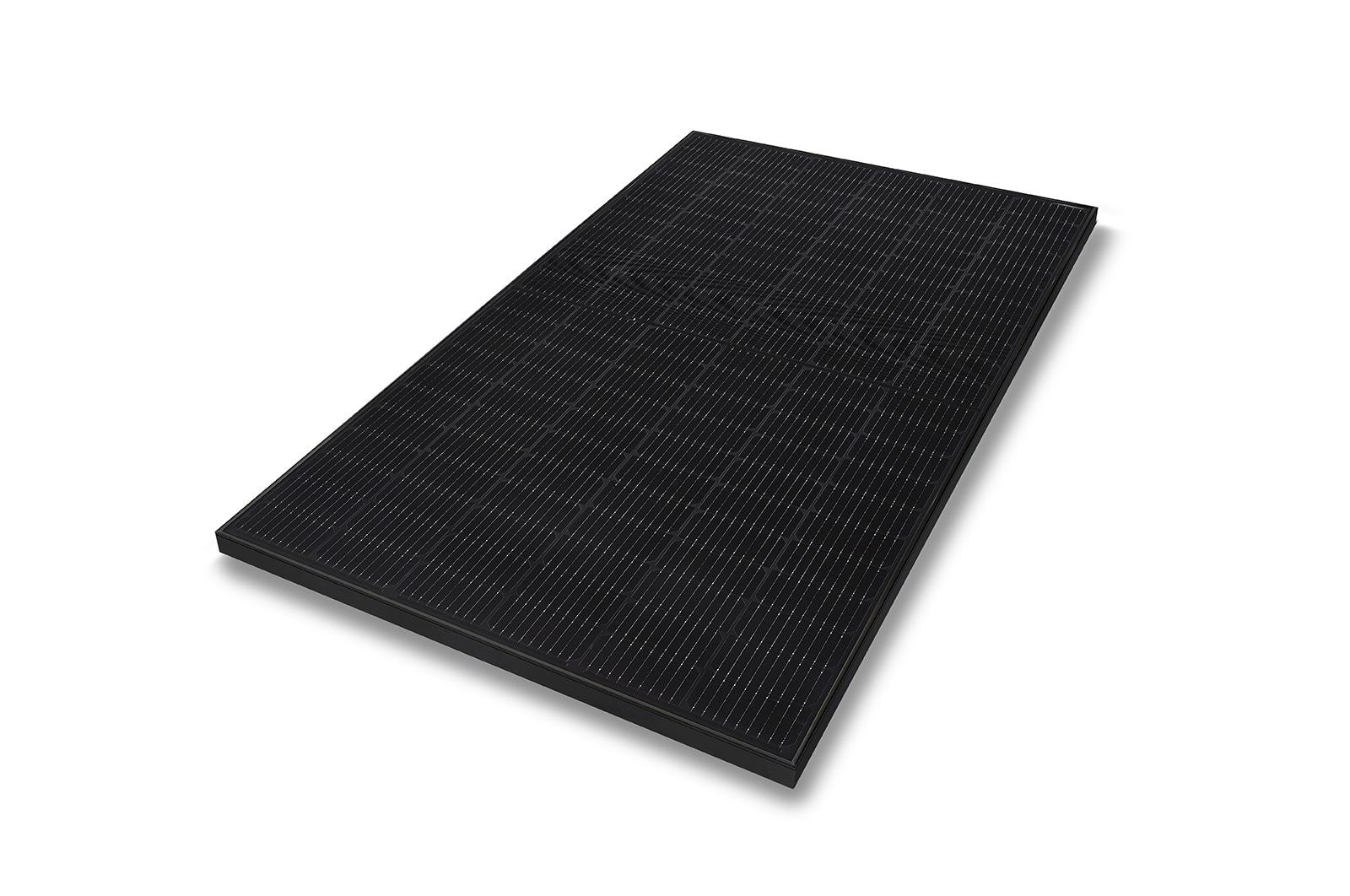

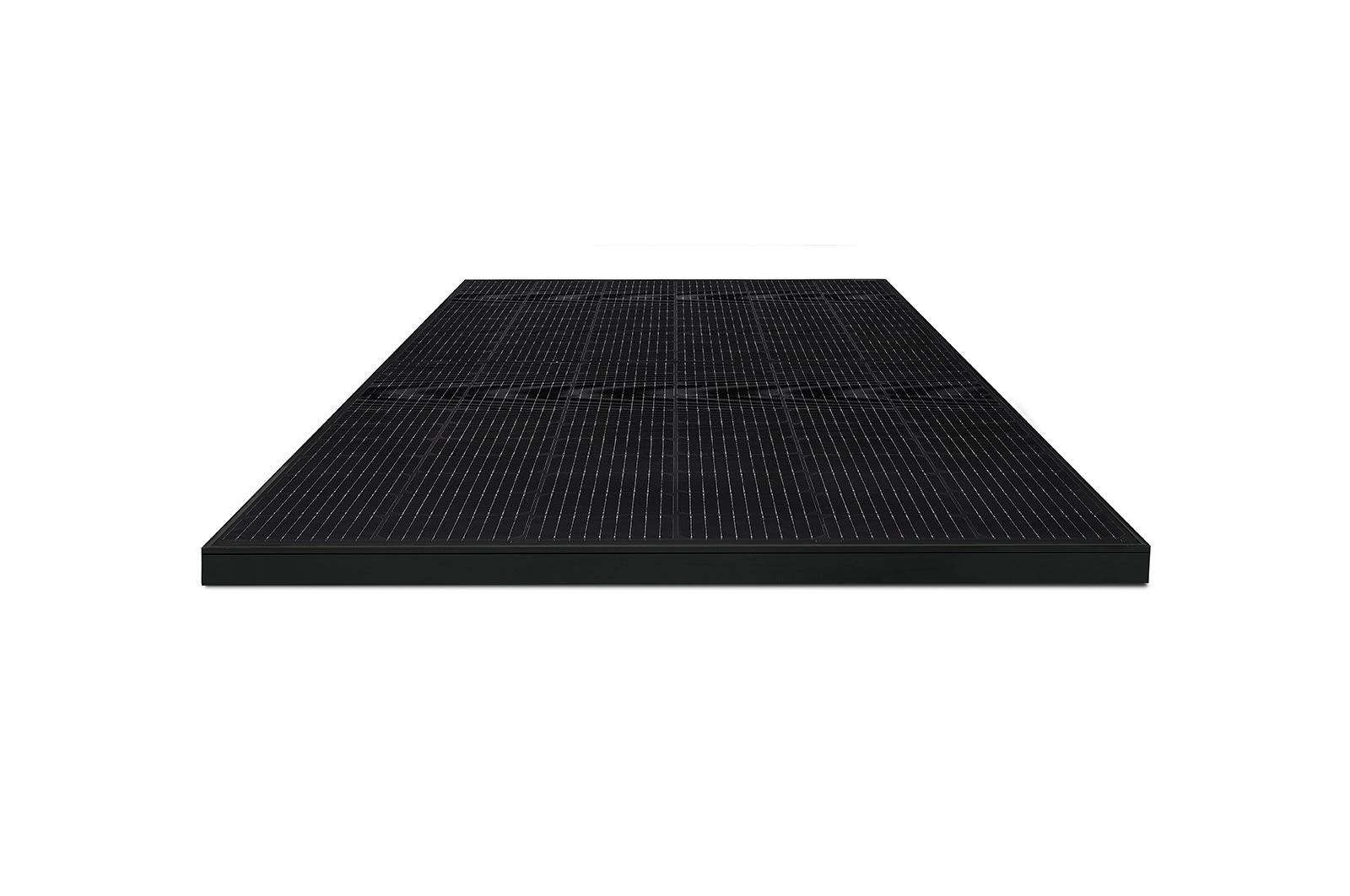

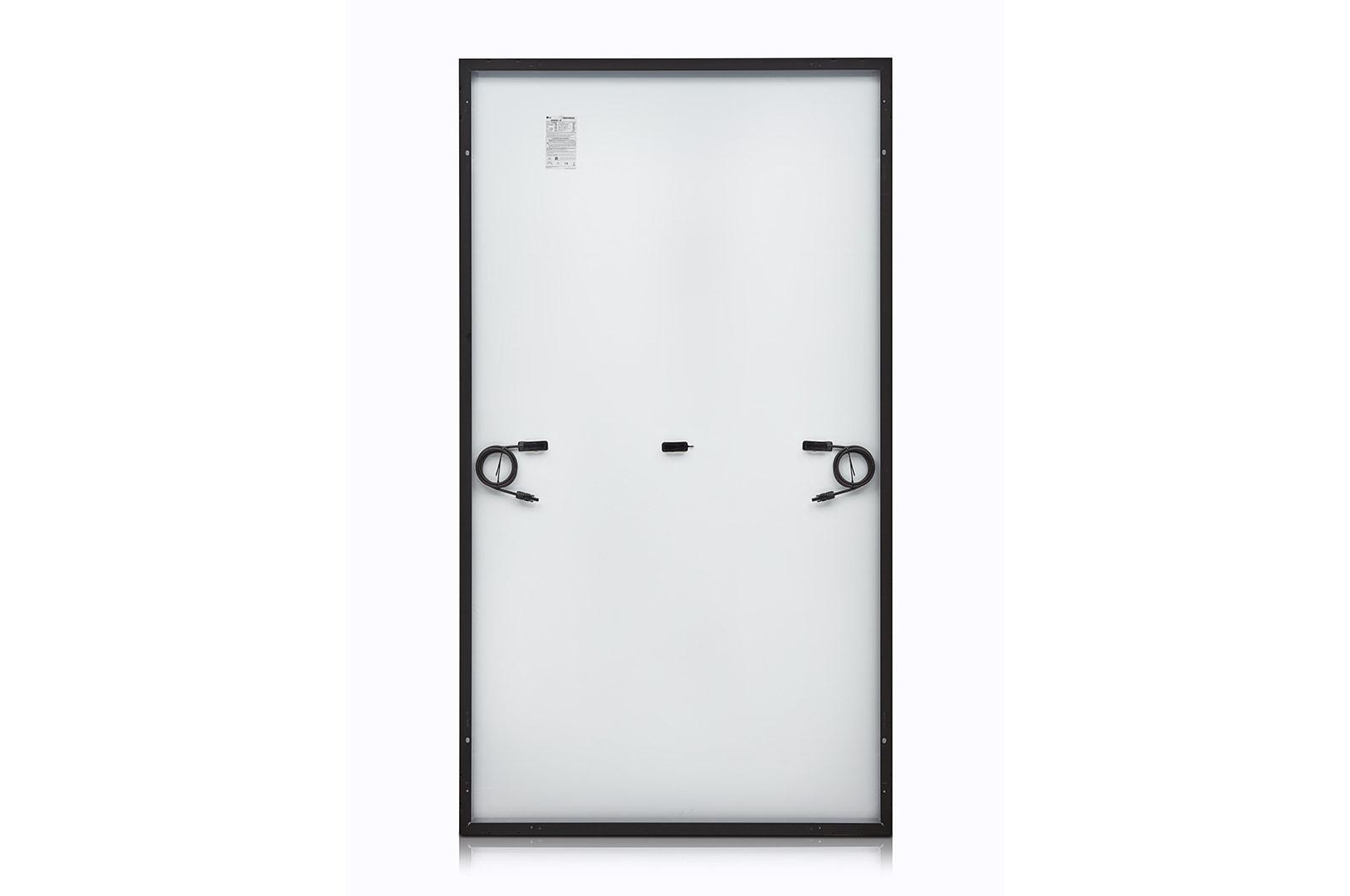

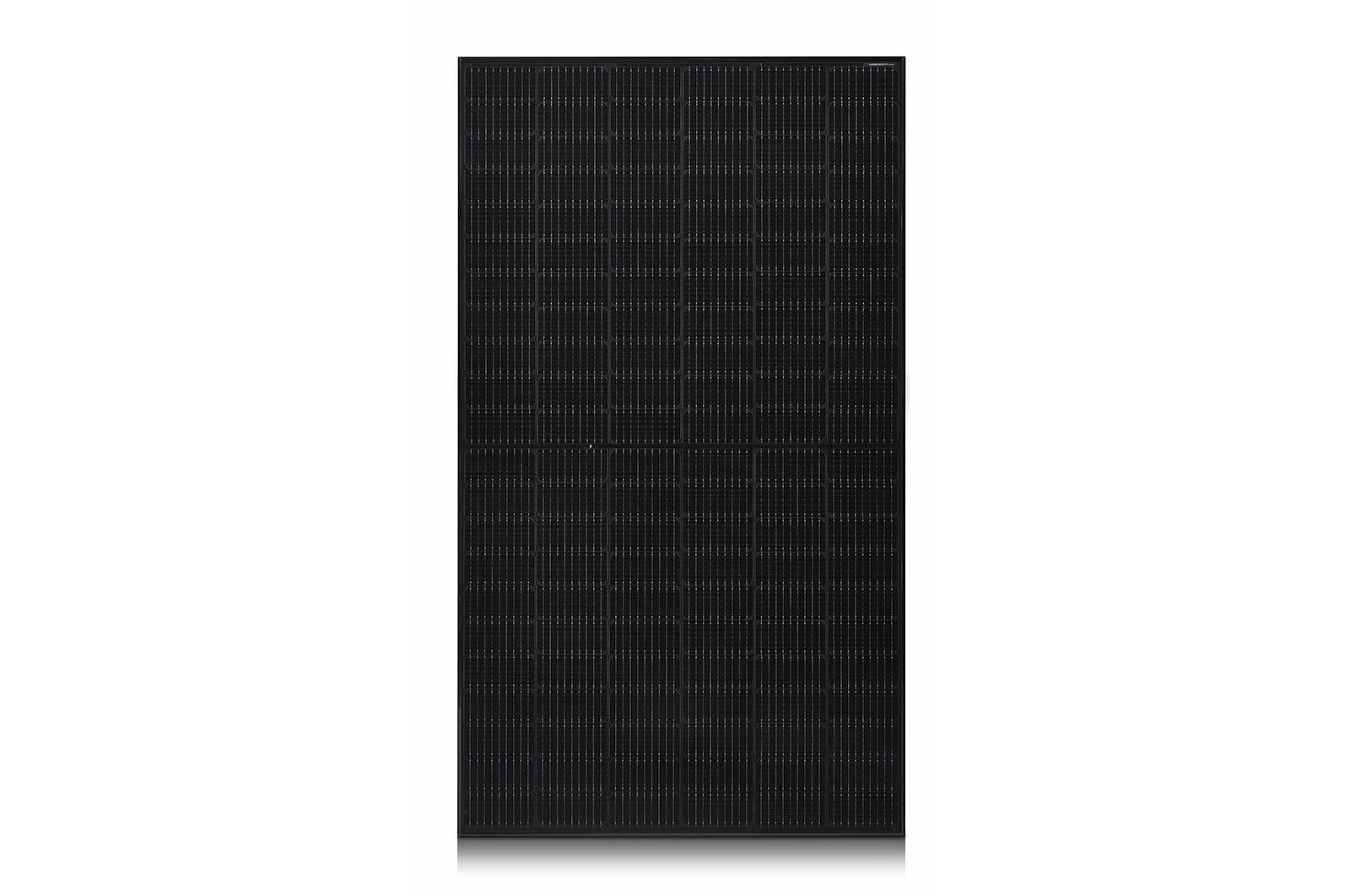

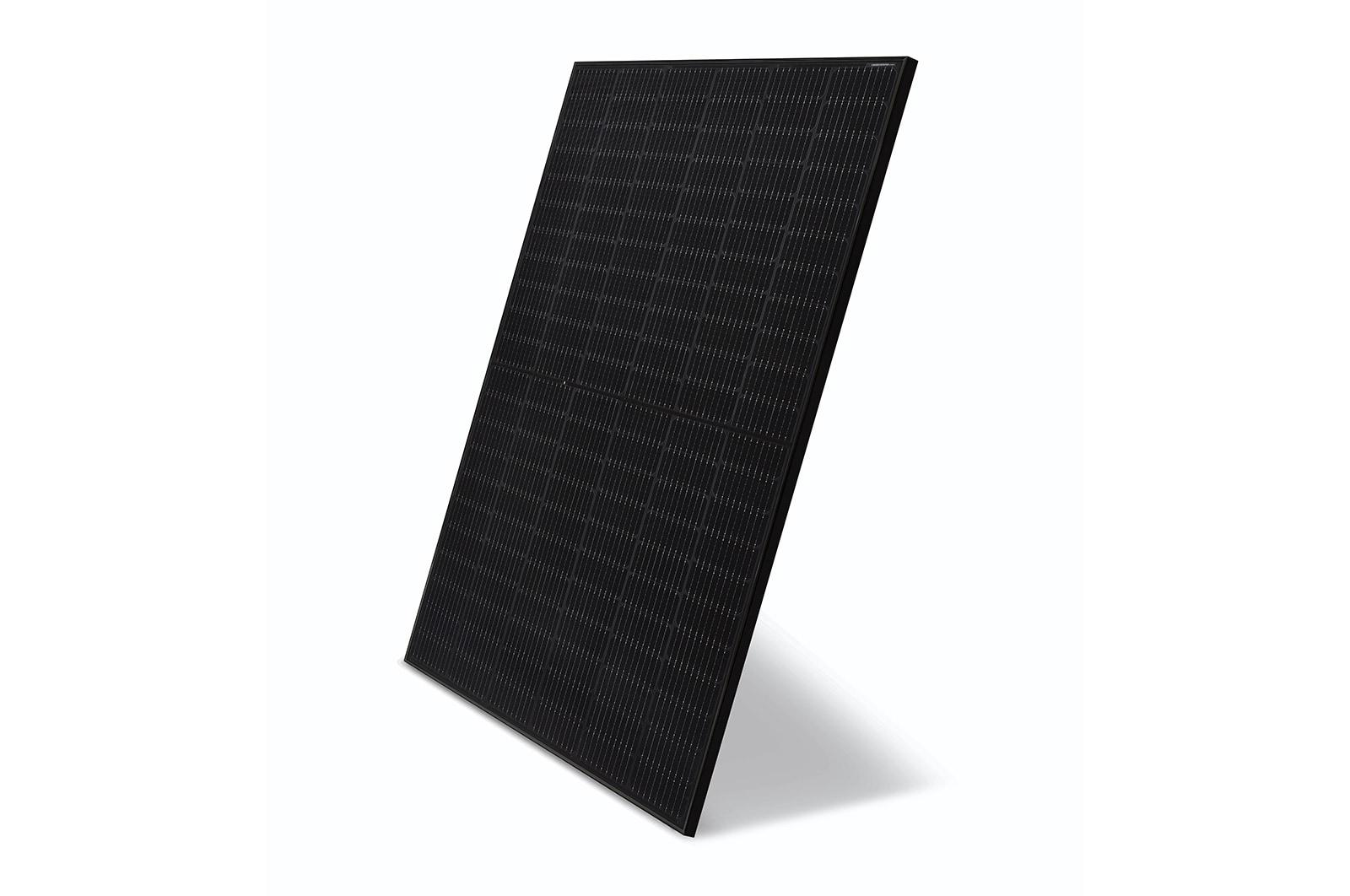

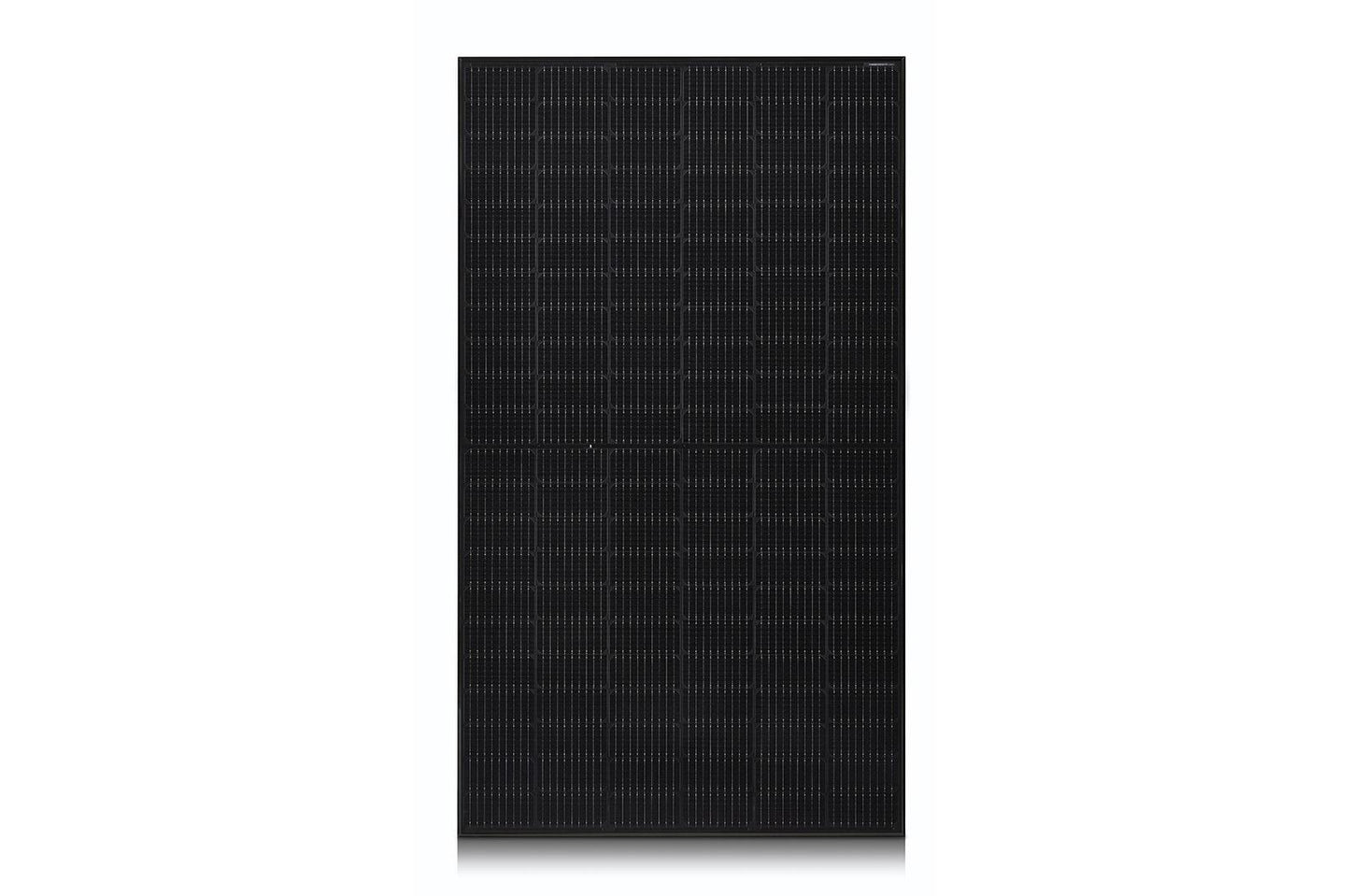

Lg LG405N3KV6 405W High Efficiency LG NeON® H+ Black Residential Solar Panel with 132 Cells (6 x 22), Module Efficiency: 20.7%, Connector Type: MC4
Lg LG405N3KV6 405W High Efficiency LG NeON® H+ Black Residential Solar Panel with 132 Cells (6 x 22), Module Efficiency: 20.7%, Connector Type: MC4
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 25 Year Limited Warranty
- Improved temperature coefficient
- Near zero light-induced degradation
- Clean, Aesthetically-Pleasing Roof Design
- Durable design
405W High Efficiency LG NeON® H+ Black Residential Solar Panel with 132 Cells (6 x 22), Module Efficiency: 20.7%, Connector Type: MC4
| General Data | |
| Cell Properties (Material/Type) | Monocrystalline/N-type |
| Cell Maker | LG |
| Cell Configuration | 132 Cells (6 x 22) |
| Number of Busbars | 9EA |
| Module Dimensions (L x W x H) | 1,880 x 1,042 x 40 mm |
| Weight | 19.7kg |
| Glass (Material) | Tempered Glass with AR Coating |
| Backsheet (Color) | Black |
| Frame (Material) | Anodized Aluminium |
| Junction Box (Protection Degree) | IP68 with 3 Bypass Diodes |
| Cables (Length) | 1,400mm x 2EA |
| Connector (Type/Maker) | MC4/MC |
| Certifications and Warranty | |
| Certifications | IEC 61215-1/-1-1/-2:2016, IEC 61730-1/2:2016, UL 61730, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001 |
| Salt Mist Corrosion Test | IEC 61701:2012 Severity 6 |
| Ammonia Corrosion Test | IEC 62716:2013 |
| Module Fire Performance | Type 2 (UL 61730) |
| Fire Rating | Class C (UL 790) |
| Solar Module Product Warranty | 25 Years |
| Solar Module Output Warranty | Linear Warranty* |
| * | 1) First years : 98.5%, 2) After 1st year : -0.33%/year, 3) 90.6% for 25 years |
| Temperature Characteristics | |
| NMOT* [°C] | 42 3 |
| Pmax [%/°C] | -0.33 |
| Voc [%/°C] | -0.26 |
| Isc [%/°C] | 0.04 |
| * | NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m2, Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5 |
| Electrical Properties (NMOT) | |
| Maximum Power (Pmax) [W] | 306 |
| MPP Voltage (Vmpp) [V] | 35.4 |
| MPP Current (Impp) [A] | 8.64 |
| Open Circuit Voltage (Voc) [V] | 42.7 |
| Short Circuit Current (Isc) [A] | 9.02 |
| Electrical Properties (STC*) | |
| Maximum Power (Pmax) [W] | 405 |
| MPP Voltage (Vmpp) [V] | 37.6 |
| MPP Current (Impp) [A] | 10.78 |
| Open Circuit Voltage (Voc, 5%) [V] | 45.3 |
| Short Circuit Current (Isc, 5%) [A] | 11.20 |
| Module Efficiency [%] | 20.7 |
| Power Tolerance [%] | 0 ~ +3 |
| * | STC (Standard Test Condition):Irradiance 1,000W/m , Cell temperature 25 , AM 1.5, Measure tolerance of Pmax : 3% |
| Operating Conditions | |
| Operating Temperature [°C] | -40 ~+85 |
| Maximum System Voltage [V] | 1,000 |
| Maximum Series Fuse Rating [A] | 20 |
| Mechanical Test Load (Front) [Pa/psf] | 5,400 |
| Mechanical Test Load (Rear) [Pa/psf] | 4,000 |
| * | Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa/5,400 Pa based on IEC 61215 : 2005 |
| Packaging Configuration | |
| Number of Modules per Pallet [EA] | 25 |
| Number of Modules per 40ft HQ Container [EA] | 600 |
| Number of Modules per 53' HQ Container [EA] | TBD |
| Packaging Box Dimensions (L x W x H) [mm] | 1,960 x 1,120 x 1,221 |
| Packaging Box Dimensions (L x W x H) [in] | TBD |
| Packaging Box Gross Weight [kg] | 530 |
| Packaging Box Gross Weight [lb] | TBD |
