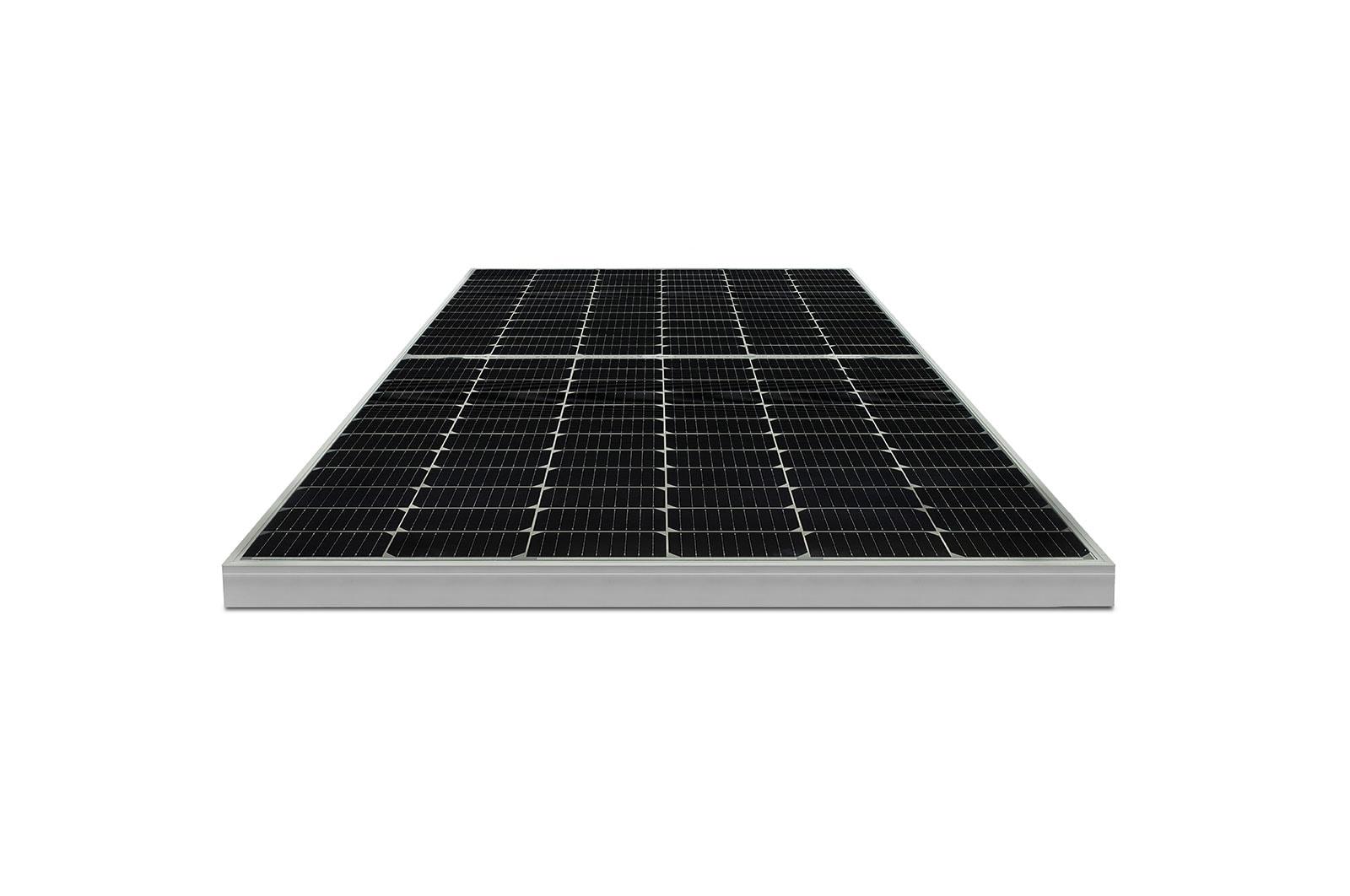

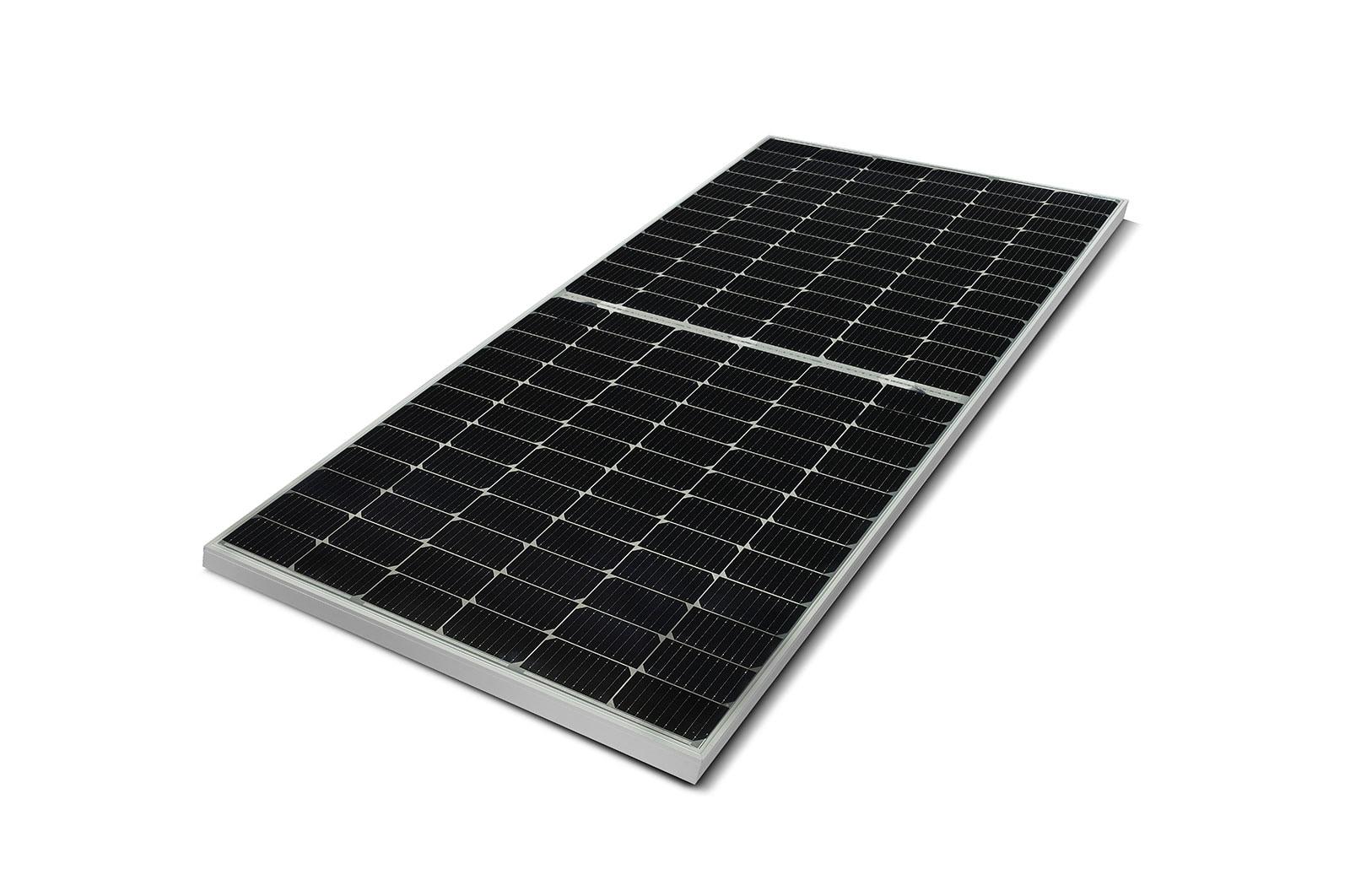

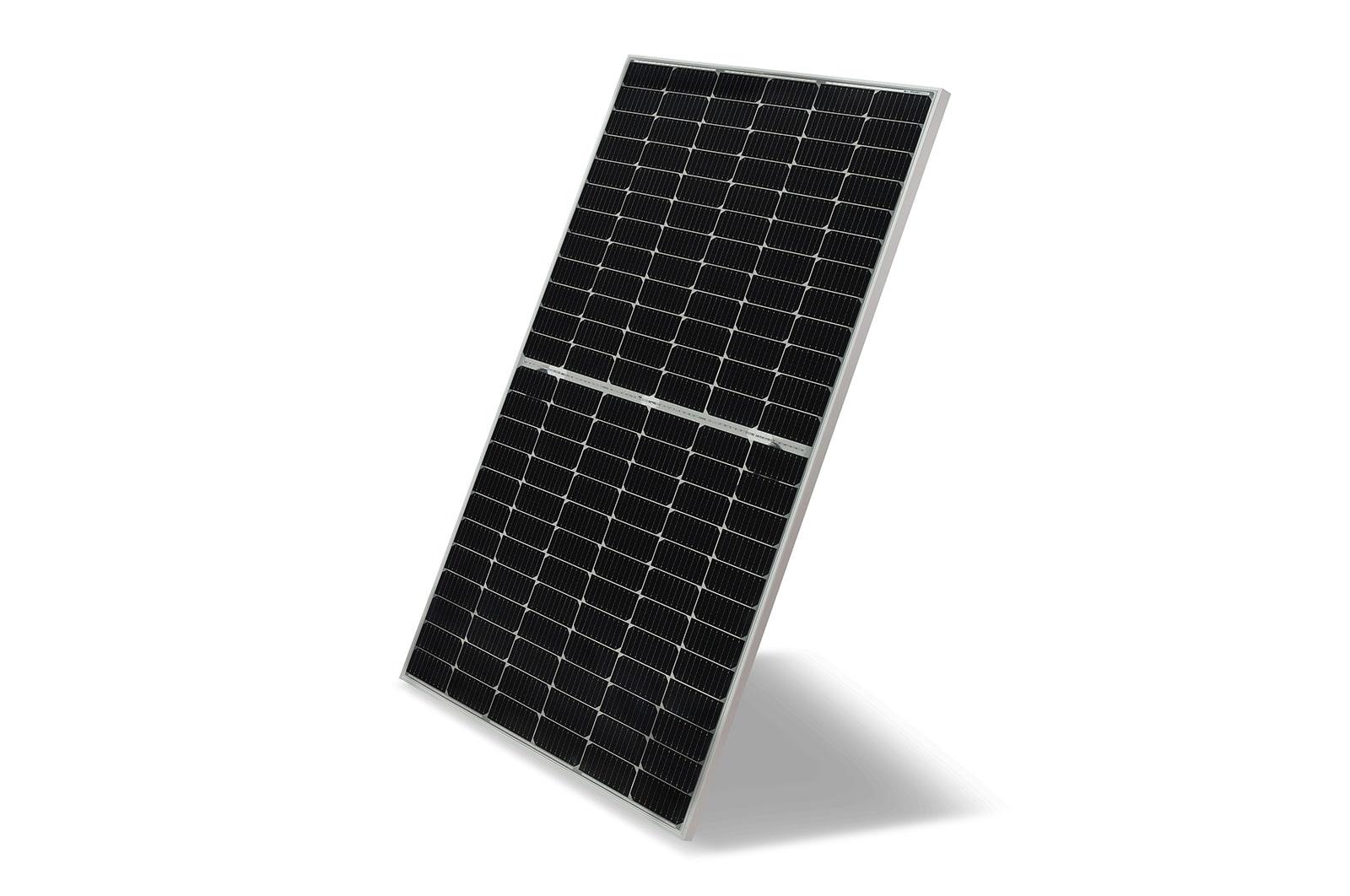

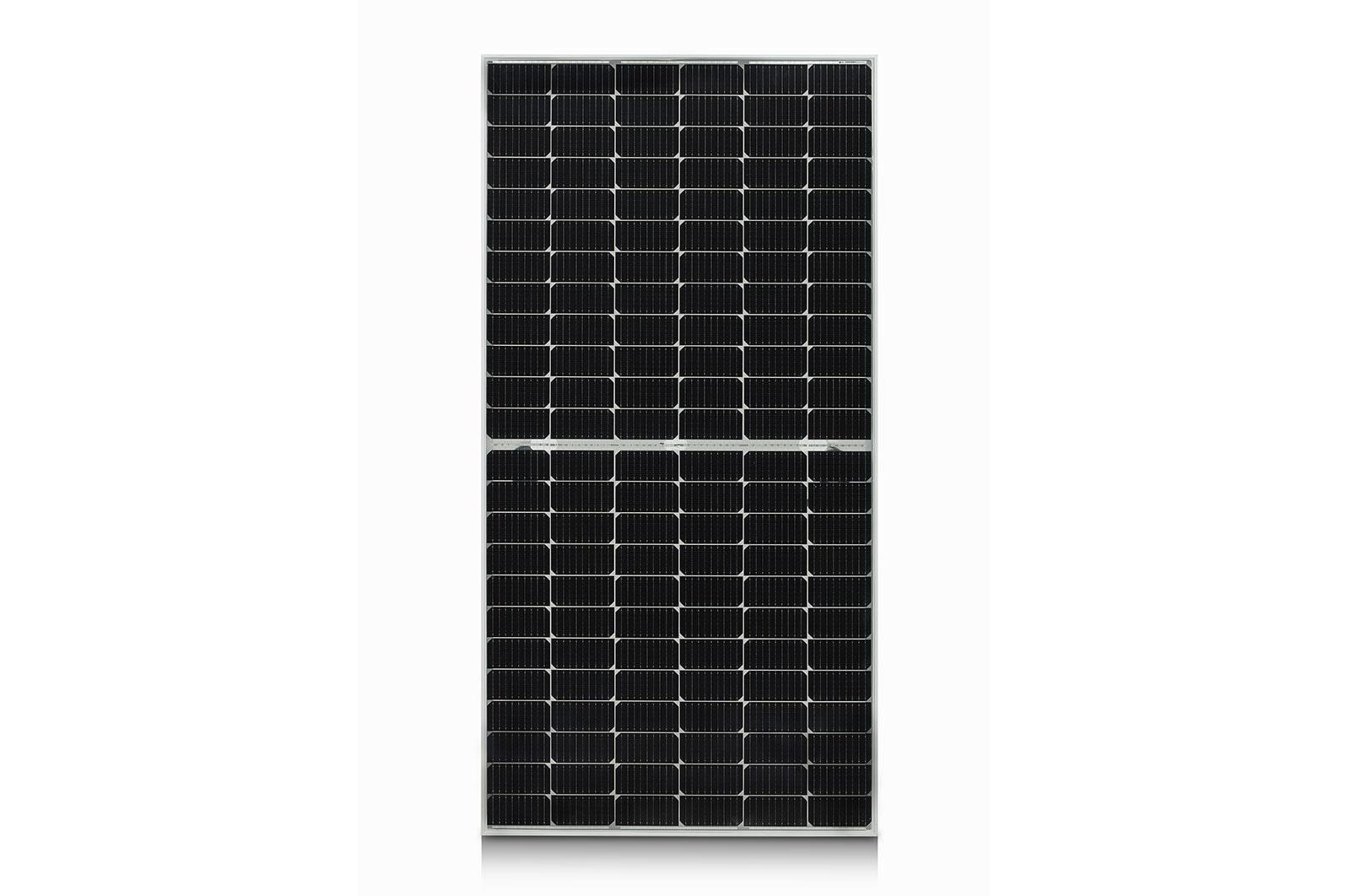

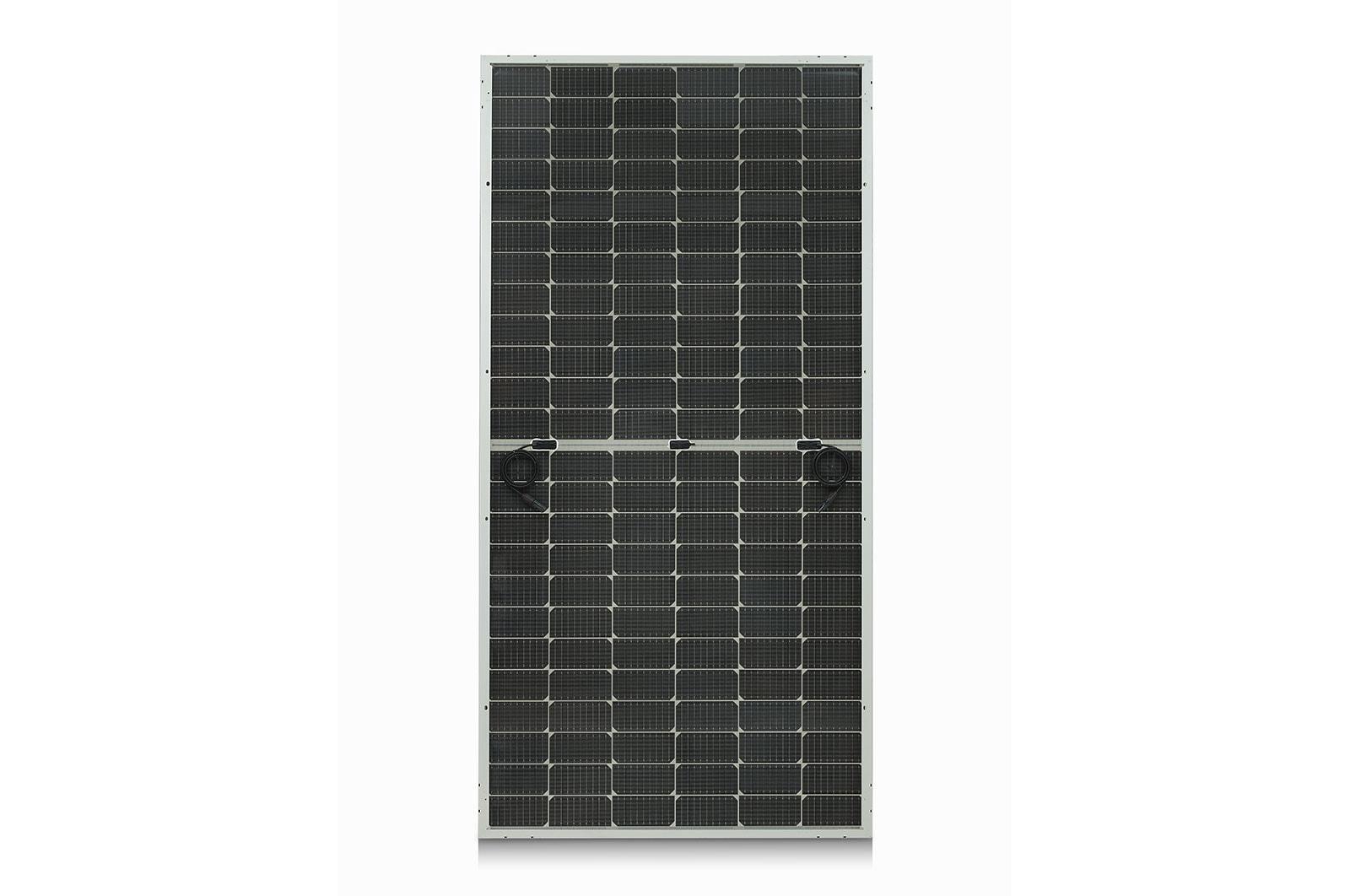

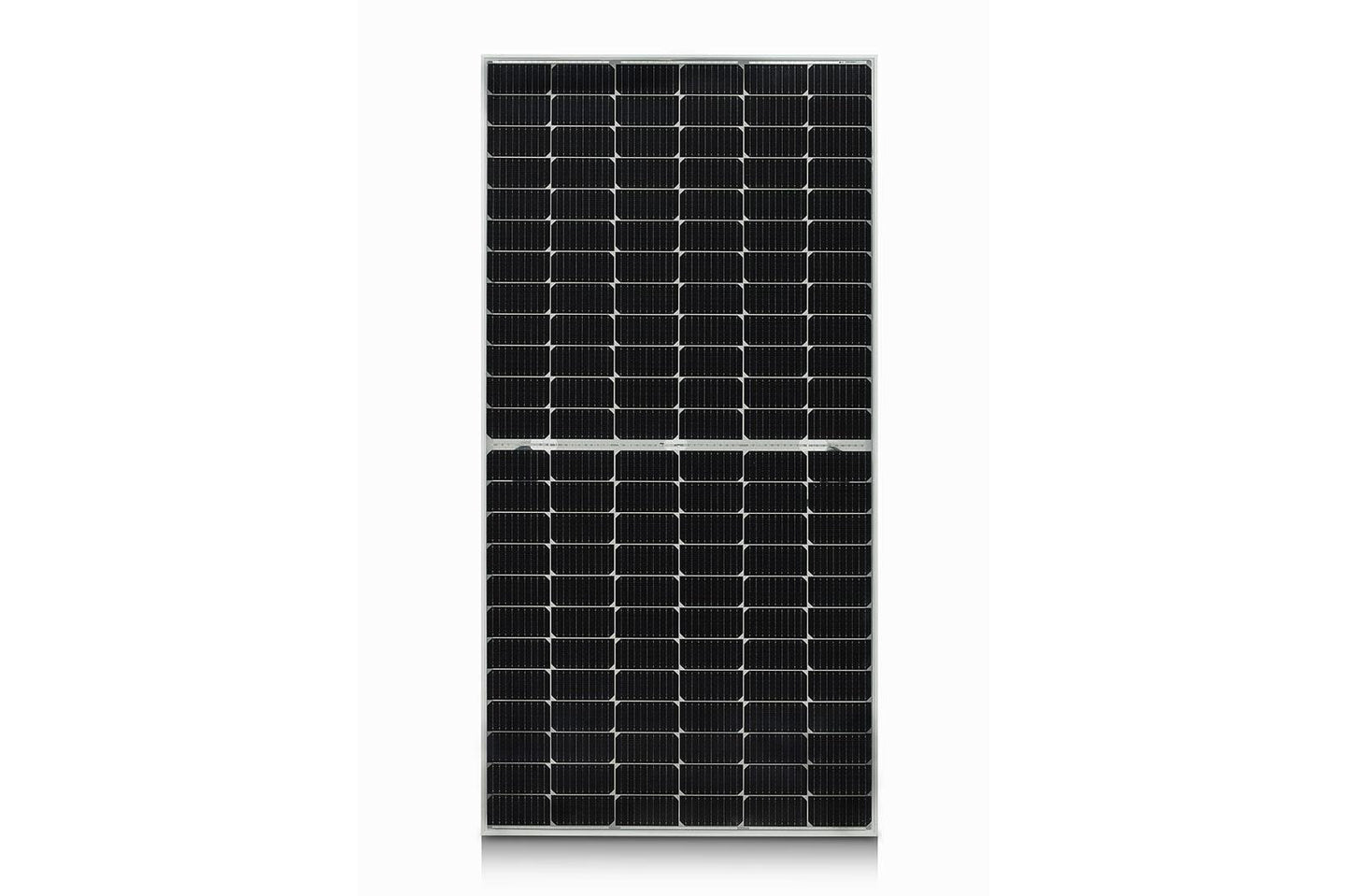

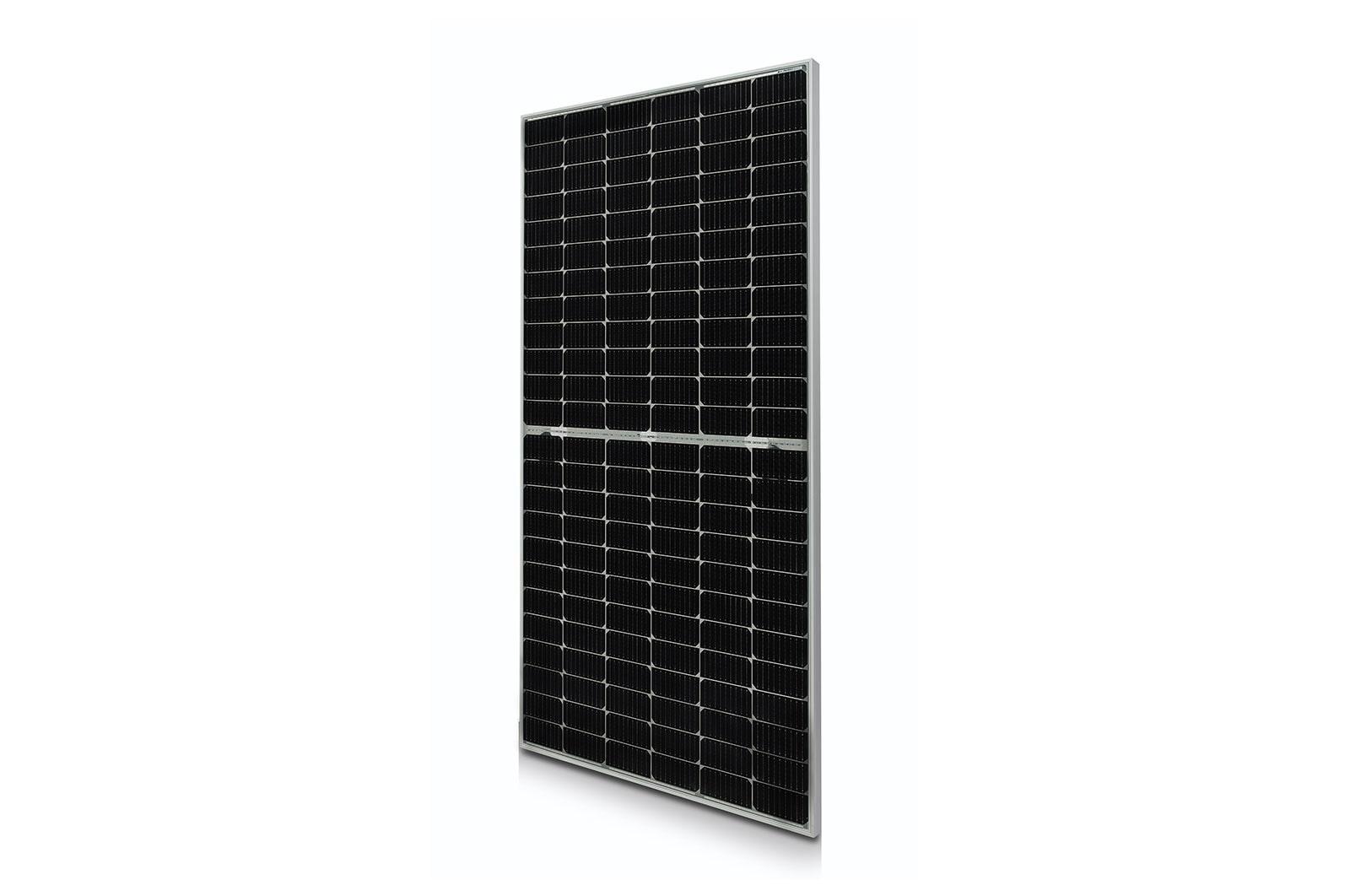

Lg LG430N2TE6 430W High Efficiency LG NeON® H BiFacial Solar Panel with 144 Cells (6 x 24), Module Efficiency: 19.4%, Connector Type: MC4
Lg LG430N2TE6 430W High Efficiency LG NeON® H BiFacial Solar Panel with 144 Cells (6 x 24), Module Efficiency: 19.4%, Connector Type: MC4
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 25 Year Limited Warranty
- Bi-facial energy yield
- Allows for more generation on a cloudy day
- Absorbs up to 30% more light than conventional models
- Streamlined, Uniform Roof Aesthetic
- Durable design
430W High Efficiency LG NeON® H BiFacial Solar Panel with 144 Cells (6 x 24), Module Efficiency: 19.4%, Connector Type: MC4
| General Data | |
| Cell Properties (Material/Type) | Monocrystalline/N-type |
| Cell Maker | LG |
| Cell Configuration | 144 Cells (6 x 24) |
| Number of Busbars | 9EA |
| Module Dimensions (L x W x H) | 2,130mm x 1,042mm x 40mm |
| Weight | 22kg |
| Glass (Thickness/Material) | 2.8mm/Tempered Glass with AR Coating |
| Backsheet (Color) | Transparent |
| Frame (Material) | Anodized Aluminium |
| Junction Box (Protection Degree) | IP68 with 3 Bypass Diodes |
| Cables (Length) | 1,400mm x 2EA |
| Connector (Type/Maker) | MC 4/MC |
| Certifications and Warranty | |
| Certifications | IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, UL 61730, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001 |
| Salt Mist Corrosion Test | IEC 61701:2012 Severity 6 |
| Ammonia Corrosion Test | IEC 62716:2013 |
| Module Fire Performance | Type 1 |
| Fire Rating | Class C (UL 790, ULC/ORD C 1703) |
| Solar Module Product Warranty | 25 Years |
| Solar Module Output Warranty | Linear Warranty* |
| * | Initial 107%, 1st year 105.4%, After 1st year : -0.35%/year, 96.4% at year 25 (Based on BiFi100) |
| Temperature Characteristics | |
| NMOT* [°C] | 42 3 |
| Pmax [%/°C] | -0.33 |
| Voc [%/°C] | -0.26 |
| Isc [%/°C] | 0.04 |
| * | NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m2, Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5 |
| Electrical Properties (NMOT) | |
| Model | TBD |
| Maximum Power (Pmax) [W] - STC | 323 |
| Maximum Power (Pmax) [W] - BiFi100 | 346 |
| Maximum Power (Pmax) [W] - BiFi200 | 368 |
| MPP Voltage (Vmpp) [V] - STC | 38.0 |
| MPP Voltage (Vmpp) [V] - BiFi100 | 38.0 |
| MPP Voltage (Vmpp) [V] - BiFi200 | 38.0 |
| MPP Current (Impp) [A] - STC | 8.51 |
| MPP Current (Impp) [A] - BiFi100 | 9.10 |
| MPP Current (Impp) [A] - BiFi200 | 9.70 |
| Open Circuit Voltage (Voc) [V] - STC | 45.8 |
| Open Circuit Voltage (Voc) [V] - BiFi100 | 45.8 |
| Open Circuit Voltage (Voc) [V] - BiFi200 | 45.8 |
| Short Circuit Current (Isc) [A] - STC | 8.95 |
| Short Circuit Current (Isc) [A] - BiFi100 | 9.57 |
| Short Circuit Current (Isc) [A] - BiFi200 | 10.20 |
| Electrical Properties | |
| Model | TBD |
| Maximum Power (Pmax) [W] - STC* | 430 |
| * | STC (Standard Test Condition): Irradiance 1000W/m2, Cell temperature 25OC, AM 1.5, Measure Tolerance: 3% |
| Maximum Power (Pmax) [W] - BiFi100** | 460 |
| Maximum Power (Pmax) [W] - BiFi200** | 490 |
| MPP Voltage (Vmpp) [V] - STC* | 40.4 |
| MPP Voltage (Vmpp) [V] - BiFi100** | 40.4 |
| MPP Voltage (Vmpp) [V] - BiFi200** | 40.4 |
| MPP Current (Impp) [A] - STC* | 10.65 |
| MPP Current (Impp) [A] - BiFi100** | 11.39 |
| MPP Current (Impp) [A] - BiFi200** | 12.13 |
| Open Circuit Voltage (Voc) [V] - STC* | 48.6 |
| Open Circuit Voltage (Voc) [V] - BiFi100** | 48.6 |
| Open Circuit Voltage (Voc) [V] - BiFi200** | 48.6 |
| Short Circuit Current (Isc) [A] - STC* | 11.12 |
| Short Circuit Current (Isc) [A] - BiFi100** | 11.88 |
| Short Circuit Current (Isc) [A] - BiFi200** | 12.66 |
| Module Efficiency [%] - STC* | 19.4 |
| Module Efficiency [%] - BiFi100** | 20.7 |
| Module Efficiency [%] - BiFi200** | 22.1 |
| Pmax Bifaciality Coefficient [%] | 75 5 |
| Power Tolerance [%] | 0 ~ +3 |
| ** | The electrical properties of BiFi100 and BiFi200 measure under the front side irradiance 1000W/m2 + (100W/m2 or 200W/m2) x BiFi. Use 100W/m2 for BiFi100 and 200W/m2 for BiFi200. |
| Operating Conditions | |
| Operating Temperature [°C] | -40 ~+85 |
| Maximum System Voltage [V] | 1,000(IEC)/1500 |
| Maximum Series Fuse Rating [A] | 20 |
| Mechanical Test Load (Front) [Pa/psf] | 5,400/113 |
| Mechanical Test Load (Rear) [Pa/psf] | 3,000/63 |
| * | Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa/5,400 Pa based on IEC 61215 : 2005 |
| Packaging Configuration | |
| Number of Modules per Pallet [EA] | 25 |
| Number of Modules per 40ft HQ Container [EA] | 550 |
| Number of Modules per 53' HQ Container [EA] | 750 |
| Packaging Box Dimensions (L x W x H) [mm] | 2,160 x 1,120 x 1,213 |
| Packaging Box Dimensions (L x W x H) [in] | TBD |
| Packaging Box Gross Weight [kg] | 610 |
| Packaging Box Gross Weight [lb] | TBD |
