LG LG440QACA6
Authorized Reseller

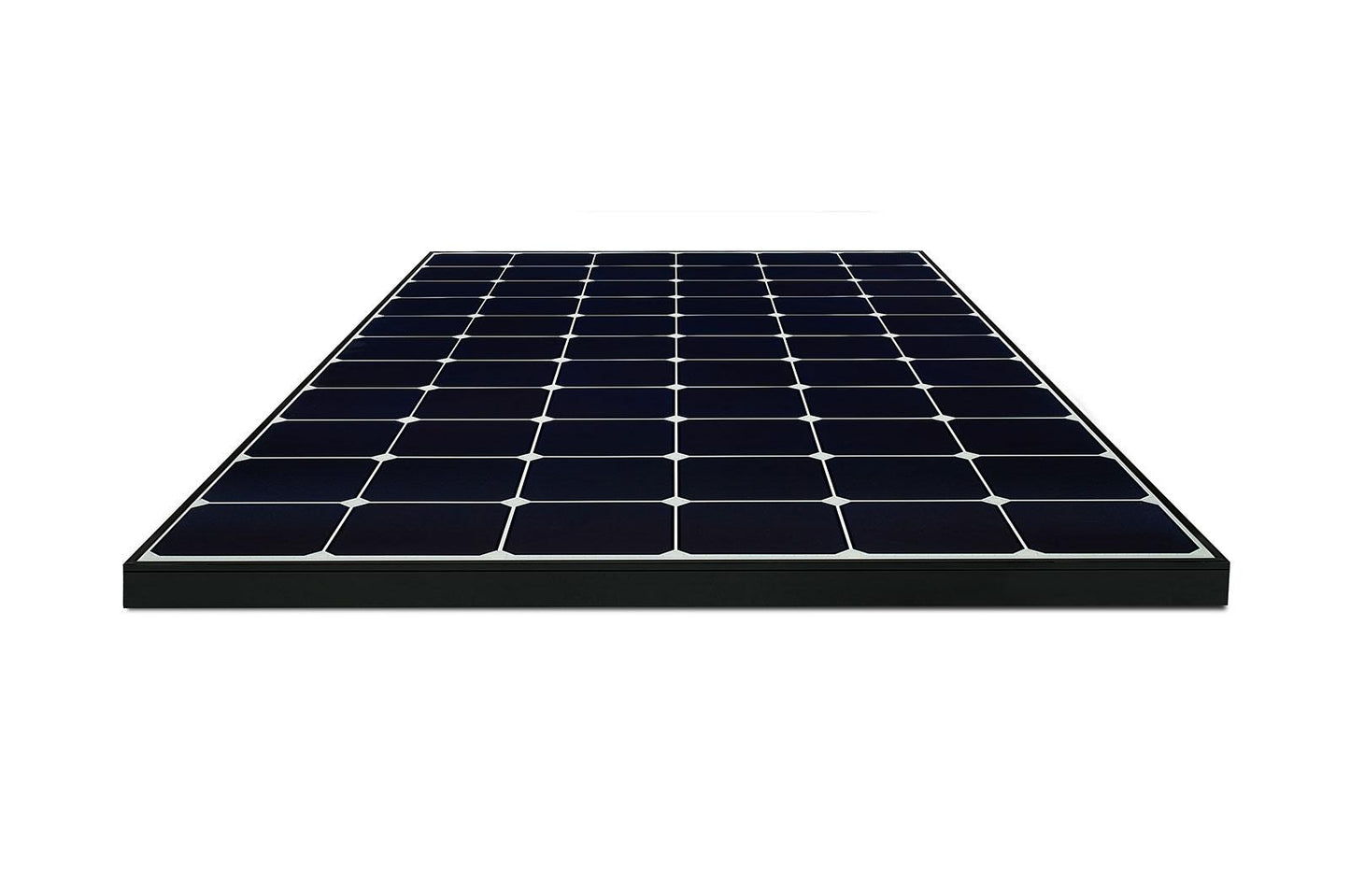

Lg LG440QACA6 440W High Efficiency LG NeON® R Solar Panel with 66 Cells (6 x 11), Module Efficiency: 22.1%, Connector Type: MC4
Lg LG440QACA6 440W High Efficiency LG NeON® R Solar Panel with 66 Cells (6 x 11), Module Efficiency: 22.1%, Connector Type: MC4
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 25 Year Limited Warranty
- High Power Output
- Durable design
- Enhanced performance on sunny days
- Streamlined, Uniform Roof Aesthetic
440W High Efficiency LG NeON® R Solar Panel with 66 Cells (6 x 11), Module Efficiency: 22.1%, Connector Type: MC4
| General Data | |
| Cell Properties (Material/Type) | Monocrystalline/N-type |
| Cell Maker | LG |
| Cell Configuration | 66 Cells (6 x 11) |
| Number of Busbars | TBD |
| Module Dimensions (L x W x H) | 1,910mm x 1,042mm x 40mm |
| Weight | 20.5kg |
| Glass (Thickness/Material) | 2.8mm/Tempered Glass with AR Coating |
| Backsheet (Color) | White |
| Frame (Material) | Anodized Aluminium |
| Junction Box (Protection Degree) | IP68 with 3 Bypass Diodes |
| Cables (Length) | 1,250mm x 2EA |
| Connector (Type/Maker) | MC 4/MC |
| Certifications and Warranty | |
| Certifications | IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, UL 61730, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001 |
| Salt Mist Corrosion Test | IEC 61701:2012 Severity 6 |
| Ammonia Corrosion Test | IEC 62716:2013 |
| Module Fire Performance | Type 1 |
| Fire Rating | Class C (UL 790) |
| Product Warranty | 25 Year Limited |
| Output Warranty of Pmax | Linear Warranty* |
| * | Improved: 1st year 98.5%, from 2-24th year: -0.25%/year down, 92.5% at year 25 |
| ** | Full warranty details can be found below. |
| Temperature Characteristics | |
| NMOT* [°C] | 44 3 |
| Pmax [%/°C] | -0.29 |
| Voc [%/°C] | -0.24 |
| Isc [%/°C] | 0.04 |
| * | NMOT(Nominal Module Operating Temperature) : Irradiance 800 W/m2, Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5 |
| Electrical Properties (NMOT) | |
| Model | TBD |
| Maximum Power (Pmax) [W] | 334 |
| MPP Voltage (Vmpp) [V] | 39.1 |
| MPP Current (Impp) [A] | 8.53 |
| Open Circuit Voltage (Voc) [V] | 46.0 |
| Short Circuit Current (Isc) [A] | 9.03 |
| Electrical Properties (STC*) | |
| Model | TBD |
| Maximum Power (Pmax) [W] | 440 |
| MPP Voltage (Vmpp) [V] | 41.4 |
| MPP Current (Impp) [A] | 10.64 |
| Open Circuit Voltage (Voc, 5%) [V] | 48.2 |
| Short Circuit Current (Isc, 5%) [A] | 11.20 |
| Module Efficiency [%] | 22.1 |
| Power Tolerance [%] | 0 ~ +3 |
| * | STC (Standard Test Condition): Irradiance 1000 W/m , Cell Temperature 25 °C, AM 1.5, Measure Tolerance 3% |
| Operating Conditions | |
| Operating Temperature [°C] | -40 ~+85 |
| Maximum System Voltage [V] | 1,000 |
| Maximum Series Fuse Rating [A] | 20 |
| Mechanical Test Load (Front) [Pa/psf] | 5,400/113 |
| Mechanical Test Load (Rear) [Pa/psf] | 4,000/83.5 |
| * | 5,400pa/4,000pa based on IEC 61215 - 2:2016 (Test Load = Design Load x Safety Factor (x1.5)) |
| Packaging Configuration | |
| Number of Modules per Pallet [EA] | 25 |
| Number of Modules per 40ft HQ Container [EA] | 600 |
| Number of Modules per 53' Container [EA] | 800 |
| Packaging Box Dimensions (L x W x H) [mm] | 1,960 x 1,120 x 1,221 |
| Packaging Box Dimensions (L x W x H) [in] | TBD |
| Packaging Box Gross Weight [kg] | 549 |
| Packaging Box Gross Weight [lb] | TBD |
