LG LG455N2WE6
Authorized Reseller

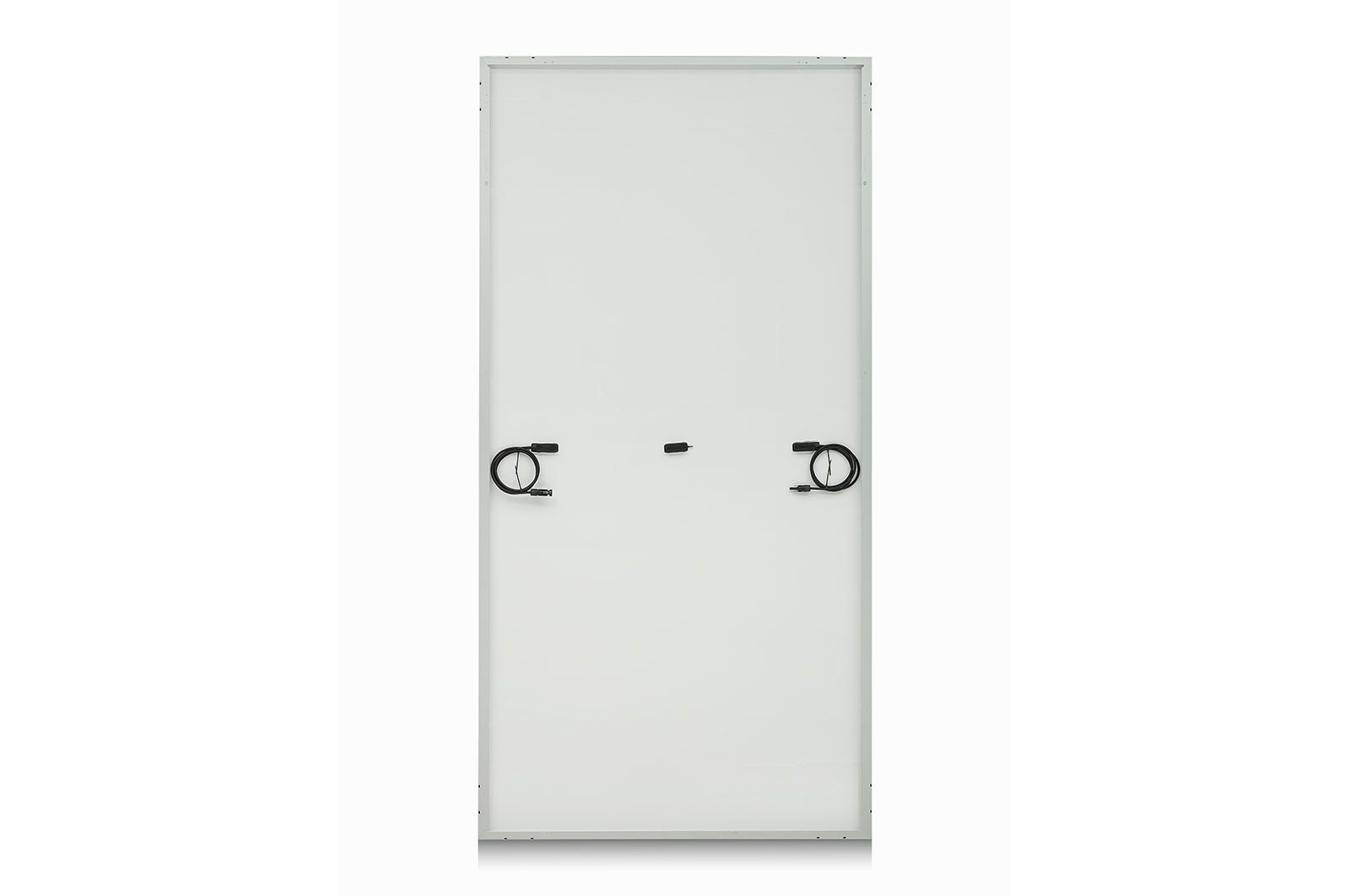

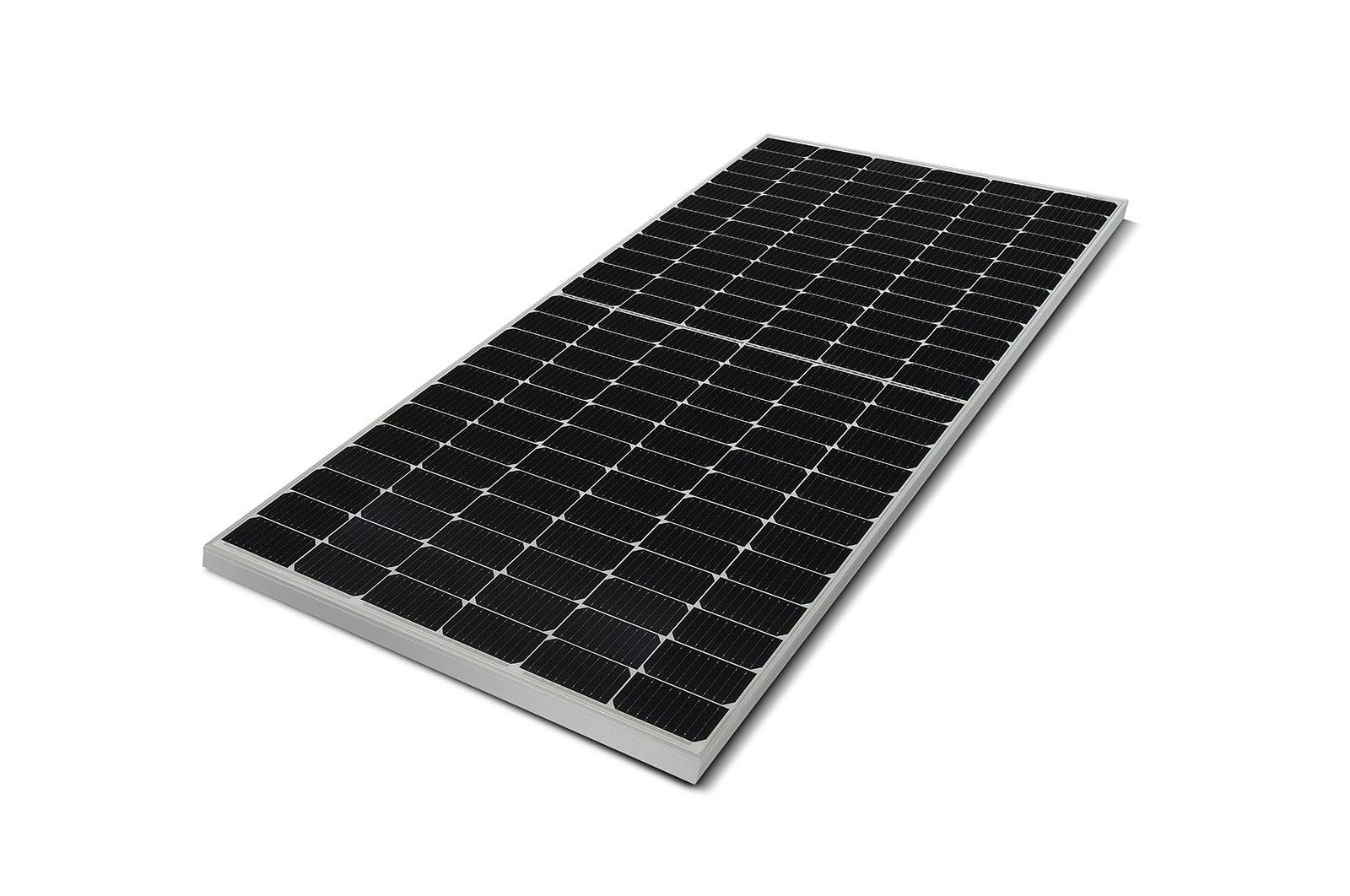

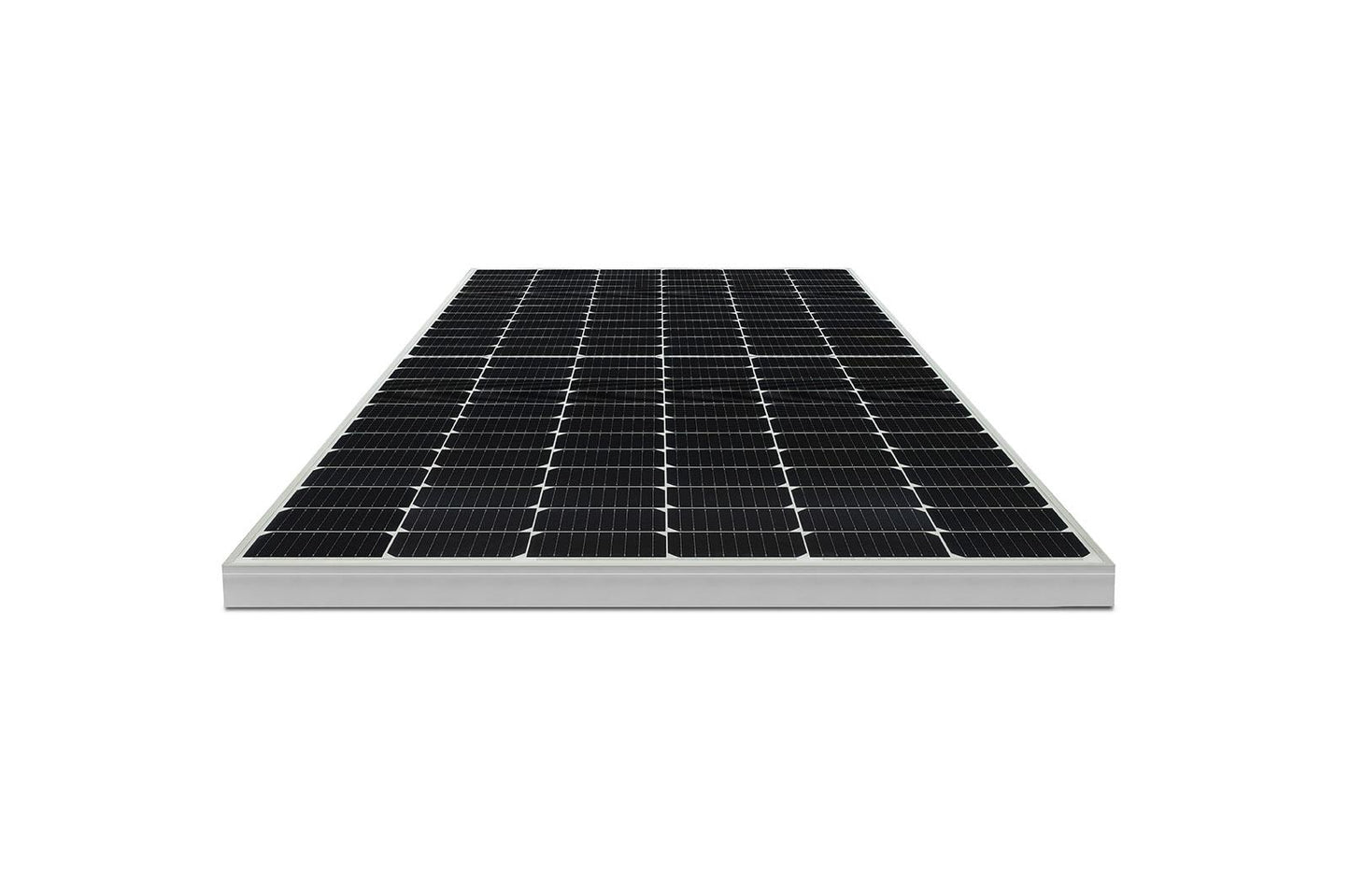

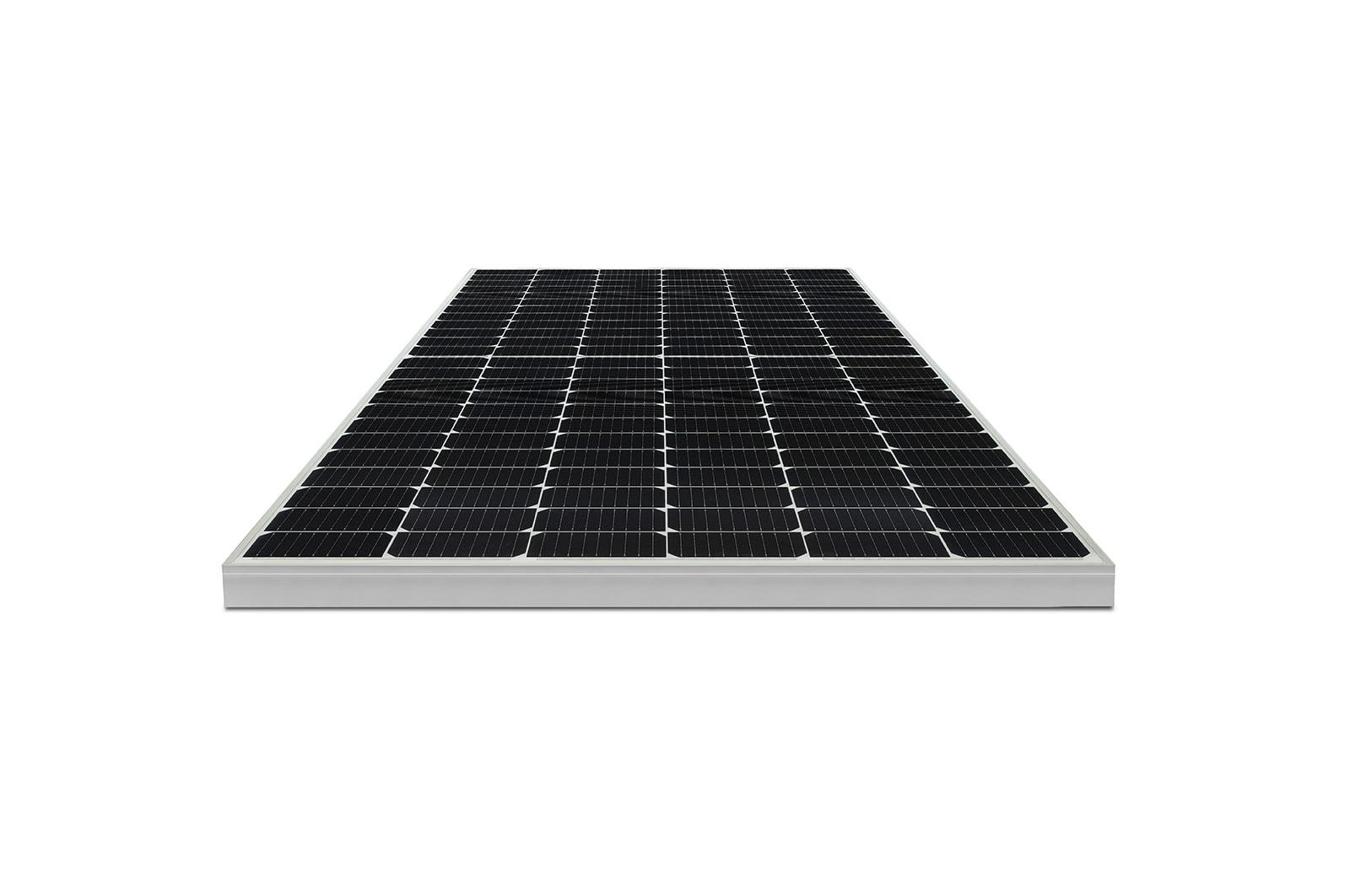

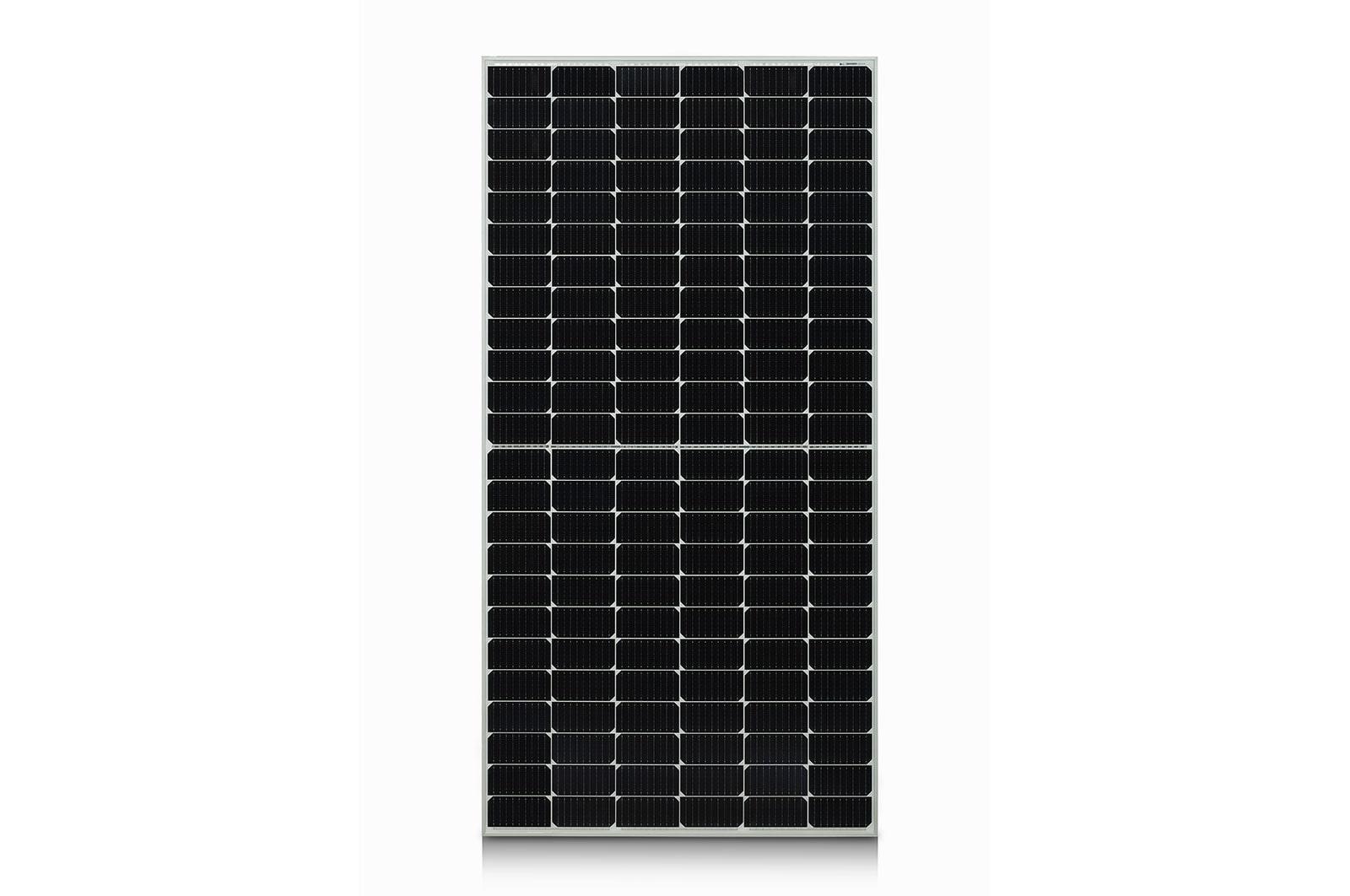

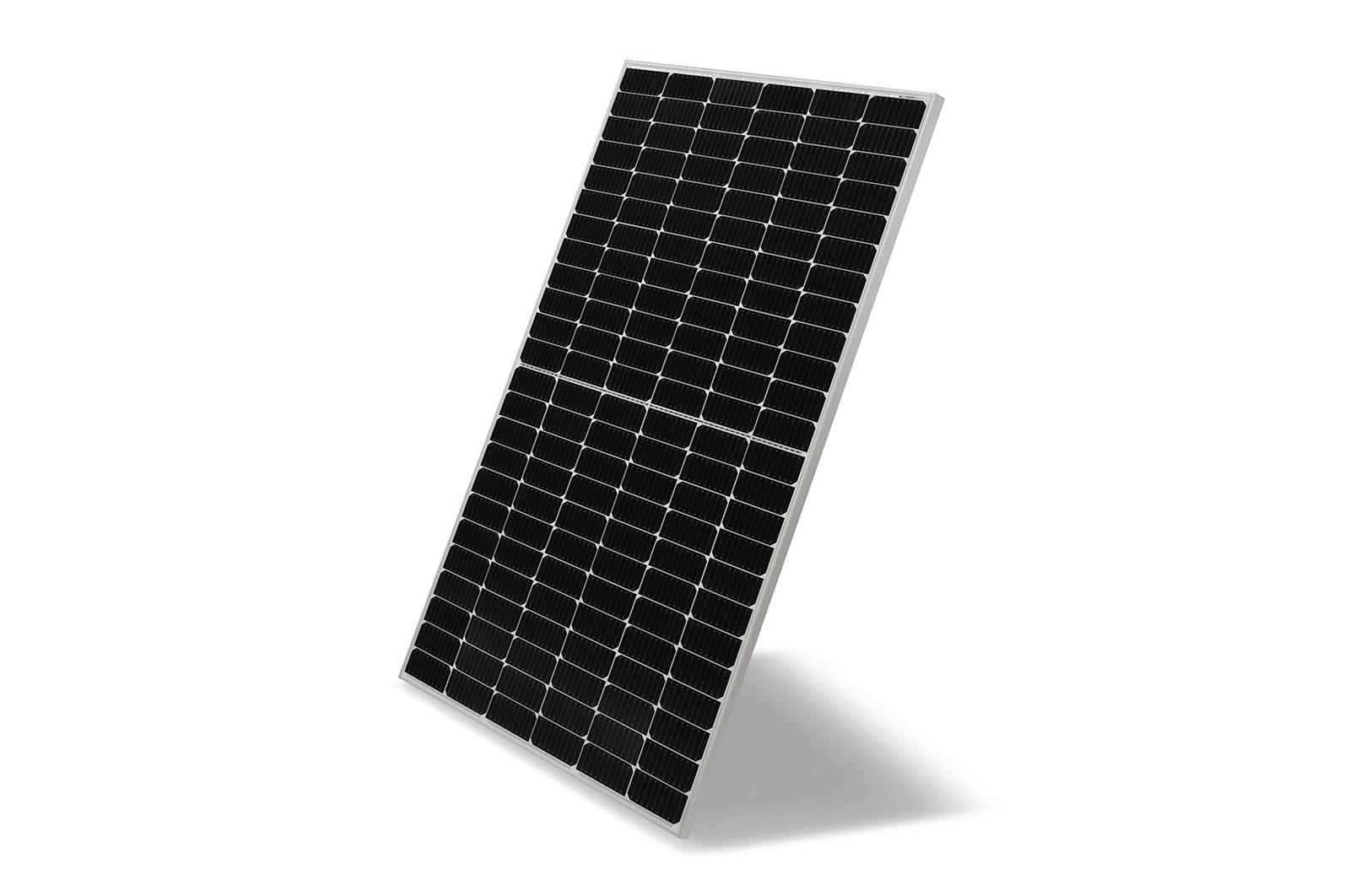

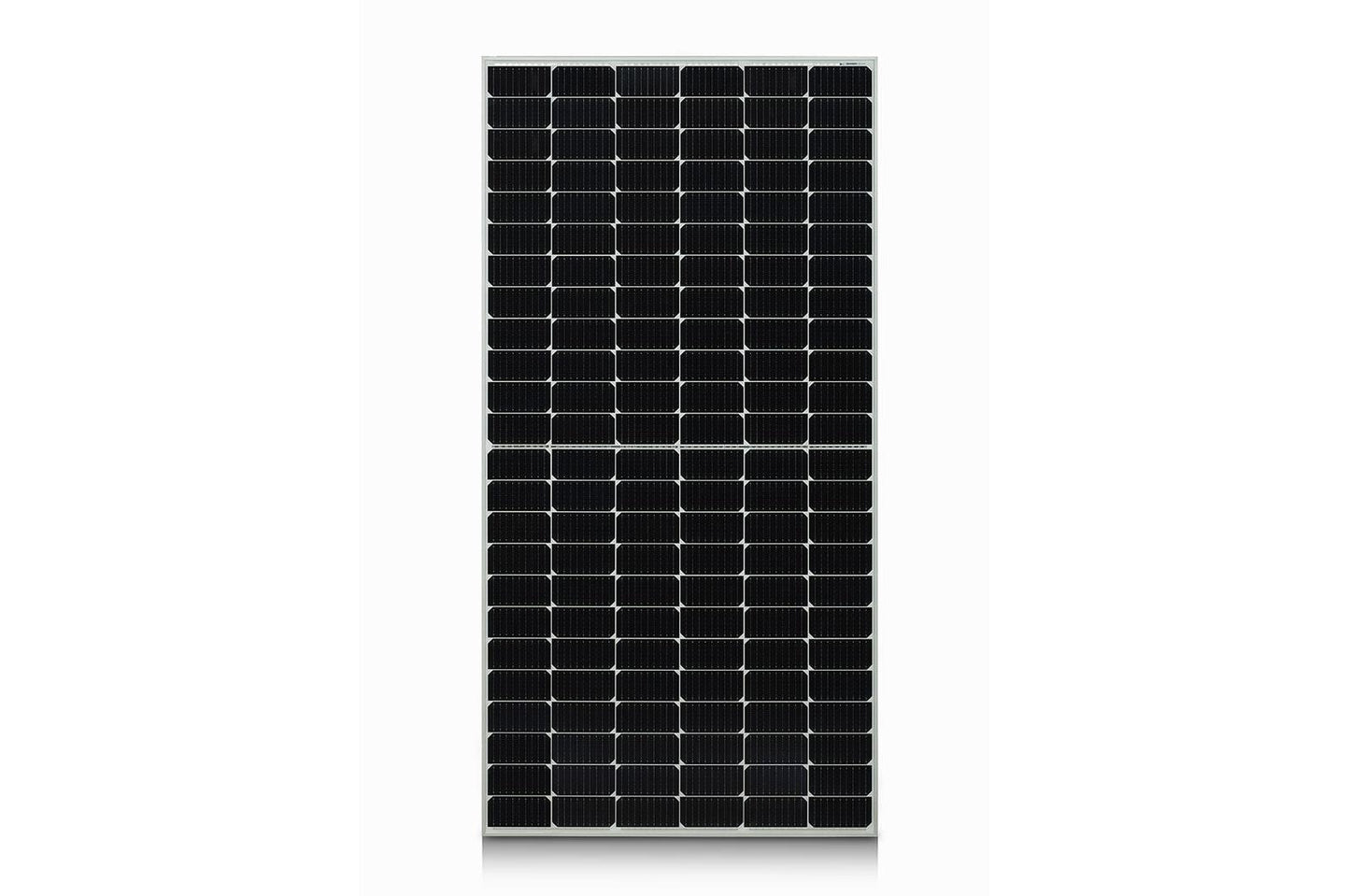

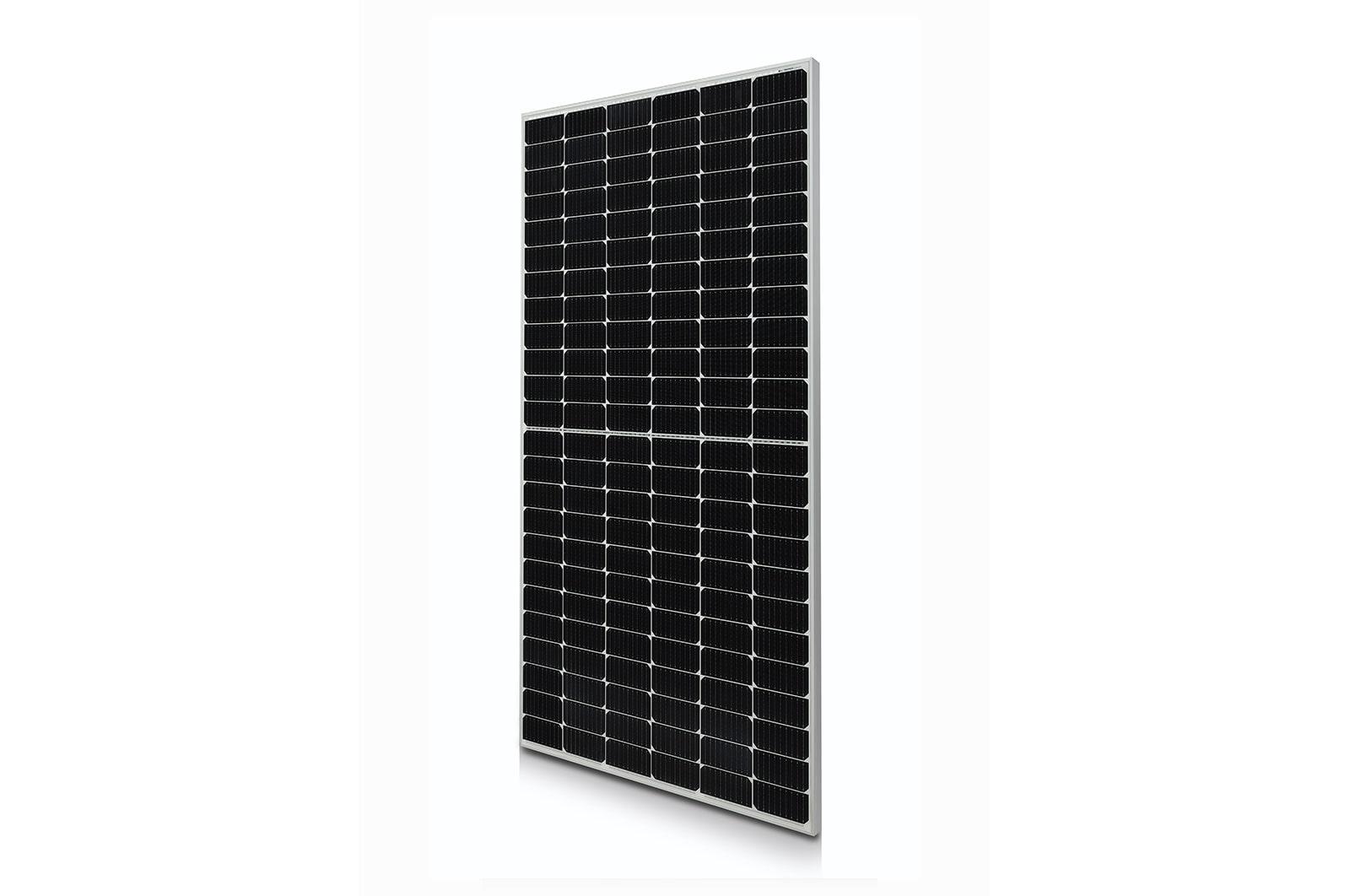

Lg LG455N2WE6 455W High Efficiency LG NeON® H Commercial Solar Panel with 144 Cells (6 x 24), Module Efficiency: 20.8%, Connector Type: MC4
Lg LG455N2WE6 455W High Efficiency LG NeON® H Commercial Solar Panel with 144 Cells (6 x 24), Module Efficiency: 20.8%, Connector Type: MC4
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 25 Year Limited Warranty
- Improved temperature coefficient
- Near zero light-induced degradation
- Clean, Aesthetically-Pleasing Roof Design
- Durable design
455W High Efficiency LG NeON® H Commercial Solar Panel with 144 Cells (6 x 24), Module Efficiency: 20.8%, Connector Type: MC4
| General Data | |
| Cell Properties (Material/Type) | Monocrystalline/N-type |
| Cell Maker | LG |
| Cell Configuration | 144 Cells (6 x 24) |
| Number of Busbars | 9EA |
| Module Dimensions (L x W x H) | 2,110 x 1,042 x 40 mm |
| Weight | 22kg |
| Glass (Material) | Tempered Glass with AR Coating |
| Backsheet (Color) | White |
| Frame (Material) | Anodized Aluminium |
| Junction Box (Protection Degree) | IP 68 with 3 Bypass Diodes |
| Cables (Length) | 1,400mm x 2EA |
| Connector (Type/Maker) | MC4/St ubli |
| Certifications and Warranty | |
| Certifications | IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016 UL 61730-1:2017, UL 61730-2:2017 ISO 9001, ISO 14001, ISO 45001 |
| Salt Mist Corrosion Test | IEC 61701 : 2011 Severity 6 |
| Ammonia Corrosion Test | IEC 62716 : 2013 |
| Module Fire Performance | Type 1 (UL 61730) |
| Fire Rating | Class C (UL 790) |
| Solar Module Product Warranty | 25 Years |
| Solar Module Output Warranty | Linear Warranty* |
| * | 1) First years : 98.5%, 2) After 1st year : -0.33% annual degradation, 3) 90.6% for 25 years |
| Temperature Characteristics | |
| NMOT* [°C] | 42 3 |
| Pmax [%/°C] | -0.33 |
| Voc [%/°C] | -0.26 |
| Isc [%/°C] | 0.04 |
| Electrical Properties (NMOT) | |
| Maximum Power (Pmax) [W] | 344 |
| MPP Voltage (Vmpp) [V] | 39.60 |
| MPP Current (lmpp) [A] | 8.68 |
| Open Circuit Voltage (Voc) [V] | 47.10 |
| Short Circuit Current (lsc) [A] | 9.17 |
| Electrical Properties (STC*) | |
| Maximum Power (Pmax) [W] | 455 |
| MPP Voltage (Vmpp) [V] | 42.1 |
| MPP Current (lmpp) [A] | 10.83 |
| Open Circuit Voltage (Voc, %) [V] | 49.9 |
| Short Circuit Current (lsc, %) | 11.39 |
| Module Efficiency [%] | 20.7 |
| Power Tolerance [%] | 0 ~ +3 |
| * | *STC (Standard Test Condition) : Irradiance 1,000W/m2, Cell temperature 25°, AM 1.5 , Measure Tolerance : 3 % |
| ** | **The electrical properties of BiFi100 and BiFi200 measure under the front side irradiance 1,000W/m2 + (100W/m2 or 200W/m2 ) |
| *** | ***BiFi . Use 100W/m2 for BiFi100 and 200W/m2 for BiFi200. |
| Operating Conditions | |
| Operating Temperature [°C] | -40 ~+85 |
| Maximum System Voltage [V] | 1,000(IEC) / 1,500 |
| Maximum Series Fuse Rating [A] | 20 |
| Mechanical Test Load* (Front) [Pa] | 5,400 |
| Mechanical Test Load* (Rear) [Pa] | 3,000 |
| * | *Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor (1.5)) |
| Packaging Configuration | |
| Number of Modules per Pallet [EA] | 25 |
| Number of Modules per 40' Container [EA] | 550 |
| Number of Modules per 53' Container [EA] | 750 |
| Packaging Box Dimensions (L x W x H) [mm] | 2,160 x 1,120 x 1,213 |
| Packaging Box Dimensions (L x W x H) [in] | 85 x 44 x 47.8 |
| Packaging Box Gross Weight [kg] | 588 |
| Packaging Box Gross Weight [lb] | 1,296 |
