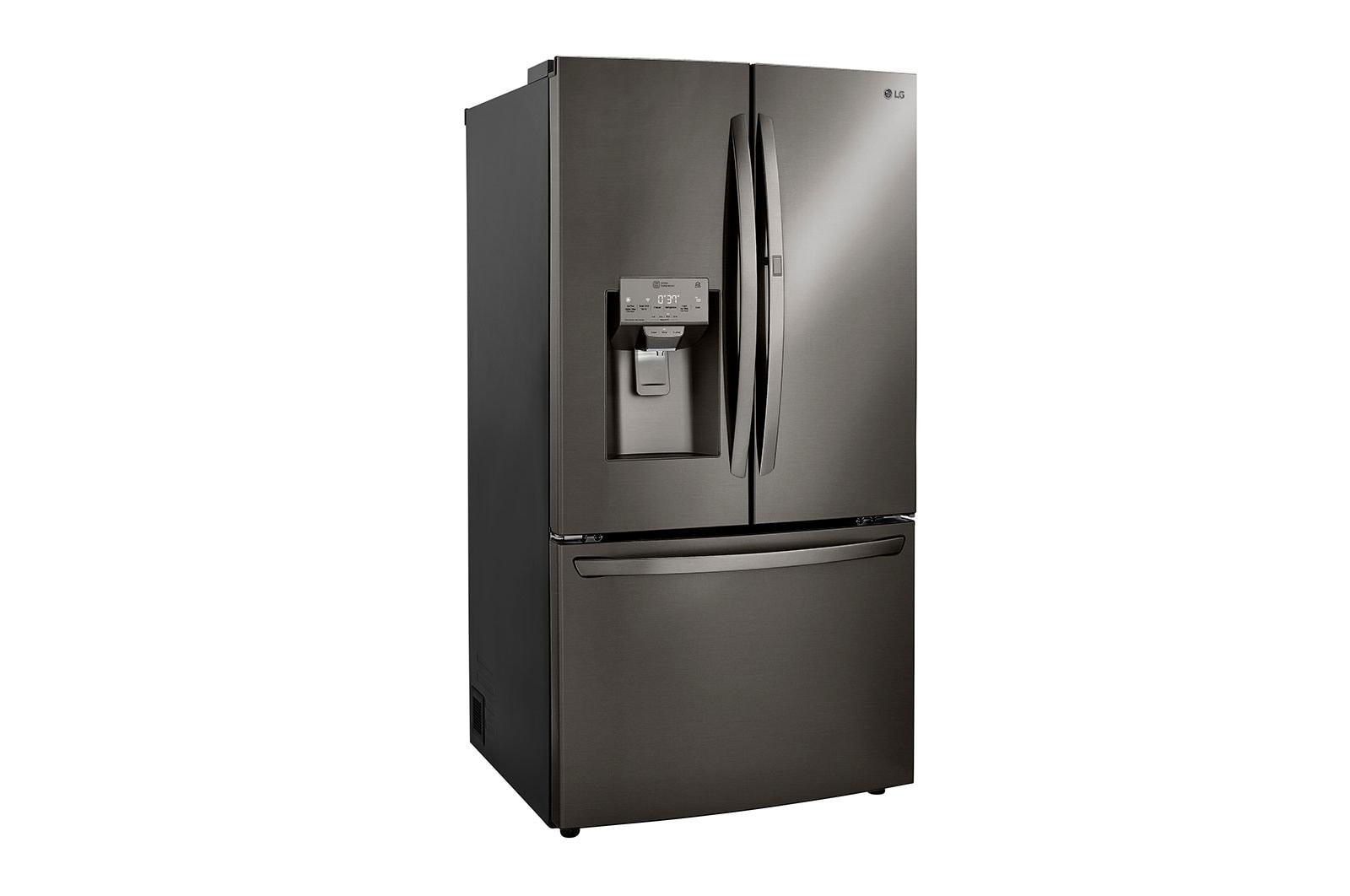

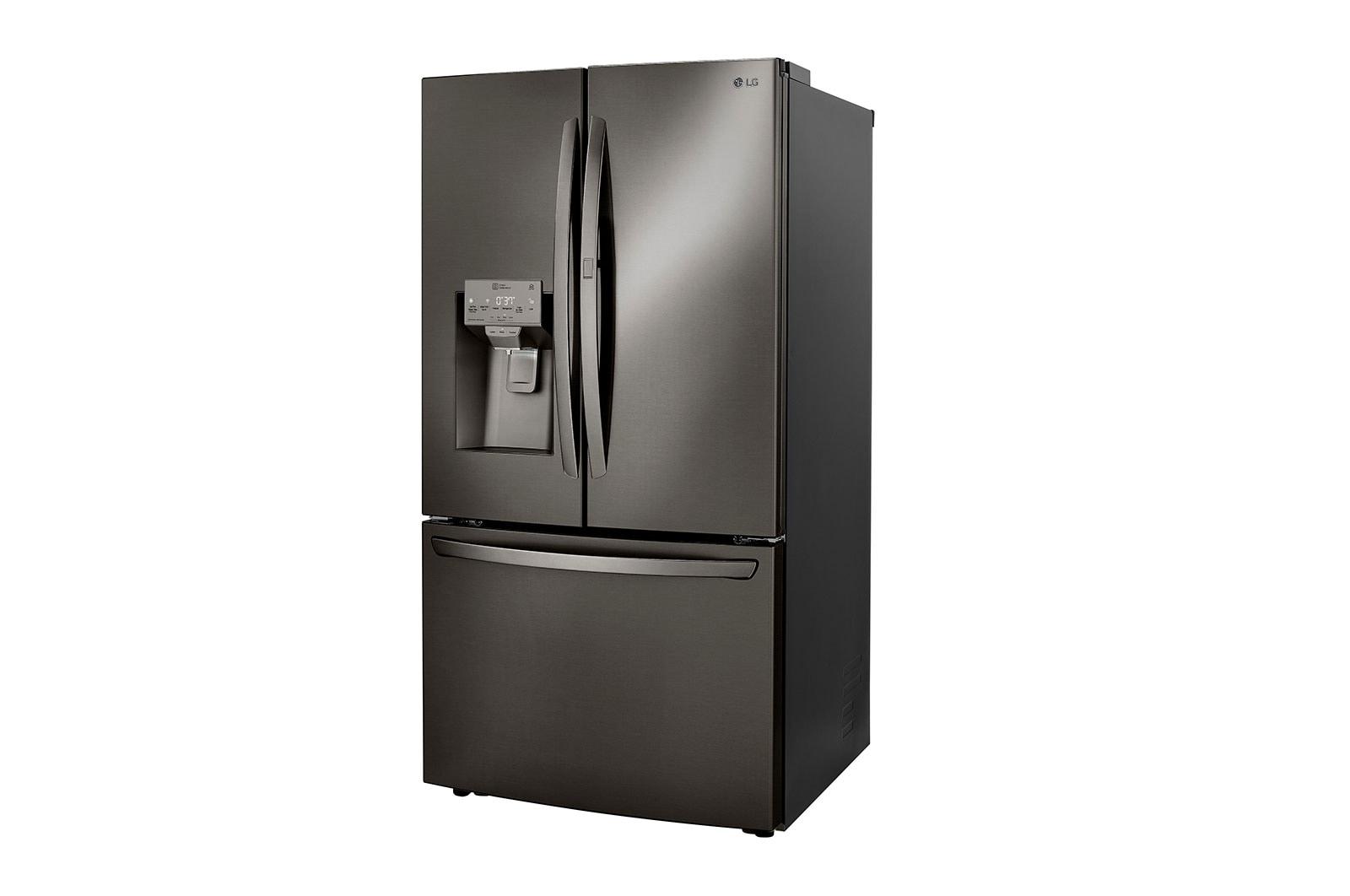

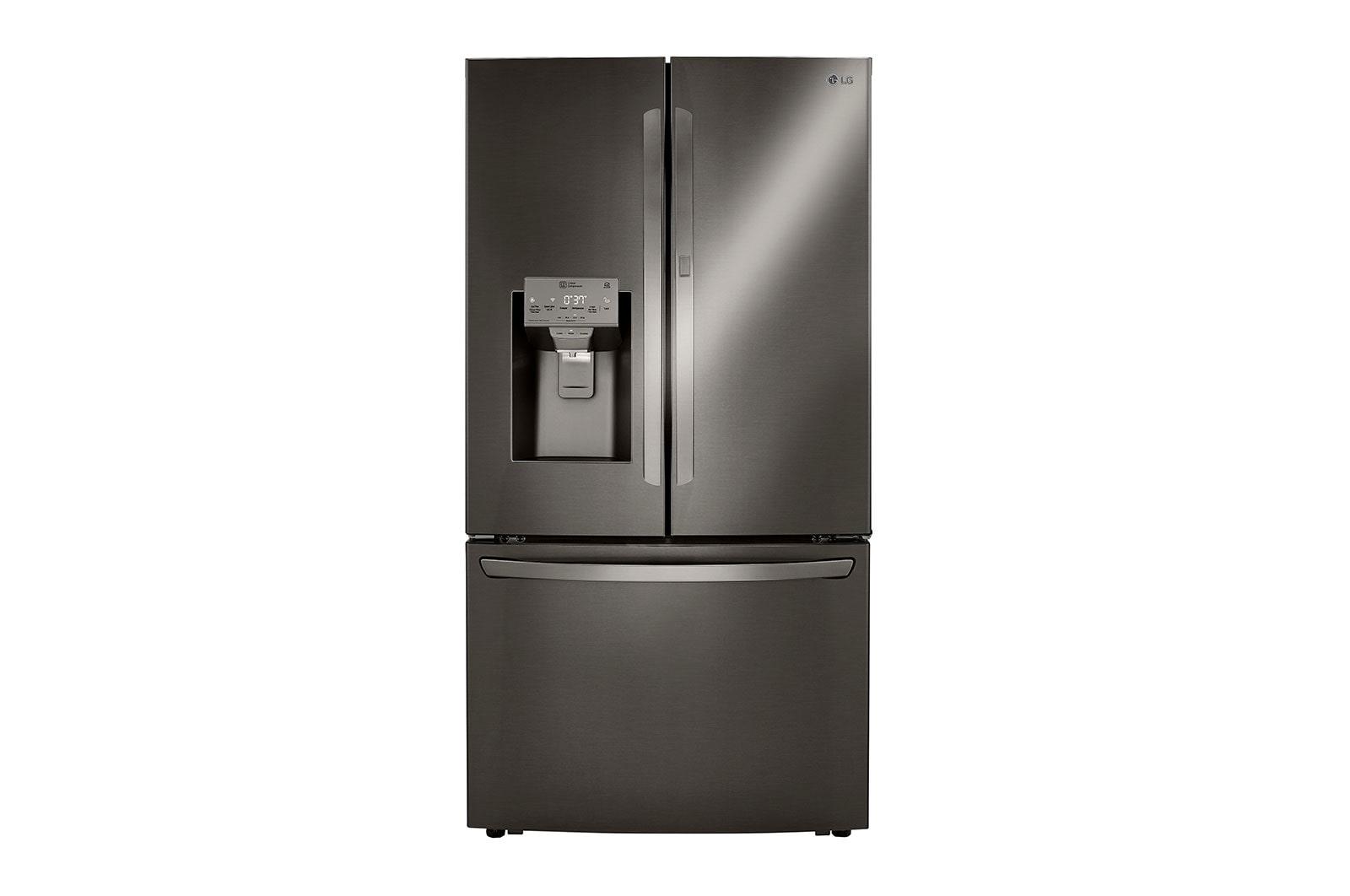

30 cu. ft. Smart wi-fi Enabled Door-in-Door® Refrigerator with Craft Ice™ Maker LRFDS3016D
Discontinued- 30 cu. ft. Capacity
- Door-in-Door® with Adjustable Bins
- Cool Guard
- Tall Ice & Water Dispenser® with Measured Fill
- Dual Ice Maker with Craft Ice™
- ThinQ® Technology with ThinQ Care
With 30 cu. ft. of more usable space*, you can save time and stock up on your club store fresh and frozen faves in one trip with room to store them all when you get home.

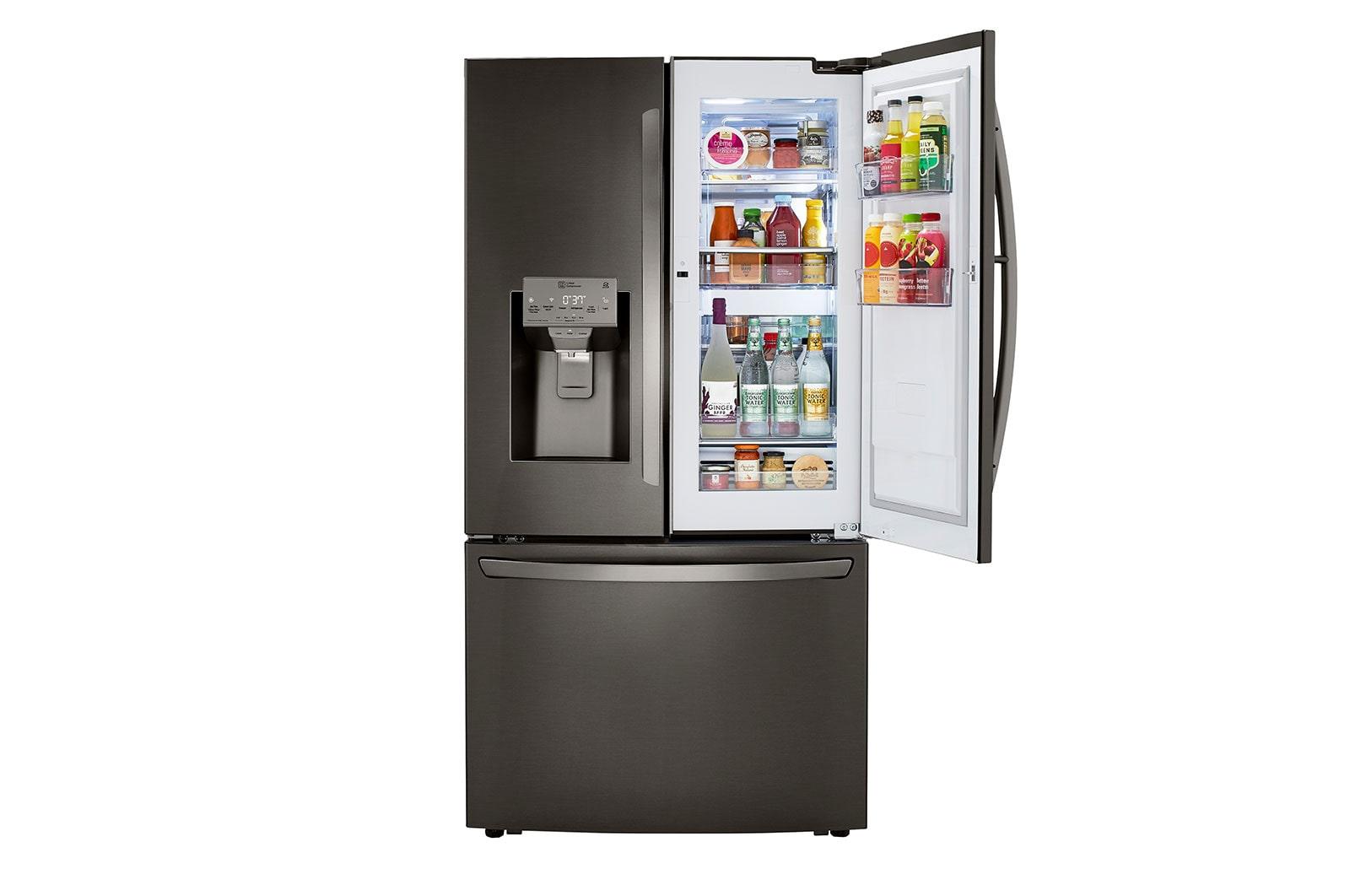

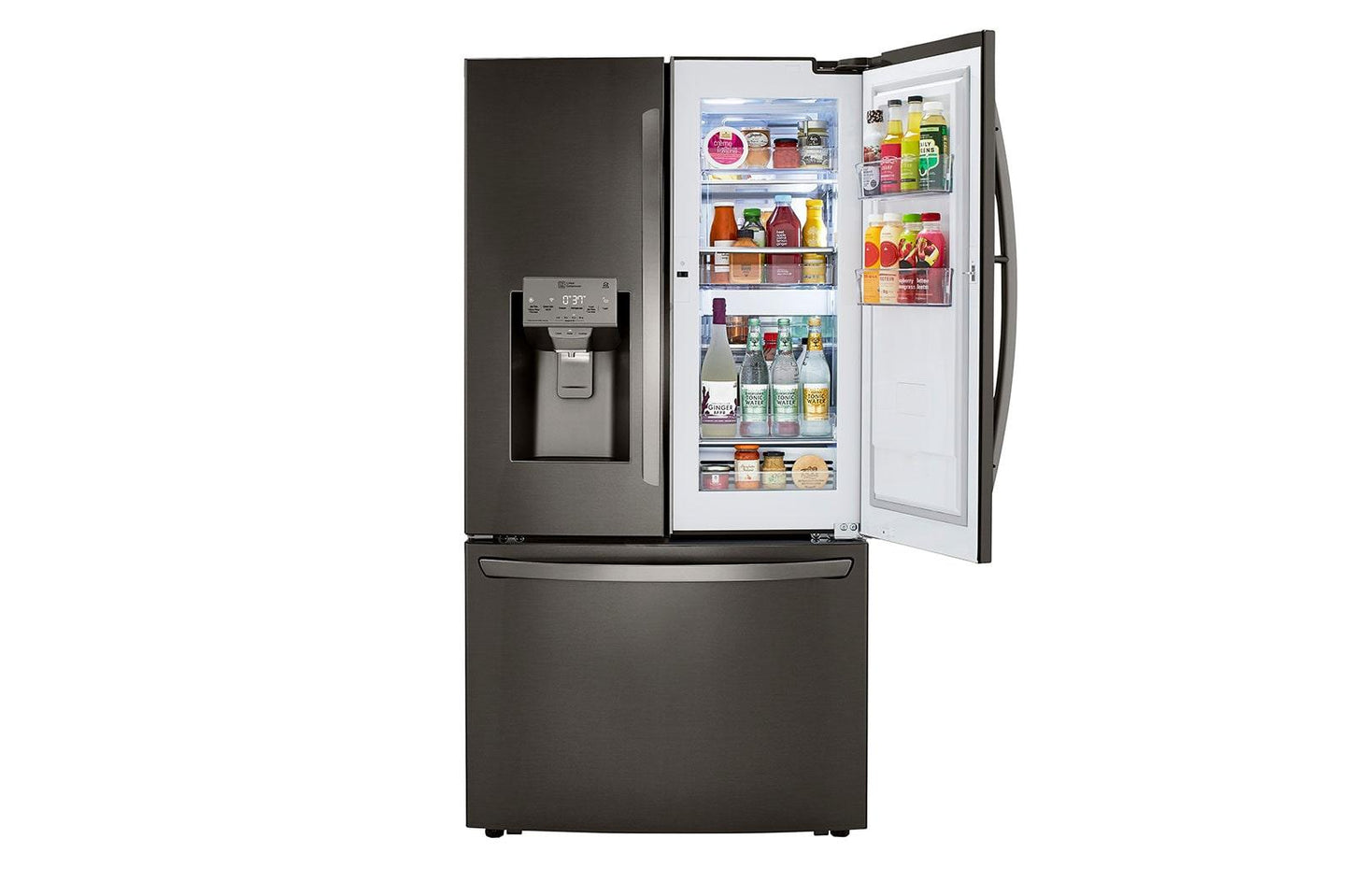

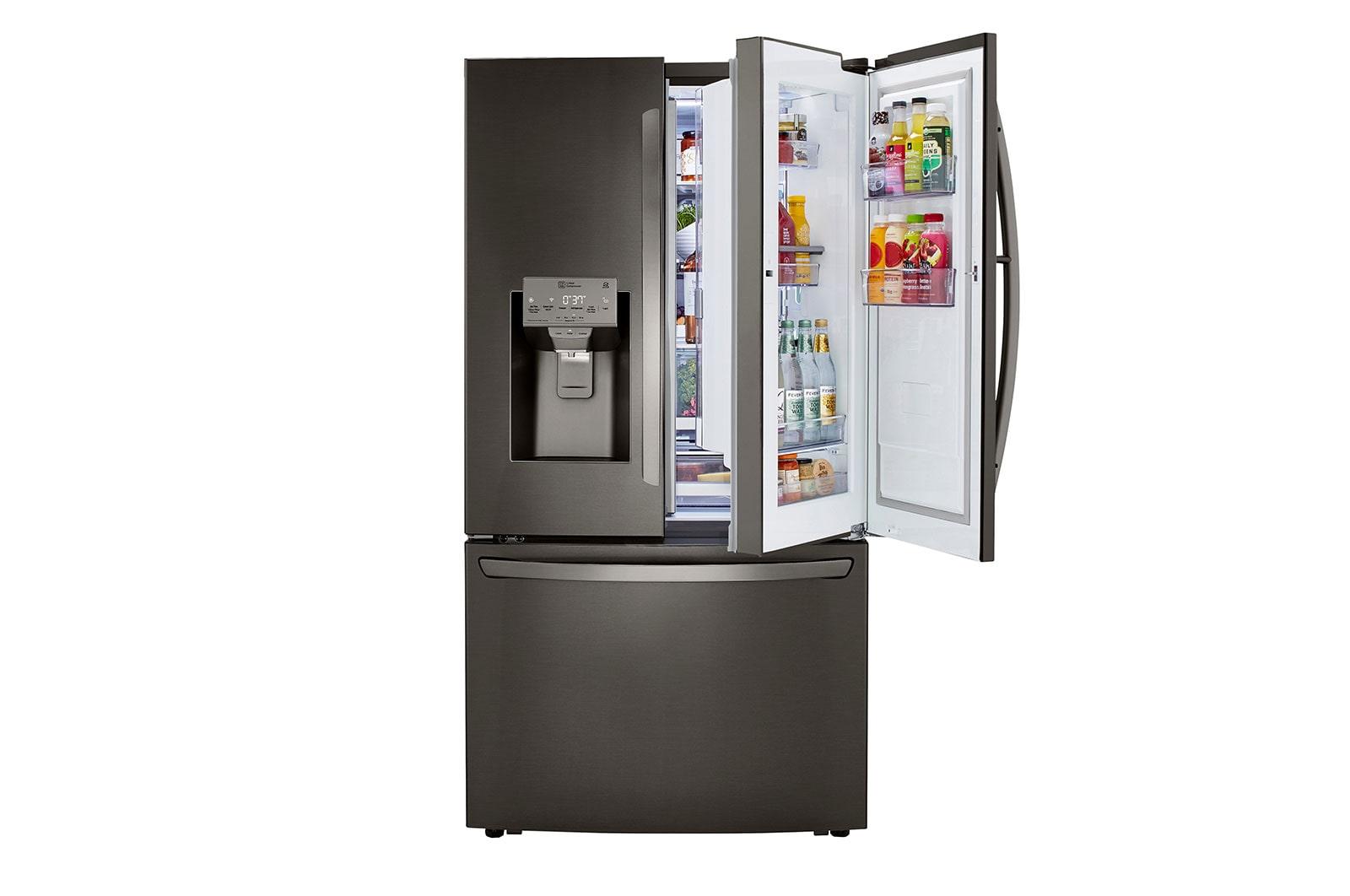

Reach Favorites Fast and Fit More

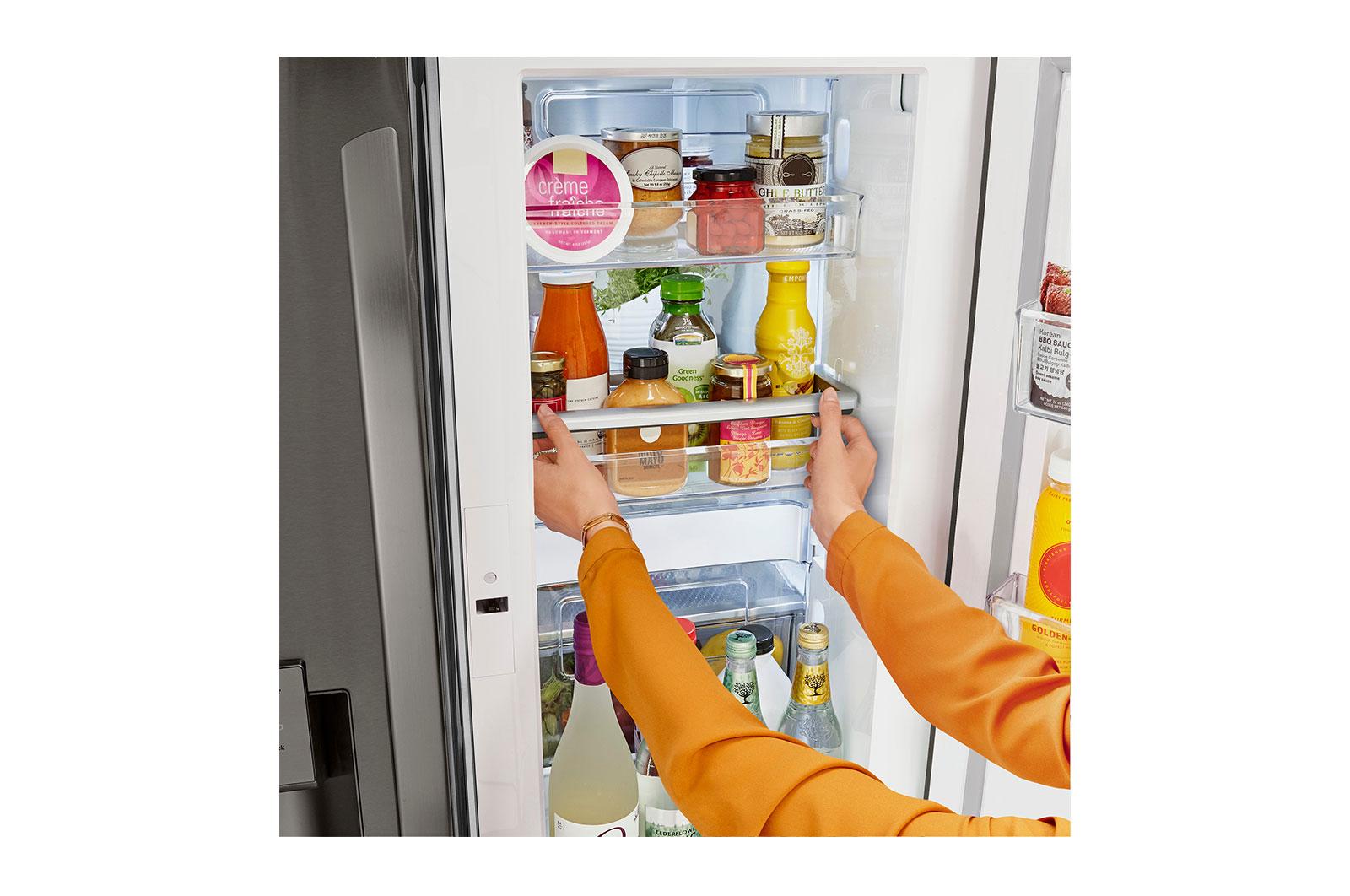

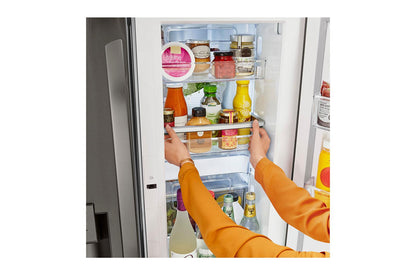

Offering quick and easy access to favorite foods, the popular Door-in-Door® design gets even better with adjustable bins that smoothly glide up and down to fit snacks and drinks of all sizes.
Cool Guard
metal interior panel wall helps maintain cold air while adding a premium look.

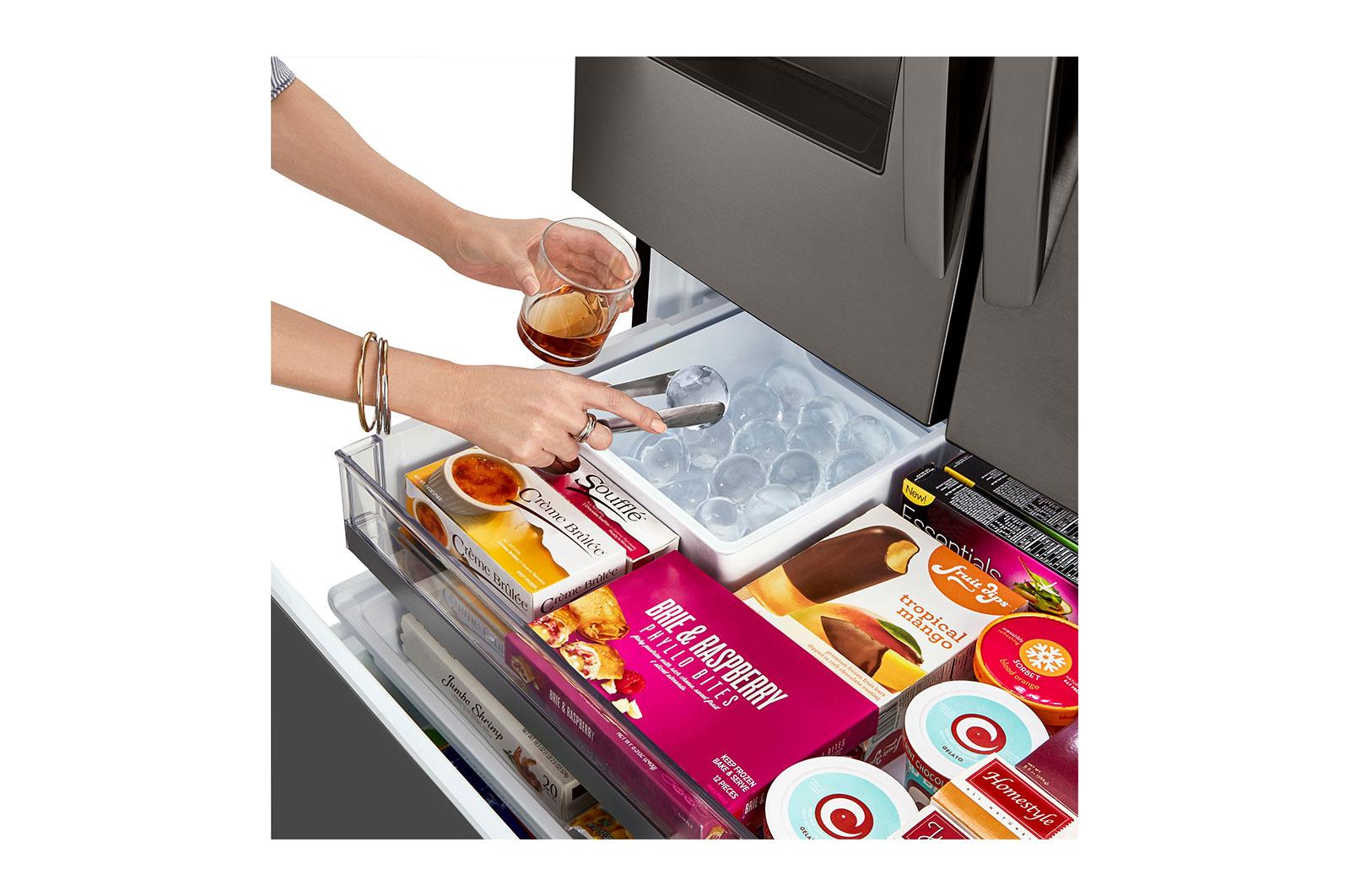

Dual Ice Maker with Craft Ice™
LG's exclusive Craft Ice™ slow melting round ice maker automatically makes batches of three ice spheres per day without the work of time consuming molds. Give your beverages the perfect ice for next level entertaining, from craft cocktails & whiskey to soft drinks, lemonade, even iced coffee. To get even more Craft Ice™, activate Craft Ice+ in the ThinQ® App to make slow-melting ice twice as fast.
One Size Fills All
Finally, an ice & water dispenser that can accommodate just about any bottle size. With the convenient Measured Fill feature, you can also dispense exact amounts of filtered water in ounces (4,8,16, or 32).
Most shelf space*
Ice makers are great, but not if it means you can't fit all of your food in the fridge. The Slim SpacePlus® Ice System provides more shelf space and allows even more space for door bins.
Smart Learner Intuitive Performance
Part of the ThinQ® app, Smart Learner analyzes habits to anticipate temperature, ice & energy needs.
Measure First, Order Right.
Nothing is more frustrating than an appliance that doesn't fit. We'll help you find the right one for your space.
Life's better when your home runs smart
Discover ThinQ Care within the ThinQ app -- proactive smart alerts to keep your appliances running smoothly. Get notifications about usage, maintenance, plus early diagnosis right on your smartphone.
CAPACITY | |
Freezer (cu.ft.) | 10.4 cu.ft. |
Refrigerator (cu.ft.) | 19.3 cu.ft. |
Total Capacity (cu.ft.) | 29.7 cu.ft. |
CONVENIENCE | |
ADA Compliant | Yes |
Auto Closing Door Hinge | Yes |
Child Lock | Yes |
Display Type | Smooth Touch Control / White LED |
Door Alarm | Yes |
LoDecibel™ Quiet Operation | Yes |
Sabbath Mode | Yes |
Temperature Controls | Electronic/Digital |
COOLING | |
Door Cooling+ | Yes |
Evaporator | 2 |
Fresh Air Filter | Yes |
Linear Compressor | Yes |
Multi-Air Flow™ System | Yes |
Smart Cooling Plus™ System | Yes |
Temperature Sensors | 9 |
DIMENSIONS/CLEARANCES/WEIGHTS | |
Carton Dimensions (WxHxD) | 38" x 73" x 39" |
Depth (Total with Door Open) | 48.5" |
Depth with Handles | 36.63" |
Depth without Door | 29.88" |
Depth without Handles | 34.13" |
Door Edge Clearance with Handle | 4.25" |
Door Edge Clearance without Handle | 2.13" |
Height to Top of Case | 68.88" |
Height to Top of Door Hinge | 70.25" |
Installation Clearance | Sides 1/8 |
Weight (Unit/Carton) | 331 lbs./ 354 lbs. |
Width | 35.75" |
Width (Door Open 90 with Handle) | 45.38" |
Width (Door Open 90 without Handle) | 40" |
ENERGY | |
Energy Consumption (kWh/Year) | 749 |
ENERGY STAR® Qualified | Yes |

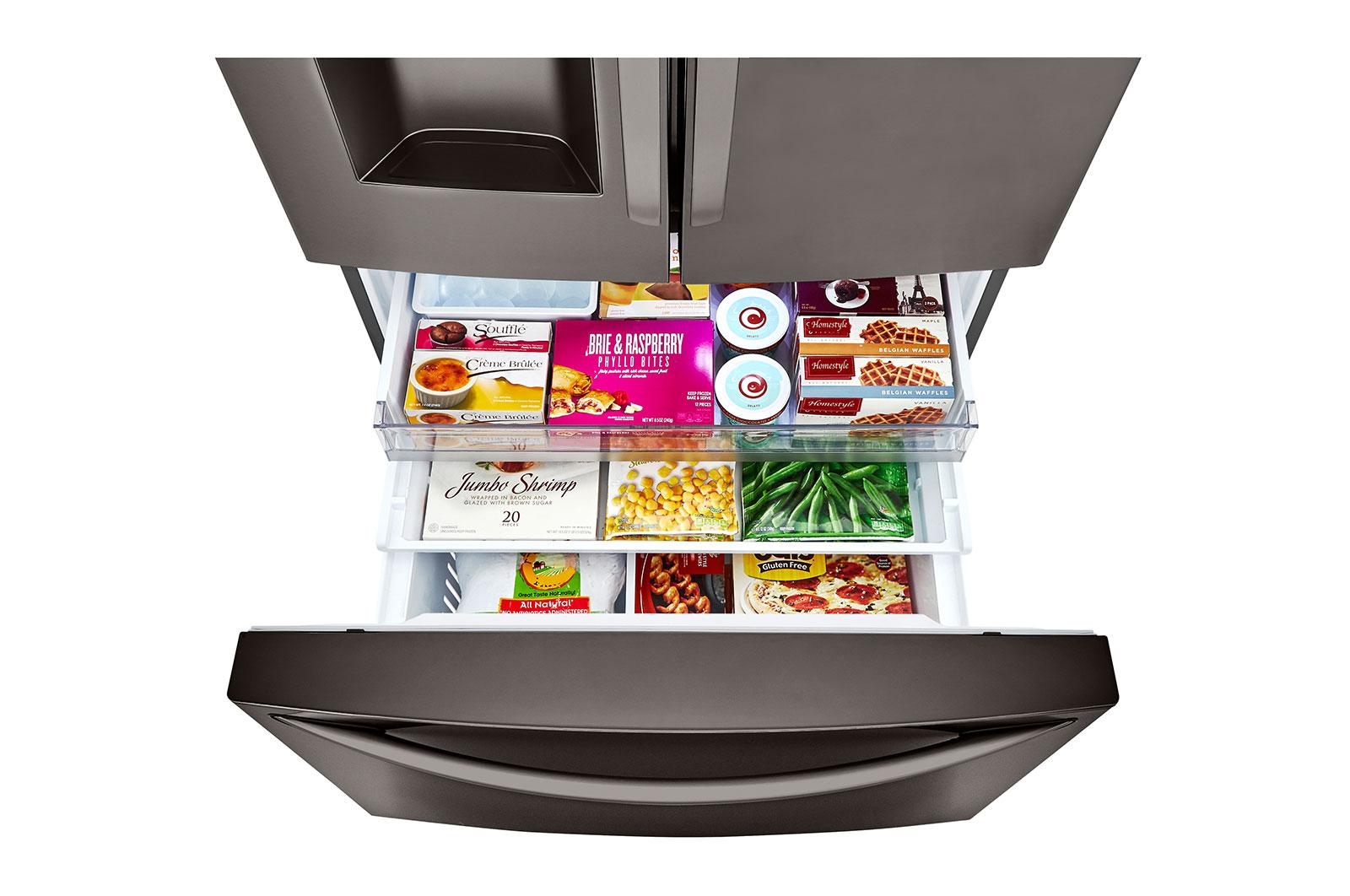

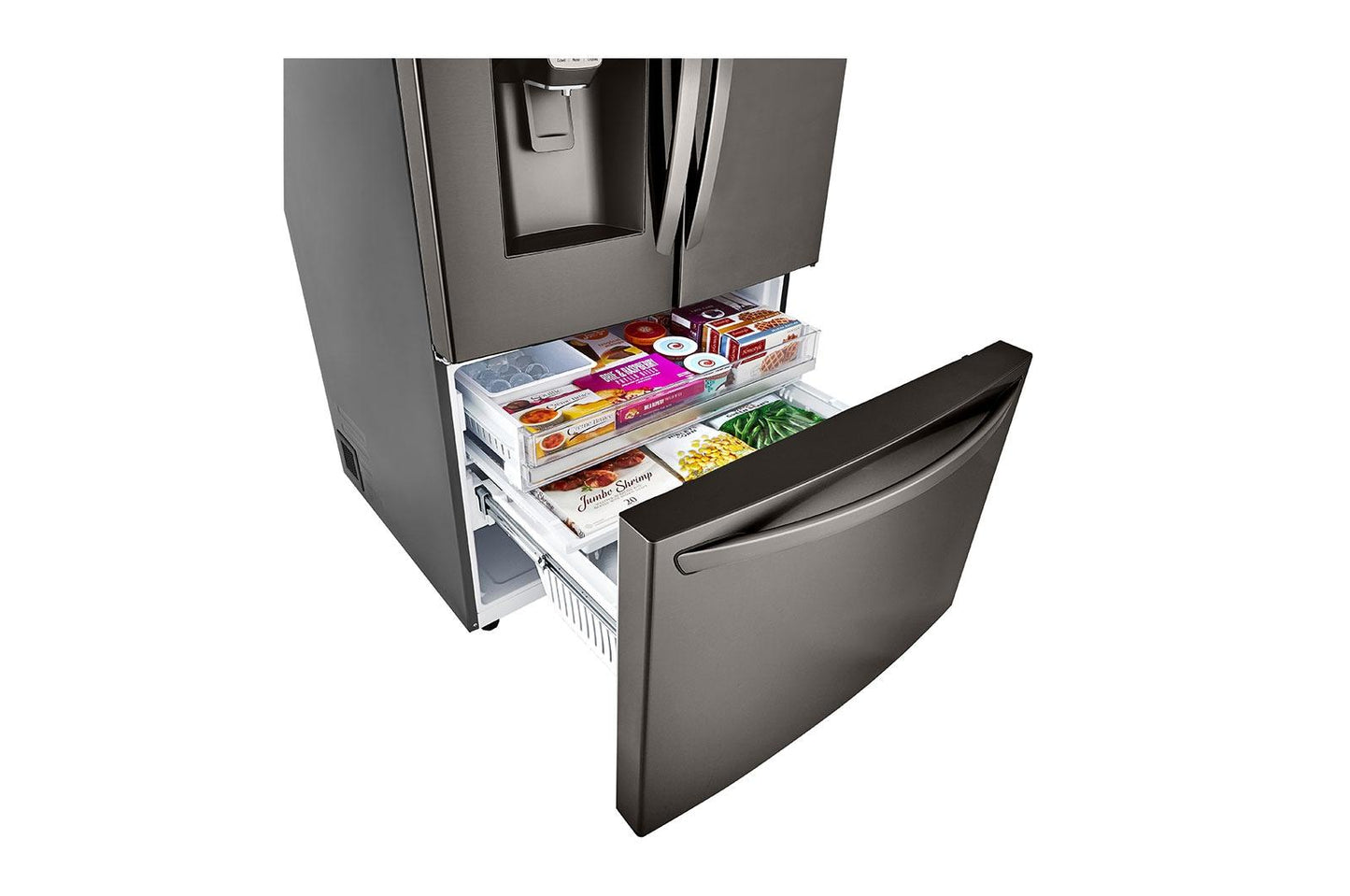

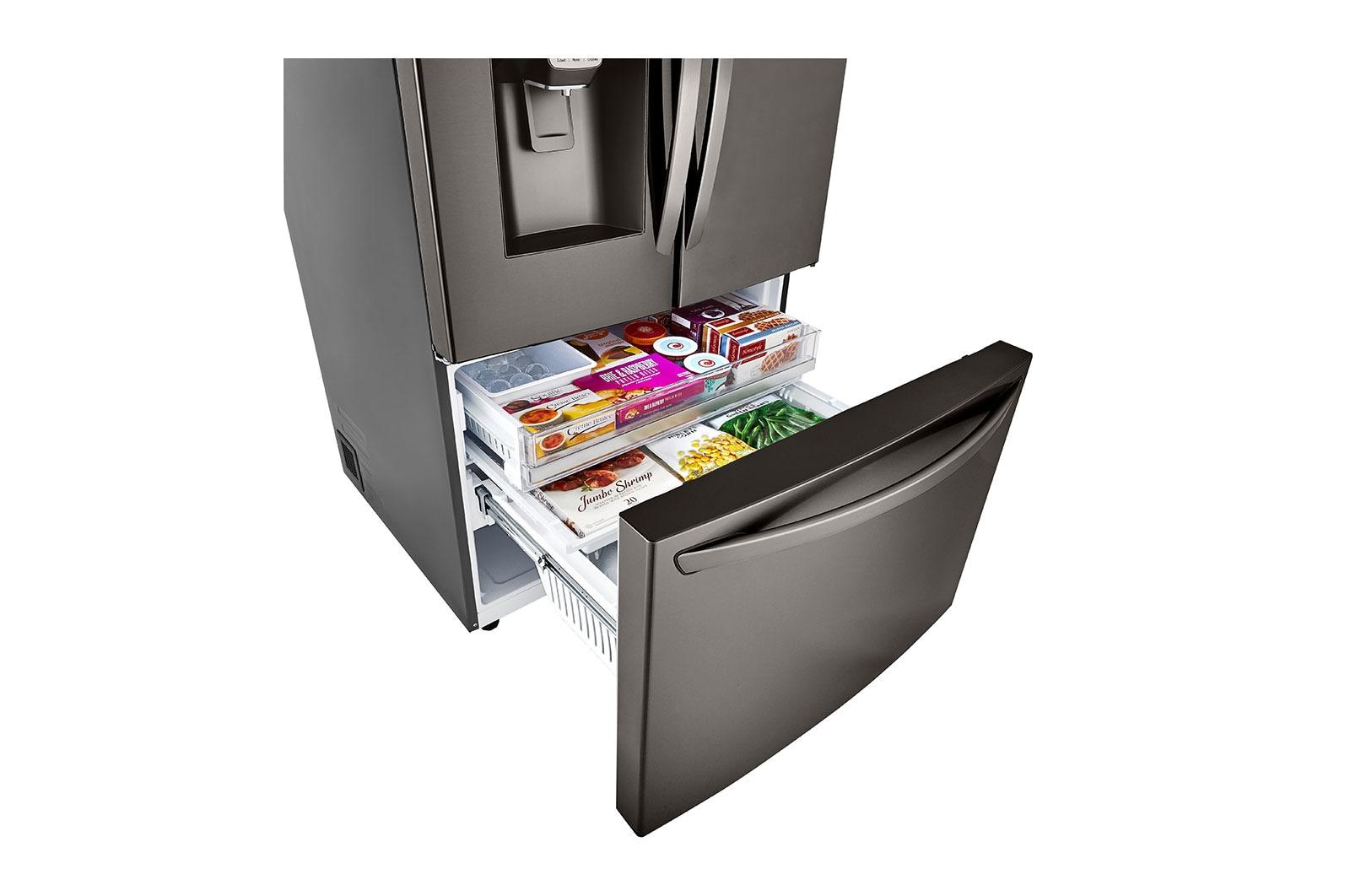

FREEZER | |
Door Type | Pull Drawer |
Drawer Divider | Yes |
Drawers | 3-Tier Organization |
DuraBase™ Solid Drawer Base | Yes |
Freezer Handle | SmartPull™ Handle |
Freezer Light | Premium LED |
Ice Bin / In-Door Ice | Icemaker & Ice bin in the freezer |
LIMITED WARRANTY | |
Compressor (Parts & Labor) | 5 Years |
Linear Compressor (Parts Only) | 6-10 Years |
Parts & Labor | 1 Year |
Sealed System (Parts & Labor) | 5 Years |
UPC | 048231807302 |
MATERIALS AND FINISHES | |
All Available Colors | PrintProof™ Stainless Steel PrintProof™ Black Stainless Steel |
Contour Door | Yes |
Fingerprint & Smudge Resistant Exterior | Yes |
Handles | Matching Commercial Handles |
Hidden Hinges | Yes |
Surface | Smooth |

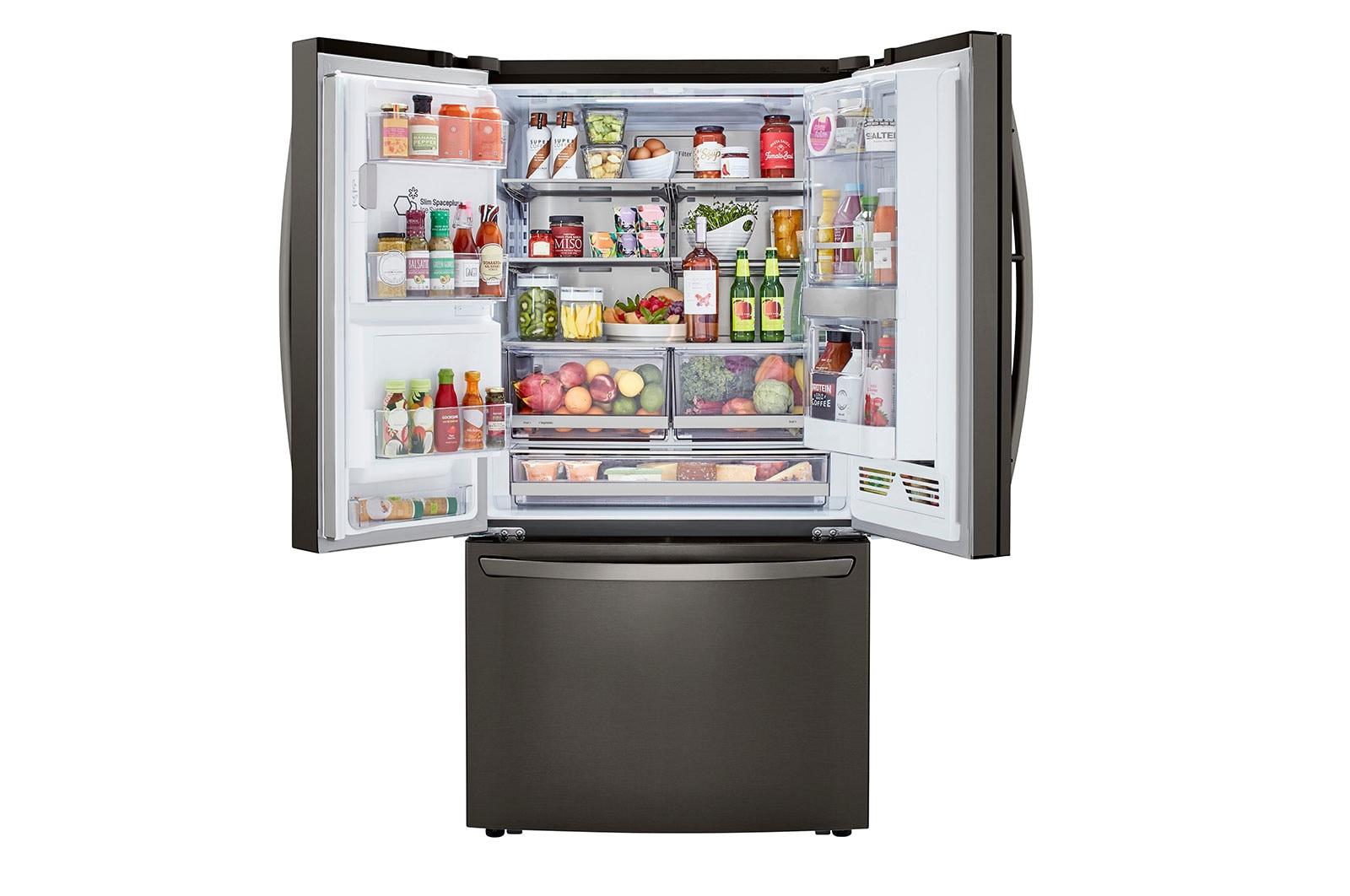

REFRIGERATOR | |
Adjustable Door-in-Door® Bins | Yes |
Cantilevered Shelves | Yes |
Cool Guard | Yes |
Crisper Bins | 2 Humidity Crisper |
Door Bin Construction | 1 Piece (Clear) |
Door-In-Door® with ColdSaver™ Panel | Yes |
Folding Shelf | 1 |
Glide N' Serve™ Drawer | Yes |
No. of Bins | 10 |
No. of Shelves | 4 Split (3 Fixed + 1 Folding) |
Refrigerator Light | Micro Surface LED |
Shelf Construction | Spill Protector™ Tempered Glass |
Temperature Control Pantry | Yes |
SUMMARY | |
Series | LG |
REFRIGERATOR THINQ® SMART FEATURES | |
SmartDiagnosis™ | Yes |
ThinQ® Smart Technology | Yes |
wi-fi Enabled | Yes |
Works with | Amazon Alexa, Google Assistant |
TYPE | |
Type | French Door |
WATER & ICE SYSTEM | |
Craft Ice™ Daily Ice Production | 0.4 lbs |
Daily Ice Production (lbs) | 3.5 lbs |
Dispenser Light | Yes |
Dispenser Type | Global Dispenser |
Dual Ice | Yes |
Ice & Water Dispenser | Yes |
Ice Storage Capacity (lbs) | 3.0 + 3.6 lbs (Craft Ice 27 Sets) |
Ice System | Slim SpacePlus® |
IcePlus™ Production (lbs) | 3.8 lbs |
Measured Fill | Yes |
Water Filter | LT1000P |
