- 26 cu. ft. Counter-Depth Instaview French Door Refrigerator with exterior water dispenser and Craft Ice

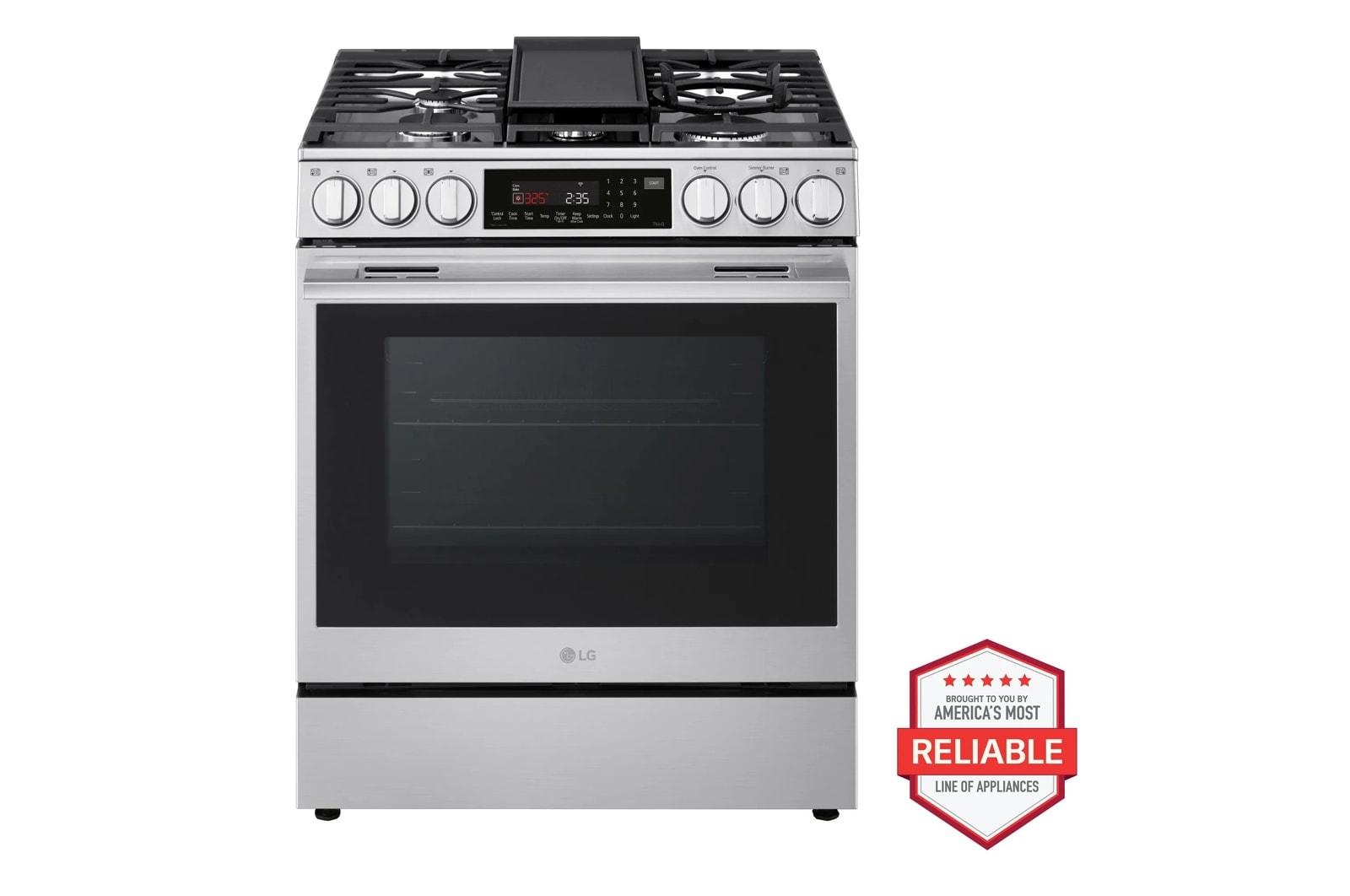

- 6.3 cu ft. Smart Gas Slide-In Range with InstaView®, ProBake Convection®, and Air Fry

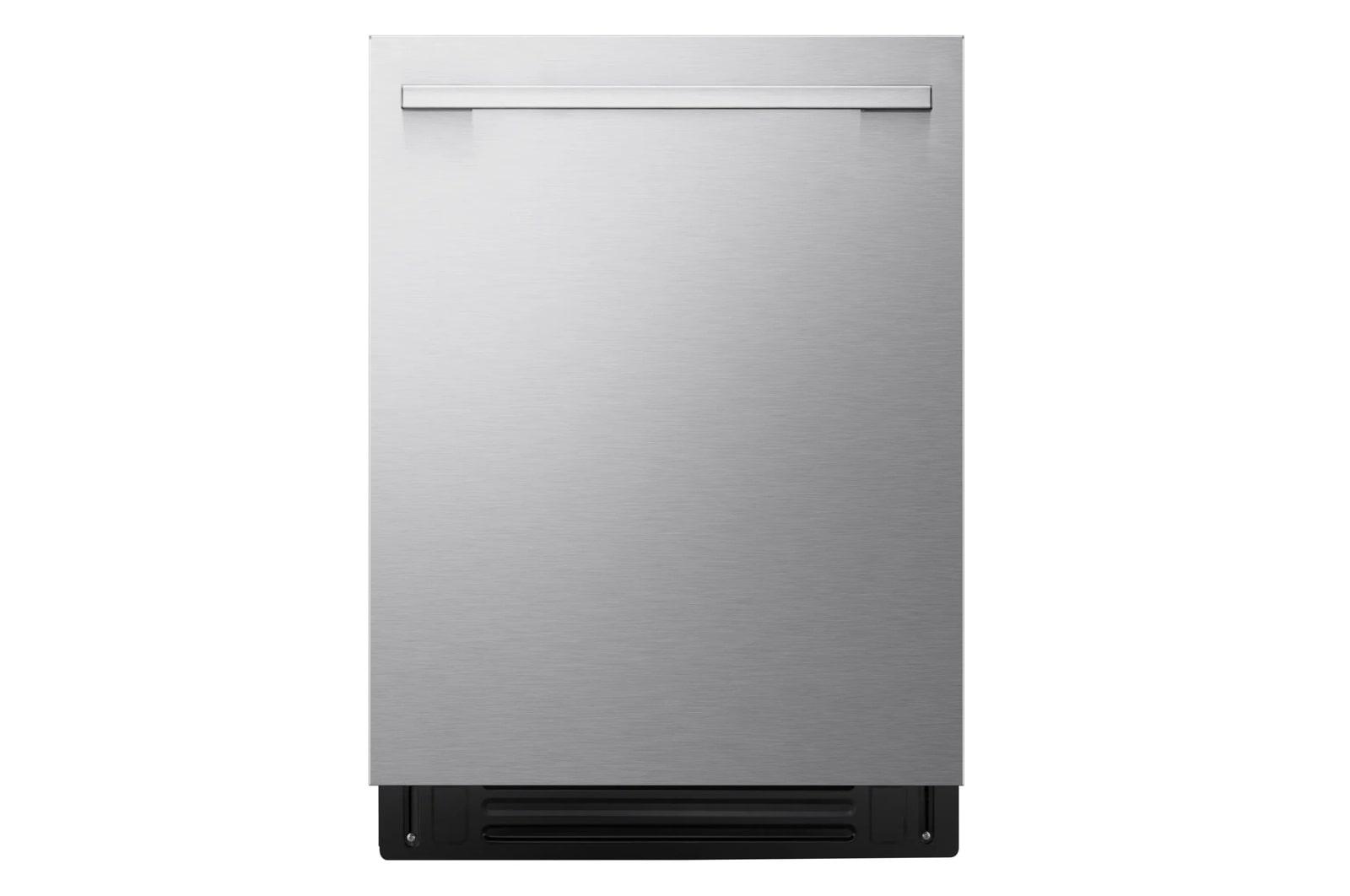

- 42 dBA Smart FlushFit™ Top Control Dishwasher with 1-Hour Wash & Dry, QuadWash® Pro, TrueSteam® and Dynamic Heat Dry™ w/AutoVent Dry™

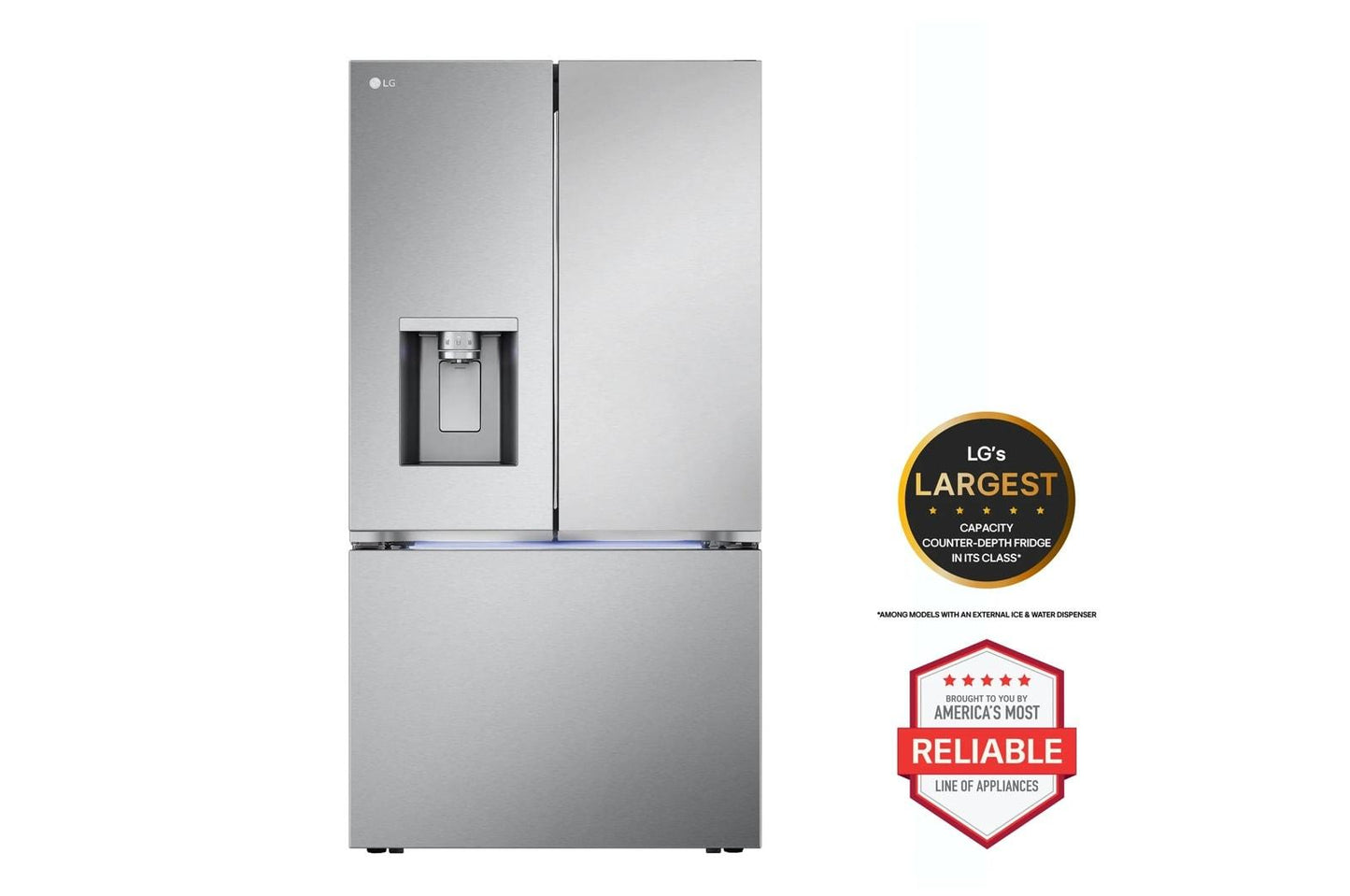

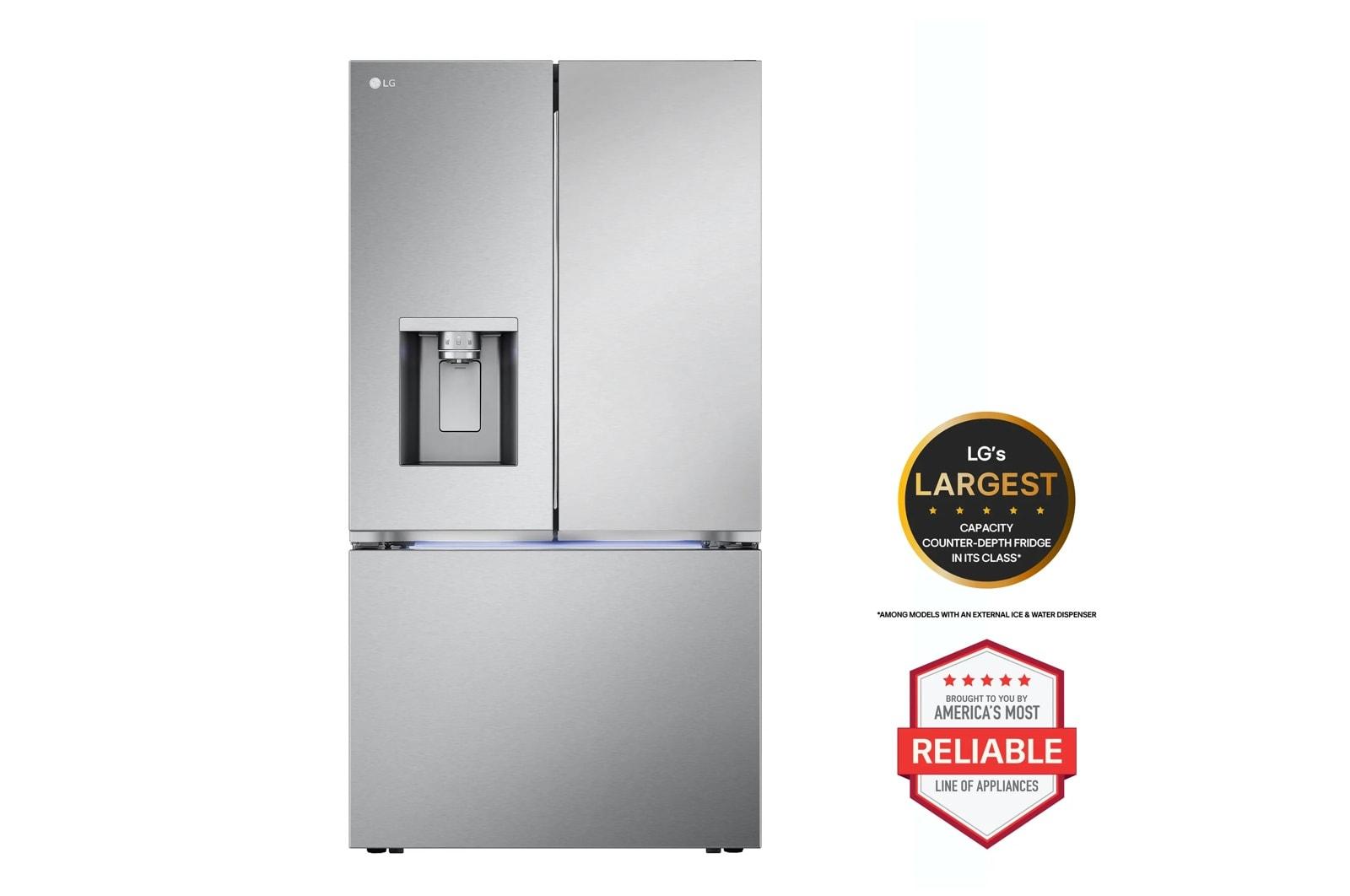

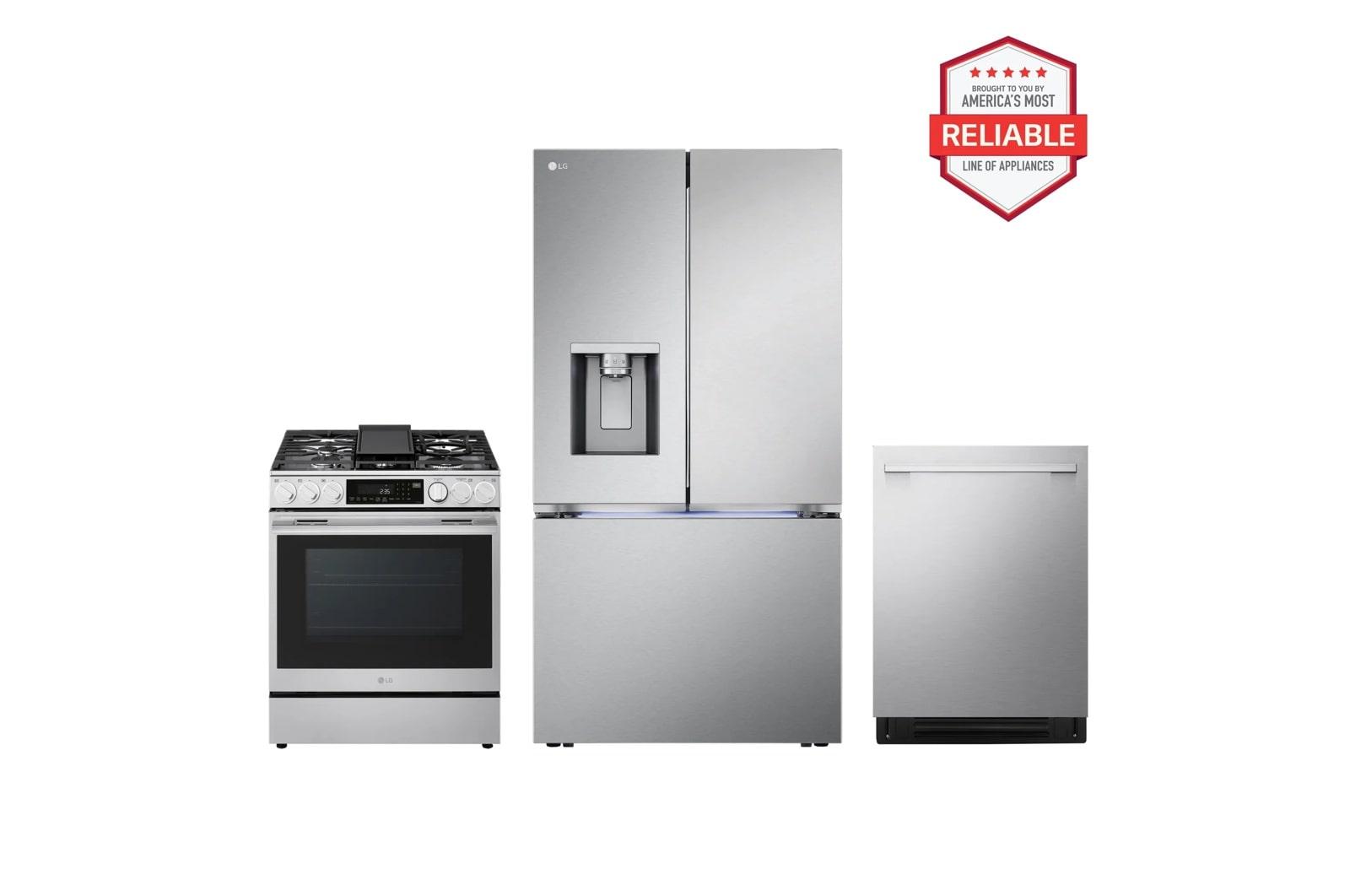

26 cu. ft. Smart Counter-Depth MAX™ Four Types of Ice French Door Refrigerator with Slide-in Gas Range and Top Control Dishwasher Kitchen Package in Stainless Steel
| Capacity | |
| Freezer (cu.ft.) | 8.6 cu.ft. |
| Refrigerator (cu.ft.) | 16.9 cu.ft. |
| Total Capacity (cu.ft.) | 25.5 cu.ft. |
| Convenience | |
| ADA Compliant | Yes |
| Auto Closing Door Hinge | Yes |
| Child Lock | Yes |
| Door Alarm | Yes |
| Sabbath Mode | Yes |
| Temperature Controls | Electronic/Digital |
| Cooling | |
| Compressor Type | Smart Inverter |
| Evaporator | Yes (1) |
| Multi-Air Flow™ System | Yes |
| Temperature Sensors | 3 |
| Dimensions/Clearances/Weights | |
| Carton Dimensions (WxHxD) | 38" x 72" x 31" |
| Counter Depth | Yes |
| Depth (Draw Open Fully without Handle) | 48.88" |
| Depth (to Hinge Cover) | 18.25" |
| Depth (Total with Door Open) | 43.63" |
| Depth with Handles | 29.12" |
| Depth without Door | 24.75" |
| Depth without Handles | 29.13" |
| Dimensions (W case x H top of hinge x D with handles) | 35 3/4" x 70 1/4" x 29 1/8" |
| Height to Top of Case | 68.88" |
| Height to Top of Door Hinge | 70.25" |
| Installation Clearance | Sides 1/8 |
| Standard Depth | No |
| Weight (Unit/Carton) | 291 lbs. / 313 lbs. |
| Width | 35.75" |
| Width (Door Fully Open without Handle) | 56.75" |
| Width (Door Open 90 with Handle) | 44.88" |
| Width (Door Open 90 without Handle) | 40" |
| Energy | |
| Energy Consumption (kWh/Year) | 699 |
| ENERGY STAR Qualified | Yes |
| Freezer | |
| Door Type | Pull Drawer |
| Drawers | 3-Tier Organization |
| Freezer Handle | Pocket Handle |
| Freezer Light | Upper (LED Lighting) / Lower (No) |
| Limited Warranty & UPC | |
| Compressor (Parts & Labor) | 5 Years |
| Parts & Labor | 1 Year |
| Sealed System (Parts & Labor) | 5 Years |
| UPC | 195174037690 |
| Materials and Finishes | |
| All Available Colors | PrintProof™ Stainless Steel ,PrintProof™ Stainless Steel,PrintProof™ Black Stainless Steel, PrintProof™ Matte Black Stainless Steel |
| Hidden Hinges | Yes |
| Refrigerator | |
| Cool Guard | Yes |
| Crisper Bins | 2 |
| No. of Shelves | 4 split (3 Fixed + 1 Retractable) |
| Refrigerator Light | Yes |
| Shelf Construction | Spill Protector™ Tempered Glass |
| Summary | |
| Display Type | Smooth Touch Control / White LED |
| Refrigerator ThinQ® Smart Features | |
| SmartDiagnosis™ | Yes |
| ThinQ® Smart Technology | Yes |
| Wi-Fi Enabled | Yes |
| ThinQ UP™ | Yes |
| Water & Ice System | |
| Dispenser Light | Yes |
| Dual Ice with Craft Ice™ | Yes |
| Ice & Water Dispenser | Yes |
| Ice Storage Capacity (lbs) | 3.0 lbs |
| Water Filter | LT1000P |
| Water Filtration System | 1 Stage |
| Capacity | |
| Lower Rack Dish Height Limit | 12.5" |
| Total Place Settings | 16 |
| Upper Rack Dish Height Limit | 7.1" |
| Dimensions/Clearances/Weight | |
| Carton Dimensions (in) (W x H x D) | 28 1/32" x 29 1/4" x 34 7/8" |
| Clearances (WxHxD) | 24" x 33 5/8" x 24" |
| Depth with Door Closed with Handle (in) | 23.75" |
| Depth with Door Open (in) | 48.5" |
| Product Dimensions (in) (W x H x D) | 23 3/4" x 33 5/8" x 23 3/4" |
| Product Weight (lbs) | 86 lbs |
| Features | |
| QuadWash® Pro | Yes |
| ADA Compliant | No |
| Anti-Bacterial Treatment (Drain hose) | Yes |
| Balanced Door | Yes |
| Detergent and Rinse-Aid Dispenser | Yes |
| Drying System | Dynamic Heat Dry with AOD |
| End of Cycle Indicator | Yes (Beeper + END indication on display) |
| Hidden Water Heater | Yes |
| LoDecibel™ Quiet Operation | 42 dBA |
| Number of Options | 6 (Steam, High Temp, Dry Boost, AOD, Delay Start - Up to 12hrs, Remote) |
| Number of Spray Arms | 3 (Top, Upper, Lower) |
| Number of Wash Cycles | 5 (Auto, Heavy, Normal, 1-hour, Download Cycle) |
| Safety Float Switch (Leaks) | Yes |
| SenseClean™ Wash System | Yes |
| Soil (Turbidity) Sensor | Yes |
| Time Remaining Indicator | Yes |
| TrueSteam® | Yes |
| Tub Insulation (Damping Sheet, Sound Absorbing Material (felt), Base) | Yes |
| Vario Wash | Yes |
| Limited Warranty | |
| Control Board and Rack Parts | Control Board and Rack Parts 2 Years Stainless Tub and Door Liner 2 Years |
| Direct Drive Motor | 10 Years |
| Labor | 1 Year |
| Parts | 1 Year |
| UPC | 048231348164 |
| Power Ratings | |
| ENERGY STAR® Qualified | Yes |
| Energy Use (kWh/Year) | 220 kWh/Year |
| Racks and Baskets | |
| BPA-Free Nylon Coated Racks and Tines | Yes |
| Cup Rack | Yes |
| Cutlery Baskets | Yes |
| Fold Down Tines | Upper: All Foldable Lower: Half Smart FD & Half Normal FD |
| Rack Handle | Yes |
| Style and Design | |
| All Available Colors | Print Proof Stainless Steel, Black Stainless Steel |
| Control Panel Location | Top Control |
| Handle | Bar Handle |
| Tub Light | Yes |
| Tub Material | Stainless Steel |
| Dishwasher ThinQ® Smart Features | |
| ThinQ Care™ | Yes |
| SmartDiagnosis™ | Yes |
| Wi-Fi Enabled | Yes |
