- Stay cool or warm as needed with this 10,000 BTU Cooling /11,200 BTU Heating Air Conditioner
- Stay comfortable with this LG Air Conditioner that cools up to 450 square feet
- Trim Kit included to help you set up with ease

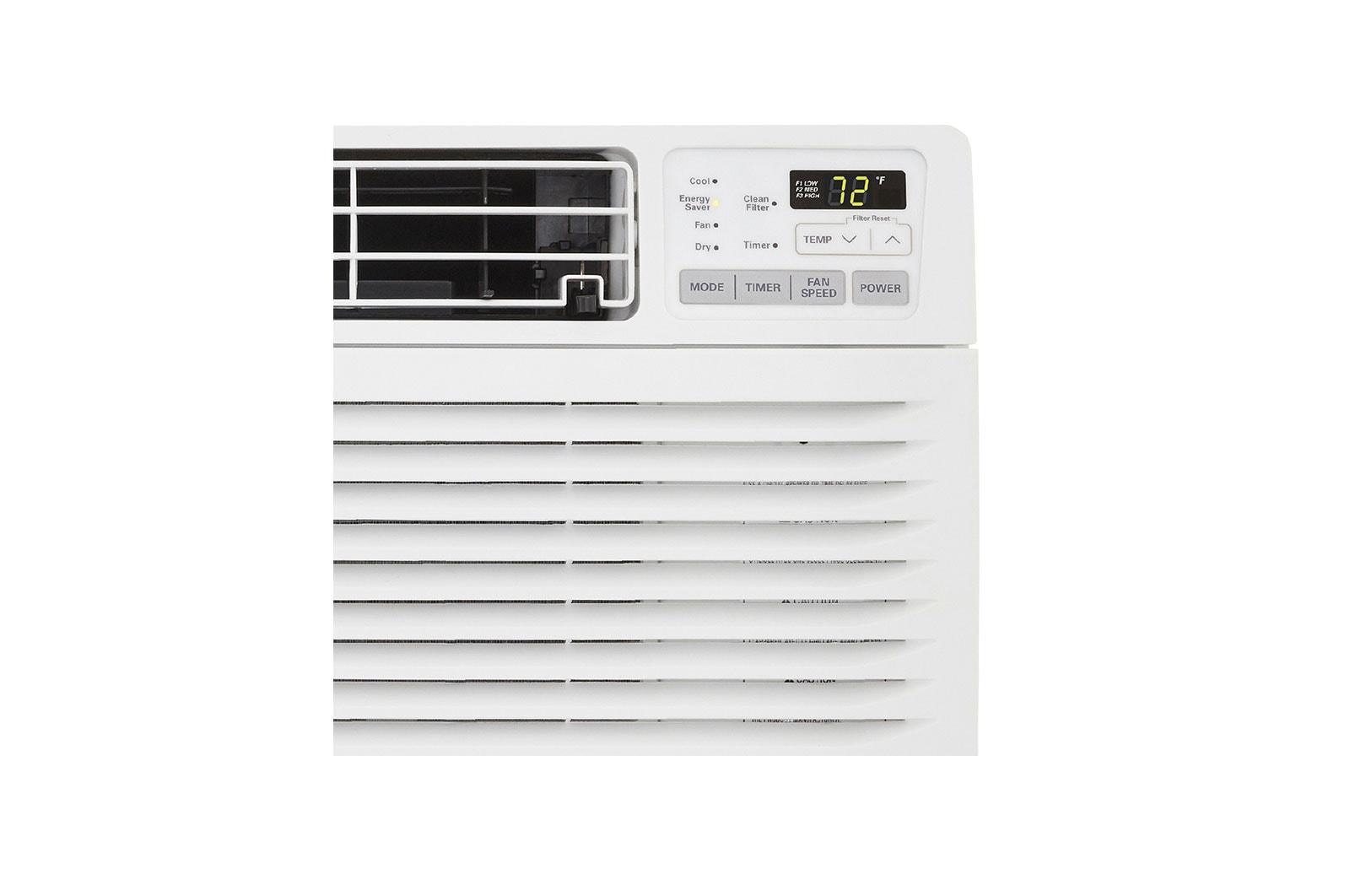

- Make temperature adjustments and fan speed selection on the easy to use control panel or remote
- Reduce power consumption with the Energy Saver Function
- Choose between high and low speeds for cooling, heating and fan mode

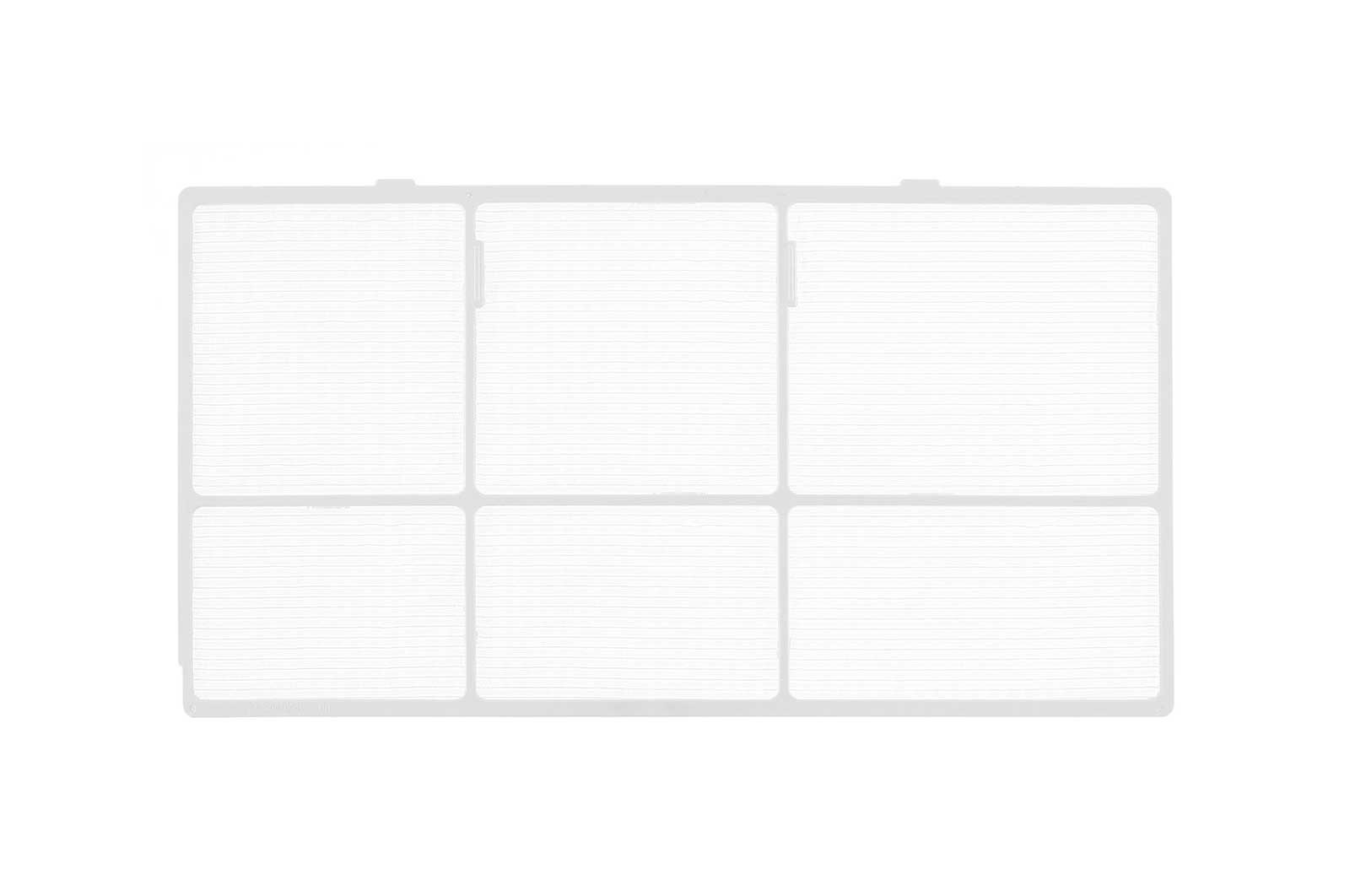

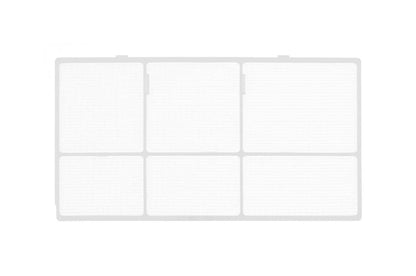

- The Clean Filter Alert lets you know when it's time to clean. Simply remove the filter to wash
- 208 /230 Voltage allows for efficient cooling

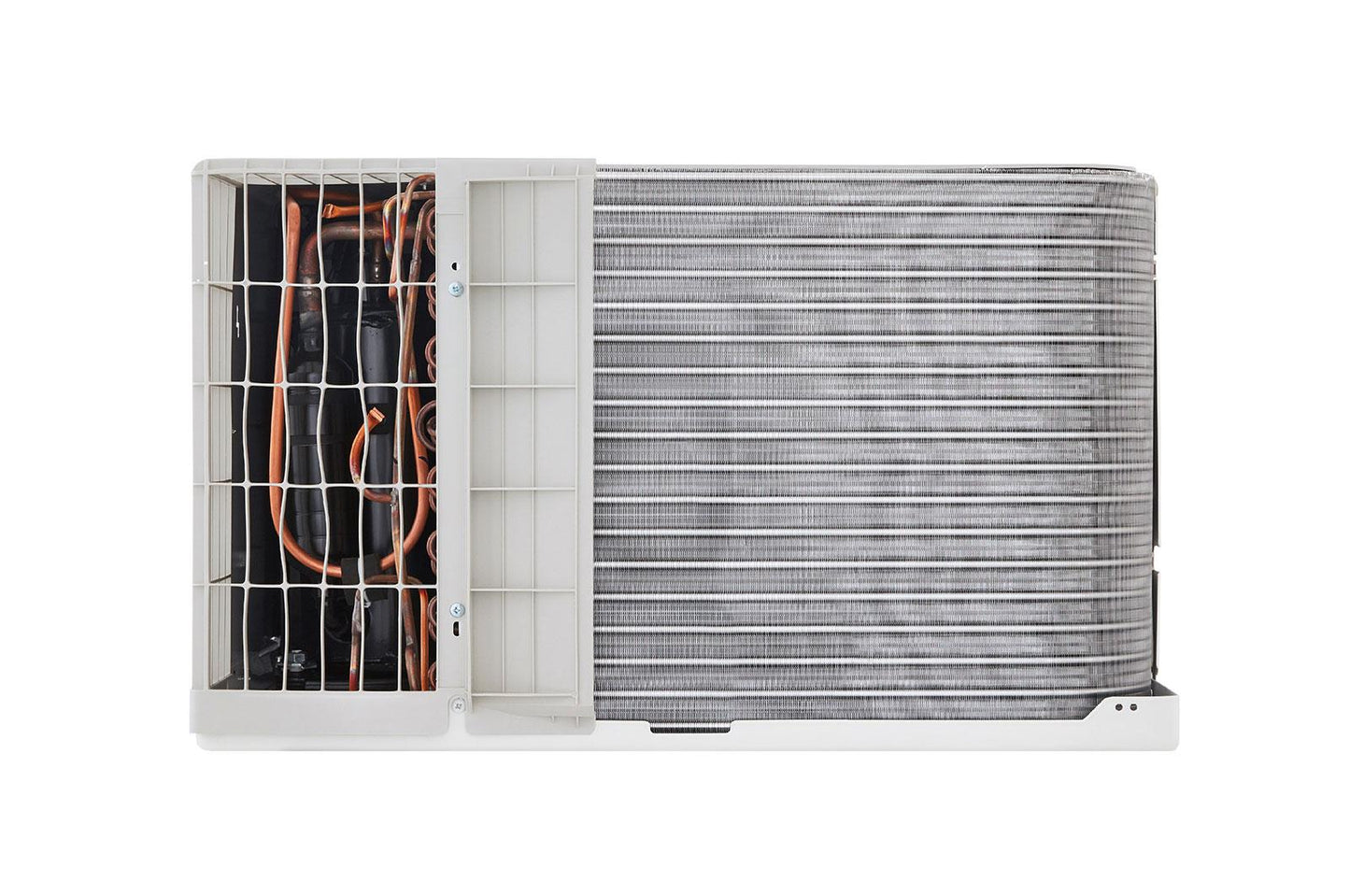

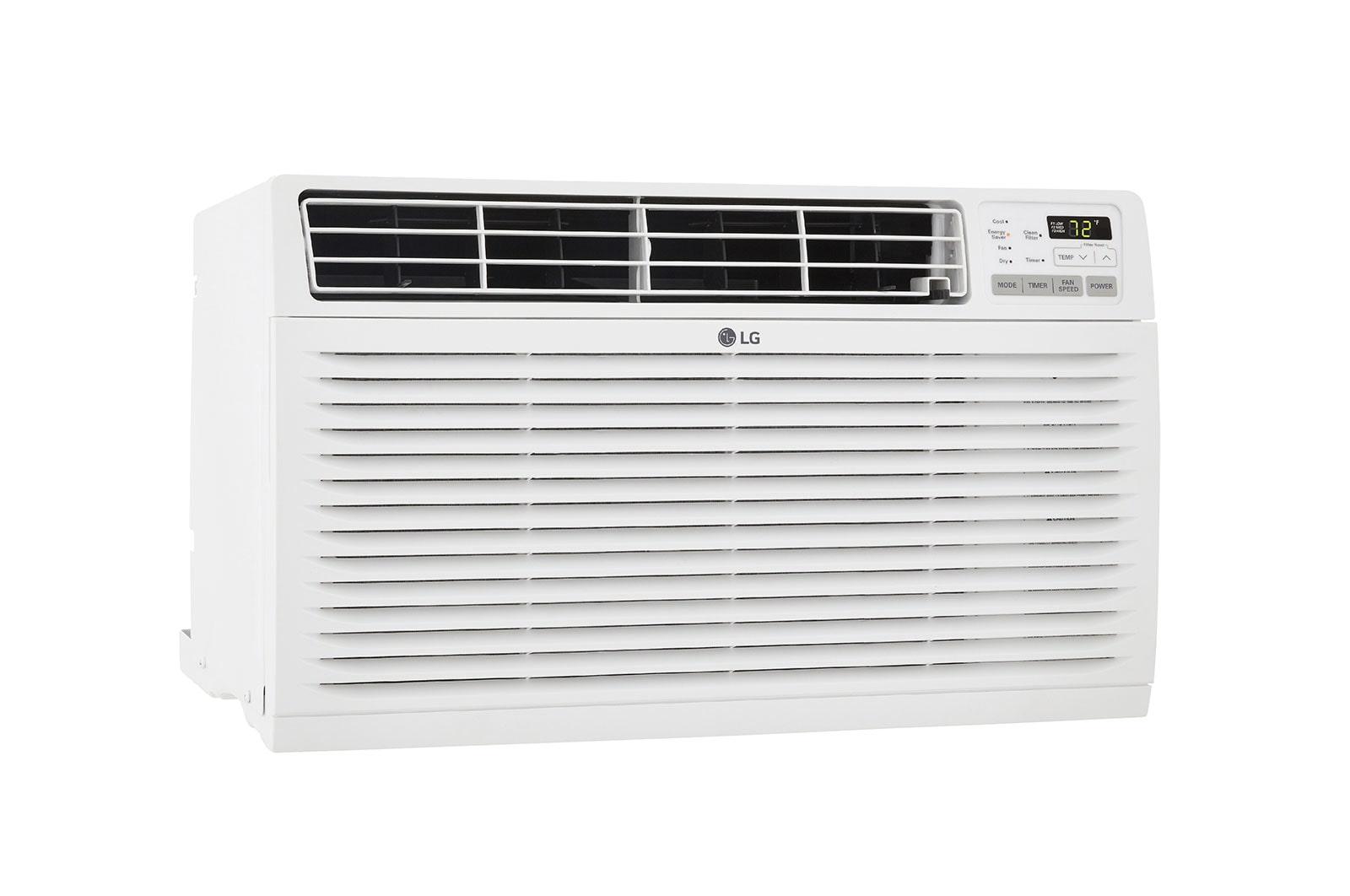

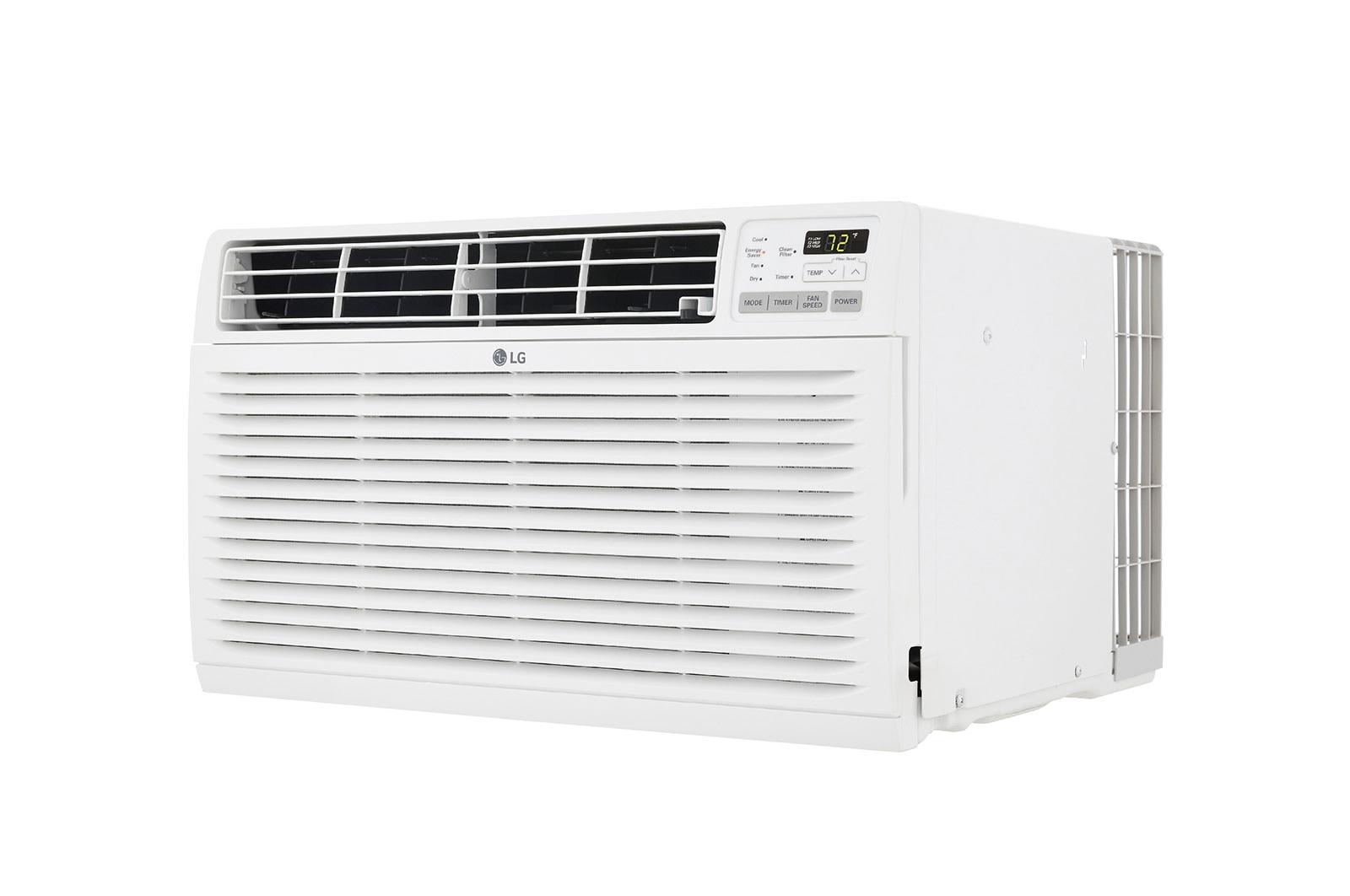

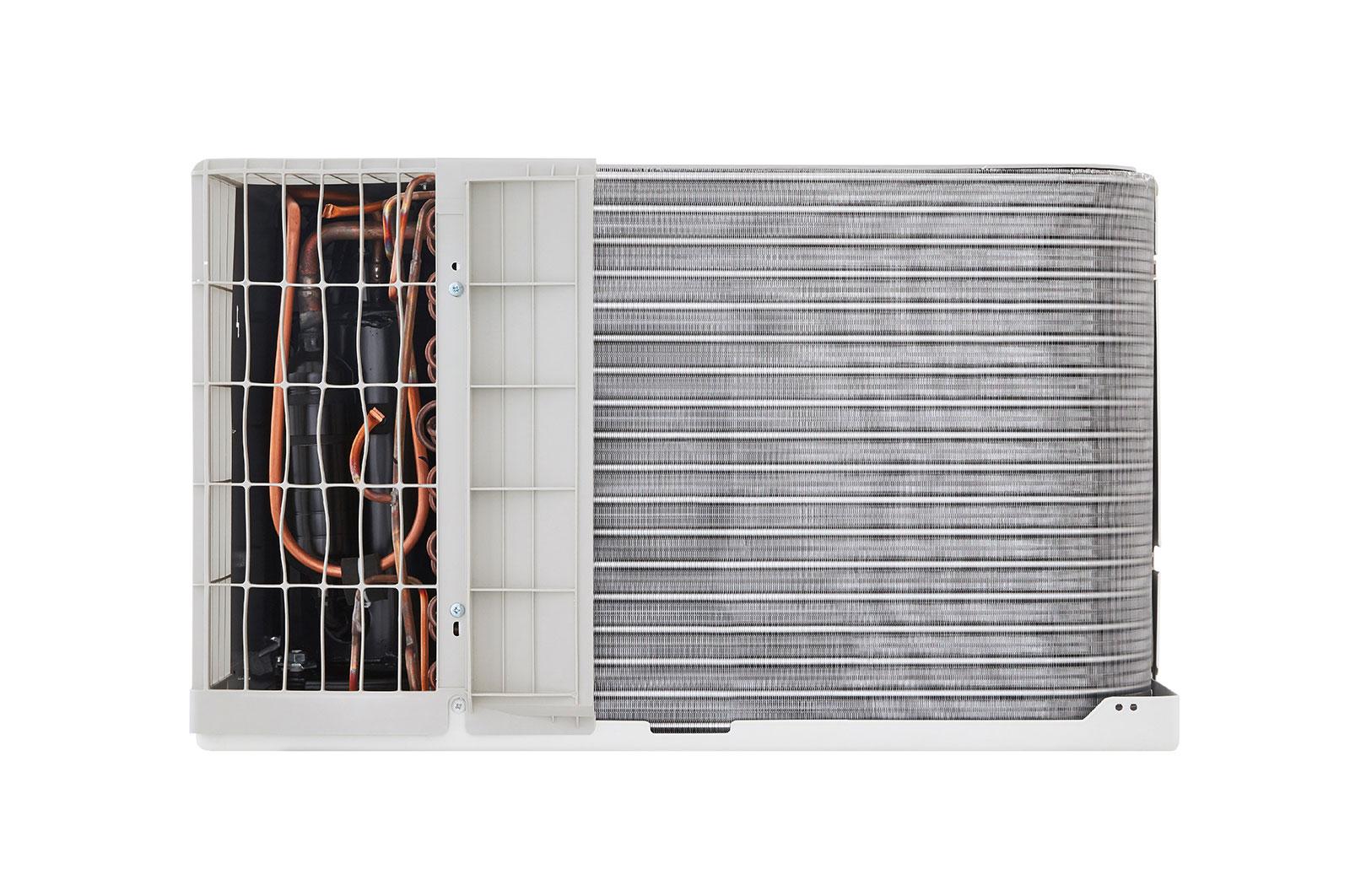

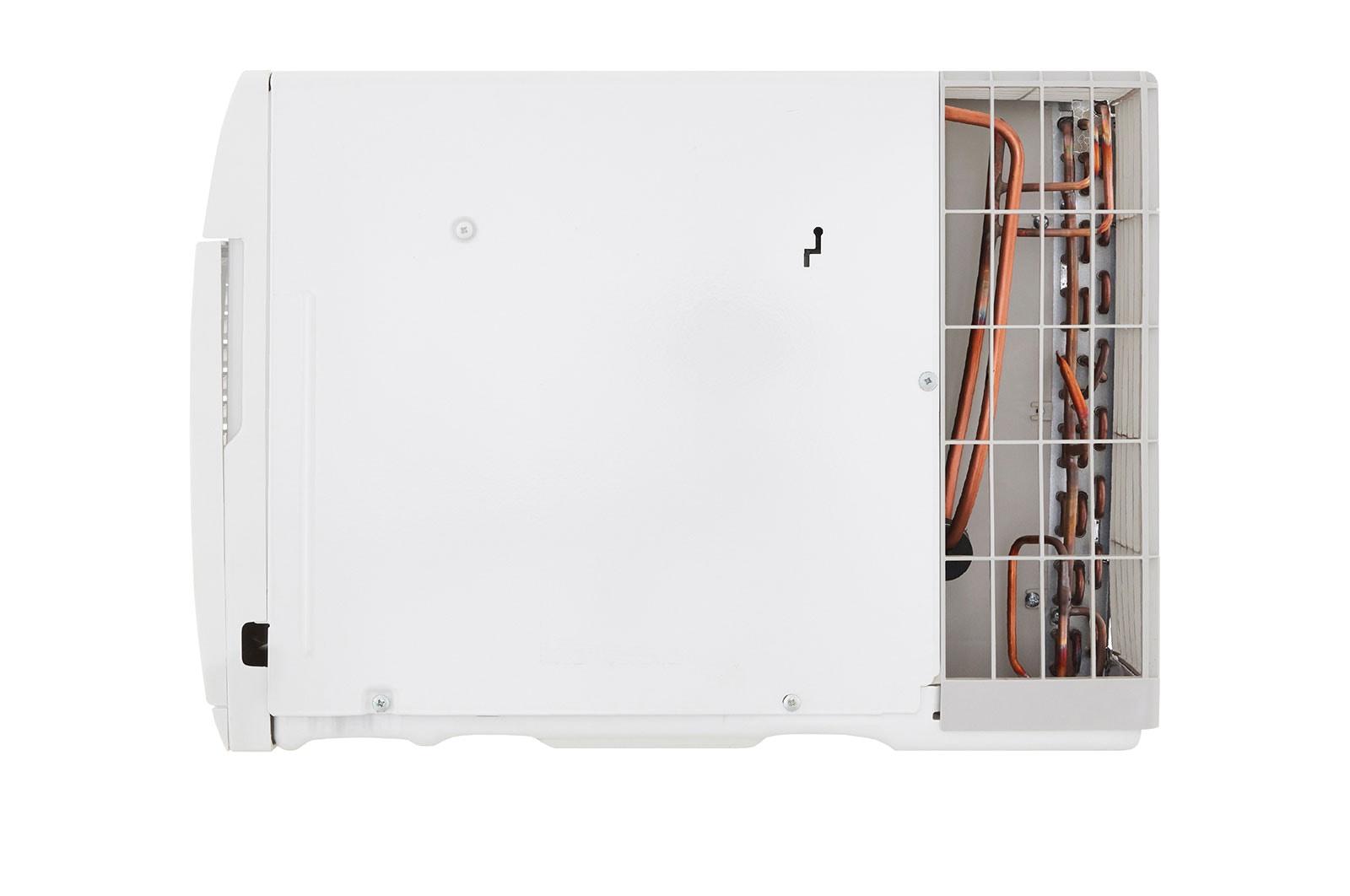

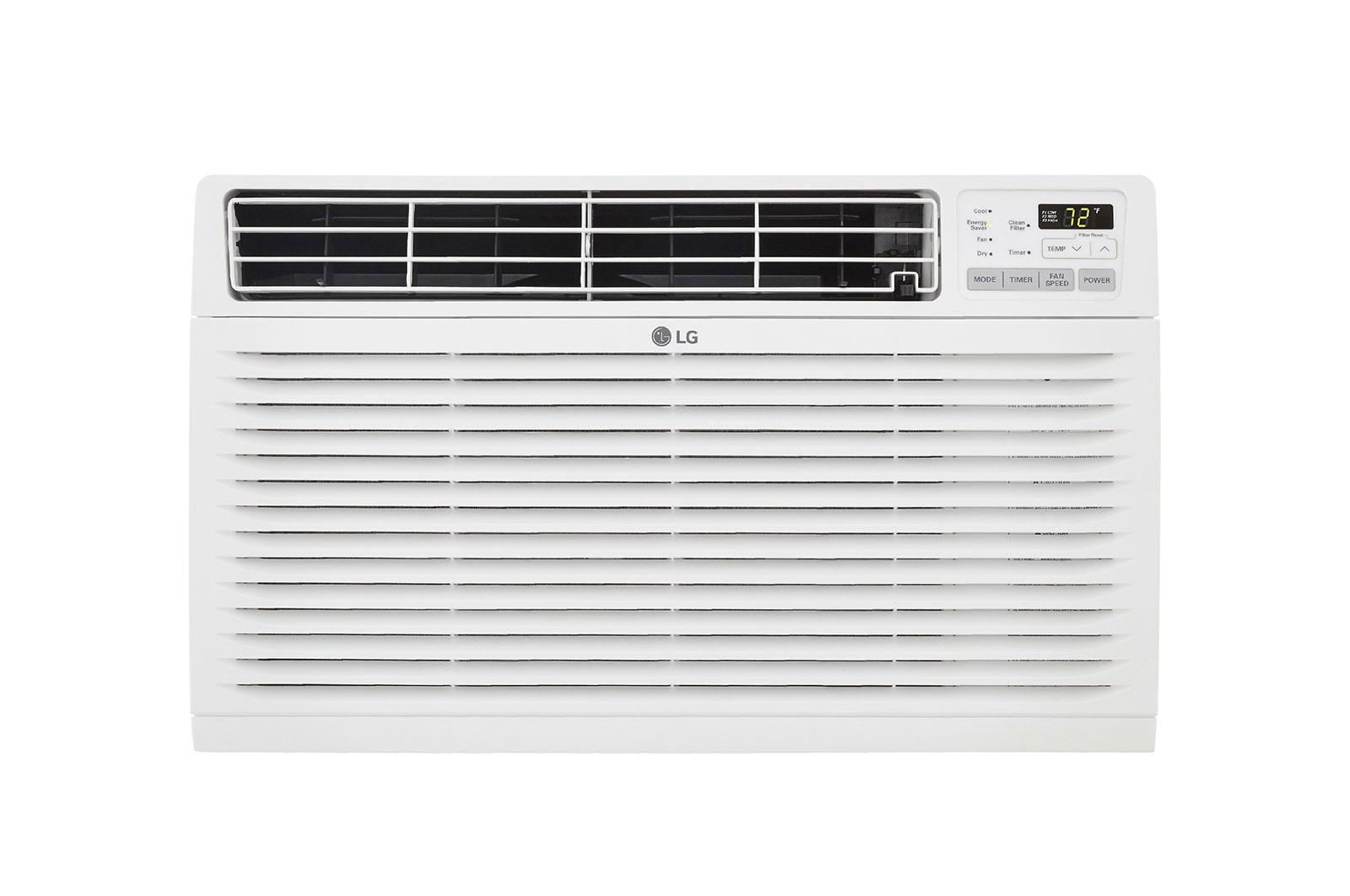

            10,000 BTU 230v Through-the-Wall Air Conditioner with Heat

          | Compressor | |
| Compressor | Rotary |
| Dimensions/Weight | |
| Net Weight (lbs.) | 78 lbs |
| Product Dimension (WxHxD) | 240" x 14.41" x 209" |
| Shipping Dimension (WxHxD) | 27.72" x 17.41" x 22.41" |
| Shipping Weight (lbs.) | 90 lbs |
| Electrical Ratings | |
| Rated Amps (Cooling) | 5.1/4.7 |
| Rated Amps (Heating) | 14.0/15.3 |
| Voltage / 60 Hz | 208/230V |
| Watts (Cooling) | 1, 000/1, 020 |
| Watts (Heating) | 2, 900/3, 500 |
| Features | |
| Air Deflection | 4-Way |
| Air Discharge Type | Top Discharge |
| Air Filter | Washable |
| Auto Restart | Yes |
| Chassis Type | Top Down |
| Energy Saver Function | Yes |
| Fan Speed Cooling | 2 |
| Fan Speed Heating | 2 |
| Fan Speed Only | 2 |
| Filter Alarm Function | Yes |
| Indoor Fan Type | Turbo |
| Outdoor Vent / Exhaust | Yes |
| Remote Control | Yes |
| Thermostat Control | Thermistor |
| Timer | 24 Hr, On/Off |
| Window Installation Kit | Yes |
| Materials/Finishes | |
| Color | White |
| Performance | |
| BTU Performance | 10, 000 |
| BTU performance (Cooling) | 9,800/10,000 |
| BTU Performance (Heating) | 9, 200/11, 200 |
| CEER | 9.7/9.7 |
| dBA Level (Indoor / Outdoor) | 56/63 |
| Dehumid. (Pts/Hr) | 3.2 |
| Dry Air Flow (CFM) | 285 |
| EER | 9.8 |
| Est. Cooling Area (Sq. Ft.) | 450 |
| Summary | |
| Type | Through-the-Wall Air Conditioner |
| UPC Codes | |
| UPC | 048231382274 |
| Warranty | |
| Parts & Labor | 1 Year Parts and Labor |
