- LG STUDIO ThinQ Offer: Enjoy a 3-year limited warranty on select appliances purchased through December 31, 2025 via the ThinQ® app. Terms apply.

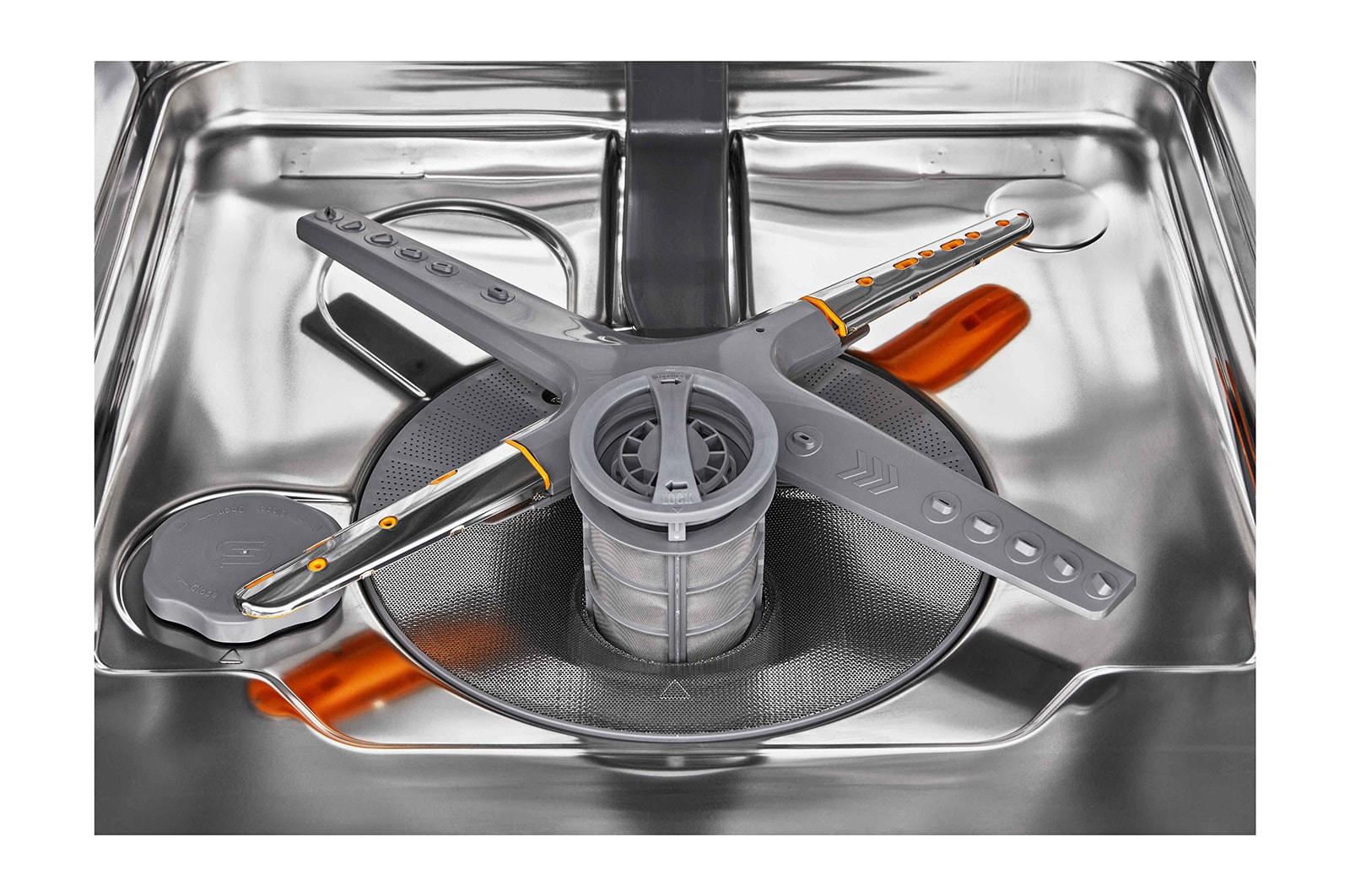

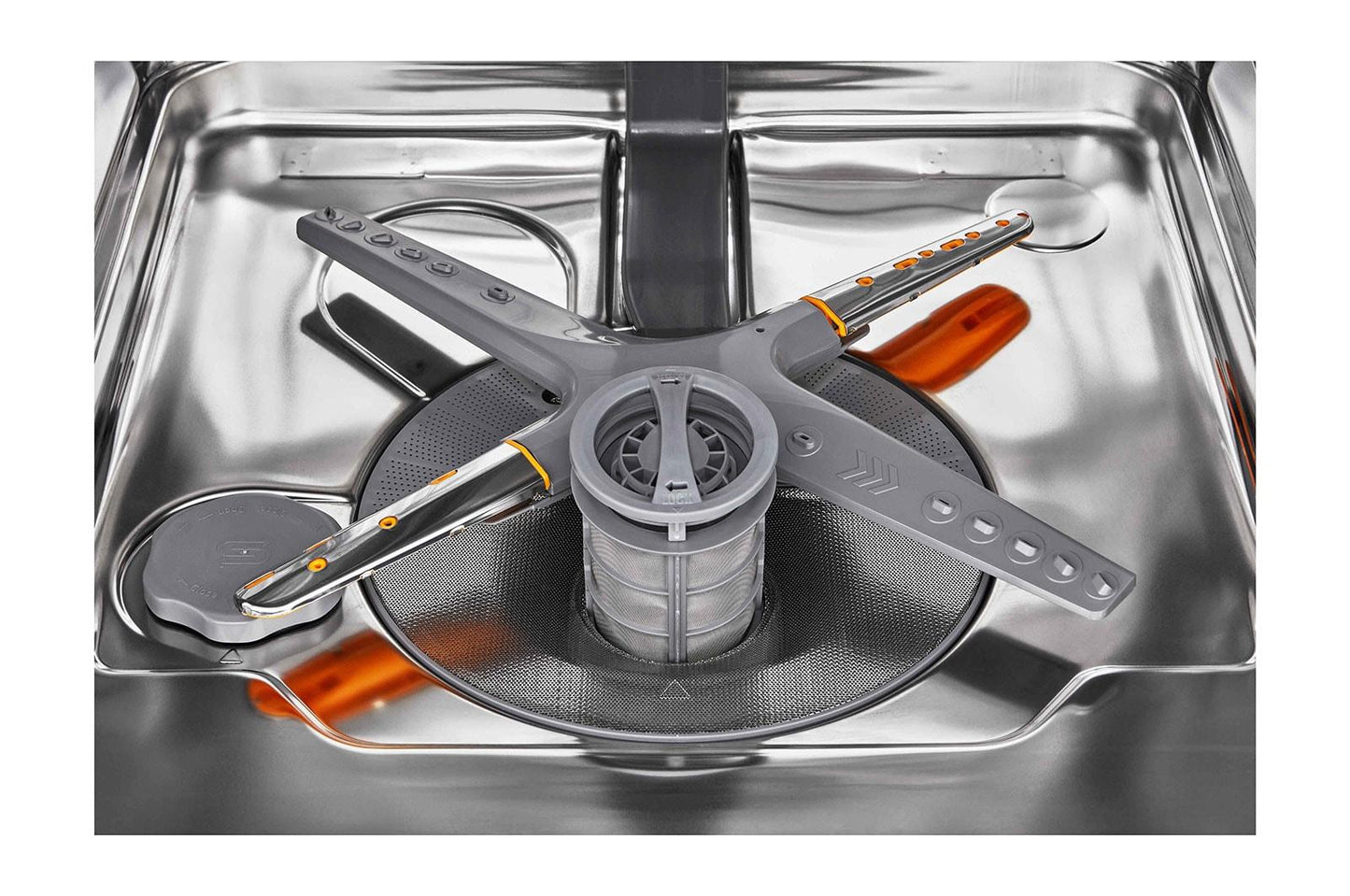

- QuadWash® technology gives you a spotless clean

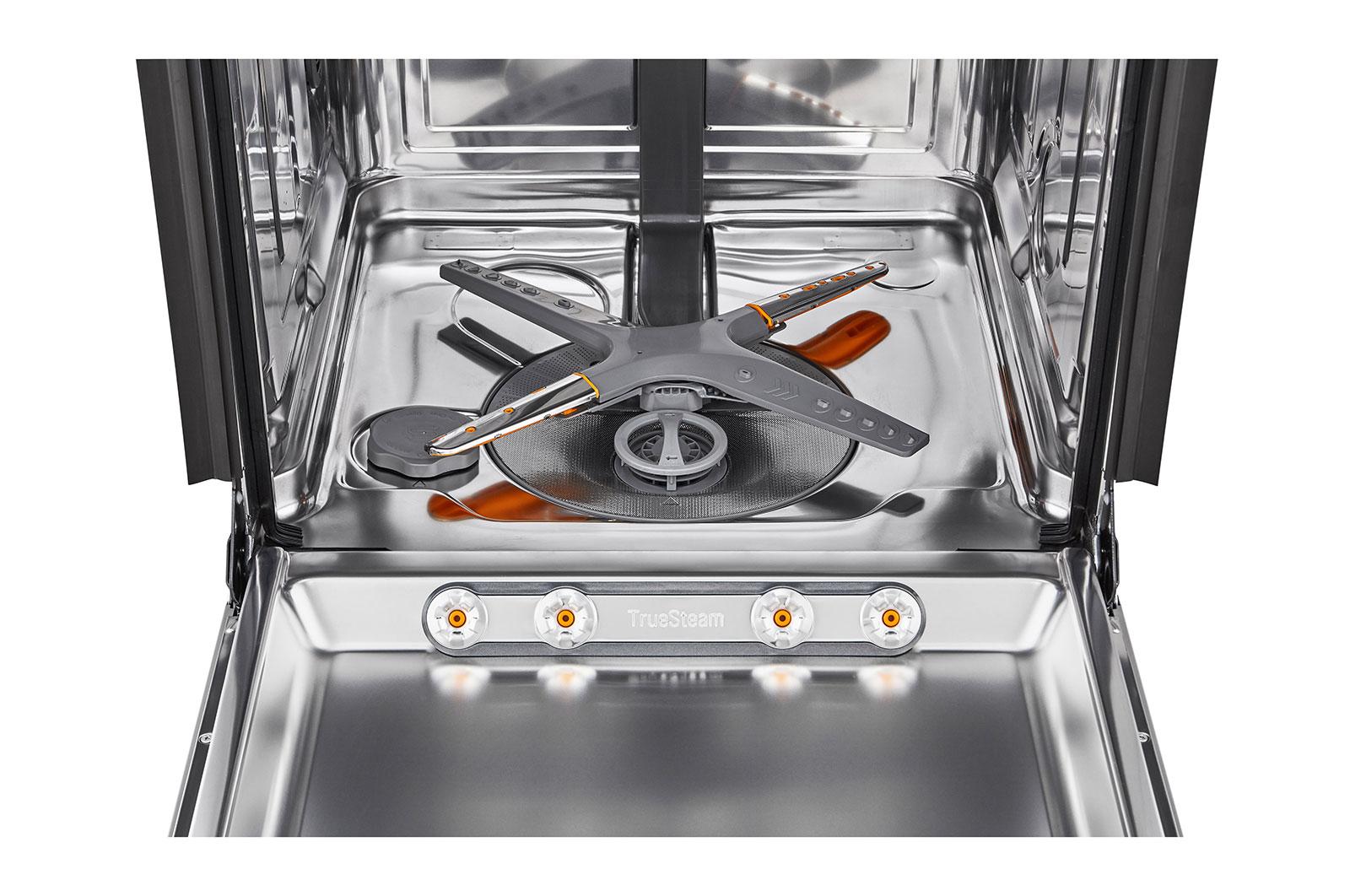

- TrueSteam® helps get rid of water spots for gorgeous results
- LoDecibel™ operation (45db) won't infringe on your style

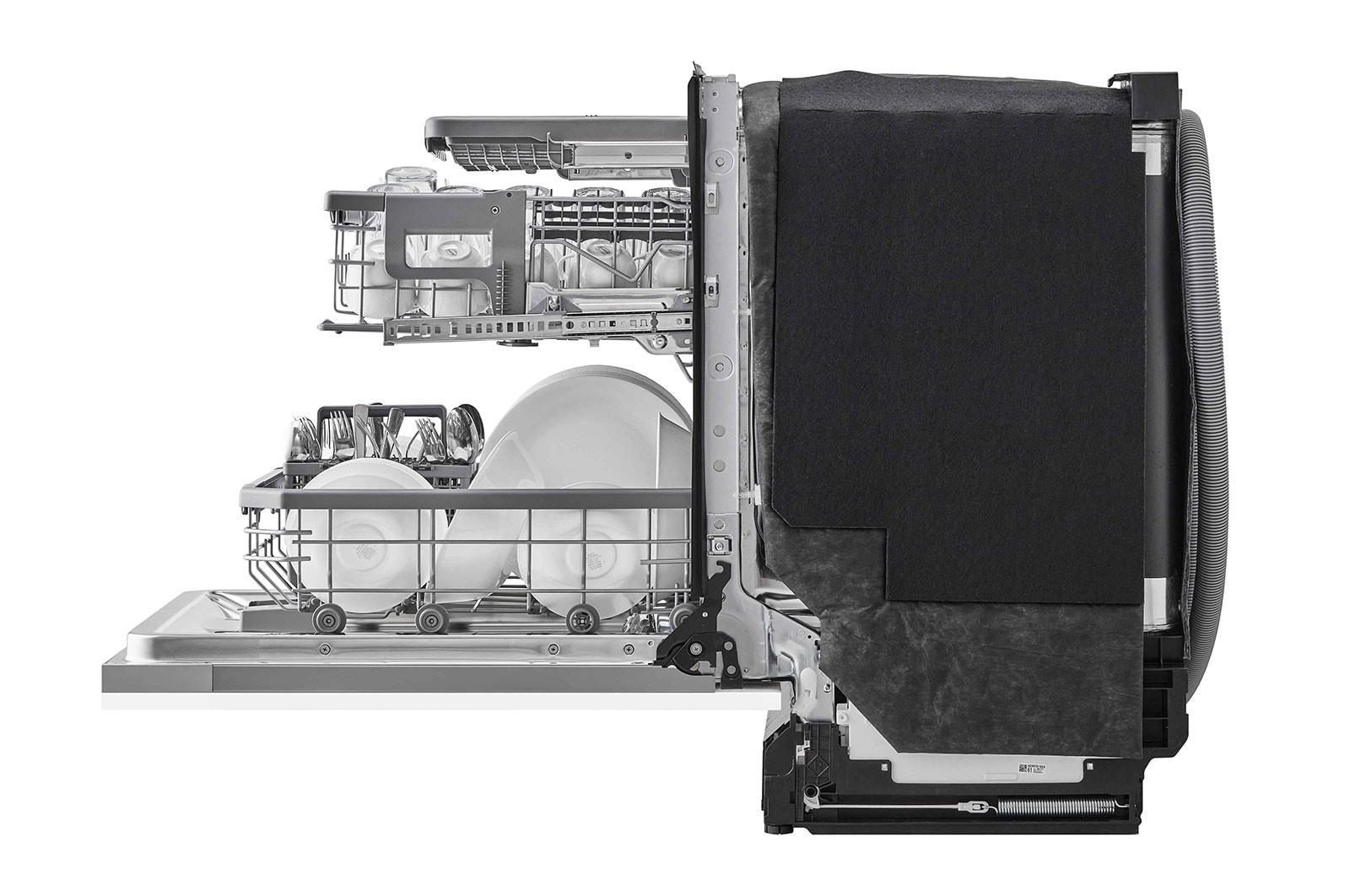

- EasyRack™ Plus makes loading easier with added flexibility
- Height adjustable 3rd rack add flexibility to every load of dishes

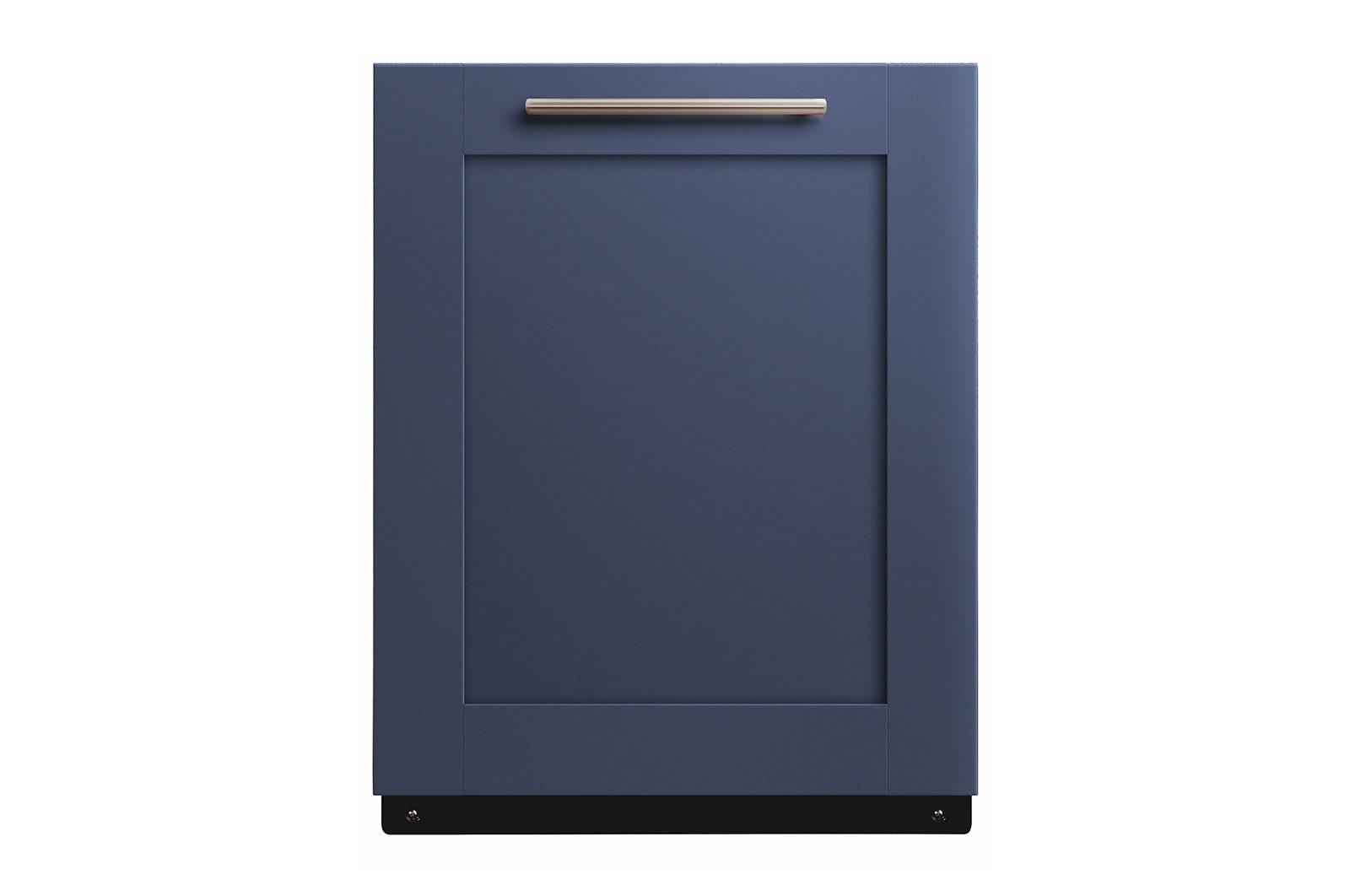

- Panel ready design can match your existing cabinetry for a seamless look
- ThinQ® Technology with ThinQ Care gives extra peace of mind

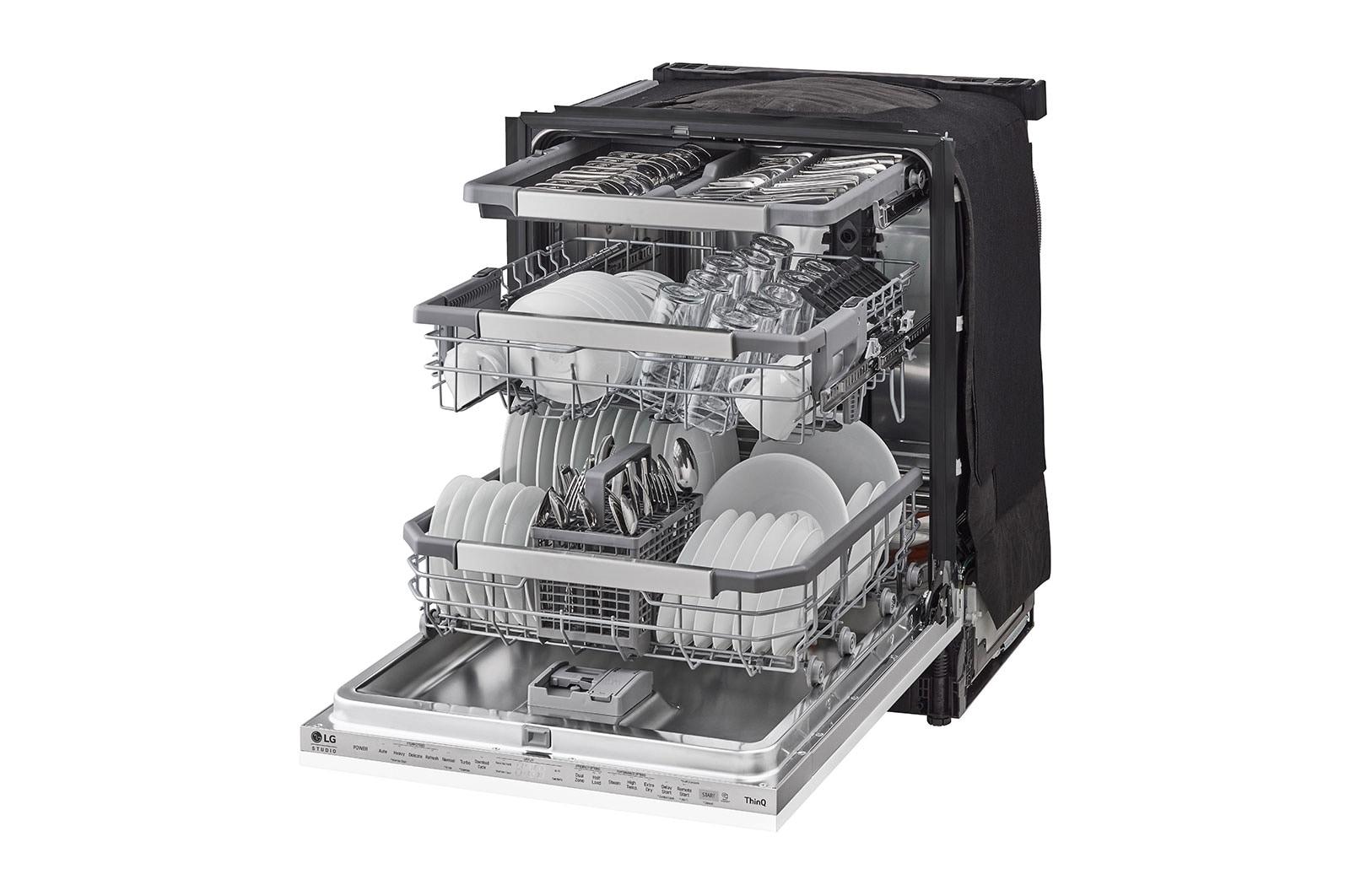

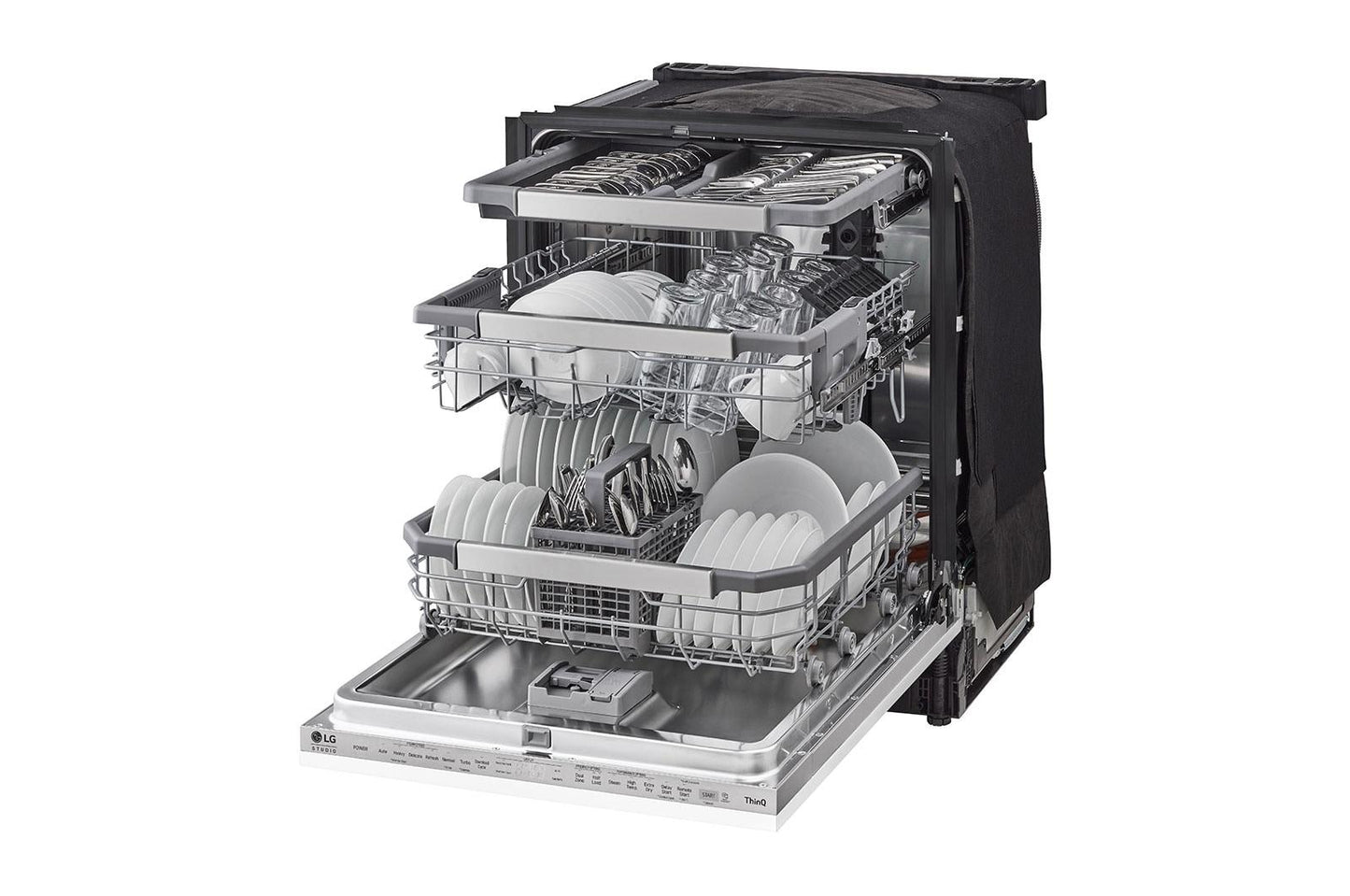

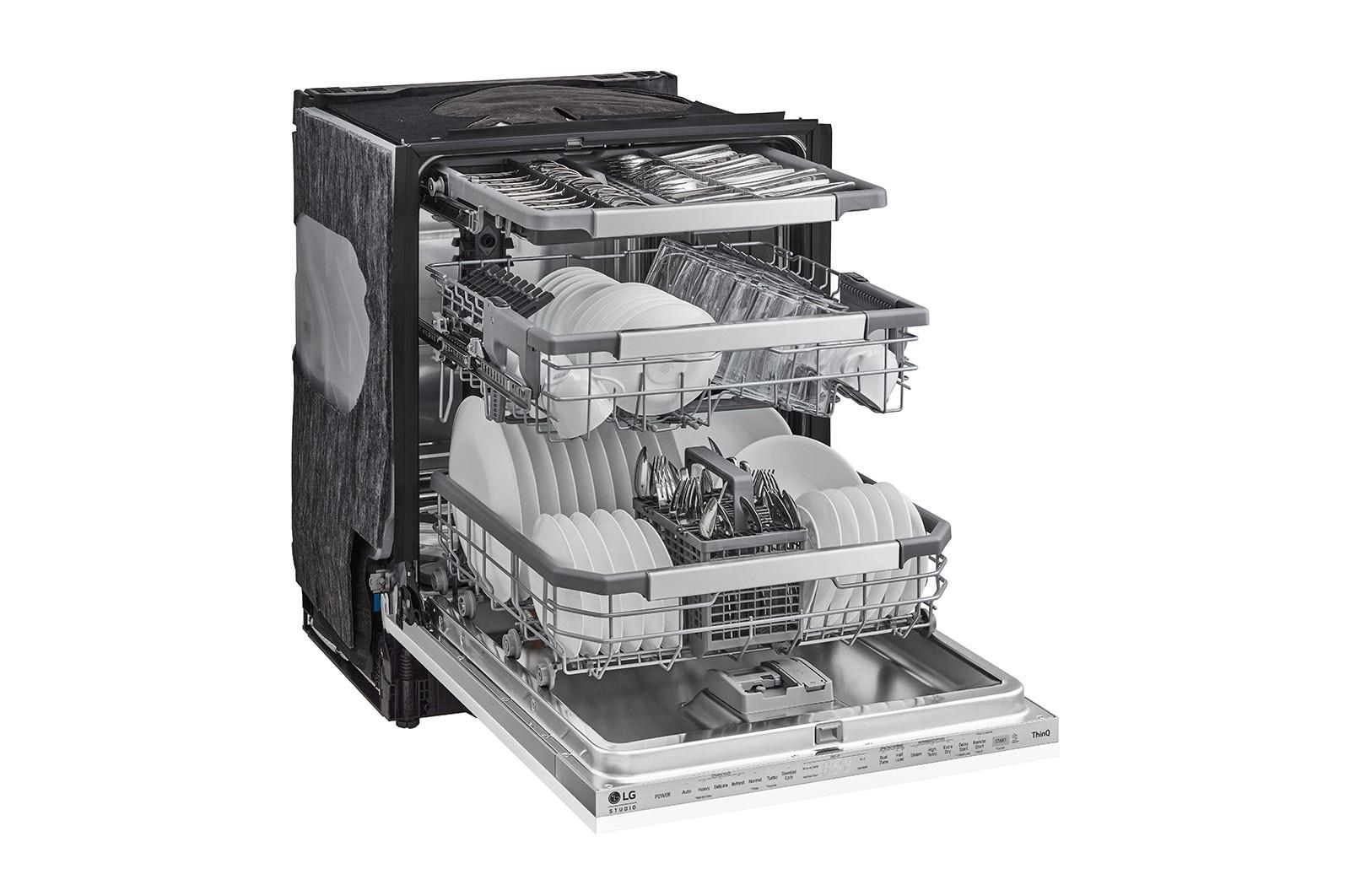

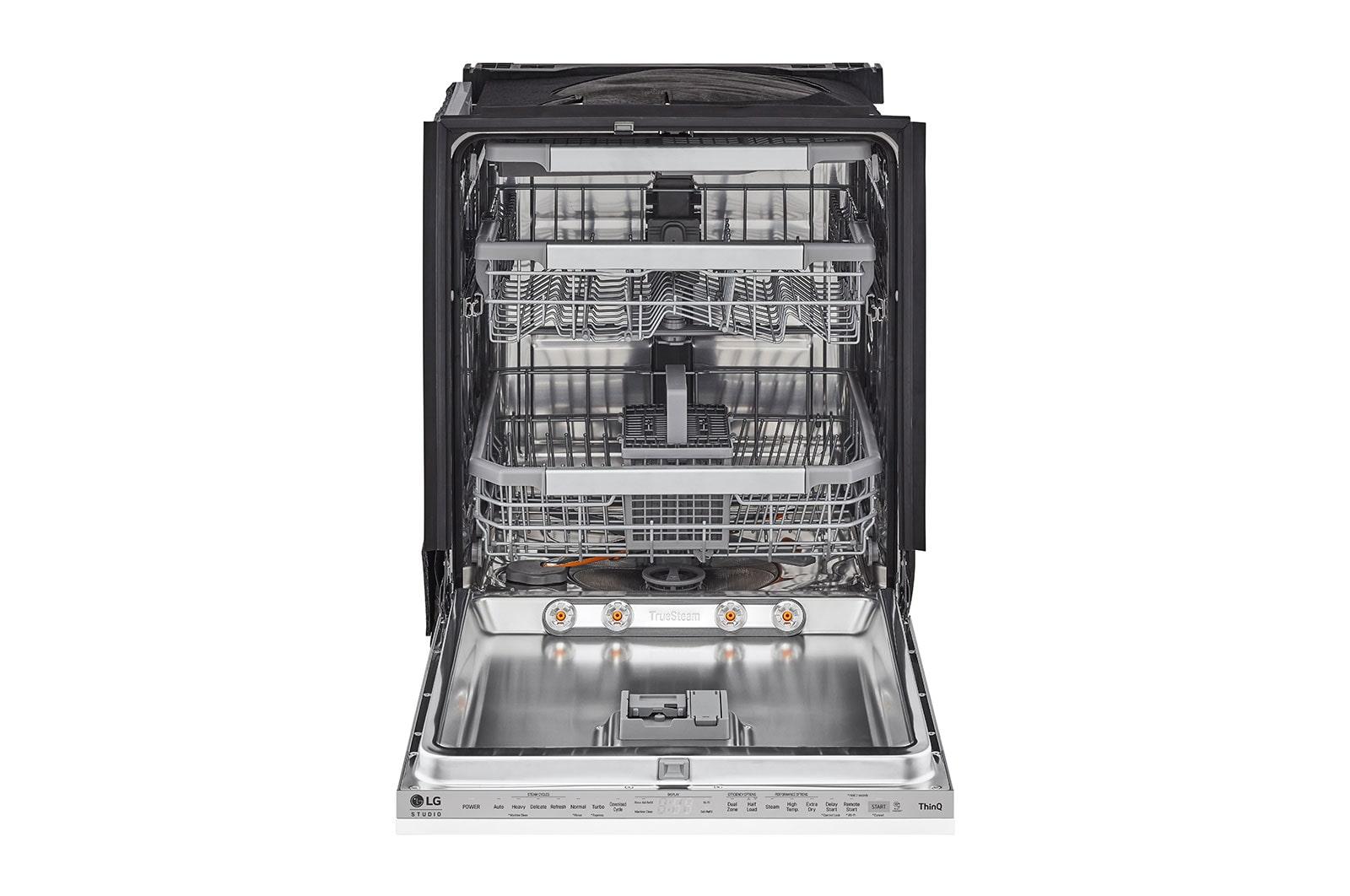

LG STUDIO Panel Ready Top Control Dishwasher with TrueSteam®
| Capacity | |
| Lower Rack Dish Height Limit | 11.8" |
| Total Place Settings | 14 |
| Upper Rack Dish Height Limit | 6.5" |
| Certifications | |
| NSF | No |
| Dimensions/Clearances/Weight | |
| Carton Dimensions (in) (W x H x D) | 27 3/4'' x 33 7/8'' x 27 3/4'' (705 x 860 x 705mm) |
| Depth with Door Closed with Handle (in) | 21.0875" |
| Depth with Door Open (in) | 48" |
| Product Dimensions (in) (W x H x D) | 23 1/2'' x 32 1/16'' x 21 7/8'' (598 x 815 x 554mm) |
| Product Weight (lbs) | 99 lbs |
| Shipping Weight with Carton (lbs) | 99 lbs |
| Features | |
| QuadWash® Pro | Yes |
| 3-Stage Filtration System | Yes |
| ADA Compliant | No |
| Balanced Door | Yes |
| Detergent and Rinse-Aid Dispenser | Yes |
| Drying System | Dynamic Dry™ |
| End of Cycle Indicator | Beeper + END Indication on Display |
| Hidden Water Heater | Yes |
| Hybrid Condensing Drying System | No |
| Inverter Direct Drive Motor | Yes |
| LoDecibel™ Quiet Operation | 45dBA |
| Multi-Level (5) Water Direction | No |
| Number of Options | 9 (Dual Zone, Half Load, Steam, High Temp, Extra Dry, Delay Start, Control Lock, Night Dry, Remote Start) |
| Number of Spray Arms | 40 |
| Number of Wash Cycles | 10 (Auto, Heavy, Delicate, Refresh, Normal, Turbo, Download Cycle, Machine Clean, Rinse, Express) |
| Leak Detection | Yes |
| Rinse-Aid Indicator | Yes |
| Safety Float Switch (Leaks) | Yes |
| SenseClean™ Wash System | Yes |
| Soil (Turbidity) Sensor | Yes |
| Time Remaining Indicator | Yes |
| TrueSteam® | Yes |
| Variable Spray Intensities | Yes |
| Vario Wash | Yes |
| Dynamic Heat Dry™ | No |
| 1-Hour Wash & Dry | No |
| Limited Warranty | |
| Control Board and Rack Parts | 5 Years |
| Direct Drive Motor | 10 Years |
| Labor | 2 Years |
| Parts | 2 Years |
| Stainless Steel Door Liner or Tub | 5 Years |
| UPC | 195174053126 |
| Power Ratings | |
| CEE Tier | 1 |
| ENERGY STAR® Qualified | Yes |
| Energy Use (kWh/Year) | 238 |
| Water Factor (WF) | 2.9 |
| Racks and Baskets | |
| 3rd Rack (Fixed) | No |
| BPA-Free Nylon Coated Racks and Tines | Yes |
| Cup Rack | Yes |
| Cutlery Baskets | Yes |
| EasyRack™ Plus System | Yes |
| Fold Down Tines | Yes (Full Fold on Upper & Lower) |
| Glide Rail | Yes |
| Height Adjustable Middle Rack | Yes |
| Height Adjustable Upper Rack | Yes |
| Height-Adjustable 3rd Rack | Yes |
| Rack Handle | Yes |
| Stemware Holder | Yes |
| Wheel Bearing | Yes |
| Style and Design | |
| All Available Colors | Noble Grey |

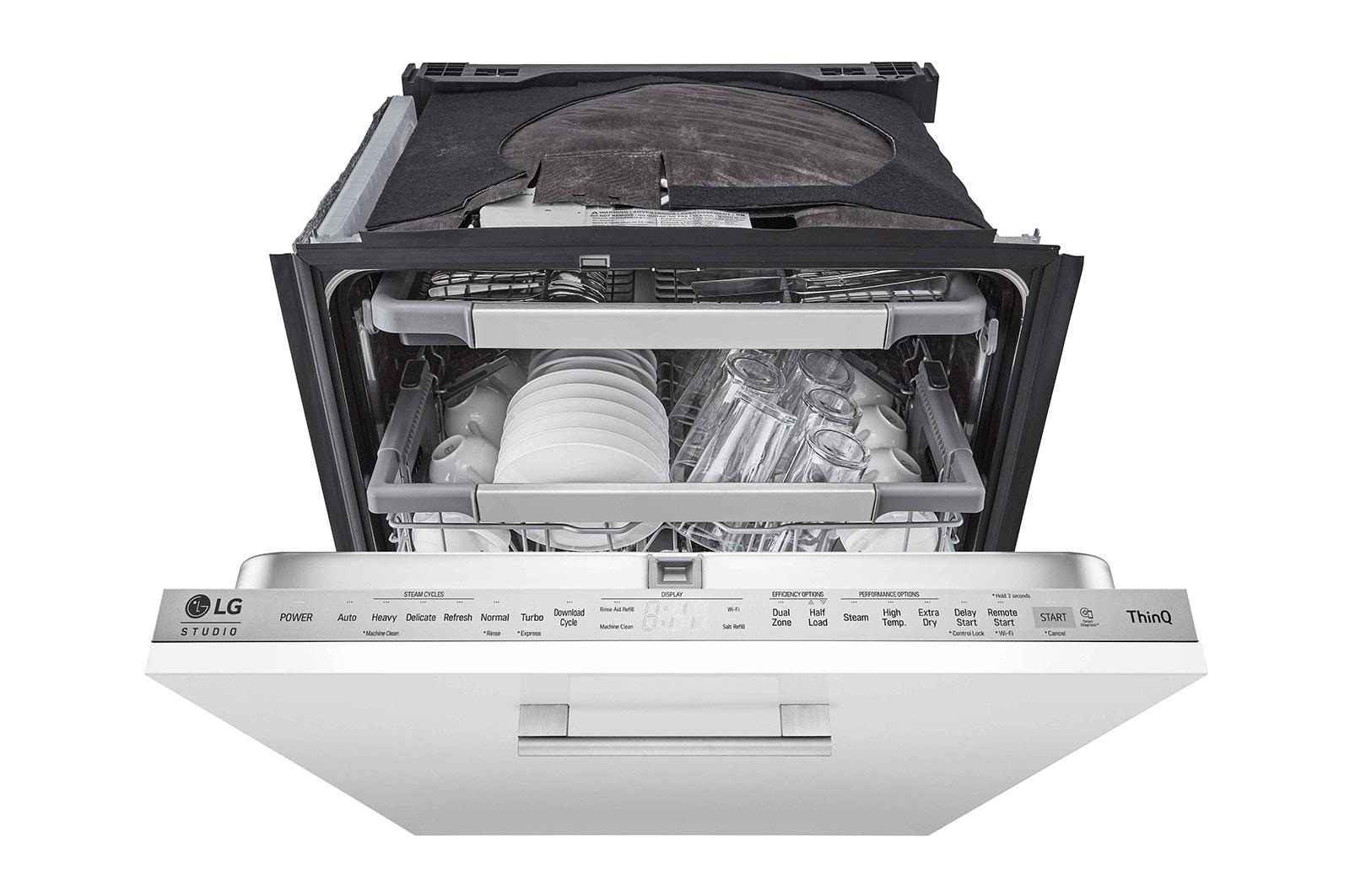

| Control Panel Location | Top Control |
| Electronic Controls | Fully Integrated Control Panel |
| Fingerprint Resistant | No |
| Handle | Bar |
| LED Tub Light | Yes |
| PrintProof™ Finish | No |
| Tub Light | Yes |
| Tub Material | NeveRust™ Stainless Steel |
| Summary | |
| Series | LG STUDIO |
| Dishwasher ThinQ® Smart Features | |
| Monitor Cycle Time | No |
| ThinQ Care™ | Yes |
| NFC Tag On | No |
| Remote Control | Yes |
| Remote Monitoring | Yes |
| SmartDiagnosis™ | Yes |
| SmartThinQ® | Yes |
| ThinQ® Smart Technology | Yes |
| wi-fi Enabled | Yes |
| ThinQ UP™ | No |
