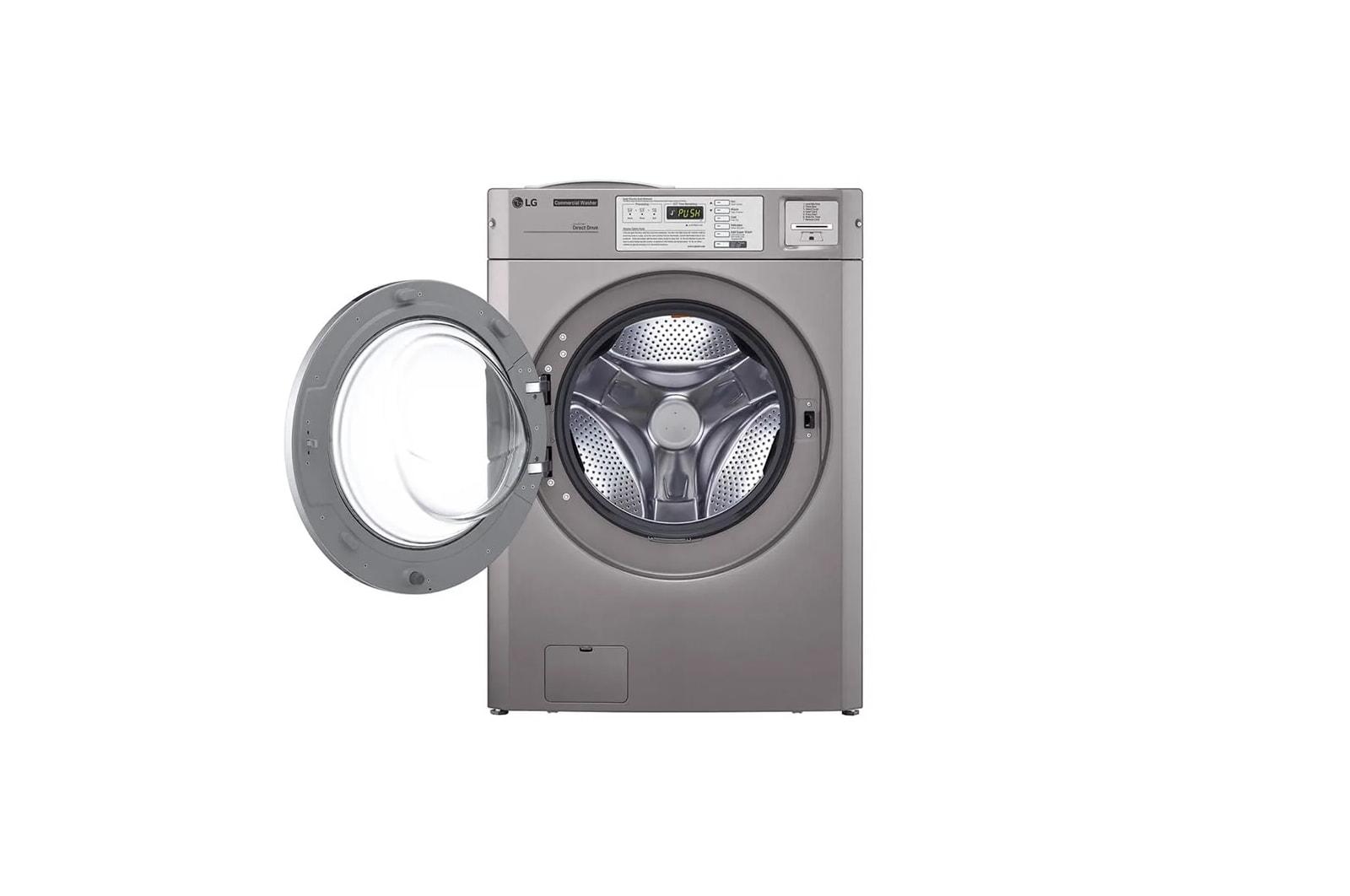

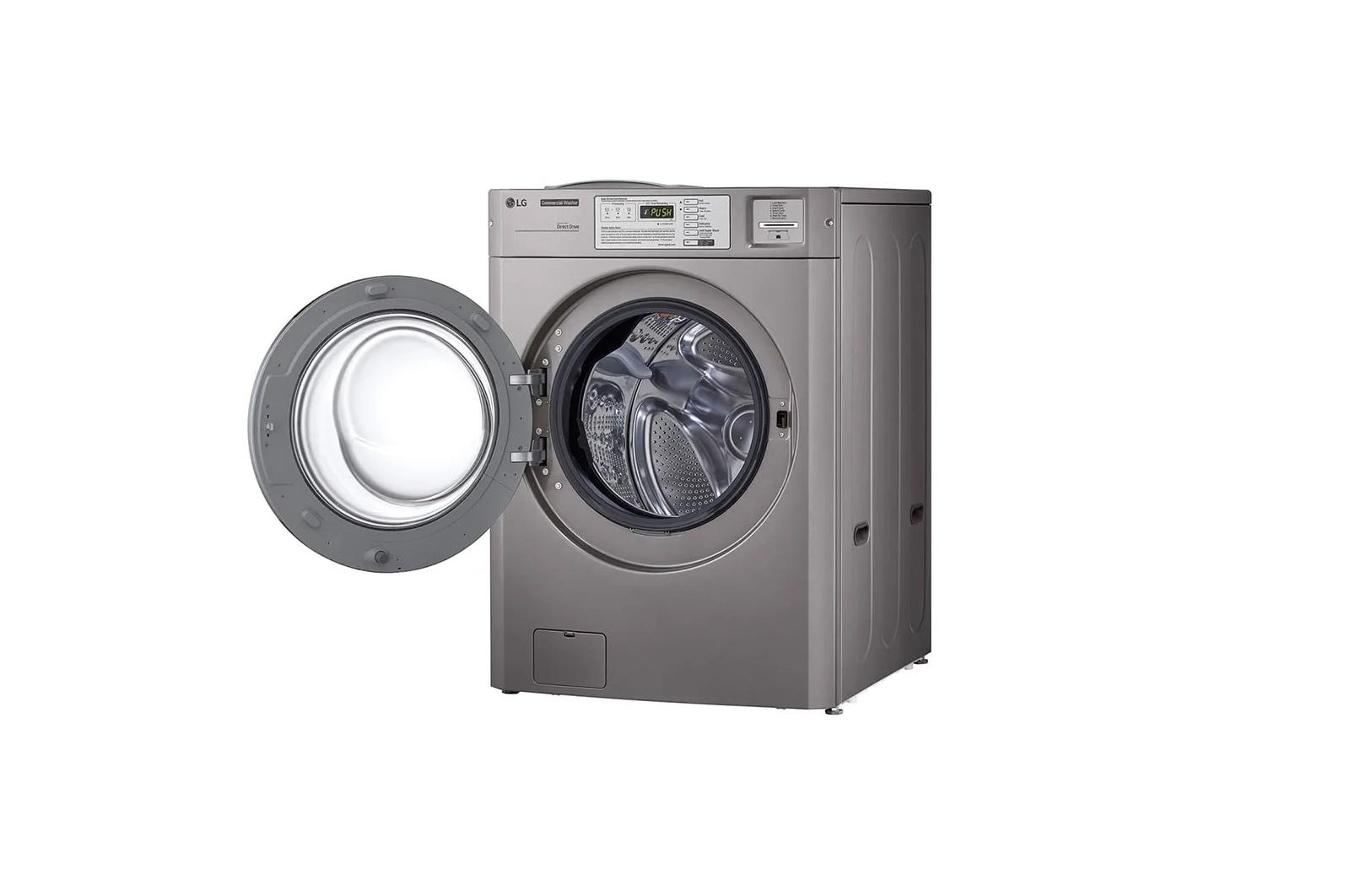

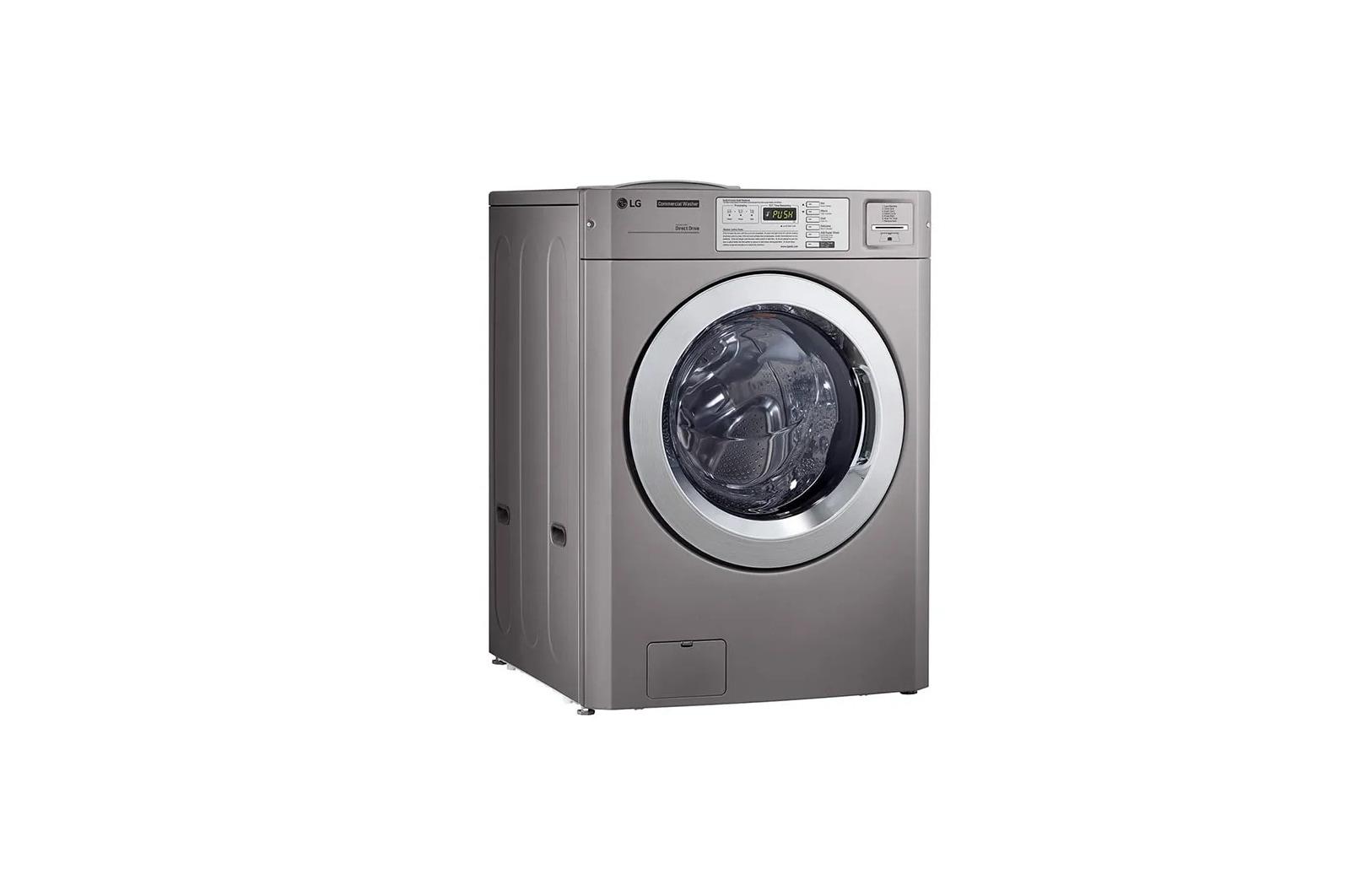

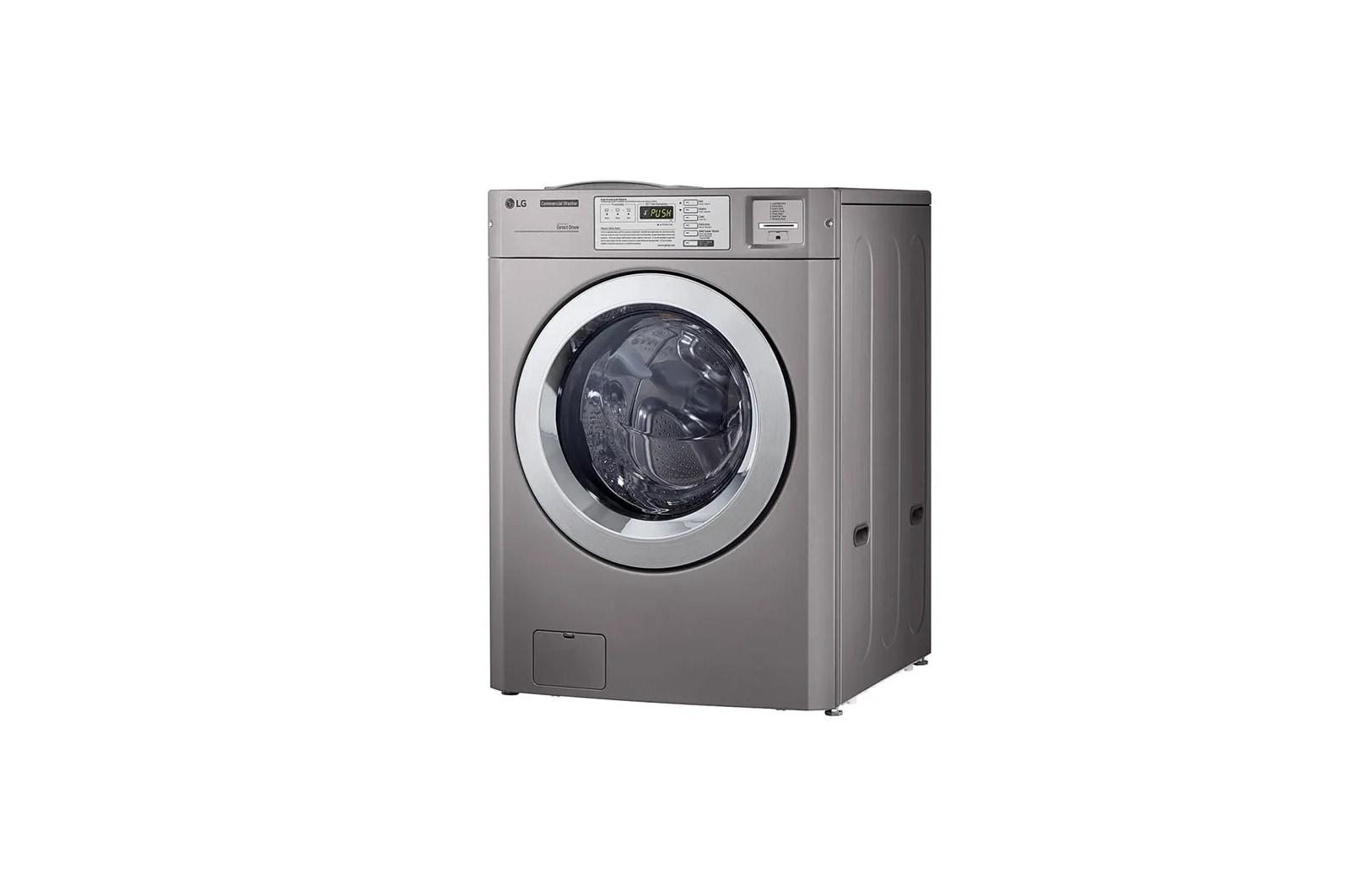

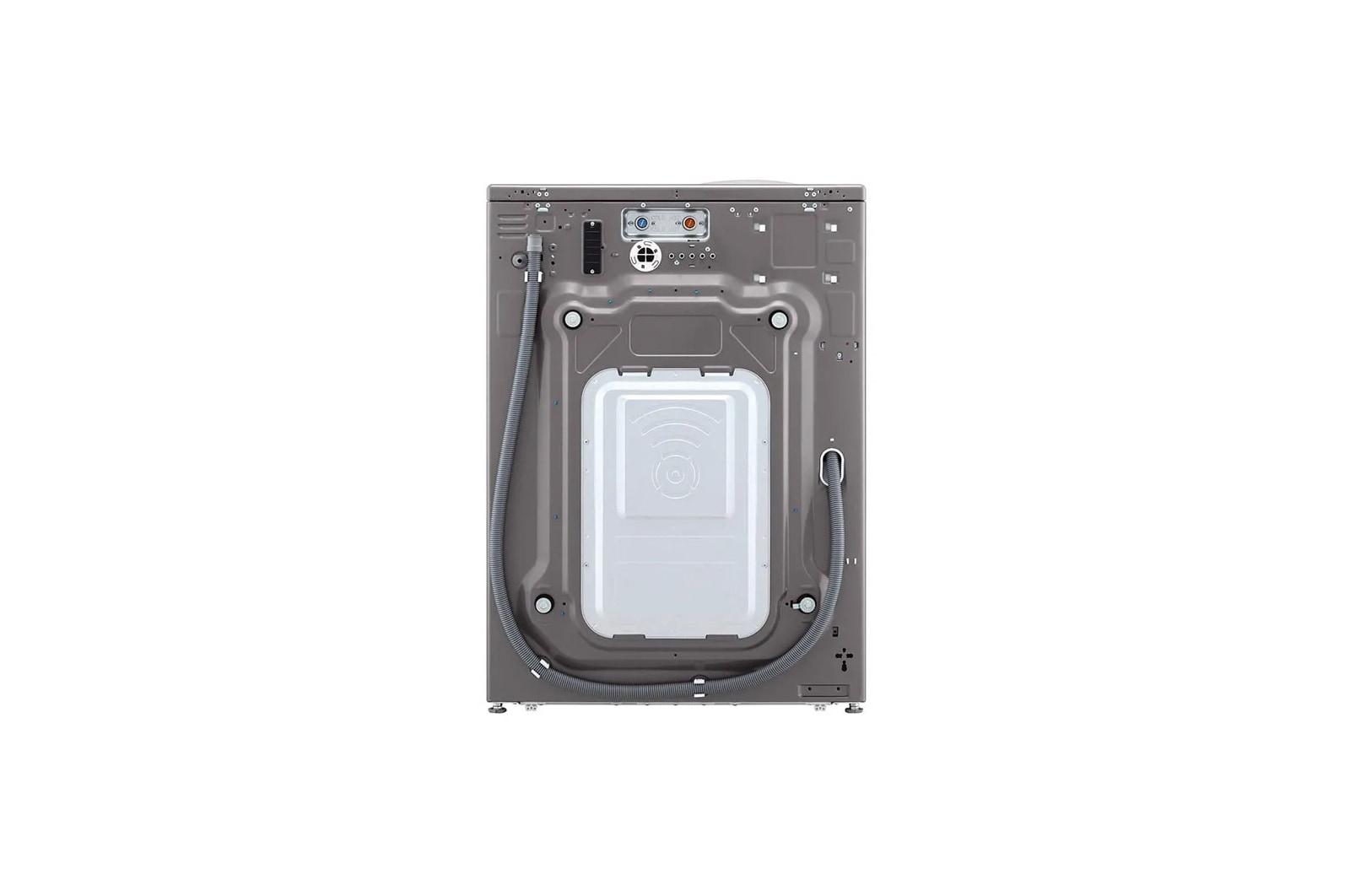

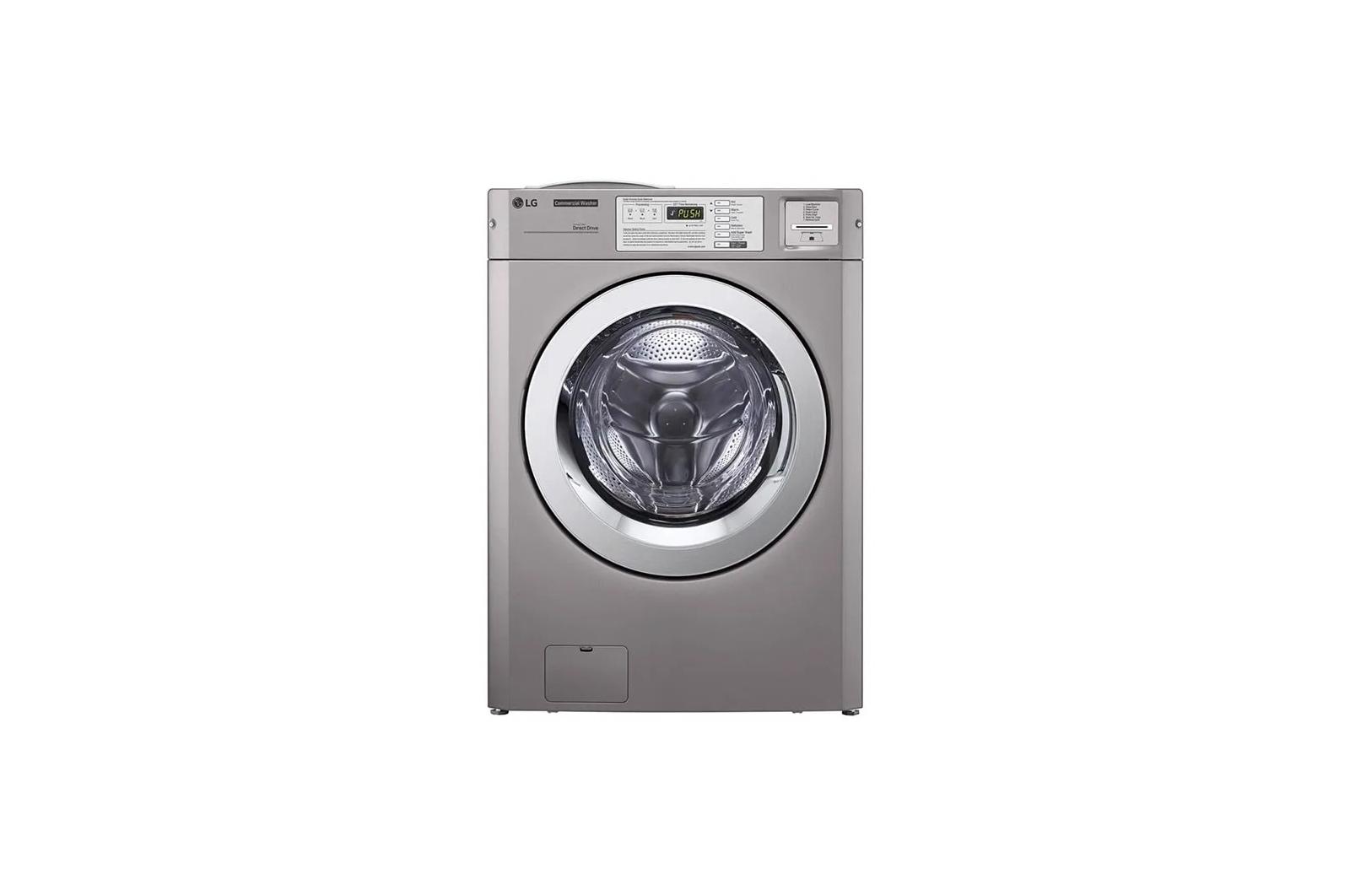

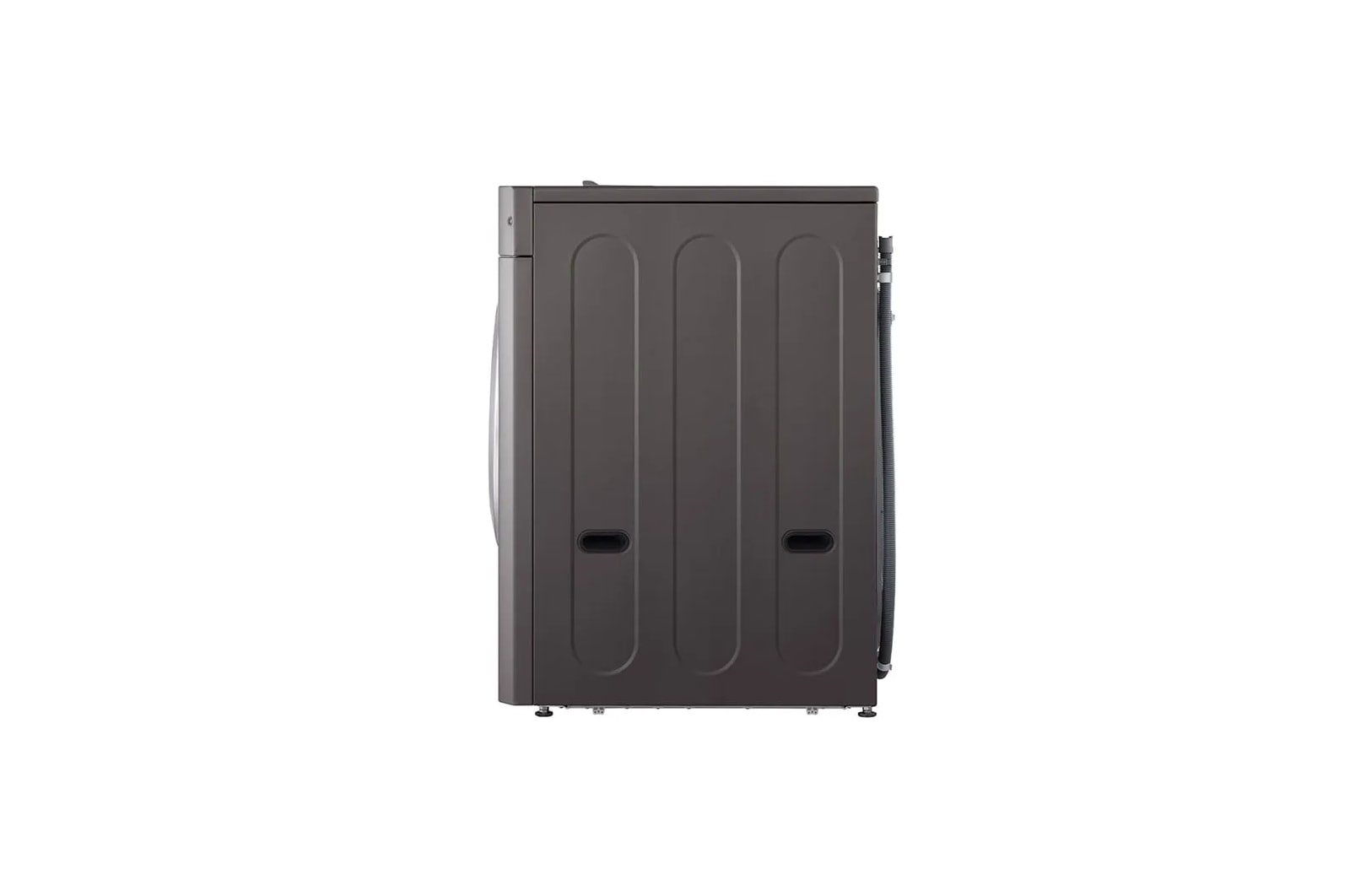

Lg TCWM2013QS3 5.2 cu.ft Large Capacity Frontload Washer
Lg TCWM2013QS3 5.2 cu.ft Large Capacity Frontload Washer
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Large Capacity
- Inverter Direct Drive™
- Multi Heat Treatment
- Premium Powder Coating
- Atomizing & Twin Spray

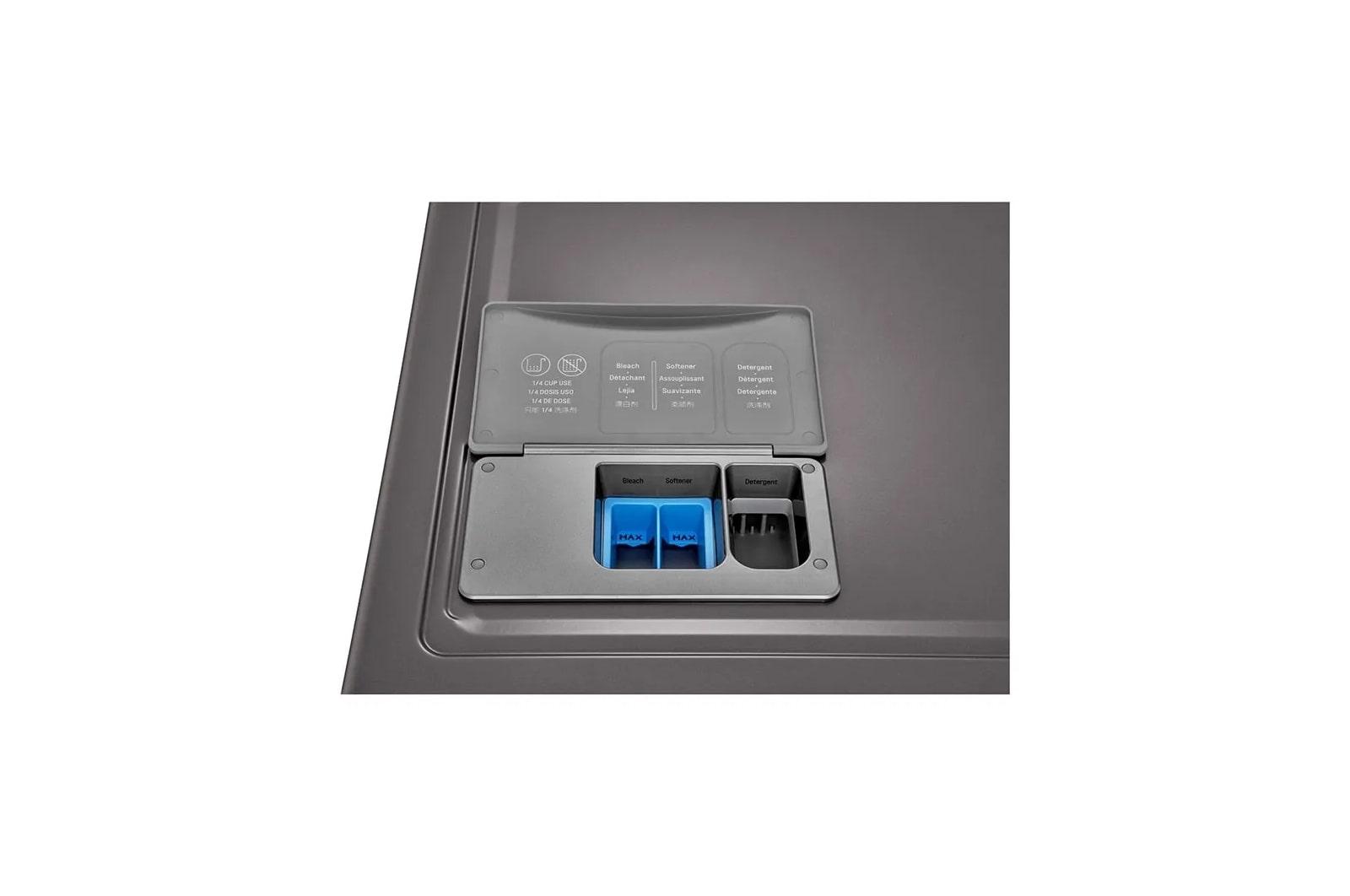

- Auto Dosing System
5.2 cu.ft Large Capacity Frontload Washer
| Dimensions | |
| With Door Open - in. (mm) | 53 (1,370) |
| Carton (WxHxD) - in | 31 x 44.3 x 33.3 |
| Carton (WxHxD) - mm | 788 x 1,125 x 846 |
| Weight (Product/Carton) - lb (kg) | 221.8 (100.6)/248 (112.5) |
| Product (WxHxD) - mm | 737 x 1,036 x 814 |
| Product (WxHxD) - in | 29 x 40.8 x 32 |
| *CONSUMPTION INDEX ? | |
| Water - gal (l) | 17.7 (67.0) |
| Electricity - kWh/cycle | 0.084 |
| Circuit Protection | |
| PCB Fuse - Main Control Board - amps | 12 (220~240 V) |
| Main PCB MICOM | T370 |
| PCB Fuse- Filter Assembly - amps | 15 |
| Cylinder | |
| Diameter - in. (mm) | 24 (610.8) |
| Depth - in. (mm) | 20.4 (518.1) |
| Drum Volume - cu.ft (l) | 5.2 (147) |
| External Finish | |

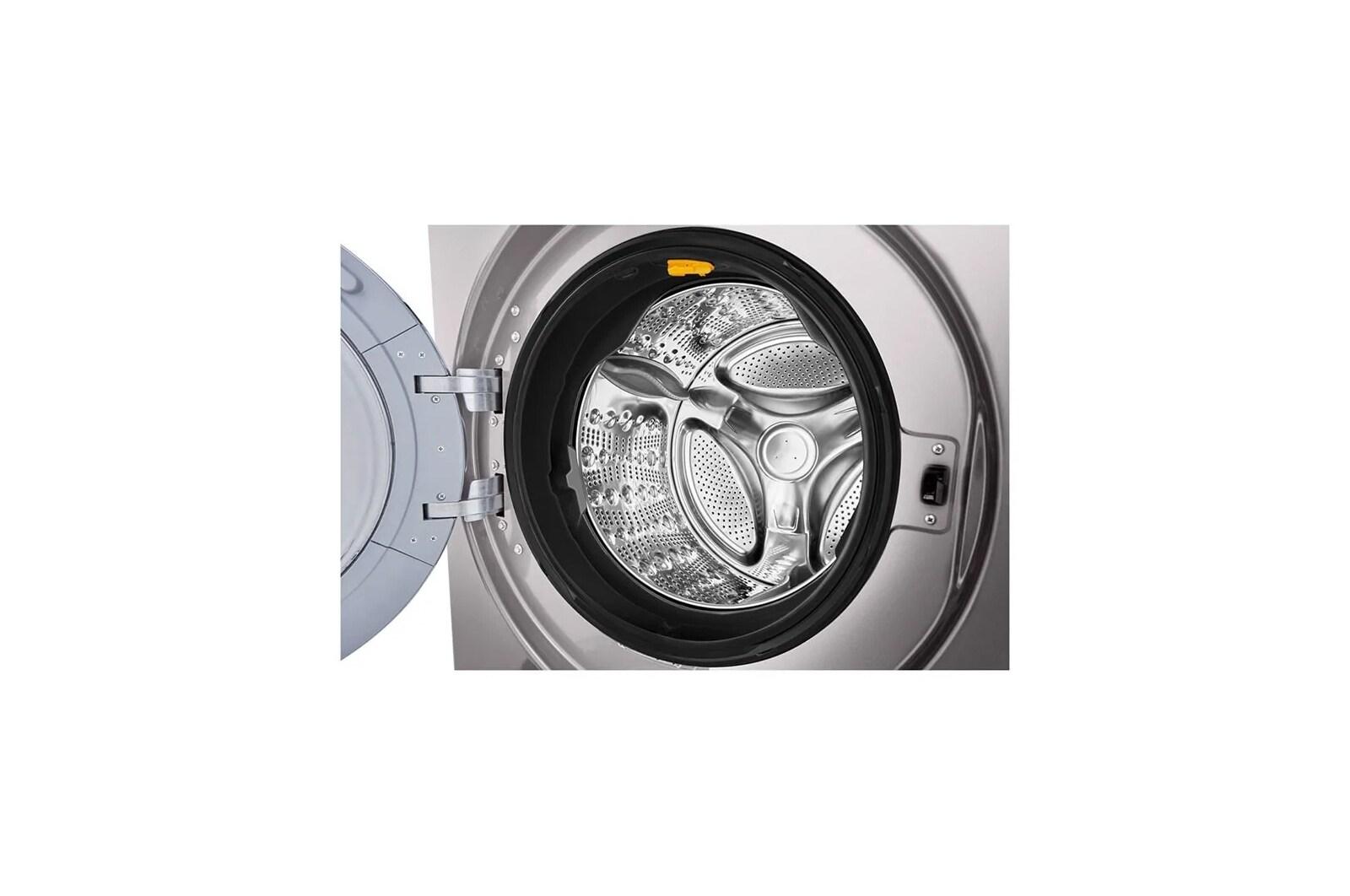

| Drum | Stainless Steel |
| Noise & Cycle Time | |
| Program Duration in Minutes (Default) - min | 37 |
| Noise Level (Sound Power) - dB | Lower than 62 |
| Programs | |
| Program List | Hot, Warm, Cold, Delicates, Add Super Wash (Card & Coin)/20 Custom PGM (OPL) |
| Rating | |
| Electric Ratings - V/Hz/A | 120/60/5, 220~240/50/5, 220/60/5 |
| Speed | |
| Extract (High Speed) - Max RPM | 980 |
| Wash - RPM | 46 |
| G-force - G | 327 |
| System & Control | |
| Drain System | Gravity Drain/Pump Drain* (NA Only) |

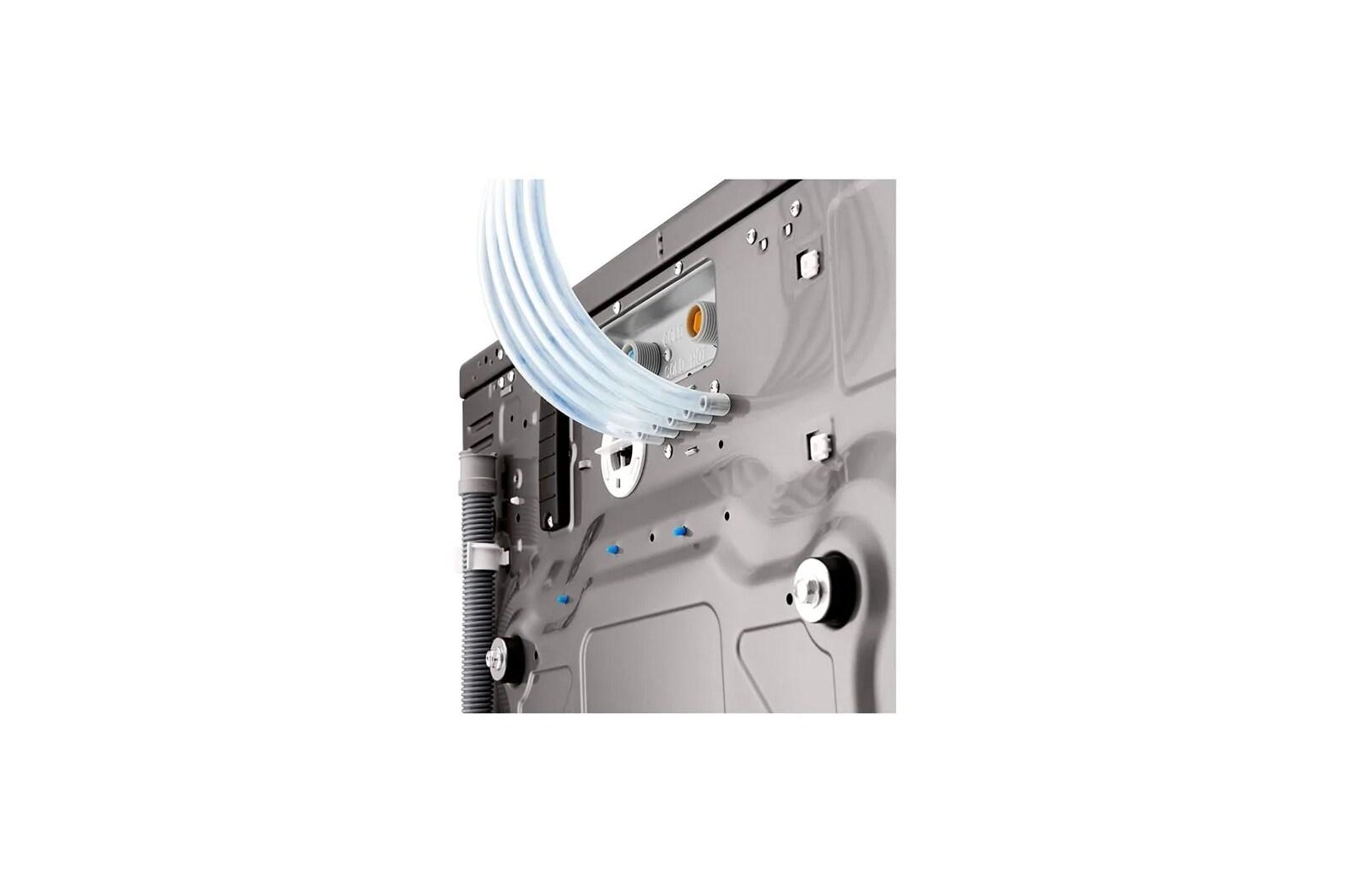

| Auto Dosing Interface | Yes |
| Inverter Direct Drive Motor | Yes |
| Heating Element - W | 120V 1,000 (Only for Tub Clean), 220V 2,000 (Only for Tub Clean) |
| Damper | 4 Friction Dampers |
| Inlet Valve | AC |
| Emergency Stop Button | Yes (OPL Only) |
